◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51040 - NKR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-25 - INLET MANIFOLD ▶
0-25 — INLET MANIFOLD (#23159) — 98 parça

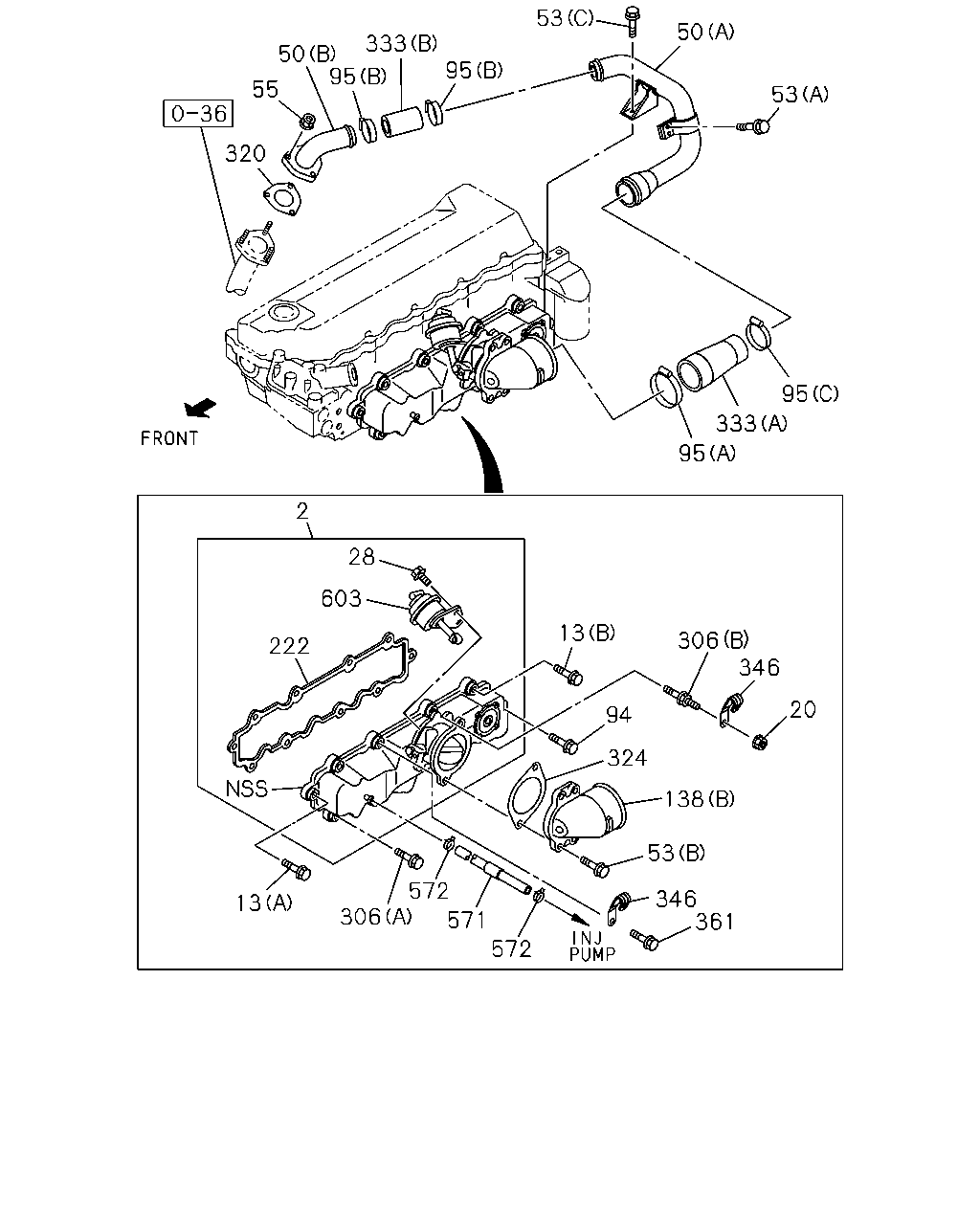

çizim 118790
53 50 333 95 50 95 55 53 320 95 333 95 2 28 603 13 306 346 222 20 94 324 138 53 572 346 361 13 306 571 572
BalonParca AdiParca NoAdetTipApplied Date A B
2 COVER; INL 8-97212-454-3 01 1 0508- ●
13 BOLT; INL MANIF
(C) M8X25 W/LK WASHER 		0-50040-825-0 05 1 0508-0512 ●
13 BOLT; INL MANIF
(C) M8X25 W/LK WASHER 		0-50540-825-0 05 1 0601- ●
13 BOLT; INL MANIF
(C) M8X30 W/LK WASHER 		0-50040-830-0 01 1 0508-0512 ●
13 BOLT; INL MANIF
(C) M8X30 W/LK WASHER 		0-50540-830-0 01 1 0601- ●
13 BOLT; INL MANIF
(A) M8X30 FLANGE 		0-28080-830-0 07 1 0508-0512 ●
13 BOLT; INL MANIF
(A) M8X30 FLANGE THA 		0-28050-830-0 07 1 0601- ●
13 BOLT; INL MANIF
(B) M8X52 L=68 		8-97118-455-0 01 1 0508-0701 ●
13 BOLT; INL MANIF
(B) M8X52 L=68 		8-98048-395-0 01 1 0702- ●
20 NUT; INL MANIF
M8 FLANGE THA 		5-09440-005-0 02 1 0508-0805 ●
20 NUT; INL MANIF
M8 FLANGE THA 		8-97581-233-0 02 1 0806- ●
20 NUT; INL MANIF
M8 FLANGE 		0-91150-108-0 02 1 0508-0602 ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-108-0 02 1 0603- ●
28 BOLT; CHAMBER
M6X12 FLANGE 		0-28080-612-0 02 1 0508-0512 ●
28 BOLT; CHAMBER
M6X12 FLANGE THA 		0-28050-612-0 02 1 0601- ●
50 PIPE; INL
(A) 		8-97178-735-5 01 1 0508- ●
50 PIPE; INL
(B) 		8-97202-327-2 01 1 0508- ●
53 BOLT; INL PIPE
(D) M10X25 FLANGE 		0-28181-025-0 02 1 0508-0512 ●
53 BOLT; INL PIPE
(D) M10X25 FLANGE THA 		0-28151-025-0 02 1 0601- ●
53 BOLT; INL PIPE
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0508-0512 ●
53 BOLT; INL PIPE
(A) M8X20 FLANGE THA 		0-28650-820-0 02 1 0601- ●
53 BOLT; INL PIPE
(B) M8X30 FLANGE 		0-28680-830-0 02 1 0508-0512 ●
53 BOLT; INL PIPE
(B) M8X30 FLANGE THA 		0-28650-830-0 02 1 0601- ●
53 BOLT; INL PIPE
(C) M10X25 FLANGE 		0-28681-025-0 02 1 0508-0512 ●
53 BOLT; INL PIPE
(C) M10X25 FLANGE THA 		0-28651-025-0 02 1 0601- ●
55 NUT; INL PIPE
M6 FLANGE 		0-91150-206-0 03 1 0508-0602 ●
55 NUT; INL PIPE
M6 FLANGE THA 		0-91180-206-0 03 1 0603- ●
94 BOLT
M8X30 FLANGE 		0-28080-830-0 01 1 0508-0512 ●
94 BOLT
M8X30 FLANGE THA 		0-28050-830-0 01 1 0601- ●
95 CLIP; RUBBER HOSE
(A) ID=77-95 		1-09707-198-0 01 1 0508-0810 ●
95 CLIP; RUBBER HOSE
(A) ID=77-95 		1-09707-114-0 01 1 0811- ●
95 CLIP; RUBBER HOSE
(C) ID=68-85 		1-09707-202-0 01 1 0508-0810 ●
95 CLIP; RUBBER HOSE
(C) ID=68-85 THA 		8-94320-428-0 01 1 0811- ●
95 CLIP; RUBBER HOSE
(B) ID=50-65 THA 		1-09707-204-0 02 1 0508-0810 ●
95 CLIP; RUBBER HOSE
(B) ID=50-69 THA 		8-94316-991-0 02 1 0811- ●
138 PIPE; INL
(A) 		8-97178-748-3 01 1 0508- ●
138 PIPE; INL
(B) 		8-97180-566-2 01 1 0508- ●
222 GASKET; INL COVER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97084-938-2 01 1 0508- ●
306 BOLT; VLV
(A) M5X10 W/LK+PL WASHER 		9-03920-510-0 01 1 0508-0604 ●
306 BOLT; VLV
(A) M5X10 W/LK+PL WASHER 		0-36230-510-0 01 1 0605- ●
306 BOLT; VLV
EXHAUST BRAKE<NF8> (B) M8X12 FLANGE 		0-28080-812-0 01 1 0508-0512 ●
306 BOLT; VLV
EXHAUST BRAKE<NF8> (B) M8X12 FLANGE THA 		0-28050-812-0 01 1 0601- ●
306 BOLT; VLV
(D) M8X45 FLANGE 		0-28080-845-0 05 1 0508-0512 ●
306 BOLT; VLV
(D) M8X45 FLANGE THA 		0-28050-845-0 05 1 0601- ●
306 BOLT; VLV
(C) M8X85 L=101 		8-97118-454-0 01 1 0508-0701 ●
306 BOLT; VLV
(C) M8X85 L=101 		8-98048-394-0 01 1 0702- ●
320 GASKET; PIPE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97202-328-1 01 1 0508- ●
324 GASKET; INL PIPE TO INL CVR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97180-546-1 01 1 0508- ●
333 HOSE; RUBBER,INL PIPE
(A) 		8-97201-103-2 01 1 0508- ●
333 HOSE; RUBBER,INL PIPE
(B) 		8-97369-717-3 01 1 0508- ●
346 CLIP; ENG HARNESS
ID=12 B=14 ID=8.5 THA 		5-09700-350-0 03 1 0508-0801 ●
346 CLIP; ENG HARNESS
ID=12 VINYL CHLORIDE 		8-97367-984-1 03 1 0802- ●
361 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0508-0512 ●
361 BOLT; CLIP
M8X16 FLANGE THA 		0-28050-816-0 01 1 0601- ●
571 HOSE; AIR BOOST
L=210 SERVICED BY L=3000 		0-04740-300-0 01 1 0508- ●
572 CLIP; BOOST HOSE
ID=8 		8-94107-762-0 02 1 0508- ●
603 CHAMBER; THROTTLE 8-97204-780-0 01 1 0508- ●

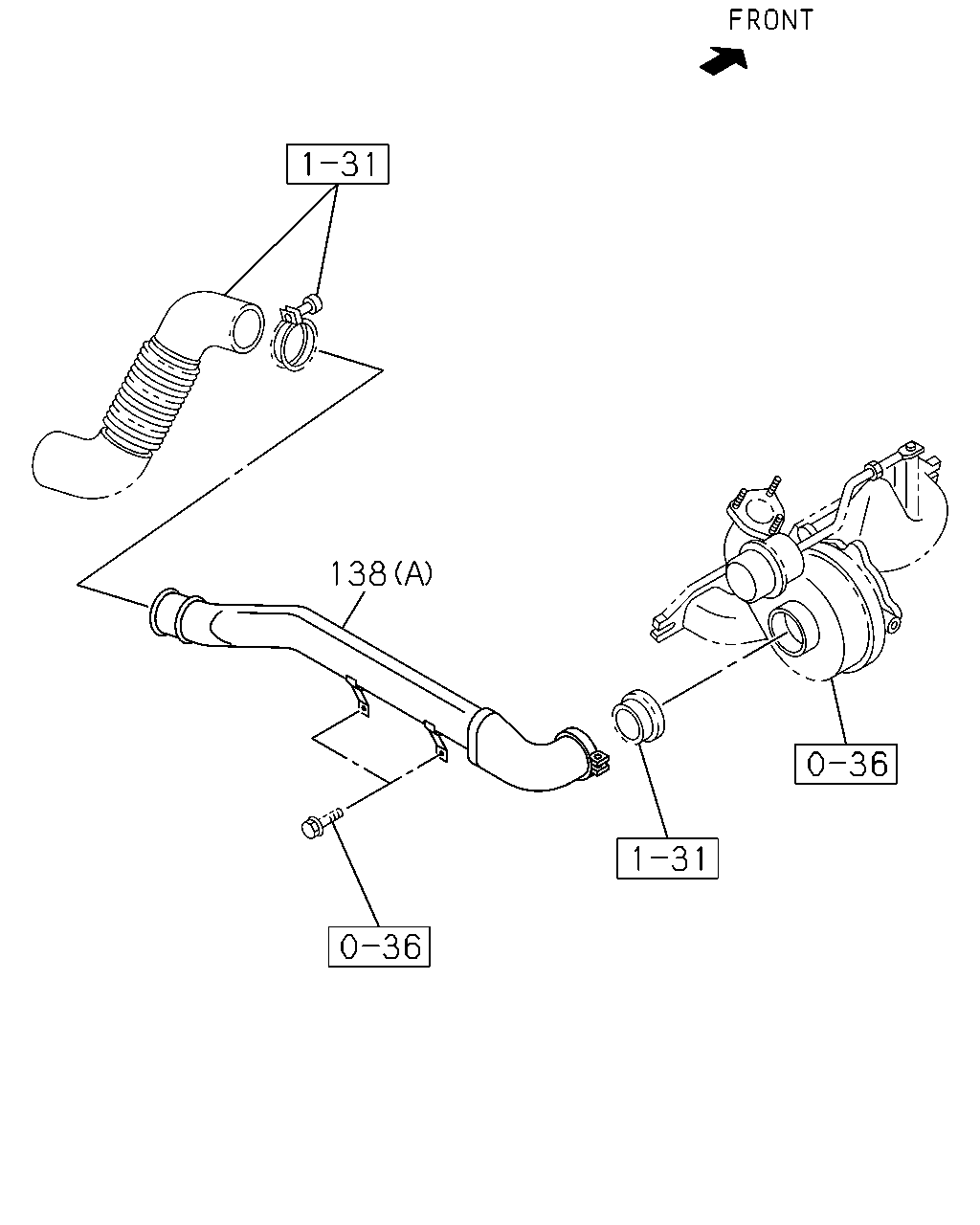

çizim 118797
138
BalonParca AdiParca NoAdetTipApplied Date A B
138 PIPE; INL
(A) 		8-97178-748-3 01 1 0508- ●
138 PIPE; INL
(B) 		8-97180-566-2 01 1 0508- ●

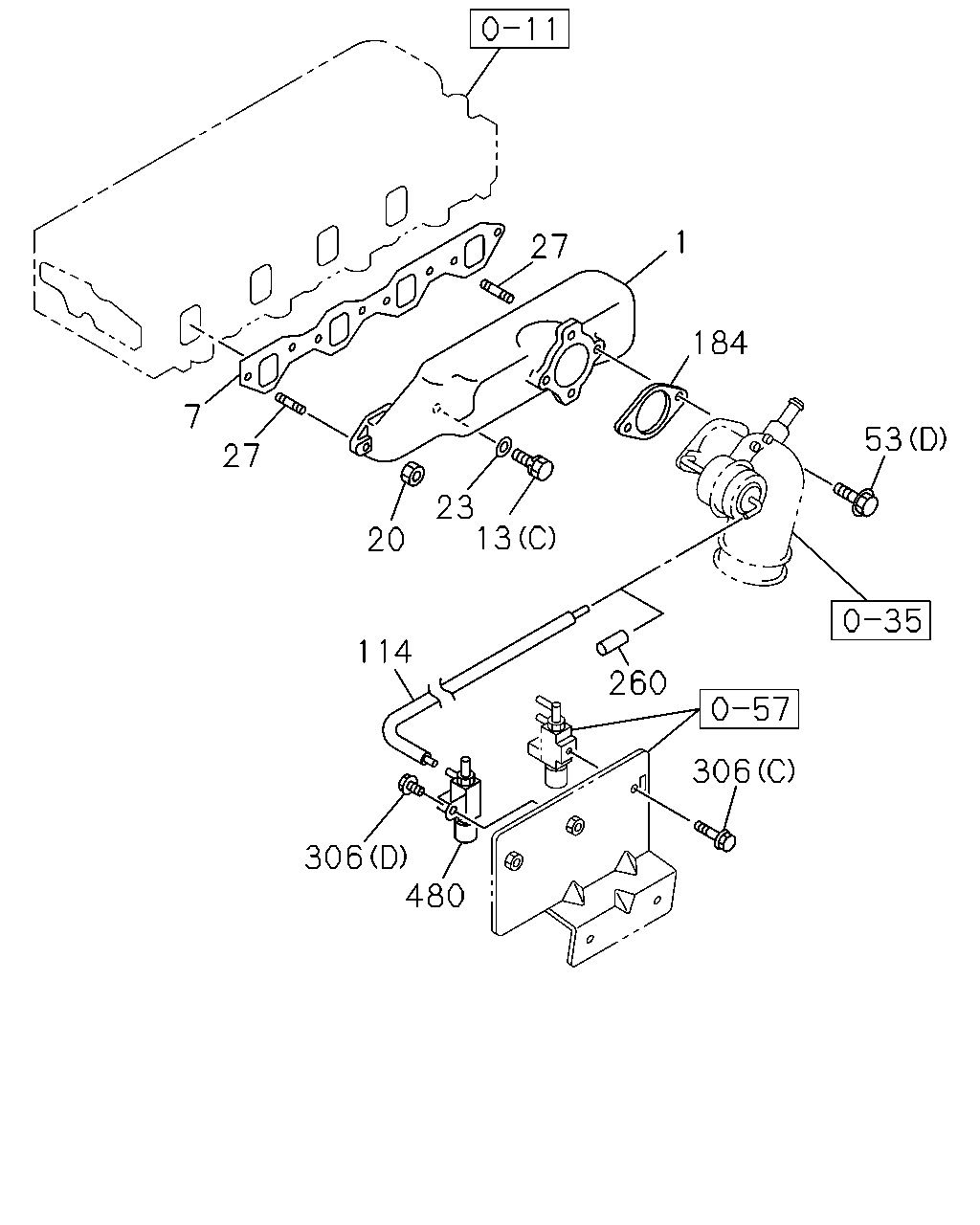

çizim 118800
1 27 184 7 53 27 23 13 20 114 260 306 306 480
BalonParca AdiParca NoAdetTipApplied Date A B
1 MANIFOLD; INL 8-97192-327-1 01 1 0508- ●
7 GASKET; INL MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97301-838-1 01 1 0508- ●
13 BOLT; INL MANIF
(C) M8X25 W/LK WASHER 		0-50040-825-0 05 1 0508-0512 ●
13 BOLT; INL MANIF
(C) M8X25 W/LK WASHER 		0-50540-825-0 05 1 0601- ●
13 BOLT; INL MANIF
(C) M8X30 W/LK WASHER 		0-50040-830-0 01 1 0508-0512 ●
13 BOLT; INL MANIF
(C) M8X30 W/LK WASHER 		0-50540-830-0 01 1 0601- ●
13 BOLT; INL MANIF
(A) M8X30 FLANGE 		0-28080-830-0 07 1 0508-0512 ●
13 BOLT; INL MANIF
(A) M8X30 FLANGE THA 		0-28050-830-0 07 1 0601- ●
13 BOLT; INL MANIF
(B) M8X52 L=68 		8-97118-455-0 01 1 0508-0701 ●
13 BOLT; INL MANIF
(B) M8X52 L=68 		8-98048-395-0 01 1 0702- ●
20 NUT; INL MANIF
M8 FLANGE THA 		5-09440-005-0 02 1 0508-0805 ●
20 NUT; INL MANIF
M8 FLANGE THA 		8-97581-233-0 02 1 0806- ●
20 NUT; INL MANIF
M8 FLANGE 		0-91150-108-0 02 1 0508-0602 ●
20 NUT; INL MANIF
M8 FLANGE THA 		0-91180-108-0 02 1 0603- ●
23 WASHER; PL,INL MANIF
ID=8.4 OD=22 		9-09164-708-0 01 1 0508-0605 ●
23 WASHER; PL,INL MANIF
ID=8.4 OD=22 THA 		0-91614-708-0 01 1 0606- ●
27 STUD; INL MANIF
M8X25 L=37 		9-04110-825-0 01 1 0508-0604 ●
27 STUD; INL MANIF
M8X25 L=37 THA 		0-41010-825-0 01 1 0605- ●
27 STUD; INL MANIF
M8X35 L=46 		9-09630-034-1 01 1 0508- ●
53 BOLT; INL PIPE
(D) M10X25 FLANGE 		0-28181-025-0 02 1 0508-0512 ●
53 BOLT; INL PIPE
(D) M10X25 FLANGE THA 		0-28151-025-0 02 1 0601- ●
53 BOLT; INL PIPE
(A) M8X20 FLANGE 		0-28680-820-0 02 1 0508-0512 ●
53 BOLT; INL PIPE
(A) M8X20 FLANGE THA 		0-28650-820-0 02 1 0601- ●
53 BOLT; INL PIPE
(B) M8X30 FLANGE 		0-28680-830-0 02 1 0508-0512 ●
53 BOLT; INL PIPE
(B) M8X30 FLANGE THA 		0-28650-830-0 02 1 0601- ●
53 BOLT; INL PIPE
(C) M10X25 FLANGE 		0-28681-025-0 02 1 0508-0512 ●
53 BOLT; INL PIPE
(C) M10X25 FLANGE THA 		0-28651-025-0 02 1 0601- ●
114 HOSE; VAC,INT THROTTLE
EXHAUST BRAKE<NF8> L=403 		8-97228-401-0 01 1 0508- ●
184 GASKET; T/V
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) 		8-97035-883-1 01 1 0508- ●
260 CAP; RUBBER
EXC. EXHAUST BRAKE<NF8> ID=4 		8-94217-809-0 01 1 0508- ●
306 BOLT; VLV
(A) M5X10 W/LK+PL WASHER 		9-03920-510-0 01 1 0508-0604 ●
306 BOLT; VLV
(A) M5X10 W/LK+PL WASHER 		0-36230-510-0 01 1 0605- ●
306 BOLT; VLV
EXHAUST BRAKE<NF8> (B) M8X12 FLANGE 		0-28080-812-0 01 1 0508-0512 ●
306 BOLT; VLV
EXHAUST BRAKE<NF8> (B) M8X12 FLANGE THA 		0-28050-812-0 01 1 0601- ●
306 BOLT; VLV
(D) M8X45 FLANGE 		0-28080-845-0 05 1 0508-0512 ●
306 BOLT; VLV
(D) M8X45 FLANGE THA 		0-28050-845-0 05 1 0601- ●
306 BOLT; VLV
(C) M8X85 L=101 		8-97118-454-0 01 1 0508-0701 ●
306 BOLT; VLV
(C) M8X85 L=101 		8-98048-394-0 01 1 0702- ●
480 VALVE ASM; VAC SW
EXHAUST BRAKE<NF8> 		8-94144-597-1 01 1 0508- ●
