0-22 — ENGINE MOUNTING (#23158) — 97 parça

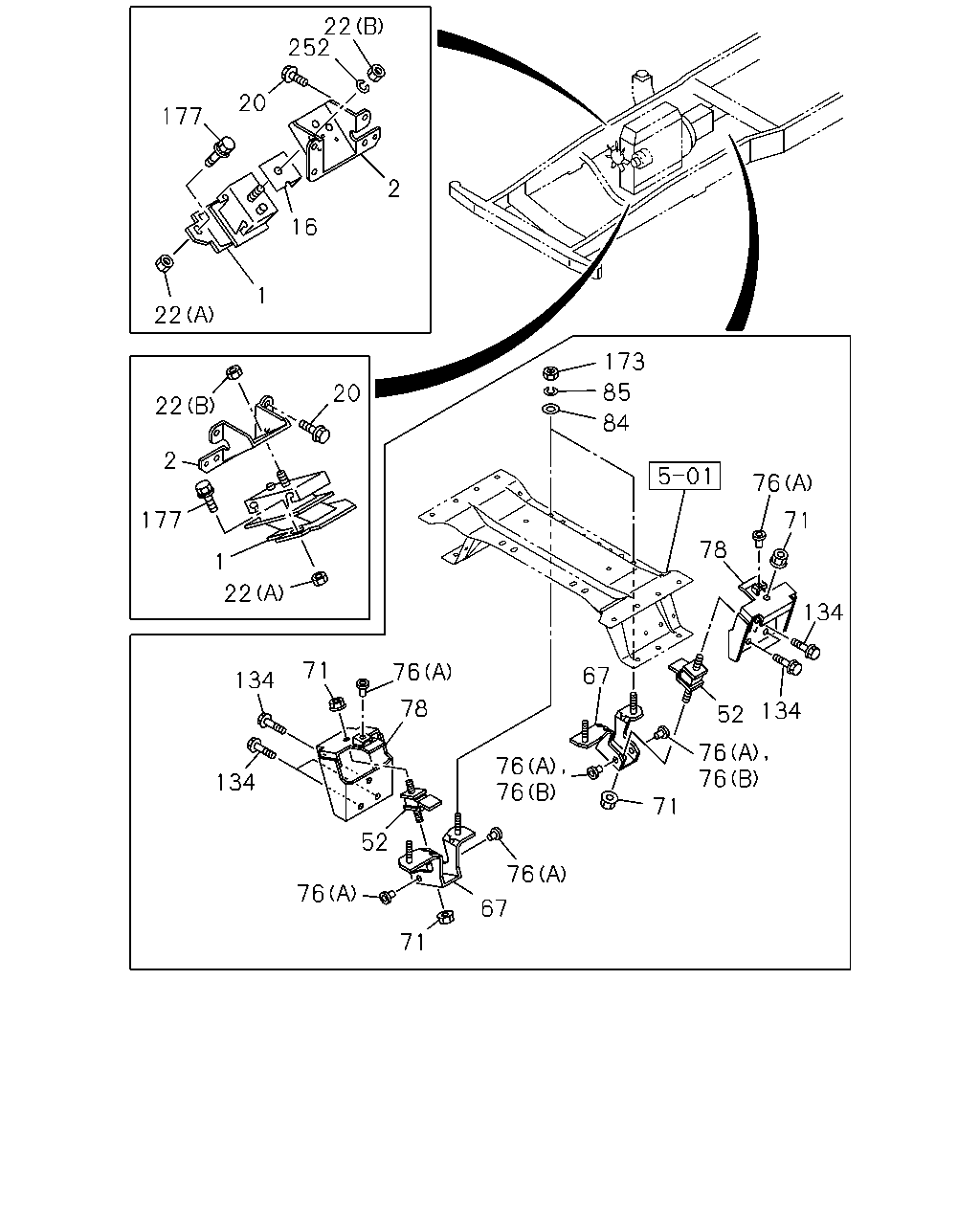

22 252 2 16 1 22 177 20 22 2 177 1 22 134 134 76 71 78 76 76 76 76 67 71 52 71 67 76 76 134 52 134 76 78 71 84 85 173 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	RUBBER; ENG FOOT,FRT	8-97122-893-1	01	1	0508-	●
1	RUBBER; ENG FOOT,FRT	8-97122-895-1	01	1	0508-	●
1	RUBBER; ENG FOOT,FRT	8-97080-620-0	01	1	0508-		●
1	RUBBER; ENG FOOT,FRT	8-97080-621-0	01	1	0508-		●
2	FOOT; ENG	8-97287-639-2	01	1	0508-		●
2	FOOT; ENG	8-97300-156-0	01	1	0508-		●
2	FOOT; ENG	8-97228-669-2	02	1	0508-	●
16	PROTECTOR; HEAT,ENG MTG,FRT	8-94365-486-0	01	1	0508-	●
20	BOLT; ENG FOOT M10X22 W/LK WASHER	0-50041-022-0	05	1	0508-0909		●
20	BOLT; ENG FOOT M10X22 W/LK WASHER	0-50541-022-0	05	1	0910-		●
20	BOLT; ENG FOOT M14X25 W/LK WASHER	0-50041-425-0	01	1	0508-0512		●
20	BOLT; ENG FOOT M14X25 W/LK WASHER	0-50541-425-0	01	1	0601-		●
20	BOLT; ENG FOOT M10X28	8-94329-952-1	02	1	0508-		●
20	BOLT; ENG FOOT M10X20 FLANGE	0-28191-020-0	08	1	0508-0512	●
20	BOLT; ENG FOOT M10X20 FLANGE	0-28161-020-0	08	1	0601-	●
22	NUT; CUSHION RUBBER TO BRKT (B) M12	9-99110-412-0	02	1	0508-0512	●
22	NUT; CUSHION RUBBER TO BRKT (B) M12	0-91110-512-0	02	1	0601-	●
22	NUT; CUSHION RUBBER TO BRKT (A) M10 FLANGE	0-91150-210-0	04	1	0508-	●	●
52	RUBBER; CUSHION,ENG MTG,RR	8-94111-903-0	03	1	0510-0510	●
52	RUBBER; CUSHION,ENG MTG,RR	8-94111-903-0	02	1	0508-0509	●	●
52	RUBBER; CUSHION,ENG MTG,RR	8-94111-903-0	02	1	0510-0510		●
52	RUBBER; CUSHION,ENG MTG,RR	8-94111-903-1	02	1	0510-	●	●
67	BRACKET; SUPPORT,ENG MTG,RR	8-94111-908-2	01	1	0508-		●
67	BRACKET; SUPPORT,ENG MTG,RR	8-94111-909-2	01	1	0508-		●
67	BRACKET; SUPPORT,ENG MTG,RR	8-97325-567-1	01	1	0508-	●
67	BRACKET; SUPPORT,ENG MTG,RR	8-97371-918-1	01	1	0508-	●
71	NUT; SUPPORT RUBBER TO BRKT M10 FLANGE	0-91150-110-0	04	1	0508-0602	●	●
71	NUT; SUPPORT RUBBER TO BRKT M10 FLANGE THA	0-91180-110-0	04	1	0603-	●	●
76	STOPPER; ENG MTG RUBBER (A)	8-94111-904-0	02	1	0508-1403		●
76	STOPPER; ENG MTG RUBBER (A)	8-94111-904-0	02	1	1404-	●	●
76	STOPPER; ENG MTG RUBBER (A)	8-94111-904-0	06	1	0508-1403	●
76	STOPPER; ENG MTG RUBBER (B)	8-97039-947-1	04	1	1404-	●
78	BRACKET; ENG MTG,RR	8-94133-393-2	01	1	0508-		●
78	BRACKET; ENG MTG,RR	8-97325-560-1	01	1	0508-	●
78	BRACKET; ENG MTG,RR	8-97325-561-1	01	1	0508-	●
84	WASHER; PL,ENG MTG RR TO FRAME ID=10.5 OD=32	9-09164-810-0	04	1	0508-0605	●	●
84	WASHER; PL,ENG MTG RR TO FRAME ID=10.5 OD=32	0-91614-810-0	04	1	0606-	●	●
85	WASHER; LK,ENG MTG RR TO FRAME ID=10.2	9-09150-610-0	04	1	0508-0603	●	●
85	WASHER; LK,ENG MTG RR TO FRAME ID=10.2	0-91510-610-0	04	1	0604-	●	●
134	BOLT; SUPPORT BRKT M12X25	0-28781-225-0	06	1	0508-0512	●
134	BOLT; SUPPORT BRKT M12X25 FLANGE	0-28751-225-0	06	1	0601-	●
173	NUT; ENG MTG RR TO FRAME M10	9-09110-410-0	04	1	0508-0512	●	●
173	NUT; ENG MTG RR TO FRAME M10 THA	0-91110-510-0	04	1	0601-	●	●
177	BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	0508-	●	●
252	WASHER; LK,SUPPORT RUBBER ID=12.2	9-09150-612-0	02	1	0508-0603	●	●
252	WASHER; LK,SUPPORT RUBBER ID=12.2	0-91510-612-0	02	1	0604-	●	●

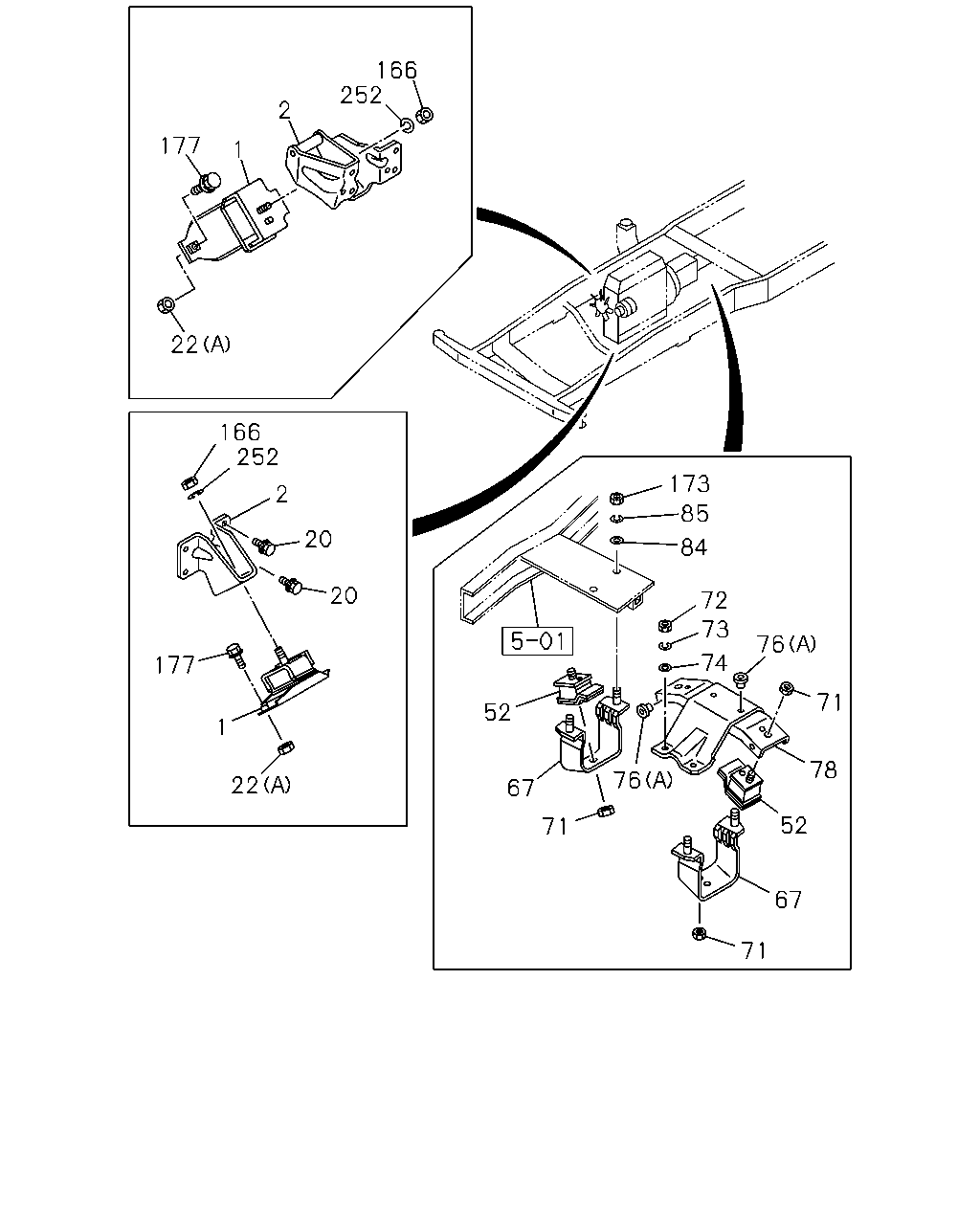

252 166 2 1 177 22 166 2 252 20 20 1 177 22 52 67 71 76 78 52 67 71 71 76 74 73 72 84 173 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	RUBBER; ENG FOOT,FRT	8-97122-893-1	01	1	0508-	●
1	RUBBER; ENG FOOT,FRT	8-97122-895-1	01	1	0508-	●
1	RUBBER; ENG FOOT,FRT	8-97080-620-0	01	1	0508-		●
1	RUBBER; ENG FOOT,FRT	8-97080-621-0	01	1	0508-		●
2	FOOT; ENG	8-97287-639-2	01	1	0508-		●
2	FOOT; ENG	8-97300-156-0	01	1	0508-		●
2	FOOT; ENG	8-97228-669-2	02	1	0508-	●
20	BOLT; ENG FOOT M10X22 W/LK WASHER	0-50041-022-0	05	1	0508-0909		●
20	BOLT; ENG FOOT M10X22 W/LK WASHER	0-50541-022-0	05	1	0910-		●
20	BOLT; ENG FOOT M14X25 W/LK WASHER	0-50041-425-0	01	1	0508-0512		●
20	BOLT; ENG FOOT M14X25 W/LK WASHER	0-50541-425-0	01	1	0601-		●
20	BOLT; ENG FOOT M10X28	8-94329-952-1	02	1	0508-		●
20	BOLT; ENG FOOT M10X20 FLANGE	0-28191-020-0	08	1	0508-0512	●
20	BOLT; ENG FOOT M10X20 FLANGE	0-28161-020-0	08	1	0601-	●
22	NUT; CUSHION RUBBER TO BRKT (B) M12	9-99110-412-0	02	1	0508-0512	●
22	NUT; CUSHION RUBBER TO BRKT (B) M12	0-91110-512-0	02	1	0601-	●
22	NUT; CUSHION RUBBER TO BRKT (A) M10 FLANGE	0-91150-210-0	04	1	0508-	●	●
52	RUBBER; CUSHION,ENG MTG,RR	8-94111-903-0	03	1	0510-0510	●
52	RUBBER; CUSHION,ENG MTG,RR	8-94111-903-0	02	1	0508-0509	●	●
52	RUBBER; CUSHION,ENG MTG,RR	8-94111-903-0	02	1	0510-0510		●
52	RUBBER; CUSHION,ENG MTG,RR	8-94111-903-1	02	1	0510-	●	●
67	BRACKET; SUPPORT,ENG MTG,RR	8-94111-908-2	01	1	0508-		●
67	BRACKET; SUPPORT,ENG MTG,RR	8-94111-909-2	01	1	0508-		●
67	BRACKET; SUPPORT,ENG MTG,RR	8-97325-567-1	01	1	0508-	●
67	BRACKET; SUPPORT,ENG MTG,RR	8-97371-918-1	01	1	0508-	●
71	NUT; SUPPORT RUBBER TO BRKT M10 FLANGE	0-91150-110-0	04	1	0508-0602	●	●
71	NUT; SUPPORT RUBBER TO BRKT M10 FLANGE THA	0-91180-110-0	04	1	0603-	●	●
72	NUT; SUPPORT RUBBER TO TRANS M10	9-09110-410-0	04	1	0508-0512		●
72	NUT; SUPPORT RUBBER TO TRANS M10 THA	0-91110-510-0	04	1	0601-		●
73	WASHER; LK,CUSHION RUBBER TO FRAME ID=10.2	9-09150-610-0	04	1	0508-0603		●
73	WASHER; LK,CUSHION RUBBER TO FRAME ID=10.2	0-91510-610-0	04	1	0604-		●
74	WASHER; PL,SUPPORT RUBBER TO TRANS ID=10.5 OD=22	9-09164-610-0	02	1	0508-0605		●
74	WASHER; PL,SUPPORT RUBBER TO TRANS ID=10.5 OD=22	0-91614-610-0	02	1	0606-		●
76	STOPPER; ENG MTG RUBBER (A)	8-94111-904-0	02	1	0508-1403		●
76	STOPPER; ENG MTG RUBBER (A)	8-94111-904-0	02	1	1404-	●	●
76	STOPPER; ENG MTG RUBBER (A)	8-94111-904-0	06	1	0508-1403	●
76	STOPPER; ENG MTG RUBBER (B)	8-97039-947-1	04	1	1404-	●
78	BRACKET; ENG MTG,RR	8-94133-393-2	01	1	0508-		●
78	BRACKET; ENG MTG,RR	8-97325-560-1	01	1	0508-	●
78	BRACKET; ENG MTG,RR	8-97325-561-1	01	1	0508-	●
84	WASHER; PL,ENG MTG RR TO FRAME ID=10.5 OD=32	9-09164-810-0	04	1	0508-0605	●	●
84	WASHER; PL,ENG MTG RR TO FRAME ID=10.5 OD=32	0-91614-810-0	04	1	0606-	●	●
85	WASHER; LK,ENG MTG RR TO FRAME ID=10.2	9-09150-610-0	04	1	0508-0603	●	●
85	WASHER; LK,ENG MTG RR TO FRAME ID=10.2	0-91510-610-0	04	1	0604-	●	●
166	NUT; SUPPORT RUBBER M12	9-99110-512-0	02	1	0508-0512		●
166	NUT; SUPPORT RUBBER M12	0-91110-512-0	02	1	0601-		●
173	NUT; ENG MTG RR TO FRAME M10	9-09110-410-0	04	1	0508-0512	●	●
173	NUT; ENG MTG RR TO FRAME M10 THA	0-91110-510-0	04	1	0601-	●	●
177	BOLT; BRKT TO CUSHION RUBBER M10X37.5	8-94468-733-1	04	1	0508-	●	●
252	WASHER; LK,SUPPORT RUBBER ID=12.2	9-09150-612-0	02	1	0508-0603	●	●
252	WASHER; LK,SUPPORT RUBBER ID=12.2	0-91510-612-0	02	1	0604-	●	●
