0-20 — TIMING GEAR CASE AND FLYWHEEL HOUSING (#23157) — 78 parça

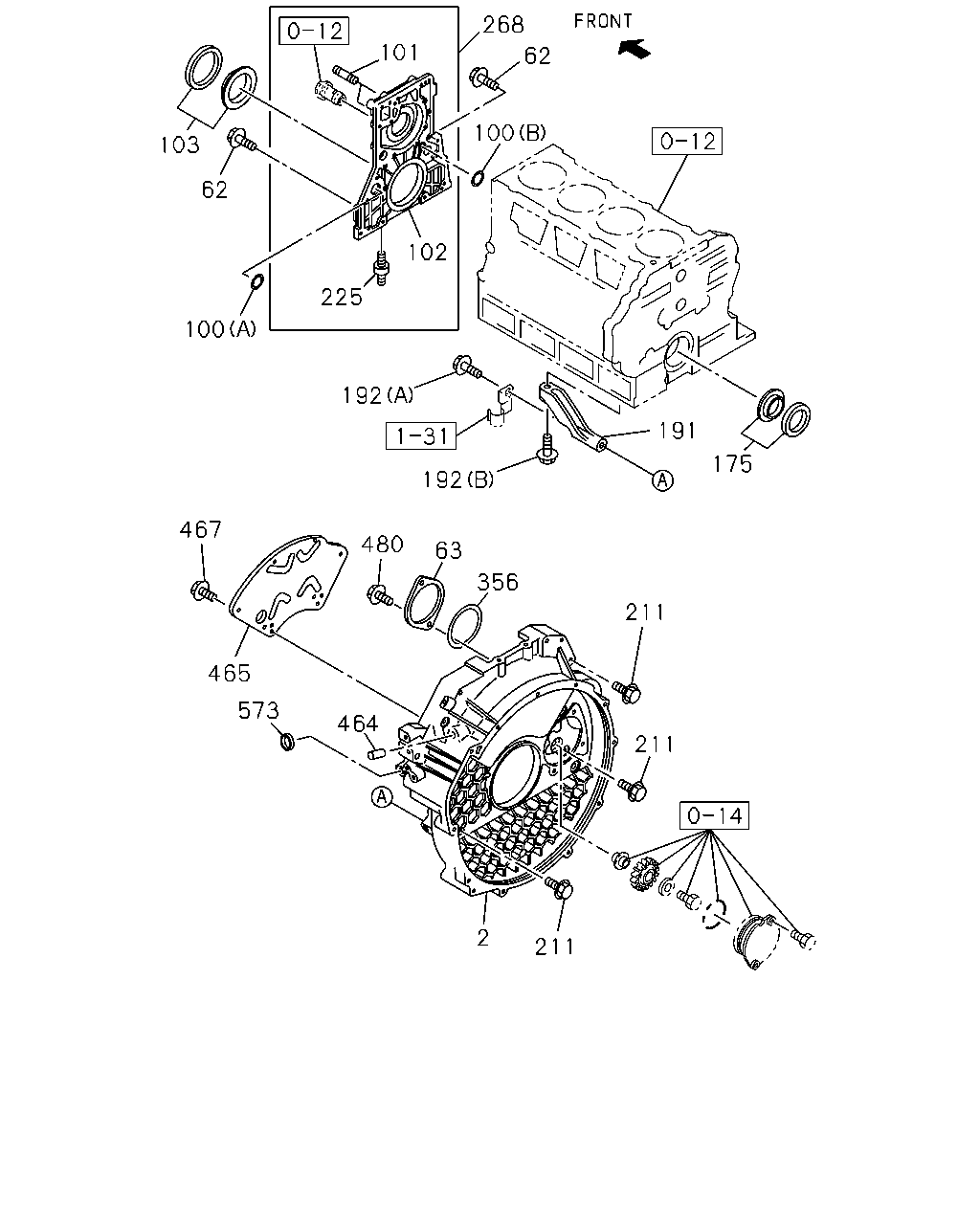

268 101 62 100 103 62 102 225 100 192 191 175 192 467 480 63 356 211 465 573 464 211 2 211

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	HOUSING; FLYWHEEL	8-97364-899-6	01	1	0508-	●
62	BOLT; COVER M8X25 FLANGE	0-28680-825-0	06	1	0508-0512	●
62	BOLT; COVER M8X25 FLANGE THA	0-28650-825-0	06	1	0601-	●
62	BOLT; COVER M8X35 FLANGE	0-28680-835-0	05	1	0508-0512	●
62	BOLT; COVER M8X35 FLANGE THA	0-28650-835-0	05	1	0601-0706	●
62	BOLT; COVER M8X35 FLANGE THA	0-28650-835-0	06	1	0707-	●
62	BOLT; COVER M8X65 FLANGE	1-09044-072-1	03	1	0508-0706	●
62	BOLT; COVER M8X65 FLANGE	1-09044-072-1	02	1	0707-	●
63	COVER; P/S EXC. POWER STEERING<N40>	8-97126-392-0	01	1	0508-	●
100	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=35.1	8-97028-748-1	01	1	0508-	●
100	GASKET; FRT COVER ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=17.8	9-09561-318-0	01	1	0508-	●
101	STUD; WATER PUMP M8X18 L=29	8-97028-541-0	01	1	0508-	●
101	STUD; WATER PUMP M8X18 L=30	9-04110-818-0	01	1	0508-0604	●
101	STUD; WATER PUMP M8X18 L=30 THA	0-41010-818-0	01	1	0605-	●
102	RETAINER; FRT	8-97094-943-3	01	1	0508-0706	●
102	RETAINER; FRT	8-98039-932-2	01	1	0707-	●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97351-704-0	01	1	0508-		●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97329-780-0	01	1	0508-	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	0508-		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0508-	●
191	STAY; FLYWHEEL HSG	8-97167-292-0	01	1	0508-	●
192	BOLT; STAY TO HSG (B) M12X100 FLANGE	0-28181-200-0	01	1	0508-0512	●
192	BOLT; STAY TO HSG (B) M12X100 FLANGE	0-28151-200-0	01	1	0601-	●
192	BOLT; STAY TO HSG (A) M12X50 FLANGE	0-28181-250-0	01	1	0508-0512	●
192	BOLT; STAY TO HSG (A) M12X50 FLANGE THA	0-28151-250-0	01	1	0601-	●
211	BOLT; HSG M10X40 FLANGE	0-28781-040-0	01	1	0508-0512	●
211	BOLT; HSG M10X40 FLANGE	0-28751-040-0	01	1	0601-	●
211	BOLT; HSG M12X70 FLANGE, W/PL WASHER	8-97114-779-0	09	1	0508-1102	●
211	BOLT; HSG M12X70 FLANGE, W/PL WASHER	8-98179-087-1	09	1	1103-	●
211	BOLT; HSG M12X30 FLANGE	8-97135-419-0	01	1	0508-	●
211	BOLT; HSG M8X20,M8X65 L=90	8-97200-622-1	02	1	0508-	●
211	BOLT; HSG EXC. POWER STEERING<N40> M14X35 FLANGE	0-28791-435-0	01	1	0508-0512	●
211	BOLT; HSG EXC. POWER STEERING<N40> M14X35 FLANGE	0-28761-435-0	01	1	0601-	●
225	STUD; OIL PAN M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE	8-97190-392-0	03	1	0508-	●
268	COVER; FRT	8-97259-416-0	01	1	0508-0706	●
268	COVER; FRT	8-98039-931-2	01	1	0707-	●
356	GASKET; COVER EXC. POWER STEERING<N40>	8-97101-875-2	01	1	0508-	●
464	PIPE; PCV,FLYWHEEL HSG	8-94373-246-3	01	1	0508-	●
465	PLATE; FLYWHEEL HSG	8-97363-824-1	01	1	0508-	●
467	BOLT; PLATE M6X10	0-20800-610-0	06	1	0508-0805	●
467	BOLT; PLATE M6X10	8-98030-649-0	06	1	0806-	●
480	BOLT; COVER EXC. POWER STEERING<N40> M10X28 FLANGE	0-28181-028-0	02	1	0508-0805	●
480	BOLT; COVER EXC. POWER STEERING<N40> M10X28 FLANGE	8-98044-944-0	02	1	0806-1010	●
480	BOLT; COVER EXC. POWER STEERING<N40> M10X30 FLANGE	0-28751-030-0	02	1	1011-	●
573	CUP; SEALING OD=19	8-94150-231-0	01	1	0508-	●

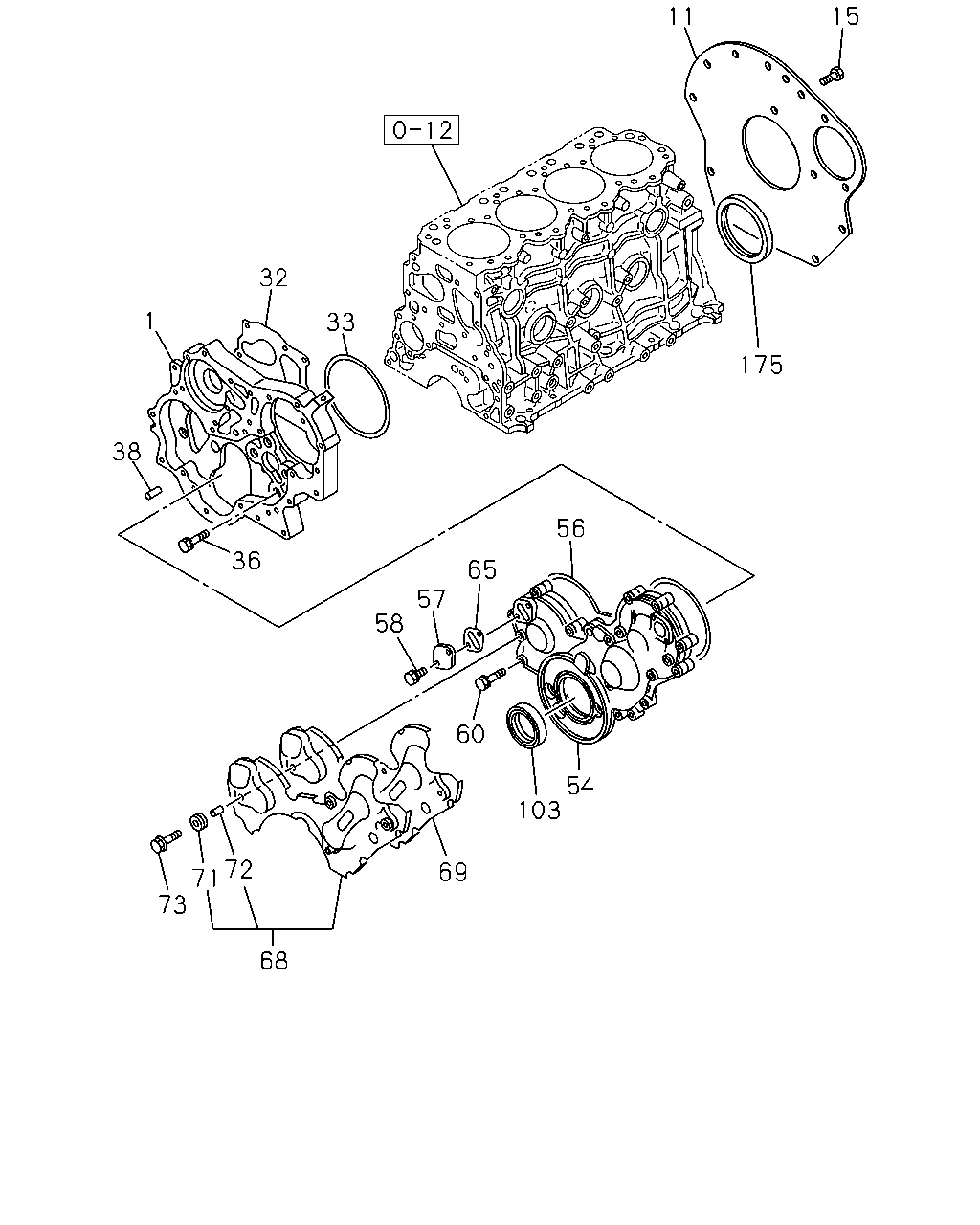

15 11 32 1 33 175 38 56 36 65 57 58 60 54 103 72 71 73 69 68

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CASE; TIMING GEAR THA	8-97219-001-4	01	1	0508-		●
11	PLATE; RR,C/BL	8-94437-923-2	01	1	0508-		●
15	BOLT; RR PLATE TO C/BL M12X25	5-09000-227-0	03	1	0508-		●
32	GASKET; GEAR CASE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-97129-427-1	01	1	0508-		●
33	GASKET; BRKT TO CASE ALSO INCLUDED IN GASKET SET(ENGINE).	8-94109-707-0	01	1	0508-		●
36	BOLT; GEAR CASE M8X20 W/LK WASHER	0-50040-820-0	06	1	0508-0909		●
36	BOLT; GEAR CASE M8X20 W/LK WASHER	0-50540-820-0	06	1	0910-		●
36	BOLT; GEAR CASE M8X45 W/LK WASHER	0-50040-845-0	02	1	0508-0909		●
36	BOLT; GEAR CASE M8X45 W/LK WASHER THA	0-50540-845-0	02	1	0910-		●
38	PIN; GEAR CASE COVER OD=10 L=20	8-97135-423-0	02	1	0508-		●
54	COVER; GEAR CASE	8-97231-214-1	01	1	0508-		●
56	GASKET; GEAR CASE TO COVER ALSO INCLUDED IN GASKET SET(ENGINE).	8-97287-694-0	01	1	0508-		●
57	COVER; TIMING CHECK HOLE	5-11321-009-0	02	1	0508-		●
58	BOLT; CHECK HOLE COVER M6X12 FLANGE	0-28080-612-0	04	1	0508-0512		●
58	BOLT; CHECK HOLE COVER M6X12 FLANGE THA	0-28050-612-0	04	1	0601-		●
60	BOLT; COVER TO CASE M8X30 FLANGE	0-28080-830-0	08	1	0508-0512		●
60	BOLT; COVER TO CASE M8X30 FLANGE THA	0-28050-830-0	08	1	0601-		●
60	BOLT; COVER TO CASE M8X70 W/LK WASHER	0-50040-870-0	06	1	0508-0512		●
60	BOLT; COVER TO CASE M8X70 W/LK WASHER	0-50540-870-0	06	1	0601-		●
60	BOLT; COVER TO CASE M12X55 W/HEX-SOCKET	0-58311-255-0	01	1	0508-0512		●
60	BOLT; COVER TO CASE M12X55 HEX SOCKET THA	0-58331-255-0	01	1	0601-		●
60	BOLT; COVER TO CASE M8X58 FLANGE	8-94130-055-1	01	1	0508-		●
65	GASKET; COVER,TIMING CHECK HOLE ALSO INCLUDED IN GASKET SET(ENGINE).	8-97118-698-1	02	1	0508-		●
68	COVER ASM; GEAR CASE COVER THA	8-94155-721-1	01	1	0508-		●
69	SEAL; RUBBER,COVER TO COVER THA	8-94155-722-3	01	1	0508-		●
71	RUBBER; MTG,COVER THA	5-19389-002-0	04	1	0508-		●
72	BUSHING; SPACER,COVER TO COVER THA	5-19389-009-0	04	1	0508-		●
73	BOLT; COVER FIX M6X16 FLANGE	0-28080-616-0	04	1	0508-0512		●
73	BOLT; COVER FIX M6X16 FLANGE THA	0-28050-616-0	04	1	0601-		●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97351-704-0	01	1	0508-		●
103	SEAL; OIL,CR/SHF,FRT ALSO INCLUDED IN GASKET SET(ENGINE).	8-97329-780-0	01	1	0508-	●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97071-561-1	01	1	0508-		●
175	SEAL; OIL,CR/SHF,RR ALSO INCLUDED IN GASKET SET(ENGINE).	8-97602-379-0	01	1	0508-	●
