0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#23156) — 129 parça

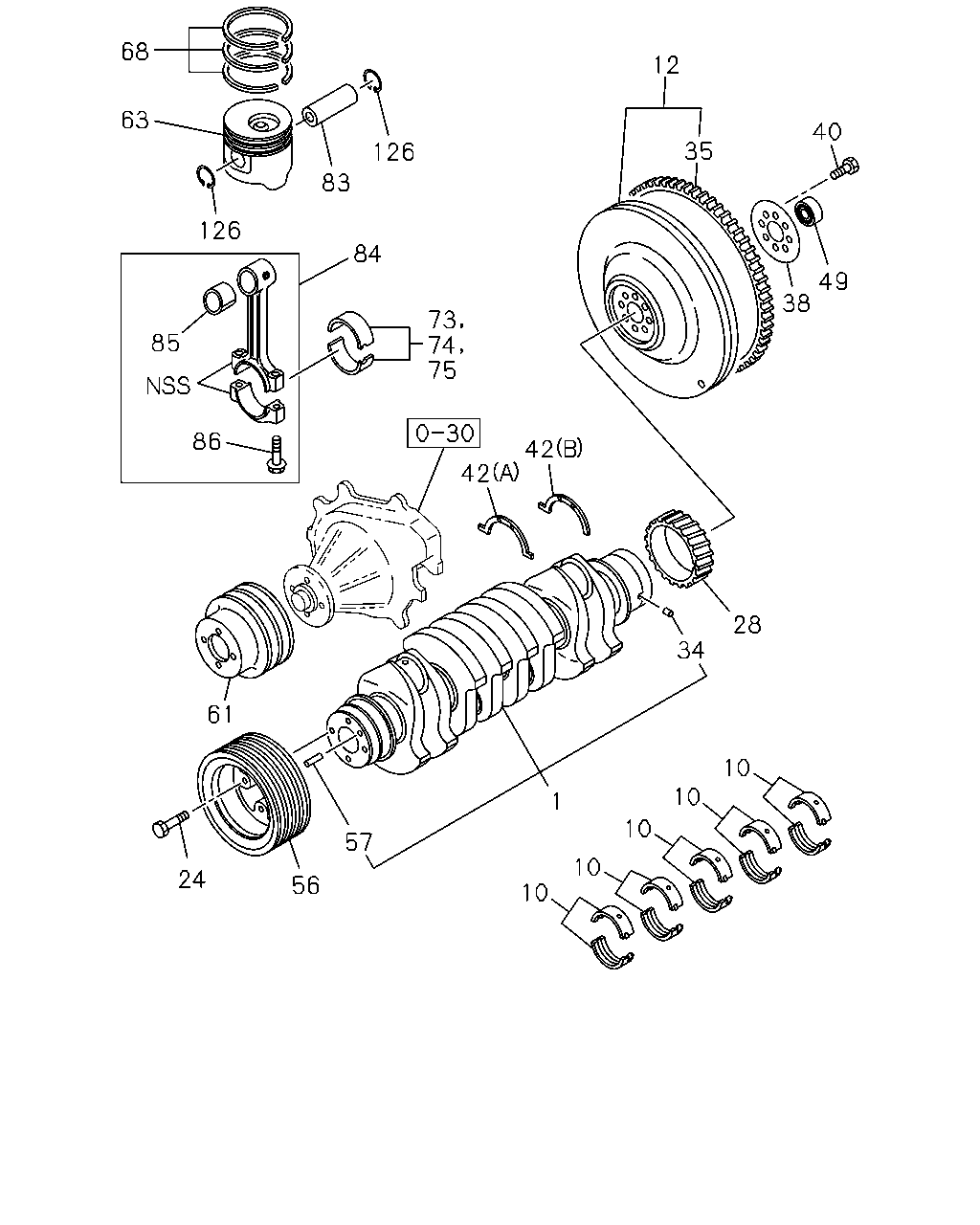

68 12 63 40 35 126 83 126 84 49 38 73 74 75 85 86 42 42 28 34 61 10 10 1 10 57 10 24 56 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT	8-97331-853-1	01	1	0508-	●
1	CRANKSHAFT	8-97112-981-3	01	1	0508-		●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	0508-	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	0508-	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	0508-	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97387-967-0	05	1	0508-	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97387-968-0	05	1	0508-	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	0508-		●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	0508-		●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	0508-		●
12	FLYWHEEL	8-97034-430-2	01	1	0508-	●
12	FLYWHEEL	8-97330-892-1	01	1	0508-		●
24	BOLT; DAMPER M16X42	8-97028-733-0	04	1	0508-		●
28	GEAR; CR/SHF Z=21	8-97229-593-1	01	1	0508-	●
28	GEAR; CR/SHF Z=42	8-97109-626-1	01	1	0508-		●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	02	1	0508-		●
34	PIN; GEAR SETTING OD=5 L=6	9-09878-626-0	02	1	0508-		●
35	GEAR; RING Z=108	8-94419-602-1	01	1	0508-	●
35	GEAR; RING Z=138	8-97046-366-1	01	1	0508-		●
38	WASHER; FLYWHEEL THA	8-94133-970-1	01	1	0508-1005	●
38	WASHER; FLYWHEEL	8-98171-700-0	01	1	1006-	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0508-		●
40	BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	0508-	●
40	BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	0508-		●
42	WASHER; THRUST,CR/SHF (C)	8-97383-740-0	02	1	0508-1108	●
42	WASHER; THRUST,CR/SHF (C)	8-98040-704-0	02	1	1109-	●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0508-0703		●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0704-		●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0508-0703		●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0704-		●
49	BEARING; PILOT	8-97258-239-0	01	1	0508-		●
56	PULLEY; CR/SHF DAMPER 3-GROOVE YAMATO PRESS THA	8-94419-457-2	01	1	0508-	●
56	PULLEY; CR/SHF DAMPER 3-GROOVE FUKOKU	8-94442-166-6	01	1	0508-	●
56	PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-3	01	1	0508-		●
57	PIN; PULLEY OD=8 L=20	9-08150-820-0	04	1	0508-		●
57	PIN; PULLEY OD=8 L=20	9-08150-820-0	04	1	0508-		●
61	PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-4	01	1	0508-	●
61	PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-3	01	1	0508-		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-610-0	04	1	0508-	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-611-0	04	1	0508-	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97219-032-1	04	1	0508-1112		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98209-745-0	04	1	1201-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-2	04	1	0508-	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97219-054-0	04	1	0508-		●
73	METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0508-	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	0508-		●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	0508-		●
74	METAL SET; CONN ROD,U/S=0.25	8-97175-127-0	04	1	0508-		●
75	METAL SET; CONN ROD,U/S=0.50	8-97175-128-0	04	1	0508-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET. THA	8-94457-008-1	04	1	0508-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	0508-		●
84	ROD ASM; CONN	8-98013-290-2	04	1	0508-0705	●
84	ROD ASM; CONN	8-98013-962-4	04	1	0706-	●
84	ROD ASM; CONN	8-97135-032-5	04	1	0508-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98121-309-0	04	1	0906-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	0508-0705	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-97289-264-1	04	1	0706-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	0508-0805		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98075-233-0	04	1	0806-0905		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98121-309-0	04	1	0906-		●
86	BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0508-0701	●
86	BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	0702-	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	0508-1004		●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1005-		●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	0508-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	08	1	0508-		●

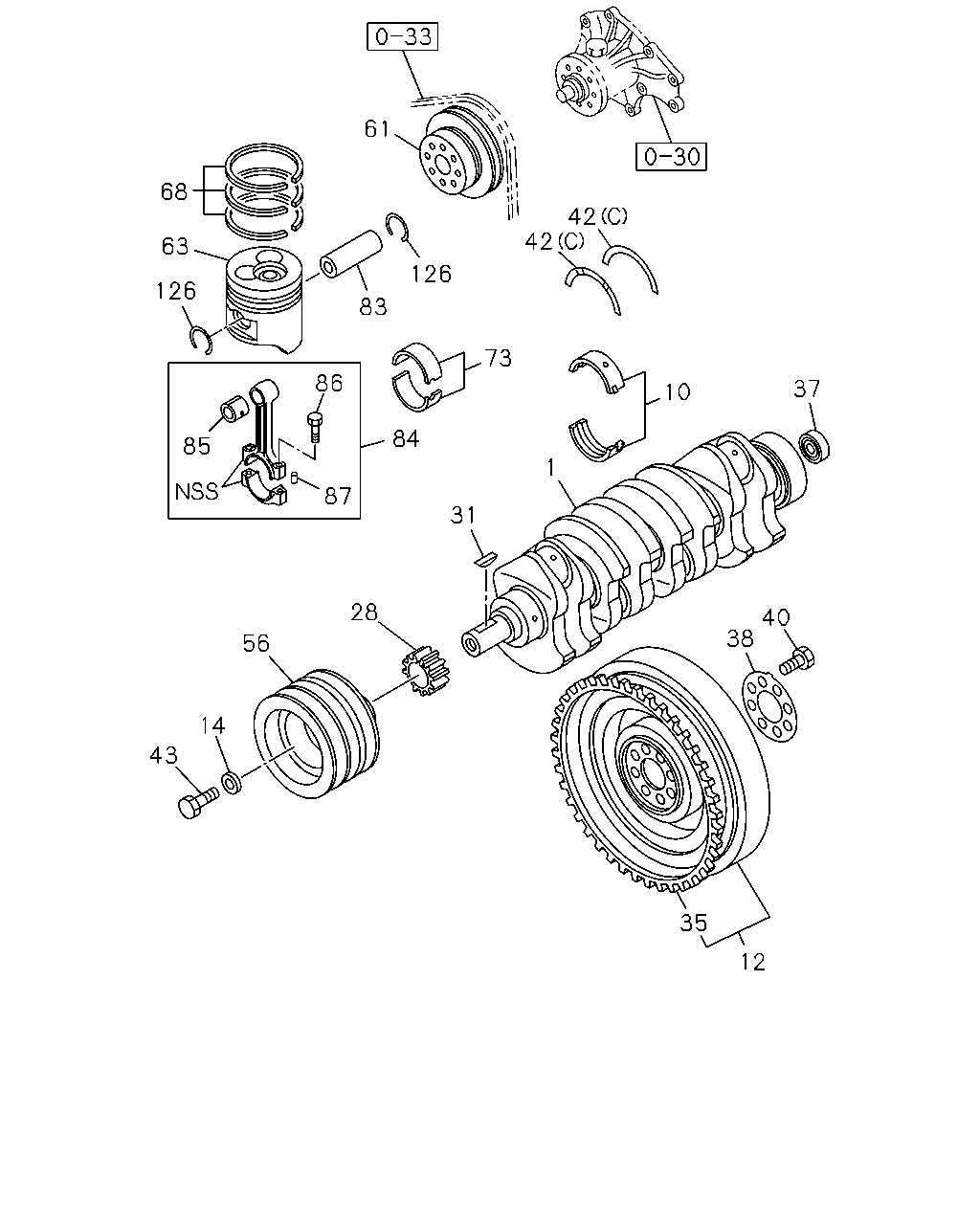

12 35 38 40 37 10 1 31 28 56 14 43 87 86 85 84 73 42 42 126 83 126 63 68 61

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CRANKSHAFT	8-97331-853-1	01	1	0508-	●
1	CRANKSHAFT	8-97112-981-3	01	1	0508-		●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 1	8-97387-964-0	05	1	0508-	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 2	8-97387-965-0	05	1	0508-	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 3	8-97387-966-0	05	1	0508-	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 4	8-97387-967-0	05	1	0508-	●
10	METAL SET; CRANKSHAFT,STANDARD GRADE 5	8-97387-968-0	05	1	0508-	●
10	METAL SET; CRANKSHAFT,STANDARD BLUE	8-97372-076-1	05	1	0508-		●
10	METAL SET; CRANKSHAFT,STANDARD BLACK	8-97372-077-1	05	1	0508-		●
10	METAL SET; CRANKSHAFT,STANDARD BROWN	8-97372-078-1	05	1	0508-		●
12	FLYWHEEL	8-97034-430-2	01	1	0508-	●
12	FLYWHEEL	8-97330-892-1	01	1	0508-		●
14	WASHER; PULLEY DAMPER ID=16.5 OD=45 T=12	5-09503-127-1	01	1	0508-	●
28	GEAR; CR/SHF Z=21	8-97229-593-1	01	1	0508-	●
28	GEAR; CR/SHF Z=42	8-97109-626-1	01	1	0508-		●
31	KEY; FEATHER,CR/SHF	8-94201-641-0	01	1	0508-	●
35	GEAR; RING Z=108	8-94419-602-1	01	1	0508-	●
35	GEAR; RING Z=138	8-97046-366-1	01	1	0508-		●
37	BEARING; PILOT,TOP GEAR SHAFT NSK	9-00090-679-0	01	1	0508-	●
38	WASHER; FLYWHEEL THA	8-94133-970-1	01	1	0508-1005	●
38	WASHER; FLYWHEEL	8-98171-700-0	01	1	1006-	●
38	WASHER; FLYWHEEL ID=55 OD=110	8-94397-496-1	01	1	0508-		●
40	BOLT; FLYWHEEL M13X36	8-97065-984-1	08	1	0508-	●
40	BOLT; FLYWHEEL M16X42	8-97178-013-0	08	1	0508-		●
42	WASHER; THRUST,CR/SHF (C)	8-97383-740-0	02	1	0508-1108	●
42	WASHER; THRUST,CR/SHF (C)	8-98040-704-0	02	1	1109-	●
42	WASHER; THRUST,CR/SHF (A)	8-94399-277-0	01	1	0508-0703		●
42	WASHER; THRUST,CR/SHF (A)	8-97386-548-0	01	1	0704-		●
42	WASHER; THRUST,CR/SHF (B)	8-94399-283-0	02	1	0508-0703		●
42	WASHER; THRUST,CR/SHF (B)	8-97386-549-0	02	1	0704-		●
43	BOLT; CR/SHF PULLEY M16X43	5-09000-273-2	01	1	0508-	●
56	PULLEY; CR/SHF DAMPER 3-GROOVE YAMATO PRESS THA	8-94419-457-2	01	1	0508-	●
56	PULLEY; CR/SHF DAMPER 3-GROOVE FUKOKU	8-94442-166-6	01	1	0508-	●
56	PULLEY; CR/SHF DAMPER 4-GROOVE	8-97222-031-3	01	1	0508-		●
61	PULLEY; FAN DRIVE 1-GROOVE OD=120	8-94459-815-4	01	1	0508-	●
61	PULLEY; FAN DRIVE 2-GROOVE	8-97174-757-3	01	1	0508-		●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=AX	8-97176-610-0	04	1	0508-	●
63	PISTON ALSO INCLUDED IN LINER SET. GRADE=CX	8-97176-611-0	04	1	0508-	●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-97219-032-1	04	1	0508-1112		●
63	PISTON ALSO INCLUDED IN LINER SET. NON GRADE	8-98209-745-0	04	1	1201-		●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-94247-867-2	04	1	0508-	●
68	RING SET; PISTON,STANDARD ALSO INCLUDED IN LINER SET.	8-97219-054-0	04	1	0508-		●
73	METAL SET; CONN ROD,STANDARD	8-97358-234-0	04	1	0508-	●
73	METAL SET; CONN ROD,STANDARD YELLOW	8-97045-800-0	04	1	0508-		●
73	METAL SET; CONN ROD,STANDARD GREEN	8-97045-801-0	04	1	0508-		●
83	PIN; PISTON ALSO INCLUDED IN LINER SET. THA	8-94457-008-1	04	1	0508-	●
83	PIN; PISTON ALSO INCLUDED IN LINER SET.	8-94396-589-1	04	1	0508-		●
84	ROD ASM; CONN	8-98013-290-2	04	1	0508-0705	●
84	ROD ASM; CONN	8-98013-962-4	04	1	0706-	●
84	ROD ASM; CONN	8-97135-032-5	04	1	0508-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98121-309-0	04	1	0906-		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-94457-158-0	04	1	0508-0705	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-97289-264-1	04	1	0706-	●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	1-12251-036-0	04	1	0508-0805		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98075-233-0	04	1	0806-0905		●
85	BUSHING; CONNROD ALSO INCLUDED IN LINER SET.	8-98121-309-0	04	1	0906-		●
86	BOLT; CONNROD M11X44.5	8-97062-086-0	08	1	0508-0701	●
86	BOLT; CONNROD M11X44.5	8-98048-538-0	08	1	0702-	●
86	BOLT; CONNROD M13X57 FLANGE	1-12235-035-0	08	1	0508-1004		●
86	BOLT; CONNROD M13X57 FLANGE	8-98091-141-0	08	1	1005-		●
87	PIN; CONNROD BIG END OD=5 L=8 THA	9-08160-508-0	08	1	0508-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94460-687-0	08	1	0508-	●
126	RING; SNAP,PISTON PIN ALSO INCLUDED IN LINER SET.	8-94318-798-2	08	1	0508-		●
