0-14 — CAMSHAFT AND VALVE (#23155) — 172 parça

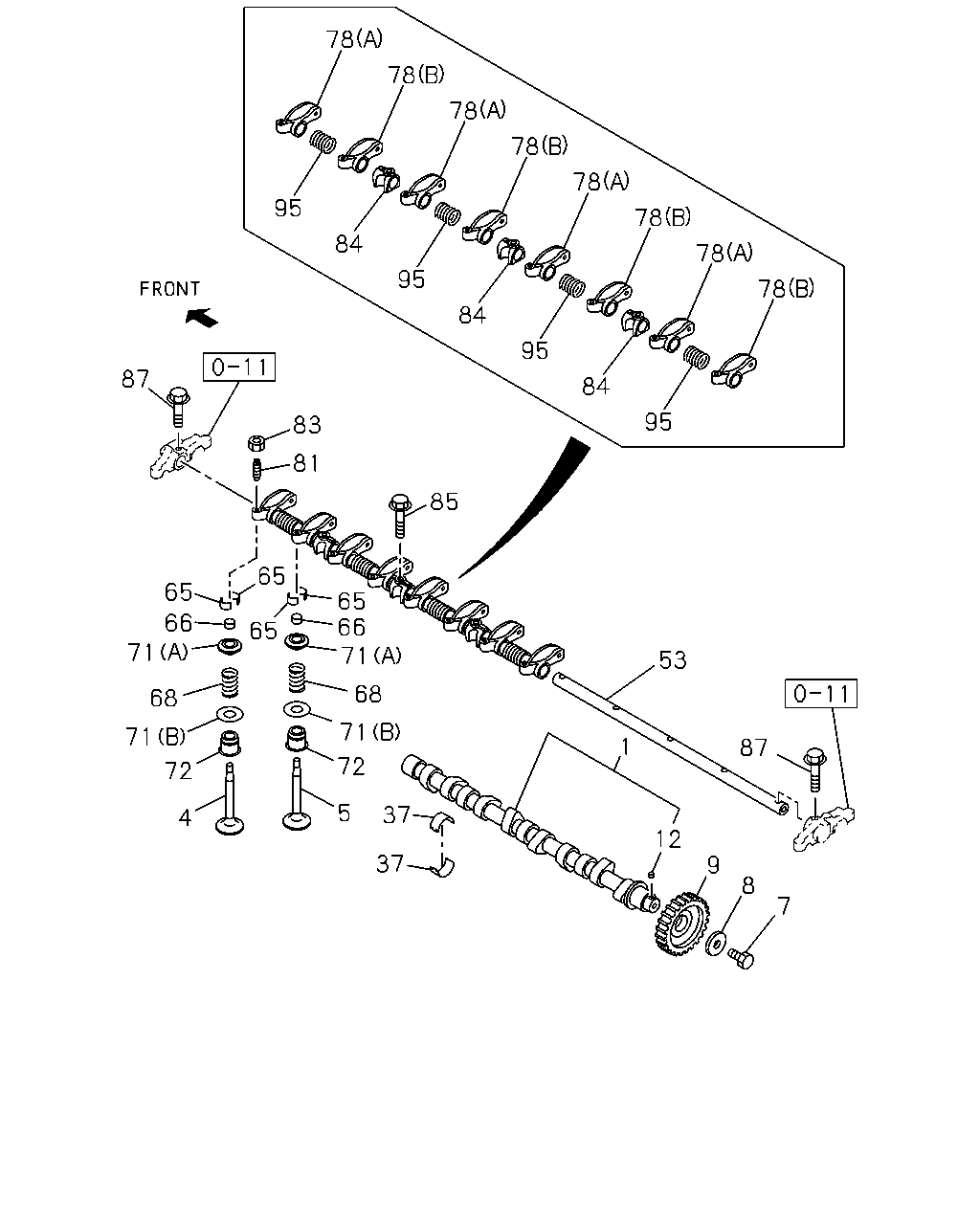

78 78 78 78 78 95 78 84 78 95 78 84 95 87 84 95 83 81 85 65 65 65 66 71 66 71 65 53 68 68 71 71 1 72 72 5 37 4 12 37 9 8 7 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAMSHAFT	8-97287-657-1	01	1	0508-	●
1	CAMSHAFT	8-97077-829-0	01	1	0508-		●
4	VALVE; INL	8-94464-921-2	04	1	0508-	●
4	VALVE; INL	8-97171-398-0	04	1	0508-		●
5	VALVE; EXH	8-94433-245-1	04	1	0508-1405	●
5	VALVE; EXH	8-98277-383-0	04	1	1406-	●
5	VALVE; EXH	8-97171-399-0	04	1	0508-		●
7	BOLT; CM/SHF GEAR M14X40	8-94396-439-0	01	1	0508-		●
8	WASHER; CM/SHF GEAR ID=14.5	9-09851-850-3	01	1	0508-		●
9	GEAR; CM/SHF Z=42	8-97229-594-2	01	1	0912-	●
9	GEAR; CM/SHF Z=42	8-97079-212-1	01	1	0508-0911	●
9	GEAR; CM/SHF Z=42	8-97229-594-2	01	1	0912-	●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	0508-		●
12	KEY; CAM GEAR SET	8-94399-487-0	01	1	0508-		●
37	METAL; CM/SHF B=16	8-97356-939-0	10	1	0508-0706		●
37	METAL; CM/SHF B=16	8-97386-189-0	10	1	0707-		●
53	SHAFT; ROCKER ARM	8-97036-197-0	01	1	0508-	●
53	SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	0508-		●
53	SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	0508-		●
65	COLLAR; SPLIT	5-12565-004-0	16	1	0508-	●
65	COLLAR; SPLIT	5-12565-006-0	16	1	0508-		●
66	CAP; VLV STEM END	8-94396-015-2	08	1	0508-		●
68	SPRING; VLV ID=26.25	8-94433-247-0	08	1	0508-	●
68	SPRING; VLV ID=28.5	8-97023-559-0	08	1	0508-		●
71	SEAT; SPR (B) OD=34	5-12563-001-0	08	1	0508-	●
71	SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	0508-	●
71	SEAT; SPR (A) OD=38	8-94385-029-2	08	1	0508-		●
71	SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	0508-		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	0508-	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	08	1	0508-		●
78	ARM; ROCKER (C)	8-94152-344-0	08	1	0508-	●
78	ARM; ROCKER (B) JBK	8-97014-258-2	04	1	0508-		●
78	ARM; ROCKER (A) JBK	8-97074-614-1	04	1	0508-		●
78	ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	0508-		●
78	ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	0508-		●
81	SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	0508-	●
81	SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	0508-		●
83	NUT; ADJ SCREW,LK M8	9-09111-508-0	08	1	0508-0512	●
83	NUT; ADJ SCREW,LK M8	0-91111-508-0	08	1	0601-	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	08	1	0508-0512		●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	0601-		●
84	BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	0508-	●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	0508-		●
84	BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	0508-		●
85	BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	0508-	●
85	BOLT; BRKT M10X62 FLANGE	8-94393-131-0	03	1	0508-		●
85	BOLT; BRKT M10X62 FLANGE	8-97174-650-0	03	1	0508-		●
87	BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	0508-	●
87	BOLT; ROCKER SHAFT M8X35 FLANGE	0-28080-835-0	02	1	0508-0512		●
87	BOLT; ROCKER SHAFT M8X35 FLANGE THA	0-28050-835-0	02	1	0601-		●
95	SPRING; ROCKER SHAFT	8-94341-905-0	03	1	0508-	●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	0508-		●
95	SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	0508-		●

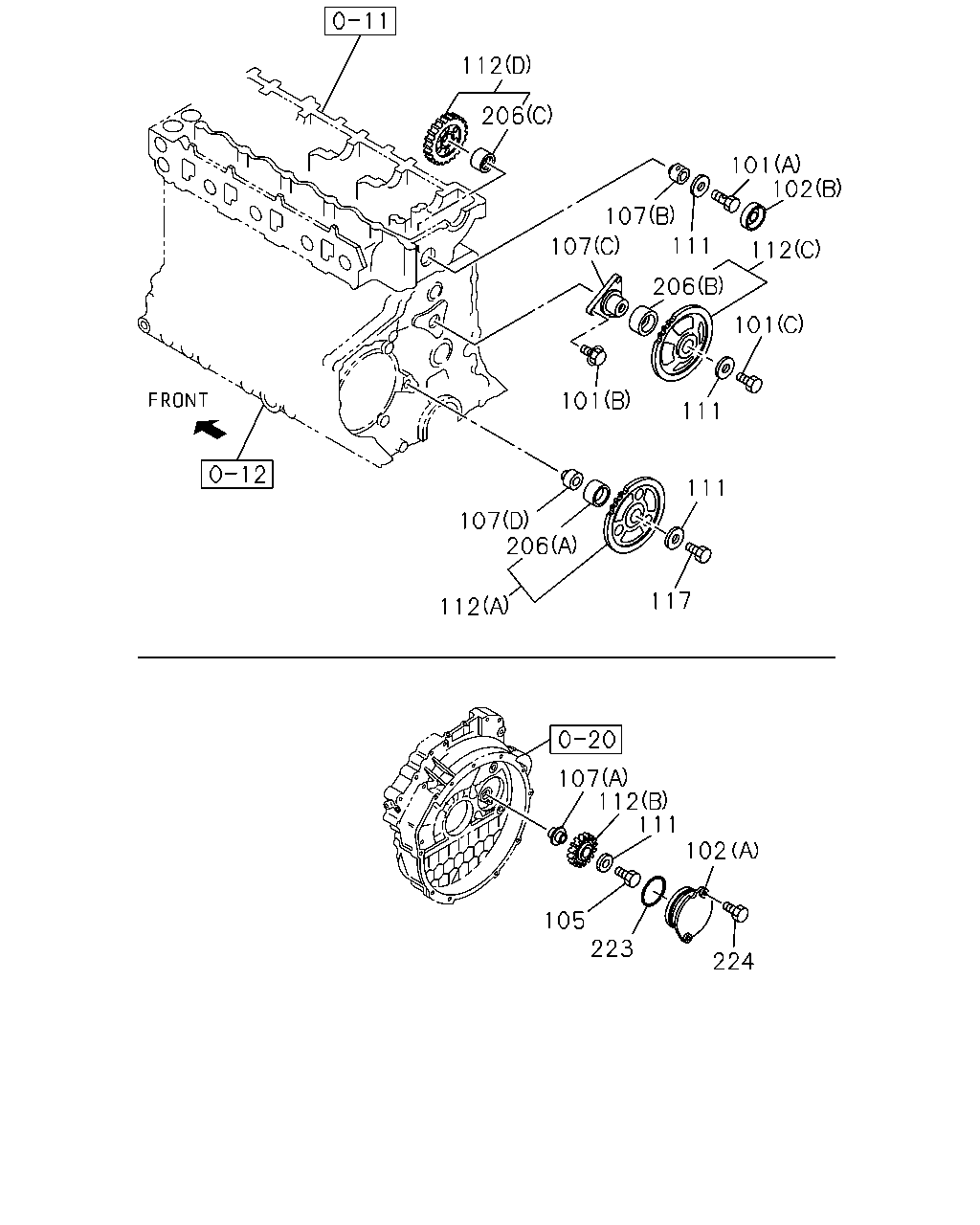

112 206 101 102 107 107 111 112 206 101 101 111 111 107 206 117 112 107 112 111 102 105 223 224

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
101	BOLT; THRUST COLLAR (D) M8X53 FLANGE	8-97223-999-0	02	1	0508-	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0508-0512		●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0601-		●
101	BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	0508-		●
101	BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	0508-1310		●
101	BOLT; THRUST COLLAR (C) M14X25	0-23951-425-0	01	1	1311-		●
102	COVER; IDLE GEAR (A)	8-94334-681-1	01	1	0508-		●
102	COVER; IDLE GEAR (B) OD=51	8-97096-826-0	01	1	0508-		●
105	BOLT; IDLE GEAR SHAFT POWER STEERING<N40> M14X60	9-91666-460-0	01	1	0508-0512		●
105	BOLT; IDLE GEAR SHAFT POWER STEERING<N40> M14X60	0-16956-460-0	01	1	0601-		●
107	SHAFT; IDLE GEAR (E) THA	8-97920-007-0	01	1	0508-	●
107	SHAFT; IDLE GEAR POWER STEERING<N40> (A)	8-94334-682-1	01	1	0508-		●
107	SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	0508-0609		●
107	SHAFT; IDLE GEAR (D)	8-98060-780-0	01	1	0610-		●
107	SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	0508-		●
107	SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0508-		●
111	COLLAR; THRUST,IDLE GEAR THA	8-94141-937-1	01	1	0508-	●
111	COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-2	01	1	0508-		●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	03	1	0508-		●
112	GEAR; IDLE (A) Z=72-30	8-97227-074-0	01	1	0508-		●
112	GEAR; IDLE (E) Z=31	8-97229-601-0	01	1	0508-	●
112	GEAR; IDLE POWER STEERING<N40> (B) Z=34	8-97120-005-1	01	1	0508-		●
112	GEAR; IDLE (C) Z=61	8-97094-546-2	01	1	0508-		●
112	GEAR; IDLE (D) Z=41	8-97112-607-1	01	1	0508-		●
117	BOLT; FLANGE M14X65 FLANGE	8-97113-167-0	01	1	0508-		●
206	BUSHING; IDLE GEAR (A) AFTER PRESS FITTING, MACHINE IT.	1-12528-006-0	01	1	0508-		●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-94369-340-0	01	1	0508-0802		●
206	BUSHING; IDLE GEAR (B) AFTER PRESS FITTING, MACHINE IT.	8-97606-768-0	01	1	0803-		●
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97112-608-0	01	1	0508-0809		●
206	BUSHING; IDLE GEAR (C) AFTER PRESS FITTING, MACHINE IT.	8-97606-770-0	01	1	0810-		●
223	GASKET; COVER,IDLE GEAR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	0508-		●
224	BOLT; COVER M8X16 FLANGE	0-28080-816-0	02	1	0508-0512		●
224	BOLT; COVER M8X16 FLANGE THA	0-28050-816-0	02	1	0601-		●

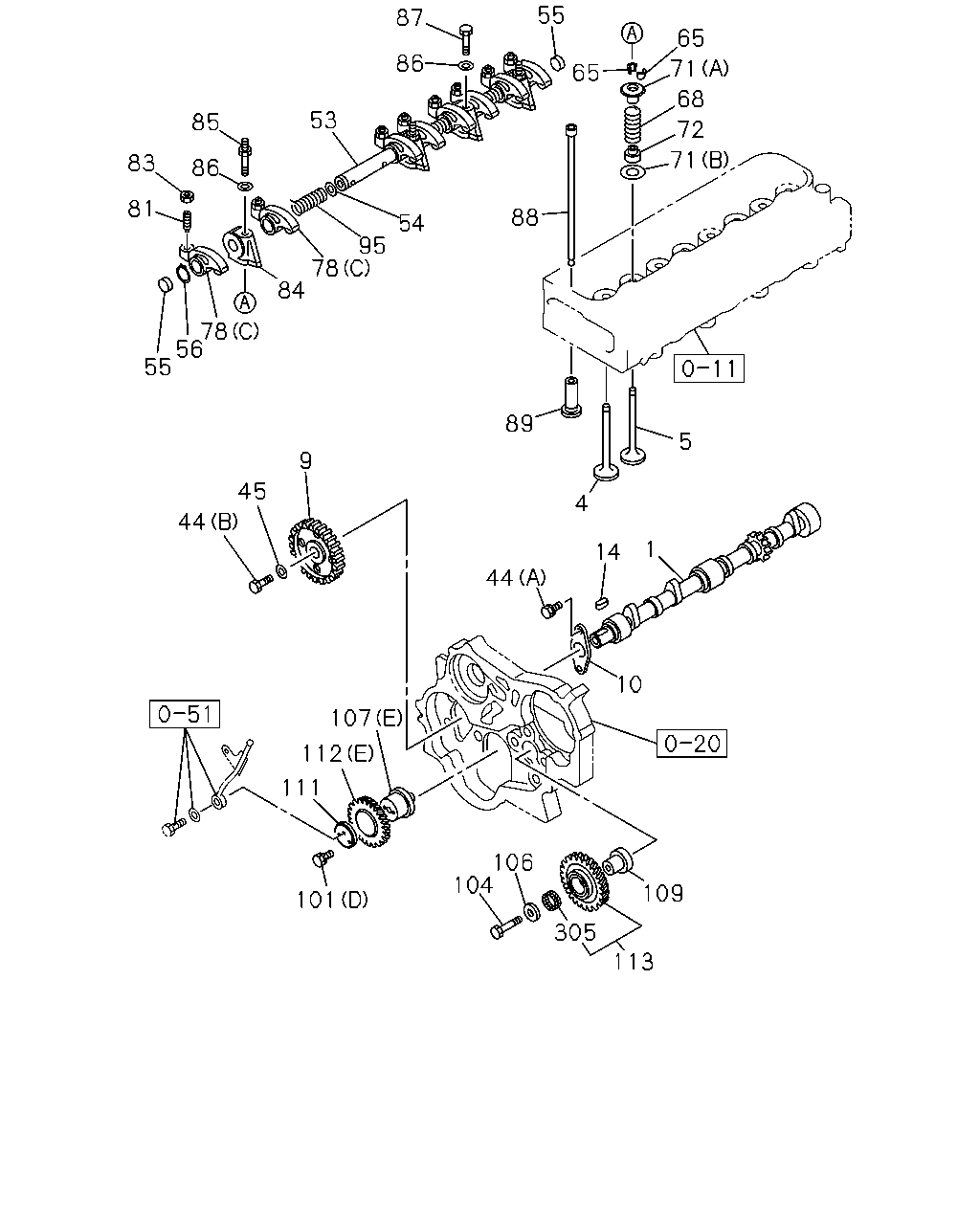

55 87 65 86 71 65 68 53 85 72 71 83 86 81 88 54 95 78 84 78 56 55 89 5 9 45 4 44 1 14 44 10 107 112 111 106 104 109 101 305 113

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	CAMSHAFT	8-97287-657-1	01	1	0508-	●
1	CAMSHAFT	8-97077-829-0	01	1	0508-		●
4	VALVE; INL	8-94464-921-2	04	1	0508-	●
4	VALVE; INL	8-97171-398-0	04	1	0508-		●
5	VALVE; EXH	8-94433-245-1	04	1	0508-1405	●
5	VALVE; EXH	8-98277-383-0	04	1	1406-	●
5	VALVE; EXH	8-97171-399-0	04	1	0508-		●
9	GEAR; CM/SHF Z=42	8-97229-594-2	01	1	0912-	●
9	GEAR; CM/SHF Z=42	8-97079-212-1	01	1	0508-0911	●
9	GEAR; CM/SHF Z=42	8-97229-594-2	01	1	0912-	●
9	GEAR; CM/SHF Z=35	8-97094-440-2	01	1	0508-		●
10	PLATE; THRUST	8-94110-480-1	01	1	0508-	●
14	KEY; CM/SHF	9-08000-718-0	01	1	0508-	●
44	BOLT (A) M8X16 FLANGE	0-28080-816-0	02	1	0508-0512	●
44	BOLT (A) M8X16 FLANGE THA	0-28050-816-0	02	1	0601-	●
44	BOLT (B) M12X47	8-94433-407-0	01	1	0508-	●
45	WASHER; GEAR CAM ID=13 OD=36	5-12519-002-1	01	1	0508-	●
53	SHAFT; ROCKER ARM	8-97036-197-0	01	1	0508-	●
53	SHAFT; ROCKER ARM JBK	8-97074-617-1	01	1	0508-		●
53	SHAFT; ROCKER ARM KEIHIN SEIMITSU	8-97174-567-0	01	1	0508-		●
54	WASHER; ROCKER SPR ID=19.1 OD=23	8-94341-906-0	06	1	0508-	●
55	PLUG; ROCKER SHAFT END	9-12626-005-0	02	1	0508-	●
56	RING; SNAP,ROCKER ARM ID=17.5	9-09180-019-0	02	1	0508-	●
65	COLLAR; SPLIT	5-12565-004-0	16	1	0508-	●
65	COLLAR; SPLIT	5-12565-006-0	16	1	0508-		●
68	SPRING; VLV ID=26.25	8-94433-247-0	08	1	0508-	●
68	SPRING; VLV ID=28.5	8-97023-559-0	08	1	0508-		●
71	SEAT; SPR (B) OD=34	5-12563-001-0	08	1	0508-	●
71	SEAT; SPR (A) OD=32.8	8-94133-731-2	08	1	0508-	●
71	SEAT; SPR (A) OD=38	8-94385-029-2	08	1	0508-		●
71	SEAT; SPR (B) ID=14.3 OD=40	8-94399-526-1	08	1	0508-		●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-97120-307-0	08	1	0508-	●
72	SEAL; VLV GUIDE ALSO INCLUDED IN GASKET SET(ENG. & HEAD)	8-94396-609-2	08	1	0508-		●
78	ARM; ROCKER (C)	8-94152-344-0	08	1	0508-	●
78	ARM; ROCKER (B) JBK	8-97014-258-2	04	1	0508-		●
78	ARM; ROCKER (A) JBK	8-97074-614-1	04	1	0508-		●
78	ARM; ROCKER (A) KEIHIN SEIMITSU	8-97174-562-0	04	1	0508-		●
78	ARM; ROCKER (B) KEIHIN SEIMITSU	8-97174-565-0	04	1	0508-		●
81	SCREW; ADJ,ROCKER ARM M8X30	8-94152-283-1	08	1	0508-	●
81	SCREW; ADJ,ROCKER ARM	8-94367-526-2	08	1	0508-		●
83	NUT; ADJ SCREW,LK M8	9-09111-508-0	08	1	0508-0512	●
83	NUT; ADJ SCREW,LK M8	0-91111-508-0	08	1	0601-	●
83	NUT; ADJ SCREW,LK M10	9-09111-410-0	08	1	0508-0512		●
83	NUT; ADJ SCREW,LK M10	0-91111-510-0	08	1	0601-		●
84	BRACKET; ROCKER SHAFT,INTER	8-94152-345-1	04	1	0508-	●
84	BRACKET; ROCKER SHAFT,INTER JBK	8-94388-109-3	03	1	0508-		●
84	BRACKET; ROCKER SHAFT,INTER KEIHIN SEIMITSU	8-97174-568-0	03	1	0508-		●
85	BOLT; BRKT M8X15,M10X60 L=82	8-94433-304-0	03	1	0508-	●
85	BOLT; BRKT M10X62 FLANGE	8-94393-131-0	03	1	0508-		●
85	BOLT; BRKT M10X62 FLANGE	8-97174-650-0	03	1	0508-		●
86	WASHER; ROCKER ARM FIX ID=10.5	9-09164-010-0	04	1	0508-	●
87	BOLT; ROCKER SHAFT M10X60	8-94433-302-0	01	1	0508-	●
87	BOLT; ROCKER SHAFT M8X35 FLANGE	0-28080-835-0	02	1	0508-0512		●
87	BOLT; ROCKER SHAFT M8X35 FLANGE THA	0-28050-835-0	02	1	0601-		●
88	ROD; PUSH	8-97071-673-0	08	1	0508-	●
89	TAPPET; VLV	8-94438-305-1	08	1	0508-	●
95	SPRING; ROCKER SHAFT	8-94341-905-0	03	1	0508-	●
95	SPRING; ROCKER SHAFT JBK	8-94397-263-0	04	1	0508-		●
95	SPRING; ROCKER SHAFT KEIHIN SEIMITSU	8-97174-654-0	04	1	0508-		●
101	BOLT; THRUST COLLAR (D) M8X53 FLANGE	8-97223-999-0	02	1	0508-	●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28090-816-0	03	1	0508-0512		●
101	BOLT; THRUST COLLAR (B) M8X16 FLANGE	0-28060-816-0	03	1	0601-		●
101	BOLT; THRUST COLLAR (A) M14X36.5	8-94372-221-1	01	1	0508-		●
101	BOLT; THRUST COLLAR (C) M14X25	9-92361-425-0	01	1	0508-1310		●
101	BOLT; THRUST COLLAR (C) M14X25	0-23951-425-0	01	1	1311-		●
104	BOLT; SHAFT IDLE THA	8-94109-706-1	01	1	0508-	●
106	WASHER; IDLE GEAR SHAFT ID=13 OD=36	5-12519-002-1	01	1	0508-	●
107	SHAFT; IDLE GEAR (E) THA	8-97920-007-0	01	1	0508-	●
107	SHAFT; IDLE GEAR POWER STEERING<N40> (A)	8-94334-682-1	01	1	0508-		●
107	SHAFT; IDLE GEAR (D)	8-97104-380-0	01	1	0508-0609		●
107	SHAFT; IDLE GEAR (D)	8-98060-780-0	01	1	0610-		●
107	SHAFT; IDLE GEAR (B)	8-97186-398-1	01	1	0508-		●
107	SHAFT; IDLE GEAR (C)	8-97350-021-0	01	1	0508-		●
109	SHAFT; IDLE GEAR	8-97218-780-0	01	1	0508-	●
111	COLLAR; THRUST,IDLE GEAR THA	8-94141-937-1	01	1	0508-	●
111	COLLAR; THRUST,IDLE GEAR POWER STEERING<N40> ID=14.5 OD=46	8-97209-728-2	01	1	0508-		●
111	COLLAR; THRUST,IDLE GEAR ID=14.5 OD=46	8-97209-728-2	03	1	0508-		●
112	GEAR; IDLE (A) Z=72-30	8-97227-074-0	01	1	0508-		●
112	GEAR; IDLE (E) Z=31	8-97229-601-0	01	1	0508-	●
112	GEAR; IDLE POWER STEERING<N40> (B) Z=34	8-97120-005-1	01	1	0508-		●
112	GEAR; IDLE (C) Z=61	8-97094-546-2	01	1	0508-		●
112	GEAR; IDLE (D) Z=41	8-97112-607-1	01	1	0508-		●
113	GEAR; IDLE Z=37	8-97229-602-0	01	1	0508-0908	●
113	GEAR; IDLE Z=37	8-98140-217-0	01	1	0909-	●
305	BEARING; IDLE GEAR	8-97218-947-1	01	1	0508-0908	●
305	BEARING; IDLE GEAR	8-98140-110-0	01	1	0909-	●
