◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 51040 - NKR(THAILAND) ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-13 - OIL PAN AND LEVEL GAUGE ▶
0-13 — OIL PAN AND LEVEL GAUGE (#23154) — 35 parça

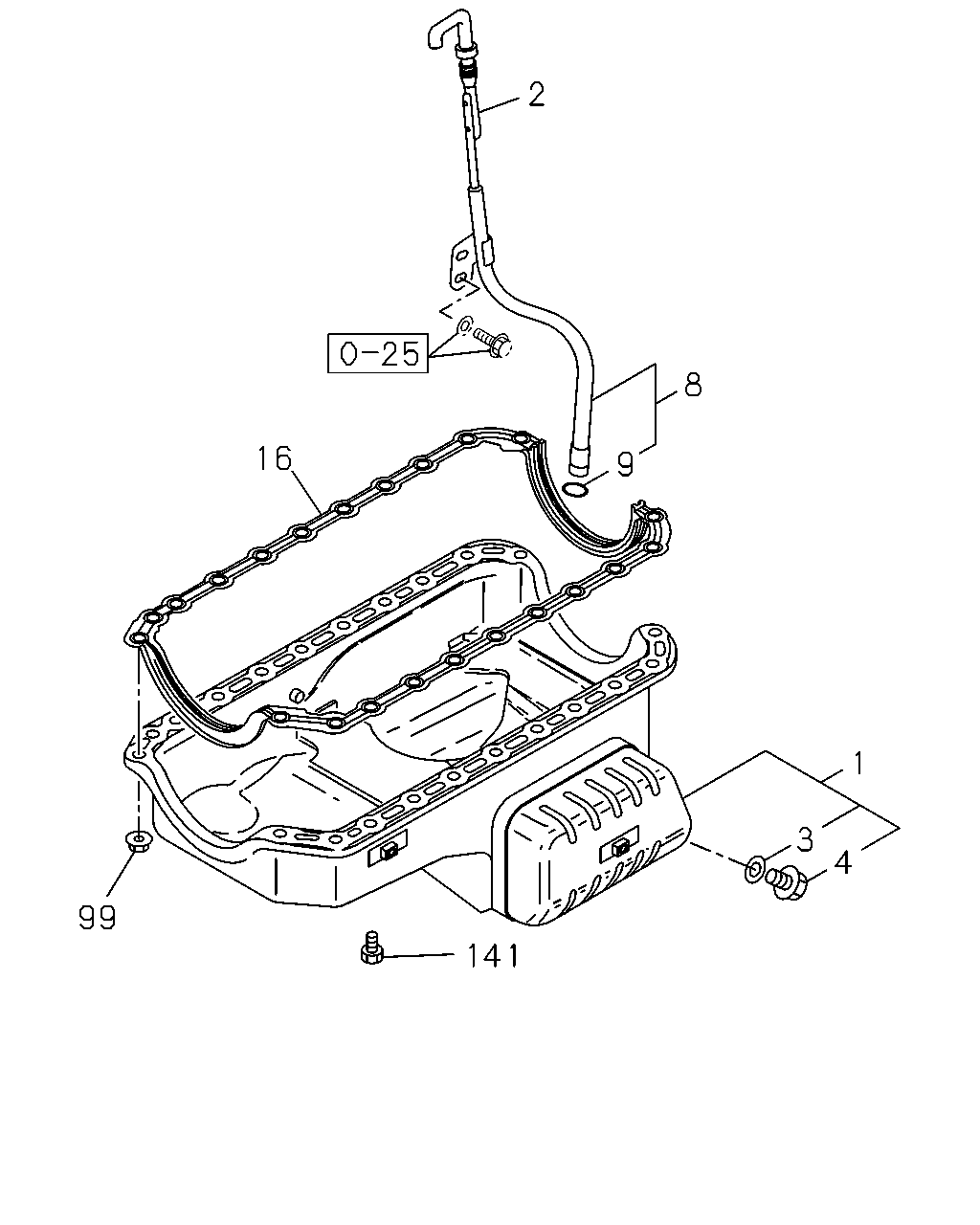

çizim 118781
2 8 16 9 1 3 4 99 141
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL 8-98000-123-0 01 1 0508- ●
1 PAN ASM; OIL 8-97385-249-0 01 1 0508-1202 ●
1 PAN ASM; OIL 8-98203-596-0 01 1 1203- ●
2 GAUGE; OIL LEVEL 8-97231-295-0 01 1 0508- ●
2 GAUGE; OIL LEVEL 8-97094-460-2 01 1 0508- ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 0508- ● ●
4 PLUG; DRAIN,OIL
M14X14 		8-94152-613-0 01 1 0508- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-97221-497-0 01 1 0508- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-97200-567-1 01 1 0508- ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 0508- ● ●
16 GASKET; OIL PAN TO C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97080-194-0 01 1 0508- ●
99 NUT; BRKT TO OIL PAN FIX
M8 FLANGE THA 		5-09440-010-0 10 1 0508- ●
141 BOLT; BRKT TO OIL PAN FIX 8-94133-973-2 12 1 0508- ●
çizim 118783
2 10 9 9 8 123 123 17 1 3 4 25 23 24 123 123
BalonParca AdiParca NoAdetTipApplied Date A B
1 PAN ASM; OIL 8-98000-123-0 01 1 0508- ●
1 PAN ASM; OIL 8-97385-249-0 01 1 0508-1202 ●
1 PAN ASM; OIL 8-98203-596-0 01 1 1203- ●
2 GAUGE; OIL LEVEL 8-97231-295-0 01 1 0508- ●
2 GAUGE; OIL LEVEL 8-97094-460-2 01 1 0508- ●
3 GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24 		8-94158-328-0 01 1 0508- ● ●
4 PLUG; DRAIN,OIL
M14X14 		8-94152-613-0 01 1 0508- ● ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-97221-497-0 01 1 0508- ●
8 TUBE; GUIDE,OIL LEVEL GAUGE 8-97200-567-1 01 1 0508- ●
9 GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=11 		5-09623-002-0 02 1 0508- ● ●
10 BOLT; GUIDE TUBE
M10X110 FLANGE 		0-28186-011-0 01 1 0508-0512 ●
10 BOLT; GUIDE TUBE
M10X110 FLANGE 		0-28156-011-0 01 1 0601- ●
17 GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-97364-386-0 01 1 0508- ●
23 BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE 		8-97190-390-0 13 1 0508- ●
24 NUT; OIL PAN
M8 FLANGE 		0-91150-108-0 13 1 0508-0602 ●
24 NUT; OIL PAN
M8 FLANGE THA 		0-91180-108-0 13 1 0603- ●
25 STUD; OIL PAN
M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE 		8-97190-391-0 01 1 0508- ●
25 STUD; OIL PAN
M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE 		8-97190-392-0 09 1 0508- ●
123 RUBBER; SEAL OIL
(A) 		8-97186-988-0 01 1 0508- ●
123 RUBBER; SEAL OIL
(B) 		8-97186-994-0 01 1 0508- ●
123 RUBBER; SEAL OIL
(C) 		8-97186-998-0 01 1 0508- ●
123 RUBBER; SEAL OIL
(D) 		8-97187-000-0 01 1 0508- ●
