0-12 — CYLINDER BLOCK (#23153) — 120 parça

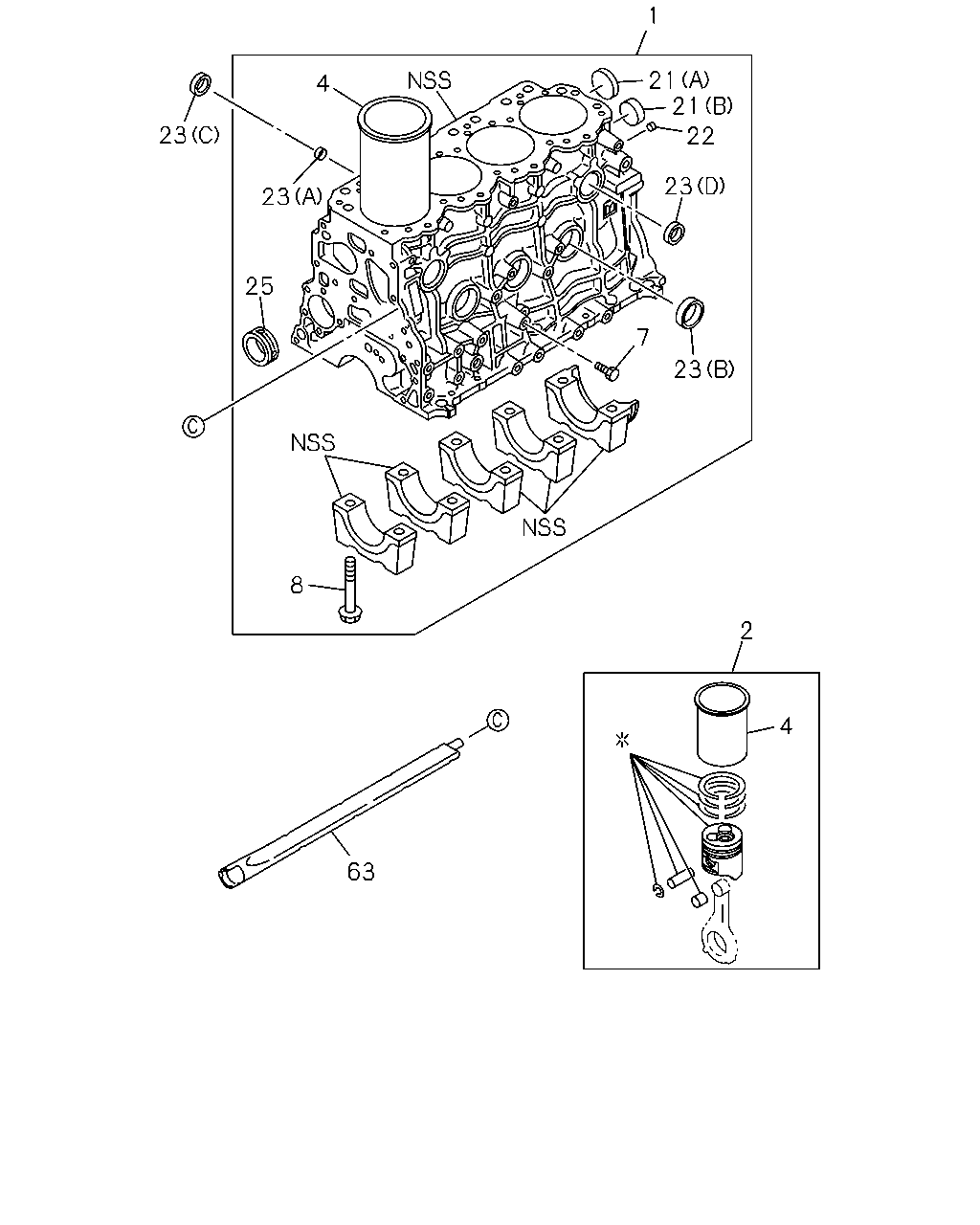

1 21 21 22 23 23 7 8 25 4 23 23 63 2 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	8-97352-707-2	01	1	0508-	●
1	BLOCK ASM; CYL	8-98005-434-3	01	1	0508-1209		●
1	BLOCK ASM; CYL	8-98204-534-0	01	1	1210-		●
2	LINER SET; ENG CYL GRADE=1	5-87813-193-2	04	1	0508-	●
2	LINER SET; ENG CYL GRADE=2	5-87813-194-2	04	1	0508-	●
2	LINER SET; ENG CYL GRADE=3	5-87813-195-2	04	1	0508-	●
2	LINER SET; ENG CYL GRADE=4	5-87813-196-2	04	1	0508-	●
2	LINER SET; ENG CYL OD GRADE=1X,ID GRADE=NON	5-87814-834-5	04	1	0508-1112		●
2	LINER SET; ENG CYL OD GRADE=1X,ID GRADE=NON	5-87816-317-0	04	1	1201-		●
2	LINER SET; ENG CYL OD GRADE=3X,ID GRADE=NON	5-87814-835-5	04	1	0508-1112		●
2	LINER SET; ENG CYL OD GRADE=3X,ID GRADE=NON	5-87816-318-0	04	1	1201-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-683-0	04	1	0508-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-684-0	04	1	0508-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-685-0	04	1	0508-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-686-0	04	1	0508-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-687-0	04	1	0508-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-688-0	04	1	0508-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-689-0	04	1	0508-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-690-0	04	1	0508-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-048-1	04	1	0508-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-049-1	04	1	0508-		●
7	PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0508-	●
7	PLUG; WATER DRAIN M10X10	8-97352-537-0	01	1	0508-		●
8	BOLT; BRG CAP M14X89 FLANGE	8-94432-642-0	10	1	0508-	●
21	CUP; SEALING,RR (A) OD=38	5-11219-017-0	01	1	0508-	●
21	CUP; SEALING,RR (B) OD=36	5-11219-018-0	01	1	0508-	●
22	CUP; SEALING,DUCT HOLE OD=12.3	5-09600-013-0	01	1	0508-	●
23	CUP; SEALING,C/BL FRT & RR (A) OD=18	5-11219-008-0	03	1	0508-	●
23	CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	0508-	●
23	CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	02	1	0508-	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	0508-	●
23	CUP; SEALING,C/BL FRT & RR (A) OD=25	1-09600-016-0	01	1	0508-		●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	0508-		●
25	METAL; CM/SHF CENTER	8-97378-147-0	02	1	0508-	●
25	METAL; CM/SHF FRONT	8-97378-148-0	01	1	0508-	●
63	DUCT; WATER,C/BL	8-94419-436-2	01	1	0508-	●

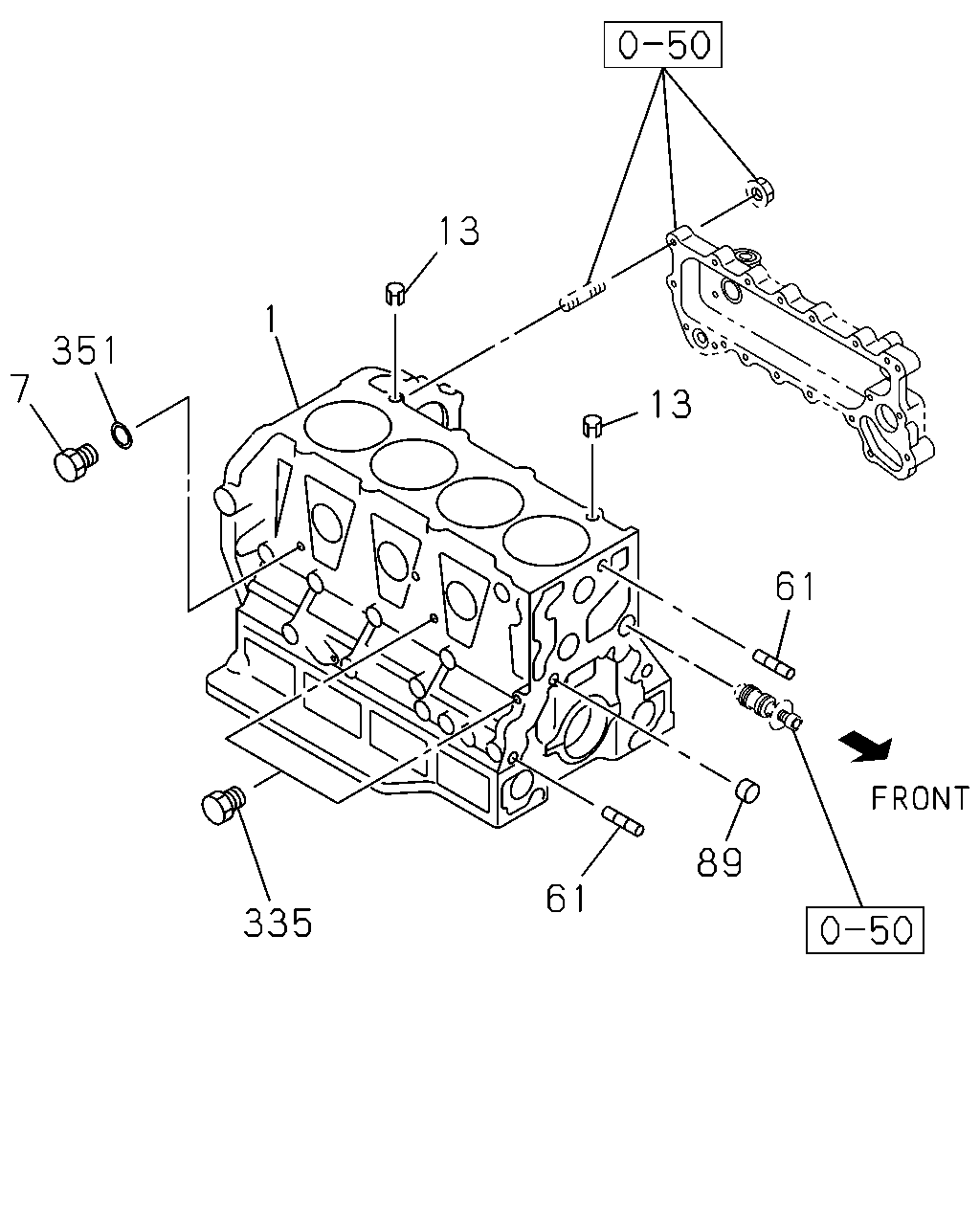

13 1 351 7 13 61 89 61 335

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	8-97352-707-2	01	1	0508-	●
1	BLOCK ASM; CYL	8-98005-434-3	01	1	0508-1209		●
1	BLOCK ASM; CYL	8-98204-534-0	01	1	1210-		●
7	PLUG; WATER DRAIN PT1/4	9-09664-001-0	01	1	0508-	●
7	PLUG; WATER DRAIN M10X10	8-97352-537-0	01	1	0508-		●
13	DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0508-	●
13	DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	0508-		●
61	PIN; STRAIGHT OD=10 L=20	8-97135-423-0	01	1	0508-	●
61	PIN; STRAIGHT L=22	8-94483-674-0	04	1	0508-		●
89	CUP; SEALING,OIL GALLERY OD=20	9-11129-128-0	03	1	0508-		●
335	PLUG; C/BL,SIDE M14X16.5	8-97018-606-0	01	1	0508-0712		●
335	PLUG; C/BL,SIDE M14X16.5	8-97329-617-0	01	1	0801-		●
351	GASKET; COCK,WATER DRAIN ALSO INCLUDED IN GASKET SET(ENGINE). ID=10.2 OD=15.2	1-09630-083-0	01	1	0508-		●

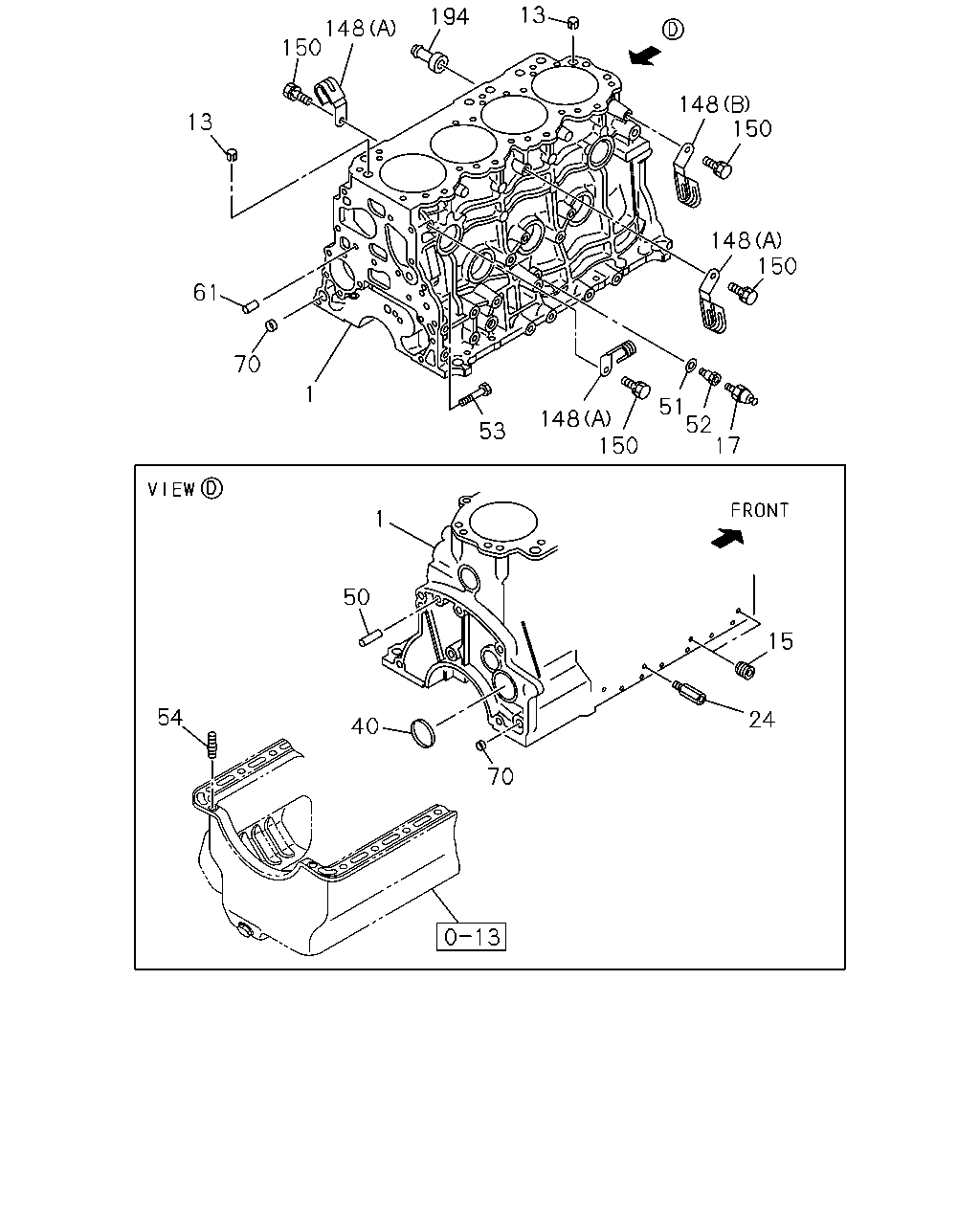

13 194 148 150 148 150 13 148 150 61 70 1 51 52 17 148 150 53 1 50 15 54 24 40 70

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	8-97352-707-2	01	1	0508-	●
1	BLOCK ASM; CYL	8-98005-434-3	01	1	0508-1209		●
1	BLOCK ASM; CYL	8-98204-534-0	01	1	1210-		●
13	DOWEL; C/BL TO HD OD=14	8-94453-344-0	02	1	0508-	●
13	DOWEL; C/BL TO HD OD=18.15	8-94399-688-1	02	1	0508-		●
15	PLUG; OIL GALLERY PT1/8	1-09605-050-0	03	1	0508-	●
17	SWITCH; OIL PRESSURE	8-97072-947-0	01	1	0508-	●
17	SWITCH; OIL PRESSURE	8-97176-230-0	01	1	0508-		●
24	NIPPLE; OIL FEED,VAC PUMP	8-94443-670-1	01	1	0508-	●
40	CUP; SEALING,C/BL RR OD=56	8-94250-514-1	01	1	0508-	●
50	PIN; STRAIGHT,RR PLATE OD=10 L=32 THA	9-08161-032-0	01	1	0508-	●
51	GASKET; OIL PRESS WARNING SW,C/BL ALSO INCLUDED IN GASKET SET(ENGINE).	8-94336-292-0	01	1	0508-	●
52	NIPPLE; OIL PRESS WARNING SW,C/BL	8-94167-749-2	01	1	0508-	●
53	BOLT; REAMER M10X52	9-09806-020-0	01	1	0508-	●
54	STUD; OIL PAN TO BLOCK	8-94133-974-2	10	1	0508-	●
61	PIN; STRAIGHT OD=10 L=20	8-97135-423-0	01	1	0508-	●
61	PIN; STRAIGHT L=22	8-94483-674-0	04	1	0508-		●
70	CUP; SEALING,FRT & RR OD=16	5-11129-006-0	02	1	0508-	●
70	CUP; SEALING,FRT & RR OD=40	8-97096-824-0	04	1	0508-		●
148	CLIP; HARNESS (A) ID=12 B=14 ID=8.5 THA	5-09700-350-0	03	1	0508-0801	●
148	CLIP; HARNESS (A) ID=12 VINYL CHLORIDE	8-97367-984-1	03	1	0802-0907	●
148	CLIP; HARNESS (A) ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	0908-	●
148	CLIP; HARNESS (B) L=91 ID=8.5	8-94329-956-0	01	1	0508-	●
150	BOLT; CLIP M8X12 FLANGE	0-28080-812-0	03	1	0508-0512	●
150	BOLT; CLIP M8X12 FLANGE THA	0-28050-812-0	03	1	0601-	●
194	PIPE; OIL DRAIN,C/BL	8-97137-781-0	01	1	0508-	●

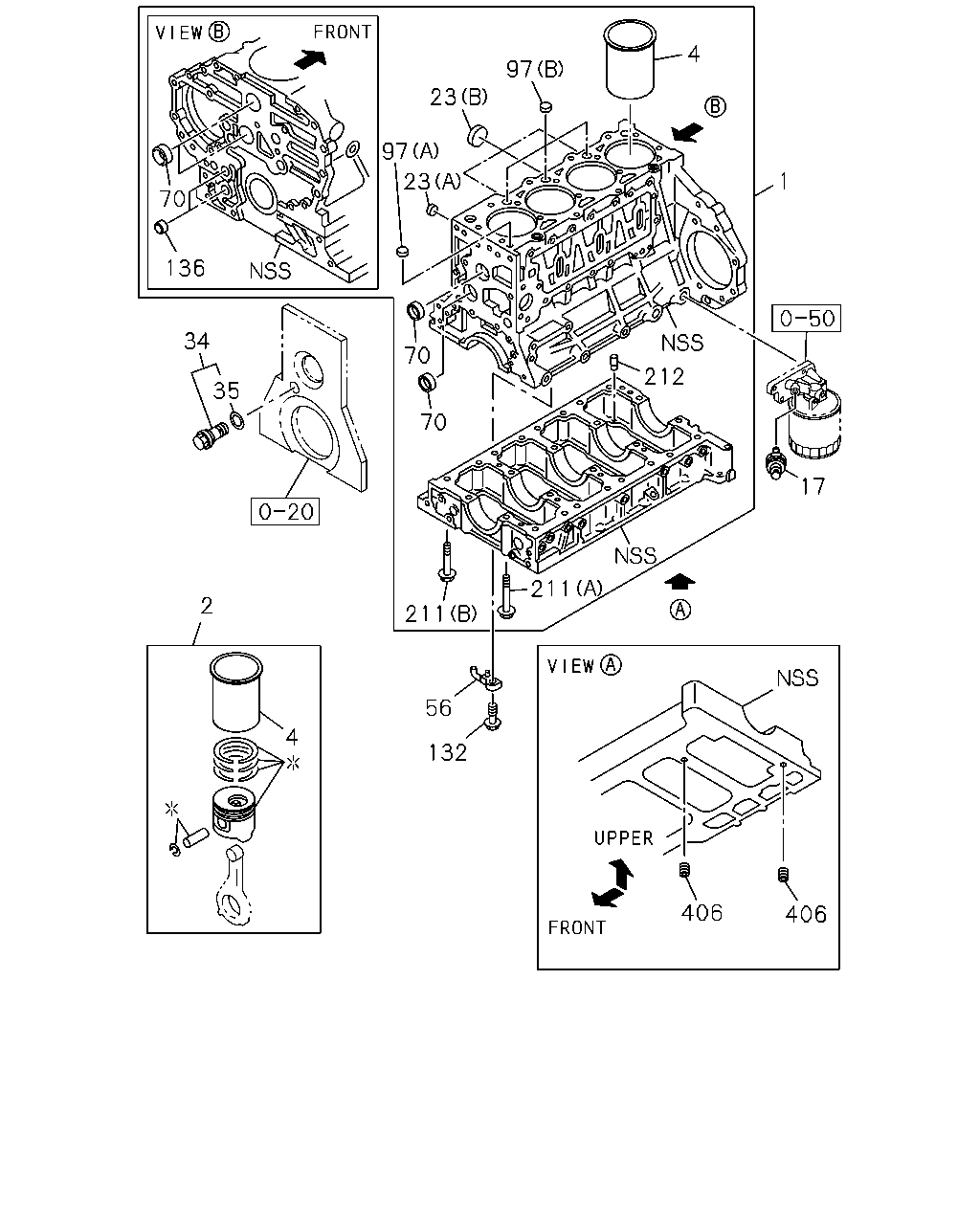

70 136 34 35 2 4 97 23 97 4 1 212 70 23 70 211 211 17 406 406 56 132

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	BLOCK ASM; CYL	8-97352-707-2	01	1	0508-	●
1	BLOCK ASM; CYL	8-98005-434-3	01	1	0508-1209		●
1	BLOCK ASM; CYL	8-98204-534-0	01	1	1210-		●
2	LINER SET; ENG CYL GRADE=1	5-87813-193-2	04	1	0508-	●
2	LINER SET; ENG CYL GRADE=2	5-87813-194-2	04	1	0508-	●
2	LINER SET; ENG CYL GRADE=3	5-87813-195-2	04	1	0508-	●
2	LINER SET; ENG CYL GRADE=4	5-87813-196-2	04	1	0508-	●
2	LINER SET; ENG CYL OD GRADE=1X,ID GRADE=NON	5-87814-834-5	04	1	0508-1112		●
2	LINER SET; ENG CYL OD GRADE=1X,ID GRADE=NON	5-87816-317-0	04	1	1201-		●
2	LINER SET; ENG CYL OD GRADE=3X,ID GRADE=NON	5-87814-835-5	04	1	0508-1112		●
2	LINER SET; ENG CYL OD GRADE=3X,ID GRADE=NON	5-87816-318-0	04	1	1201-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=AX	8-97176-683-0	04	1	0508-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1,ID GRADE=CX	8-97176-684-0	04	1	0508-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=AX	8-97176-685-0	04	1	0508-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=2,ID GRADE=CX	8-97176-686-0	04	1	0508-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=AX	8-97176-687-0	04	1	0508-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3,ID GRADE=CX	8-97176-688-0	04	1	0508-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=AX	8-97176-689-0	04	1	0508-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=4,ID GRADE=CX	8-97176-690-0	04	1	0508-	●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=1X,ID GRADE=NON	8-98014-048-1	04	1	0508-		●
4	LINER; C/BL ALSO INCLUDED IN LINER SET. OD GRADE=3X,ID GRADE=NON	8-98014-049-1	04	1	0508-		●
17	SWITCH; OIL PRESSURE	8-97072-947-0	01	1	0508-	●
17	SWITCH; OIL PRESSURE	8-97176-230-0	01	1	0508-		●
23	CUP; SEALING,C/BL FRT & RR (A) OD=18	5-11219-008-0	03	1	0508-	●
23	CUP; SEALING,C/BL FRT & RR (D) OD=32	5-11219-015-0	02	1	0508-	●
23	CUP; SEALING,C/BL FRT & RR (C) OD=36	5-11219-018-0	02	1	0508-	●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	0508-	●
23	CUP; SEALING,C/BL FRT & RR (A) OD=25	1-09600-016-0	01	1	0508-		●
23	CUP; SEALING,C/BL FRT & RR (B) OD=45	8-97036-550-1	03	1	0508-		●
34	VALVE; OIL RELIEF	8-94386-047-1	01	1	0508-0706		●
34	VALVE; OIL RELIEF	8-97328-859-0	01	1	0707-		●
35	GASKET; RELIEF VLV ID=23.3	8-94173-412-0	01	1	0508-		●
56	JET; OIL,PISTON COOLING	8-97213-294-1	04	1	0508-		●
70	CUP; SEALING,FRT & RR OD=16	5-11129-006-0	02	1	0508-	●
70	CUP; SEALING,FRT & RR OD=40	8-97096-824-0	04	1	0508-		●
97	CUP; SEALING (A) OD=16	5-11129-006-0	01	1	0508-		●
97	CUP; SEALING (B) OD=22	8-97209-609-0	03	1	0508-		●
132	VALVE; CHECK,OIL M10X18.5	1-13161-012-0	04	1	0508-0704		●
132	VALVE; CHECK,OIL M10X18.5	8-97329-618-0	04	1	0705-		●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-94393-596-1	02	1	0508-0812		●
136	BUSHING; DRIVE SHAFT,OIL PUMP	8-98091-566-0	02	1	0901-		●
211	BOLT; CRANKCASE (B) M10X82	8-94399-553-2	17	1	0508-		●
211	BOLT; CRANKCASE (A) M14X115 W/FLANGE	8-97077-638-0	10	1	0508-		●
212	PIN; CRANKCASE OD=10 L=20	8-97135-423-0	02	1	0508-		●
406	PLUG; CRANK CASE PT3/8	5-09605-005-0	02	1	0508-		●
