1-30 — AIR CLEANER (#23150) — 117 parça

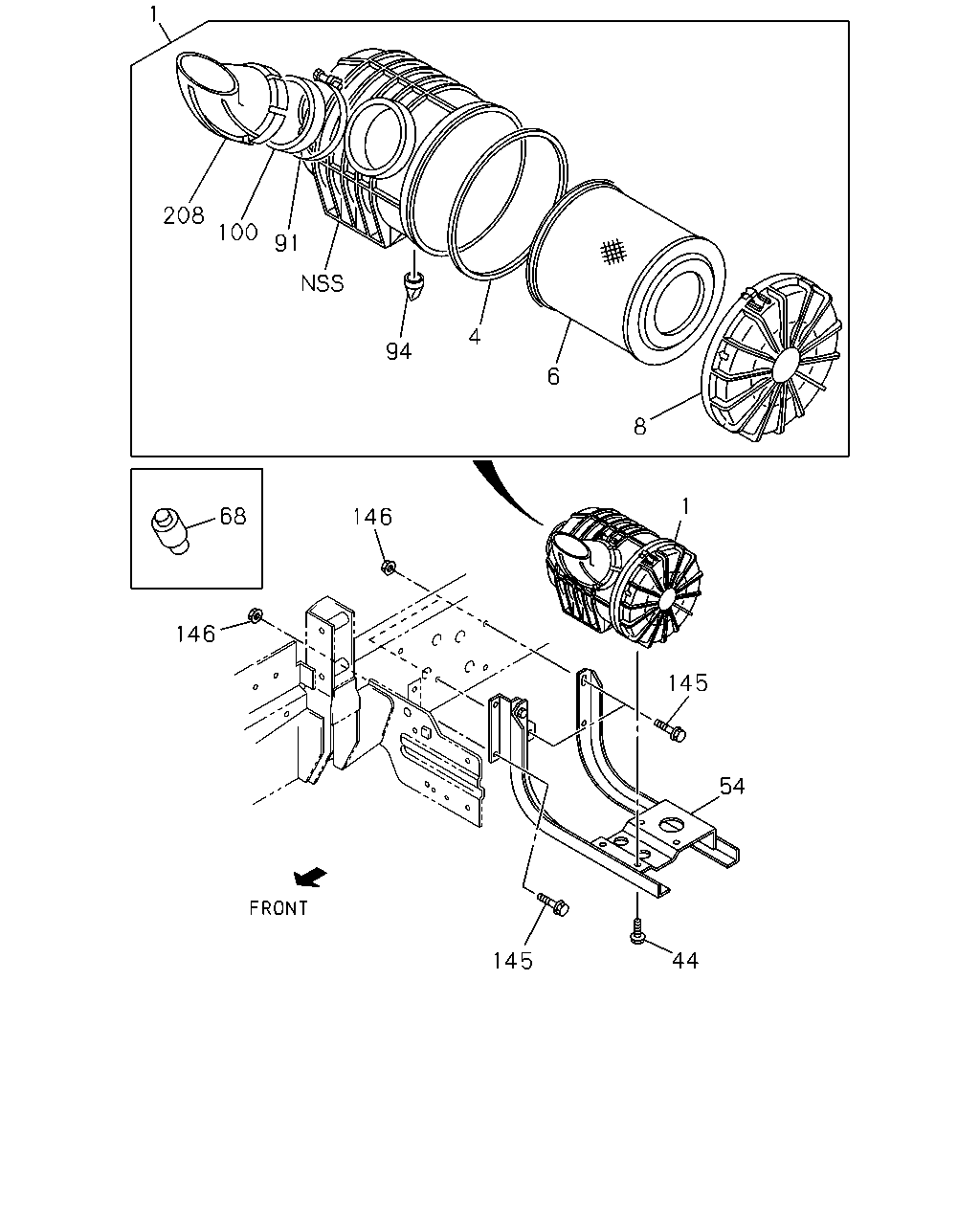

çizim 54738
1 100 91 4 94 6 8 1 68 146 146 145 54 145 44 208
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CLEANER ASM; AIR
4HF1 ENG(RLS) 		8-97255-174-2 01 1 0303- ● ●
1 CLEANER ASM; AIR
4HE1 ENG(RLY) 		8-97228-084-2 01 1 0303-0511 ●
1 CLEANER ASM; AIR
4HK1-TCS ENG(RJS) 		8-97189-166-5 01 1 0512- ● ●
4 GASKET; COVER TO BODY
4HE1 ENG(RLY) 		8-97228-092-0 01 1 0303-0511 ●
6 FILTER; ACL
4HF1 ENG(RLS) 		8-94156-052-0 01 1 0303- ● ●
6 FILTER; ACL
4HE1 ENG(RLY) 		8-97062-294-0 01 1 0303-0511 ●
6 FILTER; ACL
4HK1-TCS ENG(RJS) 		8-94430-250-0 01 1 0512-0708 ● ●
6 FILTER; ACL
4HK1-TCS ENG(RJS) 		8-98091-394-0 01 1 0709- ● ●
8 COVER ASM; ACL
4HF1 ENG(RLS) 		8-97093-023-0 01 1 0303- ● ●
8 COVER ASM; ACL
4HE1 ENG(RLY) 		8-97228-090-0 01 1 0303-0511 ●
44 BOLT; ACL
4HF1 ENG(RLS) M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 0303-0512 ● ●
44 BOLT; ACL
4HF1 ENG(RLS) M8X25 W/LK&PL WASHER SOU 		0-50640-825-0 04 1 0601- ● ●
44 BOLT; ACL
4HE1 ENG(RLY) M8X25 FLANGE 		0-28680-825-0 04 1 0303-0511 ●
54 BRACKET; ACL
4HF1 ENG(RLS) 		8-97351-163-0 01 1 0303- ● ●
54 BRACKET; ACL
4HE1 ENG(RLY) 		8-97096-710-0 01 1 0303-0511 ●
54 BRACKET; ACL
4HK1-TCS ENG(RJS) 		8-98012-793-0 01 1 0512- ● ●
68 INDICATOR; SERVICE
4HF1 ENG(RLS) 		1-14219-212-0 01 1 0303-0511 ● ●
68 INDICATOR; SERVICE
4HE1 ENG(RLY) 		1-14219-212-0 01 1 0303-0511 ●
68 INDICATOR; SERVICE
4HF1 ENG(RLS) 		1-14219-212-0 01 1 0512- ● ●
91 CLAMP
4HF1 ENG(RLS) 		8-97093-696-2 01 1 0303- ● ●
91 CLAMP
4HE1 ENG(RLY) 		8-97093-695-1 01 1 0303-0511 ●
94 VALVE; VACUATOR
4HF1 ENG(RLS) SOU 		8-94447-157-0 01 1 0303- ● ●
94 VALVE; VACUATOR
4HE1 ENG(RLY) 		8-97093-694-0 01 1 0303-0511 ●
94 VALVE; VACUATOR
4HK1-TCS ENG(RJS) 		1-14219-075-0 01 1 0512- ● ●
100 ADAPTER; ELBOW
4HE1 ENG(RLY) 		8-97093-075-0 01 1 0303-0511 ●
100 ADAPTER; ELBOW
4HK1-TCS ENG(RJS) 		8-94430-259-0 01 1 0512- ● ●
145 BOLT; BRKT TO FRAME
4HF1 ENG(RLS) M10X35 FLANGE 		0-28681-035-0 04 1 0303-0511 ● ●
145 BOLT; BRKT TO FRAME
4HF1 ENG(RLS) M10X35 FLANGE 		0-28681-035-0 04 1 0512-0512 ● ●
145 BOLT; BRKT TO FRAME
4HK1-TCS ENG(RJS) M10X35 FLANGE 		0-28681-035-0 04 1 0512-0512 ● ●
145 BOLT; BRKT TO FRAME
4HF1 ENG(RLS) M10X35 FLANGE SOU 		0-28651-035-0 04 1 0601- ● ●
145 BOLT; BRKT TO FRAME
4HK1-TCS ENG(RJS) M10X35 FLANGE SOU 		0-28651-035-0 04 1 0601- ● ●
145 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) M10X35 FLANGE 		0-28681-035-0 05 1 0303-0511 ●
146 NUT; BRKT TO FRAME
4HF1 ENG(RLS) M10 FLANGE SOU 		0-91150-110-0 04 1 0303-0511 ● ●
146 NUT; BRKT TO FRAME
4HF1 ENG(RLS) M10 FLANGE SOU 		0-91150-110-0 04 1 0512-0602 ● ●
146 NUT; BRKT TO FRAME
4HK1-TCS ENG(RJS) M10 FLANGE SOU 		0-91150-110-0 04 1 0512-0602 ● ●
146 NUT; BRKT TO FRAME
4HF1 ENG(RLS) M10 FLANGE SOU 		0-91180-110-0 04 1 0603- ● ●
146 NUT; BRKT TO FRAME
4HK1-TCS ENG(RJS) M10 FLANGE SOU 		0-91180-110-0 04 1 0603- ● ●
146 NUT; BRKT TO FRAME
4HE1 ENG(RLY) M10 FLANGE SOU 		0-91150-110-0 05 1 0303-0511 ●
208 DUCT; ACL
4HF1 ENG(RLS) 		8-97103-478-1 01 1 0303- ● ●
208 DUCT; ACL
4HE1 ENG(RLY) 		8-97230-869-0 01 1 0303-0511 ●
çizim 56935
1 2 3 6 99 100 94 145 146 54 50 130
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CLEANER ASM; AIR
4HF1 ENG(RLS) 		8-97255-174-2 01 1 0303- ● ●
1 CLEANER ASM; AIR
4HE1 ENG(RLY) 		8-97228-084-2 01 1 0303-0511 ●
1 CLEANER ASM; AIR
4HK1-TCS ENG(RJS) 		8-97189-166-5 01 1 0512- ● ●
2 NUT; WING,ELEMENT
4HK1-TCS ENG(RJS) 		8-94447-989-0 01 1 0512- ● ●
2 NUT; WING,ELEMENT
4HF1 ENG(RLS) 		1-14217-068-0 02 1 0303- ● ●
3 WASHER; SEAL,WING NUT
4HK1-TCS ENG(RJS) 		8-94447-990-0 01 1 0512- ● ●
3 WASHER; SEAL,WING NUT
4HF1 ENG(RLS) 		1-14219-225-0 02 1 0303- ● ●
6 FILTER; ACL
4HF1 ENG(RLS) 		8-94156-052-0 01 1 0303- ● ●
6 FILTER; ACL
4HE1 ENG(RLY) 		8-97062-294-0 01 1 0303-0511 ●
6 FILTER; ACL
4HK1-TCS ENG(RJS) 		8-94430-250-0 01 1 0512-0708 ● ●
6 FILTER; ACL
4HK1-TCS ENG(RJS) 		8-98091-394-0 01 1 0709- ● ●
50 WASHER; PL,ACL
4HK1-TCS ENG(RJS) ID=10.5 OD=22 		9-09164-610-0 04 1 0512-0605 ● ●
50 WASHER; PL,ACL
4HK1-TCS ENG(RJS) ID=10.5 OD=22 		0-91614-610-0 04 1 0606- ● ●
54 BRACKET; ACL
4HF1 ENG(RLS) 		8-97351-163-0 01 1 0303- ● ●
54 BRACKET; ACL
4HE1 ENG(RLY) 		8-97096-710-0 01 1 0303-0511 ●
54 BRACKET; ACL
4HK1-TCS ENG(RJS) 		8-98012-793-0 01 1 0512- ● ●
94 VALVE; VACUATOR
4HF1 ENG(RLS) SOU 		8-94447-157-0 01 1 0303- ● ●
94 VALVE; VACUATOR
4HE1 ENG(RLY) 		8-97093-694-0 01 1 0303-0511 ●
94 VALVE; VACUATOR
4HK1-TCS ENG(RJS) 		1-14219-075-0 01 1 0512- ● ●
99 CAP; NIPPLE
4HK1-TCS ENG(RJS) 		8-94448-008-0 01 1 0512- ● ●
100 ADAPTER; ELBOW
4HE1 ENG(RLY) 		8-97093-075-0 01 1 0303-0511 ●
100 ADAPTER; ELBOW
4HK1-TCS ENG(RJS) 		8-94430-259-0 01 1 0512- ● ●
130 BOLT; BRKT TO ACL
4HK1-TCS ENG(RJS) M8X16 FLANGE 		0-28080-816-0 04 1 0512-0512 ● ●
130 BOLT; BRKT TO ACL
4HK1-TCS ENG(RJS) M8X16 FLANGE SOU 		0-28050-816-0 04 1 0601- ● ●
145 BOLT; BRKT TO FRAME
4HF1 ENG(RLS) M10X35 FLANGE 		0-28681-035-0 04 1 0303-0511 ● ●
145 BOLT; BRKT TO FRAME
4HF1 ENG(RLS) M10X35 FLANGE 		0-28681-035-0 04 1 0512-0512 ● ●
145 BOLT; BRKT TO FRAME
4HK1-TCS ENG(RJS) M10X35 FLANGE 		0-28681-035-0 04 1 0512-0512 ● ●
145 BOLT; BRKT TO FRAME
4HF1 ENG(RLS) M10X35 FLANGE SOU 		0-28651-035-0 04 1 0601- ● ●
145 BOLT; BRKT TO FRAME
4HK1-TCS ENG(RJS) M10X35 FLANGE SOU 		0-28651-035-0 04 1 0601- ● ●
145 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) M10X35 FLANGE 		0-28681-035-0 05 1 0303-0511 ●
146 NUT; BRKT TO FRAME
4HF1 ENG(RLS) M10 FLANGE SOU 		0-91150-110-0 04 1 0303-0511 ● ●
146 NUT; BRKT TO FRAME
4HF1 ENG(RLS) M10 FLANGE SOU 		0-91150-110-0 04 1 0512-0602 ● ●
146 NUT; BRKT TO FRAME
4HK1-TCS ENG(RJS) M10 FLANGE SOU 		0-91150-110-0 04 1 0512-0602 ● ●
146 NUT; BRKT TO FRAME
4HF1 ENG(RLS) M10 FLANGE SOU 		0-91180-110-0 04 1 0603- ● ●
146 NUT; BRKT TO FRAME
4HK1-TCS ENG(RJS) M10 FLANGE SOU 		0-91180-110-0 04 1 0603- ● ●
146 NUT; BRKT TO FRAME
4HE1 ENG(RLY) M10 FLANGE SOU 		0-91150-110-0 05 1 0303-0511 ●

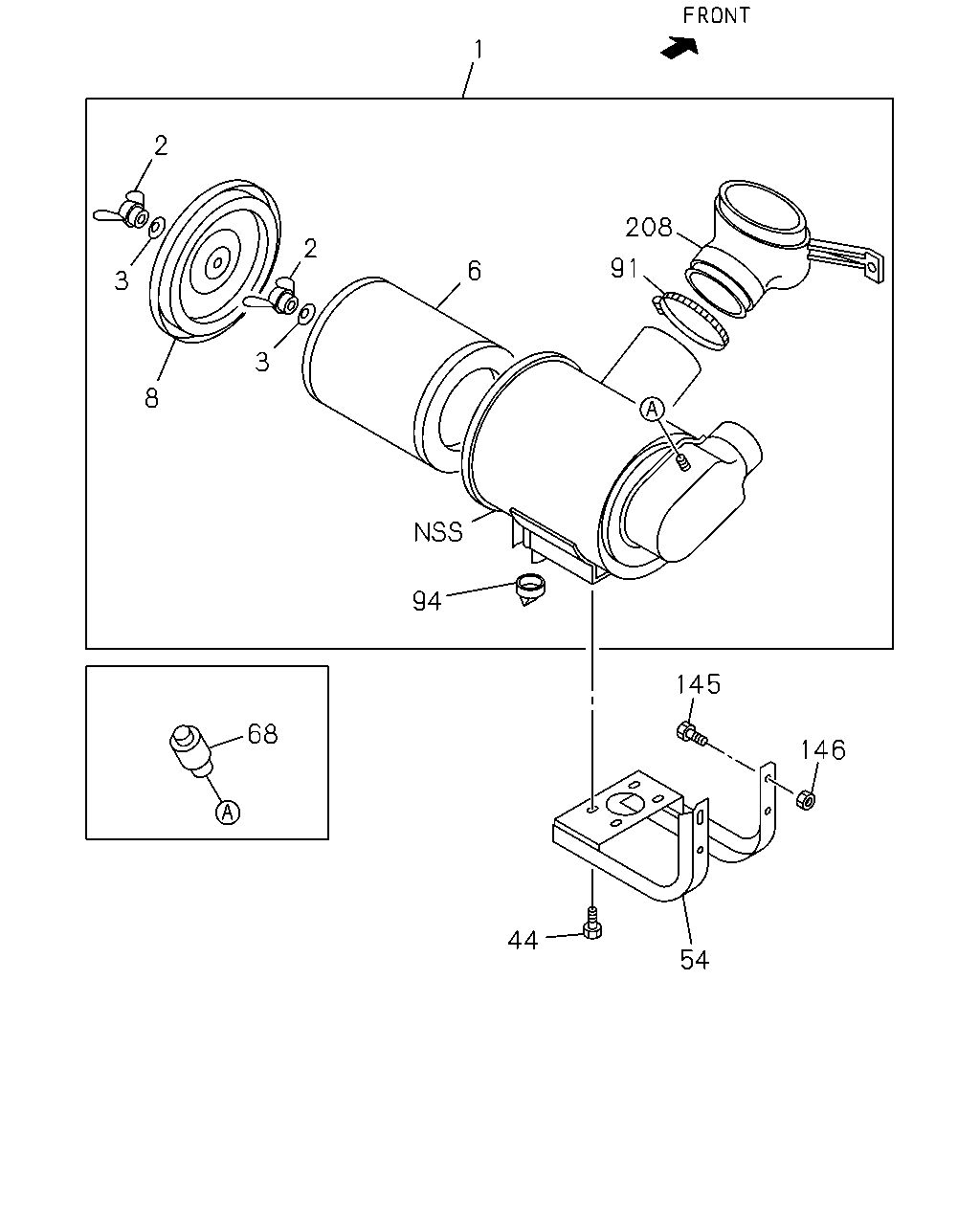

çizim 57083
1 2 208 2 91 6 3 3 8 94 145 68 146 44 54
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 CLEANER ASM; AIR
4HF1 ENG(RLS) 		8-97255-174-2 01 1 0303- ● ●
1 CLEANER ASM; AIR
4HE1 ENG(RLY) 		8-97228-084-2 01 1 0303-0511 ●
1 CLEANER ASM; AIR
4HK1-TCS ENG(RJS) 		8-97189-166-5 01 1 0512- ● ●
2 NUT; WING,ELEMENT
4HK1-TCS ENG(RJS) 		8-94447-989-0 01 1 0512- ● ●
2 NUT; WING,ELEMENT
4HF1 ENG(RLS) 		1-14217-068-0 02 1 0303- ● ●
3 WASHER; SEAL,WING NUT
4HK1-TCS ENG(RJS) 		8-94447-990-0 01 1 0512- ● ●
3 WASHER; SEAL,WING NUT
4HF1 ENG(RLS) 		1-14219-225-0 02 1 0303- ● ●
6 FILTER; ACL
4HF1 ENG(RLS) 		8-94156-052-0 01 1 0303- ● ●
6 FILTER; ACL
4HE1 ENG(RLY) 		8-97062-294-0 01 1 0303-0511 ●
6 FILTER; ACL
4HK1-TCS ENG(RJS) 		8-94430-250-0 01 1 0512-0708 ● ●
6 FILTER; ACL
4HK1-TCS ENG(RJS) 		8-98091-394-0 01 1 0709- ● ●
8 COVER ASM; ACL
4HF1 ENG(RLS) 		8-97093-023-0 01 1 0303- ● ●
8 COVER ASM; ACL
4HE1 ENG(RLY) 		8-97228-090-0 01 1 0303-0511 ●
44 BOLT; ACL
4HF1 ENG(RLS) M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 0303-0512 ● ●
44 BOLT; ACL
4HF1 ENG(RLS) M8X25 W/LK&PL WASHER SOU 		0-50640-825-0 04 1 0601- ● ●
44 BOLT; ACL
4HE1 ENG(RLY) M8X25 FLANGE 		0-28680-825-0 04 1 0303-0511 ●
54 BRACKET; ACL
4HF1 ENG(RLS) 		8-97351-163-0 01 1 0303- ● ●
54 BRACKET; ACL
4HE1 ENG(RLY) 		8-97096-710-0 01 1 0303-0511 ●
54 BRACKET; ACL
4HK1-TCS ENG(RJS) 		8-98012-793-0 01 1 0512- ● ●
68 INDICATOR; SERVICE
4HF1 ENG(RLS) 		1-14219-212-0 01 1 0303-0511 ● ●
68 INDICATOR; SERVICE
4HE1 ENG(RLY) 		1-14219-212-0 01 1 0303-0511 ●
68 INDICATOR; SERVICE
4HF1 ENG(RLS) 		1-14219-212-0 01 1 0512- ● ●
91 CLAMP
4HF1 ENG(RLS) 		8-97093-696-2 01 1 0303- ● ●
91 CLAMP
4HE1 ENG(RLY) 		8-97093-695-1 01 1 0303-0511 ●
94 VALVE; VACUATOR
4HF1 ENG(RLS) SOU 		8-94447-157-0 01 1 0303- ● ●
94 VALVE; VACUATOR
4HE1 ENG(RLY) 		8-97093-694-0 01 1 0303-0511 ●
94 VALVE; VACUATOR
4HK1-TCS ENG(RJS) 		1-14219-075-0 01 1 0512- ● ●
145 BOLT; BRKT TO FRAME
4HF1 ENG(RLS) M10X35 FLANGE 		0-28681-035-0 04 1 0303-0511 ● ●
145 BOLT; BRKT TO FRAME
4HF1 ENG(RLS) M10X35 FLANGE 		0-28681-035-0 04 1 0512-0512 ● ●
145 BOLT; BRKT TO FRAME
4HK1-TCS ENG(RJS) M10X35 FLANGE 		0-28681-035-0 04 1 0512-0512 ● ●
145 BOLT; BRKT TO FRAME
4HF1 ENG(RLS) M10X35 FLANGE SOU 		0-28651-035-0 04 1 0601- ● ●
145 BOLT; BRKT TO FRAME
4HK1-TCS ENG(RJS) M10X35 FLANGE SOU 		0-28651-035-0 04 1 0601- ● ●
145 BOLT; BRKT TO FRAME
4HE1 ENG(RLY) M10X35 FLANGE 		0-28681-035-0 05 1 0303-0511 ●
146 NUT; BRKT TO FRAME
4HF1 ENG(RLS) M10 FLANGE SOU 		0-91150-110-0 04 1 0303-0511 ● ●
146 NUT; BRKT TO FRAME
4HF1 ENG(RLS) M10 FLANGE SOU 		0-91150-110-0 04 1 0512-0602 ● ●
146 NUT; BRKT TO FRAME
4HK1-TCS ENG(RJS) M10 FLANGE SOU 		0-91150-110-0 04 1 0512-0602 ● ●
146 NUT; BRKT TO FRAME
4HF1 ENG(RLS) M10 FLANGE SOU 		0-91180-110-0 04 1 0603- ● ●
146 NUT; BRKT TO FRAME
4HK1-TCS ENG(RJS) M10 FLANGE SOU 		0-91180-110-0 04 1 0603- ● ●
146 NUT; BRKT TO FRAME
4HE1 ENG(RLY) M10 FLANGE SOU 		0-91150-110-0 05 1 0303-0511 ●
208 DUCT; ACL
4HF1 ENG(RLS) 		8-97103-478-1 01 1 0303- ● ●
208 DUCT; ACL
4HE1 ENG(RLY) 		8-97230-869-0 01 1 0303-0511 ●
