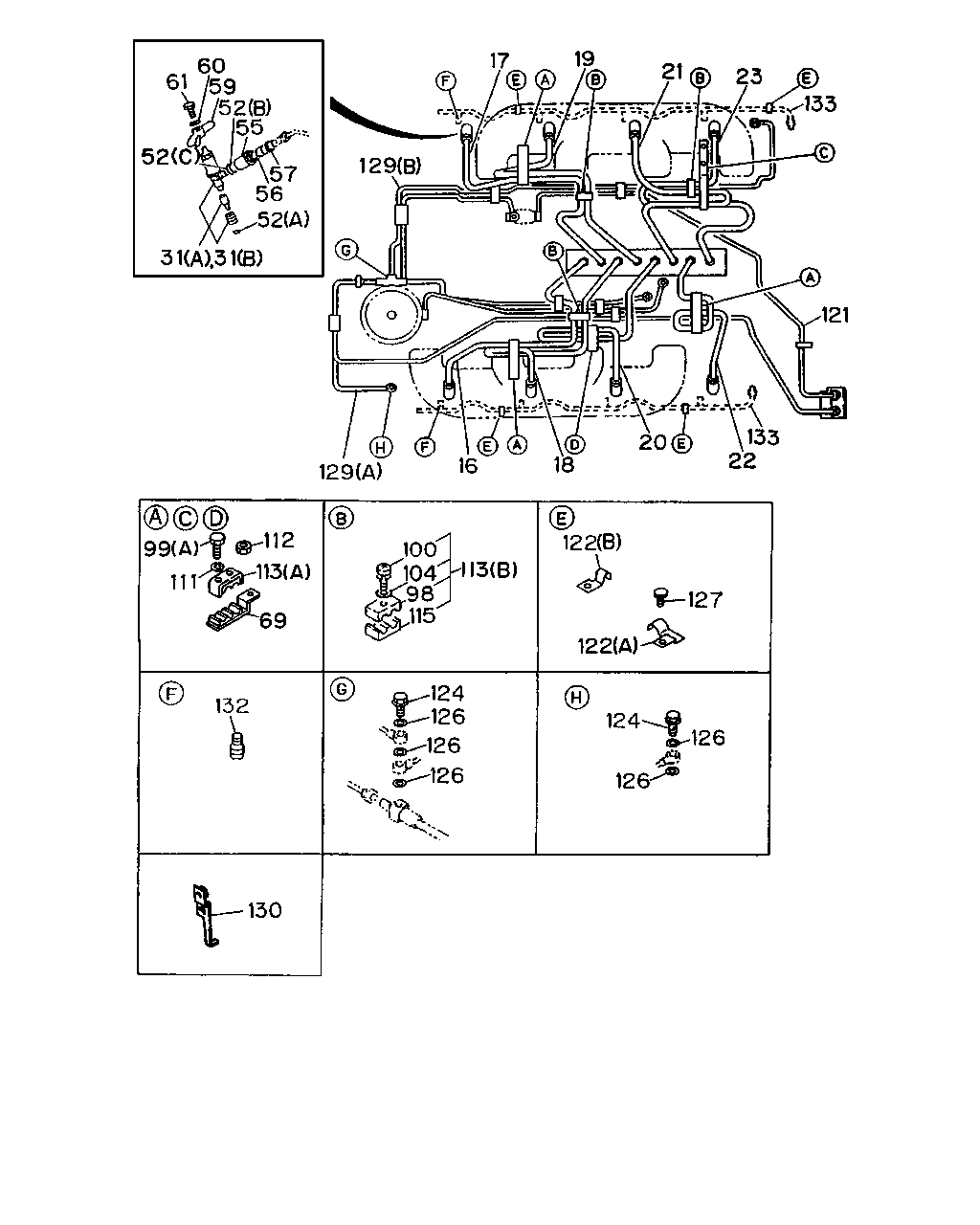

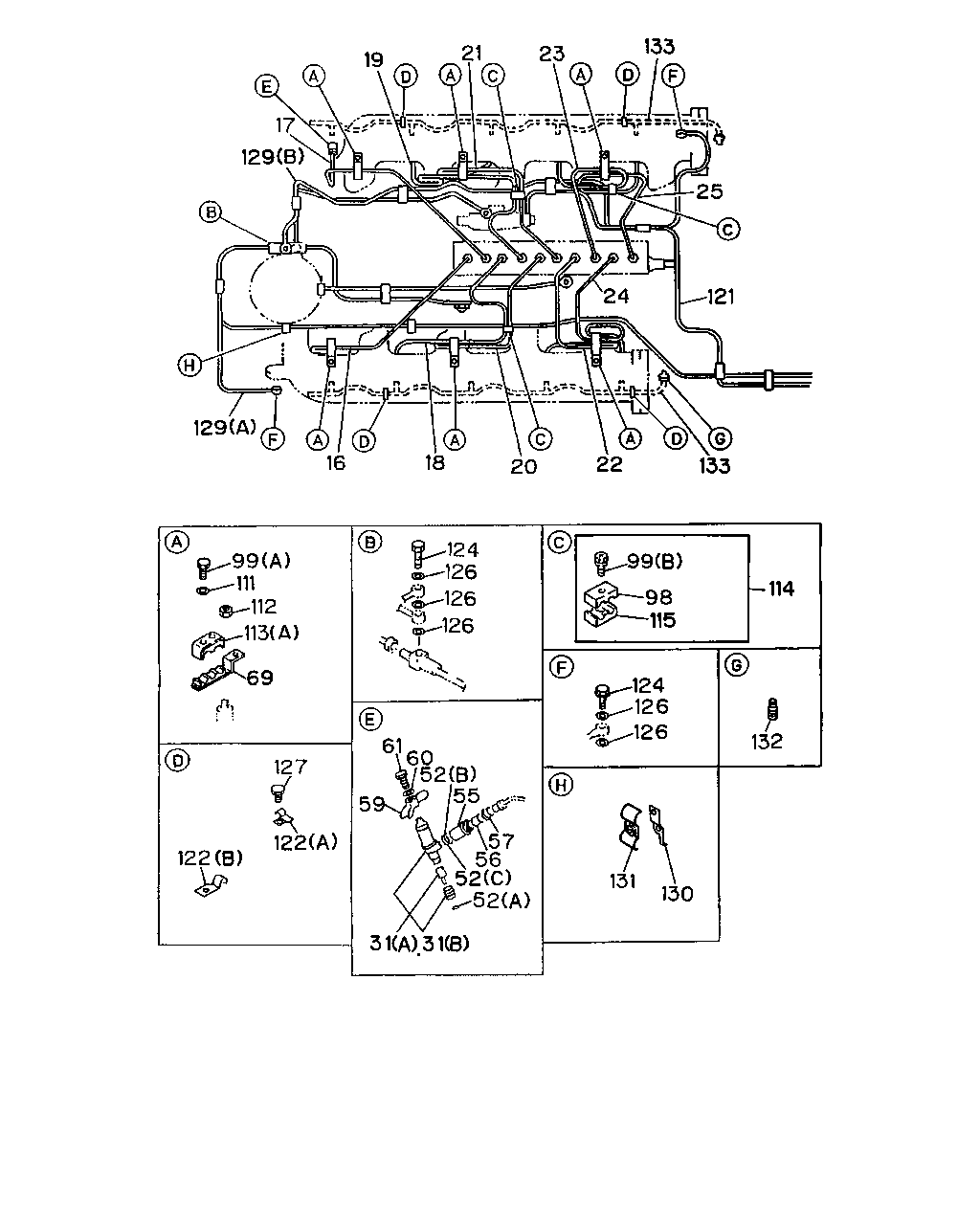

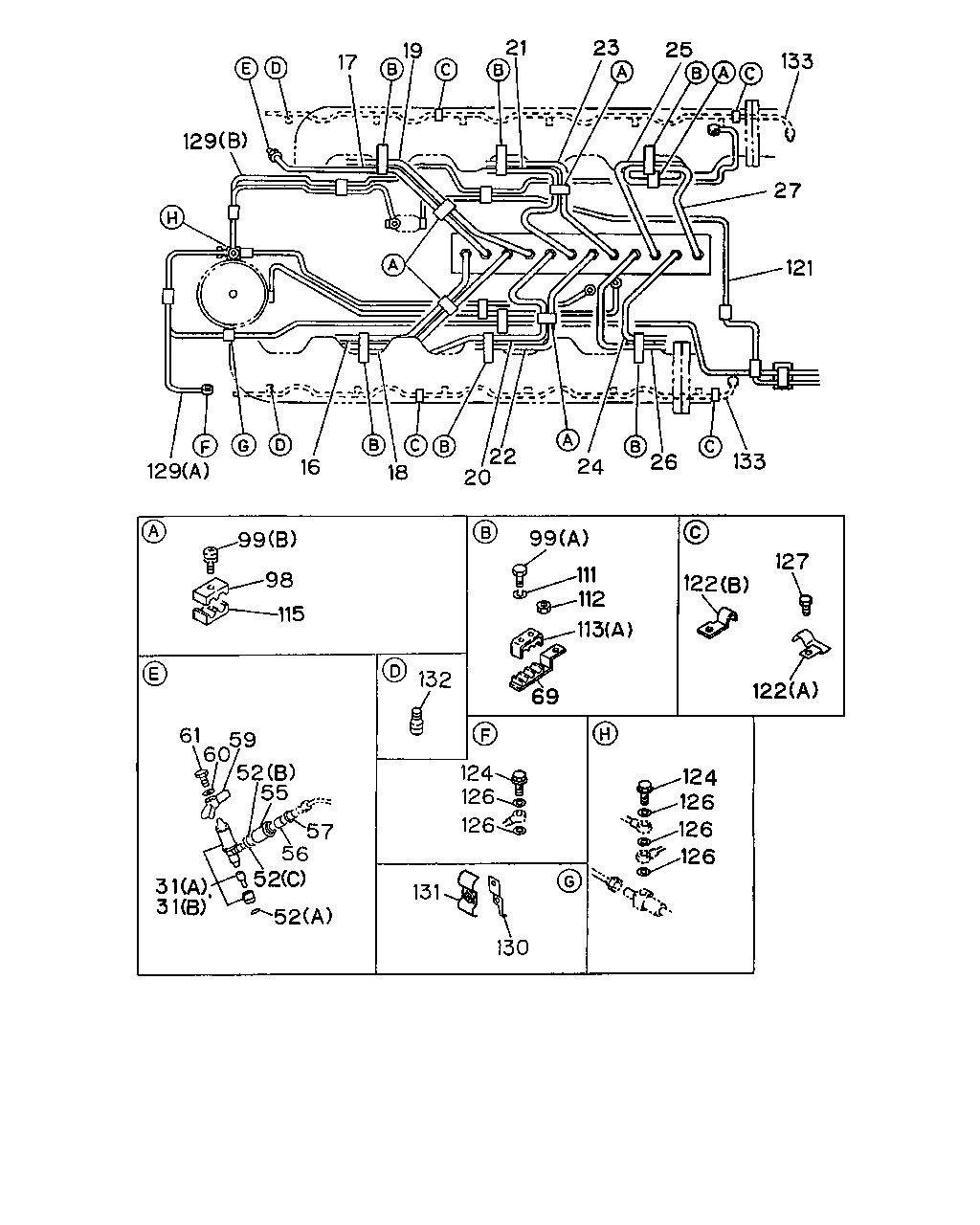

0-40B — FUEL INJECTION SYSTEM (#2315) — 563 parça

130 132 126 124 126 126 126 124 126 127 122 122 113 100 115 98 104 69 113 112 111 99 129 16 18 20 133 22 121 133 23 21 19 17 129 31 31 52 56 57 55 52 59 60 61 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	PIPE; INJ NO.1	1-15414-629-0	01	1	9002-9306	●
16	PIPE; INJ NO.1	1-15414-631-0	01	1	9307-9410		●
16	PIPE; INJ NO.1 EXC. ANTI NOISE EQUIPMENT<SV9>	1-15414-631-0	01	1	9411-		●
16	PIPE; INJ NO.1 ANTI NOISE EQUIPMENT<SV9>	1-15414-058-0	01	1	9411-		●
16	PIPE; INJ NO.1 TAIWAN EQUIPMENT(WW5)	1-15414-058-0	01	1	9002-9306		●
16	PIPE; INJ NO.1 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-631-0	01	1	9002-9306		●
16	PIPE; INJ NO.1	1-15414-633-0	01	1	9307-			●
17	PIPE; INJ NO.2	1-15414-630-0	01	1	9002-9306	●
17	PIPE; INJ NO.2	1-15414-632-0	01	1	9307-9410		●
17	PIPE; INJ NO.2 EXC. ANTI NOISE EQUIPMENT<SV9>	1-15414-632-0	01	1	9411-		●
17	PIPE; INJ NO.2 ANTI NOISE EQUIPMENT<SV9>	1-15414-059-0	01	1	9411-		●
17	PIPE; INJ NO.2 TAIWAN EQUIPMENT(WW5)	1-15414-059-0	01	1	9002-9306		●
17	PIPE; INJ NO.2 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-632-0	01	1	9002-9306		●
17	PIPE; INJ NO.2	1-15414-634-0	01	1	9307-			●
18	PIPE; INJ NO.3	1-15414-631-0	01	1	9002-9306	●
18	PIPE; INJ NO.3	1-15414-633-0	01	1	9307-9410		●
18	PIPE; INJ NO.3 EXC. ANTI NOISE EQUIPMENT<SV9>	1-15414-633-0	01	1	9411-		●
18	PIPE; INJ NO.3 ANTI NOISE EQUIPMENT<SV9>	1-15414-060-1	01	1	9411-		●
18	PIPE; INJ NO.3 TAIWAN EQUIPMENT(WW5)	1-15414-060-1	01	1	9002-9306		●
18	PIPE; INJ NO.3 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-633-0	01	1	9002-9306		●
18	PIPE; INJ NO.3	1-15414-635-0	01	1	9307-			●
19	PIPE; INJ NO.4	1-15414-632-0	01	1	9002-9306	●
19	PIPE; INJ NO.4	1-15414-634-0	01	1	9307-9410		●
19	PIPE; INJ NO.4 EXC. ANTI NOISE EQUIPMENT<SV9>	1-15414-634-0	01	1	9411-		●
19	PIPE; INJ NO.4 ANTI NOISE EQUIPMENT<SV9>	1-15414-061-1	01	1	9411-		●
19	PIPE; INJ NO.4 TAIWAN EQUIPMENT(WW5)	1-15414-061-1	01	1	9002-9306		●
19	PIPE; INJ NO.4 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-634-0	01	1	9002-9306		●
19	PIPE; INJ NO.4	1-15414-636-0	01	1	9307-			●
20	PIPE; INJ NO.5	1-15414-633-0	01	1	9002-9306	●
20	PIPE; INJ NO.5	1-15414-635-0	01	1	9307-9410		●
20	PIPE; INJ NO.5 EXC. ANTI NOISE EQUIPMENT<SV9>	1-15414-635-0	01	1	9411-		●
20	PIPE; INJ NO.5 ANTI NOISE EQUIPMENT<SV9>	1-15414-062-1	01	1	9411-		●
20	PIPE; INJ NO.5 TAIWAN EQUIPMENT(WW5)	1-15414-062-1	01	1	9002-9306		●
20	PIPE; INJ NO.5 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-635-0	01	1	9002-9306		●
20	PIPE; INJ NO.5	1-15414-637-0	01	1	9307-			●
21	PIPE; INJ NO.6	1-15414-634-0	01	1	9002-9306	●
21	PIPE; INJ NO.6	1-15414-636-0	01	1	9307-9410		●
21	PIPE; INJ NO.6 EXC. ANTI NOISE EQUIPMENT<SV9>	1-15414-636-0	01	1	9411-		●
21	PIPE; INJ NO.6 ANTI NOISE EQUIPMENT<SV9>	1-15414-063-1	01	1	9411-		●
21	PIPE; INJ NO.6 TAIWAN EQUIPMENT(WW5)	1-15414-063-1	01	1	9002-9306		●
21	PIPE; INJ NO.6 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-636-0	01	1	9002-9306		●
21	PIPE; INJ NO.6	1-15414-638-0	01	1	9307-			●
22	PIPE; INJ NO.7	1-15414-635-0	01	1	9002-9306	●
22	PIPE; INJ NO.7	1-15414-637-0	01	1	9307-9410		●
22	PIPE; INJ NO.7 EXC. ANTI NOISE EQUIPMENT<SV9>	1-15414-637-0	01	1	9411-		●
22	PIPE; INJ NO.7 ANTI NOISE EQUIPMENT<SV9>	1-15414-869-0	01	1	9411-		●
22	PIPE; INJ NO.7 TAIWAN EQUIPMENT(WW5)	1-15414-869-0	01	1	9002-9306		●
22	PIPE; INJ NO.7 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-637-0	01	1	9002-9306		●
22	PIPE; INJ NO.7	1-15414-639-0	01	1	9307-			●
23	PIPE; INJ NO.8	1-15414-636-0	01	1	9002-9306	●
23	PIPE; INJ NO.8	1-15414-638-0	01	1	9307-9410		●
23	PIPE; INJ NO.8 EXC. ANTI NOISE EQUIPMENT<SV9>	1-15414-638-0	01	1	9411-		●
23	PIPE; INJ NO.8 ANTI NOISE EQUIPMENT<SV9>	1-15414-065-1	01	1	9411-		●
23	PIPE; INJ NO.8 TAIWAN EQUIPMENT(WW5)	1-15414-065-1	01	1	9002-9306		●
23	PIPE; INJ NO.8 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-638-0	01	1	9002-9306		●
23	PIPE; INJ NO.8	1-15414-640-0	01	1	9307-			●
31	NOZZLE ASM; INJ (B)	1-15300-231-1	10	1	9307-9504		●
31	NOZZLE ASM; INJ EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-15300-231-1	10	1	9505-		●
31	NOZZLE ASM; INJ ANTI NOISE EQUIPMENT<SV9> (A)	1-15300-204-1	10	1	9505-		●
31	NOZZLE ASM; INJ TAIWAN EQUIPMENT(WW5) (A)	1-15300-204-0	10	1	9002-9306		●
31	NOZZLE ASM; INJ EXC. TAIWAN EQUIPMENT(WW5) (B)	1-15300-231-0	10	1	9002-9306		●
31	NOZZLE ASM; INJ (B)	1-15300-231-0	12	1	9002-9306	●
31	NOZZLE ASM; INJ (B)	1-15300-231-1	08	1	9307-			●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) OD=26.0	1-09630-111-0	12	1	9002-9306	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) OD=28.5	1-09639-030-0	12	1	9002-9306	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=15	1-15315-011-0	12	1	9002-9306	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) OD=26.0	1-09630-111-0	10	1	9002-		●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) OD=28.5	1-09639-030-0	10	1	9002-		●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=15	1-15315-011-0	10	1	9002-		●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) OD=26.0	1-09630-111-0	08	1	9307-			●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) OD=28.5	1-09639-030-0	08	1	9307-			●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=15	1-15315-011-0	08	1	9307-			●
55	SLEEVE; INJ PUMP	1-15339-094-0	12	1	9002-9306	●
55	SLEEVE; INJ PUMP	1-15339-094-0	08	1	9307-			●
55	SLEEVE; INJ PUMP	1-15339-094-0	10	1	9002-		●
56	COVER	1-15419-028-0	12	1	9002-9306	●
56	COVER	1-15419-028-0	10	1	9002-		●
56	COVER	1-15419-028-0	08	1	9307-			●
57	GASKET; DUST COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-15419-027-1	12	1	9002-9306	●
57	GASKET; DUST COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-15419-027-1	08	1	9307-			●
57	GASKET; DUST COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-15419-027-1	10	1	9002-		●
59	CLAMP; NOZZLE HOLDER	1-15337-012-0	12	1	9002-9306	●
59	CLAMP; NOZZLE HOLDER	1-15337-012-0	10	1	9002-		●
59	CLAMP; NOZZLE HOLDER	1-15337-012-0	08	1	9307-			●
60	WASHER; NOZZLE HOLDER	1-09509-046-0	12	1	9002-9306	●
60	WASHER; NOZZLE HOLDER	1-09509-046-0	08	1	9307-			●
60	WASHER; NOZZLE HOLDER	1-09509-046-0	10	1	9002-		●
61	BOLT; CLAMP NOZZLE HOLDER M12X50	9-01666-250-0	12	1	9002-9306	●
61	BOLT; CLAMP NOZZLE HOLDER M12X50	9-01666-250-0	08	1	9307-			●
61	BOLT; CLAMP NOZZLE HOLDER M12X50	9-01666-250-0	10	1	9002-		●
69	BRACKET; INJ PIPE CLIP	1-15419-147-1	06	1	9002-	●	●
69	BRACKET; INJ PIPE CLIP	1-15419-147-1	04	1	9307-			●
98	CLIP; "A",INJ PIPE	9-15419-613-0	05	1	9002-9306	●
98	CLIP; "A",INJ PIPE	9-15419-613-0	03	1	9002-		●	●
99	BOLT; CLIP,INJ,PIPE (B) M5X20	9-09802-539-0	05	1	9002-9306	●
99	BOLT; CLIP,INJ,PIPE (A) M5X20	9-92050-520-0	06	1	9002-9005	●
99	BOLT; CLIP,INJ,PIPE (A) M5X20	0-20800-520-0	06	1	9006-9306	●
99	BOLT; CLIP,INJ,PIPE (A) M5X20	0-20800-520-0	04	1	9307-			●
99	BOLT; CLIP,INJ,PIPE (B) M5X20	9-09802-539-0	03	1	9002-		●
99	BOLT; CLIP,INJ,PIPE (A) M5X20	9-92050-520-0	08	1	9002-9005		●
99	BOLT; CLIP,INJ,PIPE (A) M5X20	0-20800-520-0	06	1	9006-		●
100	BOLT; INJ PIPE CLIP M5X20	9-09802-539-0	03	1	9307-			●
104	WASHER; LK,INJ PIPE ID=5.1	9-09150-505-0	03	1	9307-			●
111	WASHER; LK,CLIP ID=5.1	9-09150-505-0	06	1	9002-9306	●
111	WASHER; LK,CLIP ID=5.1	9-09150-505-0	06	1	9002-		●
111	WASHER; LK,CLIP ID=5.1	9-09150-505-0	04	1	9307-			●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91150-108-0	07	1	9002-9306	●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91150-108-0	06	1	9002-		●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91150-108-0	04	1	9307-			●
113	CLIP; INJ PIPE (A)	1-15419-036-1	06	1	9002-	●	●	●
113	CLIP; INJ PIPE (A)	1-15419-036-1	04	1	9307-			●
113	CLIP; INJ PIPE (B)	9-15419-612-0	03	1	9307-			●
115	CLIP; "B",INJ PIPE	9-15419-614-0	05	1	9002-9306	●
115	CLIP; "B",INJ PIPE	9-15419-614-0	03	1	9002-		●	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15414-553-1	01	1	9002-9306	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15414-543-1	01	1	9307-			●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15414-551-1	01	1	9002-		●
122	CLIP; LEAK OFF PIPE (A) L=19	1-09709-104-0	04	1	9002-	●	●	●
122	CLIP; LEAK OFF PIPE (B) L=22	1-09709-156-0	02	1	9002-	●	●	●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE BOLT	1-09675-037-1	02	1	9002-	●	●	●
124	BOLT; EYE LEAK OFF PIPE M8X30 FLANGE	1-09675-039-1	01	1	9002-	●	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	07	1	9002-	●	●	●
127	BOLT; CLIP LEAK OFF PIPE M8X18	0-28020-818-0	08	1	9002-9005	●
127	BOLT; CLIP LEAK OFF PIPE M8X18 FLANGE	0-28080-818-0	08	1	9006-9306	●
127	BOLT; CLIP LEAK OFF PIPE M8X18	0-28020-818-0	06	1	9002-9005		●
127	BOLT; CLIP LEAK OFF PIPE M8X18 FLANGE	0-28080-818-0	06	1	9006-		●	●
129	PIPE ASM; LEAK OFF OUTER (B)	1-15414-260-1	01	1	9002-9306	●
129	PIPE ASM; LEAK OFF OUTER (B)	1-15414-300-1	01	1	9307-			●
129	PIPE ASM; LEAK OFF OUTER (A)	1-15414-074-1	01	1	9002-	●	●
129	PIPE ASM; LEAK OFF OUTER (B)	1-15414-075-1	01	1	9002-		●
129	PIPE ASM; LEAK OFF OUTER (A)	1-15414-301-0	01	1	9307-			●
130	BRACKET; OVERFLOW TO LEAK OFF	1-15419-189-0	01	1	9002-	●	●	●
132	CONNECTOR ASM; LEAK OFF	1-15449-009-0	14	1	9002-9306	●
132	CONNECTOR ASM; LEAK OFF	1-15449-009-0	10	1	9307-			●
132	CONNECTOR ASM; LEAK OFF	1-15449-009-0	12	1	9002-		●
133	PIPE; INJ NOZZLE LEAK OFF	1-15414-535-0	02	1	9002-9306	●
133	PIPE; INJ NOZZLE LEAK OFF	1-15414-533-0	02	1	9307-			●
133	PIPE; INJ NOZZLE LEAK OFF	1-15414-534-0	02	1	9002-		●

129 17 19 21 23 25 133 27 121 133 26 24 22 20 18 16 129 99 115 98 99 132 111 112 113 69 122 127 122 124 126 126 126 130 131 124 126 126 52 52 31 31 56 57 55 52 60 61 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	PIPE; INJ NO.1	1-15414-629-0	01	1	9002-9306	●
16	PIPE; INJ NO.1	1-15414-631-0	01	1	9307-9410		●
16	PIPE; INJ NO.1 EXC. ANTI NOISE EQUIPMENT<SV9>	1-15414-631-0	01	1	9411-		●
16	PIPE; INJ NO.1 ANTI NOISE EQUIPMENT<SV9>	1-15414-058-0	01	1	9411-		●
16	PIPE; INJ NO.1 TAIWAN EQUIPMENT(WW5)	1-15414-058-0	01	1	9002-9306		●
16	PIPE; INJ NO.1 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-631-0	01	1	9002-9306		●
16	PIPE; INJ NO.1	1-15414-633-0	01	1	9307-			●
17	PIPE; INJ NO.2	1-15414-630-0	01	1	9002-9306	●
17	PIPE; INJ NO.2	1-15414-632-0	01	1	9307-9410		●
17	PIPE; INJ NO.2 EXC. ANTI NOISE EQUIPMENT<SV9>	1-15414-632-0	01	1	9411-		●
17	PIPE; INJ NO.2 ANTI NOISE EQUIPMENT<SV9>	1-15414-059-0	01	1	9411-		●
17	PIPE; INJ NO.2 TAIWAN EQUIPMENT(WW5)	1-15414-059-0	01	1	9002-9306		●
17	PIPE; INJ NO.2 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-632-0	01	1	9002-9306		●
17	PIPE; INJ NO.2	1-15414-634-0	01	1	9307-			●
18	PIPE; INJ NO.3	1-15414-631-0	01	1	9002-9306	●
18	PIPE; INJ NO.3	1-15414-633-0	01	1	9307-9410		●
18	PIPE; INJ NO.3 EXC. ANTI NOISE EQUIPMENT<SV9>	1-15414-633-0	01	1	9411-		●
18	PIPE; INJ NO.3 ANTI NOISE EQUIPMENT<SV9>	1-15414-060-1	01	1	9411-		●
18	PIPE; INJ NO.3 TAIWAN EQUIPMENT(WW5)	1-15414-060-1	01	1	9002-9306		●
18	PIPE; INJ NO.3 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-633-0	01	1	9002-9306		●
18	PIPE; INJ NO.3	1-15414-635-0	01	1	9307-			●
19	PIPE; INJ NO.4	1-15414-632-0	01	1	9002-9306	●
19	PIPE; INJ NO.4	1-15414-634-0	01	1	9307-9410		●
19	PIPE; INJ NO.4 EXC. ANTI NOISE EQUIPMENT<SV9>	1-15414-634-0	01	1	9411-		●
19	PIPE; INJ NO.4 ANTI NOISE EQUIPMENT<SV9>	1-15414-061-1	01	1	9411-		●
19	PIPE; INJ NO.4 TAIWAN EQUIPMENT(WW5)	1-15414-061-1	01	1	9002-9306		●
19	PIPE; INJ NO.4 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-634-0	01	1	9002-9306		●
19	PIPE; INJ NO.4	1-15414-636-0	01	1	9307-			●
20	PIPE; INJ NO.5	1-15414-633-0	01	1	9002-9306	●
20	PIPE; INJ NO.5	1-15414-635-0	01	1	9307-9410		●
20	PIPE; INJ NO.5 EXC. ANTI NOISE EQUIPMENT<SV9>	1-15414-635-0	01	1	9411-		●
20	PIPE; INJ NO.5 ANTI NOISE EQUIPMENT<SV9>	1-15414-062-1	01	1	9411-		●
20	PIPE; INJ NO.5 TAIWAN EQUIPMENT(WW5)	1-15414-062-1	01	1	9002-9306		●
20	PIPE; INJ NO.5 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-635-0	01	1	9002-9306		●
20	PIPE; INJ NO.5	1-15414-637-0	01	1	9307-			●
21	PIPE; INJ NO.6	1-15414-634-0	01	1	9002-9306	●
21	PIPE; INJ NO.6	1-15414-636-0	01	1	9307-9410		●
21	PIPE; INJ NO.6 EXC. ANTI NOISE EQUIPMENT<SV9>	1-15414-636-0	01	1	9411-		●
21	PIPE; INJ NO.6 ANTI NOISE EQUIPMENT<SV9>	1-15414-063-1	01	1	9411-		●
21	PIPE; INJ NO.6 TAIWAN EQUIPMENT(WW5)	1-15414-063-1	01	1	9002-9306		●
21	PIPE; INJ NO.6 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-636-0	01	1	9002-9306		●
21	PIPE; INJ NO.6	1-15414-638-0	01	1	9307-			●
22	PIPE; INJ NO.7	1-15414-635-0	01	1	9002-9306	●
22	PIPE; INJ NO.7	1-15414-637-0	01	1	9307-9410		●
22	PIPE; INJ NO.7 EXC. ANTI NOISE EQUIPMENT<SV9>	1-15414-637-0	01	1	9411-		●
22	PIPE; INJ NO.7 ANTI NOISE EQUIPMENT<SV9>	1-15414-869-0	01	1	9411-		●
22	PIPE; INJ NO.7 TAIWAN EQUIPMENT(WW5)	1-15414-869-0	01	1	9002-9306		●
22	PIPE; INJ NO.7 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-637-0	01	1	9002-9306		●
22	PIPE; INJ NO.7	1-15414-639-0	01	1	9307-			●
23	PIPE; INJ NO.8	1-15414-636-0	01	1	9002-9306	●
23	PIPE; INJ NO.8	1-15414-638-0	01	1	9307-9410		●
23	PIPE; INJ NO.8 EXC. ANTI NOISE EQUIPMENT<SV9>	1-15414-638-0	01	1	9411-		●
23	PIPE; INJ NO.8 ANTI NOISE EQUIPMENT<SV9>	1-15414-065-1	01	1	9411-		●
23	PIPE; INJ NO.8 TAIWAN EQUIPMENT(WW5)	1-15414-065-1	01	1	9002-9306		●
23	PIPE; INJ NO.8 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-638-0	01	1	9002-9306		●
23	PIPE; INJ NO.8	1-15414-640-0	01	1	9307-			●
24	PIPE; INJ NO.9	1-15414-637-0	01	1	9002-9306	●
24	PIPE; INJ NO.9	1-15414-639-0	01	1	9307-9410		●
24	PIPE; INJ NO.9 EXC. ANTI NOISE EQUIPMENT<SV9>	1-15414-639-0	01	1	9411-		●
24	PIPE; INJ NO.9 ANTI NOISE EQUIPMENT<SV9>	1-15414-066-0	01	1	9411-		●
24	PIPE; INJ NO.9 TAIWAN EQUIPMENT(WW5)	1-15414-066-0	01	1	9002-9306		●
24	PIPE; INJ NO.9 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-639-0	01	1	9002-9306		●
25	PIPE; INJ NO.10	1-15414-638-0	01	1	9002-9306	●
25	PIPE; INJ NO.10	1-15414-640-0	01	1	9307-9410		●
25	PIPE; INJ NO.10 EXC. ANTI NOISE EQUIPMENT<SV9>	1-15414-640-0	01	1	9411-		●
25	PIPE; INJ NO.10 ANTI NOISE EQUIPMENT<SV9>	1-15414-067-1	01	1	9411-		●
25	PIPE; INJ NO.10 TAIWAN EQUIPMENT(WW5)	1-15414-067-1	01	1	9002-9306		●
25	PIPE; INJ NO.10 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-640-0	01	1	9002-9306		●
26	PIPE; INJ NO.11	1-15414-639-0	01	1	9002-9306	●
27	PIPE; INJ NO.12	1-15414-640-0	01	1	9002-9306	●
31	NOZZLE ASM; INJ (B)	1-15300-231-1	10	1	9307-9504		●
31	NOZZLE ASM; INJ EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-15300-231-1	10	1	9505-		●
31	NOZZLE ASM; INJ ANTI NOISE EQUIPMENT<SV9> (A)	1-15300-204-1	10	1	9505-		●
31	NOZZLE ASM; INJ TAIWAN EQUIPMENT(WW5) (A)	1-15300-204-0	10	1	9002-9306		●
31	NOZZLE ASM; INJ EXC. TAIWAN EQUIPMENT(WW5) (B)	1-15300-231-0	10	1	9002-9306		●
31	NOZZLE ASM; INJ (B)	1-15300-231-0	12	1	9002-9306	●
31	NOZZLE ASM; INJ (B)	1-15300-231-1	08	1	9307-			●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) OD=26.0	1-09630-111-0	12	1	9002-9306	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) OD=28.5	1-09639-030-0	12	1	9002-9306	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=15	1-15315-011-0	12	1	9002-9306	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) OD=26.0	1-09630-111-0	10	1	9002-		●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) OD=28.5	1-09639-030-0	10	1	9002-		●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=15	1-15315-011-0	10	1	9002-		●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) OD=26.0	1-09630-111-0	08	1	9307-			●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) OD=28.5	1-09639-030-0	08	1	9307-			●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=15	1-15315-011-0	08	1	9307-			●
55	SLEEVE; INJ PUMP	1-15339-094-0	12	1	9002-9306	●
55	SLEEVE; INJ PUMP	1-15339-094-0	08	1	9307-			●
55	SLEEVE; INJ PUMP	1-15339-094-0	10	1	9002-		●
56	COVER	1-15419-028-0	12	1	9002-9306	●
56	COVER	1-15419-028-0	10	1	9002-		●
56	COVER	1-15419-028-0	08	1	9307-			●
57	GASKET; DUST COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-15419-027-1	12	1	9002-9306	●
57	GASKET; DUST COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-15419-027-1	08	1	9307-			●
57	GASKET; DUST COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-15419-027-1	10	1	9002-		●
59	CLAMP; NOZZLE HOLDER	1-15337-012-0	12	1	9002-9306	●
59	CLAMP; NOZZLE HOLDER	1-15337-012-0	10	1	9002-		●
59	CLAMP; NOZZLE HOLDER	1-15337-012-0	08	1	9307-			●
60	WASHER; NOZZLE HOLDER	1-09509-046-0	12	1	9002-9306	●
60	WASHER; NOZZLE HOLDER	1-09509-046-0	08	1	9307-			●
60	WASHER; NOZZLE HOLDER	1-09509-046-0	10	1	9002-		●
61	BOLT; CLAMP NOZZLE HOLDER M12X50	9-01666-250-0	12	1	9002-9306	●
61	BOLT; CLAMP NOZZLE HOLDER M12X50	9-01666-250-0	08	1	9307-			●
61	BOLT; CLAMP NOZZLE HOLDER M12X50	9-01666-250-0	10	1	9002-		●
69	BRACKET; INJ PIPE CLIP	1-15419-147-1	06	1	9002-	●	●
69	BRACKET; INJ PIPE CLIP	1-15419-147-1	04	1	9307-			●
98	CLIP; "A",INJ PIPE	9-15419-613-0	05	1	9002-9306	●
98	CLIP; "A",INJ PIPE	9-15419-613-0	03	1	9002-		●	●
99	BOLT; CLIP,INJ,PIPE (B) M5X20	9-09802-539-0	05	1	9002-9306	●
99	BOLT; CLIP,INJ,PIPE (A) M5X20	9-92050-520-0	06	1	9002-9005	●
99	BOLT; CLIP,INJ,PIPE (A) M5X20	0-20800-520-0	06	1	9006-9306	●
99	BOLT; CLIP,INJ,PIPE (A) M5X20	0-20800-520-0	04	1	9307-			●
99	BOLT; CLIP,INJ,PIPE (B) M5X20	9-09802-539-0	03	1	9002-		●
99	BOLT; CLIP,INJ,PIPE (A) M5X20	9-92050-520-0	08	1	9002-9005		●
99	BOLT; CLIP,INJ,PIPE (A) M5X20	0-20800-520-0	06	1	9006-		●
111	WASHER; LK,CLIP ID=5.1	9-09150-505-0	06	1	9002-9306	●
111	WASHER; LK,CLIP ID=5.1	9-09150-505-0	06	1	9002-		●
111	WASHER; LK,CLIP ID=5.1	9-09150-505-0	04	1	9307-			●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91150-108-0	07	1	9002-9306	●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91150-108-0	06	1	9002-		●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91150-108-0	04	1	9307-			●
113	CLIP; INJ PIPE (A)	1-15419-036-1	06	1	9002-	●	●	●
113	CLIP; INJ PIPE (A)	1-15419-036-1	04	1	9307-			●
113	CLIP; INJ PIPE (B)	9-15419-612-0	03	1	9307-			●
115	CLIP; "B",INJ PIPE	9-15419-614-0	05	1	9002-9306	●
115	CLIP; "B",INJ PIPE	9-15419-614-0	03	1	9002-		●	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15414-553-1	01	1	9002-9306	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15414-543-1	01	1	9307-			●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15414-551-1	01	1	9002-		●
122	CLIP; LEAK OFF PIPE (A) L=19	1-09709-104-0	04	1	9002-	●	●	●
122	CLIP; LEAK OFF PIPE (B) L=22	1-09709-156-0	02	1	9002-	●	●	●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE BOLT	1-09675-037-1	02	1	9002-	●	●	●
124	BOLT; EYE LEAK OFF PIPE M8X30 FLANGE	1-09675-039-1	01	1	9002-	●	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	07	1	9002-	●	●	●
127	BOLT; CLIP LEAK OFF PIPE M8X18	0-28020-818-0	08	1	9002-9005	●
127	BOLT; CLIP LEAK OFF PIPE M8X18 FLANGE	0-28080-818-0	08	1	9006-9306	●
127	BOLT; CLIP LEAK OFF PIPE M8X18	0-28020-818-0	06	1	9002-9005		●
127	BOLT; CLIP LEAK OFF PIPE M8X18 FLANGE	0-28080-818-0	06	1	9006-		●	●
129	PIPE ASM; LEAK OFF OUTER (B)	1-15414-260-1	01	1	9002-9306	●
129	PIPE ASM; LEAK OFF OUTER (B)	1-15414-300-1	01	1	9307-			●
129	PIPE ASM; LEAK OFF OUTER (A)	1-15414-074-1	01	1	9002-	●	●
129	PIPE ASM; LEAK OFF OUTER (B)	1-15414-075-1	01	1	9002-		●
129	PIPE ASM; LEAK OFF OUTER (A)	1-15414-301-0	01	1	9307-			●
130	BRACKET; OVERFLOW TO LEAK OFF	1-15419-189-0	01	1	9002-	●	●	●
131	CLIP; OVERFLOW LEAK OFF ID=10 & 6 L=20	1-09700-404-0	01	1	9002-	●	●
132	CONNECTOR ASM; LEAK OFF	1-15449-009-0	14	1	9002-9306	●
132	CONNECTOR ASM; LEAK OFF	1-15449-009-0	10	1	9307-			●
132	CONNECTOR ASM; LEAK OFF	1-15449-009-0	12	1	9002-		●
133	PIPE; INJ NOZZLE LEAK OFF	1-15414-535-0	02	1	9002-9306	●
133	PIPE; INJ NOZZLE LEAK OFF	1-15414-533-0	02	1	9307-			●
133	PIPE; INJ NOZZLE LEAK OFF	1-15414-534-0	02	1	9002-		●

2 7 1 2 7 7 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AUTO ENG SHUTOFF<KB6> EXC. THAILAND EQUIPMENT(PM9),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15602-922-0	01	1	9307-9410		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. AUTO ENG SHUTOFF<KB6> EXC. THAILAND EQUIPMENT(PM9),ANTI NOISE EQUIPMENT<SV9>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15602-993-0	01	1	9411-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15602-435-4	01	1	9002-9306	●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. ANTI NOISE EQUIPMENT<SV9> EXC. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15602-601-2	01	1	9002-9306		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. ANTI NOISE EQUIPMENT<SV9>	1-15603-021-1	01	1	9411-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. ANTI NOISE EQUIPMENT<SV9>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15602-434-4	01	1	9002-9306		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. AUTO ENG SHUTOFF<KB6>,THAILAND EQUIPMENT(PM9),INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15602-434-4	01	1	9307-9410		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. AUTO ENG SHUTOFF<KB6>,THAILAND EQUIPMENT(PM9),ANTI NOISE EQUIPMENT<SV9>,INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15602-434-5	01	1	9411-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4)	1-15602-599-1	01	1	9002-9306		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. THAILAND EQUIPMENT(PM9)	1-15602-599-1	01	1	9307-9410		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. INJ PUMP HIGH ALTITUDE ANEROID COMPENSATOR(YC4) EXC. THAILAND EQUIPMENT(PM9),ANTI NOISE EQUIPMENT<SV9>	1-15602-599-1	01	1	9411-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. THAILAND EQUIPMENT(PM9)	1-15602-907-1	01	1	9307-9410		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. EXC. THAILAND EQUIPMENT(PM9),ANTI NOISE EQUIPMENT<SV9>	1-15602-907-1	01	1	9411-		●
1	PUMP ASM; INJ SEE FIG-NO 0-80 - 0-85 FOR COMPONENT.	1-15602-902-1	01	1	9307-			●
2	BOLT; INJ PUMP (B) M10X95 FLANGE	8-94397-027-1	02	1	9002-9306	●
2	BOLT; INJ PUMP (A) M10X80	8-94399-730-1	04	1	9002-9101	●	●
2	BOLT; INJ PUMP (A)	0-28181-080-0	04	1	9102-	●	●	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-052-0	01	1	9002-9306	●
6	BRACKET; INJ PUMP TO C/BL	1-19751-051-0	01	1	9002-		●	●
7	BOLT; INJ PUMP BRKT (A) M10X22 FLANGE	0-28181-022-0	01	1	9002-	●	●	●
7	BOLT; INJ PUMP BRKT (C) M10X40 FLANGE	0-28181-040-0	01	1	9111-9307	●	●	●
7	BOLT; INJ PUMP BRKT (C) M10X40 FLANGE	0-28181-040-0	01	1	9002-9110	●
7	BOLT; INJ PUMP BRKT (C) M10X40 FLANGE	0-28181-040-0	01	1	9308-	●	●	●
7	BOLT; INJ PUMP BRKT (C) M10X40	0-28021-040-0	01	1	9002-9110		●
7	BOLT; INJ PUMP BRKT (B) M10X95 FLANGE	8-94397-027-1	02	1	9002-		●	●

122 122 127 69 113 111 99 112 59 31 31 52 52 56 57 55 52 61 60 126 126 126 124 99 114 98 132 115 124 126 126 131 130 133 22 20 18 16 129 129 17 19 21 23 133 24 25 121

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	PIPE; INJ NO.1	1-15414-629-0	01	1	9002-9306	●
16	PIPE; INJ NO.1	1-15414-631-0	01	1	9307-9410		●
16	PIPE; INJ NO.1 EXC. ANTI NOISE EQUIPMENT<SV9>	1-15414-631-0	01	1	9411-		●
16	PIPE; INJ NO.1 ANTI NOISE EQUIPMENT<SV9>	1-15414-058-0	01	1	9411-		●
16	PIPE; INJ NO.1 TAIWAN EQUIPMENT(WW5)	1-15414-058-0	01	1	9002-9306		●
16	PIPE; INJ NO.1 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-631-0	01	1	9002-9306		●
16	PIPE; INJ NO.1	1-15414-633-0	01	1	9307-			●
17	PIPE; INJ NO.2	1-15414-630-0	01	1	9002-9306	●
17	PIPE; INJ NO.2	1-15414-632-0	01	1	9307-9410		●
17	PIPE; INJ NO.2 EXC. ANTI NOISE EQUIPMENT<SV9>	1-15414-632-0	01	1	9411-		●
17	PIPE; INJ NO.2 ANTI NOISE EQUIPMENT<SV9>	1-15414-059-0	01	1	9411-		●
17	PIPE; INJ NO.2 TAIWAN EQUIPMENT(WW5)	1-15414-059-0	01	1	9002-9306		●
17	PIPE; INJ NO.2 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-632-0	01	1	9002-9306		●
17	PIPE; INJ NO.2	1-15414-634-0	01	1	9307-			●
18	PIPE; INJ NO.3	1-15414-631-0	01	1	9002-9306	●
18	PIPE; INJ NO.3	1-15414-633-0	01	1	9307-9410		●
18	PIPE; INJ NO.3 EXC. ANTI NOISE EQUIPMENT<SV9>	1-15414-633-0	01	1	9411-		●
18	PIPE; INJ NO.3 ANTI NOISE EQUIPMENT<SV9>	1-15414-060-1	01	1	9411-		●
18	PIPE; INJ NO.3 TAIWAN EQUIPMENT(WW5)	1-15414-060-1	01	1	9002-9306		●
18	PIPE; INJ NO.3 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-633-0	01	1	9002-9306		●
18	PIPE; INJ NO.3	1-15414-635-0	01	1	9307-			●
19	PIPE; INJ NO.4	1-15414-632-0	01	1	9002-9306	●
19	PIPE; INJ NO.4	1-15414-634-0	01	1	9307-9410		●
19	PIPE; INJ NO.4 EXC. ANTI NOISE EQUIPMENT<SV9>	1-15414-634-0	01	1	9411-		●
19	PIPE; INJ NO.4 ANTI NOISE EQUIPMENT<SV9>	1-15414-061-1	01	1	9411-		●
19	PIPE; INJ NO.4 TAIWAN EQUIPMENT(WW5)	1-15414-061-1	01	1	9002-9306		●
19	PIPE; INJ NO.4 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-634-0	01	1	9002-9306		●
19	PIPE; INJ NO.4	1-15414-636-0	01	1	9307-			●
20	PIPE; INJ NO.5	1-15414-633-0	01	1	9002-9306	●
20	PIPE; INJ NO.5	1-15414-635-0	01	1	9307-9410		●
20	PIPE; INJ NO.5 EXC. ANTI NOISE EQUIPMENT<SV9>	1-15414-635-0	01	1	9411-		●
20	PIPE; INJ NO.5 ANTI NOISE EQUIPMENT<SV9>	1-15414-062-1	01	1	9411-		●
20	PIPE; INJ NO.5 TAIWAN EQUIPMENT(WW5)	1-15414-062-1	01	1	9002-9306		●
20	PIPE; INJ NO.5 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-635-0	01	1	9002-9306		●
20	PIPE; INJ NO.5	1-15414-637-0	01	1	9307-			●
21	PIPE; INJ NO.6	1-15414-634-0	01	1	9002-9306	●
21	PIPE; INJ NO.6	1-15414-636-0	01	1	9307-9410		●
21	PIPE; INJ NO.6 EXC. ANTI NOISE EQUIPMENT<SV9>	1-15414-636-0	01	1	9411-		●
21	PIPE; INJ NO.6 ANTI NOISE EQUIPMENT<SV9>	1-15414-063-1	01	1	9411-		●
21	PIPE; INJ NO.6 TAIWAN EQUIPMENT(WW5)	1-15414-063-1	01	1	9002-9306		●
21	PIPE; INJ NO.6 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-636-0	01	1	9002-9306		●
21	PIPE; INJ NO.6	1-15414-638-0	01	1	9307-			●
22	PIPE; INJ NO.7	1-15414-635-0	01	1	9002-9306	●
22	PIPE; INJ NO.7	1-15414-637-0	01	1	9307-9410		●
22	PIPE; INJ NO.7 EXC. ANTI NOISE EQUIPMENT<SV9>	1-15414-637-0	01	1	9411-		●
22	PIPE; INJ NO.7 ANTI NOISE EQUIPMENT<SV9>	1-15414-869-0	01	1	9411-		●
22	PIPE; INJ NO.7 TAIWAN EQUIPMENT(WW5)	1-15414-869-0	01	1	9002-9306		●
22	PIPE; INJ NO.7 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-637-0	01	1	9002-9306		●
22	PIPE; INJ NO.7	1-15414-639-0	01	1	9307-			●
23	PIPE; INJ NO.8	1-15414-636-0	01	1	9002-9306	●
23	PIPE; INJ NO.8	1-15414-638-0	01	1	9307-9410		●
23	PIPE; INJ NO.8 EXC. ANTI NOISE EQUIPMENT<SV9>	1-15414-638-0	01	1	9411-		●
23	PIPE; INJ NO.8 ANTI NOISE EQUIPMENT<SV9>	1-15414-065-1	01	1	9411-		●
23	PIPE; INJ NO.8 TAIWAN EQUIPMENT(WW5)	1-15414-065-1	01	1	9002-9306		●
23	PIPE; INJ NO.8 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-638-0	01	1	9002-9306		●
23	PIPE; INJ NO.8	1-15414-640-0	01	1	9307-			●
24	PIPE; INJ NO.9	1-15414-637-0	01	1	9002-9306	●
24	PIPE; INJ NO.9	1-15414-639-0	01	1	9307-9410		●
24	PIPE; INJ NO.9 EXC. ANTI NOISE EQUIPMENT<SV9>	1-15414-639-0	01	1	9411-		●
24	PIPE; INJ NO.9 ANTI NOISE EQUIPMENT<SV9>	1-15414-066-0	01	1	9411-		●
24	PIPE; INJ NO.9 TAIWAN EQUIPMENT(WW5)	1-15414-066-0	01	1	9002-9306		●
24	PIPE; INJ NO.9 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-639-0	01	1	9002-9306		●
25	PIPE; INJ NO.10	1-15414-638-0	01	1	9002-9306	●
25	PIPE; INJ NO.10	1-15414-640-0	01	1	9307-9410		●
25	PIPE; INJ NO.10 EXC. ANTI NOISE EQUIPMENT<SV9>	1-15414-640-0	01	1	9411-		●
25	PIPE; INJ NO.10 ANTI NOISE EQUIPMENT<SV9>	1-15414-067-1	01	1	9411-		●
25	PIPE; INJ NO.10 TAIWAN EQUIPMENT(WW5)	1-15414-067-1	01	1	9002-9306		●
25	PIPE; INJ NO.10 EXC. TAIWAN EQUIPMENT(WW5)	1-15414-640-0	01	1	9002-9306		●
31	NOZZLE ASM; INJ (B)	1-15300-231-1	10	1	9307-9504		●
31	NOZZLE ASM; INJ EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-15300-231-1	10	1	9505-		●
31	NOZZLE ASM; INJ ANTI NOISE EQUIPMENT<SV9> (A)	1-15300-204-1	10	1	9505-		●
31	NOZZLE ASM; INJ TAIWAN EQUIPMENT(WW5) (A)	1-15300-204-0	10	1	9002-9306		●
31	NOZZLE ASM; INJ EXC. TAIWAN EQUIPMENT(WW5) (B)	1-15300-231-0	10	1	9002-9306		●
31	NOZZLE ASM; INJ (B)	1-15300-231-0	12	1	9002-9306	●
31	NOZZLE ASM; INJ (B)	1-15300-231-1	08	1	9307-			●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) OD=26.0	1-09630-111-0	12	1	9002-9306	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) OD=28.5	1-09639-030-0	12	1	9002-9306	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=15	1-15315-011-0	12	1	9002-9306	●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) OD=26.0	1-09630-111-0	10	1	9002-		●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) OD=28.5	1-09639-030-0	10	1	9002-		●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=15	1-15315-011-0	10	1	9002-		●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) OD=26.0	1-09630-111-0	08	1	9307-			●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) OD=28.5	1-09639-030-0	08	1	9307-			●
52	GASKET; SLEEVE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (C) ID=15	1-15315-011-0	08	1	9307-			●
55	SLEEVE; INJ PUMP	1-15339-094-0	12	1	9002-9306	●
55	SLEEVE; INJ PUMP	1-15339-094-0	08	1	9307-			●
55	SLEEVE; INJ PUMP	1-15339-094-0	10	1	9002-		●
56	COVER	1-15419-028-0	12	1	9002-9306	●
56	COVER	1-15419-028-0	10	1	9002-		●
56	COVER	1-15419-028-0	08	1	9307-			●
57	GASKET; DUST COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-15419-027-1	12	1	9002-9306	●
57	GASKET; DUST COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-15419-027-1	08	1	9307-			●
57	GASKET; DUST COVER ALSO INCLUDED IN GASKET SET(ENGINE).	1-15419-027-1	10	1	9002-		●
59	CLAMP; NOZZLE HOLDER	1-15337-012-0	12	1	9002-9306	●
59	CLAMP; NOZZLE HOLDER	1-15337-012-0	10	1	9002-		●
59	CLAMP; NOZZLE HOLDER	1-15337-012-0	08	1	9307-			●
60	WASHER; NOZZLE HOLDER	1-09509-046-0	12	1	9002-9306	●
60	WASHER; NOZZLE HOLDER	1-09509-046-0	08	1	9307-			●
60	WASHER; NOZZLE HOLDER	1-09509-046-0	10	1	9002-		●
61	BOLT; CLAMP NOZZLE HOLDER M12X50	9-01666-250-0	12	1	9002-9306	●
61	BOLT; CLAMP NOZZLE HOLDER M12X50	9-01666-250-0	08	1	9307-			●
61	BOLT; CLAMP NOZZLE HOLDER M12X50	9-01666-250-0	10	1	9002-		●
69	BRACKET; INJ PIPE CLIP	1-15419-147-1	06	1	9002-	●	●
69	BRACKET; INJ PIPE CLIP	1-15419-147-1	04	1	9307-			●
98	CLIP; "A",INJ PIPE	9-15419-613-0	05	1	9002-9306	●
98	CLIP; "A",INJ PIPE	9-15419-613-0	03	1	9002-		●	●
99	BOLT; CLIP,INJ,PIPE (B) M5X20	9-09802-539-0	05	1	9002-9306	●
99	BOLT; CLIP,INJ,PIPE (A) M5X20	9-92050-520-0	06	1	9002-9005	●
99	BOLT; CLIP,INJ,PIPE (A) M5X20	0-20800-520-0	06	1	9006-9306	●
99	BOLT; CLIP,INJ,PIPE (A) M5X20	0-20800-520-0	04	1	9307-			●
99	BOLT; CLIP,INJ,PIPE (B) M5X20	9-09802-539-0	03	1	9002-		●
99	BOLT; CLIP,INJ,PIPE (A) M5X20	9-92050-520-0	08	1	9002-9005		●
99	BOLT; CLIP,INJ,PIPE (A) M5X20	0-20800-520-0	06	1	9006-		●
111	WASHER; LK,CLIP ID=5.1	9-09150-505-0	06	1	9002-9306	●
111	WASHER; LK,CLIP ID=5.1	9-09150-505-0	06	1	9002-		●
111	WASHER; LK,CLIP ID=5.1	9-09150-505-0	04	1	9307-			●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91150-108-0	07	1	9002-9306	●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91150-108-0	06	1	9002-		●
112	NUT; BRKT,INJ PIPE CLIP M8 FLANGE	0-91150-108-0	04	1	9307-			●
113	CLIP; INJ PIPE (A)	1-15419-036-1	06	1	9002-	●	●	●
113	CLIP; INJ PIPE (A)	1-15419-036-1	04	1	9307-			●
113	CLIP; INJ PIPE (B)	9-15419-612-0	03	1	9307-			●
114	CLIP; INJ PIPE	9-15419-612-0	03	1	9307-		●
115	CLIP; "B",INJ PIPE	9-15419-614-0	05	1	9002-9306	●
115	CLIP; "B",INJ PIPE	9-15419-614-0	03	1	9002-		●	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15414-553-1	01	1	9002-9306	●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15414-543-1	01	1	9307-			●
121	PIPE; FUEL,FEED PUMP,SUCTION	1-15414-551-1	01	1	9002-		●
122	CLIP; LEAK OFF PIPE (A) L=19	1-09709-104-0	04	1	9002-	●	●	●
122	CLIP; LEAK OFF PIPE (B) L=22	1-09709-156-0	02	1	9002-	●	●	●
124	BOLT; EYE LEAK OFF PIPE M8X18 EYE BOLT	1-09675-037-1	02	1	9002-	●	●	●
124	BOLT; EYE LEAK OFF PIPE M8X30 FLANGE	1-09675-039-1	01	1	9002-	●	●	●
126	GASKET; EYE BOLT LEAK OFF PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.2 OD=13.2	1-09630-082-0	07	1	9002-	●	●	●
127	BOLT; CLIP LEAK OFF PIPE M8X18	0-28020-818-0	08	1	9002-9005	●
127	BOLT; CLIP LEAK OFF PIPE M8X18 FLANGE	0-28080-818-0	08	1	9006-9306	●
127	BOLT; CLIP LEAK OFF PIPE M8X18	0-28020-818-0	06	1	9002-9005		●
127	BOLT; CLIP LEAK OFF PIPE M8X18 FLANGE	0-28080-818-0	06	1	9006-		●	●
129	PIPE ASM; LEAK OFF OUTER (B)	1-15414-260-1	01	1	9002-9306	●
129	PIPE ASM; LEAK OFF OUTER (B)	1-15414-300-1	01	1	9307-			●
129	PIPE ASM; LEAK OFF OUTER (A)	1-15414-074-1	01	1	9002-	●	●
129	PIPE ASM; LEAK OFF OUTER (B)	1-15414-075-1	01	1	9002-		●
129	PIPE ASM; LEAK OFF OUTER (A)	1-15414-301-0	01	1	9307-			●
130	BRACKET; OVERFLOW TO LEAK OFF	1-15419-189-0	01	1	9002-	●	●	●
131	CLIP; OVERFLOW LEAK OFF ID=10 & 6 L=20	1-09700-404-0	01	1	9002-	●	●
132	CONNECTOR ASM; LEAK OFF	1-15449-009-0	14	1	9002-9306	●
132	CONNECTOR ASM; LEAK OFF	1-15449-009-0	10	1	9307-			●
132	CONNECTOR ASM; LEAK OFF	1-15449-009-0	12	1	9002-		●
133	PIPE; INJ NOZZLE LEAK OFF	1-15414-535-0	02	1	9002-9306	●
133	PIPE; INJ NOZZLE LEAK OFF	1-15414-533-0	02	1	9307-			●
133	PIPE; INJ NOZZLE LEAK OFF	1-15414-534-0	02	1	9002-		●

35 33 46 47 140 141 44 143 45 138 140 32 31 37 39 38 40 32 31 37 38 39 44 45 46 33 35

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
31	NOZZLE ASM; INJ (B)	1-15300-231-1	10	1	9307-9504		●
31	NOZZLE ASM; INJ EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-15300-231-1	10	1	9505-		●
31	NOZZLE ASM; INJ ANTI NOISE EQUIPMENT<SV9> (A)	1-15300-204-1	10	1	9505-		●
31	NOZZLE ASM; INJ TAIWAN EQUIPMENT(WW5) (A)	1-15300-204-0	10	1	9002-9306		●
31	NOZZLE ASM; INJ EXC. TAIWAN EQUIPMENT(WW5) (B)	1-15300-231-0	10	1	9002-9306		●
31	NOZZLE ASM; INJ (B)	1-15300-231-0	12	1	9002-9306	●
31	NOZZLE ASM; INJ (B)	1-15300-231-1	08	1	9307-			●
32	HOLDER ASM; NOZZLE (B)	1-15330-048-1	10	1	9307-9504		●
32	HOLDER ASM; NOZZLE EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-15330-048-1	10	1	9505-		●
32	HOLDER ASM; NOZZLE ANTI NOISE EQUIPMENT<SV9> (A)	1-15330-089-1	10	1	9505-		●
32	HOLDER ASM; NOZZLE TAIWAN EQUIPMENT(WW5) (A)	1-15330-089-0	10	1	9002-9306		●
32	HOLDER ASM; NOZZLE EXC. TAIWAN EQUIPMENT(WW5) (B)	1-15330-048-0	10	1	9002-9306		●
32	HOLDER ASM; NOZZLE (B)	1-15330-048-0	12	1	9002-9306	●
32	HOLDER ASM; NOZZLE (B)	1-15330-048-1	08	1	9307-			●
33	NOZZLE; INJ (B)	1-15311-159-1	10	1	9307-9504		●
33	NOZZLE; INJ EXC. ANTI NOISE EQUIPMENT<SV9> (B)	1-15311-159-1	10	1	9505-		●
33	NOZZLE; INJ ANTI NOISE EQUIPMENT<SV9> (A)	1-15311-180-0	10	1	9505-		●
33	NOZZLE; INJ TAIWAN EQUIPMENT(WW5) (A)	1-15311-180-0	10	1	9002-9306		●
33	NOZZLE; INJ EXC. TAIWAN EQUIPMENT(WW5) (B)	1-15311-159-1	10	1	9002-9306		●
33	NOZZLE; INJ (B)	1-15311-159-1	12	1	9002-9306	●
33	NOZZLE; INJ (B)	1-15311-159-1	08	1	9307-			●
35	NUT; NOZZLE RET,NOZZLE HOLDER (B)	5-15332-007-0	12	1	9002-9306	●
35	NUT; NOZZLE RET,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) (A)	8-94171-195-0	10	1	9002-9306		●
35	NUT; NOZZLE RET,NOZZLE HOLDER EXC. TAIWAN EQUIPMENT(WW5) (B)	5-15332-007-0	10	1	9002-9306		●
35	NUT; NOZZLE RET,NOZZLE HOLDER (A),(B)	1-15332-017-0	10	1	9307-		●
35	NUT; NOZZLE RET,NOZZLE HOLDER (B)	1-15332-017-0	08	1	9307-			●
37	NUT; CAP,NOZZLE HOLDER	1-15334-016-0	10	1	9307-9504		●
37	NUT; CAP,NOZZLE HOLDER EXC. ANTI NOISE EQUIPMENT<SV9>	1-15334-016-0	10	1	9505-		●
37	NUT; CAP,NOZZLE HOLDER ANTI NOISE EQUIPMENT<SV9>	1-15334-015-0	10	1	9505-		●
37	NUT; CAP,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5)	1-15334-005-0	10	1	9002-9306		●
37	NUT; CAP,NOZZLE HOLDER EXC. TAIWAN EQUIPMENT(WW5)	1-15332-012-0	10	1	9002-9306		●
37	NUT; CAP,NOZZLE HOLDER	1-15332-012-0	12	1	9002-9306	●
37	NUT; CAP,NOZZLE HOLDER	1-15334-016-0	08	1	9307-			●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	5-15339-060-0	10	1	9307-9504		●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE). EXC. ANTI NOISE EQUIPMENT<SV9>	5-15339-060-0	10	1	9505-		●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE). ANTI NOISE EQUIPMENT<SV9>	9-15339-056-0	10	1	9505-		●
38	GASKET; CAP NUT,NOZZLE HOLDER ALSO INCLUDED IN GASKET SET(ENGINE).	5-15339-060-0	08	1	9307-			●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	1-15345-005-0	10	1	9307-9504		●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER EXC. ANTI NOISE EQUIPMENT<SV9>	1-15345-005-0	10	1	9505-		●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER ANTI NOISE EQUIPMENT<SV9>	1-15345-004-0	10	1	9505-		●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5)	1-15345-004-0	10	1	9002-9306		●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER EXC. TAIWAN EQUIPMENT(WW5)	1-15345-005-0	10	1	9002-9306		●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	1-15345-005-0	12	1	9002-9306	●
39	SCREW; ADJ,NOZZLE SPRING,NOZZLE HOLDER	1-15345-005-0	08	1	9307-			●
40	NUT; ADJ SCREW,NOZZLE HOLDER ANTI NOISE EQUIPMENT<SV9>	1-15332-011-0	10	1	9505-		●
40	NUT; ADJ SCREW,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5)	1-15332-011-0	10	1	9002-9306		●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15343-005-0	10	1	9307-9504		●
44	SPRING; NOZZLE,NOZZLE HOLDER EXC. ANTI NOISE EQUIPMENT<SV9>	5-15343-005-0	10	1	9505-		●
44	SPRING; NOZZLE,NOZZLE HOLDER ANTI NOISE EQUIPMENT<SV9>	8-94246-531-0	10	1	9505-		●
44	SPRING; NOZZLE,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5)	8-94246-531-0	10	1	9002-9306		●
44	SPRING; NOZZLE,NOZZLE HOLDER EXC. TAIWAN EQUIPMENT(WW5)	5-15343-005-0	10	1	9002-9306		●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15343-005-0	12	1	9002-9306	●
44	SPRING; NOZZLE,NOZZLE HOLDER	5-15343-005-0	08	1	9307-			●
45	ROD; PUSH,NOZZLE HOLDER	8-94169-502-0	10	1	9307-9504		●
45	ROD; PUSH,NOZZLE HOLDER EXC. ANTI NOISE EQUIPMENT<SV9>	8-94169-502-0	10	1	9505-		●
45	ROD; PUSH,NOZZLE HOLDER ANTI NOISE EQUIPMENT<SV9>	1-15341-004-0	10	1	9505-		●
45	ROD; PUSH,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5)	1-15341-004-0	10	1	9002-9306		●
45	ROD; PUSH,NOZZLE HOLDER EXC. TAIWAN EQUIPMENT(WW5)	8-94169-502-0	10	1	9002-9306		●
45	ROD; PUSH,NOZZLE HOLDER	8-94169-502-0	12	1	9002-9306	●
45	ROD; PUSH,NOZZLE HOLDER	8-94169-502-0	08	1	9307-			●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	24	1	9002-9306	●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	20	1	9002-		●
46	PIN; NOZZLE SET,NOZZLE HOLDER	9-15347-003-0	16	1	9307-			●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER ANTI NOISE EQUIPMENT<SV9>	1-15339-015-0	10	1	9505-		●
47	SPACER; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5)	1-15339-015-0	10	1	9002-9306		●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER ANTI NOISE EQUIPMENT<SV9>	1-15343-001-0	10	1	9505-		●
138	SPRING; NOZZLE LWR,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5)	1-15343-001-0	10	1	9002-9306		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER ANTI NOISE EQUIPMENT<SV9> T=0.50	5-15339-007-0	AR	1	9505-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER ANTI NOISE EQUIPMENT<SV9> T=0.60	5-15339-008-0	AR	1	9505-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER ANTI NOISE EQUIPMENT<SV9> T=0.70	5-15339-009-0	AR	1	9505-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER ANTI NOISE EQUIPMENT<SV9> T=0.80	5-15339-010-0	AR	1	9505-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER ANTI NOISE EQUIPMENT<SV9> T=0.90	5-15339-011-0	AR	1	9505-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER ANTI NOISE EQUIPMENT<SV9> T=1.00	5-15339-012-0	AR	1	9505-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER ANTI NOISE EQUIPMENT<SV9> T=0.52	5-15339-018-0	AR	1	9505-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER ANTI NOISE EQUIPMENT<SV9> T=0.54	5-15339-019-0	AR	1	9505-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER ANTI NOISE EQUIPMENT<SV9> T=0.56	5-15339-020-0	AR	1	9505-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER ANTI NOISE EQUIPMENT<SV9> T=0.58	5-15339-021-0	AR	1	9505-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER ANTI NOISE EQUIPMENT<SV9> T=0.10	8-94128-982-0	AR	1	9505-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER ANTI NOISE EQUIPMENT<SV9> T=0.20	8-94128-983-0	AR	1	9505-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER ANTI NOISE EQUIPMENT<SV9> T=0.30	8-94128-984-0	AR	1	9505-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER ANTI NOISE EQUIPMENT<SV9> T=0.40	8-94128-985-0	AR	1	9505-		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.50	5-15339-007-0	AR	1	9002-9306		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.60	5-15339-008-0	AR	1	9002-9306		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.70	5-15339-009-0	AR	1	9002-9306		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.80	5-15339-010-0	AR	1	9002-9306		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.90	5-15339-011-0	AR	1	9002-9306		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=1.00	5-15339-012-0	AR	1	9002-9306		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.52	5-15339-018-0	AR	1	9002-9306		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.54	5-15339-019-0	AR	1	9002-9306		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.56	5-15339-020-0	AR	1	9002-9306		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.58	5-15339-021-0	AR	1	9002-9306		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.10	8-94128-982-0	AR	1	9002-9306		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.20	8-94128-983-0	AR	1	9002-9306		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.30	8-94128-984-0	AR	1	9002-9306		●
140	SHIM; NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5) T=0.40	8-94128-985-0	AR	1	9002-9306		●
141	ROD; PUSH,UPR,NOZZLE HOLDER ANTI NOISE EQUIPMENT<SV9>	1-15341-005-0	10	1	9505-		●
141	ROD; PUSH,UPR,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5)	1-15341-005-0	10	1	9002-9306		●
143	SCREW; SET,NOZZLE SPRING,NOZZLE HOLDER ANTI NOISE EQUIPMENT<SV9>	1-15345-003-0	10	1	9505-		●
143	SCREW; SET,NOZZLE SPRING,NOZZLE HOLDER TAIWAN EQUIPMENT(WW5)	1-15345-003-0	10	1	9002-9306		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
