◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NPR ▶ 50954 - NPR/NQR(SOUTHAFRICA) ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-11 - RADIATOR HOSE AND SUB TANK ▶
1-11 — RADIATOR HOSE AND SUB TANK (#23149) — 49 parça
çizim 13834
56 128 56 55
BalonParca AdiParca NoAdetTipApplied Date A B C D
55 HOSE; WATER,RAD OUTLET
4HF1 ENG(RLS) 		8-97124-743-0 01 1 0303- ● ●
55 HOSE; WATER,RAD OUTLET
4HE1 ENG(RLY) 		8-97133-143-0 01 1 0303-0511 ●
55 HOSE; WATER,RAD OUTLET
4HK1-TCS ENG(RJS) 		8-97330-530-0 01 1 0512- ● ●
56 CLIP; WATER HOSE,RAD
4HF1 ENG(RLS) ID=40 		8-97245-216-0 02 1 0303-0511 ● ●
56 CLIP; WATER HOSE,RAD
4HE1 ENG(RLY) ID=40 		8-97245-216-0 02 1 0303-0511 ●
56 CLIP; WATER HOSE,RAD
4HF1 ENG(RLS) ID=40 		8-97245-216-0 02 1 0512- ● ●
56 CLIP; WATER HOSE,RAD
4HK1-TCS ENG(RJS) ID=40 		8-97245-216-0 02 1 0512- ● ●
128 HOSE; WATER,RAD INL
4HF1 ENG(RLS) 		8-97147-472-0 01 1 0303- ● ●
128 HOSE; WATER,RAD INL
4HE1 ENG(RLY) 		8-97133-142-0 01 1 0303-0511 ●
128 HOSE; WATER,RAD INL
4HK1-TCS ENG(RJS) 		8-97330-529-0 01 1 0512- ● ●

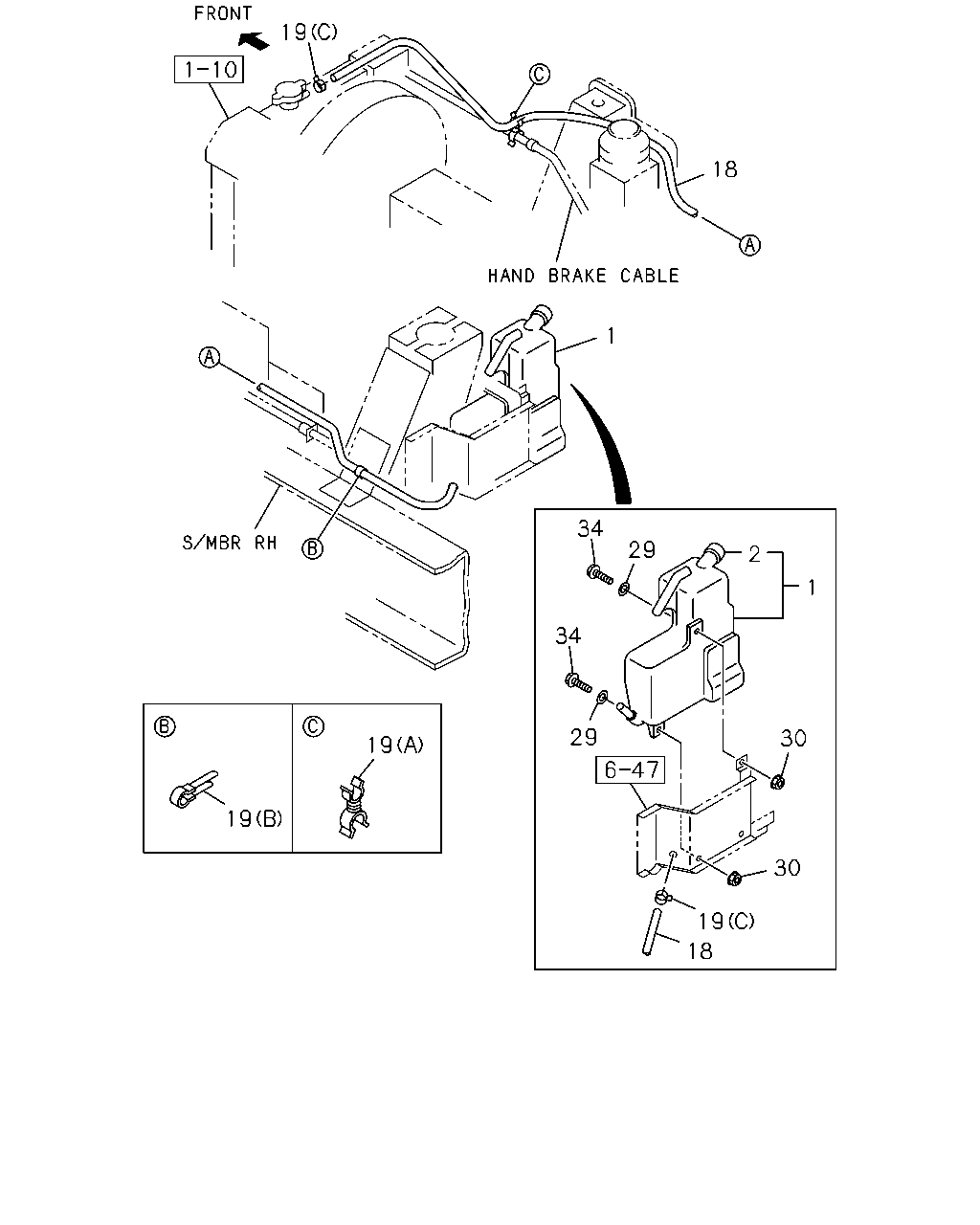

çizim 55470
19 18 1 34 29 2 1 34 29 30 19 19 30 19 18
BalonParca AdiParca NoAdetTipApplied Date A B C D
1 TANK; SURGE,RAD
4HF1 ENG(RLS) 		8-97210-844-0 01 1 0303-0511 ● ●
1 TANK; SURGE,RAD
4HE1 ENG(RLY) 		8-97210-844-0 01 1 0303-0511 ●
1 TANK; SURGE,RAD
4HF1 ENG(RLS) 		8-97210-844-0 01 1 0512- ● ●
1 TANK; SURGE,RAD
4HK1-TCS ENG(RJS) 		8-97210-844-0 01 1 0512- ● ●
2 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-97217-796-0 01 1 0303-0511 ● ●
2 CAP; SURGE TANK
4HE1 ENG(RLY) 		8-97217-796-0 01 1 0303-0511 ●
2 CAP; SURGE TANK
4HF1 ENG(RLS) 		8-97217-796-0 01 1 0512- ● ●
2 CAP; SURGE TANK
4HK1-TCS ENG(RJS) 		8-97217-796-0 01 1 0512- ● ●
18 HOSE; RAD TO SURGE TANK
4HF1 ENG(RLS) L=1595 		8-97148-533-2 01 1 0303- ● ●
18 HOSE; RAD TO SURGE TANK
4HE1 ENG(RLY) L=1550 		8-97129-560-2 01 1 0303-0511 ●
18 HOSE; RAD TO SURGE TANK
4HK1-TCS ENG(RJS) L=1520 		8-97376-968-1 01 1 0512- ● ●
19 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS) (B) ID=14 L=47 SOU 		5-09700-319-0 01 1 0512- ● ●
19 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS) (B) ID=14 L=47 SOU 		5-09700-319-0 01 1 0303-0511 ● ●
19 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) (B) ID=14 L=47 SOU 		5-09700-319-0 01 1 0303-0511 ●
19 CLIP; HOSE,SURGE TANK
4HK1-TCS ENG(RJS) (B) ID=14 L=47 SOU 		5-09700-319-0 02 1 0512- ● ●
19 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS) (A) ID=10 & 11 		8-94438-996-0 01 1 0303-0511 ● ●
19 CLIP; HOSE,SURGE TANK
4HE1 ENG(RLY) (A) ID=10 & 11 		8-94438-996-0 01 1 0303-0511 ●
19 CLIP; HOSE,SURGE TANK
4HF1 ENG(RLS) (A) ID=10 & 11 		8-94438-996-0 01 1 0512- ● ●
19 CLIP; HOSE,SURGE TANK
4HK1-TCS ENG(RJS) (A) ID=10 & 11 		8-94438-996-0 01 1 0512- ● ●
19 CLIP; HOSE,SURGE TANK
(C) ID=12 		8-94238-610-0 02 1 0303-0511 ● ● ●
19 CLIP; HOSE,SURGE TANK
(C) ID=12 		8-94238-610-0 02 1 0512- ● ● ● ●
29 WASHER; PL,RESERVE TANK
4HF1 ENG(RLS) ID=6.4 OD=18 		9-09160-706-0 03 1 0303-0511 ● ●
29 WASHER; PL,RESERVE TANK
4HE1 ENG(RLY) ID=6.4 OD=18 		9-09160-706-0 03 1 0303-0511 ●
29 WASHER; PL,RESERVE TANK
4HF1 ENG(RLS) ID=6.4 OD=18 		9-09160-706-0 03 1 0512-0605 ● ●
29 WASHER; PL,RESERVE TANK
4HK1-TCS ENG(RJS) ID=6.4 OD=18 		9-09160-706-0 03 1 0512-0605 ● ●
29 WASHER; PL,RESERVE TANK
4HF1 ENG(RLS) ID=6.4 OD=18 SOU 		0-91610-706-0 03 1 0606- ● ●
29 WASHER; PL,RESERVE TANK
4HK1-TCS ENG(RJS) ID=6.4 OD=18 SOU 		0-91610-706-0 03 1 0606- ● ●
30 NUT
4HF1 ENG(RLS) M6 FLANGE 		0-91150-106-0 03 1 0303-0511 ● ●
30 NUT
4HE1 ENG(RLY) M6 FLANGE 		0-91150-106-0 03 1 0303-0511 ●
30 NUT
4HF1 ENG(RLS) M6 FLANGE 		0-91150-106-0 03 1 0512-0602 ● ●
30 NUT
4HK1-TCS ENG(RJS) M6 FLANGE 		0-91150-106-0 03 1 0512-0602 ● ●
30 NUT
4HF1 ENG(RLS) M6 FLANGE SOU 		0-91180-106-0 03 1 0603- ● ●
30 NUT
4HK1-TCS ENG(RJS) M6 FLANGE SOU 		0-91180-106-0 03 1 0603- ● ●
34 BOLT; RESERVE TANK
4HF1 ENG(RLS) M6X20 FLANGE 		0-28680-620-0 03 1 0303-0511 ● ●
34 BOLT; RESERVE TANK
4HE1 ENG(RLY) M6X20 FLANGE 		0-28680-620-0 03 1 0303-0511 ●
34 BOLT; RESERVE TANK
4HF1 ENG(RLS) M6X20 FLANGE 		0-28680-620-0 03 1 0512-0512 ● ●
34 BOLT; RESERVE TANK
4HK1-TCS ENG(RJS) M6X20 FLANGE 		0-28680-620-0 03 1 0512-0512 ● ●
34 BOLT; RESERVE TANK
4HF1 ENG(RLS) M6X20 FLANGE SOU 		0-28650-620-0 03 1 0601- ● ●
34 BOLT; RESERVE TANK
4HK1-TCS ENG(RJS) M6X20 FLANGE SOU 		0-28650-620-0 03 1 0601- ● ●
