Sayfa 5-10 - Isuzu EPC

5-10 — CAB MOUNTING; FRAME SIDE (#23146) — 197 parça

141 140 419

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
140	09.003 NUT; BRKT 03.417 M8 FLANGE	8-94279-517-0	04	1	0302-	●	●	●
141	09.003 BOLT; BRKT 04.634 M8X24.5 W/LK&PL WASHER	8-94279-208-0	04	1	0302-0908	●	●	●
141	09.003 BOLT; BRKT 08.225 M8X24.5 W/LK&PL WASHER	8-98059-720-0	04	1	0909-	●	●	●
419	09.003 BRACKET; HOOK,SEAT BELT ANCHOR	8-97857-423-4	01	1	0302-	●	●	●
419	09.003 BRACKET; HOOK,SEAT BELT ANCHOR	8-97857-422-4	01	1	0302-	●	●	●

1 7 20 2 1 2 20 7 18 18 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97163-030-0	01	1	0302-0606	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-98018-948-1	01	1	0607-	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-350-3	01	1	0302-0606	●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97331-636-1	01	1	0607-	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-348-5	01	1	0302-0606	●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97033-348-5	01	1	0302-0606	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97170-220-0	01	1	0302-0606		●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97388-367-1	01	1	0607-		●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97096-894-1	01	1	0302-0606		●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97388-366-1	01	1	0607-		●	●
2	09.009 BUSHING; TORSION BAR EXC. MANUAL TILT CAB<RWZ>	8-97061-514-0	02	1	0302-0606	●	●	●
7	09.003 BOLT; BRKT,CAB TILT FRT INDEPENDENT SUSPENSION(6PP) EXC. MANUAL TILT CAB<RWZ> M12X40 FLANGE	0-28681-240-0	08	1	0302-0512	●
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28681-240-0	08	1	0302-0512		●	●
7	09.003 BOLT; BRKT,CAB TILT FRT INDEPENDENT SUSPENSION(6PP) EXC. MANUAL TILT CAB<RWZ> M12X40 FLANGE	0-28651-240-0	08	1	0601-0606	●
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28651-240-0	08	1	0601-0606		●	●
7	09.003 BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) M12X40 FLANGE	0-28681-240-0	10	1	0302-0512	●
7	09.003 BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) M12X40 FLANGE	0-28651-240-0	10	1	0601-0606	●
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28651-240-0	08	1	0607-	●	●	●
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	0302-0606	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	02	1	0302-0606		●	●
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97093-741-1	02	1	0302-0606	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	02	1	0302-0606	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-140-2	02	1	0302-0606	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (E)	8-97351-393-0	01	1	0607-	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	01	1	0302-		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	01	1	0302-		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0302-0606		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (F)	8-97388-371-0	01	1	0607-		●	●
20	09.003 RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-3	01	1	0302-0606	●	●	●
20	09.003 RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-3	01	1	0302-0606	●	●	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97033-368-3	01	1	0302-0606	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97033-368-3	01	1	0302-0606	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-97033-368-3	02	1	0607-	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-97096-893-1	02	1	0302-		●	●

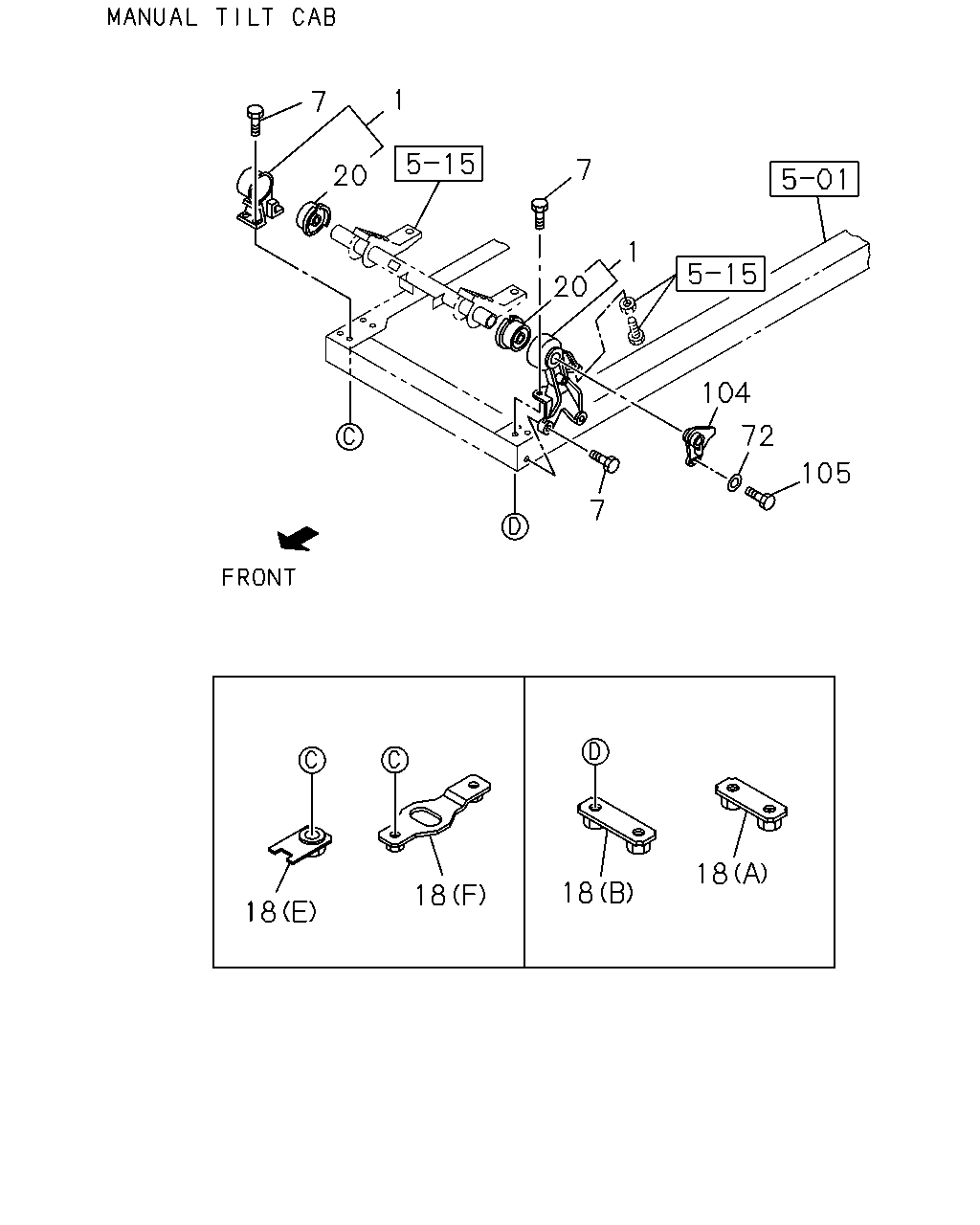

1 7 7 20 1 20 104 72 105 7 18 18 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97163-030-0	01	1	0302-0606	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-98018-948-1	01	1	0607-	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-350-3	01	1	0302-0606	●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97331-636-1	01	1	0607-	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-348-5	01	1	0302-0606	●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97033-348-5	01	1	0302-0606	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97170-220-0	01	1	0302-0606		●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97388-367-1	01	1	0607-		●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97096-894-1	01	1	0302-0606		●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97388-366-1	01	1	0607-		●	●
7	09.003 BOLT; BRKT,CAB TILT FRT INDEPENDENT SUSPENSION(6PP) EXC. MANUAL TILT CAB<RWZ> M12X40 FLANGE	0-28681-240-0	08	1	0302-0512	●
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28681-240-0	08	1	0302-0512		●	●
7	09.003 BOLT; BRKT,CAB TILT FRT INDEPENDENT SUSPENSION(6PP) EXC. MANUAL TILT CAB<RWZ> M12X40 FLANGE	0-28651-240-0	08	1	0601-0606	●
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28651-240-0	08	1	0601-0606		●	●
7	09.003 BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) M12X40 FLANGE	0-28681-240-0	10	1	0302-0512	●
7	09.003 BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) M12X40 FLANGE	0-28651-240-0	10	1	0601-0606	●
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28651-240-0	08	1	0607-	●	●	●
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	0302-0606	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	02	1	0302-0606		●	●
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97093-741-1	02	1	0302-0606	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	02	1	0302-0606	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-140-2	02	1	0302-0606	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (E)	8-97351-393-0	01	1	0607-	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	01	1	0302-		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	01	1	0302-		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0302-0606		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (F)	8-97388-371-0	01	1	0607-		●	●
20	09.003 RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-3	01	1	0302-0606	●	●	●
20	09.003 RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-3	01	1	0302-0606	●	●	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97033-368-3	01	1	0302-0606	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97033-368-3	01	1	0302-0606	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-97033-368-3	02	1	0607-	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-97096-893-1	02	1	0302-		●	●
72	09.003 WASHER; PL,BRKT TO FRAME MANUAL TILT CAB<RWZ> ID=15 OD=36	0-91614-714-0	01	1	0607-	●	●	●
104	09.003 BRACKET; CAB FRAME,CAB FRT MTG MANUAL TILT CAB<RWZ>	8-97033-624-3	01	1	0302-0606	●	●	●
104	09.003 BRACKET; CAB FRAME,CAB FRT MTG MANUAL TILT CAB<RWZ>	8-97164-690-3	01	1	0607-	●	●	●
105	09.023 BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M16X35 FLANGE	0-28881-635-0	01	1	0302-0512	●	●	●
105	09.023 BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M16X35 FLANGE	0-28851-635-0	01	1	0601-0606	●	●	●
105	09.023 BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> 02.277 M14X35 FLANGE	0-28651-435-0	01	1	0607-	●	●	●

7 1 7 20 1 20 104 7 23 105 18 18 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97163-030-0	01	1	0302-0606	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-98018-948-1	01	1	0607-	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-350-3	01	1	0302-0606	●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97331-636-1	01	1	0607-	●
1	09.003 BRACKET; CAB MTG EXC. MANUAL TILT CAB<RWZ>	8-97033-348-5	01	1	0302-0606	●	●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97033-348-5	01	1	0302-0606	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97170-220-0	01	1	0302-0606		●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97388-367-1	01	1	0607-		●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97096-894-1	01	1	0302-0606		●	●
1	09.003 BRACKET; CAB MTG MANUAL TILT CAB<RWZ>	8-97388-366-1	01	1	0607-		●	●
7	09.003 BOLT; BRKT,CAB TILT FRT INDEPENDENT SUSPENSION(6PP) EXC. MANUAL TILT CAB<RWZ> M12X40 FLANGE	0-28681-240-0	08	1	0302-0512	●
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28681-240-0	08	1	0302-0512		●	●
7	09.003 BOLT; BRKT,CAB TILT FRT INDEPENDENT SUSPENSION(6PP) EXC. MANUAL TILT CAB<RWZ> M12X40 FLANGE	0-28651-240-0	08	1	0601-0606	●
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28651-240-0	08	1	0601-0606		●	●
7	09.003 BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) M12X40 FLANGE	0-28681-240-0	10	1	0302-0512	●
7	09.003 BOLT; BRKT,CAB TILT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) M12X40 FLANGE	0-28651-240-0	10	1	0601-0606	●
7	09.003 BOLT; BRKT,CAB TILT M12X40 FLANGE	0-28651-240-0	08	1	0607-	●	●	●
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	0302-0606	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	02	1	0302-0606		●	●
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97093-741-1	02	1	0302-0606	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	02	1	0302-0606	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-140-2	02	1	0302-0606	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (E)	8-97351-393-0	01	1	0607-	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	01	1	0302-		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	01	1	0302-		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0302-0606		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (F)	8-97388-371-0	01	1	0607-		●	●
20	09.003 RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-3	01	1	0302-0606	●	●	●
20	09.003 RUBBER; MTG,CAB BRKT EXC. MANUAL TILT CAB<RWZ>	8-97033-368-3	01	1	0302-0606	●	●	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97033-368-3	01	1	0302-0606	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP)	8-97033-368-3	01	1	0302-0606	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-97033-368-3	02	1	0607-	●
20	09.003 RUBBER; MTG,CAB BRKT MANUAL TILT CAB<RWZ>	8-97096-893-1	02	1	0302-		●	●
23	09.003 NUT; MTG BRKT MANUAL TILT CAB<RWZ> 05.586 M12 FLANGE	0-91150-112-0	02	1	0302-0602		●	●
23	09.003 NUT; MTG BRKT MANUAL TILT CAB<RWZ> 02.042 M12 FLANGE	0-91180-112-0	02	1	0603-		●	●
104	09.003 BRACKET; CAB FRAME,CAB FRT MTG MANUAL TILT CAB<RWZ>	8-97033-624-3	01	1	0302-0606	●	●	●
104	09.003 BRACKET; CAB FRAME,CAB FRT MTG MANUAL TILT CAB<RWZ>	8-97164-690-3	01	1	0607-	●	●	●
105	09.023 BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M16X35 FLANGE	0-28881-635-0	01	1	0302-0512	●	●	●
105	09.023 BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> M16X35 FLANGE	0-28851-635-0	01	1	0601-0606	●	●	●
105	09.023 BOLT; BRKT TO CAB FRAME MANUAL TILT CAB<RWZ> 02.277 M14X35 FLANGE	0-28651-435-0	01	1	0607-	●	●	●

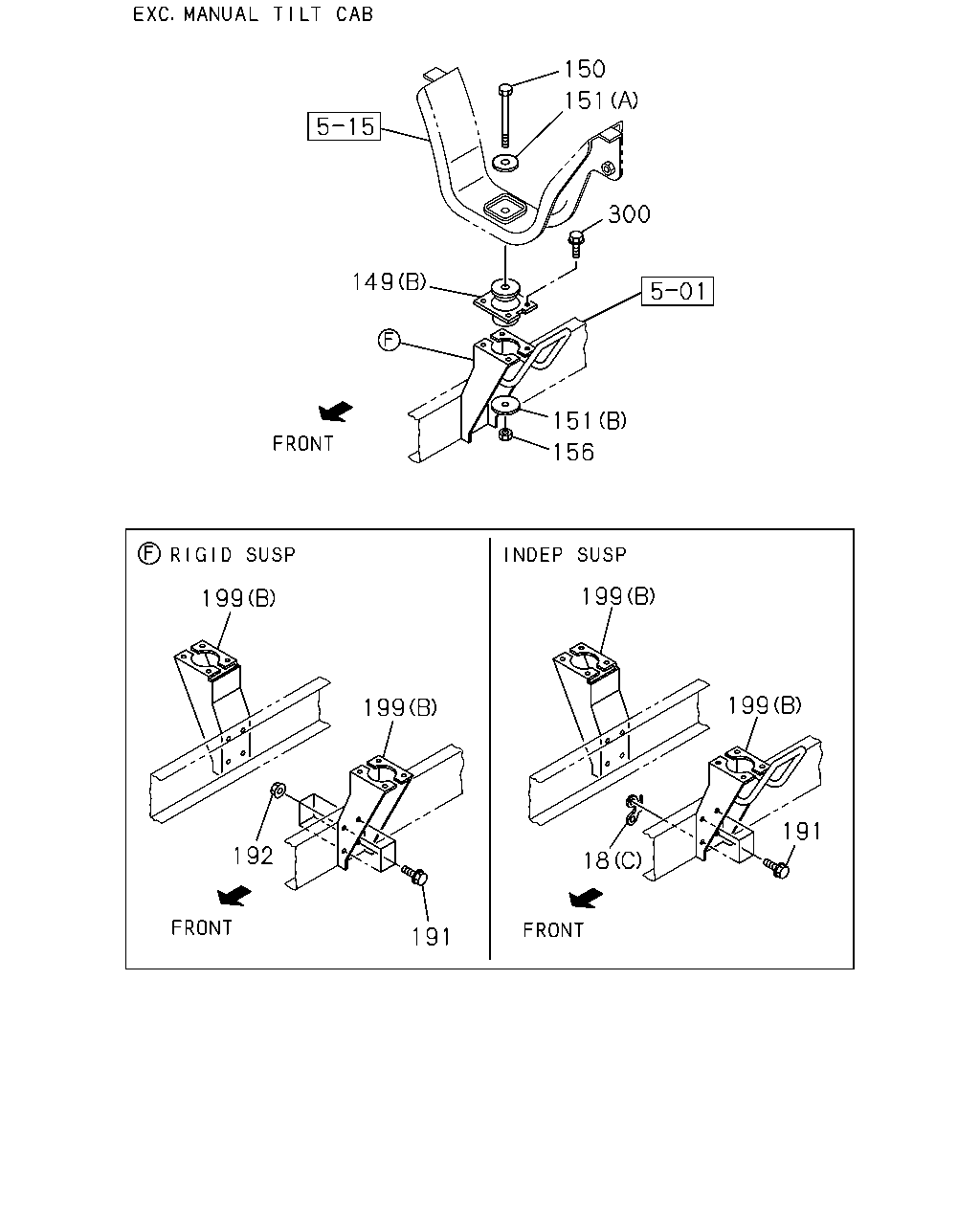

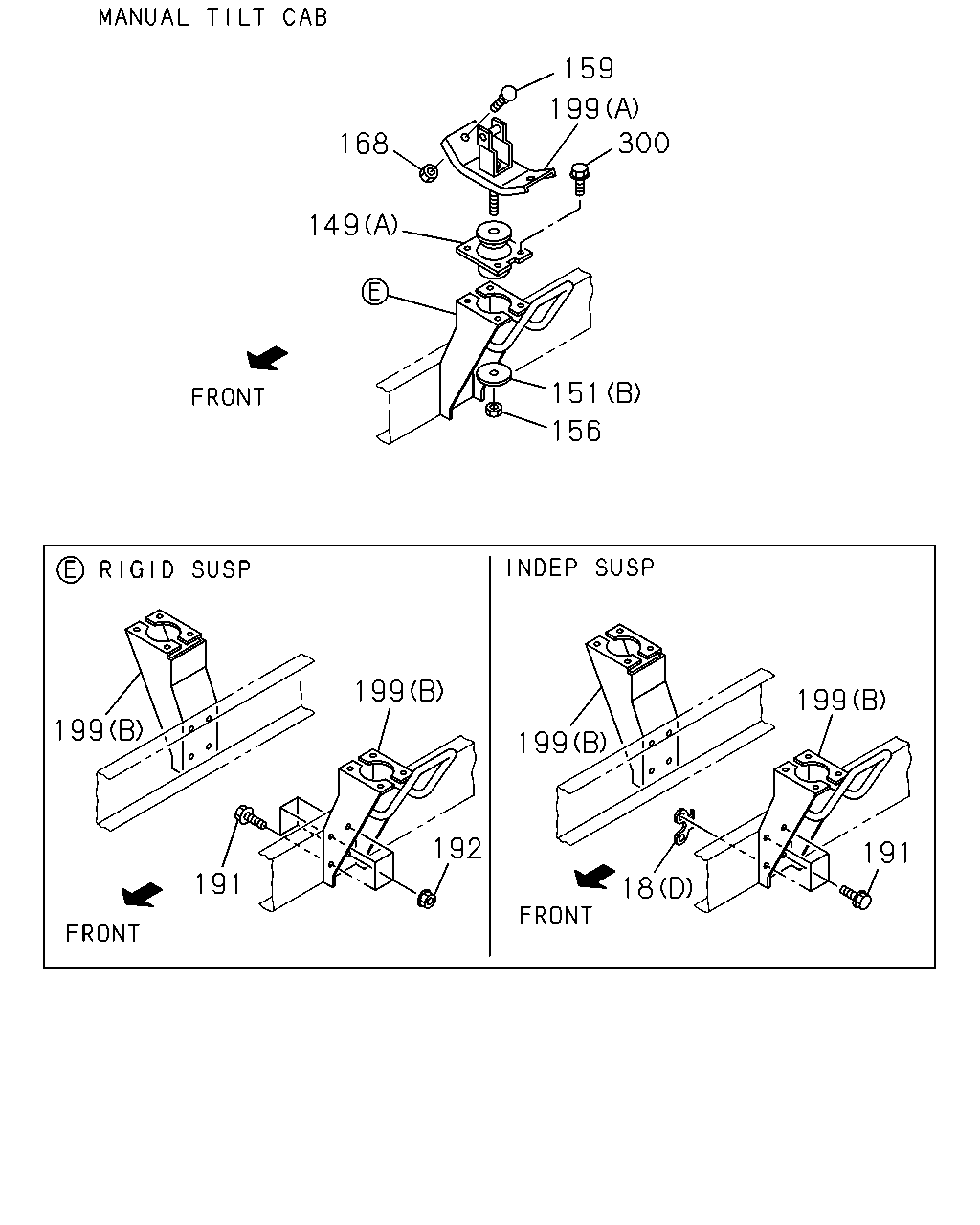

159 199 300 168 149 151 156 199 199 199 199 192 191 191 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	0302-0606	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	02	1	0302-0606		●	●
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97093-741-1	02	1	0302-0606	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	02	1	0302-0606	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-140-2	02	1	0302-0606	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (E)	8-97351-393-0	01	1	0607-	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	01	1	0302-		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	01	1	0302-		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0302-0606		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (F)	8-97388-371-0	01	1	0607-		●	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97216-458-1	02	1	0302-0606	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A)	8-97216-458-1	02	1	0607-	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B)	8-97086-442-4	02	1	0302-0606	●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A)	8-97095-149-3	02	1	0302-0804		●	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A)	8-98021-561-1	02	1	0805-		●	●
151	09.011 WASHER; CAB MTG,RR UPR (B) ID=16.4 OD=62	8-97034-382-0	02	1	0302-0611	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR (B) ID=17 OD=62	8-97359-042-1	02	1	0612-	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (A) ID=16.5 OD=58	8-97034-383-1	02	1	0302-0606	●	●	●
156	07.529 NUT; CAB MTG RR 04.681 M16	9-99111-416-0	02	1	0302-0512	●	●	●
156	07.529 NUT; CAB MTG RR 00.785 M16	0-91111-516-0	02	1	0601-	●	●	●
159	09.023 RUBBER; CUSHION,CAB MTG MANUAL TILT CAB<RWZ>	8-97113-340-0	04	1	0302-	●	●	●
168	09.011 NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> 07.633 M8 FLANGE	0-91150-108-0	04	1	0302-0602	●	●	●
168	09.011 NUT; CUSHION RUBBER,BODY MTG MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE	0-91180-108-0	04	1	0603-	●	●	●
191	09.003 BOLT; BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) 07.632 M12X35 FLANGE	0-28681-235-0	10	1	0302-0512	●
191	09.003 BOLT; BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) M12X35 FLANGE	0-28651-235-0	10	1	0601-0606	●
191	09.003 BOLT; BRKT FIX M12X30 FLANGE	0-28051-230-0	08	1	0607-	●
191	09.003 BOLT; BRKT FIX 07.632 M12X35 FLANGE	0-28681-235-0	08	1	0302-0512		●	●
191	09.003 BOLT; BRKT FIX M12X35 FLANGE	0-28651-235-0	08	1	0601-		●	●
192	09.003 NUT; BRKT FIX 05.586 M12 FLANGE	0-91150-112-0	08	1	0302-0602		●	●
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	08	1	0603-		●	●
199	09.003 BRACKET; CAB RR MTG FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97187-528-1	01	1	0302-0606	●
199	09.003 BRACKET; CAB RR MTG (B)	8-97388-370-1	01	1	0607-	●	●	●
199	09.003 BRACKET; CAB RR MTG FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97187-527-1	01	1	0302-0606	●
199	09.003 BRACKET; CAB RR MTG (B)	8-97388-369-1	01	1	0607-	●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-97035-310-4	02	1	0302-0606	●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-98032-338-0	02	1	0607-	●	●	●
199	09.003 BRACKET; CAB RR MTG (B)	8-97187-526-0	01	1	0302-0606		●	●
199	09.003 BRACKET; CAB RR MTG (B)	8-97187-525-0	01	1	0302-0606		●	●
300	09.003 BOLT; MTG RUBBER 03.611 M10X20 FLANGE	0-28681-020-0	08	1	0302-0512	●	●	●
300	09.003 BOLT; MTG RUBBER 02.343 M10X20 FLANGE	0-28651-020-0	08	1	0601-	●	●	●

150 151 300 149 151 156 199 199 199 199 191 192 18 191

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97034-139-2	02	1	0302-0606	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	02	1	0302-0606		●	●
18	09.003 PLATE; MTG BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97093-741-1	02	1	0302-0606	●
18	09.003 PLATE; MTG BRKT FIX EXC. MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	02	1	0302-0606	●	●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-140-2	02	1	0302-0606	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (E)	8-97351-393-0	01	1	0607-	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (B)	8-97034-139-2	01	1	0302-		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (A)	8-97034-140-2	01	1	0302-		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (C)	8-97076-469-2	01	1	0302-0606		●	●
18	09.003 PLATE; MTG BRKT FIX MANUAL TILT CAB<RWZ> (F)	8-97388-371-0	01	1	0607-		●	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97216-458-1	02	1	0302-0606	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A)	8-97216-458-1	02	1	0607-	●
149	09.023 RUBBER; MTG,CAB,UPR RR EXC. MANUAL TILT CAB<RWZ> (B)	8-97086-442-4	02	1	0302-0606	●	●	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A)	8-97095-149-3	02	1	0302-0804		●	●
149	09.023 RUBBER; MTG,CAB,UPR RR MANUAL TILT CAB<RWZ> (A)	8-98021-561-1	02	1	0805-		●	●
150	09.011 BOLT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ>	0-28881-690-0	02	1	0302-0512	●	●	●
150	09.011 BOLT; CAB MTG RR EXC. MANUAL TILT CAB<RWZ>	0-28851-690-0	02	1	0601-0606	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR (B) ID=16.4 OD=62	8-97034-382-0	02	1	0302-0611	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR (B) ID=17 OD=62	8-97359-042-1	02	1	0612-	●	●	●
151	09.011 WASHER; CAB MTG,RR UPR EXC. MANUAL TILT CAB<RWZ> (A) ID=16.5 OD=58	8-97034-383-1	02	1	0302-0606	●	●	●
156	07.529 NUT; CAB MTG RR 04.681 M16	9-99111-416-0	02	1	0302-0512	●	●	●
156	07.529 NUT; CAB MTG RR 00.785 M16	0-91111-516-0	02	1	0601-	●	●	●
191	09.003 BOLT; BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) 07.632 M12X35 FLANGE	0-28681-235-0	10	1	0302-0512	●
191	09.003 BOLT; BRKT FIX FRT INDEPENDENT SUSPENSION(6PP) M12X35 FLANGE	0-28651-235-0	10	1	0601-0606	●
191	09.003 BOLT; BRKT FIX M12X30 FLANGE	0-28051-230-0	08	1	0607-	●
191	09.003 BOLT; BRKT FIX 07.632 M12X35 FLANGE	0-28681-235-0	08	1	0302-0512		●	●
191	09.003 BOLT; BRKT FIX M12X35 FLANGE	0-28651-235-0	08	1	0601-		●	●
192	09.003 NUT; BRKT FIX 05.586 M12 FLANGE	0-91150-112-0	08	1	0302-0602		●	●
192	09.003 NUT; BRKT FIX 02.042 M12 FLANGE	0-91180-112-0	08	1	0603-		●	●
199	09.003 BRACKET; CAB RR MTG FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97187-528-1	01	1	0302-0606	●
199	09.003 BRACKET; CAB RR MTG (B)	8-97388-370-1	01	1	0607-	●	●	●
199	09.003 BRACKET; CAB RR MTG FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97187-527-1	01	1	0302-0606	●
199	09.003 BRACKET; CAB RR MTG (B)	8-97388-369-1	01	1	0607-	●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-97035-310-4	02	1	0302-0606	●	●	●
199	09.003 BRACKET; CAB RR MTG MANUAL TILT CAB<RWZ> (A)	8-98032-338-0	02	1	0607-	●	●	●
199	09.003 BRACKET; CAB RR MTG (B)	8-97187-526-0	01	1	0302-0606		●	●
199	09.003 BRACKET; CAB RR MTG (B)	8-97187-525-0	01	1	0302-0606		●	●
300	09.003 BOLT; MTG RUBBER 03.611 M10X20 FLANGE	0-28681-020-0	08	1	0302-0512	●	●	●
300	09.003 BOLT; MTG RUBBER 02.343 M10X20 FLANGE	0-28651-020-0	08	1	0601-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
