Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#23145) — 353 parça

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

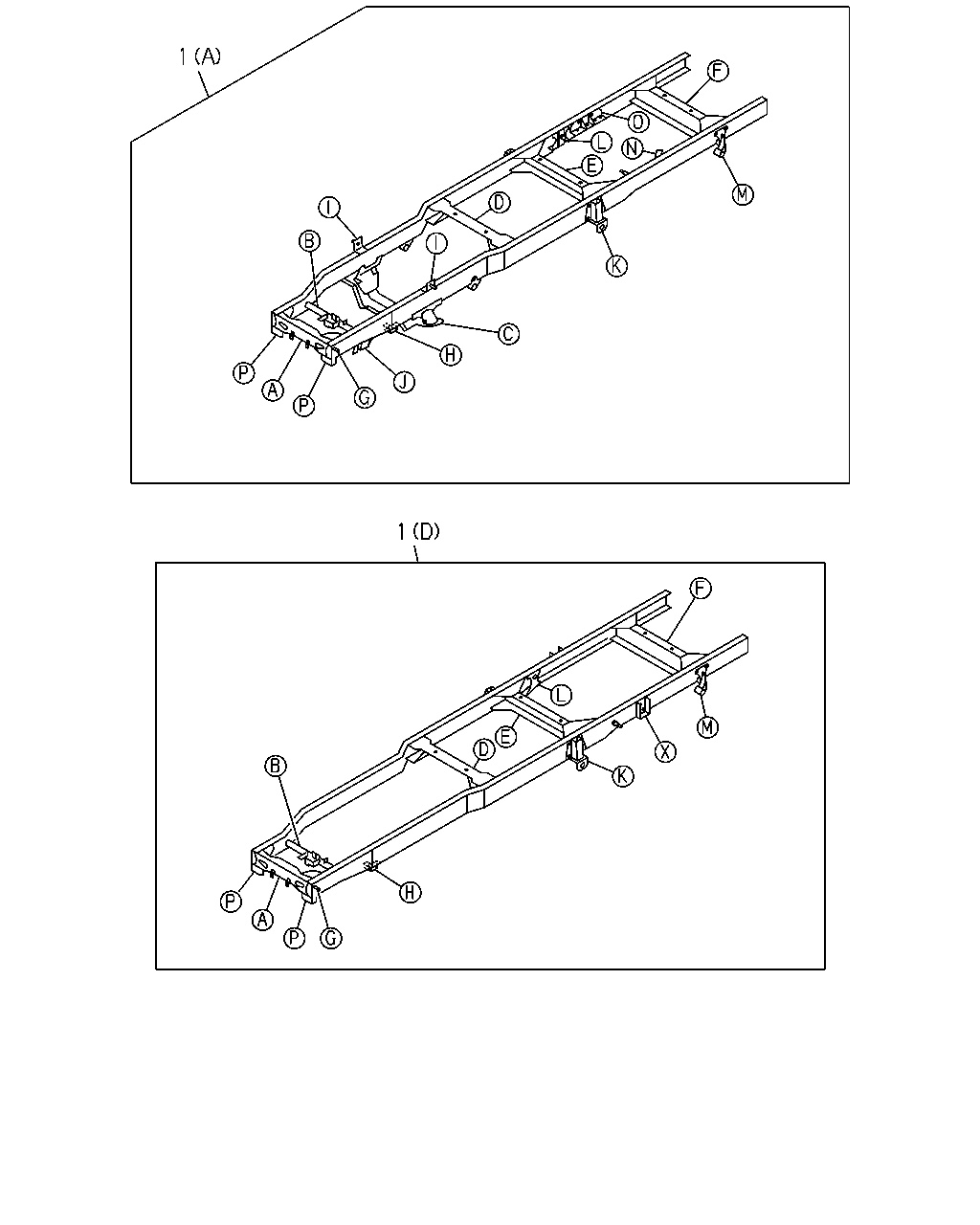

1	07.003 FRAME ASM 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97352-156-2	01	1	0302-0404	●
1	07.003 FRAME ASM 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97352-156-2	01	1	0405-0506	●
1	07.003 FRAME ASM 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97352-156-2	01	1	0507-0606	●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98018-018-2	01	1	0607-	●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98018-017-2	01	1	0607-	●

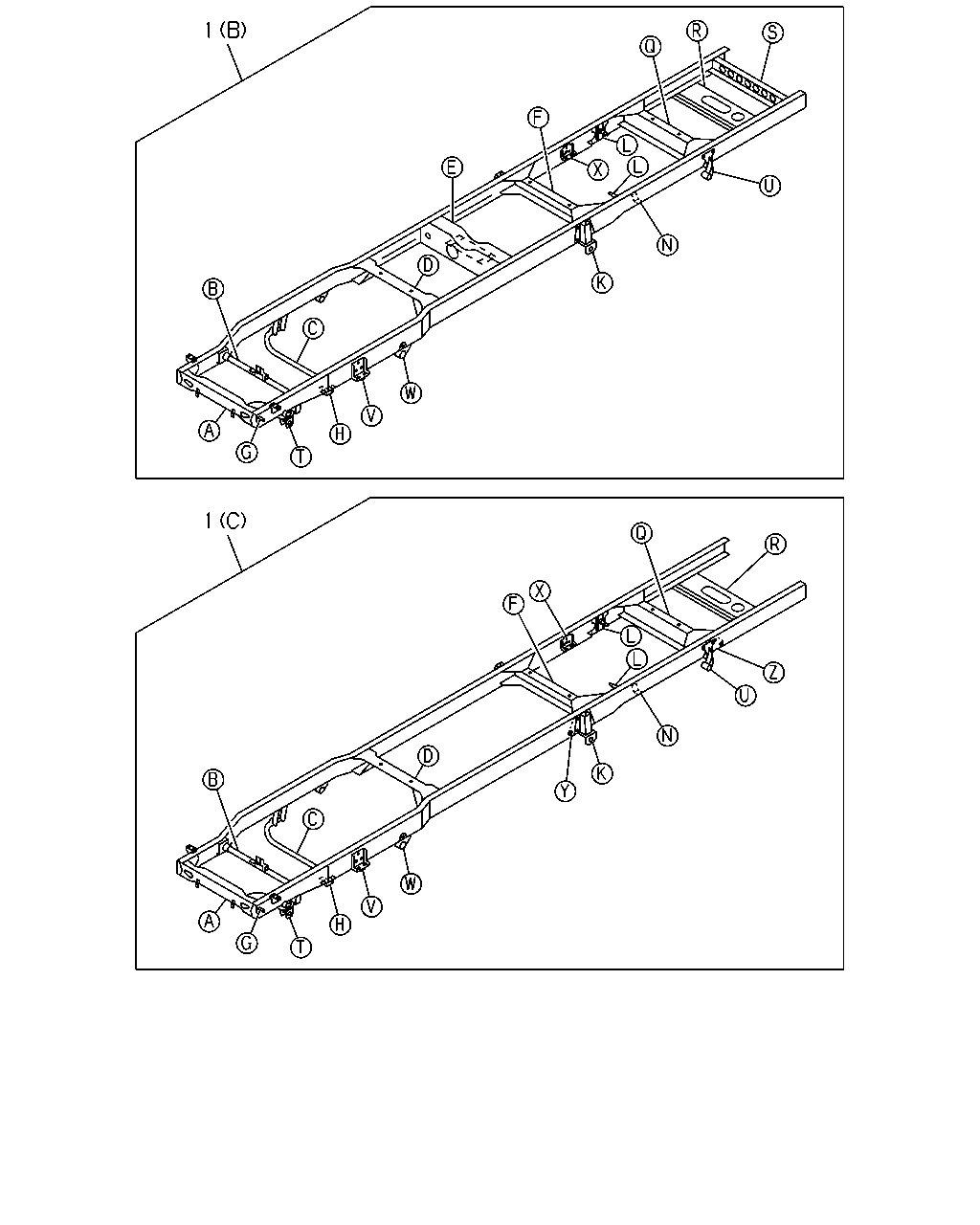

1	07.003 FRAME ASM 4JH1 ENG(RJX) (C)	8-97352-162-3	01	1	0302-0404		●
1	07.003 FRAME ASM 4JH1 ENG(RJX) (C)	8-97352-162-3	01	1	0405-0506		●
1	07.003 FRAME ASM 4JH1-TC ENG(RDM) (C)	8-98002-676-0	01	1	0507-0606		●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98018-020-1	01	1	0607-		●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) REAR WIDE TREAD(V4T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98018-019-1	01	1	0607-		●
1	07.003 FRAME ASM 4JH1 ENG(RJX) (B)	8-97358-809-1	01	1	0302-0404			●
1	07.003 FRAME ASM 4JH1 ENG(RJX) (B)	8-97358-809-1	01	1	0405-0506			●
1	07.003 FRAME ASM 4JH1-TC ENG(RDM) (B)	8-98002-678-0	01	1	0507-0606			●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98018-026-1	01	1	0607-			●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98018-025-1	01	1	0607-			●

105 130 24 215 215 39 217 217 51 173 173

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
24	07.105 BRACKET; FRT SPR,FRT 4JH1 ENG(RJX)	8-97065-788-1	01	1	0302-0404		●	●
24	07.105 BRACKET; FRT SPR,FRT 4JH1 ENG(RJX)	8-97065-788-1	01	1	0405-0506		●	●
24	07.105 BRACKET; FRT SPR,FRT 4JH1-TC ENG(RDM)	8-97065-788-1	01	1	0507-0606		●	●
24	07.105 BRACKET; FRT SPR,FRT 4JJ1 ENG(LFB) REAR WIDE TREAD(V4T)	8-97065-788-1	01	1	0607-		●
24	07.105 BRACKET; FRT SPR,FRT 4JJ1 ENG(LFB)	8-97065-788-1	01	1	0607-			●
24	07.105 BRACKET; FRT SPR,FRT 4JH1 ENG(RJX)	8-94366-816-1	01	1	0302-0404		●	●
24	07.105 BRACKET; FRT SPR,FRT 4JH1 ENG(RJX)	8-94366-816-1	01	1	0405-0506		●	●
24	07.105 BRACKET; FRT SPR,FRT 4JH1-TC ENG(RDM)	8-94366-816-1	01	1	0507-0606		●	●
24	07.105 BRACKET; FRT SPR,FRT 4JJ1 ENG(LFB) REAR WIDE TREAD(V4T)	8-94366-816-1	01	1	0607-		●
24	07.105 BRACKET; FRT SPR,FRT 4JJ1 ENG(LFB)	8-94366-816-1	01	1	0607-			●
39	07.112 BRACKET; FRT SPR,RR 4JH1 ENG(RJX)	8-94258-091-0	02	1	0302-0404		●	●
39	07.112 BRACKET; FRT SPR,RR 4JH1 ENG(RJX)	8-94258-091-0	02	1	0405-0506		●	●
39	07.112 BRACKET; FRT SPR,RR 4JH1-TC ENG(RDM)	8-94258-091-0	02	1	0507-0606		●	●
39	07.112 BRACKET; FRT SPR,RR 4JJ1 ENG(LFB) REAR WIDE TREAD(V4T)	8-94258-091-0	02	1	0607-		●
39	07.112 BRACKET; FRT SPR,RR 4JJ1 ENG(LFB)	8-94258-091-0	02	1	0607-			●
51	07.011 BRACKET; ENG SUPPORT,OUTER 4JH1 ENG(RJX) 00.029	8-94258-086-1	02	1	0302-0404		●	●
51	07.011 BRACKET; ENG SUPPORT,OUTER 4JH1 ENG(RJX) 00.029	8-94258-086-1	02	1	0405-0506		●	●
51	07.011 BRACKET; ENG SUPPORT,OUTER 4JH1-TC ENG(RDM)	8-98003-209-0	02	1	0507-0606		●	●
51	07.011 BRACKET; ENG SUPPORT,OUTER 4JJ1 ENG(LFB) REAR WIDE TREAD(V4T)	8-98003-209-0	02	1	0607-		●
51	07.011 BRACKET; ENG SUPPORT,OUTER 4JJ1 ENG(LFB)	8-98003-209-0	02	1	0607-			●
105	07.112 BRACKET; RR SPR,RR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94126-621-1	01	1	0302-0404	●
105	07.112 BRACKET; RR SPR,RR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94126-621-1	01	1	0405-0506	●
105	07.112 BRACKET; RR SPR,RR 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94126-621-1	01	1	0507-0606	●
105	07.112 BRACKET; RR SPR,RR 4JJ1 ENG(LFB) (B)	8-97164-484-1	01	1	0607-	●
105	07.112 BRACKET; RR SPR,RR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94126-620-1	01	1	0302-0404	●
105	07.112 BRACKET; RR SPR,RR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94126-620-1	01	1	0405-0506	●
105	07.112 BRACKET; RR SPR,RR 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94126-620-1	01	1	0507-0606	●
105	07.112 BRACKET; RR SPR,RR 4JJ1 ENG(LFB) (B)	8-97164-481-1	01	1	0607-	●
105	07.112 BRACKET; RR SPR,RR 4JH1 ENG(RJX) (A)	8-94459-512-1	01	1	0302-0404		●	●
105	07.112 BRACKET; RR SPR,RR 4JH1 ENG(RJX) (A)	8-94459-512-1	01	1	0405-0506		●	●
105	07.112 BRACKET; RR SPR,RR 4JH1-TC ENG(RDM) (A)	8-94459-512-1	01	1	0507-0606		●	●
105	07.112 BRACKET; RR SPR,RR 4JJ1 ENG(LFB) REAR WIDE TREAD(V4T) (A)	8-94459-512-1	01	1	0607-		●
105	07.112 BRACKET; RR SPR,RR 4JJ1 ENG(LFB) (A)	8-94459-512-1	01	1	0607-			●
105	07.112 BRACKET; RR SPR,RR 4JH1 ENG(RJX) (A)	8-94459-511-1	01	1	0302-0404		●	●
105	07.112 BRACKET; RR SPR,RR 4JH1 ENG(RJX) (A)	8-94459-511-1	01	1	0405-0506		●	●
105	07.112 BRACKET; RR SPR,RR 4JH1-TC ENG(RDM) (A)	8-94459-511-1	01	1	0507-0606		●	●
105	07.112 BRACKET; RR SPR,RR 4JJ1 ENG(LFB) REAR WIDE TREAD(V4T) (A)	8-94459-511-1	01	1	0607-		●
105	07.112 BRACKET; RR SPR,RR 4JJ1 ENG(LFB) (A)	8-94459-511-1	01	1	0607-			●
130	07.014 MEMBER; CROSS,END 4JH1 ENG(RJX)	8-94257-620-2	01	1	0302-0404			●
130	07.014 MEMBER; CROSS,END 4JH1 ENG(RJX)	8-94257-620-2	01	1	0405-0506			●
130	07.014 MEMBER; CROSS,END 4JH1-TC ENG(RDM)	8-94257-620-2	01	1	0507-0606			●
130	07.014 MEMBER; CROSS,END 4JJ1 ENG(LFB)	8-94257-620-2	01	1	0607-			●
173	07.112 STIFFENER; RR SPRING 4JH1 ENG(RJX) (A)	8-94372-324-1	02	1	0302-0307		●
173	07.112 STIFFENER; RR SPRING 4JH1 ENG(RJX) (B)	8-97213-460-4	02	1	0302-0404		●
173	07.112 STIFFENER; RR SPRING 4JH1 ENG(RJX) (B)	8-97213-460-4	02	1	0405-0506		●
173	07.112 STIFFENER; RR SPRING 4JH1-TC ENG(RDM) (B)	8-97213-460-4	02	1	0507-0606		●
173	07.112 STIFFENER; RR SPRING 4JJ1 ENG(LFB) REAR WIDE TREAD(V4T) (B)	8-97213-460-4	02	1	0607-		●
215	07.524 BUSHING; BRKT,RR SPRING 4JH1 ENG(RJX)	8-97184-699-1	04	1	0302-0404		●	●
215	07.524 BUSHING; BRKT,RR SPRING 4JH1 ENG(RJX)	8-97184-699-1	04	1	0405-0506		●	●
215	07.524 BUSHING; BRKT,RR SPRING 4JH1-TC ENG(RDM)	8-97184-699-1	04	1	0507-0606		●	●
215	07.524 BUSHING; BRKT,RR SPRING 4JJ1 ENG(LFB) REAR WIDE TREAD(V4T)	8-97184-699-1	04	1	0607-		●
215	07.524 BUSHING; BRKT,RR SPRING 4JJ1 ENG(LFB)	8-97184-699-1	04	1	0607-			●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING 4JJ1 ENG(LFB) (B)	8-97163-899-1	02	1	0607-	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING 4JH1 ENG(RJX) (A)	8-94258-963-0	02	1	0302-0404		●	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING 4JH1 ENG(RJX) (A)	8-94258-963-0	02	1	0405-0506		●	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING 4JH1-TC ENG(RDM) (A)	8-94258-963-0	02	1	0507-0606		●	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING 4JJ1 ENG(LFB) REAR WIDE TREAD(V4T) (A)	8-94258-963-0	02	1	0607-		●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING 4JJ1 ENG(LFB) (A)	8-94258-963-0	02	1	0607-			●

74 344 74 74 344 74 75 345 75 188 75 75 75 75 345 198 198 345 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
74	07.039 GUSSET; 4TH C/MBR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94258-075-3	02	1	0302-0404	●
74	07.039 GUSSET; 4TH C/MBR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94258-075-3	02	1	0405-0506	●
74	07.039 GUSSET; 4TH C/MBR 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94258-075-3	02	1	0507-0606	●
74	07.039 GUSSET; 4TH C/MBR 4JH1 ENG(RJX) (A) RH-UPPER, LH-LOWER	8-97101-837-1	02	1	0302-0404			●
74	07.039 GUSSET; 4TH C/MBR 4JH1 ENG(RJX) (A) RH-UPPER, LH-LOWER	8-97101-837-1	02	1	0405-0506			●
74	07.039 GUSSET; 4TH C/MBR 4JH1-TC ENG(RDM) (A) RH-UPPER, LH-LOWER	8-97101-837-1	02	1	0507-0606			●
74	07.039 GUSSET; 4TH C/MBR 4JJ1 ENG(LFB) (A) RH-UPPER, LH-LOWER	8-97101-837-1	02	1	0607-			●
74	07.039 GUSSET; 4TH C/MBR 4JH1 ENG(RJX) (A) RH-LOWER, LH-UPPER	8-97101-838-1	02	1	0302-0404			●
74	07.039 GUSSET; 4TH C/MBR 4JH1 ENG(RJX) (A) RH-LOWER, LH-UPPER	8-97101-838-1	02	1	0405-0506			●
74	07.039 GUSSET; 4TH C/MBR 4JH1-TC ENG(RDM) (A) RH-LOWER, LH-UPPER	8-97101-838-1	02	1	0507-0606			●
74	07.039 GUSSET; 4TH C/MBR 4JJ1 ENG(LFB) (A) RH-LOWER, LH-UPPER	8-97101-838-1	02	1	0607-			●
75	07.039 GUSSET; 5TH C/MBR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94258-081-1	02	1	0302-0404	●
75	07.039 GUSSET; 5TH C/MBR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94258-081-1	02	1	0405-0506	●
75	07.039 GUSSET; 5TH C/MBR 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94258-081-1	02	1	0507-0606	●
75	07.039 GUSSET; 5TH C/MBR 4JJ1 ENG(LFB) (C)	8-97163-093-2	01	1	0607-	●
75	07.039 GUSSET; 5TH C/MBR 4JJ1 ENG(LFB) (C)	8-97165-913-3	01	1	0607-	●
75	07.039 GUSSET; 5TH C/MBR 4JH1 ENG(RJX) (A) RH-UPPER, LH-LOWER	8-97062-499-0	02	1	0302-0404		●	●
75	07.039 GUSSET; 5TH C/MBR 4JH1 ENG(RJX) (A) RH-UPPER, LH-LOWER	8-97062-499-0	02	1	0405-0506		●	●
75	07.039 GUSSET; 5TH C/MBR 4JH1-TC ENG(RDM) (A) RH-UPPER, LH-LOWER	8-97062-499-0	02	1	0507-0606		●	●
75	07.039 GUSSET; 5TH C/MBR 4JJ1 ENG(LFB) REAR WIDE TREAD(V4T) (A) RH-UPPER, LH-LOWER	8-97062-499-0	02	1	0607-		●
75	07.039 GUSSET; 5TH C/MBR 4JJ1 ENG(LFB) (A) RH-UPPER, LH-LOWER	8-97062-499-0	02	1	0607-			●
75	07.039 GUSSET; 5TH C/MBR 4JH1 ENG(RJX) (A) RH-LOWER, LH-UPPER	8-97062-500-0	02	1	0302-0404		●	●
75	07.039 GUSSET; 5TH C/MBR 4JH1 ENG(RJX) (A) RH-LOWER, LH-UPPER	8-97062-500-0	02	1	0405-0506		●	●
75	07.039 GUSSET; 5TH C/MBR 4JH1-TC ENG(RDM) (A) RH-LOWER, LH-UPPER	8-97062-500-0	02	1	0507-0606		●	●
75	07.039 GUSSET; 5TH C/MBR 4JJ1 ENG(LFB) REAR WIDE TREAD(V4T) (A) RH-LOWER, LH-UPPER	8-97062-500-0	02	1	0607-		●
75	07.039 GUSSET; 5TH C/MBR 4JJ1 ENG(LFB) (A) RH-LOWER, LH-UPPER	8-97062-500-0	02	1	0607-			●
139	07.012 MEMBER; CROSS,6TH 4JJ1 ENG(LFB) (B)	8-97163-092-1	01	1	0607-	●
139	07.012 MEMBER; CROSS,6TH 4JH1 ENG(RJX) (A)	8-97062-498-1	01	1	0302-0404		●	●
139	07.012 MEMBER; CROSS,6TH 4JH1 ENG(RJX) (A)	8-97062-498-1	01	1	0405-0506		●	●
139	07.012 MEMBER; CROSS,6TH 4JH1-TC ENG(RDM) (A)	8-97062-498-1	01	1	0507-0606		●	●
139	07.012 MEMBER; CROSS,6TH 4JJ1 ENG(LFB) REAR WIDE TREAD(V4T) (A)	8-97062-498-1	01	1	0607-		●
139	07.012 MEMBER; CROSS,6TH 4JJ1 ENG(LFB) (A)	8-97062-498-1	01	1	0607-			●
188	07.039 BRACKET; SUPPORT,CTR BRG 4JH1 ENG(RJX)	8-97078-869-1	01	1	0302-0404			●
188	07.039 BRACKET; SUPPORT,CTR BRG 4JH1 ENG(RJX)	8-97078-869-1	01	1	0405-0506			●
188	07.039 BRACKET; SUPPORT,CTR BRG 4JH1-TC ENG(RDM)	8-97078-869-1	01	1	0507-0606			●
188	07.039 BRACKET; SUPPORT,CTR BRG 4JJ1 ENG(LFB)	8-97078-869-1	01	1	0607-			●
198	07.039 GUSSET; 6TH C/MBR 4JJ1 ENG(LFB) (B)	8-94258-081-1	02	1	0607-	●
198	07.039 GUSSET; 6TH C/MBR 4JH1 ENG(RJX) (A) RH-LOWER, LH-UPPER	8-97062-499-0	02	1	0302-0404		●	●
198	07.039 GUSSET; 6TH C/MBR 4JH1 ENG(RJX) (A) RH-LOWER, LH-UPPER	8-97062-499-0	02	1	0405-0506		●	●
198	07.039 GUSSET; 6TH C/MBR 4JH1-TC ENG(RDM) (A) RH-LOWER, LH-UPPER	8-97062-499-0	02	1	0507-0606		●	●
198	07.039 GUSSET; 6TH C/MBR 4JJ1 ENG(LFB) REAR WIDE TREAD(V4T) (A) RH-LOWER, LH-UPPER	8-97062-499-0	02	1	0607-		●
198	07.039 GUSSET; 6TH C/MBR 4JJ1 ENG(LFB) (A) RH-LOWER, LH-UPPER	8-97062-499-0	02	1	0607-			●
198	07.039 GUSSET; 6TH C/MBR 4JH1 ENG(RJX) (A) RH-UPPER, LH-LOWER	8-97062-500-0	02	1	0302-0404		●	●
198	07.039 GUSSET; 6TH C/MBR 4JH1 ENG(RJX) (A) RH-UPPER, LH-LOWER	8-97062-500-0	02	1	0405-0506		●	●
198	07.039 GUSSET; 6TH C/MBR 4JH1-TC ENG(RDM) (A) RH-UPPER, LH-LOWER	8-97062-500-0	02	1	0507-0606		●	●
198	07.039 GUSSET; 6TH C/MBR 4JJ1 ENG(LFB) REAR WIDE TREAD(V4T) (A) RH-UPPER, LH-LOWER	8-97062-500-0	02	1	0607-		●
198	07.039 GUSSET; 6TH C/MBR 4JJ1 ENG(LFB) (A) RH-UPPER, LH-LOWER	8-97062-500-0	02	1	0607-			●
344	07.012 MEMBER; CROSS,4TH 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97081-061-2	01	1	0302-0404	●
344	07.012 MEMBER; CROSS,4TH 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97081-061-2	01	1	0405-0506	●
344	07.012 MEMBER; CROSS,4TH 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97081-061-2	01	1	0507-0606	●
344	07.012 MEMBER; CROSS,4TH 4JH1 ENG(RJX) (A)	8-97078-707-3	01	1	0302-0404			●
344	07.012 MEMBER; CROSS,4TH 4JH1 ENG(RJX) (A)	8-97078-707-3	01	1	0405-0506			●
344	07.012 MEMBER; CROSS,4TH 4JH1-TC ENG(RDM) (A)	8-97078-707-3	01	1	0507-0606			●
344	07.012 MEMBER; CROSS,4TH 4JJ1 ENG(LFB) (A)	8-97078-707-3	01	1	0607-			●
345	07.012 MEMBER; CROSS,5TH 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97045-542-2	01	1	0302-0404	●
345	07.012 MEMBER; CROSS,5TH 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97045-542-2	01	1	0405-0506	●
345	07.012 MEMBER; CROSS,5TH 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97045-542-2	01	1	0507-0606	●
345	07.012 MEMBER; CROSS,5TH 4JJ1 ENG(LFB) (C)	8-97163-091-3	01	1	0607-	●
345	07.012 MEMBER; CROSS,5TH 4JH1 ENG(RJX) (A)	8-97062-497-3	01	1	0302-0404		●	●
345	07.012 MEMBER; CROSS,5TH 4JH1 ENG(RJX) (A)	8-97062-497-3	01	1	0405-0506		●	●
345	07.012 MEMBER; CROSS,5TH 4JH1-TC ENG(RDM) (A)	8-97062-497-3	01	1	0507-0606		●	●
345	07.012 MEMBER; CROSS,5TH 4JJ1 ENG(LFB) REAR WIDE TREAD(V4T) (A)	8-97062-497-3	01	1	0607-		●
345	07.012 MEMBER; CROSS,5TH 4JJ1 ENG(LFB) (A)	8-97062-497-3	01	1	0607-			●

366 358 358 63 63 63 101 101 101 256 140 140 140 140 328 105 226 142 198 198 137 368 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C

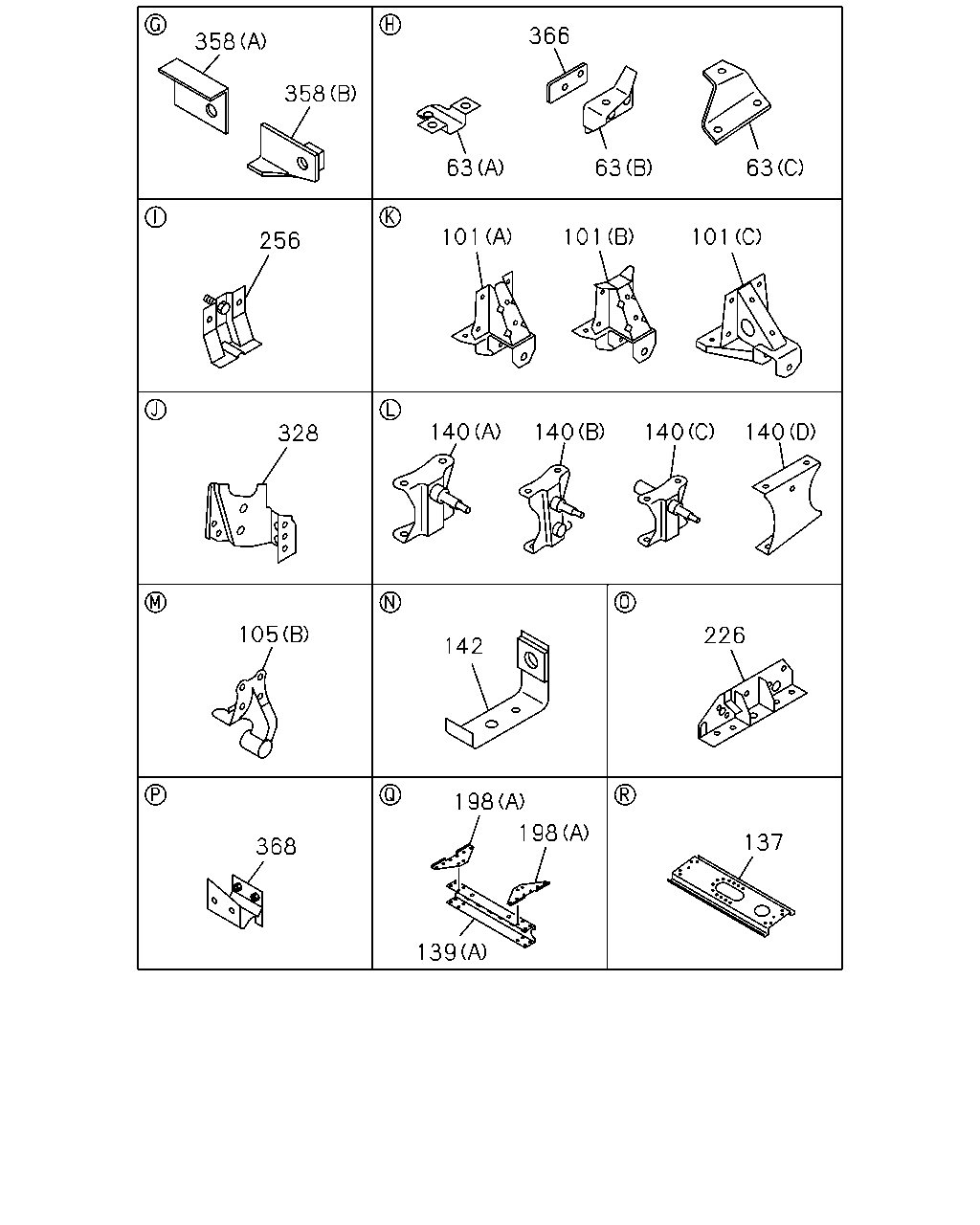

63	01.270 BRACKET; RAD MTG 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97072-648-1	01	1	0302-0404	●
63	01.270 BRACKET; RAD MTG 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97072-648-1	01	1	0405-0506	●
63	01.270 BRACKET; RAD MTG 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97072-648-1	01	1	0507-0606	●
63	01.270 BRACKET; RAD MTG 4JJ1 ENG(LFB) (B)	8-97256-839-1	01	1	0607-	●
63	01.270 BRACKET; RAD MTG 4JH1 ENG(RJX) (A)	8-94257-950-1	01	1	0302-0404		●	●
63	01.270 BRACKET; RAD MTG 4JH1 ENG(RJX) (A)	8-94257-950-1	01	1	0405-0506		●	●
63	01.270 BRACKET; RAD MTG 4JH1-TC ENG(RDM) (A)	8-94257-950-1	01	1	0507-0606		●	●
63	01.270 BRACKET; RAD MTG 4JJ1 ENG(LFB) REAR WIDE TREAD(V4T) (C)	8-98035-104-1	01	1	0607-		●
63	01.270 BRACKET; RAD MTG 4JJ1 ENG(LFB) (C)	8-98035-104-1	01	1	0607-			●
101	07.112 BRACKET; RR SPR,FRT 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94258-093-1	02	1	0302-0404	●
101	07.112 BRACKET; RR SPR,FRT 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94258-093-1	02	1	0405-0506	●
101	07.112 BRACKET; RR SPR,FRT 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94258-093-1	02	1	0507-0606	●
101	07.112 BRACKET; RR SPR,FRT 4JJ1 ENG(LFB) (C)	8-97164-483-0	02	1	0607-	●
101	07.112 BRACKET; RR SPR,FRT 4JH1 ENG(RJX) (A)	8-97034-156-1	02	1	0302-0404		●	●
101	07.112 BRACKET; RR SPR,FRT 4JH1 ENG(RJX) (A)	8-97034-156-1	02	1	0405-0506		●	●
101	07.112 BRACKET; RR SPR,FRT 4JH1-TC ENG(RDM) (A)	8-97034-156-1	02	1	0507-0606		●	●
101	07.112 BRACKET; RR SPR,FRT 4JJ1 ENG(LFB) REAR WIDE TREAD(V4T) (A)	8-97034-156-1	02	1	0607-		●
101	07.112 BRACKET; RR SPR,FRT 4JJ1 ENG(LFB) (A)	8-97034-156-1	02	1	0607-			●
105	07.112 BRACKET; RR SPR,RR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94126-621-1	01	1	0302-0404	●
105	07.112 BRACKET; RR SPR,RR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94126-621-1	01	1	0405-0506	●
105	07.112 BRACKET; RR SPR,RR 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94126-621-1	01	1	0507-0606	●
105	07.112 BRACKET; RR SPR,RR 4JJ1 ENG(LFB) (B)	8-97164-484-1	01	1	0607-	●
105	07.112 BRACKET; RR SPR,RR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94126-620-1	01	1	0302-0404	●
105	07.112 BRACKET; RR SPR,RR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94126-620-1	01	1	0405-0506	●
105	07.112 BRACKET; RR SPR,RR 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94126-620-1	01	1	0507-0606	●
105	07.112 BRACKET; RR SPR,RR 4JJ1 ENG(LFB) (B)	8-97164-481-1	01	1	0607-	●
105	07.112 BRACKET; RR SPR,RR 4JH1 ENG(RJX) (A)	8-94459-512-1	01	1	0302-0404		●	●
105	07.112 BRACKET; RR SPR,RR 4JH1 ENG(RJX) (A)	8-94459-512-1	01	1	0405-0506		●	●
105	07.112 BRACKET; RR SPR,RR 4JH1-TC ENG(RDM) (A)	8-94459-512-1	01	1	0507-0606		●	●
105	07.112 BRACKET; RR SPR,RR 4JJ1 ENG(LFB) REAR WIDE TREAD(V4T) (A)	8-94459-512-1	01	1	0607-		●
105	07.112 BRACKET; RR SPR,RR 4JJ1 ENG(LFB) (A)	8-94459-512-1	01	1	0607-			●
105	07.112 BRACKET; RR SPR,RR 4JH1 ENG(RJX) (A)	8-94459-511-1	01	1	0302-0404		●	●
105	07.112 BRACKET; RR SPR,RR 4JH1 ENG(RJX) (A)	8-94459-511-1	01	1	0405-0506		●	●
105	07.112 BRACKET; RR SPR,RR 4JH1-TC ENG(RDM) (A)	8-94459-511-1	01	1	0507-0606		●	●
105	07.112 BRACKET; RR SPR,RR 4JJ1 ENG(LFB) REAR WIDE TREAD(V4T) (A)	8-94459-511-1	01	1	0607-		●
105	07.112 BRACKET; RR SPR,RR 4JJ1 ENG(LFB) (A)	8-94459-511-1	01	1	0607-			●
137	07.629 BRACKET; SPARE TIRE 4JH1 ENG(RJX)	8-97224-383-1	01	1	0302-0404		●
137	07.629 BRACKET; SPARE TIRE 4JH1 ENG(RJX)	8-97224-383-1	01	1	0405-0506		●
137	07.629 BRACKET; SPARE TIRE 4JH1-TC ENG(RDM)	8-97224-383-1	01	1	0507-0606		●
137	07.629 BRACKET; SPARE TIRE 4JJ1 ENG(LFB) REAR WIDE TREAD(V4T)	8-97224-383-1	01	1	0607-		●
137	07.629 BRACKET; SPARE TIRE 4JH1 ENG(RJX)	8-97076-885-1	01	1	0302-0404			●
137	07.629 BRACKET; SPARE TIRE 4JH1 ENG(RJX)	8-97076-885-1	01	1	0405-0506			●
137	07.629 BRACKET; SPARE TIRE 4JH1-TC ENG(RDM)	8-97076-885-1	01	1	0507-0606			●
137	07.629 BRACKET; SPARE TIRE 4JJ1 ENG(LFB)	8-97076-885-1	01	1	0607-			●
139	07.012 MEMBER; CROSS,6TH 4JJ1 ENG(LFB) (B)	8-97163-092-1	01	1	0607-	●
139	07.012 MEMBER; CROSS,6TH 4JH1 ENG(RJX) (A)	8-97062-498-1	01	1	0302-0404		●	●
139	07.012 MEMBER; CROSS,6TH 4JH1 ENG(RJX) (A)	8-97062-498-1	01	1	0405-0506		●	●
139	07.012 MEMBER; CROSS,6TH 4JH1-TC ENG(RDM) (A)	8-97062-498-1	01	1	0507-0606		●	●
139	07.012 MEMBER; CROSS,6TH 4JJ1 ENG(LFB) REAR WIDE TREAD(V4T) (A)	8-97062-498-1	01	1	0607-		●
139	07.012 MEMBER; CROSS,6TH 4JJ1 ENG(LFB) (A)	8-97062-498-1	01	1	0607-			●
140	07.112 BRACKET; S/ABS,RR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-94258-104-1	01	1	0302-0404	●
140	07.112 BRACKET; S/ABS,RR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-94258-104-1	01	1	0405-0506	●
140	07.112 BRACKET; S/ABS,RR 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-94258-104-1	01	1	0507-0606	●
140	07.112 BRACKET; S/ABS,RR 4JJ1 ENG(LFB) (D)	8-97163-957-0	01	1	0607-	●
140	07.112 BRACKET; S/ABS,RR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-94258-103-1	01	1	0302-0404	●
140	07.112 BRACKET; S/ABS,RR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-94258-103-1	01	1	0405-0506	●
140	07.112 BRACKET; S/ABS,RR 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-94258-103-1	01	1	0507-0606	●
140	07.112 BRACKET; S/ABS,RR 4JJ1 ENG(LFB) (D)	8-97163-956-0	01	1	0607-	●
140	07.112 BRACKET; S/ABS,RR 4JH1 ENG(RJX) (B)	8-97012-285-0	01	1	0302-0404		●	●
140	07.112 BRACKET; S/ABS,RR 4JH1 ENG(RJX) (B)	8-97012-285-0	01	1	0405-0506		●	●
140	07.112 BRACKET; S/ABS,RR 4JH1-TC ENG(RDM) (B)	8-97012-285-0	01	1	0507-0606		●	●
140	07.112 BRACKET; S/ABS,RR 4JJ1 ENG(LFB) REAR WIDE TREAD(V4T) (B)	8-97012-285-0	01	1	0607-		●
140	07.112 BRACKET; S/ABS,RR 4JJ1 ENG(LFB) (B)	8-97012-285-0	01	1	0607-			●
140	07.112 BRACKET; S/ABS,RR 4JH1 ENG(RJX) 07.395 (C)	8-94101-303-0	01	1	0302-0404		●	●
140	07.112 BRACKET; S/ABS,RR 4JH1 ENG(RJX) 07.395 (C)	8-94101-303-0	01	1	0405-0506		●	●
140	07.112 BRACKET; S/ABS,RR 4JH1-TC ENG(RDM) 07.395 (C)	8-94101-303-0	01	1	0507-0606		●	●
140	07.112 BRACKET; S/ABS,RR 4JJ1 ENG(LFB) REAR WIDE TREAD(V4T) 07.395 (C)	8-94101-303-0	01	1	0607-		●
140	07.112 BRACKET; S/ABS,RR 4JJ1 ENG(LFB) 07.395 (C)	8-94101-303-0	01	1	0607-			●
142	04.845 BRACKET; FLEX HOSE,BRAKE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97264-169-0	01	1	0302-0404	●
142	04.845 BRACKET; FLEX HOSE,BRAKE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97264-169-0	01	1	0405-0506	●
142	04.845 BRACKET; FLEX HOSE,BRAKE 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP)	8-97264-169-0	01	1	0507-0606	●
142	04.845 BRACKET; FLEX HOSE,BRAKE 4JH1 ENG(RJX)	8-97035-308-0	01	1	0302-0404		●	●
142	04.845 BRACKET; FLEX HOSE,BRAKE 4JH1 ENG(RJX)	8-97035-308-0	01	1	0405-0506		●	●
142	04.845 BRACKET; FLEX HOSE,BRAKE 4JH1-TC ENG(RDM)	8-97035-308-0	01	1	0507-0606		●	●
142	04.845 BRACKET; FLEX HOSE,BRAKE 4JJ1 ENG(LFB) REAR WIDE TREAD(V4T)	8-97035-308-0	01	1	0607-		●
142	04.845 BRACKET; FLEX HOSE,BRAKE 4JJ1 ENG(LFB)	8-97035-308-0	01	1	0607-			●
198	07.039 GUSSET; 6TH C/MBR 4JJ1 ENG(LFB) (B)	8-94258-081-1	02	1	0607-	●
198	07.039 GUSSET; 6TH C/MBR 4JH1 ENG(RJX) (A) RH-LOWER, LH-UPPER	8-97062-499-0	02	1	0302-0404		●	●
198	07.039 GUSSET; 6TH C/MBR 4JH1 ENG(RJX) (A) RH-LOWER, LH-UPPER	8-97062-499-0	02	1	0405-0506		●	●
198	07.039 GUSSET; 6TH C/MBR 4JH1-TC ENG(RDM) (A) RH-LOWER, LH-UPPER	8-97062-499-0	02	1	0507-0606		●	●
198	07.039 GUSSET; 6TH C/MBR 4JJ1 ENG(LFB) REAR WIDE TREAD(V4T) (A) RH-LOWER, LH-UPPER	8-97062-499-0	02	1	0607-		●
198	07.039 GUSSET; 6TH C/MBR 4JJ1 ENG(LFB) (A) RH-LOWER, LH-UPPER	8-97062-499-0	02	1	0607-			●
198	07.039 GUSSET; 6TH C/MBR 4JH1 ENG(RJX) (A) RH-UPPER, LH-LOWER	8-97062-500-0	02	1	0302-0404		●	●
198	07.039 GUSSET; 6TH C/MBR 4JH1 ENG(RJX) (A) RH-UPPER, LH-LOWER	8-97062-500-0	02	1	0405-0506		●	●
198	07.039 GUSSET; 6TH C/MBR 4JH1-TC ENG(RDM) (A) RH-UPPER, LH-LOWER	8-97062-500-0	02	1	0507-0606		●	●
198	07.039 GUSSET; 6TH C/MBR 4JJ1 ENG(LFB) REAR WIDE TREAD(V4T) (A) RH-UPPER, LH-LOWER	8-97062-500-0	02	1	0607-		●
198	07.039 GUSSET; 6TH C/MBR 4JJ1 ENG(LFB) (A) RH-UPPER, LH-LOWER	8-97062-500-0	02	1	0607-			●
226	07.112 STIFFENER; HELPER RUBBER 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-94169-791-2	01	1	0302-0404	●
226	07.112 STIFFENER; HELPER RUBBER 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-94169-791-2	01	1	0405-0506	●
226	07.112 STIFFENER; HELPER RUBBER 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP)	8-94169-791-2	01	1	0507-0606	●
226	07.112 STIFFENER; HELPER RUBBER 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-94111-942-2	01	1	0302-0404	●
226	07.112 STIFFENER; HELPER RUBBER 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-94111-942-2	01	1	0405-0506	●
226	07.112 STIFFENER; HELPER RUBBER 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP)	8-94111-942-2	01	1	0507-0606	●
256	07.395 BRACKET; S/ABS 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97210-489-0	02	1	0302-0404	●
256	07.395 BRACKET; S/ABS 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97210-489-0	02	1	0405-0506	●
256	07.395 BRACKET; S/ABS 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP)	8-97210-489-0	02	1	0507-0606	●
328	07.039 BRACKET; RELAY LEVER 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97047-944-2	01	1	0302-0404	●
328	07.039 BRACKET; RELAY LEVER 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97047-944-2	01	1	0405-0506	●
328	07.039 BRACKET; RELAY LEVER 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP)	8-97047-944-2	01	1	0507-0606	●
328	07.039 BRACKET; RELAY LEVER 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97039-650-3	01	1	0302-0404	●
328	07.039 BRACKET; RELAY LEVER 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97039-650-3	01	1	0405-0506	●
328	07.039 BRACKET; RELAY LEVER 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP)	8-97039-650-3	01	1	0507-0606	●
358	07.039 BRACKET; CAB EARTH 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97065-790-3	01	1	0302-0310	●
358	07.039 BRACKET; CAB EARTH 4JH1 ENG(RJX) (A)	8-97065-790-3	01	1	0302-0310		●	●
358	07.039 BRACKET; CAB EARTH 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97210-488-0	01	1	0311-0404	●
358	07.039 BRACKET; CAB EARTH 4JH1 ENG(RJX) (A)	8-97210-488-0	01	1	0311-0404		●	●
358	07.039 BRACKET; CAB EARTH 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97210-488-0	01	1	0405-0506	●
358	07.039 BRACKET; CAB EARTH 4JH1 ENG(RJX) (A)	8-97210-488-0	01	1	0405-0506		●	●
358	07.039 BRACKET; CAB EARTH 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97210-488-0	01	1	0507-0606	●
358	07.039 BRACKET; CAB EARTH 4JH1-TC ENG(RDM) (A)	8-97210-488-0	01	1	0507-0606		●	●
358	07.039 BRACKET; CAB EARTH 4JJ1 ENG(LFB) REAR WIDE TREAD(V4T) (A)	8-97210-488-0	01	1	0607-		●
358	07.039 BRACKET; CAB EARTH 4JJ1 ENG(LFB) (A)	8-97210-488-0	01	1	0607-			●
358	07.039 BRACKET; CAB EARTH 4JJ1 ENG(LFB) (B)	8-97232-590-0	01	1	0607-	●
366	07.039 SPACER; BRKT 4JJ1 ENG(LFB)	8-97034-222-0	02	1	0607-	●
368	07.039 SEAT; TORSION BAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97047-363-4	01	1	0302-0404	●
368	07.039 SEAT; TORSION BAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97047-363-4	01	1	0405-0506	●
368	07.039 SEAT; TORSION BAR 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP)	8-97047-363-4	01	1	0507-0606	●
368	07.039 SEAT; TORSION BAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97047-362-2	01	1	0302-0404	●
368	07.039 SEAT; TORSION BAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97047-362-2	01	1	0405-0506	●
368	07.039 SEAT; TORSION BAR 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP)	8-97047-362-2	01	1	0507-0606	●

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	07.003 FRAME ASM 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97352-156-2	01	1	0302-0404	●
1	07.003 FRAME ASM 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97352-156-2	01	1	0405-0506	●
1	07.003 FRAME ASM 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97352-156-2	01	1	0507-0606	●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98018-018-2	01	1	0607-	●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D)	8-98018-017-2	01	1	0607-	●
1	07.003 FRAME ASM 4JH1 ENG(RJX) (C)	8-97352-162-3	01	1	0302-0404		●
1	07.003 FRAME ASM 4JH1 ENG(RJX) (C)	8-97352-162-3	01	1	0405-0506		●
1	07.003 FRAME ASM 4JH1-TC ENG(RDM) (C)	8-98002-676-0	01	1	0507-0606		●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) REAR WIDE TREAD(V4T) TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98018-020-1	01	1	0607-		●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) REAR WIDE TREAD(V4T) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (C)	8-98018-019-1	01	1	0607-		●
1	07.003 FRAME ASM 4JH1 ENG(RJX) (B)	8-97358-809-1	01	1	0302-0404			●
1	07.003 FRAME ASM 4JH1 ENG(RJX) (B)	8-97358-809-1	01	1	0405-0506			●
1	07.003 FRAME ASM 4JH1-TC ENG(RDM) (B)	8-98002-678-0	01	1	0507-0606			●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98018-026-1	01	1	0607-			●
1	07.003 FRAME ASM 4JJ1 ENG(LFB) EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (B)	8-98018-025-1	01	1	0607-			●

2 17 17 2 17 17 20 20 42 5 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	07.010 MEMBER; CROSS,1ST 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97113-623-3	01	1	0302-0404	●
2	07.010 MEMBER; CROSS,1ST 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97113-623-3	01	1	0405-0506	●
2	07.010 MEMBER; CROSS,1ST 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97113-623-3	01	1	0507-0606	●
2	07.010 MEMBER; CROSS,1ST 4JJ1 ENG(LFB) (B)	8-97349-427-0	01	1	0607-	●
2	07.010 MEMBER; CROSS,1ST 4JH1 ENG(RJX) (A)	8-97034-332-2	01	1	0302-0404		●	●
2	07.010 MEMBER; CROSS,1ST 4JH1 ENG(RJX) (A)	8-97034-332-2	01	1	0405-0506		●	●
2	07.010 MEMBER; CROSS,1ST 4JH1-TC ENG(RDM) (A)	8-97034-332-2	01	1	0507-0606		●	●
2	07.010 MEMBER; CROSS,1ST 4JJ1 ENG(LFB) REAR WIDE TREAD(V4T) (A)	8-97034-332-2	01	1	0607-		●
2	07.010 MEMBER; CROSS,1ST 4JJ1 ENG(LFB) (A)	8-97034-332-2	01	1	0607-			●
5	07.010 MEMBER; CROSS,SUSPENSION 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97036-220-2	01	1	0302-0404	●
5	07.010 MEMBER; CROSS,SUSPENSION 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97036-220-2	01	1	0405-0506	●
5	07.010 MEMBER; CROSS,SUSPENSION 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP)	8-97036-220-2	01	1	0507-0606	●
17	07.039 GUSSET; 1ST C/MBR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97035-998-2	01	1	0302-0404	●
17	07.039 GUSSET; 1ST C/MBR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97035-998-2	01	1	0405-0506	●
17	07.039 GUSSET; 1ST C/MBR 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97035-998-2	01	1	0507-0606	●
17	07.039 GUSSET; 1ST C/MBR 4JJ1 ENG(LFB) (B)	8-97035-998-2	01	1	0607-	●
17	07.039 GUSSET; 1ST C/MBR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97039-568-2	01	1	0302-0404	●
17	07.039 GUSSET; 1ST C/MBR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97039-568-2	01	1	0405-0506	●
17	07.039 GUSSET; 1ST C/MBR 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97039-568-2	01	1	0507-0606	●
17	07.039 GUSSET; 1ST C/MBR 4JJ1 ENG(LFB) (B)	8-97039-568-2	01	1	0607-	●
17	07.039 GUSSET; 1ST C/MBR 4JH1 ENG(RJX) (A)	8-97088-205-1	02	1	0302-0404		●	●
17	07.039 GUSSET; 1ST C/MBR 4JH1 ENG(RJX) (A)	8-97088-205-1	02	1	0405-0506		●	●
17	07.039 GUSSET; 1ST C/MBR 4JH1-TC ENG(RDM) (A)	8-97088-205-1	02	1	0507-0606		●	●
17	07.039 GUSSET; 1ST C/MBR 4JJ1 ENG(LFB) REAR WIDE TREAD(V4T) (A)	8-97088-205-1	02	1	0607-		●
17	07.039 GUSSET; 1ST C/MBR 4JJ1 ENG(LFB) (A)	8-97088-205-1	02	1	0607-			●
20	07.012 MEMBER; CROSS,2ND 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97145-716-1	01	1	0302-0404	●
20	07.012 MEMBER; CROSS,2ND 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97145-716-1	01	1	0405-0506	●
20	07.012 MEMBER; CROSS,2ND 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97145-716-1	01	1	0507-0606	●
20	07.012 MEMBER; CROSS,2ND 4JJ1 ENG(LFB) (A)	8-98018-937-0	01	1	0607-	●
20	07.012 MEMBER; CROSS,2ND 4JH1 ENG(RJX) (B)	8-97078-581-1	01	1	0302-0404		●	●
20	07.012 MEMBER; CROSS,2ND 4JH1 ENG(RJX) (B)	8-97078-581-1	01	1	0405-0506		●	●
20	07.012 MEMBER; CROSS,2ND 4JH1-TC ENG(RDM) (B)	8-97078-581-1	01	1	0507-0606		●	●
20	07.012 MEMBER; CROSS,2ND 4JJ1 ENG(LFB) REAR WIDE TREAD(V4T) (B)	8-97078-581-1	01	1	0607-		●
20	07.012 MEMBER; CROSS,2ND 4JJ1 ENG(LFB) (B)	8-97078-581-1	01	1	0607-			●
34	07.012 MEMBER; CROSS,3RD 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97353-300-1	01	1	0302-0404	●
34	07.012 MEMBER; CROSS,3RD 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97353-300-1	01	1	0405-0506	●
34	07.012 MEMBER; CROSS,3RD 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97353-300-1	01	1	0507-0606	●
34	07.012 MEMBER; CROSS,3RD 4JJ1 ENG(LFB) (A)	8-97305-001-2	01	1	0607-	●
34	07.012 MEMBER; CROSS,3RD 4JH1 ENG(RJX) (B)	8-97047-768-1	01	1	0302-0404		●	●
34	07.012 MEMBER; CROSS,3RD 4JH1 ENG(RJX) (B)	8-97047-768-2	01	1	0405-0506		●	●
34	07.012 MEMBER; CROSS,3RD 4JH1-TC ENG(RDM) (B)	8-97047-768-2	01	1	0507-0606		●	●
34	07.012 MEMBER; CROSS,3RD 4JJ1 ENG(LFB) REAR WIDE TREAD(V4T) (B)	8-97047-768-2	01	1	0607-		●
34	07.012 MEMBER; CROSS,3RD 4JJ1 ENG(LFB) (B)	8-97047-768-2	01	1	0607-			●
42	07.011 MEMBER; CROSS,ENG MTG 4JH1 ENG(RJX)	8-97165-923-1	01	1	0302-0404		●	●
42	07.011 MEMBER; CROSS,ENG MTG 4JH1 ENG(RJX)	8-97165-923-1	01	1	0405-0506		●	●
42	07.011 MEMBER; CROSS,ENG MTG 4JH1-TC ENG(RDM)	8-97165-923-1	01	1	0507-0606		●	●
42	07.011 MEMBER; CROSS,ENG MTG 4JJ1 ENG(LFB) REAR WIDE TREAD(V4T)	8-98011-485-2	01	1	0607-		●
42	07.011 MEMBER; CROSS,ENG MTG 4JJ1 ENG(LFB)	8-98011-485-2	01	1	0607-			●

376 376 376 376 376 376 376 376 376 376 376 376 221 106 16 176 296 67

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
16	07.039 BOLT; 1ST C/MBR TO S/MBR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 07.874 M12X30 W/LK&PL WASHER	0-50141-230-0	12	1	0302-0404	●
16	07.039 BOLT; 1ST C/MBR TO S/MBR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 07.874 M12X30 W/LK&PL WASHER	0-50141-230-0	12	1	0405-0506	●
16	07.039 BOLT; 1ST C/MBR TO S/MBR 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 07.874 M12X30 W/LK&PL WASHER	0-50141-230-0	12	1	0507-0512	●
16	07.039 BOLT; 1ST C/MBR TO S/MBR 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 04.085 M12X30 W/LK&PL WASHER	0-50641-230-0	12	1	0601-0606	●
67	07.011 NUT; C/MBR 4JJ1 ENG(LFB) 04.085 M10 FLANGE	0-91180-210-0	04	1	0607-	●
106	07.529 BOLT; BRKT 4JH1 ENG(RJX) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0302-0404		●
106	07.529 BOLT; BRKT 4JH1 ENG(RJX) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0405-0506		●
106	07.529 BOLT; BRKT 4JH1-TC ENG(RDM) 00.685 M10X30 FLANGE	0-28081-030-0	02	1	0507-0512		●
106	07.529 BOLT; BRKT 4JH1-TC ENG(RDM) 03.890 M10X30 FLANGE	0-28051-030-0	02	1	0601-0606		●
106	07.529 BOLT; BRKT 4JJ1 ENG(LFB) REAR WIDE TREAD(V4T) 03.890 M10X30 FLANGE	0-28051-030-0	02	1	0607-		●
176	04.085 BOLT; C/MBR,ENG MTG 4JH1 ENG(RJX) 00.685 M10X30 FLANGE	0-28081-030-0	08	1	0302-0404		●	●
176	04.085 BOLT; C/MBR,ENG MTG 4JH1 ENG(RJX) 00.685 M10X30 FLANGE	0-28081-030-0	08	1	0405-0506		●	●
176	04.085 BOLT; C/MBR,ENG MTG 4JH1-TC ENG(RDM) 00.685 M10X30 FLANGE	0-28081-030-0	08	1	0507-0512		●	●
176	04.085 BOLT; C/MBR,ENG MTG 4JH1-TC ENG(RDM) 03.890 M10X30 FLANGE	0-28051-030-0	08	1	0601-0606		●	●
176	04.085 BOLT; C/MBR,ENG MTG 4JJ1 ENG(LFB) REAR WIDE TREAD(V4T) 03.890 M10X30 FLANGE	0-28051-030-0	08	1	0607-		●
176	04.085 BOLT; C/MBR,ENG MTG 4JJ1 ENG(LFB) 03.890 M10X30 FLANGE	0-28051-030-0	08	1	0607-			●
221	01.270 BOLT; RAD MTG BRKT,FRAME 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 03.417 M10X25 FLANGE	0-28081-025-0	02	1	0302-0404	●
221	01.270 BOLT; RAD MTG BRKT,FRAME 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 03.417 M10X25 FLANGE	0-28081-025-0	02	1	0405-0506	●
221	01.270 BOLT; RAD MTG BRKT,FRAME 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 03.417 M10X25 FLANGE	0-28081-025-0	02	1	0507-0512	●
221	01.270 BOLT; RAD MTG BRKT,FRAME 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 09.171 M10X25 FLANGE	0-28051-025-0	02	1	0601-0606	●
221	01.270 BOLT; RAD MTG BRKT,FRAME 4JJ1 ENG(LFB) 09.171 M10X25 FLANGE	0-28051-025-0	02	1	0607-	●
296	07.039 BOLT; 3RD C/MBR 4JJ1 ENG(LFB) M10X30	0-20851-030-0	04	1	0607-	●
376	07.039 RIVET; FRAME (A) D8X20 TAPER END	9-06750-820-0	AR	1	0302-	●	●	●
376	07.039 RIVET; FRAME 07.011 (B) D8X22 TAPER END	9-06750-822-0	AR	1	0302-	●	●	●
376	07.039 RIVET; FRAME 07.395 (C) D8X26 TAPER END	9-06750-826-0	AR	1	0302-	●	●	●
376	07.039 RIVET; FRAME 07.395 (D) D8X28 TAPER END	9-06750-828-0	AR	1	0302-	●	●	●
376	07.039 RIVET; FRAME (E) D10X24 TAPER END	9-06751-024-0	AR	1	0302-	●	●	●
376	07.039 RIVET; FRAME (F) D10X26 TAPER END	9-06751-026-0	AR	1	0302-	●	●	●
376	07.039 RIVET; FRAME (G) D10X28 TAPER END	9-06751-028-0	AR	1	0302-	●	●	●
376	07.039 RIVET; FRAME (H) D10X30 TAPER END	9-06751-030-0	AR	1	0302-	●	●	●
376	07.039 RIVET; FRAME (I) D10X32 TAPER END	9-06751-032-0	AR	1	0302-	●	●	●
376	07.039 RIVET; FRAME (J) D10X36 TAPER END	9-06751-036-0	AR	1	0302-	●	●	●
376	07.039 RIVET; FRAME 07.105 (K) D12X30 TAPER END	9-06751-230-0	AR	1	0302-	●	●	●
376	07.039 RIVET; FRAME 07.535 (L) D12X34 TAPER END	9-06751-234-0	AR	1	0302-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
