◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50946 - NKR(EUROPE)-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#23144) — 72 parça

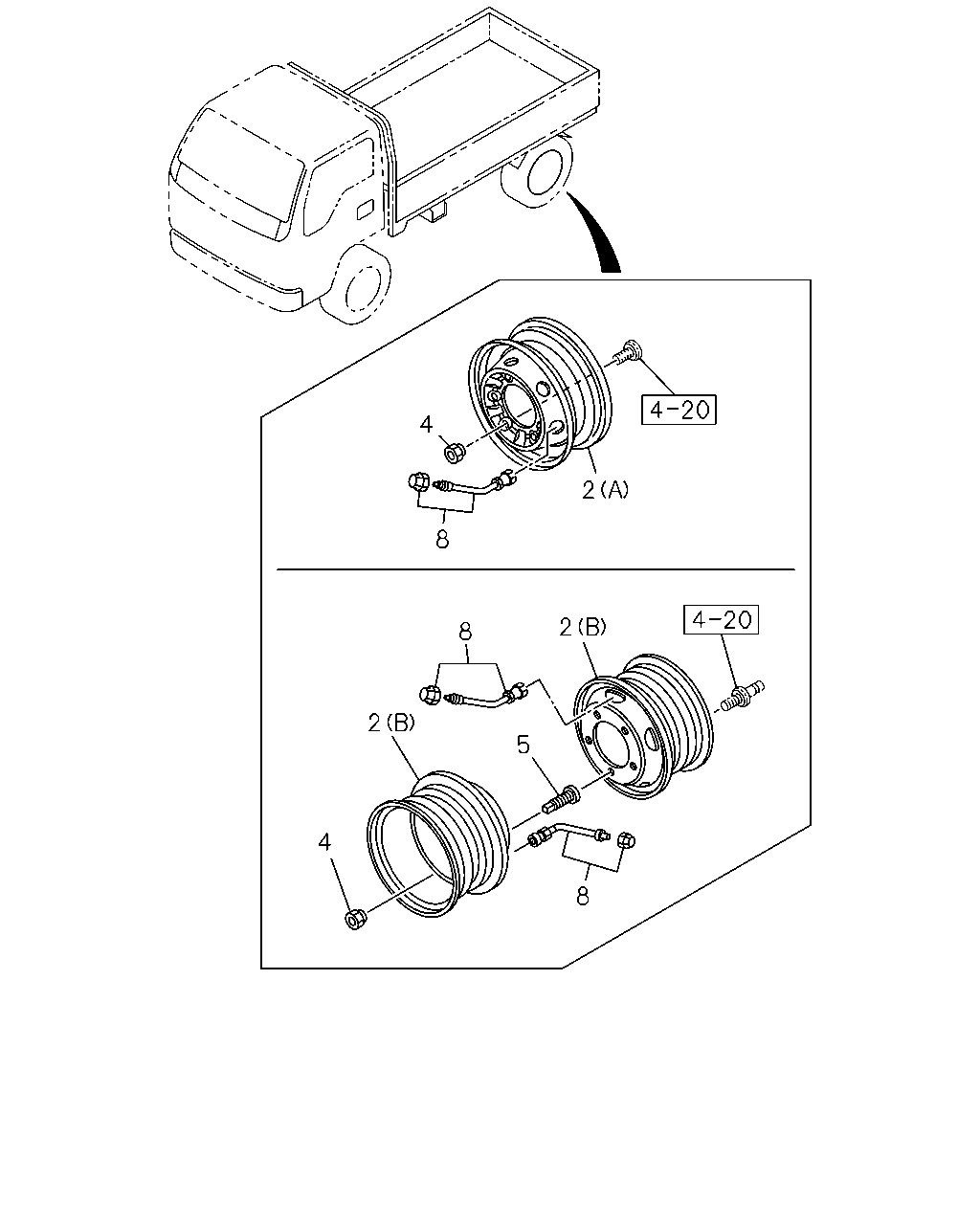

çizim 11125
4 2 8 8 2 2 5 8 4
BalonParca AdiParca NoAdetTipApplied Date A B C
2 05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(ATB) (A) SPARE 5.5JX16 OFFSET=85 6-HOLE 		8-97162-604-0 01 1 0302-0302 ●
2 05.803 WHEEL; DISC
FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5 J-85(CQS) (A) SPARE 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE 		8-97258-376-0 01 1 0303- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(ATB) (A) FRONT,REAR 5.5JX16 OFFSET=85 6-HOLE 		8-97162-604-0 04 1 0302-0302 ●
2 05.803 WHEEL; DISC
FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5 J-85(CQS) (A) FRONT,REAR 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE 		8-97258-376-0 04 1 0303- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) (A) SPARE 5.5JX16 OFFSET=85 6-HOLE 		8-97210-494-0 01 1 0302- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) (A) FRONT,REAR 5.5JX16 OFFSET=85 6-HOLE 		8-97210-494-0 04 1 0302- ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV) (B) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 0302- ● ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV) (B) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 0302- ● ●
2 05.803 WHEEL; DISC
FRT&RR 195/75R16C 16X5.5J-116.5(9HY) (B) SPARE 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 01 1 0302-0302 ● ●
2 05.803 WHEEL; DISC
FRT&RR 195/75R16C 16X5.5J-116.5(9HY) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0303- ● ●
2 05.803 WHEEL; DISC
FRT&RR 195/75R16C 16X5.5J-116.5(9HY) (B) FRONT,REAR 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 06 1 0302-0302 ● ●
2 05.803 WHEEL; DISC
FRT&RR 195/75R16C 16X5.5J-116.5(9HY) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0303- ● ●
4 05.813 NUT; WHEEL,RR AXLE
M14 LH THREAD 		5-42334-002-0 06 1 0302-0610 ●
4 05.813 NUT; WHEEL,RR AXLE
M14 LH THREAD 		8-98007-906-0 06 1 0611- ●
4 05.813 NUT; WHEEL,RR AXLE
M14 RH THREAD 		5-42333-008-0 06 1 0302-0610 ●
4 05.813 NUT; WHEEL,RR AXLE
M14 RH THREAD 		8-98007-905-0 06 1 0611- ●
4 05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD 		8-94365-146-0 05 1 0302-0610 ● ●
4 05.813 NUT; WHEEL,RR AXLE
M27 LH THREAD 		8-98007-825-0 05 1 0611- ● ●
4 05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD 		8-94365-145-0 05 1 0302-0610 ● ●
4 05.813 NUT; WHEEL,RR AXLE
M27 RH THREAD 		8-98007-824-0 05 1 0611- ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD 		8-94365-144-1 05 1 0302-0610 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 LH THREAD 		8-98007-811-0 05 1 0611- ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD 		8-94365-143-1 05 1 0302-0610 ● ●
5 05.813 NUT; WHEEL,INNER,RR AXLE
OUTER M27,INNER M18 RH THREAD 		8-98007-810-0 05 1 0611- ● ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS) FRONT,REAR 		8-98221-106-0 04 1 0302- ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS) SPARE 		8-98221-106-0 01 1 0302- ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY) SPARE 		8-98221-106-0 01 1 0302- ● ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY) FRONT,REAR 		8-98221-106-0 06 1 0302- ● ●

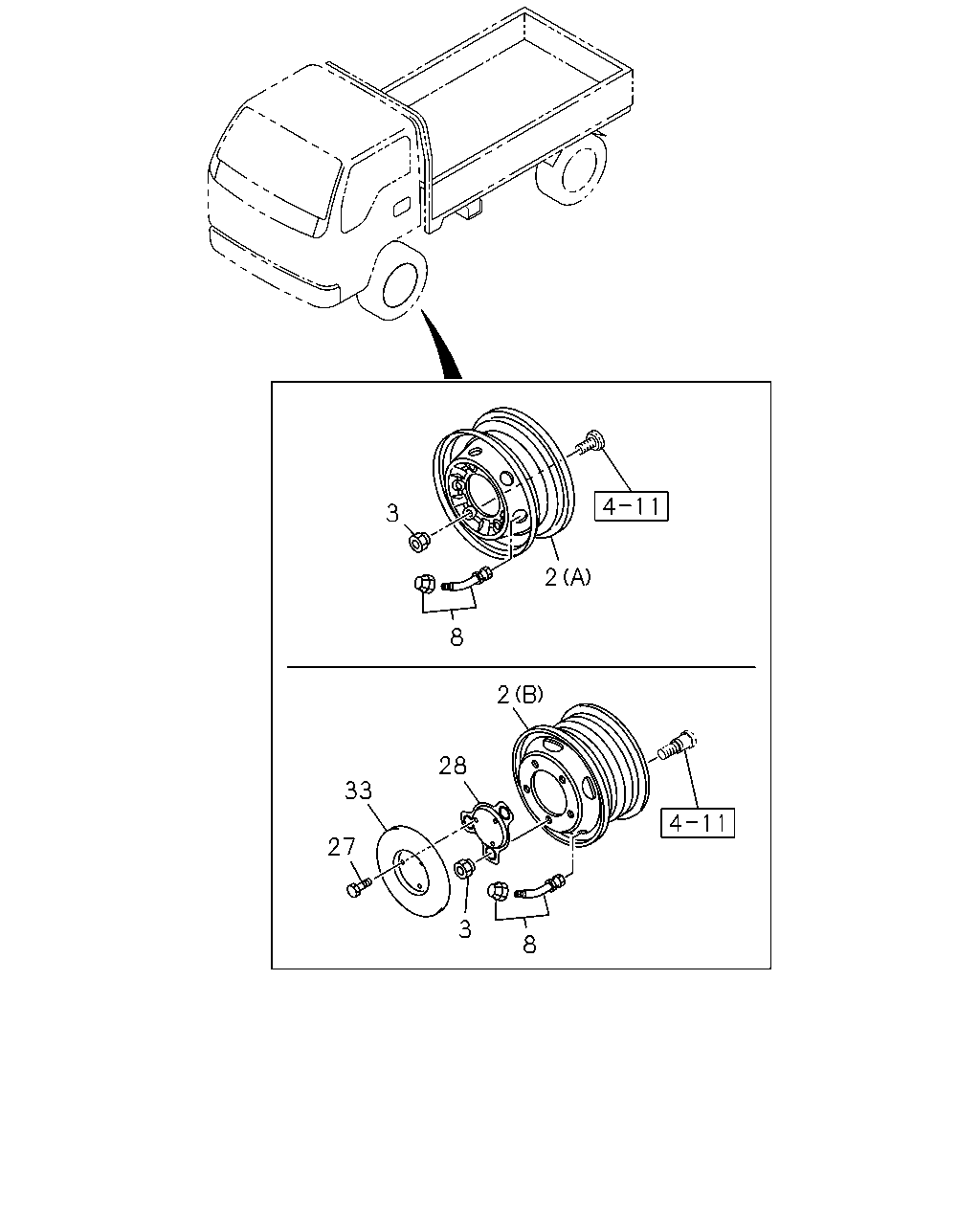

çizim 11326
3 2 8 2 28 33 27 3 8
BalonParca AdiParca NoAdetTipApplied Date A B C
2 05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(ATB) (A) SPARE 5.5JX16 OFFSET=85 6-HOLE 		8-97162-604-0 01 1 0302-0302 ●
2 05.803 WHEEL; DISC
FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5 J-85(CQS) (A) SPARE 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE 		8-97258-376-0 01 1 0303- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(ATB) (A) FRONT,REAR 5.5JX16 OFFSET=85 6-HOLE 		8-97162-604-0 04 1 0302-0302 ●
2 05.803 WHEEL; DISC
FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5 J-85(CQS) (A) FRONT,REAR 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE 		8-97258-376-0 04 1 0303- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) (A) SPARE 5.5JX16 OFFSET=85 6-HOLE 		8-97210-494-0 01 1 0302- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) (A) FRONT,REAR 5.5JX16 OFFSET=85 6-HOLE 		8-97210-494-0 04 1 0302- ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV) (B) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 0302- ● ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV) (B) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 0302- ● ●
2 05.803 WHEEL; DISC
FRT&RR 195/75R16C 16X5.5J-116.5(9HY) (B) SPARE 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 01 1 0302-0302 ● ●
2 05.803 WHEEL; DISC
FRT&RR 195/75R16C 16X5.5J-116.5(9HY) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0303- ● ●
2 05.803 WHEEL; DISC
FRT&RR 195/75R16C 16X5.5J-116.5(9HY) (B) FRONT,REAR 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 06 1 0302-0302 ● ●
2 05.803 WHEEL; DISC
FRT&RR 195/75R16C 16X5.5J-116.5(9HY) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0303- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M14 LH THREAD 		5-42334-002-0 06 1 0302-0610 ●
3 05.813 NUT; WHEEL,FRT AXLE
M14 LH THREAD 		8-98007-906-0 06 1 0611- ●
3 05.813 NUT; WHEEL,FRT AXLE
M14 RH THREAD 		5-42333-008-0 06 1 0302-0610 ●
3 05.813 NUT; WHEEL,FRT AXLE
M14 RH THREAD 		8-98007-905-0 06 1 0611- ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 LH THREAD 		8-94365-148-0 05 1 0302-0610 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 LH THREAD 		8-98007-908-0 05 1 0611- ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 RH THREAD 		8-94365-147-0 05 1 0302-0610 ● ●
3 05.813 NUT; WHEEL,FRT AXLE
M18 RH THREAD 		8-98007-907-0 05 1 0611- ● ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS) FRONT,REAR 		8-98221-106-0 04 1 0302- ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS) SPARE 		8-98221-106-0 01 1 0302- ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY) SPARE 		8-98221-106-0 01 1 0302- ● ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY) FRONT,REAR 		8-98221-106-0 06 1 0302- ● ●
27 05.871 BOLT; COVER
03.611 M10X20 FLANGE 		0-28681-020-0 06 1 0302-0512 ● ●
27 05.871 BOLT; COVER
02.343 M10X20 FLANGE 		0-28651-020-0 06 1 0601- ● ●
28 05.864 BRACKET; COVER 8-97169-249-0 02 1 0302- ● ●
33 05.858 COVER; WHEEL 8-97167-658-0 02 1 0302- ● ●
çizim 11353
2 8 2 8
BalonParca AdiParca NoAdetTipApplied Date A B C
2 05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(ATB) (A) SPARE 5.5JX16 OFFSET=85 6-HOLE 		8-97162-604-0 01 1 0302-0302 ●
2 05.803 WHEEL; DISC
FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5 J-85(CQS) (A) SPARE 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE 		8-97258-376-0 01 1 0303- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(ATB) (A) FRONT,REAR 5.5JX16 OFFSET=85 6-HOLE 		8-97162-604-0 04 1 0302-0302 ●
2 05.803 WHEEL; DISC
FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5 J-85(CQS) (A) FRONT,REAR 16X5.5J OFFSET=85 PLATINUM SILVER 6-HOLE 		8-97258-376-0 04 1 0303- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) (A) SPARE 5.5JX16 OFFSET=85 6-HOLE 		8-97210-494-0 01 1 0302- ●
2 05.803 WHEEL; DISC
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX) (A) FRONT,REAR 5.5JX16 OFFSET=85 6-HOLE 		8-97210-494-0 04 1 0302- ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV) (B) SPARE 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 01 1 0302- ● ●
2 05.803 WHEEL; DISC
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV) (B) FRONT,REAR 16X5.5J OFFSET=116.5 WHITE 5-HOLE 		8-97213-256-0 06 1 0302- ● ●
2 05.803 WHEEL; DISC
FRT&RR 195/75R16C 16X5.5J-116.5(9HY) (B) SPARE 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 01 1 0302-0302 ● ●
2 05.803 WHEEL; DISC
FRT&RR 195/75R16C 16X5.5J-116.5(9HY) (B) SPARE 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 01 1 0303- ● ●
2 05.803 WHEEL; DISC
FRT&RR 195/75R16C 16X5.5J-116.5(9HY) (B) FRONT,REAR 16X5.5J OFFSET=116.5 BLACK 5-HOLE 		8-97213-255-1 06 1 0302-0302 ● ●
2 05.803 WHEEL; DISC
FRT&RR 195/75R16C 16X5.5J-116.5(9HY) (B) FRONT,REAR 16X5.5J OFFSET=116.5 PLATINUM SILVER 		8-97233-664-0 06 1 0303- ● ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS) FRONT,REAR 		8-98221-106-0 04 1 0302- ●
8 05.875 VALVE; TIRE
FRT&RR TIRE 205R16C-8 DISC 16X5.5J-85(AYX),FRT 205R16C-8 RR 205R16C-8 FRT&RR 16X5.5J-85(CQS) SPARE 		8-98221-106-0 01 1 0302- ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY) SPARE 		8-98221-106-0 01 1 0302- ● ●
8 05.875 VALVE; TIRE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY) FRONT,REAR 		8-98221-106-0 06 1 0302- ● ●
