◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50946 - NKR(EUROPE)-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#23141) — 48 parça

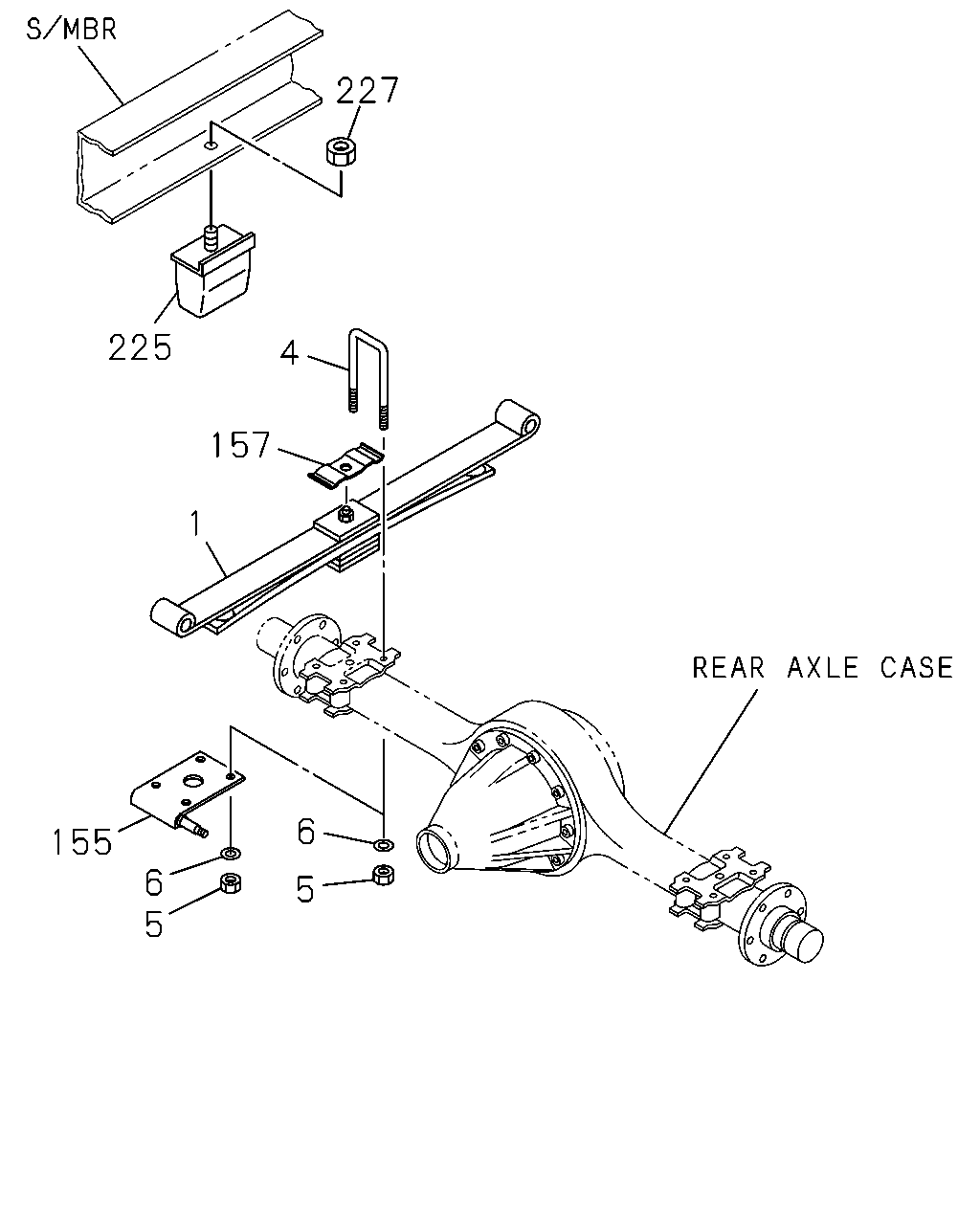

çizim 12589
227 225 4 157 1 6 155 6 5 5
BalonParca AdiParca NoAdetTipApplied Date A B C
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 2-LEAF 		8-97227-448-0 02 1 0302- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 2-LEAF 		8-97353-118-0 02 1 0302- ● ●
4 07.516 U-BOLT; RR SPR
L=235 		8-94127-920-2 04 1 0302-0606 ●
4 07.516 U-BOLT; RR SPR
L=245 		8-94127-921-3 04 1 0607- ●
4 07.516 U-BOLT; RR SPR
L=225 		8-94127-919-3 04 1 0302- ● ●
5 07.529 NUT; U-BOLT,RR SPR
07.516 M16 		8-94107-767-0 08 1 0302-0611 ● ● ●
5 07.529 NUT; U-BOLT,RR SPR
07.417 M16 		8-97360-121-0 08 1 0612- ● ● ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-94137-482-1 08 1 0302-0610 ● ● ●
6 07.516 WASHER; PL,U-BOLT
ID=16.4 		8-97360-118-0 08 1 0611- ● ● ●
155 07.380 BRACKET; S/ABS 8-94128-361-4 01 1 0607- ●
155 07.380 BRACKET; S/ABS 8-94128-360-4 01 1 0607- ●
157 07.518 CLAMP; UPR,RR SPR
L=130 T=4.5 		8-94119-069-2 02 1 0302- ● ● ●
225 07.535 RUBBER; CUSHION,RR SPR 8-94142-044-4 02 1 0302- ●
225 07.535 RUBBER; CUSHION,RR SPR 8-94118-510-5 02 1 0302- ● ●
227 07.535 NUT; CUSHION RUBBER
05.586 M12 FLANGE 		0-91150-112-0 02 1 0302-0602 ● ● ●
227 07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE 		0-91180-112-0 02 1 0603- ● ● ●
çizim 55302
209 16 16 182 15 15 209 182 180 1 209 182 209 15 15 182 209 182 180 1 180 209 182
BalonParca AdiParca NoAdetTipApplied Date A B C
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 2-LEAF 		8-97227-448-0 02 1 0302- ●
1 07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 2-LEAF 		8-97353-118-0 02 1 0302- ● ●
15 07.523 SHACKLE; RR SPR
(B) INSIDE 		8-94113-322-3 02 1 0302- ●
15 07.523 SHACKLE; RR SPR
(A) OUTSIDE 		8-97033-966-1 02 1 0302- ●
15 07.523 SHACKLE; RR SPR
(C) OUTSIDE 		8-94118-511-3 02 1 0302- ● ●
15 07.523 SHACKLE; RR SPR
(D) INSIDE 		8-94118-512-4 02 1 0302-0611 ● ●
15 07.523 SHACKLE; RR SPR
(D) INSIDE 		8-97360-011-0 02 1 0612- ● ●
16 07.524 BUSHING; SHACKLE,RR SPR 8-94113-323-2 04 1 0302- ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		9-51361-602-2 02 1 0302-0611 ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 		8-98011-487-0 02 1 0612- ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16X122 FLANGE 		8-97076-850-2 02 1 0302-0610 ● ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16X122 FLANGE 		8-97360-110-0 02 1 0611- ● ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-97033-967-0 02 1 0302-0611 ● ●
180 07.529 PIN; RR SPR
KD PREPARATORY PACK<6HF> (B) M18X130 		8-98011-488-0 02 1 0612- ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97076-848-0 02 1 0302-0610 ● ●
180 07.529 PIN; RR SPR
EXC. KD PREPARATORY PACK<6HF> (B) M18X130 FLANGE 		8-97360-112-0 02 1 0611- ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 08.915 (A) M16 		9-99110-516-0 02 1 0302-0512 ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (A) M16 		0-91110-516-0 02 1 0601- ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE 		8-97147-389-0 02 1 0302-0610 ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE 		8-97360-125-0 02 1 0611- ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 08.915 (A) M16 		9-99110-516-0 04 1 0302-0512 ● ● ●
182 07.529 NUT; PIN,RR SPR
KD PREPARATORY PACK<6HF> 06.509 (A) M16 		0-91110-516-0 04 1 0601- ● ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> (A) M16 FLANGE 		8-97147-389-0 04 1 0302-0610 ● ● ●
182 07.529 NUT; PIN,RR SPR
EXC. KD PREPARATORY PACK<6HF> 07.427 (A) M16 FLANGE 		8-97360-125-0 04 1 0611- ● ● ●
182 07.529 NUT; PIN,RR SPR
06.216 (B) M18 		9-99110-518-0 02 1 0302-0512 ● ●
182 07.529 NUT; PIN,RR SPR
(B) M18 		0-91110-518-0 02 1 0601- ● ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.172 (A) ID=16.5 		8-97070-925-1 02 1 0302-0611 ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.427 (A) ID=16.5 		8-98011-489-0 02 1 0612- ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.172 (A) ID=16.5 		8-97070-925-1 04 1 0302-0611 ● ● ●
209 07.529 WASHER; PL
KD PREPARATORY PACK<6HF> 07.427 (A) ID=16.5 		8-98011-489-0 04 1 0612- ● ● ●
209 07.529 WASHER; PL
(B) ID=19 		8-97073-435-1 02 1 0302-0611 ● ●
209 07.529 WASHER; PL
(B) ID=19 		8-97360-119-0 02 1 0612- ● ●
