Sayfa 4-50 - Isuzu EPC

4-50 — FRONT SUSPENSION (#23139) — 470 parça

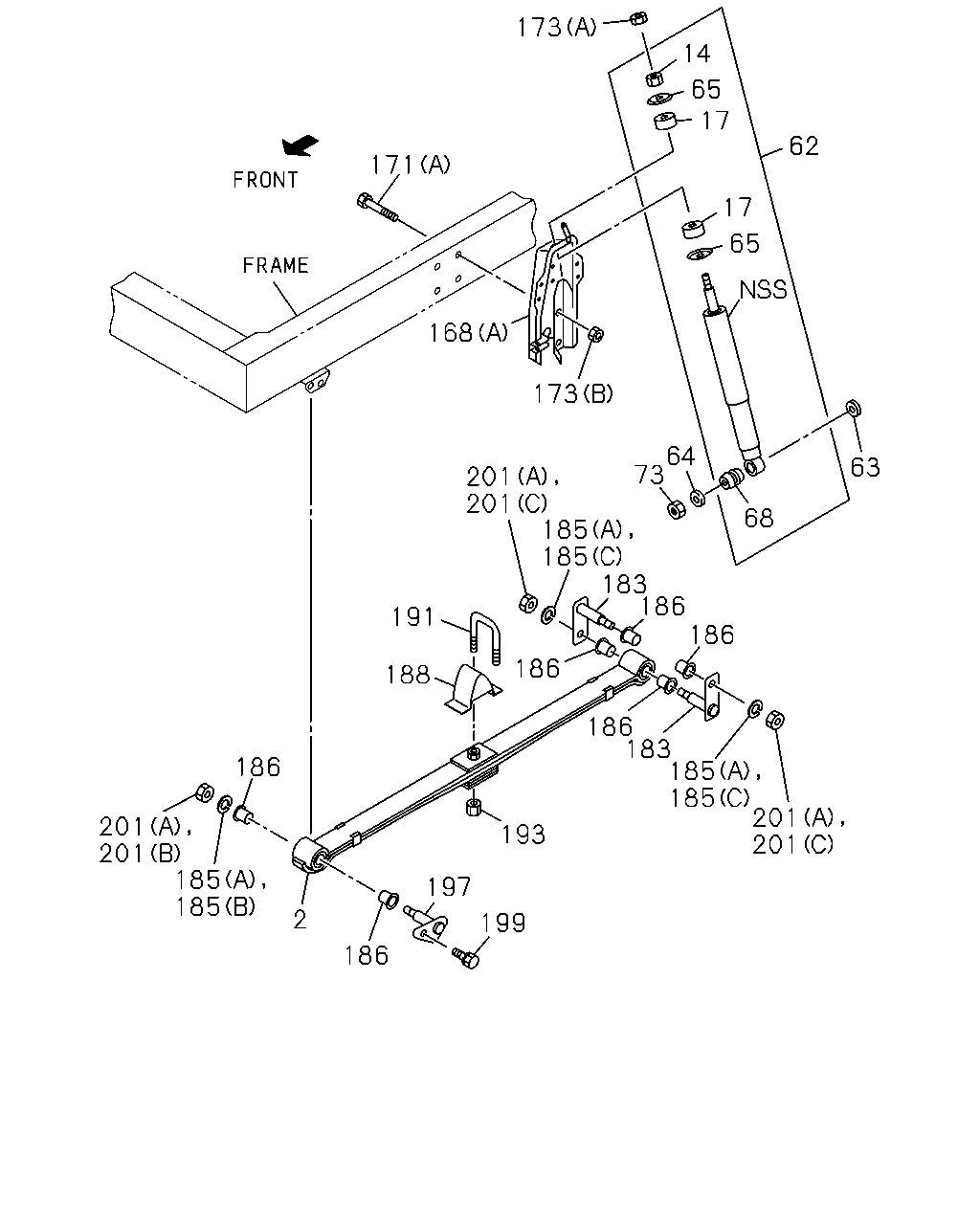

173 14 65 17 62 171 17 65 168 173 64 73 63 201 201 185 185 183 186 186 68 191 186 188 186 183 185 185 201 201 186 201 201 185 185 193 197 2 199 186

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 2-LEAF	8-97353-112-0	01	1	0302-0606	●	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 2-LEAF	8-98042-912-0	01	1	0607-	●	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 2-LEAF	8-97353-113-0	01	1	0302-0606	●	●
2	07.412 SPRING ASM; LEAF,FRT SEE FIG-NO 4-55 FOR COMPONENT. 2-LEAF	8-98042-913-0	01	1	0607-	●	●
14	07.389 NUT; S/ABS,UPR FRT INDEPENDENT SUSPENSION(6PP) M10	8-94317-772-0	02	1	0302-0606			●
14	07.389 NUT; S/ABS,UPR M10	8-94317-772-0	02	1	0302-0606	●	●
14	07.389 NUT; S/ABS,UPR M10	8-94317-772-0	02	1	0607-	●	●
17	07.388 BUSHING; RUBBER,S/ABS	8-97370-319-0	02	1	0607-1201			●
17	07.388 BUSHING; RUBBER,S/ABS	8-98197-281-0	02	1	1202-			●
17	07.388 BUSHING; RUBBER,S/ABS FRT INDEPENDENT SUSPENSION(6PP) TOKICO	9-51631-603-0	04	1	0302-0606			●
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	0302-0606	●	●
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	0607-	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97253-592-0	02	1	0302-0606			●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97369-637-1	02	1	0607-1201			●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-98197-654-0	02	1	1202-			●
62	07.345 ABSORBER ASM; SHOCK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97253-602-1	02	1	0302-	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97253-605-1	02	1	0302-	●	●
63	07.347 WASHER; PL,S/ABS,LWR 07.529 ID=17 OD=32	9-09164-616-0	02	1	0302-1011	●	●
63	07.347 WASHER; PL,S/ABS,LWR ID=17 OD=32	0-91614-616-0	02	1	1012-	●	●
64	07.347 WASHER; S/ABS,LWR ID=12.5	9-51679-022-0	02	1	0302-	●	●
65	07.347 WASHER; S/ABS FRT INDEPENDENT SUSPENSION(6PP) OD=40	9-51631-614-0	04	1	0302-0606			●
65	07.347 WASHER; S/ABS 07.245 ID=10.5 OD=38	9-51631-062-0	04	1	0302-	●	●
68	07.388 BUSHING; S/ABS	8-97370-319-0	02	1	0607-1201			●
68	07.388 BUSHING; S/ABS	8-98197-281-0	02	1	1202-			●
68	07.388 BUSHING; S/ABS 07.347 TOKICO	8-94224-694-0	02	1	0302-	●	●
73	07.347 NUT; BRKT,SHOCK M12	9-99111-512-0	02	1	0302-0512	●	●
73	07.347 NUT; BRKT,SHOCK 04.439 M12	0-91111-512-0	02	1	0601-	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97031-383-2	02	1	0302-0606			●
168	07.380 BRACKET; S/ABS,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-000-1	02	1	0302-0606			●
168	07.380 BRACKET; S/ABS,FRT SUSP (A)	8-97316-003-1	01	1	0302-0506	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP (A)	8-97367-173-1	01	1	0507-	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP (A)	8-97316-002-1	01	1	0302-0308	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. SHIMMY DAMPER<S3V> (A)	8-97316-002-1	01	1	0309-0506	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. SHIMMY DAMPER<S3V> (A)	8-97367-171-1	01	1	0507-	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP SHIMMY DAMPER<S3V> 03.780 (A)	8-97373-431-0	01	1	0309-0506	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP SHIMMY DAMPER<S3V> (A)	8-97367-172-1	01	1	0507-	●	●
171	07.395 BOLT; S/ABS BRKT FRT INDEPENDENT SUSPENSION(6PP) (B) M10X35 FLANGE	0-28091-035-0	08	1	0302-0512			●
171	07.395 BOLT; S/ABS BRKT FRT INDEPENDENT SUSPENSION(6PP) (B) M10X35 FLANGE	0-28061-035-0	08	1	0601-0606			●
171	07.395 BOLT; S/ABS BRKT FRT INDEPENDENT SUSPENSION(6PP) (A) M12X30 FLANGE	0-28681-230-0	04	1	0302-0512			●
171	07.395 BOLT; S/ABS BRKT FRT INDEPENDENT SUSPENSION(6PP) (A) M12X30 FLANGE	0-28651-230-0	04	1	0601-0606			●
171	07.395 BOLT; S/ABS BRKT 03.405 (A) M10X30 FLANGE	0-28681-030-0	08	1	0302-0512	●	●
171	07.395 BOLT; S/ABS BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	08	1	0601-	●	●
173	07.395 NUT; S/ABS FRT INDEPENDENT SUSPENSION(6PP) 06.606 (B) M12	8-94139-015-0	02	1	0302-0606			●
173	07.395 NUT; S/ABS 07.833 (C) M14	0-91110-514-0	02	1	0607-			●
173	07.395 NUT; S/ABS 06.822 (A) M10	9-09111-410-0	02	1	0302-0306	●	●	●
173	07.395 NUT; S/ABS 08.917 (B) M10 FLANGE	0-91150-210-0	04	1	0302-0506	●	●
173	07.395 NUT; S/ABS 08.917 (B) M10 FLANGE	0-91150-210-0	08	1	0507-0602	●	●
173	07.395 NUT; S/ABS 04.085 (B) M10 FLANGE	0-91180-210-0	08	1	0603-	●	●
183	07.436 SHACKLE; FRT SUSP	8-94468-235-2	04	1	0302-0606	●	●
183	07.436 SHACKLE; FRT SUSP	8-98034-341-0	04	1	0607-	●	●
185	07.427 WASHER; LK,PIN (C) ID=16.5	8-98011-489-0	04	1	0607-	●	●
185	07.427 WASHER; LK,PIN KD PREPARATORY PACK<6HF> 07.172 (A) ID=16.5	8-97070-925-1	06	1	0302-0606	●	●
185	07.427 WASHER; LK,PIN KD PREPARATORY PACK<6HF> 07.172 (B) ID=16.5	8-97070-925-1	02	1	0607-0611	●	●
185	07.427 WASHER; LK,PIN KD PREPARATORY PACK<6HF> (B) ID=16.5	8-98011-489-0	02	1	0612-	●	●
186	07.105 BUSHING; SHACKLE	8-97081-531-0	12	1	0302-	●	●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98009-114-0	02	1	0607-			●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-94150-265-3	02	1	0302-0606	●	●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-515-0	02	1	0607-	●	●
191	07.417 U-BOLT; FRT SPR L=105	8-97304-074-0	04	1	0302-0606	●	●
191	07.417 U-BOLT; FRT SPR L=125	8-97304-076-1	04	1	0607-	●	●
193	07.417 NUT; U BOLT M14 FLANGE	8-94137-483-0	08	1	0302-0610	●	●
193	07.417 NUT; U BOLT 06.174 M14 FLANGE	8-97360-124-0	08	1	0611-	●	●
197	07.427 PIN; FRT SPR,FRT	8-94117-900-1	02	1	0302-	●	●
199	07.427 BOLT 03.405 M10X25 FLANGE	0-28681-025-0	02	1	0302-0512	●	●
199	07.427 BOLT 00.029 M10X25 FLANGE	0-28651-025-0	02	1	0601-	●	●
201	07.427 NUT; PIN LK 06.509 (C) M16	0-91110-516-0	04	1	0607-	●	●
201	07.427 NUT; PIN LK KD PREPARATORY PACK<6HF> 06.870 (A) M16	9-99110-416-0	06	1	0302-0512	●	●
201	07.427 NUT; PIN LK KD PREPARATORY PACK<6HF> 06.509 (A) M16	0-91110-516-0	06	1	0601-0606	●	●
201	07.427 NUT; PIN LK KD PREPARATORY PACK<6HF> 06.509 (B) M16	0-91110-516-0	02	1	0607-	●	●
201	07.427 NUT; PIN LK EXC. KD PREPARATORY PACK<6HF> 07.529 (A) M16 FLANGE	8-97147-389-0	06	1	0302-0606	●	●
201	07.427 NUT; PIN LK EXC. KD PREPARATORY PACK<6HF> 07.529 (B) M16 FLANGE	8-97147-389-0	02	1	0607-0610	●	●
201	07.427 NUT; PIN LK EXC. KD PREPARATORY PACK<6HF> (B) M16 FLANGE	8-97360-125-0	02	1	0611-	●	●

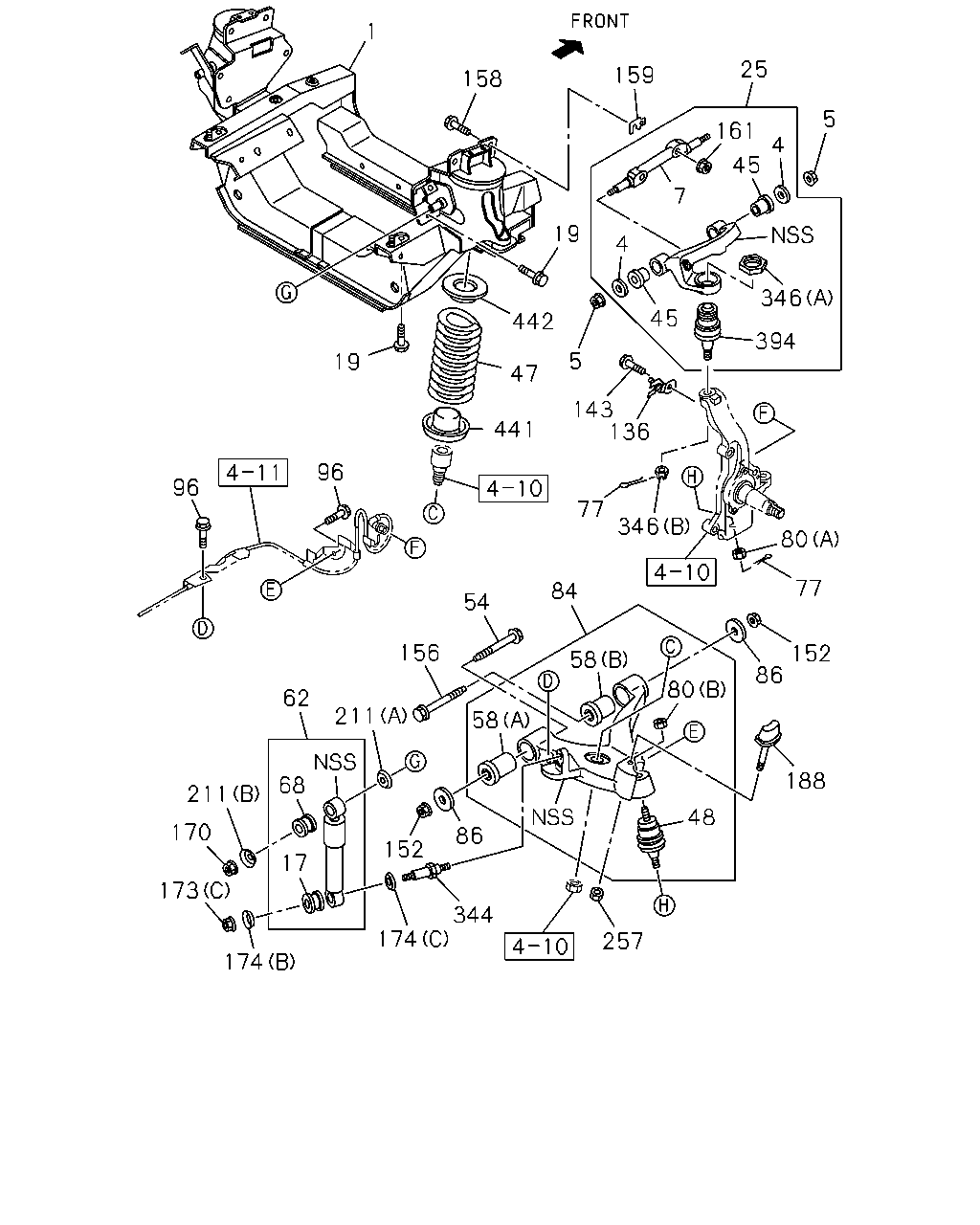

1 25 159 158 5 161 4 45 7 4 19 346 45 442 394 5 19 47 143 136 441 96 96 77 346 80 77 84 54 156 152 58 86 80 62 211 58 68 188 211 48 170 17 86 152 173 174 257 174 344

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	07.010 MEMBER; CROSS,FRT SUSP	8-97384-675-2	01	1	0607-			●
4	06.164 WASHER; UPR LINK TO FRAME	8-97188-605-0	04	1	0607-0612			●
4	06.164 WASHER; UPR LINK TO FRAME	8-98021-786-0	04	1	0701-			●
5	06.164 NUT; UPR LINK TO FRAME M16 FLANGE	0-91180-216-0	04	1	0607-			●
7	06.174 PIN; FULCRUM,UPR LINK FRT INDEPENDENT SUSPENSION(6PP)	8-94340-084-1	02	1	0302-0606			●
7	06.174 PIN; FULCRUM,UPR LINK	8-97354-500-0	02	1	0607-0612			●
7	06.174 PIN; FULCRUM,UPR LINK	8-98021-654-0	02	1	0701-			●
17	07.388 BUSHING; RUBBER,S/ABS	8-97370-319-0	02	1	0607-1201			●
17	07.388 BUSHING; RUBBER,S/ABS	8-98197-281-0	02	1	1202-			●
17	07.388 BUSHING; RUBBER,S/ABS FRT INDEPENDENT SUSPENSION(6PP) TOKICO	9-51631-603-0	04	1	0302-0606			●
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	0302-0606	●	●
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	0607-	●	●
19	07.425 BOLT; FRT SUSP TO C/MBR 07.395 M12X30 FLANGE	0-28651-230-0	12	1	0607-0706			●
19	07.425 BOLT; FRT SUSP TO C/MBR 06.509 M12X30 FLANGE	0-28661-230-0	12	1	0707-			●
25	06.168 ARM; UPR CONT FRT INDEPENDENT SUSPENSION(6PP)	8-97076-005-3	01	1	0302-0606			●
25	06.168 ARM; UPR CONT	8-97386-816-0	01	1	0607-0612			●
25	06.168 ARM; UPR CONT	8-98021-653-0	01	1	0701-			●
25	06.168 ARM; UPR CONT FRT INDEPENDENT SUSPENSION(6PP)	8-97076-004-3	01	1	0302-0606			●
25	06.168 ARM; UPR CONT	8-97354-494-4	01	1	0607-0612			●
25	06.168 ARM; UPR CONT	8-98021-652-0	01	1	0701-			●
45	06.164 BUSHING; UPR LINK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97089-934-3	04	1	0302-0404			●
45	06.164 BUSHING; UPR LINK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97089-934-3	04	1	0405-0606			●
45	06.164 BUSHING; UPR LINK,FRT	8-97188-369-0	04	1	0607-			●
47	07.412 SPRING; COIL,FRT SUSP	8-97357-109-1	02	1	0607-			●
48	06.174 JOINT ASM; BALL,LWR CONT ARM FRT INDEPENDENT SUSPENSION(6PP)	8-97142-452-1	02	1	0511-0606			●
48	06.174 JOINT ASM; BALL,LWR CONT ARM	8-97142-452-1	02	1	0607-			●
54	06.174 PIN; FULCRUM,LWR LINK	8-97367-092-1	02	1	0607-0610			●
54	06.174 PIN; FULCRUM,LWR LINK	8-98021-826-1	02	1	0611-			●
58	06.170 BUSHING; LWR LINK (B)	8-97188-368-1	02	1	0607-0610			●
58	06.170 BUSHING; LWR LINK (B)	8-98009-049-1	02	1	0611-			●
58	06.170 BUSHING; LWR LINK FRT INDEPENDENT SUSPENSION(6PP) (A)	8-94336-509-1	02	1	0302-0606			●
58	06.170 BUSHING; LWR LINK (A)	8-94336-509-1	02	1	0607-			●
62	07.345 ABSORBER ASM; SHOCK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97253-592-0	02	1	0302-0606			●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97369-637-1	02	1	0607-1201			●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-98197-654-0	02	1	1202-			●
62	07.345 ABSORBER ASM; SHOCK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97253-602-1	02	1	0302-	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97253-605-1	02	1	0302-	●	●
68	07.388 BUSHING; S/ABS	8-97370-319-0	02	1	0607-1201			●
68	07.388 BUSHING; S/ABS	8-98197-281-0	02	1	1202-			●
68	07.388 BUSHING; S/ABS 07.347 TOKICO	8-94224-694-0	02	1	0302-	●	●
77	06.174 PIN; SPLIT,LINK END TO KNUCKLE FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30	9-08114-030-0	02	1	0302-0606			●
77	06.174 PIN; SPLIT,LINK END TO KNUCKLE 09.023 OD=3.7 L=30	9-08114-030-0	04	1	0607-0607			●
77	06.174 PIN; SPLIT,LINK END TO KNUCKLE 05.812 OD=3.7 L=30	0-81124-030-0	04	1	0607-			●
80	06.174 NUT; LWR LINK END TO KNUCKLE FRT INDEPENDENT SUSPENSION(6PP) 08.915 (A) M22	9-09111-522-0	02	1	0302-0512			●
80	06.174 NUT; LWR LINK END TO KNUCKLE FRT INDEPENDENT SUSPENSION(6PP) 06.861 (A) M22	0-91111-522-0	02	1	0601-0606			●
80	06.174 NUT; LWR LINK END TO KNUCKLE 06.861 (A) M22	0-91111-522-0	02	1	0607-			●
80	06.174 NUT; LWR LINK END TO KNUCKLE FRT INDEPENDENT SUSPENSION(6PP) 04.681 (B) M16	9-99111-516-0	02	1	0511-0512			●
80	06.174 NUT; LWR LINK END TO KNUCKLE FRT INDEPENDENT SUSPENSION(6PP) 00.785 (B) M16	0-91111-516-0	02	1	0601-0606			●
80	06.174 NUT; LWR LINK END TO KNUCKLE 00.785 (B) M16	0-91111-516-0	02	1	0607-			●
84	06.168 ARM; LWR CONT FRT INDEPENDENT SUSPENSION(6PP)	8-97203-086-2	01	1	0302-0510			●
84	06.168 ARM; LWR CONT FRT INDEPENDENT SUSPENSION(6PP)	8-98025-503-0	01	1	0511-0606			●
84	06.168 ARM; LWR CONT	8-98035-044-0	01	1	0607-0610			●
84	06.168 ARM; LWR CONT	8-98001-260-0	01	1	0611-			●
84	06.168 ARM; LWR CONT FRT INDEPENDENT SUSPENSION(6PP)	8-97203-085-2	01	1	0302-0510			●
84	06.168 ARM; LWR CONT FRT INDEPENDENT SUSPENSION(6PP)	8-98025-502-0	01	1	0511-0606			●
84	06.168 ARM; LWR CONT	8-98035-043-0	01	1	0607-0610			●
84	06.168 ARM; LWR CONT	8-98001-259-0	01	1	0611-			●
86	06.174 WASHER; PL,LWR LINK FRT INDEPENDENT SUSPENSION(6PP) ID=23	9-09164-522-0	02	1	0302-0605			●
86	06.174 WASHER; PL,LWR LINK FRT INDEPENDENT SUSPENSION(6PP) ID=23	0-91614-522-0	02	1	0606-0606			●
86	06.174 WASHER; PL,LWR LINK ID=23	0-91614-522-0	04	1	0607-			●
96	06.174 BOLT; LWR LINK 4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE	0-28050-812-0	04	1	0607-			●
136	04.686 BRACKET; FLEX HOSE,FRT BRAKE	8-97369-636-1	01	1	0607-			●
136	04.686 BRACKET; FLEX HOSE,FRT BRAKE	8-97369-635-1	01	1	0607-			●
143	04.686 BOLT; BRKT,FLEX HOSE,FRT BRAKE 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0607-			●
152	06.172 NUT; LWR LINK TO FRT C/MBR FRT INDEPENDENT SUSPENSION(6PP) 05.813 M22	9-09110-522-0	02	1	0302-0512			●
152	06.172 NUT; LWR LINK TO FRT C/MBR FRT INDEPENDENT SUSPENSION(6PP) 07.172 M22	0-91110-522-0	02	1	0601-0606			●
152	06.172 NUT; LWR LINK TO FRT C/MBR 07.172 M22	0-91110-522-0	04	1	0607-			●
156	06.172 PIN; FULCRUM,FRT SUSPENSION	8-97367-091-1	02	1	0607-0610			●
156	06.172 PIN; FULCRUM,FRT SUSPENSION	8-98021-825-1	02	1	0611-			●
158	06.178 BOLT; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(6PP) M14X70	8-97072-665-1	08	1	0302-0606			●
158	06.178 BOLT; UPR LINK TO FRAME M16X70 FLANGE	0-28861-670-0	04	1	0607-			●
159	06.164 SHIM; CASTER ANGLE,FRT SUSPENSIO T=1.2	8-97367-184-0	AR	1	0607-0610			●
159	06.164 SHIM; CASTER ANGLE,FRT SUSPENSIO T=1.2	8-98029-250-0	AR	1	0611-			●
159	06.164 SHIM; CASTER ANGLE,FRT SUSPENSIO T=2.3	8-97367-185-0	AR	1	0607-0610			●
159	06.164 SHIM; CASTER ANGLE,FRT SUSPENSIO T=2.3	8-98029-251-0	AR	1	0611-			●
159	06.164 SHIM; CASTER ANGLE,FRT SUSPENSIO T=4.5	8-97367-186-0	AR	1	0607-0610			●
159	06.164 SHIM; CASTER ANGLE,FRT SUSPENSIO T=4.5	8-98029-252-0	AR	1	0611-			●
161	06.178 NUT ASM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(6PP) 06.168	8-97351-394-0	04	1	0302-0606			●
161	06.178 NUT ASM; UPR LINK TO FRAME 06.164 M16 FLANGE	0-91180-216-0	04	1	0607-			●
170	07.347 BOLT; S/ABS 00.029 M10X25 FLANGE	0-28651-025-0	02	1	0607-0610			●
170	07.347 BOLT; S/ABS 02.343 M10X20 FLANGE	0-28651-020-0	02	1	0611-			●
173	07.395 NUT; S/ABS FRT INDEPENDENT SUSPENSION(6PP) 06.606 (B) M12	8-94139-015-0	02	1	0302-0606			●
173	07.395 NUT; S/ABS 07.833 (C) M14	0-91110-514-0	02	1	0607-			●
173	07.395 NUT; S/ABS 06.822 (A) M10	9-09111-410-0	02	1	0302-0306	●	●	●
173	07.395 NUT; S/ABS 08.917 (B) M10 FLANGE	0-91150-210-0	04	1	0302-0506	●	●
173	07.395 NUT; S/ABS 08.917 (B) M10 FLANGE	0-91150-210-0	08	1	0507-0602	●	●
173	07.395 NUT; S/ABS 04.085 (B) M10 FLANGE	0-91180-210-0	08	1	0603-	●	●
174	07.347 WASHER; LK,S/ABS (B) ID=15.0	9-51679-012-0	02	1	0607-0611			●
174	07.347 WASHER; LK,S/ABS (B) ID=15	8-97360-056-0	02	1	0612-			●
174	07.347 WASHER; LK,S/ABS FRT INDEPENDENT SUSPENSION(6PP) 00.002 (A) ID=12.2	9-09150-812-0	02	1	0302-0603			●
174	07.347 WASHER; LK,S/ABS FRT INDEPENDENT SUSPENSION(6PP) (A) ID=12.2	0-91510-812-0	02	1	0604-0606			●
174	07.347 WASHER; LK,S/ABS (C) ID=21 OD=40	0-91614-620-0	02	1	0607-			●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98009-114-0	02	1	0607-			●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-94150-265-3	02	1	0302-0606	●	●
188	07.436 RUBBER; CLAMP,U-BOLT,FRT SPR	8-98033-515-0	02	1	0607-	●	●
211	07.347 WASHER; BRKT,SHOCK (A) ID=20.0	9-51679-013-0	02	1	0607-0611			●
211	07.347 WASHER; BRKT,SHOCK (A) ID=20.0	8-97360-057-0	02	1	0612-			●
211	07.347 WASHER; BRKT,SHOCK (B) ID=10.5	9-51679-603-0	02	1	0607-0611			●
211	07.347 WASHER; BRKT,SHOCK (B) ID=10.5	8-97360-058-0	02	1	0612-			●
257	07.346 NUT; CUSHION RUBBER 04.085 M10 FLANGE	0-91180-210-0	02	1	0607-			●
344	07.347 PIN; FRT S/ABS	8-97145-460-0	02	1	0607-			●
346	06.174 NUT; LINK END 06.861 (B) M18 SLOTTED	8-97017-761-0	02	1	0607-0610			●
346	06.174 NUT; LINK END (B) M18 SLOTTED	8-97245-632-0	02	1	0611-			●
346	06.174 NUT; LINK END FRT INDEPENDENT SUSPENSION(6PP) (A) M52	8-97076-036-0	02	1	0302-0606			●
346	06.174 NUT; LINK END (A) M52	8-97076-036-0	02	1	0607-0612			●
346	06.174 NUT; LINK END (A) M52	8-98021-784-0	02	1	0701-0909			●
346	06.174 NUT; LINK END (A) M52	8-98158-133-0	02	1	0910-			●
394	06.714 END ASM; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) 06.174	8-97107-328-0	02	1	0302-0606			●
394	06.714 END ASM; FRT AXLE	8-97327-369-5	02	1	0607-			●
441	07.420 SEAT; COIL SPR	8-97354-580-2	02	1	0607-			●
442	07.420 INSULATOR; COIL SPR	8-97354-550-1	02	1	0607-			●

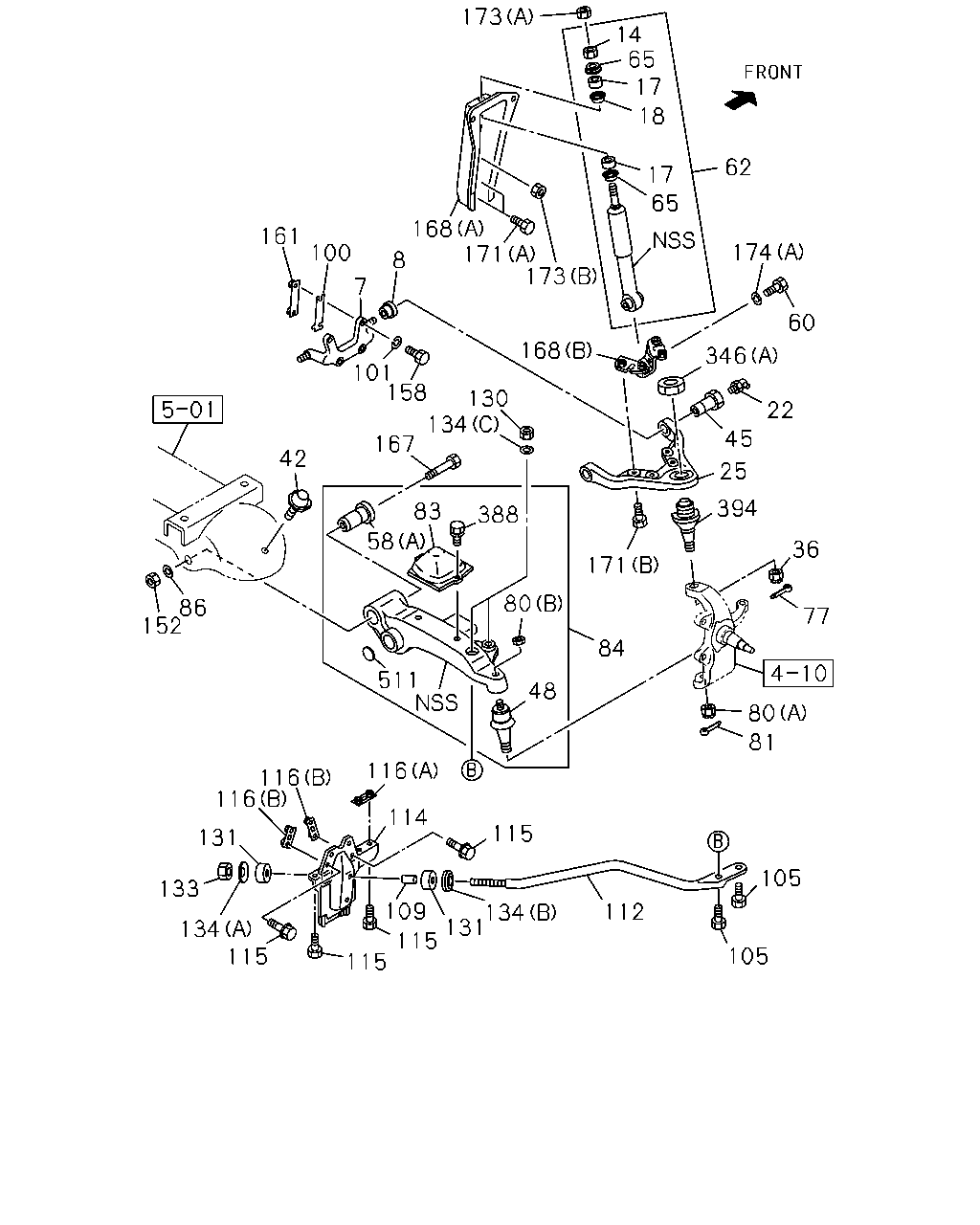

173 14 65 17 18 62 17 65 168 171 161 174 100 173 8 7 60 168 346 101 158 130 134 22 45 167 42 25 394 83 388 58 36 171 80 86 152 77 84 511 48 80 81 116 116 116 114 115 131 105 133 109 112 134 131 134 115 105 115 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	06.174 PIN; FULCRUM,UPR LINK FRT INDEPENDENT SUSPENSION(6PP)	8-94340-084-1	02	1	0302-0606			●
7	06.174 PIN; FULCRUM,UPR LINK	8-97354-500-0	02	1	0607-0612			●
7	06.174 PIN; FULCRUM,UPR LINK	8-98021-654-0	02	1	0701-			●
8	06.174 COVER; DUST,FULCRUM PIN,UPR LINK FRT INDEPENDENT SUSPENSION(6PP) 06.166	8-94233-208-1	04	1	0302-0404			●
8	06.174 COVER; DUST,FULCRUM PIN,UPR LINK FRT INDEPENDENT SUSPENSION(6PP) 06.166	8-94233-208-1	04	1	0405-0606			●
14	07.389 NUT; S/ABS,UPR FRT INDEPENDENT SUSPENSION(6PP) M10	8-94317-772-0	02	1	0302-0606			●
14	07.389 NUT; S/ABS,UPR M10	8-94317-772-0	02	1	0302-0606	●	●
14	07.389 NUT; S/ABS,UPR M10	8-94317-772-0	02	1	0607-	●	●
17	07.388 BUSHING; RUBBER,S/ABS	8-97370-319-0	02	1	0607-1201			●
17	07.388 BUSHING; RUBBER,S/ABS	8-98197-281-0	02	1	1202-			●
17	07.388 BUSHING; RUBBER,S/ABS FRT INDEPENDENT SUSPENSION(6PP) TOKICO	9-51631-603-0	04	1	0302-0606			●
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	0302-0606	●	●
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	0607-	●	●
18	07.347 WASHER; CENTERING,S/ABS FRT INDEPENDENT SUSPENSION(6PP) TOKICO	8-94412-791-0	02	1	0302-0606			●
22	06.166 NIPPLE; GREASE,LINK END FRT INDEPENDENT SUSPENSION(6PP) 05.556 PT1/8 ELBOW	9-09031-210-0	04	1	0302-0512			●
22	06.166 NIPPLE; GREASE,LINK END FRT INDEPENDENT SUSPENSION(6PP) 08.984 PT1/8 ELBOW	0-90301-610-0	04	1	0601-0606			●
25	06.168 ARM; UPR CONT FRT INDEPENDENT SUSPENSION(6PP)	8-97076-005-3	01	1	0302-0606			●
25	06.168 ARM; UPR CONT	8-97386-816-0	01	1	0607-0612			●
25	06.168 ARM; UPR CONT	8-98021-653-0	01	1	0701-			●
25	06.168 ARM; UPR CONT FRT INDEPENDENT SUSPENSION(6PP)	8-97076-004-3	01	1	0302-0606			●
25	06.168 ARM; UPR CONT	8-97354-494-4	01	1	0607-0612			●
25	06.168 ARM; UPR CONT	8-98021-652-0	01	1	0701-			●
36	06.174 NUT; UPR LINK END TO UPR LINK FRT INDEPENDENT SUSPENSION(6PP) 06.861 M18 SLOTTED	8-97017-761-0	02	1	0302-0606			●
42	06.176 RUBBER; REBOUND,FRT SUSPENSION FRT INDEPENDENT SUSPENSION(6PP)	8-97031-392-1	02	1	0302-0606			●
45	06.164 BUSHING; UPR LINK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97089-934-3	04	1	0302-0404			●
45	06.164 BUSHING; UPR LINK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97089-934-3	04	1	0405-0606			●
45	06.164 BUSHING; UPR LINK,FRT	8-97188-369-0	04	1	0607-			●
48	06.174 JOINT ASM; BALL,LWR CONT ARM FRT INDEPENDENT SUSPENSION(6PP)	8-97142-452-1	02	1	0511-0606			●
48	06.174 JOINT ASM; BALL,LWR CONT ARM	8-97142-452-1	02	1	0607-			●
58	06.170 BUSHING; LWR LINK (B)	8-97188-368-1	02	1	0607-0610			●
58	06.170 BUSHING; LWR LINK (B)	8-98009-049-1	02	1	0611-			●
58	06.170 BUSHING; LWR LINK FRT INDEPENDENT SUSPENSION(6PP) (A)	8-94336-509-1	02	1	0302-0606			●
58	06.170 BUSHING; LWR LINK (A)	8-94336-509-1	02	1	0607-			●
60	07.347 BOLT; S/ABS TO LWR LINK FRT INDEPENDENT SUSPENSION(6PP) 04.083 M12X70	0-10806-270-0	02	1	0302-0512			●
60	07.347 BOLT; S/ABS TO LWR LINK FRT INDEPENDENT SUSPENSION(6PP) M12X70	0-10856-270-0	02	1	0601-0606			●
62	07.345 ABSORBER ASM; SHOCK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97253-592-0	02	1	0302-0606			●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97369-637-1	02	1	0607-1201			●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-98197-654-0	02	1	1202-			●
62	07.345 ABSORBER ASM; SHOCK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97253-602-1	02	1	0302-	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97253-605-1	02	1	0302-	●	●
65	07.347 WASHER; S/ABS FRT INDEPENDENT SUSPENSION(6PP) OD=40	9-51631-614-0	04	1	0302-0606			●
65	07.347 WASHER; S/ABS 07.245 ID=10.5 OD=38	9-51631-062-0	04	1	0302-	●	●
77	06.174 PIN; SPLIT,LINK END TO KNUCKLE FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30	9-08114-030-0	02	1	0302-0606			●
77	06.174 PIN; SPLIT,LINK END TO KNUCKLE 09.023 OD=3.7 L=30	9-08114-030-0	04	1	0607-0607			●
77	06.174 PIN; SPLIT,LINK END TO KNUCKLE 05.812 OD=3.7 L=30	0-81124-030-0	04	1	0607-			●
80	06.174 NUT; LWR LINK END TO KNUCKLE FRT INDEPENDENT SUSPENSION(6PP) 08.915 (A) M22	9-09111-522-0	02	1	0302-0512			●
80	06.174 NUT; LWR LINK END TO KNUCKLE FRT INDEPENDENT SUSPENSION(6PP) 06.861 (A) M22	0-91111-522-0	02	1	0601-0606			●
80	06.174 NUT; LWR LINK END TO KNUCKLE 06.861 (A) M22	0-91111-522-0	02	1	0607-			●
80	06.174 NUT; LWR LINK END TO KNUCKLE FRT INDEPENDENT SUSPENSION(6PP) 04.681 (B) M16	9-99111-516-0	02	1	0511-0512			●
80	06.174 NUT; LWR LINK END TO KNUCKLE FRT INDEPENDENT SUSPENSION(6PP) 00.785 (B) M16	0-91111-516-0	02	1	0601-0606			●
80	06.174 NUT; LWR LINK END TO KNUCKLE 00.785 (B) M16	0-91111-516-0	02	1	0607-			●
81	06.174 PIN; SPLIT,LWR LINK TO KNUCKLE FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30	9-08114-030-0	02	1	0302-0606			●
83	06.174 RUBBER; BUMPER,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97031-391-1	02	1	0302-0606			●
84	06.168 ARM; LWR CONT FRT INDEPENDENT SUSPENSION(6PP)	8-97203-086-2	01	1	0302-0510			●
84	06.168 ARM; LWR CONT FRT INDEPENDENT SUSPENSION(6PP)	8-98025-503-0	01	1	0511-0606			●
84	06.168 ARM; LWR CONT	8-98035-044-0	01	1	0607-0610			●
84	06.168 ARM; LWR CONT	8-98001-260-0	01	1	0611-			●
84	06.168 ARM; LWR CONT FRT INDEPENDENT SUSPENSION(6PP)	8-97203-085-2	01	1	0302-0510			●
84	06.168 ARM; LWR CONT FRT INDEPENDENT SUSPENSION(6PP)	8-98025-502-0	01	1	0511-0606			●
84	06.168 ARM; LWR CONT	8-98035-043-0	01	1	0607-0610			●
84	06.168 ARM; LWR CONT	8-98001-259-0	01	1	0611-			●
86	06.174 WASHER; PL,LWR LINK FRT INDEPENDENT SUSPENSION(6PP) ID=23	9-09164-522-0	02	1	0302-0605			●
86	06.174 WASHER; PL,LWR LINK FRT INDEPENDENT SUSPENSION(6PP) ID=23	0-91614-522-0	02	1	0606-0606			●
86	06.174 WASHER; PL,LWR LINK ID=23	0-91614-522-0	04	1	0607-			●
100	06.164 SHIM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(6PP) T=1.6	8-94341-343-3	AR	1	0302-0606			●
100	06.164 SHIM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(6PP) T=3.2	8-94341-344-2	AR	1	0302-0606			●
100	06.164 SHIM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(6PP) T=0.8	8-97020-095-2	AR	1	0302-0606			●
101	06.174 WASHER; LK,UPR LINK FRT INDEPENDENT SUSPENSION(6PP) 05.422 ID=14.2	9-09150-814-0	08	1	0302-0603			●
101	06.174 WASHER; LK,UPR LINK FRT INDEPENDENT SUSPENSION(6PP) ID=14.2	0-91510-814-0	08	1	0604-0606			●
105	07.172 BOLT; STRUT BAR TO LWR LINK FRT INDEPENDENT SUSPENSION(6PP) EXC. KD PREPARATORY PACK<6HF> M16X60	8-97076-846-1	02	1	0302-0606			●
105	07.172 BOLT; STRUT BAR TO LWR LINK FRT INDEPENDENT SUSPENSION(6PP) EXC. KD PREPARATORY PACK<6HF> M16X70	8-97215-586-0	02	1	0302-0606			●
105	07.172 BOLT; STRUT BAR TO LWR LINK KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) 08.900 M16X40	9-92061-640-0	02	1	0302-0512			●
105	07.172 BOLT; STRUT BAR TO LWR LINK KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) M16X40	0-20951-640-0	02	1	0601-0606			●
105	07.172 BOLT; STRUT BAR TO LWR LINK KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) 07.428 M16X50	9-92061-650-0	02	1	0302-0512			●
105	07.172 BOLT; STRUT BAR TO LWR LINK KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) M16X50	0-20951-650-0	02	1	0601-0606			●
109	06.168 TUBE; DIST,STRUT BAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-94336-504-0	02	1	0302-0506			●
109	06.168 TUBE; DIST,STRUT BAR 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP)	8-94336-504-0	02	1	0507-0606			●
112	06.168 BAR; STRUT 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97031-376-2	01	1	0302-0506			●
112	06.168 BAR; STRUT 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP)	8-97031-376-2	01	1	0507-0606			●
112	06.168 BAR; STRUT 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97031-375-2	01	1	0302-0506			●
112	06.168 BAR; STRUT 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP)	8-97031-375-2	01	1	0507-0606			●
114	06.168 BRACKET; SUPPORT,STRUT BAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97031-380-3	01	1	0302-0506			●
114	06.168 BRACKET; SUPPORT,STRUT BAR 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP)	8-97031-380-3	01	1	0507-0606			●
114	06.168 BRACKET; SUPPORT,STRUT BAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97105-693-2	01	1	0302-0506			●
114	06.168 BRACKET; SUPPORT,STRUT BAR 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP)	8-97105-693-2	01	1	0507-0606			●
115	06.168 BOLT; SUPPORT BRKT TO BODY FRT INDEPENDENT SUSPENSION(6PP) M12X35	8-97016-102-2	14	1	0302-0606			●
116	06.168 NUT ASM; BRKT FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97351-391-0	02	1	0302-0606			●
116	06.168 NUT ASM; BRKT FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97351-392-0	04	1	0302-0606			●
130	07.172 NUT; STRUT BAR TO LWR LINK FRT INDEPENDENT SUSPENSION(6PP) EXC. KD PREPARATORY PACK<6HF> 07.529 M16 FLANGE	8-97147-389-0	04	1	0302-0606			●
130	07.172 NUT; STRUT BAR TO LWR LINK KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) 08.915 M16	9-99110-516-0	04	1	0302-0512			●
130	07.172 NUT; STRUT BAR TO LWR LINK KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) 06.509 M16	0-91110-516-0	04	1	0601-0606			●
131	07.170 RUBBER; CUSHION,STRUT BAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97075-603-0	04	1	0302-0506			●
131	07.170 RUBBER; CUSHION,STRUT BAR 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP)	8-97075-603-0	04	1	0507-0606			●
133	07.172 NUT; STRUT BAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 05.813 M22	9-09110-522-0	04	1	0302-0506			●
133	07.172 NUT; STRUT BAR 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 05.813 M22	9-09110-522-0	04	1	0507-0512			●
133	07.172 NUT; STRUT BAR 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) M22	0-91110-522-0	04	1	0601-0606			●
134	07.172 WASHER; STRUT BAR KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) (C) ID=16.5	8-97070-925-1	04	1	0302-0606			●
134	07.172 WASHER; STRUT BAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A) OD=66 ID=22	8-97031-208-0	02	1	0302-0506			●
134	07.172 WASHER; STRUT BAR 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (A) OD=66 ID=22	8-97031-208-0	02	1	0507-0606			●
134	07.172 WASHER; STRUT BAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97035-568-0	02	1	0302-0506			●
134	07.172 WASHER; STRUT BAR 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97035-568-0	02	1	0507-0606			●
152	06.172 NUT; LWR LINK TO FRT C/MBR FRT INDEPENDENT SUSPENSION(6PP) 05.813 M22	9-09110-522-0	02	1	0302-0512			●
152	06.172 NUT; LWR LINK TO FRT C/MBR FRT INDEPENDENT SUSPENSION(6PP) 07.172 M22	0-91110-522-0	02	1	0601-0606			●
152	06.172 NUT; LWR LINK TO FRT C/MBR 07.172 M22	0-91110-522-0	04	1	0607-			●
158	06.178 BOLT; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(6PP) M14X70	8-97072-665-1	08	1	0302-0606			●
158	06.178 BOLT; UPR LINK TO FRAME M16X70 FLANGE	0-28861-670-0	04	1	0607-			●
161	06.178 NUT ASM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(6PP) 06.168	8-97351-394-0	04	1	0302-0606			●
161	06.178 NUT ASM; UPR LINK TO FRAME 06.164 M16 FLANGE	0-91180-216-0	04	1	0607-			●
167	06.178 BOLT; LWR LINK TO FRT C/MBR FRT INDEPENDENT SUSPENSION(6PP) M22X135	8-94374-671-1	02	1	0302-0606			●
168	07.380 BRACKET; S/ABS,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97031-383-2	02	1	0302-0606			●
168	07.380 BRACKET; S/ABS,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-000-1	02	1	0302-0606			●
168	07.380 BRACKET; S/ABS,FRT SUSP (A)	8-97316-003-1	01	1	0302-0506	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP (A)	8-97367-173-1	01	1	0507-	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP (A)	8-97316-002-1	01	1	0302-0308	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. SHIMMY DAMPER<S3V> (A)	8-97316-002-1	01	1	0309-0506	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. SHIMMY DAMPER<S3V> (A)	8-97367-171-1	01	1	0507-	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP SHIMMY DAMPER<S3V> 03.780 (A)	8-97373-431-0	01	1	0309-0506	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP SHIMMY DAMPER<S3V> (A)	8-97367-172-1	01	1	0507-	●	●
171	07.395 BOLT; S/ABS BRKT FRT INDEPENDENT SUSPENSION(6PP) (B) M10X35 FLANGE	0-28091-035-0	08	1	0302-0512			●
171	07.395 BOLT; S/ABS BRKT FRT INDEPENDENT SUSPENSION(6PP) (B) M10X35 FLANGE	0-28061-035-0	08	1	0601-0606			●
171	07.395 BOLT; S/ABS BRKT FRT INDEPENDENT SUSPENSION(6PP) (A) M12X30 FLANGE	0-28681-230-0	04	1	0302-0512			●
171	07.395 BOLT; S/ABS BRKT FRT INDEPENDENT SUSPENSION(6PP) (A) M12X30 FLANGE	0-28651-230-0	04	1	0601-0606			●
171	07.395 BOLT; S/ABS BRKT 03.405 (A) M10X30 FLANGE	0-28681-030-0	08	1	0302-0512	●	●
171	07.395 BOLT; S/ABS BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	08	1	0601-	●	●
173	07.395 NUT; S/ABS FRT INDEPENDENT SUSPENSION(6PP) 06.606 (B) M12	8-94139-015-0	02	1	0302-0606			●
173	07.395 NUT; S/ABS 07.833 (C) M14	0-91110-514-0	02	1	0607-			●
173	07.395 NUT; S/ABS 06.822 (A) M10	9-09111-410-0	02	1	0302-0306	●	●	●
173	07.395 NUT; S/ABS 08.917 (B) M10 FLANGE	0-91150-210-0	04	1	0302-0506	●	●
173	07.395 NUT; S/ABS 08.917 (B) M10 FLANGE	0-91150-210-0	08	1	0507-0602	●	●
173	07.395 NUT; S/ABS 04.085 (B) M10 FLANGE	0-91180-210-0	08	1	0603-	●	●
174	07.347 WASHER; LK,S/ABS (B) ID=15.0	9-51679-012-0	02	1	0607-0611			●
174	07.347 WASHER; LK,S/ABS (B) ID=15	8-97360-056-0	02	1	0612-			●
174	07.347 WASHER; LK,S/ABS FRT INDEPENDENT SUSPENSION(6PP) 00.002 (A) ID=12.2	9-09150-812-0	02	1	0302-0603			●
174	07.347 WASHER; LK,S/ABS FRT INDEPENDENT SUSPENSION(6PP) (A) ID=12.2	0-91510-812-0	02	1	0604-0606			●
174	07.347 WASHER; LK,S/ABS (C) ID=21 OD=40	0-91614-620-0	02	1	0607-			●
346	06.174 NUT; LINK END 06.861 (B) M18 SLOTTED	8-97017-761-0	02	1	0607-0610			●
346	06.174 NUT; LINK END (B) M18 SLOTTED	8-97245-632-0	02	1	0611-			●
346	06.174 NUT; LINK END FRT INDEPENDENT SUSPENSION(6PP) (A) M52	8-97076-036-0	02	1	0302-0606			●
346	06.174 NUT; LINK END (A) M52	8-97076-036-0	02	1	0607-0612			●
346	06.174 NUT; LINK END (A) M52	8-98021-784-0	02	1	0701-0909			●
346	06.174 NUT; LINK END (A) M52	8-98158-133-0	02	1	0910-			●
388	06.174 BOLT; BUMP RUBBER FRT INDEPENDENT SUSPENSION(6PP) 08.900 M8X20 W/LK WASHER	0-50040-820-0	04	1	0302-0606			●
394	06.714 END ASM; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) 06.174	8-97107-328-0	02	1	0302-0606			●
394	06.714 END ASM; FRT AXLE	8-97327-369-5	02	1	0607-			●
511	07.347 PLUG FRT INDEPENDENT SUSPENSION(6PP)	8-98030-361-0	02	1	0511-0606			●

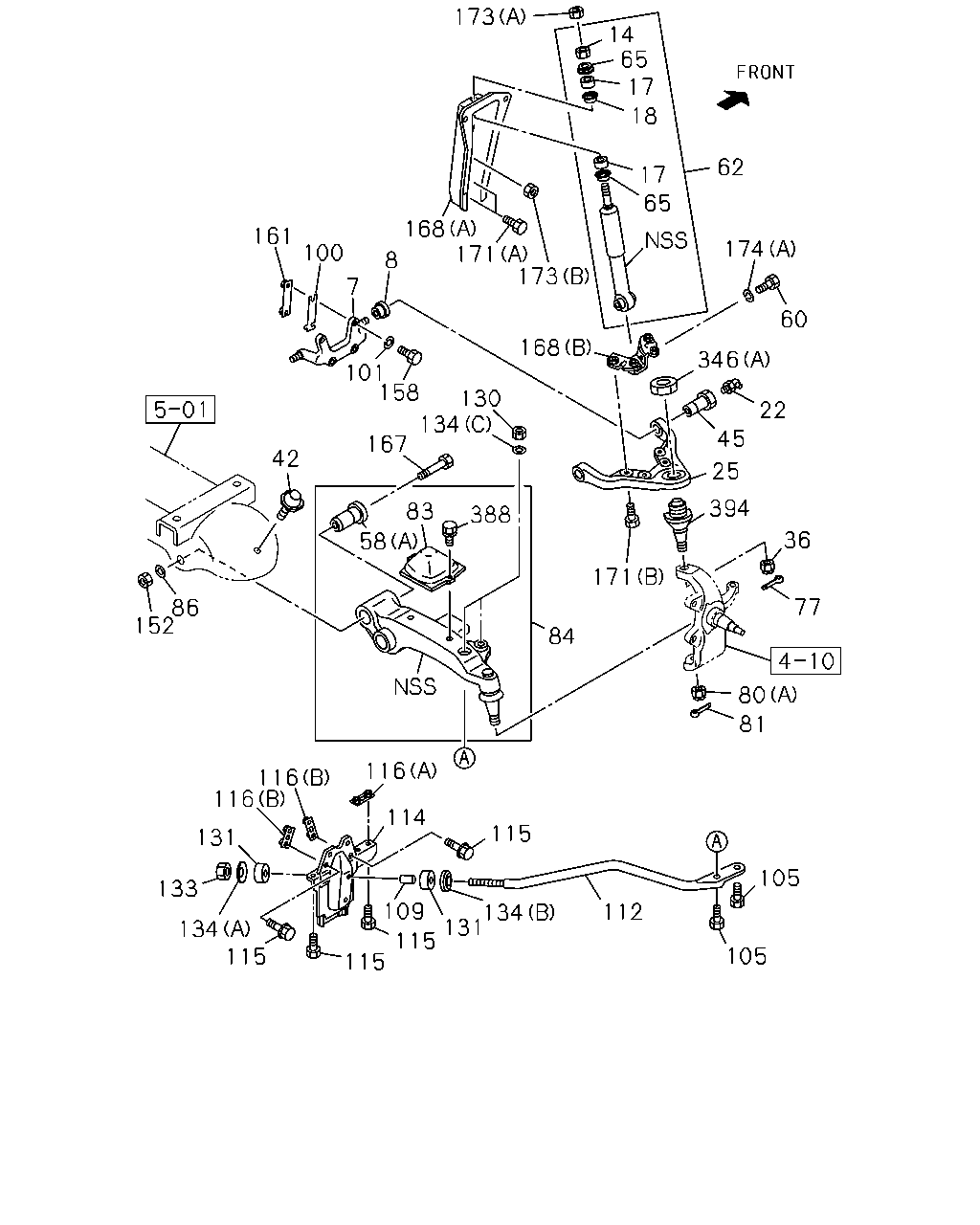

173 14 65 17 18 62 17 65 168 171 161 174 100 173 8 7 60 168 346 101 158 130 134 22 45 167 42 25 394 83 388 36 58 171 77 86 152 84 80 81 116 116 116 114 115 131 105 133 109 112 134 131 134 115 105 115 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
7	06.174 PIN; FULCRUM,UPR LINK FRT INDEPENDENT SUSPENSION(6PP)	8-94340-084-1	02	1	0302-0606			●
7	06.174 PIN; FULCRUM,UPR LINK	8-97354-500-0	02	1	0607-0612			●
7	06.174 PIN; FULCRUM,UPR LINK	8-98021-654-0	02	1	0701-			●
8	06.174 COVER; DUST,FULCRUM PIN,UPR LINK FRT INDEPENDENT SUSPENSION(6PP) 06.166	8-94233-208-1	04	1	0302-0404			●
8	06.174 COVER; DUST,FULCRUM PIN,UPR LINK FRT INDEPENDENT SUSPENSION(6PP) 06.166	8-94233-208-1	04	1	0405-0606			●
14	07.389 NUT; S/ABS,UPR FRT INDEPENDENT SUSPENSION(6PP) M10	8-94317-772-0	02	1	0302-0606			●
14	07.389 NUT; S/ABS,UPR M10	8-94317-772-0	02	1	0302-0606	●	●
14	07.389 NUT; S/ABS,UPR M10	8-94317-772-0	02	1	0607-	●	●
17	07.388 BUSHING; RUBBER,S/ABS	8-97370-319-0	02	1	0607-1201			●
17	07.388 BUSHING; RUBBER,S/ABS	8-98197-281-0	02	1	1202-			●
17	07.388 BUSHING; RUBBER,S/ABS FRT INDEPENDENT SUSPENSION(6PP) TOKICO	9-51631-603-0	04	1	0302-0606			●
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	0302-0606	●	●
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	0607-	●	●
18	07.347 WASHER; CENTERING,S/ABS FRT INDEPENDENT SUSPENSION(6PP) TOKICO	8-94412-791-0	02	1	0302-0606			●
22	06.166 NIPPLE; GREASE,LINK END FRT INDEPENDENT SUSPENSION(6PP) 05.556 PT1/8 ELBOW	9-09031-210-0	04	1	0302-0512			●
22	06.166 NIPPLE; GREASE,LINK END FRT INDEPENDENT SUSPENSION(6PP) 08.984 PT1/8 ELBOW	0-90301-610-0	04	1	0601-0606			●
25	06.168 ARM; UPR CONT FRT INDEPENDENT SUSPENSION(6PP)	8-97076-005-3	01	1	0302-0606			●
25	06.168 ARM; UPR CONT	8-97386-816-0	01	1	0607-0612			●
25	06.168 ARM; UPR CONT	8-98021-653-0	01	1	0701-			●
25	06.168 ARM; UPR CONT FRT INDEPENDENT SUSPENSION(6PP)	8-97076-004-3	01	1	0302-0606			●
25	06.168 ARM; UPR CONT	8-97354-494-4	01	1	0607-0612			●
25	06.168 ARM; UPR CONT	8-98021-652-0	01	1	0701-			●
36	06.174 NUT; UPR LINK END TO UPR LINK FRT INDEPENDENT SUSPENSION(6PP) 06.861 M18 SLOTTED	8-97017-761-0	02	1	0302-0606			●
42	06.176 RUBBER; REBOUND,FRT SUSPENSION FRT INDEPENDENT SUSPENSION(6PP)	8-97031-392-1	02	1	0302-0606			●
45	06.164 BUSHING; UPR LINK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97089-934-3	04	1	0302-0404			●
45	06.164 BUSHING; UPR LINK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97089-934-3	04	1	0405-0606			●
45	06.164 BUSHING; UPR LINK,FRT	8-97188-369-0	04	1	0607-			●
58	06.170 BUSHING; LWR LINK (B)	8-97188-368-1	02	1	0607-0610			●
58	06.170 BUSHING; LWR LINK (B)	8-98009-049-1	02	1	0611-			●
58	06.170 BUSHING; LWR LINK FRT INDEPENDENT SUSPENSION(6PP) (A)	8-94336-509-1	02	1	0302-0606			●
58	06.170 BUSHING; LWR LINK (A)	8-94336-509-1	02	1	0607-			●
60	07.347 BOLT; S/ABS TO LWR LINK FRT INDEPENDENT SUSPENSION(6PP) 04.083 M12X70	0-10806-270-0	02	1	0302-0512			●
60	07.347 BOLT; S/ABS TO LWR LINK FRT INDEPENDENT SUSPENSION(6PP) M12X70	0-10856-270-0	02	1	0601-0606			●
62	07.345 ABSORBER ASM; SHOCK,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97253-592-0	02	1	0302-0606			●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-97369-637-1	02	1	0607-1201			●
62	07.345 ABSORBER ASM; SHOCK,FRT	8-98197-654-0	02	1	1202-			●
62	07.345 ABSORBER ASM; SHOCK,FRT 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97253-602-1	02	1	0302-	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>	8-97253-605-1	02	1	0302-	●	●
65	07.347 WASHER; S/ABS FRT INDEPENDENT SUSPENSION(6PP) OD=40	9-51631-614-0	04	1	0302-0606			●
65	07.347 WASHER; S/ABS 07.245 ID=10.5 OD=38	9-51631-062-0	04	1	0302-	●	●
77	06.174 PIN; SPLIT,LINK END TO KNUCKLE FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30	9-08114-030-0	02	1	0302-0606			●
77	06.174 PIN; SPLIT,LINK END TO KNUCKLE 09.023 OD=3.7 L=30	9-08114-030-0	04	1	0607-0607			●
77	06.174 PIN; SPLIT,LINK END TO KNUCKLE 05.812 OD=3.7 L=30	0-81124-030-0	04	1	0607-			●
80	06.174 NUT; LWR LINK END TO KNUCKLE FRT INDEPENDENT SUSPENSION(6PP) 08.915 (A) M22	9-09111-522-0	02	1	0302-0512			●
80	06.174 NUT; LWR LINK END TO KNUCKLE FRT INDEPENDENT SUSPENSION(6PP) 06.861 (A) M22	0-91111-522-0	02	1	0601-0606			●
80	06.174 NUT; LWR LINK END TO KNUCKLE 06.861 (A) M22	0-91111-522-0	02	1	0607-			●
80	06.174 NUT; LWR LINK END TO KNUCKLE FRT INDEPENDENT SUSPENSION(6PP) 04.681 (B) M16	9-99111-516-0	02	1	0511-0512			●
80	06.174 NUT; LWR LINK END TO KNUCKLE FRT INDEPENDENT SUSPENSION(6PP) 00.785 (B) M16	0-91111-516-0	02	1	0601-0606			●
80	06.174 NUT; LWR LINK END TO KNUCKLE 00.785 (B) M16	0-91111-516-0	02	1	0607-			●
81	06.174 PIN; SPLIT,LWR LINK TO KNUCKLE FRT INDEPENDENT SUSPENSION(6PP) 09.023 OD=3.7 L=30	9-08114-030-0	02	1	0302-0606			●
83	06.174 RUBBER; BUMPER,FRT FRT INDEPENDENT SUSPENSION(6PP)	8-97031-391-1	02	1	0302-0606			●
84	06.168 ARM; LWR CONT FRT INDEPENDENT SUSPENSION(6PP)	8-97203-086-2	01	1	0302-0510			●
84	06.168 ARM; LWR CONT FRT INDEPENDENT SUSPENSION(6PP)	8-98025-503-0	01	1	0511-0606			●
84	06.168 ARM; LWR CONT	8-98035-044-0	01	1	0607-0610			●
84	06.168 ARM; LWR CONT	8-98001-260-0	01	1	0611-			●
84	06.168 ARM; LWR CONT FRT INDEPENDENT SUSPENSION(6PP)	8-97203-085-2	01	1	0302-0510			●
84	06.168 ARM; LWR CONT FRT INDEPENDENT SUSPENSION(6PP)	8-98025-502-0	01	1	0511-0606			●
84	06.168 ARM; LWR CONT	8-98035-043-0	01	1	0607-0610			●
84	06.168 ARM; LWR CONT	8-98001-259-0	01	1	0611-			●
86	06.174 WASHER; PL,LWR LINK FRT INDEPENDENT SUSPENSION(6PP) ID=23	9-09164-522-0	02	1	0302-0605			●
86	06.174 WASHER; PL,LWR LINK FRT INDEPENDENT SUSPENSION(6PP) ID=23	0-91614-522-0	02	1	0606-0606			●
86	06.174 WASHER; PL,LWR LINK ID=23	0-91614-522-0	04	1	0607-			●
100	06.164 SHIM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(6PP) T=1.6	8-94341-343-3	AR	1	0302-0606			●
100	06.164 SHIM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(6PP) T=3.2	8-94341-344-2	AR	1	0302-0606			●
100	06.164 SHIM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(6PP) T=0.8	8-97020-095-2	AR	1	0302-0606			●
101	06.174 WASHER; LK,UPR LINK FRT INDEPENDENT SUSPENSION(6PP) 05.422 ID=14.2	9-09150-814-0	08	1	0302-0603			●
101	06.174 WASHER; LK,UPR LINK FRT INDEPENDENT SUSPENSION(6PP) ID=14.2	0-91510-814-0	08	1	0604-0606			●
105	07.172 BOLT; STRUT BAR TO LWR LINK FRT INDEPENDENT SUSPENSION(6PP) EXC. KD PREPARATORY PACK<6HF> M16X60	8-97076-846-1	02	1	0302-0606			●
105	07.172 BOLT; STRUT BAR TO LWR LINK FRT INDEPENDENT SUSPENSION(6PP) EXC. KD PREPARATORY PACK<6HF> M16X70	8-97215-586-0	02	1	0302-0606			●
105	07.172 BOLT; STRUT BAR TO LWR LINK KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) 08.900 M16X40	9-92061-640-0	02	1	0302-0512			●
105	07.172 BOLT; STRUT BAR TO LWR LINK KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) M16X40	0-20951-640-0	02	1	0601-0606			●
105	07.172 BOLT; STRUT BAR TO LWR LINK KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) 07.428 M16X50	9-92061-650-0	02	1	0302-0512			●
105	07.172 BOLT; STRUT BAR TO LWR LINK KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) M16X50	0-20951-650-0	02	1	0601-0606			●
109	06.168 TUBE; DIST,STRUT BAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-94336-504-0	02	1	0302-0506			●
109	06.168 TUBE; DIST,STRUT BAR 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP)	8-94336-504-0	02	1	0507-0606			●
112	06.168 BAR; STRUT 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97031-376-2	01	1	0302-0506			●
112	06.168 BAR; STRUT 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP)	8-97031-376-2	01	1	0507-0606			●
112	06.168 BAR; STRUT 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97031-375-2	01	1	0302-0506			●
112	06.168 BAR; STRUT 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP)	8-97031-375-2	01	1	0507-0606			●
114	06.168 BRACKET; SUPPORT,STRUT BAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97031-380-3	01	1	0302-0506			●
114	06.168 BRACKET; SUPPORT,STRUT BAR 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP)	8-97031-380-3	01	1	0507-0606			●
114	06.168 BRACKET; SUPPORT,STRUT BAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97105-693-2	01	1	0302-0506			●
114	06.168 BRACKET; SUPPORT,STRUT BAR 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP)	8-97105-693-2	01	1	0507-0606			●
115	06.168 BOLT; SUPPORT BRKT TO BODY FRT INDEPENDENT SUSPENSION(6PP) M12X35	8-97016-102-2	14	1	0302-0606			●
116	06.168 NUT ASM; BRKT FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97351-391-0	02	1	0302-0606			●
116	06.168 NUT ASM; BRKT FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97351-392-0	04	1	0302-0606			●
130	07.172 NUT; STRUT BAR TO LWR LINK FRT INDEPENDENT SUSPENSION(6PP) EXC. KD PREPARATORY PACK<6HF> 07.529 M16 FLANGE	8-97147-389-0	04	1	0302-0606			●
130	07.172 NUT; STRUT BAR TO LWR LINK KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) 08.915 M16	9-99110-516-0	04	1	0302-0512			●
130	07.172 NUT; STRUT BAR TO LWR LINK KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) 06.509 M16	0-91110-516-0	04	1	0601-0606			●
131	07.170 RUBBER; CUSHION,STRUT BAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97075-603-0	04	1	0302-0506			●
131	07.170 RUBBER; CUSHION,STRUT BAR 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP)	8-97075-603-0	04	1	0507-0606			●
133	07.172 NUT; STRUT BAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 05.813 M22	9-09110-522-0	04	1	0302-0506			●
133	07.172 NUT; STRUT BAR 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 05.813 M22	9-09110-522-0	04	1	0507-0512			●
133	07.172 NUT; STRUT BAR 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) M22	0-91110-522-0	04	1	0601-0606			●
134	07.172 WASHER; STRUT BAR KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) (C) ID=16.5	8-97070-925-1	04	1	0302-0606			●
134	07.172 WASHER; STRUT BAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A) OD=66 ID=22	8-97031-208-0	02	1	0302-0506			●
134	07.172 WASHER; STRUT BAR 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (A) OD=66 ID=22	8-97031-208-0	02	1	0507-0606			●
134	07.172 WASHER; STRUT BAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97035-568-0	02	1	0302-0506			●
134	07.172 WASHER; STRUT BAR 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97035-568-0	02	1	0507-0606			●
152	06.172 NUT; LWR LINK TO FRT C/MBR FRT INDEPENDENT SUSPENSION(6PP) 05.813 M22	9-09110-522-0	02	1	0302-0512			●
152	06.172 NUT; LWR LINK TO FRT C/MBR FRT INDEPENDENT SUSPENSION(6PP) 07.172 M22	0-91110-522-0	02	1	0601-0606			●
152	06.172 NUT; LWR LINK TO FRT C/MBR 07.172 M22	0-91110-522-0	04	1	0607-			●
158	06.178 BOLT; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(6PP) M14X70	8-97072-665-1	08	1	0302-0606			●
158	06.178 BOLT; UPR LINK TO FRAME M16X70 FLANGE	0-28861-670-0	04	1	0607-			●
161	06.178 NUT ASM; UPR LINK TO FRAME FRT INDEPENDENT SUSPENSION(6PP) 06.168	8-97351-394-0	04	1	0302-0606			●
161	06.178 NUT ASM; UPR LINK TO FRAME 06.164 M16 FLANGE	0-91180-216-0	04	1	0607-			●
167	06.178 BOLT; LWR LINK TO FRT C/MBR FRT INDEPENDENT SUSPENSION(6PP) M22X135	8-94374-671-1	02	1	0302-0606			●
168	07.380 BRACKET; S/ABS,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97031-383-2	02	1	0302-0606			●
168	07.380 BRACKET; S/ABS,FRT SUSP FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-000-1	02	1	0302-0606			●
168	07.380 BRACKET; S/ABS,FRT SUSP (A)	8-97316-003-1	01	1	0302-0506	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP (A)	8-97367-173-1	01	1	0507-	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP (A)	8-97316-002-1	01	1	0302-0308	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. SHIMMY DAMPER<S3V> (A)	8-97316-002-1	01	1	0309-0506	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP EXC. SHIMMY DAMPER<S3V> (A)	8-97367-171-1	01	1	0507-	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP SHIMMY DAMPER<S3V> 03.780 (A)	8-97373-431-0	01	1	0309-0506	●	●
168	07.380 BRACKET; S/ABS,FRT SUSP SHIMMY DAMPER<S3V> (A)	8-97367-172-1	01	1	0507-	●	●
171	07.395 BOLT; S/ABS BRKT FRT INDEPENDENT SUSPENSION(6PP) (B) M10X35 FLANGE	0-28091-035-0	08	1	0302-0512			●
171	07.395 BOLT; S/ABS BRKT FRT INDEPENDENT SUSPENSION(6PP) (B) M10X35 FLANGE	0-28061-035-0	08	1	0601-0606			●
171	07.395 BOLT; S/ABS BRKT FRT INDEPENDENT SUSPENSION(6PP) (A) M12X30 FLANGE	0-28681-230-0	04	1	0302-0512			●
171	07.395 BOLT; S/ABS BRKT FRT INDEPENDENT SUSPENSION(6PP) (A) M12X30 FLANGE	0-28651-230-0	04	1	0601-0606			●
171	07.395 BOLT; S/ABS BRKT 03.405 (A) M10X30 FLANGE	0-28681-030-0	08	1	0302-0512	●	●
171	07.395 BOLT; S/ABS BRKT 00.029 (A) M10X30 FLANGE	0-28651-030-0	08	1	0601-	●	●
173	07.395 NUT; S/ABS FRT INDEPENDENT SUSPENSION(6PP) 06.606 (B) M12	8-94139-015-0	02	1	0302-0606			●
173	07.395 NUT; S/ABS 07.833 (C) M14	0-91110-514-0	02	1	0607-			●
173	07.395 NUT; S/ABS 06.822 (A) M10	9-09111-410-0	02	1	0302-0306	●	●	●
173	07.395 NUT; S/ABS 08.917 (B) M10 FLANGE	0-91150-210-0	04	1	0302-0506	●	●
173	07.395 NUT; S/ABS 08.917 (B) M10 FLANGE	0-91150-210-0	08	1	0507-0602	●	●
173	07.395 NUT; S/ABS 04.085 (B) M10 FLANGE	0-91180-210-0	08	1	0603-	●	●
174	07.347 WASHER; LK,S/ABS (B) ID=15.0	9-51679-012-0	02	1	0607-0611			●
174	07.347 WASHER; LK,S/ABS (B) ID=15	8-97360-056-0	02	1	0612-			●
174	07.347 WASHER; LK,S/ABS FRT INDEPENDENT SUSPENSION(6PP) 00.002 (A) ID=12.2	9-09150-812-0	02	1	0302-0603			●
174	07.347 WASHER; LK,S/ABS FRT INDEPENDENT SUSPENSION(6PP) (A) ID=12.2	0-91510-812-0	02	1	0604-0606			●
174	07.347 WASHER; LK,S/ABS (C) ID=21 OD=40	0-91614-620-0	02	1	0607-			●
346	06.174 NUT; LINK END 06.861 (B) M18 SLOTTED	8-97017-761-0	02	1	0607-0610			●
346	06.174 NUT; LINK END (B) M18 SLOTTED	8-97245-632-0	02	1	0611-			●
346	06.174 NUT; LINK END FRT INDEPENDENT SUSPENSION(6PP) (A) M52	8-97076-036-0	02	1	0302-0606			●
346	06.174 NUT; LINK END (A) M52	8-97076-036-0	02	1	0607-0612			●
346	06.174 NUT; LINK END (A) M52	8-98021-784-0	02	1	0701-0909			●
346	06.174 NUT; LINK END (A) M52	8-98158-133-0	02	1	0910-			●
388	06.174 BOLT; BUMP RUBBER FRT INDEPENDENT SUSPENSION(6PP) 08.900 M8X20 W/LK WASHER	0-50040-820-0	04	1	0302-0606			●
394	06.714 END ASM; FRT AXLE FRT INDEPENDENT SUSPENSION(6PP) 06.174	8-97107-328-0	02	1	0302-0606			●
394	06.714 END ASM; FRT AXLE	8-97327-369-5	02	1	0607-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
