◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50946 - NKR(EUROPE)-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-36 - POWER STEERING CONTROL; ENGINE SIDE ▶
4-36 — POWER STEERING CONTROL; ENGINE SIDE (#23135) — 46 parça

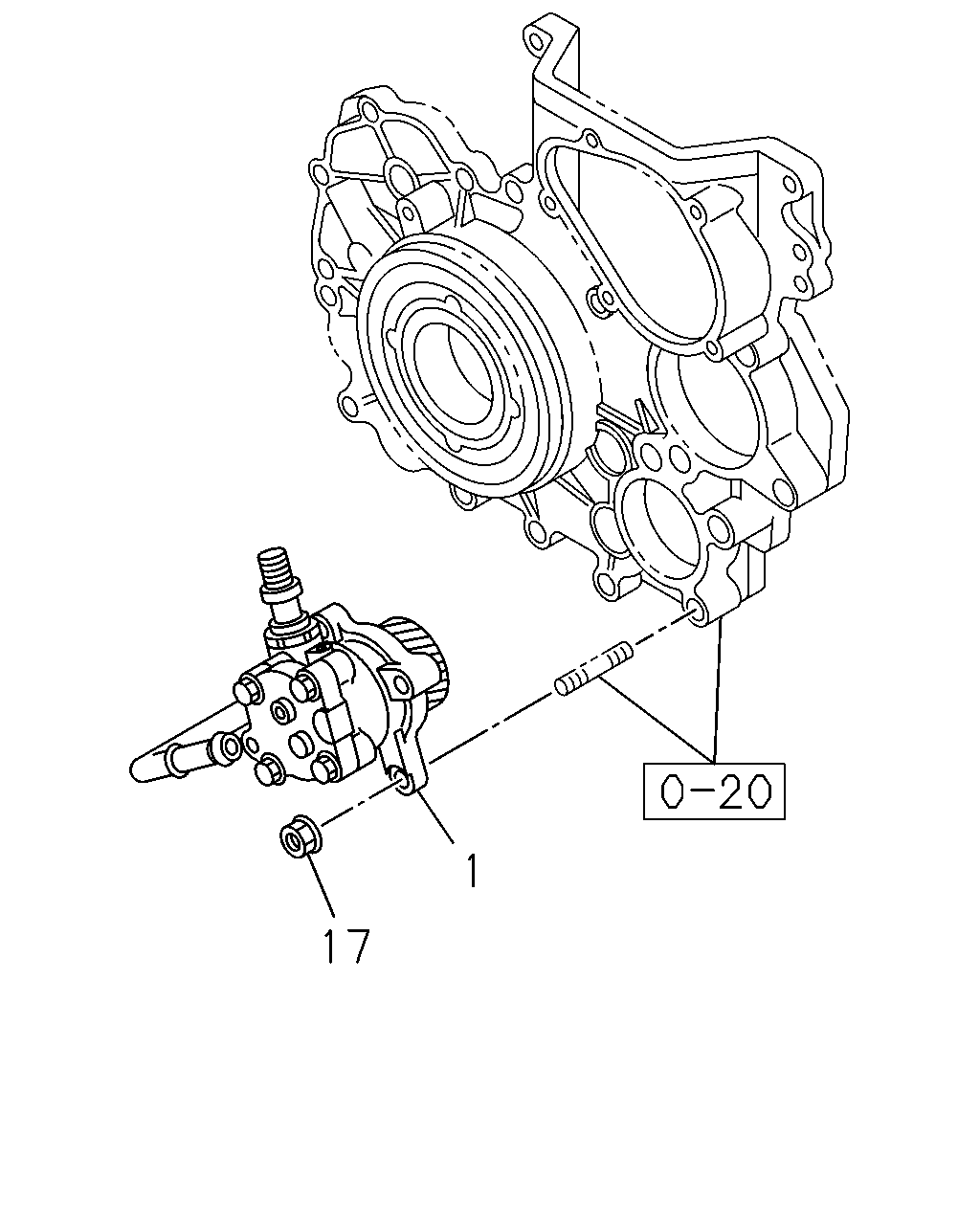

çizim 11719
1 17
BalonParca AdiParca NoAdetTipApplied Date A B C
1 06.605 PUMP ASM; OIL,P/S
4JH1 ENG(RJX) SEE FIG-NO 4-42 FOR COMPONENT. 		8-97354-730-0 01 1 0302-0506 ● ● ●
1 06.605 PUMP ASM; OIL,P/S
4JH1-TC ENG(RDM) SEE FIG-NO 4-42 FOR COMPONENT. 		8-97354-730-0 01 1 0507-0606 ● ● ●
1 06.605 PUMP ASM; OIL,P/S
4JJ1 ENG(LFB) 		8-98006-823-3 01 1 0607- ● ● ●
17 06.606 NUT; POWER STRG PUMP
4JH1 ENG(RJX) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0506 ● ● ●
17 06.606 NUT; POWER STRG PUMP
4JH1-TC ENG(RDM) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ● ●
17 06.606 NUT; POWER STRG PUMP
4JH1-TC ENG(RDM) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ● ●
17 06.606 NUT; POWER STRG PUMP
4JJ1 ENG(LFB) 01.540 M8 FLANGE 		0-91180-208-0 03 1 0607- ● ● ●

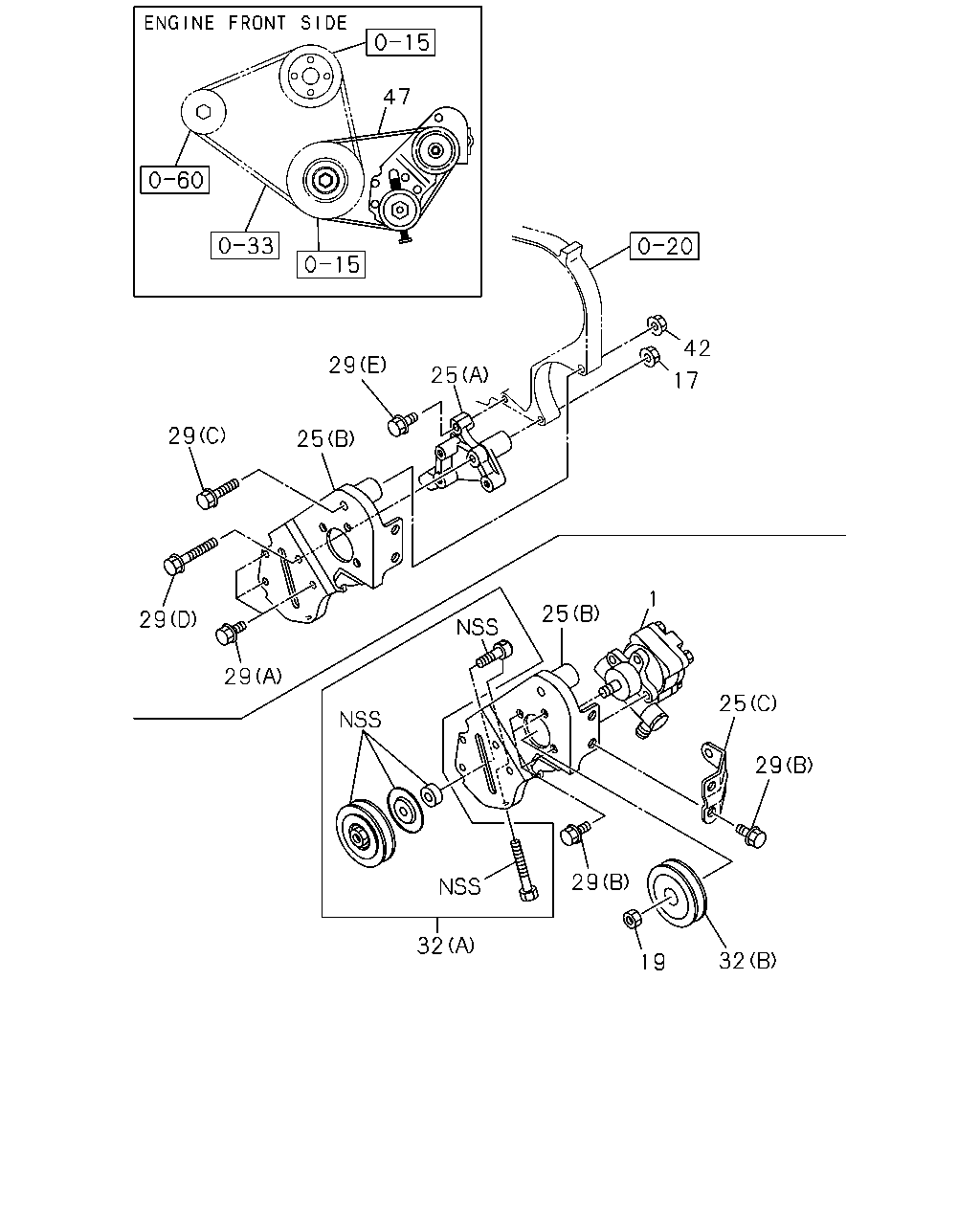

çizim 54501
47 42 29 25 17 29 25 1 25 29 29 25 29 29 32 32 19
BalonParca AdiParca NoAdetTipApplied Date A B C
1 06.605 PUMP ASM; OIL,P/S
4JH1 ENG(RJX) SEE FIG-NO 4-42 FOR COMPONENT. 		8-97354-730-0 01 1 0302-0506 ● ● ●
1 06.605 PUMP ASM; OIL,P/S
4JH1-TC ENG(RDM) SEE FIG-NO 4-42 FOR COMPONENT. 		8-97354-730-0 01 1 0507-0606 ● ● ●
1 06.605 PUMP ASM; OIL,P/S
4JJ1 ENG(LFB) 		8-98006-823-3 01 1 0607- ● ● ●
17 06.606 NUT; POWER STRG PUMP
4JH1 ENG(RJX) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0302-0506 ● ● ●
17 06.606 NUT; POWER STRG PUMP
4JH1-TC ENG(RDM) 07.633 M8 FLANGE 		0-91150-108-0 01 1 0507-0602 ● ● ●
17 06.606 NUT; POWER STRG PUMP
4JH1-TC ENG(RDM) 01.062 M8 FLANGE 		0-91180-108-0 01 1 0603-0606 ● ● ●
17 06.606 NUT; POWER STRG PUMP
4JJ1 ENG(LFB) 01.540 M8 FLANGE 		0-91180-208-0 03 1 0607- ● ● ●
19 07.874 NUT; PULLEY,OIL PUMP
4JH1 ENG(RJX) 06.606 M12 		8-94139-015-0 01 1 0302-0506 ● ● ●
19 07.874 NUT; PULLEY,OIL PUMP
4JH1-TC ENG(RDM) 06.606 M12 		8-94139-015-0 01 1 0507-0606 ● ● ●
25 06.606 BRACKET; P/S PUMP
4JH1 ENG(RJX) (B) 		8-97065-974-0 01 1 0302-0506 ● ● ●
25 06.606 BRACKET; P/S PUMP
4JH1-TC ENG(RDM) (B) 		8-97065-974-0 01 1 0507-0606 ● ● ●
25 06.606 BRACKET; P/S PUMP
4JH1 ENG(RJX) (A) 		8-97107-869-0 01 1 0302-0506 ● ● ●
25 06.606 BRACKET; P/S PUMP
4JH1-TC ENG(RDM) (A) 		8-97107-869-0 01 1 0507-0606 ● ● ●
25 06.606 BRACKET; P/S PUMP
4JH1 ENG(RJX) (C) 		8-97107-872-0 01 1 0302-0506 ● ● ●
25 06.606 BRACKET; P/S PUMP
4JH1-TC ENG(RDM) (C) 		8-97107-872-0 01 1 0507-0606 ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1 ENG(RJX) 03.278 (D) M8X100 FLANGE 		0-28080-800-0 01 1 0302-0506 ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) 03.278 (D) M8X100 FLANGE 		0-28080-800-0 01 1 0507-0512 ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) 00.386 (D) M8X100 FLANGE 		0-28050-800-0 01 1 0601-0606 ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1 ENG(RJX) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 0302-0506 ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 03 1 0507-0512 ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) 02.343 (A) M8X16 FLANGE 		0-28050-816-0 03 1 0601-0606 ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1 ENG(RJX) 01.251 (E) M8X60 FLANGE 		0-28080-860-0 01 1 0302-0506 ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) 01.251 (E) M8X60 FLANGE 		0-28080-860-0 01 1 0507-0512 ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) 04.686 (E) M8X60 FLANGE 		0-28050-860-0 01 1 0601-0606 ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1 ENG(RJX) 09.198 (C) M10X100 FLANGE 		0-28081-000-0 01 1 0302-0506 ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) 09.198 (C) M10X100 FLANGE 		0-28081-000-0 01 1 0507-0512 ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) 09.181 (C) M10X100 FLANGE 		0-28051-000-0 01 1 0601-0606 ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1 ENG(RJX) 03.611 (B) M10X20 FLANGE 		0-28681-020-0 05 1 0302-0506 ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) 03.611 (B) M10X20 FLANGE 		0-28681-020-0 05 1 0507-0512 ● ● ●
29 09.171 BOLT; BRKT,POWER STRG
4JH1-TC ENG(RDM) 02.343 (B) M10X20 FLANGE 		0-28651-020-0 05 1 0601-0606 ● ● ●
32 06.665 PULLEY; IDLER,P/S
4JH1 ENG(RJX) 06.655 (A) 		8-94128-866-0 01 1 0302-0506 ● ● ●
32 06.665 PULLEY; IDLER,P/S
4JH1-TC ENG(RDM) 06.655 (A) 		8-94128-866-0 01 1 0507-0606 ● ● ●
32 06.665 PULLEY; IDLER,P/S
4JH1 ENG(RJX) (B) 		8-97084-332-2 01 1 0302-0506 ● ● ●
32 06.665 PULLEY; IDLER,P/S
4JH1-TC ENG(RDM) (B) 		8-97084-332-2 01 1 0507-0606 ● ● ●
42 06.672 NUT; ADJ PLATE
4JH1 ENG(RJX) 04.785 M10 FLANGE 		0-91150-110-0 01 1 0302-0506 ● ● ●
42 06.672 NUT; ADJ PLATE
4JH1-TC ENG(RDM) 04.785 M10 FLANGE 		0-91150-110-0 01 1 0507-0602 ● ● ●
42 06.672 NUT; ADJ PLATE
4JH1-TC ENG(RDM) 03.162 M10 FLANGE 		0-91180-110-0 01 1 0603-0606 ● ● ●
47 01.066 BELT; P/S PUMP
4JH1 ENG(RJX) 		8-97085-131-0 01 1 0302-0506 ● ● ●
47 01.066 BELT; P/S PUMP
4JH1-TC ENG(RDM) 		8-97085-131-0 01 1 0507-0606 ● ● ●
