Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#23134) — 443 parça

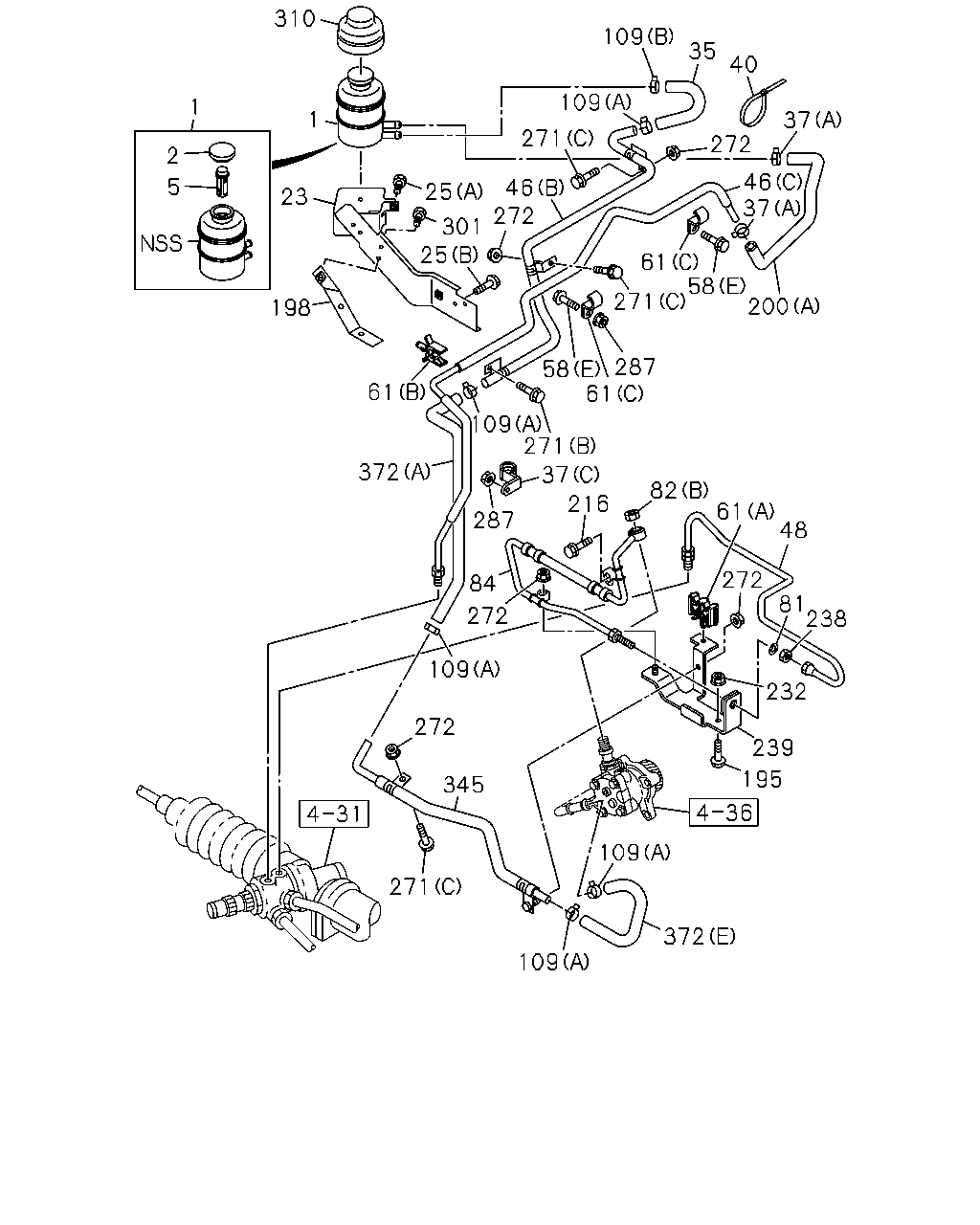

310 109 58 37 200 287 37 61 58 35 1 1 109 2 287 5 46 61 25 23 301 25 37 372 37 109 109 61 58 46 198 37 287 200 272 272 58 46 271 61 287 46 109 372 109 232 48 345 109 58 195 372 61 216 195 239 109 82 163 232 61 284 60 287 84 82

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	0302-	●	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	0302-	●	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0302-	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JH1 ENG(RJX)	8-97289-416-0	01	1	0302-0506	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JH1-TC ENG(RDM)	8-97289-416-0	01	1	0507-0606	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JJ1 ENG(LFB)	8-98001-425-1	01	1	0607-0703	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JJ1 ENG(LFB)	8-98077-631-0	01	1	0704-	●	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28480-620-0	01	1	0302-0512	●	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0601-	●	●	●
25	06.635 BOLT; OIL TANK BRKT 4JH1 ENG(RJX) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0302-0506	●	●	●
25	06.635 BOLT; OIL TANK BRKT 4JH1-TC ENG(RDM) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●	●	●
25	06.635 BOLT; OIL TANK BRKT 4JH1-TC ENG(RDM) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-0606	●	●	●
25	06.635 BOLT; OIL TANK BRKT 4JJ1 ENG(LFB) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0607-	●	●	●
35	06.671 HOSE; RETURN,P/S TANK	8-98000-692-0	01	1	0607-	●
35	06.671 HOSE; RETURN,P/S TANK 4JH1 ENG(RJX)	8-97289-444-1	01	1	0302-0506	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JH1-TC ENG(RDM)	8-97289-444-1	01	1	0507-0606	●	●	●
35	06.671 HOSE; RETURN,P/S TANK	8-98000-787-0	01	1	0607-		●	●
37	01.762 CLIP; HOSE,P/S 06.602 (C) D=24 L=21	1-09700-380-0	01	1	0607-	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	0302-0606	●	●	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	0607-0911	●	●	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	0607-0911		●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	0912-	●	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	0912-		●	●
37	01.762 CLIP; HOSE,P/S 4JH1 ENG(RJX) 04.047 (B) WO/SCREW	1-09700-988-0	01	1	0302-0506	●	●	●
37	01.762 CLIP; HOSE,P/S 4JH1-TC ENG(RDM) 04.047 (B) WO/SCREW	1-09700-988-0	01	1	0507-0606	●	●	●
37	01.762 CLIP; HOSE,P/S (D) ID=35 H=45 L=33	1-09701-047-0	01	1	0607-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (B)	8-98000-611-2	01	1	0607-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97262-188-0	01	1	0302-0506	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97262-188-0	01	1	0507-0606	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (C)	8-97380-458-2	01	1	0607-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (E)	8-98000-435-1	01	1	0607-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (F)	8-98000-440-3	01	1	0607-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (G)	8-98000-441-3	01	1	0607-0702		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (G)	8-98071-400-0	01	1	0703-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JH1 ENG(RJX) (A)	8-97262-190-0	01	1	0302-0302		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JH1 ENG(RJX) 05.510 (A)	8-97364-359-0	01	1	0303-0506		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JH1-TC ENG(RDM) 05.510 (A)	8-97364-359-0	01	1	0507-0606		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (D)	8-98000-599-2	01	1	0607-		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97261-622-0	01	1	0302-0506	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP)	8-97261-622-0	01	1	0507-0606	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-97380-457-1	01	1	0607-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JH1 ENG(RJX)	8-97261-623-0	01	1	0302-0302		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JH1 ENG(RJX)	8-97364-352-0	01	1	0303-0506		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JH1-TC ENG(RDM)	8-97364-352-0	01	1	0507-0606		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98000-436-2	01	1	0607-		●	●
58	06.672 BOLT; CLIP 02.343 (C) M6X16 FLANGE	0-28650-616-0	01	1	0611-		●	●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX) 04.439 (C) M6X16 FLANGE	0-28680-616-0	01	1	0302-0506	●	●	●
58	06.672 BOLT; CLIP 4JH1-TC ENG(RDM) 04.439 (C) M6X16 FLANGE	0-28680-616-0	02	1	0507-0512	●	●	●
58	06.672 BOLT; CLIP 4JH1-TC ENG(RDM) 02.343 (C) M6X16 FLANGE	0-28650-616-0	02	1	0601-0606	●	●	●
58	06.672 BOLT; CLIP 03.162 (E) M6X20 FLANGE	0-28650-620-0	02	1	0607-	●	●	●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX) 02.334 (D) M6X25 FLANGE	0-28680-625-0	01	1	0302-0506	●	●	●
58	06.672 BOLT; CLIP 4JH1-TC ENG(RDM) 02.334 (D) M6X25 FLANGE	0-28680-625-0	01	1	0507-0512	●	●	●
58	06.672 BOLT; CLIP 4JH1-TC ENG(RDM) 00.685 (D) M6X25 FLANGE	0-28650-625-0	01	1	0601-0606	●	●	●
58	06.672 BOLT; CLIP 06.216 (D) M8X25 FLANGE	0-28650-825-0	05	1	0607-		●	●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX) 00.206 (A) M6X20	8-94279-112-0	01	1	0302-0506	●	●	●
58	06.672 BOLT; CLIP 4JH1-TC ENG(RDM) 00.206 (A) M6X20	8-94279-112-0	01	1	0507-0606	●	●	●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX) 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0302-0506	●	●	●
58	06.672 BOLT; CLIP 4JH1-TC ENG(RDM) 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0507-0606	●	●	●
60	06.672 CLAMP; PIPE,RETURN ID=10X2 H=22	8-94252-455-2	01	1	0607-		●	●
61	06.672 CLIP; OIL PIPE 04.930 (A) ID=10X2 H=37.5	8-97018-546-0	01	1	0607-	●
61	06.672 CLIP; OIL PIPE 03.162 (C) ID=6 L=22	1-09700-139-0	02	1	0607-	●	●	●
61	06.672 CLIP; OIL PIPE 04.930 (B) ID=10 H=40	8-94462-219-0	01	1	0607-	●	●	●
61	06.672 CLIP; OIL PIPE 04.930 (B) ID=10 H=40	8-94462-219-0	01	1	0607-		●	●
61	06.672 CLIP; OIL PIPE (D) ID=11 L=40	8-94259-342-0	01	1	0607-		●	●
61	06.672 CLIP; OIL PIPE (E) ID=16 L=16	9-09525-526-0	04	1	0607-		●	●
82	06.672 NUT; FLEX HOSE,P/S 4JH1 ENG(RJX) 06.897 (A) M16	8-94370-339-0	01	1	0302-0506	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JH1-TC ENG(RDM) 06.897 (A) M16	8-94370-339-0	01	1	0507-0606	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (B) M12 SELF LOCK	8-97028-390-1	01	1	0607-	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 01.062 (C) M8 FLANGE	0-91180-108-0	01	1	0607-		●	●
84	06.670 HOSE; FLEX,P/S	8-98000-691-1	01	1	0607-	●
84	06.670 HOSE; FLEX,P/S 4JH1 ENG(RJX)	8-97260-171-2	01	1	0302-0302	●	●	●
84	06.670 HOSE; FLEX,P/S 4JH1 ENG(RJX)	8-97358-340-0	01	1	0302-0302	●	●	●
84	06.670 HOSE; FLEX,P/S 4JH1 ENG(RJX)	8-97358-343-0	01	1	0303-0411	●	●	●
84	06.670 HOSE; FLEX,P/S 4JH1 ENG(RJX)	8-98002-443-0	01	1	0412-0506	●	●	●
84	06.670 HOSE; FLEX,P/S 4JH1-TC ENG(RDM)	8-98002-443-0	01	1	0507-0606	●	●	●
84	06.670 HOSE; FLEX,P/S	8-98000-696-3	01	1	0607-		●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0302-0606	●	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	05	1	0607-0911	●	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	05	1	0912-	●	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0302-1003	●	●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1004-	●	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	02	1	0607-0911		●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	02	1	0912-		●	●
163	06.671 BOLT; OIL PIPE 4JH1 ENG(RJX) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0302-0506	●	●	●
163	06.671 BOLT; OIL PIPE 4JH1-TC ENG(RDM) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●	●	●
163	06.671 BOLT; OIL PIPE 4JH1-TC ENG(RDM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0606	●	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-		●	●
195	06.635 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-	●
195	06.635 BOLT; BRKT 4JH1 ENG(RJX) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0302-0506	●	●	●
195	06.635 BOLT; BRKT 4JH1-TC ENG(RDM) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0507-0512	●	●	●
195	06.635 BOLT; BRKT 4JH1-TC ENG(RDM) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-0606	●	●	●
195	06.635 BOLT; BRKT 00.029 M10X25 FLANGE	0-28651-025-0	02	1	0607-		●	●
198	06.672 STAY; OIL TANK,POWER STEERING 4JJ1 ENG(LFB)	8-97081-778-2	01	1	0607-	●	●	●
200	06.670 HOSE; RUBBER,RETURN (A)	8-98000-694-1	01	1	0607-	●	●	●
200	06.670 HOSE; RUBBER,RETURN 06.671 (B) L=150	0-09809-150-0	01	1	0607-		●	●
216	06.672 BOLT; FLEX HOSE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0607-	●	●	●
232	06.672 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●
232	06.672 NUT; BRKT 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506		●	●
232	06.672 NUT; BRKT 4JH1-TC ENG(RDM) 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602		●	●
232	06.672 NUT; BRKT 4JH1-TC ENG(RDM) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606		●	●
232	06.672 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0607-		●	●
239	06.606 BRACKET; FLEX HOSE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 04.047	8-97047-898-0	01	1	0302-0506	●
239	06.606 BRACKET; FLEX HOSE 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 04.047	8-97047-898-0	02	1	0507-0606	●
239	06.606 BRACKET; FLEX HOSE	8-97380-465-2	01	1	0607-	●
239	06.606 BRACKET; FLEX HOSE 4JH1 ENG(RJX)	8-97089-879-0	01	1	0302-0506		●	●
239	06.606 BRACKET; FLEX HOSE 4JH1-TC ENG(RDM)	8-97089-879-0	02	1	0507-0606		●	●
239	06.606 BRACKET; FLEX HOSE	8-98000-457-4	01	1	0607-		●	●
271	06.672 BOLT; P/S OIL PIPE FIX 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0607-	●
271	06.672 BOLT; P/S OIL PIPE FIX 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0607-	●
271	06.672 BOLT; P/S OIL PIPE FIX 4JH1 ENG(RJX) 03.704 (A) M8X40 FLANGE	0-28680-840-0	01	1	0302-0506	●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 4JH1-TC ENG(RDM) 03.704 (A) M8X40 FLANGE	0-28680-840-0	01	1	0507-0512	●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 4JH1-TC ENG(RDM) 00.685 (A) M8X40 FLANGE	0-28650-840-0	01	1	0601-0606	●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	0607-	●	●	●
272	06.672 NUT; P/S OIL PIPE FIX 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●
272	06.672 NUT; P/S OIL PIPE FIX 01.062 M8 FLANGE	0-91180-108-0	03	1	0607-	●	●	●
284	06.670 NUT; PIPE 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0506		●	●
284	06.670 NUT; PIPE 4JH1-TC ENG(RDM) 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602		●	●
284	06.670 NUT; PIPE 4JH1-TC ENG(RDM) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606		●	●
284	06.670 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-		●	●
287	06.672 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0607-	●	●	●
287	06.672 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0607-		●	●
287	06.672 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●	●	●
287	06.672 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	04	1	0607-		●	●
301	06.672 BOLT; STAY,OIL TANK 4JJ1 ENG(LFB) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0607-	●	●	●
310	06.672 COVER; OIL TANK 4JJ1 ENG(LFB)	8-97103-394-0	01	1	0607-	●	●	●
345	06.671 PIPE; OIL,FLEX HOSE TO PUMP 06.670	8-97380-459-1	01	1	0607-	●
345	06.671 PIPE; OIL,FLEX HOSE TO PUMP 06.670	8-98000-439-1	01	1	0607-		●	●
372	06.673 HOSE; RUBBER (E)	0-19814-200-0	01	1	0607-	●
372	06.673 HOSE; RUBBER (A)	8-98019-538-0	01	1	0607-	●
372	06.673 HOSE; RUBBER (B)	8-98025-540-1	01	1	0607-		●	●
372	06.673 HOSE; RUBBER (C)	8-98032-217-0	01	1	0607-		●	●
372	06.673 HOSE; RUBBER (D)	8-98036-841-1	01	1	0607-0702		●	●
372	06.673 HOSE; RUBBER (D)	8-98070-955-0	01	1	0703-		●	●

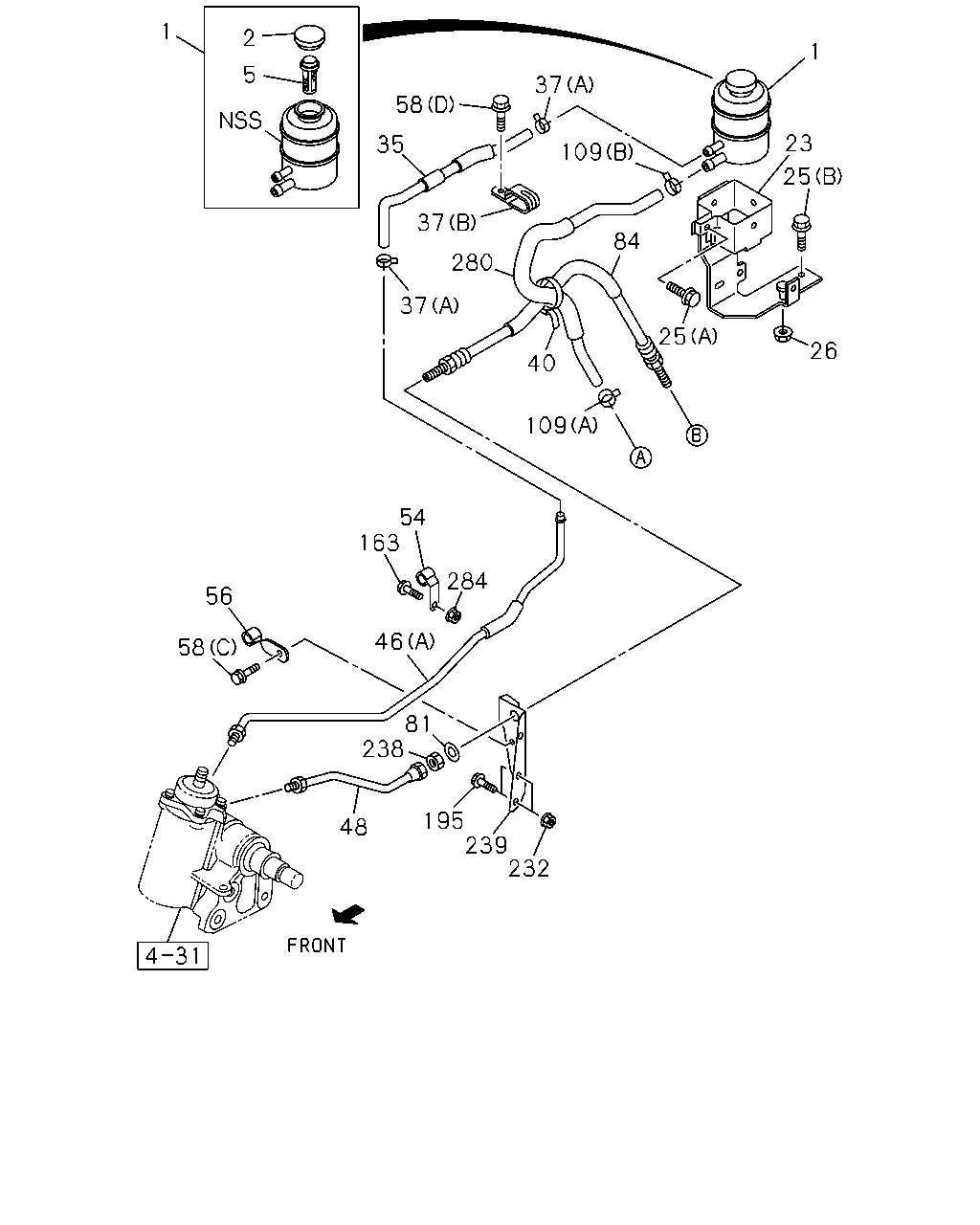

310 109 35 40 109 1 1 37 271 272 2 46 37 5 46 272 25 23 301 25 61 58 271 200 198 58 287 61 61 109 271 372 37 82 61 216 48 287 272 84 81 238 272 109 232 272 239 195 345 109 271 372 109

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	0302-	●	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	0302-	●	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0302-	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JH1 ENG(RJX)	8-97289-416-0	01	1	0302-0506	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JH1-TC ENG(RDM)	8-97289-416-0	01	1	0507-0606	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JJ1 ENG(LFB)	8-98001-425-1	01	1	0607-0703	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JJ1 ENG(LFB)	8-98077-631-0	01	1	0704-	●	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28480-620-0	01	1	0302-0512	●	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0601-	●	●	●
25	06.635 BOLT; OIL TANK BRKT 4JH1 ENG(RJX) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0302-0506	●	●	●
25	06.635 BOLT; OIL TANK BRKT 4JH1-TC ENG(RDM) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●	●	●
25	06.635 BOLT; OIL TANK BRKT 4JH1-TC ENG(RDM) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-0606	●	●	●
25	06.635 BOLT; OIL TANK BRKT 4JJ1 ENG(LFB) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0607-	●	●	●
35	06.671 HOSE; RETURN,P/S TANK	8-98000-692-0	01	1	0607-	●
35	06.671 HOSE; RETURN,P/S TANK 4JH1 ENG(RJX)	8-97289-444-1	01	1	0302-0506	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JH1-TC ENG(RDM)	8-97289-444-1	01	1	0507-0606	●	●	●
35	06.671 HOSE; RETURN,P/S TANK	8-98000-787-0	01	1	0607-		●	●
37	01.762 CLIP; HOSE,P/S 06.602 (C) D=24 L=21	1-09700-380-0	01	1	0607-	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	0302-0606	●	●	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	0607-0911	●	●	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	0607-0911		●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	0912-	●	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	0912-		●	●
37	01.762 CLIP; HOSE,P/S 4JH1 ENG(RJX) 04.047 (B) WO/SCREW	1-09700-988-0	01	1	0302-0506	●	●	●
37	01.762 CLIP; HOSE,P/S 4JH1-TC ENG(RDM) 04.047 (B) WO/SCREW	1-09700-988-0	01	1	0507-0606	●	●	●
37	01.762 CLIP; HOSE,P/S (D) ID=35 H=45 L=33	1-09701-047-0	01	1	0607-		●	●
40	06.672 CLIP; BAND 4JH1 ENG(RJX) 02.559 L=250	5-09707-030-1	01	1	0302-0506	●	●	●
40	06.672 CLIP; BAND 4JH1-TC ENG(RDM) 02.559 L=250	5-09707-030-1	01	1	0507-0606	●	●	●
40	06.672 CLIP; BAND 02.559 L=250	5-09707-030-1	01	1	0607-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (B)	8-98000-611-2	01	1	0607-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97262-188-0	01	1	0302-0506	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97262-188-0	01	1	0507-0606	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (C)	8-97380-458-2	01	1	0607-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (E)	8-98000-435-1	01	1	0607-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (F)	8-98000-440-3	01	1	0607-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (G)	8-98000-441-3	01	1	0607-0702		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (G)	8-98071-400-0	01	1	0703-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JH1 ENG(RJX) (A)	8-97262-190-0	01	1	0302-0302		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JH1 ENG(RJX) 05.510 (A)	8-97364-359-0	01	1	0303-0506		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JH1-TC ENG(RDM) 05.510 (A)	8-97364-359-0	01	1	0507-0606		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (D)	8-98000-599-2	01	1	0607-		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97261-622-0	01	1	0302-0506	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP)	8-97261-622-0	01	1	0507-0606	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-97380-457-1	01	1	0607-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JH1 ENG(RJX)	8-97261-623-0	01	1	0302-0302		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JH1 ENG(RJX)	8-97364-352-0	01	1	0303-0506		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JH1-TC ENG(RDM)	8-97364-352-0	01	1	0507-0606		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98000-436-2	01	1	0607-		●	●
58	06.672 BOLT; CLIP 02.343 (C) M6X16 FLANGE	0-28650-616-0	01	1	0611-		●	●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX) 04.439 (C) M6X16 FLANGE	0-28680-616-0	01	1	0302-0506	●	●	●
58	06.672 BOLT; CLIP 4JH1-TC ENG(RDM) 04.439 (C) M6X16 FLANGE	0-28680-616-0	02	1	0507-0512	●	●	●
58	06.672 BOLT; CLIP 4JH1-TC ENG(RDM) 02.343 (C) M6X16 FLANGE	0-28650-616-0	02	1	0601-0606	●	●	●
58	06.672 BOLT; CLIP 03.162 (E) M6X20 FLANGE	0-28650-620-0	02	1	0607-	●	●	●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX) 02.334 (D) M6X25 FLANGE	0-28680-625-0	01	1	0302-0506	●	●	●
58	06.672 BOLT; CLIP 4JH1-TC ENG(RDM) 02.334 (D) M6X25 FLANGE	0-28680-625-0	01	1	0507-0512	●	●	●
58	06.672 BOLT; CLIP 4JH1-TC ENG(RDM) 00.685 (D) M6X25 FLANGE	0-28650-625-0	01	1	0601-0606	●	●	●
58	06.672 BOLT; CLIP 06.216 (D) M8X25 FLANGE	0-28650-825-0	05	1	0607-		●	●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX) 00.206 (A) M6X20	8-94279-112-0	01	1	0302-0506	●	●	●
58	06.672 BOLT; CLIP 4JH1-TC ENG(RDM) 00.206 (A) M6X20	8-94279-112-0	01	1	0507-0606	●	●	●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX) 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0302-0506	●	●	●
58	06.672 BOLT; CLIP 4JH1-TC ENG(RDM) 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0507-0606	●	●	●
61	06.672 CLIP; OIL PIPE 04.930 (A) ID=10X2 H=37.5	8-97018-546-0	01	1	0607-	●
61	06.672 CLIP; OIL PIPE 03.162 (C) ID=6 L=22	1-09700-139-0	02	1	0607-	●	●	●
61	06.672 CLIP; OIL PIPE 04.930 (B) ID=10 H=40	8-94462-219-0	01	1	0607-	●	●	●
61	06.672 CLIP; OIL PIPE 04.930 (B) ID=10 H=40	8-94462-219-0	01	1	0607-		●	●
61	06.672 CLIP; OIL PIPE (D) ID=11 L=40	8-94259-342-0	01	1	0607-		●	●
61	06.672 CLIP; OIL PIPE (E) ID=16 L=16	9-09525-526-0	04	1	0607-		●	●
81	06.672 WASHER; LK,FLEX HOSE 4JH1 ENG(RJX) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0302-0506	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JH1 ENG(RJX) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0302-0506	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JH1-TC ENG(RDM) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0507-0603	●	●	●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0507-0603	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JH1-TC ENG(RDM) ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0604-0606	●	●	●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0604-0606	●	●	●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0607-	●
82	06.672 NUT; FLEX HOSE,P/S 4JH1 ENG(RJX) 06.897 (A) M16	8-94370-339-0	01	1	0302-0506	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JH1-TC ENG(RDM) 06.897 (A) M16	8-94370-339-0	01	1	0507-0606	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (B) M12 SELF LOCK	8-97028-390-1	01	1	0607-	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 01.062 (C) M8 FLANGE	0-91180-108-0	01	1	0607-		●	●
84	06.670 HOSE; FLEX,P/S	8-98000-691-1	01	1	0607-	●
84	06.670 HOSE; FLEX,P/S 4JH1 ENG(RJX)	8-97260-171-2	01	1	0302-0302	●	●	●
84	06.670 HOSE; FLEX,P/S 4JH1 ENG(RJX)	8-97358-340-0	01	1	0302-0302	●	●	●
84	06.670 HOSE; FLEX,P/S 4JH1 ENG(RJX)	8-97358-343-0	01	1	0303-0411	●	●	●
84	06.670 HOSE; FLEX,P/S 4JH1 ENG(RJX)	8-98002-443-0	01	1	0412-0506	●	●	●
84	06.670 HOSE; FLEX,P/S 4JH1-TC ENG(RDM)	8-98002-443-0	01	1	0507-0606	●	●	●
84	06.670 HOSE; FLEX,P/S	8-98000-696-3	01	1	0607-		●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0302-0606	●	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	05	1	0607-0911	●	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	05	1	0912-	●	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0302-1003	●	●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1004-	●	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	02	1	0607-0911		●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	02	1	0912-		●	●
195	06.635 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-	●
195	06.635 BOLT; BRKT 4JH1 ENG(RJX) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0302-0506	●	●	●
195	06.635 BOLT; BRKT 4JH1-TC ENG(RDM) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0507-0512	●	●	●
195	06.635 BOLT; BRKT 4JH1-TC ENG(RDM) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-0606	●	●	●
195	06.635 BOLT; BRKT 00.029 M10X25 FLANGE	0-28651-025-0	02	1	0607-		●	●
198	06.672 STAY; OIL TANK,POWER STEERING 4JJ1 ENG(LFB)	8-97081-778-2	01	1	0607-	●	●	●
200	06.670 HOSE; RUBBER,RETURN (A)	8-98000-694-1	01	1	0607-	●	●	●
200	06.670 HOSE; RUBBER,RETURN 06.671 (B) L=150	0-09809-150-0	01	1	0607-		●	●
216	06.672 BOLT; FLEX HOSE 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0607-	●	●	●
232	06.672 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●
232	06.672 NUT; BRKT 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506		●	●
232	06.672 NUT; BRKT 4JH1-TC ENG(RDM) 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602		●	●
232	06.672 NUT; BRKT 4JH1-TC ENG(RDM) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606		●	●
232	06.672 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0607-		●	●
238	06.670 NUT; FLEX HOSE 4JH1 ENG(RJX) 06.897 M16	8-94370-339-0	01	1	0302-0506	●	●	●
238	06.670 NUT; FLEX HOSE 06.897 M16	8-94370-339-0	01	1	0507-0606	●	●	●
238	06.670 NUT; FLEX HOSE 06.897 M16	8-94370-339-0	01	1	0607-	●
239	06.606 BRACKET; FLEX HOSE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 04.047	8-97047-898-0	01	1	0302-0506	●
239	06.606 BRACKET; FLEX HOSE 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 04.047	8-97047-898-0	02	1	0507-0606	●
239	06.606 BRACKET; FLEX HOSE	8-97380-465-2	01	1	0607-	●
239	06.606 BRACKET; FLEX HOSE 4JH1 ENG(RJX)	8-97089-879-0	01	1	0302-0506		●	●
239	06.606 BRACKET; FLEX HOSE 4JH1-TC ENG(RDM)	8-97089-879-0	02	1	0507-0606		●	●
239	06.606 BRACKET; FLEX HOSE	8-98000-457-4	01	1	0607-		●	●
271	06.672 BOLT; P/S OIL PIPE FIX 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0607-	●
271	06.672 BOLT; P/S OIL PIPE FIX 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0607-	●
271	06.672 BOLT; P/S OIL PIPE FIX 4JH1 ENG(RJX) 03.704 (A) M8X40 FLANGE	0-28680-840-0	01	1	0302-0506	●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 4JH1-TC ENG(RDM) 03.704 (A) M8X40 FLANGE	0-28680-840-0	01	1	0507-0512	●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 4JH1-TC ENG(RDM) 00.685 (A) M8X40 FLANGE	0-28650-840-0	01	1	0601-0606	●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	0607-	●	●	●
272	06.672 NUT; P/S OIL PIPE FIX 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●
272	06.672 NUT; P/S OIL PIPE FIX 01.062 M8 FLANGE	0-91180-108-0	03	1	0607-	●	●	●
287	06.672 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0607-	●	●	●
287	06.672 NUT; CLIP 01.062 M6 FLANGE	0-91180-106-0	01	1	0607-		●	●
287	06.672 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●	●	●
287	06.672 NUT; CLIP 01.062 M8 FLANGE	0-91180-108-0	04	1	0607-		●	●
301	06.672 BOLT; STAY,OIL TANK 4JJ1 ENG(LFB) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0607-	●	●	●
310	06.672 COVER; OIL TANK 4JJ1 ENG(LFB)	8-97103-394-0	01	1	0607-	●	●	●
345	06.671 PIPE; OIL,FLEX HOSE TO PUMP 06.670	8-97380-459-1	01	1	0607-	●
345	06.671 PIPE; OIL,FLEX HOSE TO PUMP 06.670	8-98000-439-1	01	1	0607-		●	●
372	06.673 HOSE; RUBBER (E)	0-19814-200-0	01	1	0607-	●
372	06.673 HOSE; RUBBER (A)	8-98019-538-0	01	1	0607-	●
372	06.673 HOSE; RUBBER (B)	8-98025-540-1	01	1	0607-		●	●
372	06.673 HOSE; RUBBER (C)	8-98032-217-0	01	1	0607-		●	●
372	06.673 HOSE; RUBBER (D)	8-98036-841-1	01	1	0607-0702		●	●
372	06.673 HOSE; RUBBER (D)	8-98070-955-0	01	1	0703-		●	●

1 2 1 5 37 58 109 23 35 25 37 84 280 37 25 26 40 109 54 163 284 56 46 58 81 238 195 239 232 48

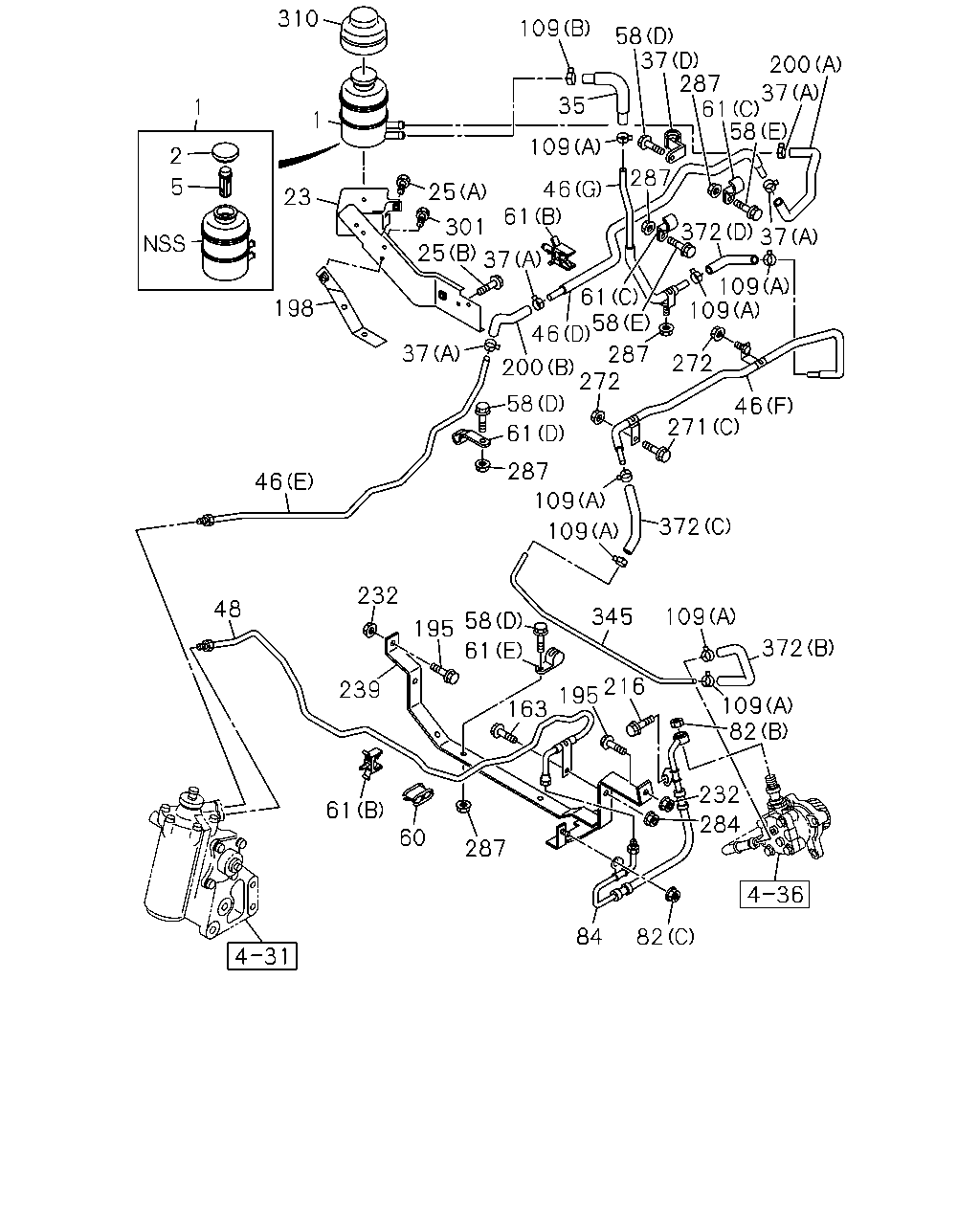

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	06.635 TANK ASM; OIL,P/S	8-97107-987-0	01	1	0302-	●	●	●
2	06.672 CAP; OIL TANK,P/S 06.635	8-94146-153-2	01	1	0302-	●	●	●
5	06.600 STRAINER; OIL TANK,P/S	8-97094-732-0	01	1	0302-	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JH1 ENG(RJX)	8-97289-416-0	01	1	0302-0506	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JH1-TC ENG(RDM)	8-97289-416-0	01	1	0507-0606	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JJ1 ENG(LFB)	8-98001-425-1	01	1	0607-0703	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4JJ1 ENG(LFB)	8-98077-631-0	01	1	0704-	●	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28480-620-0	01	1	0302-0512	●	●	●
25	06.635 BOLT; OIL TANK BRKT 00.785 (A) M6X20 FLANGE	0-28450-620-0	01	1	0601-	●	●	●
25	06.635 BOLT; OIL TANK BRKT 4JH1 ENG(RJX) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0302-0506	●	●	●
25	06.635 BOLT; OIL TANK BRKT 4JH1-TC ENG(RDM) 02.559 (B) M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●	●	●
25	06.635 BOLT; OIL TANK BRKT 4JH1-TC ENG(RDM) 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0601-0606	●	●	●
25	06.635 BOLT; OIL TANK BRKT 4JJ1 ENG(LFB) 06.216 (B) M8X25 FLANGE	0-28650-825-0	02	1	0607-	●	●	●
26	06.635 NUT; OIL TANK TO BRKT 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0506		●	●
26	06.635 NUT; OIL TANK TO BRKT 4JH1-TC ENG(RDM) 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602		●	●
26	06.635 NUT; OIL TANK TO BRKT 4JH1-TC ENG(RDM) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606		●	●
35	06.671 HOSE; RETURN,P/S TANK	8-98000-692-0	01	1	0607-	●
35	06.671 HOSE; RETURN,P/S TANK 4JH1 ENG(RJX)	8-97289-444-1	01	1	0302-0506	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4JH1-TC ENG(RDM)	8-97289-444-1	01	1	0507-0606	●	●	●
35	06.671 HOSE; RETURN,P/S TANK	8-98000-787-0	01	1	0607-		●	●
37	01.762 CLIP; HOSE,P/S 06.602 (C) D=24 L=21	1-09700-380-0	01	1	0607-	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	0302-0606	●	●	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	0607-0911	●	●	●
37	01.762 CLIP; HOSE,P/S 04.930 (A) ID=16	8-94238-568-0	02	1	0607-0911		●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	0912-	●	●	●
37	01.762 CLIP; HOSE,P/S 03.162 (A) ID=16	8-98008-098-0	02	1	0912-		●	●
37	01.762 CLIP; HOSE,P/S 4JH1 ENG(RJX) 04.047 (B) WO/SCREW	1-09700-988-0	01	1	0302-0506	●	●	●
37	01.762 CLIP; HOSE,P/S 4JH1-TC ENG(RDM) 04.047 (B) WO/SCREW	1-09700-988-0	01	1	0507-0606	●	●	●
37	01.762 CLIP; HOSE,P/S (D) ID=35 H=45 L=33	1-09701-047-0	01	1	0607-		●	●
40	06.672 CLIP; BAND 4JH1 ENG(RJX) 02.559 L=250	5-09707-030-1	01	1	0302-0506	●	●	●
40	06.672 CLIP; BAND 4JH1-TC ENG(RDM) 02.559 L=250	5-09707-030-1	01	1	0507-0606	●	●	●
40	06.672 CLIP; BAND 02.559 L=250	5-09707-030-1	01	1	0607-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (B)	8-98000-611-2	01	1	0607-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97262-188-0	01	1	0302-0506	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97262-188-0	01	1	0507-0606	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (C)	8-97380-458-2	01	1	0607-	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (E)	8-98000-435-1	01	1	0607-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (F)	8-98000-440-3	01	1	0607-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (G)	8-98000-441-3	01	1	0607-0702		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (G)	8-98071-400-0	01	1	0703-		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JH1 ENG(RJX) (A)	8-97262-190-0	01	1	0302-0302		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JH1 ENG(RJX) 05.510 (A)	8-97364-359-0	01	1	0303-0506		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JH1-TC ENG(RDM) 05.510 (A)	8-97364-359-0	01	1	0507-0606		●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK (D)	8-98000-599-2	01	1	0607-		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97261-622-0	01	1	0302-0506	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP)	8-97261-622-0	01	1	0507-0606	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-97380-457-1	01	1	0607-	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JH1 ENG(RJX)	8-97261-623-0	01	1	0302-0302		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JH1 ENG(RJX)	8-97364-352-0	01	1	0303-0506		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4JH1-TC ENG(RDM)	8-97364-352-0	01	1	0507-0606		●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT	8-98000-436-2	01	1	0607-		●	●
54	06.672 CLIP; OIL PIPE 4JH1 ENG(RJX) ID=11 L=40	8-94259-342-0	01	1	0302-0506	●	●	●
54	06.672 CLIP; OIL PIPE 4JH1-TC ENG(RDM) ID=11 L=40	8-94259-342-0	01	1	0507-0606	●	●	●
56	06.672 CLIP; OIL PIPE ID=11 L=40	8-94123-171-1	01	1	0611-		●	●
56	06.672 CLIP; OIL PIPE 4JH1 ENG(RJX) ID=11 L=40	8-94123-171-1	01	1	0302-0506	●	●	●
56	06.672 CLIP; OIL PIPE 4JH1-TC ENG(RDM) ID=11 L=40	8-94123-171-1	02	1	0507-0606	●	●	●
58	06.672 BOLT; CLIP 02.343 (C) M6X16 FLANGE	0-28650-616-0	01	1	0611-		●	●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX) 04.439 (C) M6X16 FLANGE	0-28680-616-0	01	1	0302-0506	●	●	●
58	06.672 BOLT; CLIP 4JH1-TC ENG(RDM) 04.439 (C) M6X16 FLANGE	0-28680-616-0	02	1	0507-0512	●	●	●
58	06.672 BOLT; CLIP 4JH1-TC ENG(RDM) 02.343 (C) M6X16 FLANGE	0-28650-616-0	02	1	0601-0606	●	●	●
58	06.672 BOLT; CLIP 03.162 (E) M6X20 FLANGE	0-28650-620-0	02	1	0607-	●	●	●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX) 02.334 (D) M6X25 FLANGE	0-28680-625-0	01	1	0302-0506	●	●	●
58	06.672 BOLT; CLIP 4JH1-TC ENG(RDM) 02.334 (D) M6X25 FLANGE	0-28680-625-0	01	1	0507-0512	●	●	●
58	06.672 BOLT; CLIP 4JH1-TC ENG(RDM) 00.685 (D) M6X25 FLANGE	0-28650-625-0	01	1	0601-0606	●	●	●
58	06.672 BOLT; CLIP 06.216 (D) M8X25 FLANGE	0-28650-825-0	05	1	0607-		●	●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX) 00.206 (A) M6X20	8-94279-112-0	01	1	0302-0506	●	●	●
58	06.672 BOLT; CLIP 4JH1-TC ENG(RDM) 00.206 (A) M6X20	8-94279-112-0	01	1	0507-0606	●	●	●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX) 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0302-0506	●	●	●
58	06.672 BOLT; CLIP 4JH1-TC ENG(RDM) 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0507-0606	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JH1 ENG(RJX) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0302-0506	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JH1 ENG(RJX) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0302-0506	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JH1-TC ENG(RDM) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0507-0603	●	●	●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0507-0603	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JH1-TC ENG(RDM) ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0604-0606	●	●	●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0604-0606	●	●	●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0607-	●
84	06.670 HOSE; FLEX,P/S	8-98000-691-1	01	1	0607-	●
84	06.670 HOSE; FLEX,P/S 4JH1 ENG(RJX)	8-97260-171-2	01	1	0302-0302	●	●	●
84	06.670 HOSE; FLEX,P/S 4JH1 ENG(RJX)	8-97358-340-0	01	1	0302-0302	●	●	●
84	06.670 HOSE; FLEX,P/S 4JH1 ENG(RJX)	8-97358-343-0	01	1	0303-0411	●	●	●
84	06.670 HOSE; FLEX,P/S 4JH1 ENG(RJX)	8-98002-443-0	01	1	0412-0506	●	●	●
84	06.670 HOSE; FLEX,P/S 4JH1-TC ENG(RDM)	8-98002-443-0	01	1	0507-0606	●	●	●
84	06.670 HOSE; FLEX,P/S	8-98000-696-3	01	1	0607-		●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	01	1	0302-0606	●	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	05	1	0607-0911	●	●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	05	1	0912-	●	●	●
109	06.672 CLIP; RUBBER HOSE 08.846 (B) ID=22	8-94382-401-0	01	1	0302-1003	●	●	●
109	06.672 CLIP; RUBBER HOSE 03.278 (B) ID=22	8-97359-141-0	01	1	1004-	●	●	●
109	06.672 CLIP; RUBBER HOSE (A) ID=21	8-94242-034-0	02	1	0607-0911		●	●
109	06.672 CLIP; RUBBER HOSE 04.681 (A) ID=21	8-98150-355-0	02	1	0912-		●	●
163	06.671 BOLT; OIL PIPE 4JH1 ENG(RJX) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0302-0506	●	●	●
163	06.671 BOLT; OIL PIPE 4JH1-TC ENG(RDM) 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0512	●	●	●
163	06.671 BOLT; OIL PIPE 4JH1-TC ENG(RDM) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0606	●	●	●
163	06.671 BOLT; OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-		●	●
195	06.635 BOLT; BRKT 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-	●
195	06.635 BOLT; BRKT 4JH1 ENG(RJX) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0302-0506	●	●	●
195	06.635 BOLT; BRKT 4JH1-TC ENG(RDM) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0507-0512	●	●	●
195	06.635 BOLT; BRKT 4JH1-TC ENG(RDM) 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-0606	●	●	●
195	06.635 BOLT; BRKT 00.029 M10X25 FLANGE	0-28651-025-0	02	1	0607-		●	●
232	06.672 NUT; BRKT 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●
232	06.672 NUT; BRKT 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506		●	●
232	06.672 NUT; BRKT 4JH1-TC ENG(RDM) 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602		●	●
232	06.672 NUT; BRKT 4JH1-TC ENG(RDM) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606		●	●
232	06.672 NUT; BRKT 03.162 M10 FLANGE	0-91180-110-0	02	1	0607-		●	●
238	06.670 NUT; FLEX HOSE 4JH1 ENG(RJX) 06.897 M16	8-94370-339-0	01	1	0302-0506	●	●	●
238	06.670 NUT; FLEX HOSE 06.897 M16	8-94370-339-0	01	1	0507-0606	●	●	●
238	06.670 NUT; FLEX HOSE 06.897 M16	8-94370-339-0	01	1	0607-	●
239	06.606 BRACKET; FLEX HOSE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 04.047	8-97047-898-0	01	1	0302-0506	●
239	06.606 BRACKET; FLEX HOSE 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 04.047	8-97047-898-0	02	1	0507-0606	●
239	06.606 BRACKET; FLEX HOSE	8-97380-465-2	01	1	0607-	●
239	06.606 BRACKET; FLEX HOSE 4JH1 ENG(RJX)	8-97089-879-0	01	1	0302-0506		●	●
239	06.606 BRACKET; FLEX HOSE 4JH1-TC ENG(RDM)	8-97089-879-0	02	1	0507-0606		●	●
239	06.606 BRACKET; FLEX HOSE	8-98000-457-4	01	1	0607-		●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JH1 ENG(RJX)	8-97315-641-1	01	1	0302-0506	●	●	●
280	06.672 HOSE; P/S OIL PUMP,INL 4JH1-TC ENG(RDM)	8-97315-641-1	01	1	0507-0606	●	●	●
284	06.670 NUT; PIPE 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	01	1	0302-0506		●	●
284	06.670 NUT; PIPE 4JH1-TC ENG(RDM) 07.633 M8 FLANGE	0-91150-108-0	01	1	0507-0602		●	●
284	06.670 NUT; PIPE 4JH1-TC ENG(RDM) 01.062 M8 FLANGE	0-91180-108-0	01	1	0603-0606		●	●
284	06.670 NUT; PIPE 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-		●	●

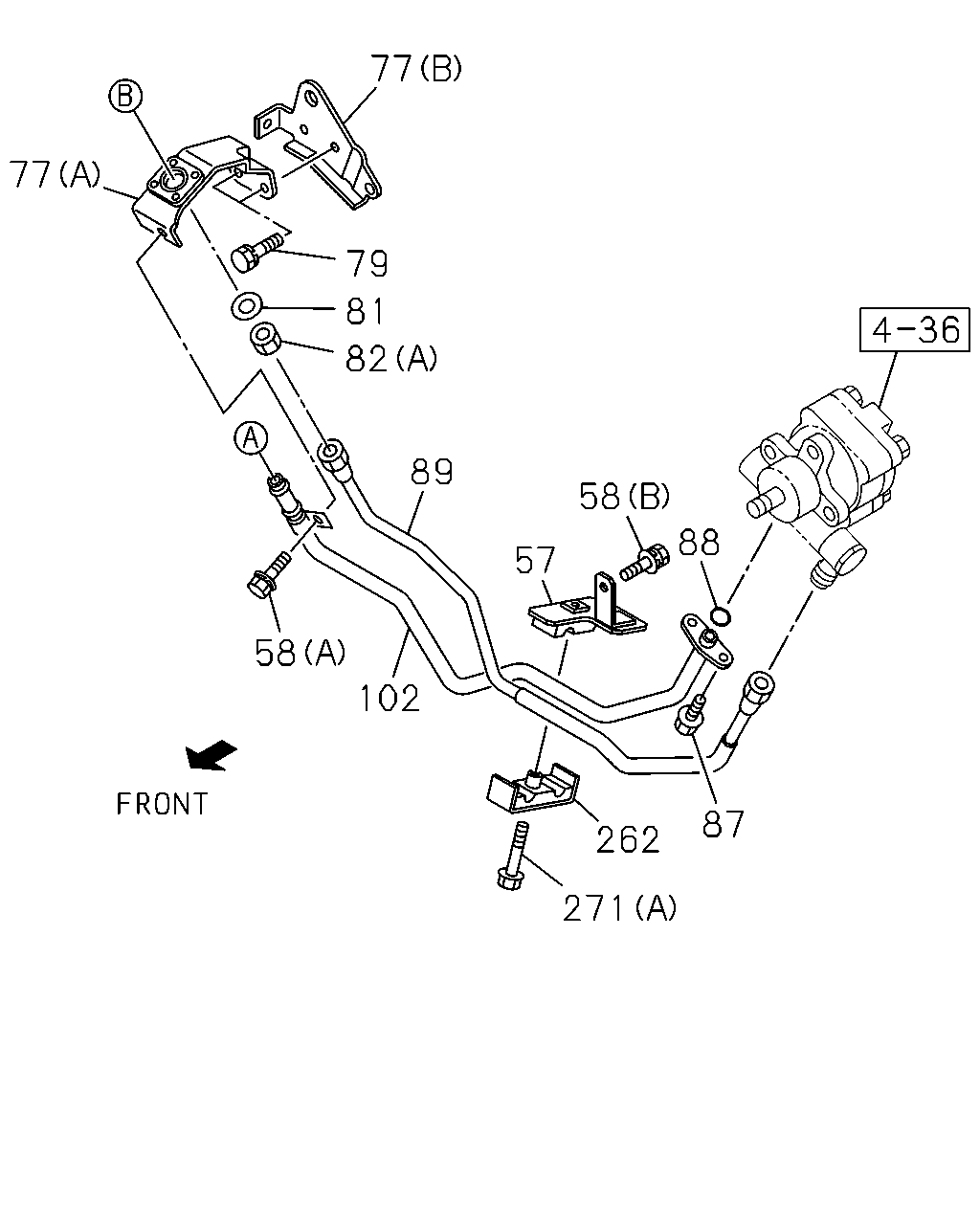

77 77 79 81 82 89 58 88 57 58 102 87 262 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
57	06.672 BRACKET; POWER STRG PIPE 4JH1 ENG(RJX)	8-97312-558-1	01	1	0302-0506	●	●	●
57	06.672 BRACKET; POWER STRG PIPE 4JH1-TC ENG(RDM)	8-97312-558-1	01	1	0507-0606	●	●	●
58	06.672 BOLT; CLIP 02.343 (C) M6X16 FLANGE	0-28650-616-0	01	1	0611-		●	●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX) 04.439 (C) M6X16 FLANGE	0-28680-616-0	01	1	0302-0506	●	●	●
58	06.672 BOLT; CLIP 4JH1-TC ENG(RDM) 04.439 (C) M6X16 FLANGE	0-28680-616-0	02	1	0507-0512	●	●	●
58	06.672 BOLT; CLIP 4JH1-TC ENG(RDM) 02.343 (C) M6X16 FLANGE	0-28650-616-0	02	1	0601-0606	●	●	●
58	06.672 BOLT; CLIP 03.162 (E) M6X20 FLANGE	0-28650-620-0	02	1	0607-	●	●	●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX) 02.334 (D) M6X25 FLANGE	0-28680-625-0	01	1	0302-0506	●	●	●
58	06.672 BOLT; CLIP 4JH1-TC ENG(RDM) 02.334 (D) M6X25 FLANGE	0-28680-625-0	01	1	0507-0512	●	●	●
58	06.672 BOLT; CLIP 4JH1-TC ENG(RDM) 00.685 (D) M6X25 FLANGE	0-28650-625-0	01	1	0601-0606	●	●	●
58	06.672 BOLT; CLIP 06.216 (D) M8X25 FLANGE	0-28650-825-0	05	1	0607-		●	●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX) 00.206 (A) M6X20	8-94279-112-0	01	1	0302-0506	●	●	●
58	06.672 BOLT; CLIP 4JH1-TC ENG(RDM) 00.206 (A) M6X20	8-94279-112-0	01	1	0507-0606	●	●	●
58	06.672 BOLT; CLIP 4JH1 ENG(RJX) 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0302-0506	●	●	●
58	06.672 BOLT; CLIP 4JH1-TC ENG(RDM) 00.034 (B) M8X22 W/LK&PL WASHER	8-94329-953-1	01	1	0507-0606	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JH1 ENG(RJX) (A)	8-97208-424-0	01	1	0302-0506	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97208-424-0	01	1	0507-0606	●
77	06.672 BRACKET; POWER STEERING HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (A)	8-97208-424-0	01	1	0507-0606		●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JH1 ENG(RJX) (B)	8-97240-137-0	01	1	0302-0506	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97240-137-0	01	1	0507-0606	●
77	06.672 BRACKET; POWER STEERING HOSE 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) (B)	8-97240-137-0	01	1	0507-0606		●	●
79	06.672 BOLT; BRKT 4JH1 ENG(RJX) 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	0302-0506	●	●	●
79	06.672 BOLT; BRKT 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) FRT INDEPENDENT SUSPENSION(6PP) 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	0507-0606	●
79	06.672 BOLT; BRKT 4JH1-TC ENG(RDM) HEATER & DEFROSTER(C41) 08.900 M8X20 W/LK WASHER	0-50040-820-0	02	1	0507-0606		●	●
81	06.672 WASHER; LK,FLEX HOSE 4JH1 ENG(RJX) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0302-0506	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JH1 ENG(RJX) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0302-0506	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JH1-TC ENG(RDM) ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0507-0603	●	●	●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	0507-0603	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4JH1-TC ENG(RDM) ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0604-0606	●	●	●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0604-0606	●	●	●
81	06.672 WASHER; LK,FLEX HOSE ID=16.5 TOOTH LK INT	0-91541-216-0	01	1	0607-	●
82	06.672 NUT; FLEX HOSE,P/S 4JH1 ENG(RJX) 06.897 (A) M16	8-94370-339-0	01	1	0302-0506	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 4JH1-TC ENG(RDM) 06.897 (A) M16	8-94370-339-0	01	1	0507-0606	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 06.606 (B) M12 SELF LOCK	8-97028-390-1	01	1	0607-	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 01.062 (C) M8 FLANGE	0-91180-108-0	01	1	0607-		●	●
87	06.672 BOLT; POWER STRG PIPE 4JH1 ENG(RJX) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0302-0506	●	●	●
87	06.672 BOLT; POWER STRG PIPE 4JH1-TC ENG(RDM) 08.900 M8X12 FLANGE	0-28080-812-0	02	1	0507-0512	●	●	●
87	06.672 BOLT; POWER STRG PIPE 4JH1-TC ENG(RDM) 02.343 M8X12 FLANGE	0-28050-812-0	02	1	0601-0606	●	●	●
88	06.673 RING; OIL PIPE 4JH1 ENG(RJX) 06.609 ID=11.0	9-09561-111-0	01	1	0302-0506	●	●	●
88	06.673 RING; OIL PIPE 4JH1-TC ENG(RDM) 06.609 ID=11.0	9-09561-111-0	01	1	0507-0606	●	●	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97312-555-0	01	1	0302-0506	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP)	8-97312-555-0	01	1	0507-0606	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 4JH1 ENG(RJX)	8-97312-556-0	01	1	0302-0506		●	●
89	06.671 PIPE; OIL,P/S OIL PUMP TO FLEX H 4JH1-TC ENG(RDM)	8-97312-556-0	01	1	0507-0606		●	●
102	06.671 PIPE; SUCTION,P/S 4JH1 ENG(RJX)	8-97312-557-1	01	1	0302-0506	●	●	●
102	06.671 PIPE; SUCTION,P/S 4JH1-TC ENG(RDM)	8-97312-557-1	01	1	0507-0606	●	●	●
262	06.672 CLIP; P/S PIPE 4JH1 ENG(RJX)	8-97300-961-0	01	1	0302-0506	●	●	●
262	06.672 CLIP; P/S PIPE 4JH1-TC ENG(RDM)	8-97300-961-0	01	1	0507-0606	●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0607-	●
271	06.672 BOLT; P/S OIL PIPE FIX 06.216 (C) M8X25 FLANGE	0-28650-825-0	02	1	0607-	●
271	06.672 BOLT; P/S OIL PIPE FIX 4JH1 ENG(RJX) 03.704 (A) M8X40 FLANGE	0-28680-840-0	01	1	0302-0506	●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 4JH1-TC ENG(RDM) 03.704 (A) M8X40 FLANGE	0-28680-840-0	01	1	0507-0512	●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 4JH1-TC ENG(RDM) 00.685 (A) M8X40 FLANGE	0-28650-840-0	01	1	0601-0606	●	●	●
271	06.672 BOLT; P/S OIL PIPE FIX 06.216 (C) M8X25 FLANGE	0-28650-825-0	01	1	0607-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
