Sayfa 4-33 - Isuzu EPC

4-33 — STEERING LINKAGE (#23133) — 189 parça

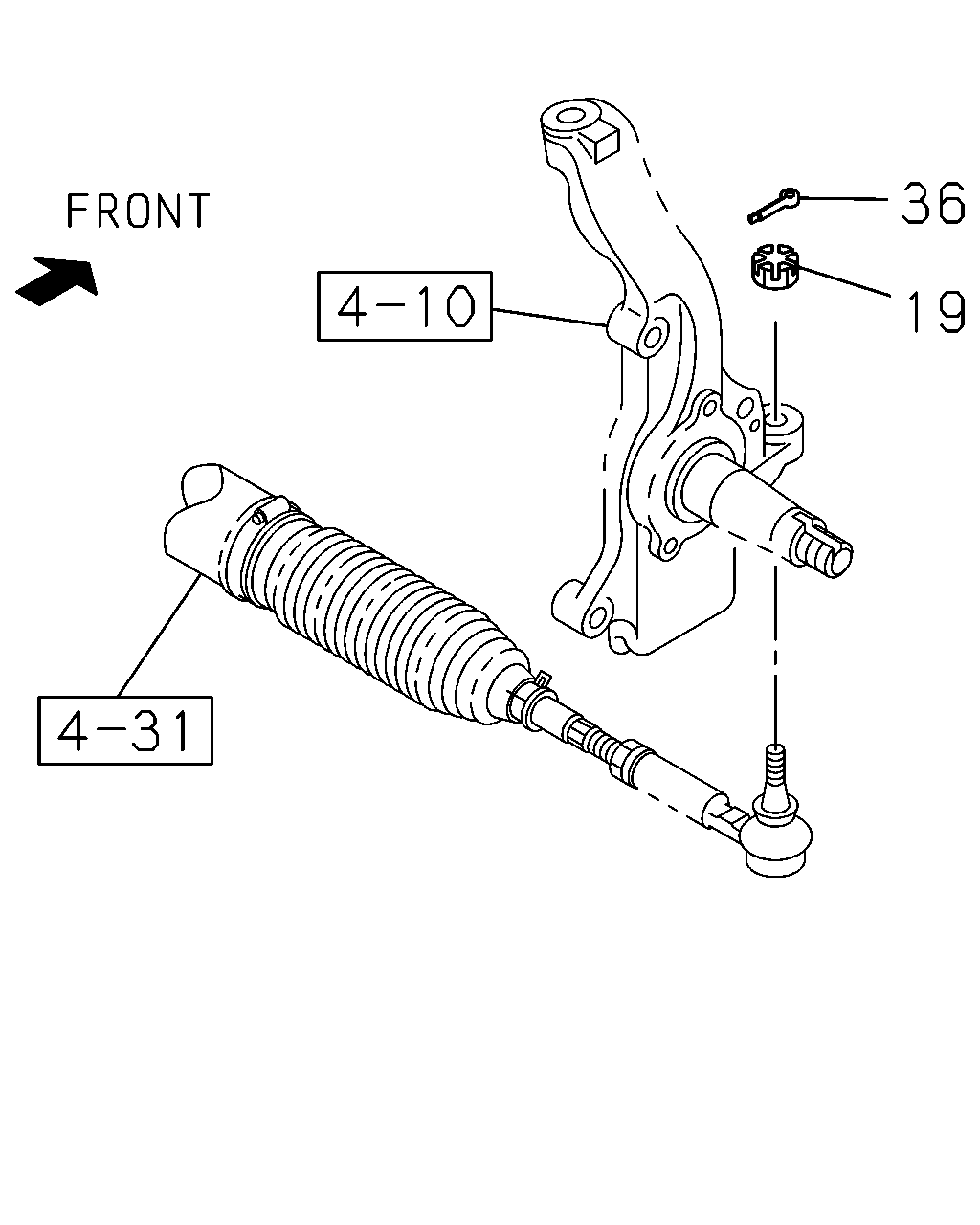

4 3 144 1 36 120 120 34 144 9 36 19 39 71 116 115 71 71 116 39 117 71 117 124 114 115 104 115 110 123 105 117 77 99 104 36 164 126 105 111 36 127 125 126 19 110 99 164 127 119

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	06.859 ARM; PITMAN,STRG FRT INDEPENDENT SUSPENSION(6PP)	8-97070-362-2	01	1	0302-0606	●
1	06.859 ARM; PITMAN,STRG	8-97109-289-1	01	1	0302-		●	●
3	06.861 WASHER; LK,PITMAN ARM FRT INDEPENDENT SUSPENSION(6PP) 08.931 ID=27.5	9-09150-527-0	01	1	0302-0603	●
3	06.861 WASHER; LK,PITMAN ARM FRT INDEPENDENT SUSPENSION(6PP) ID=27.5	0-91510-527-0	01	1	0604-0606	●
3	06.861 WASHER; LK,PITMAN ARM ID=22.5	9-09150-522-0	01	1	0302-0603		●	●
3	06.861 WASHER; LK,PITMAN ARM ID=22.5	0-91510-522-0	01	1	0604-		●	●
4	06.861 NUT; PITMAN ARM FRT INDEPENDENT SUSPENSION(6PP) (C) M27	5-12378-002-0	01	1	0302-0606	●
4	06.861 NUT; PITMAN ARM (A) M18 SLOTTED	8-97017-761-0	01	1	0302-0805		●	●
4	06.861 NUT; PITMAN ARM 06.174 (A) M18 SLOTTED	8-97245-632-0	01	1	0806-		●	●
4	06.861 NUT; PITMAN ARM 08.915 (B) M22	9-09111-522-0	01	1	0302-0512		●	●
4	06.861 NUT; PITMAN ARM (B) M22	0-91111-522-0	01	1	0601-		●	●
9	06.870 LINK; DRAG FRT INDEPENDENT SUSPENSION(6PP)	8-97107-323-0	01	1	0302-0606	●
9	06.870 LINK; DRAG	8-97142-099-0	01	1	0302-0308		●	●
9	06.870 LINK; DRAG EXC. SHIMMY DAMPER<S3V>	8-97142-099-1	01	1	0309-		●	●
9	06.870 LINK; DRAG SHIMMY DAMPER<S3V>	8-97373-434-1	01	1	0309-		●	●
19	06.865 NUT; PITMAN ARM,STOPPER FRT INDEPENDENT SUSPENSION(6PP)	8-97017-762-0	02	1	0302-0606	●
19	06.865 NUT; PITMAN ARM,STOPPER	8-97017-762-0	02	1	0607-0610	●
19	06.865 NUT; PITMAN ARM,STOPPER	8-97387-863-0	02	1	0611-	●
34	06.233 NUT; DRAG LINK TO PITMAN ARM FRT INDEPENDENT SUSPENSION(6PP) 06.861 M18 SLOTTED	8-97017-761-0	01	1	0302-0606	●
36	06.881 PIN; SPLIT,DRAG LINK FRT INDEPENDENT SUSPENSION(6PP) L=19	8-97349-766-0	03	1	0302-0606	●
36	06.881 PIN; SPLIT,DRAG LINK L=19	8-97349-766-0	02	1	0607-0611	●
36	06.881 PIN; SPLIT,DRAG LINK L=19	8-97387-864-0	02	1	0612-0612	●
36	06.881 PIN; SPLIT,DRAG LINK L=19	8-97349-766-0	02	1	0701-0804	●
36	06.881 PIN; SPLIT,DRAG LINK L=19	8-98098-024-0	02	1	0805-	●
36	06.881 PIN; SPLIT,DRAG LINK FRT INDEPENDENT SUSPENSION(6PP) L=19	8-97349-766-0	01	1	0302-0606	●
36	06.881 PIN; SPLIT,DRAG LINK L=19	8-97349-766-0	01	1	0302-0606		●	●
36	06.881 PIN; SPLIT,DRAG LINK L=19	8-97349-766-0	01	1	0607-0611		●	●
36	06.881 PIN; SPLIT,DRAG LINK L=19	8-97387-864-0	01	1	0612-0612		●	●
36	06.881 PIN; SPLIT,DRAG LINK L=19	8-97349-766-0	01	1	0701-0804		●	●
36	06.881 PIN; SPLIT,DRAG LINK L=19	8-98098-024-0	01	1	0805-		●	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE FRT INDEPENDENT SUSPENSION(6PP)	8-97189-457-0	01	1	0302-0606	●
39	06.896 LEVER ASM; RELAY,STRG LINKAGE FRT INDEPENDENT SUSPENSION(6PP)	8-97189-455-0	01	1	0302-0606	●
71	06.896 BOLT; RELAY LEVER BRKT FRT INDEPENDENT SUSPENSION(6PP) EXC. KD PREPARATORY PACK<6HF> (A) M12X93.5	8-97085-383-0	04	1	0302-0606	●
71	06.896 BOLT; RELAY LEVER BRKT FRT INDEPENDENT SUSPENSION(6PP) EXC. KD PREPARATORY PACK<6HF> (B) M12X43.5	8-97085-384-0	04	1	0302-0606	●
71	06.896 BOLT; RELAY LEVER BRKT KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) 00.780 (A) M12X90	0-28081-290-0	04	1	0302-0512	●
71	06.896 BOLT; RELAY LEVER BRKT KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) 00.780 (A) M12X90 FLANGE	0-28051-290-0	04	1	0601-0606	●
71	06.896 BOLT; RELAY LEVER BRKT KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) 03.890 (B) M12X40	9-92061-240-0	04	1	0302-0512	●
71	06.896 BOLT; RELAY LEVER BRKT KD PREPARATORY PACK<6HF> FRT INDEPENDENT SUSPENSION(6PP) (B) M12X40	0-20951-240-0	04	1	0601-0606	●
77	06.897 WASHER; LK,RELAY LEVER FRT INDEPENDENT SUSPENSION(6PP) 08.931 ID=20.2	9-09150-520-0	01	1	0302-0603	●
77	06.897 WASHER; LK,RELAY LEVER FRT INDEPENDENT SUSPENSION(6PP) 06.515 ID=20.2	0-91510-520-0	01	1	0604-0606	●
99	06.896 BOLT; BRKT FRT INDEPENDENT SUSPENSION(6PP) 00.685 (A) M10X50 FLANGE	0-28081-050-0	02	1	0302-0512	●
99	06.896 BOLT; BRKT FRT INDEPENDENT SUSPENSION(6PP) 09.173 (A) M10X50 FLANGE	0-28051-050-0	02	1	0601-0606	●
99	06.896 BOLT; BRKT FRT INDEPENDENT SUSPENSION(6PP) 03.611 (B) M10X20 FLANGE	0-28681-020-0	02	1	0302-0512	●
99	06.896 BOLT; BRKT FRT INDEPENDENT SUSPENSION(6PP) 02.343 (B) M10X20 FLANGE	0-28651-020-0	02	1	0601-0606	●
104	06.233 NUT; ROD END FRT INDEPENDENT SUSPENSION(6PP) 06.234 M16 SLOTTED	1-09442-021-1	02	1	0302-0606	●
105	06.865 PIN; SPLIT,ROD END FRT INDEPENDENT SUSPENSION(6PP) 06.881 L=19	8-97349-766-0	02	1	0302-0606	●
110	06.870 ROD; TRACK,OUTER FRT INDEPENDENT SUSPENSION(6PP)	8-97107-318-1	02	1	0302-0606	●
111	06.870 ROD; TRACK,CENTER FRT INDEPENDENT SUSPENSION(6PP)	8-97107-321-0	01	1	0302-0606	●
114	06.515 WASHER; RELAY LEVER BRKT FRT INDEPENDENT SUSPENSION(6PP) 08.931 ID=20.2	9-09150-520-0	01	1	0302-0603	●
114	06.515 WASHER; RELAY LEVER BRKT FRT INDEPENDENT SUSPENSION(6PP) ID=20.2	0-91510-520-0	01	1	0604-0606	●
115	06.896 NUT; RELAY LEVER BRKT FRT INDEPENDENT SUSPENSION(6PP) 06.606 (A) M12	8-94139-015-0	08	1	0302-0606	●
115	06.896 NUT; RELAY LEVER BRKT FRT INDEPENDENT SUSPENSION(6PP) 08.915 (B) M20	9-99111-520-0	01	1	0302-0512	●
115	06.896 NUT; RELAY LEVER BRKT FRT INDEPENDENT SUSPENSION(6PP) 06.234 (B) M20	0-91111-520-0	01	1	0601-0606	●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER FRT INDEPENDENT SUSPENSION(6PP) 06.881 L=19	8-97349-766-0	01	1	0302-0606	●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER FRT INDEPENDENT SUSPENSION(6PP) 06.881 L=19	8-97349-766-0	01	1	0302-0606	●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER 06.881 L=19	8-97349-766-0	01	1	0302-0606		●	●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER 06.881 L=19	8-97349-766-0	01	1	0607-		●	●
117	06.233 NUT; DRAG LINK FRT INDEPENDENT SUSPENSION(6PP) 06.861 M18 SLOTTED	8-97017-761-0	02	1	0302-0606	●
117	06.233 NUT; DRAG LINK 06.861 M18 SLOTTED	8-97017-761-0	01	1	0607-0610		●	●
117	06.233 NUT; DRAG LINK 06.174 M18 SLOTTED	8-97245-632-0	01	1	0611-		●	●
117	06.233 NUT; DRAG LINK FRT INDEPENDENT SUSPENSION(6PP) 06.861 M18 SLOTTED	8-97017-761-0	01	1	0302-0606	●
117	06.233 NUT; DRAG LINK 06.861 M18 SLOTTED	8-97017-761-0	01	1	0302-0606		●	●
119	06.897 NUT; RELAY LEVER FRT INDEPENDENT SUSPENSION(6PP) 08.915 M20	9-99111-520-0	01	1	0302-0512	●
119	06.897 NUT; RELAY LEVER FRT INDEPENDENT SUSPENSION(6PP) 06.234 M20	0-91111-520-0	01	1	0601-0606	●
120	06.897 BOLT; RELAY LEVER STOPPER FRT INDEPENDENT SUSPENSION(6PP)	8-97014-919-0	02	1	0302-0606	●
123	06.895 LEVER; RELAY,RH FRT INDEPENDENT SUSPENSION(6PP)	8-97031-398-0	01	1	0302-0606	●
124	06.859 LEVER; RELAY,STRG LINKAGE FRT INDEPENDENT SUSPENSION(6PP)	8-97036-547-1	01	1	0302-0606	●
125	06.865 DAMPER; STEERING FRT INDEPENDENT SUSPENSION(6PP)	8-97012-618-3	01	1	0302-0606	●
125	06.865 DAMPER; STEERING SHIMMY DAMPER<S3V>	8-97211-142-1	01	1	0309-0606		●	●
125	06.865 DAMPER; STEERING SHIMMY DAMPER<S3V>	8-98046-740-2	01	1	0607-		●	●
126	06.865 BOLT; STRG DAMPER TO RELAY LEVER 00.685 M10X45 FLANGE	0-28081-045-0	02	1	0302-0308	●
126	06.865 BOLT; STRG DAMPER TO RELAY LEVER 00.685 M10X45 FLANGE	0-28081-045-0	02	1	0309-0512	●
126	06.865 BOLT; STRG DAMPER TO RELAY LEVER SHIMMY DAMPER<S3V> 00.685 M10X45 FLANGE	0-28081-045-0	02	1	0309-0512		●	●
126	06.865 BOLT; STRG DAMPER TO RELAY LEVER 00.685 M10X45 FLANGE	0-28051-045-0	02	1	0601-0606	●
126	06.865 BOLT; STRG DAMPER TO RELAY LEVER SHIMMY DAMPER<S3V> 00.685 M10X45 FLANGE	0-28051-045-0	02	1	0601-0606		●	●
126	06.865 BOLT; STRG DAMPER TO RELAY LEVER SHIMMY DAMPER<S3V> 00.685 M10X45 FLANGE	0-28051-045-0	02	1	0607-		●	●
127	06.865 NUT; STRG DAMPER FRT INDEPENDENT SUSPENSION(6PP) 08.917 M10 FLANGE	0-91150-210-0	02	1	0302-0506	●
127	06.865 NUT; STRG DAMPER FRT INDEPENDENT SUSPENSION(6PP) 08.917 M10 FLANGE	0-91150-210-0	02	1	0507-0602	●
127	06.865 NUT; STRG DAMPER SHIMMY DAMPER<S3V> 08.917 M10 FLANGE	0-91150-210-0	02	1	0507-0602		●	●
127	06.865 NUT; STRG DAMPER FRT INDEPENDENT SUSPENSION(6PP) 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-0606	●
127	06.865 NUT; STRG DAMPER SHIMMY DAMPER<S3V> 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-0606		●	●
127	06.865 NUT; STRG DAMPER SHIMMY DAMPER<S3V> 04.085 M10 FLANGE	0-91180-210-0	02	1	0607-1203		●	●
127	06.865 NUT; STRG DAMPER SHIMMY DAMPER<S3V> 03.162 M10 FLANGE	0-91180-110-0	02	1	1204-		●	●
127	06.865 NUT; STRG DAMPER SHIMMY DAMPER<S3V> 08.917 M10 FLANGE	0-91150-210-0	01	1	0309-0506		●	●
144	06.896 NUT; STOPPER BRKT FRT INDEPENDENT SUSPENSION(6PP) 05.816 M12	9-99110-412-0	02	1	0302-0512	●
144	06.896 NUT; STOPPER BRKT FRT INDEPENDENT SUSPENSION(6PP) 05.002 M12	0-91110-512-0	02	1	0601-0606	●
164	06.896 BRACKET; STEERING DAMPER FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97012-595-2	01	1	0302-0606	●
164	06.896 BRACKET; STEERING DAMPER FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97025-765-1	01	1	0302-0606	●

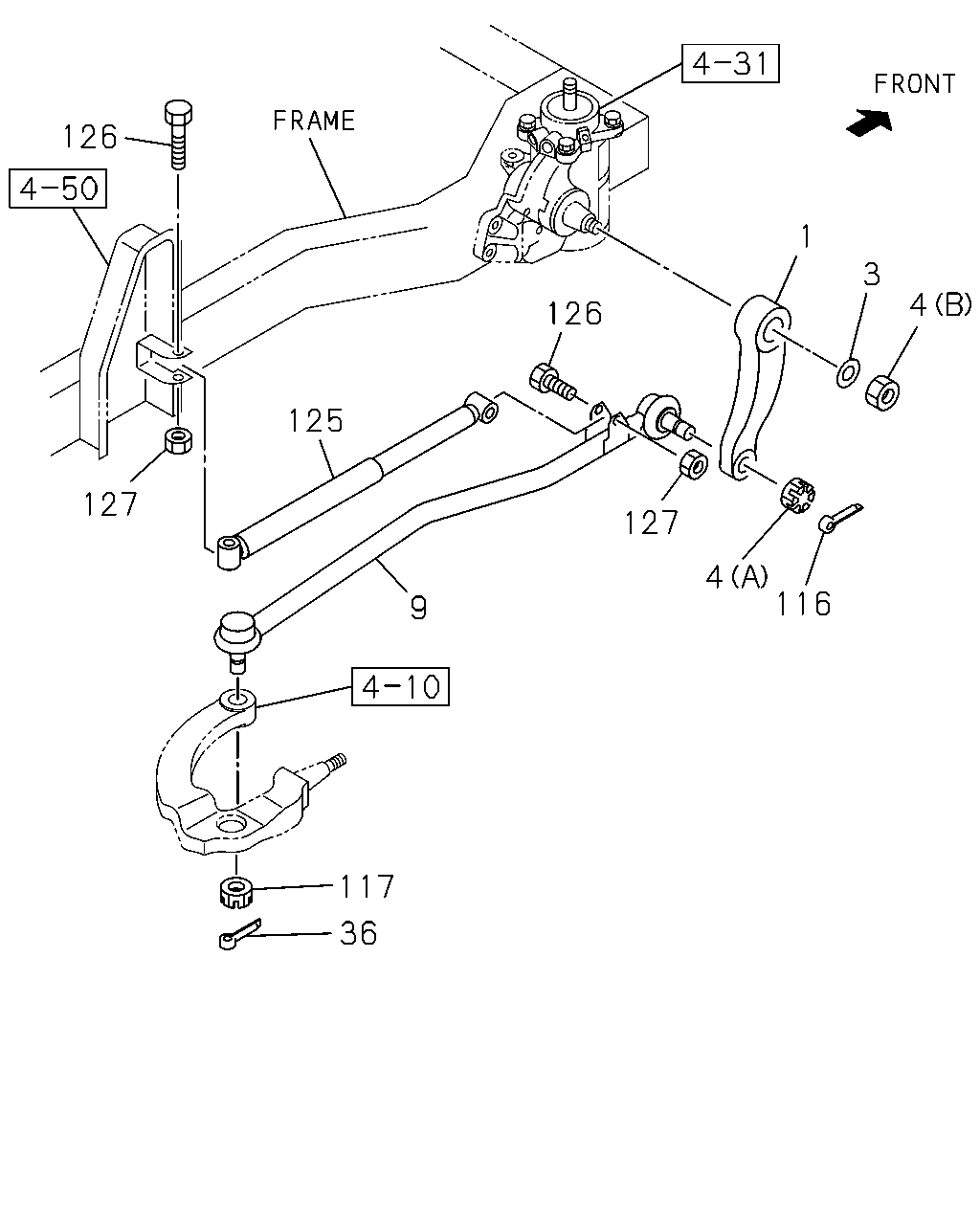

126 1 3 4 126 125 127 127 4 116 9 117 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	06.859 ARM; PITMAN,STRG FRT INDEPENDENT SUSPENSION(6PP)	8-97070-362-2	01	1	0302-0606	●
1	06.859 ARM; PITMAN,STRG	8-97109-289-1	01	1	0302-		●	●
3	06.861 WASHER; LK,PITMAN ARM FRT INDEPENDENT SUSPENSION(6PP) 08.931 ID=27.5	9-09150-527-0	01	1	0302-0603	●
3	06.861 WASHER; LK,PITMAN ARM FRT INDEPENDENT SUSPENSION(6PP) ID=27.5	0-91510-527-0	01	1	0604-0606	●
3	06.861 WASHER; LK,PITMAN ARM ID=22.5	9-09150-522-0	01	1	0302-0603		●	●
3	06.861 WASHER; LK,PITMAN ARM ID=22.5	0-91510-522-0	01	1	0604-		●	●
4	06.861 NUT; PITMAN ARM FRT INDEPENDENT SUSPENSION(6PP) (C) M27	5-12378-002-0	01	1	0302-0606	●
4	06.861 NUT; PITMAN ARM (A) M18 SLOTTED	8-97017-761-0	01	1	0302-0805		●	●
4	06.861 NUT; PITMAN ARM 06.174 (A) M18 SLOTTED	8-97245-632-0	01	1	0806-		●	●
4	06.861 NUT; PITMAN ARM 08.915 (B) M22	9-09111-522-0	01	1	0302-0512		●	●
4	06.861 NUT; PITMAN ARM (B) M22	0-91111-522-0	01	1	0601-		●	●
9	06.870 LINK; DRAG FRT INDEPENDENT SUSPENSION(6PP)	8-97107-323-0	01	1	0302-0606	●
9	06.870 LINK; DRAG	8-97142-099-0	01	1	0302-0308		●	●
9	06.870 LINK; DRAG EXC. SHIMMY DAMPER<S3V>	8-97142-099-1	01	1	0309-		●	●
9	06.870 LINK; DRAG SHIMMY DAMPER<S3V>	8-97373-434-1	01	1	0309-		●	●
36	06.881 PIN; SPLIT,DRAG LINK FRT INDEPENDENT SUSPENSION(6PP) L=19	8-97349-766-0	03	1	0302-0606	●
36	06.881 PIN; SPLIT,DRAG LINK L=19	8-97349-766-0	02	1	0607-0611	●
36	06.881 PIN; SPLIT,DRAG LINK L=19	8-97387-864-0	02	1	0612-0612	●
36	06.881 PIN; SPLIT,DRAG LINK L=19	8-97349-766-0	02	1	0701-0804	●
36	06.881 PIN; SPLIT,DRAG LINK L=19	8-98098-024-0	02	1	0805-	●
36	06.881 PIN; SPLIT,DRAG LINK FRT INDEPENDENT SUSPENSION(6PP) L=19	8-97349-766-0	01	1	0302-0606	●
36	06.881 PIN; SPLIT,DRAG LINK L=19	8-97349-766-0	01	1	0302-0606		●	●
36	06.881 PIN; SPLIT,DRAG LINK L=19	8-97349-766-0	01	1	0607-0611		●	●
36	06.881 PIN; SPLIT,DRAG LINK L=19	8-97387-864-0	01	1	0612-0612		●	●
36	06.881 PIN; SPLIT,DRAG LINK L=19	8-97349-766-0	01	1	0701-0804		●	●
36	06.881 PIN; SPLIT,DRAG LINK L=19	8-98098-024-0	01	1	0805-		●	●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER FRT INDEPENDENT SUSPENSION(6PP) 06.881 L=19	8-97349-766-0	01	1	0302-0606	●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER FRT INDEPENDENT SUSPENSION(6PP) 06.881 L=19	8-97349-766-0	01	1	0302-0606	●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER 06.881 L=19	8-97349-766-0	01	1	0302-0606		●	●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER 06.881 L=19	8-97349-766-0	01	1	0607-		●	●
117	06.233 NUT; DRAG LINK FRT INDEPENDENT SUSPENSION(6PP) 06.861 M18 SLOTTED	8-97017-761-0	02	1	0302-0606	●
117	06.233 NUT; DRAG LINK 06.861 M18 SLOTTED	8-97017-761-0	01	1	0607-0610		●	●
117	06.233 NUT; DRAG LINK 06.174 M18 SLOTTED	8-97245-632-0	01	1	0611-		●	●
117	06.233 NUT; DRAG LINK FRT INDEPENDENT SUSPENSION(6PP) 06.861 M18 SLOTTED	8-97017-761-0	01	1	0302-0606	●
117	06.233 NUT; DRAG LINK 06.861 M18 SLOTTED	8-97017-761-0	01	1	0302-0606		●	●
125	06.865 DAMPER; STEERING FRT INDEPENDENT SUSPENSION(6PP)	8-97012-618-3	01	1	0302-0606	●
125	06.865 DAMPER; STEERING SHIMMY DAMPER<S3V>	8-97211-142-1	01	1	0309-0606		●	●
125	06.865 DAMPER; STEERING SHIMMY DAMPER<S3V>	8-98046-740-2	01	1	0607-		●	●
126	06.865 BOLT; STRG DAMPER TO RELAY LEVER 00.685 M10X45 FLANGE	0-28081-045-0	02	1	0302-0308	●
126	06.865 BOLT; STRG DAMPER TO RELAY LEVER 00.685 M10X45 FLANGE	0-28081-045-0	02	1	0309-0512	●
126	06.865 BOLT; STRG DAMPER TO RELAY LEVER SHIMMY DAMPER<S3V> 00.685 M10X45 FLANGE	0-28081-045-0	02	1	0309-0512		●	●
126	06.865 BOLT; STRG DAMPER TO RELAY LEVER 00.685 M10X45 FLANGE	0-28051-045-0	02	1	0601-0606	●
126	06.865 BOLT; STRG DAMPER TO RELAY LEVER SHIMMY DAMPER<S3V> 00.685 M10X45 FLANGE	0-28051-045-0	02	1	0601-0606		●	●
126	06.865 BOLT; STRG DAMPER TO RELAY LEVER SHIMMY DAMPER<S3V> 00.685 M10X45 FLANGE	0-28051-045-0	02	1	0607-		●	●
127	06.865 NUT; STRG DAMPER FRT INDEPENDENT SUSPENSION(6PP) 08.917 M10 FLANGE	0-91150-210-0	02	1	0302-0506	●
127	06.865 NUT; STRG DAMPER FRT INDEPENDENT SUSPENSION(6PP) 08.917 M10 FLANGE	0-91150-210-0	02	1	0507-0602	●
127	06.865 NUT; STRG DAMPER SHIMMY DAMPER<S3V> 08.917 M10 FLANGE	0-91150-210-0	02	1	0507-0602		●	●
127	06.865 NUT; STRG DAMPER FRT INDEPENDENT SUSPENSION(6PP) 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-0606	●
127	06.865 NUT; STRG DAMPER SHIMMY DAMPER<S3V> 04.085 M10 FLANGE	0-91180-210-0	02	1	0603-0606		●	●
127	06.865 NUT; STRG DAMPER SHIMMY DAMPER<S3V> 04.085 M10 FLANGE	0-91180-210-0	02	1	0607-1203		●	●
127	06.865 NUT; STRG DAMPER SHIMMY DAMPER<S3V> 03.162 M10 FLANGE	0-91180-110-0	02	1	1204-		●	●
127	06.865 NUT; STRG DAMPER SHIMMY DAMPER<S3V> 08.917 M10 FLANGE	0-91150-210-0	01	1	0309-0506		●	●

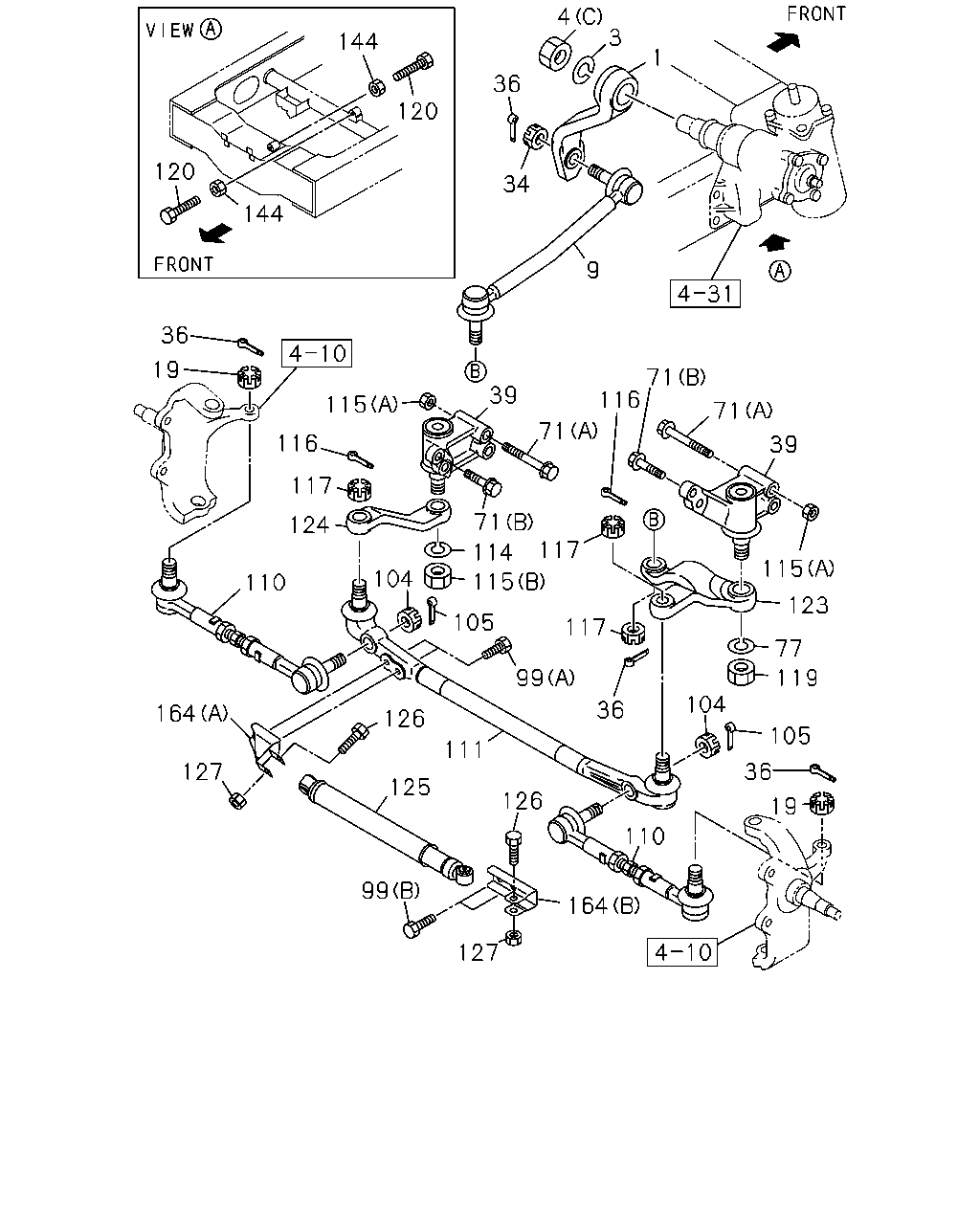

3 4 1 4 9 116 117 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	06.859 ARM; PITMAN,STRG FRT INDEPENDENT SUSPENSION(6PP)	8-97070-362-2	01	1	0302-0606	●
1	06.859 ARM; PITMAN,STRG	8-97109-289-1	01	1	0302-		●	●
3	06.861 WASHER; LK,PITMAN ARM FRT INDEPENDENT SUSPENSION(6PP) 08.931 ID=27.5	9-09150-527-0	01	1	0302-0603	●
3	06.861 WASHER; LK,PITMAN ARM FRT INDEPENDENT SUSPENSION(6PP) ID=27.5	0-91510-527-0	01	1	0604-0606	●
3	06.861 WASHER; LK,PITMAN ARM ID=22.5	9-09150-522-0	01	1	0302-0603		●	●
3	06.861 WASHER; LK,PITMAN ARM ID=22.5	0-91510-522-0	01	1	0604-		●	●
4	06.861 NUT; PITMAN ARM FRT INDEPENDENT SUSPENSION(6PP) (C) M27	5-12378-002-0	01	1	0302-0606	●
4	06.861 NUT; PITMAN ARM (A) M18 SLOTTED	8-97017-761-0	01	1	0302-0805		●	●
4	06.861 NUT; PITMAN ARM 06.174 (A) M18 SLOTTED	8-97245-632-0	01	1	0806-		●	●
4	06.861 NUT; PITMAN ARM 08.915 (B) M22	9-09111-522-0	01	1	0302-0512		●	●
4	06.861 NUT; PITMAN ARM (B) M22	0-91111-522-0	01	1	0601-		●	●
9	06.870 LINK; DRAG FRT INDEPENDENT SUSPENSION(6PP)	8-97107-323-0	01	1	0302-0606	●
9	06.870 LINK; DRAG	8-97142-099-0	01	1	0302-0308		●	●
9	06.870 LINK; DRAG EXC. SHIMMY DAMPER<S3V>	8-97142-099-1	01	1	0309-		●	●
9	06.870 LINK; DRAG SHIMMY DAMPER<S3V>	8-97373-434-1	01	1	0309-		●	●
36	06.881 PIN; SPLIT,DRAG LINK FRT INDEPENDENT SUSPENSION(6PP) L=19	8-97349-766-0	03	1	0302-0606	●
36	06.881 PIN; SPLIT,DRAG LINK L=19	8-97349-766-0	02	1	0607-0611	●
36	06.881 PIN; SPLIT,DRAG LINK L=19	8-97387-864-0	02	1	0612-0612	●
36	06.881 PIN; SPLIT,DRAG LINK L=19	8-97349-766-0	02	1	0701-0804	●
36	06.881 PIN; SPLIT,DRAG LINK L=19	8-98098-024-0	02	1	0805-	●
36	06.881 PIN; SPLIT,DRAG LINK FRT INDEPENDENT SUSPENSION(6PP) L=19	8-97349-766-0	01	1	0302-0606	●
36	06.881 PIN; SPLIT,DRAG LINK L=19	8-97349-766-0	01	1	0302-0606		●	●
36	06.881 PIN; SPLIT,DRAG LINK L=19	8-97349-766-0	01	1	0607-0611		●	●
36	06.881 PIN; SPLIT,DRAG LINK L=19	8-97387-864-0	01	1	0612-0612		●	●
36	06.881 PIN; SPLIT,DRAG LINK L=19	8-97349-766-0	01	1	0701-0804		●	●
36	06.881 PIN; SPLIT,DRAG LINK L=19	8-98098-024-0	01	1	0805-		●	●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER FRT INDEPENDENT SUSPENSION(6PP) 06.881 L=19	8-97349-766-0	01	1	0302-0606	●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER FRT INDEPENDENT SUSPENSION(6PP) 06.881 L=19	8-97349-766-0	01	1	0302-0606	●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER 06.881 L=19	8-97349-766-0	01	1	0302-0606		●	●
116	06.897 PIN; SPLIT,TRACK ROD,CENTER 06.881 L=19	8-97349-766-0	01	1	0607-		●	●
117	06.233 NUT; DRAG LINK FRT INDEPENDENT SUSPENSION(6PP) 06.861 M18 SLOTTED	8-97017-761-0	02	1	0302-0606	●
117	06.233 NUT; DRAG LINK 06.861 M18 SLOTTED	8-97017-761-0	01	1	0607-0610		●	●
117	06.233 NUT; DRAG LINK 06.174 M18 SLOTTED	8-97245-632-0	01	1	0611-		●	●
117	06.233 NUT; DRAG LINK FRT INDEPENDENT SUSPENSION(6PP) 06.861 M18 SLOTTED	8-97017-761-0	01	1	0302-0606	●
117	06.233 NUT; DRAG LINK 06.861 M18 SLOTTED	8-97017-761-0	01	1	0302-0606		●	●

36 19

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
19	06.865 NUT; PITMAN ARM,STOPPER FRT INDEPENDENT SUSPENSION(6PP)	8-97017-762-0	02	1	0302-0606	●
19	06.865 NUT; PITMAN ARM,STOPPER	8-97017-762-0	02	1	0607-0610	●
19	06.865 NUT; PITMAN ARM,STOPPER	8-97387-863-0	02	1	0611-	●
36	06.881 PIN; SPLIT,DRAG LINK FRT INDEPENDENT SUSPENSION(6PP) L=19	8-97349-766-0	03	1	0302-0606	●
36	06.881 PIN; SPLIT,DRAG LINK L=19	8-97349-766-0	02	1	0607-0611	●
36	06.881 PIN; SPLIT,DRAG LINK L=19	8-97387-864-0	02	1	0612-0612	●
36	06.881 PIN; SPLIT,DRAG LINK L=19	8-97349-766-0	02	1	0701-0804	●
36	06.881 PIN; SPLIT,DRAG LINK L=19	8-98098-024-0	02	1	0805-	●
36	06.881 PIN; SPLIT,DRAG LINK FRT INDEPENDENT SUSPENSION(6PP) L=19	8-97349-766-0	01	1	0302-0606	●
36	06.881 PIN; SPLIT,DRAG LINK L=19	8-97349-766-0	01	1	0302-0606		●	●
36	06.881 PIN; SPLIT,DRAG LINK L=19	8-97349-766-0	01	1	0607-0611		●	●
36	06.881 PIN; SPLIT,DRAG LINK L=19	8-97387-864-0	01	1	0612-0612		●	●
36	06.881 PIN; SPLIT,DRAG LINK L=19	8-97349-766-0	01	1	0701-0804		●	●
36	06.881 PIN; SPLIT,DRAG LINK L=19	8-98098-024-0	01	1	0805-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
