1 |
05.809 DRUM; BRK,RR
4JH1 ENG(RJX)
FINAL GEAR RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97192-097-1 |
02 |
1 |
0302-0303 |
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97192-097-1 |
02 |
1 |
0304-0305 |
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97366-736-0 |
02 |
1 |
0306-0506 |
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97366-736-0 |
02 |
1 |
0507-0606 |
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
|
8-97366-736-0 |
02 |
1 |
0607- |
● |
|
|
| |
1 |
05.809 DRUM; BRK,RR
|
8-97034-770-3 |
02 |
1 |
0302-0404 |
|
● |
● |
| |
1 |
05.809 DRUM; BRK,RR
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
|
8-97034-770-3 |
02 |
1 |
0405-0506 |
|
● |
● |
| |
1 |
05.809 DRUM; BRK,RR
4JH1-TC ENG(RDM)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
|
8-97034-770-3 |
02 |
1 |
0507-0606 |
|
● |
● |
| |
1 |
05.809 DRUM; BRK,RR
4JJ1 ENG(LFB)
|
8-97034-770-3 |
02 |
1 |
0607- |
|
● |
● |
| |
8 |
05.809 HUB; RR AXLE
4JH1 ENG(RJX)
FINAL GEAR RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-94335-927-4 |
02 |
1 |
0302-0303 |
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-94335-927-4 |
02 |
1 |
0304-0404 |
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-94335-927-4 |
02 |
1 |
0405-0506 |
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-94335-927-4 |
02 |
1 |
0507-0606 |
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-94335-927-4 |
02 |
1 |
0607- |
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
4JH1 ENG(RJX)
FINAL GEAR RATIO 43/9(S2J)
4 WHEEL ANTI LOCK BRAKE<JE5>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97240-323-1 |
02 |
1 |
0302-0303 |
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
4 WHEEL ANTI LOCK BRAKE<JE5>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97240-323-1 |
02 |
1 |
0304-0506 |
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
4 WHEEL ANTI LOCK BRAKE<JE5>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97240-323-1 |
02 |
1 |
0507-0606 |
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97240-323-1 |
02 |
1 |
0607- |
● |
|
|
| |
8 |
05.809 HUB; RR AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97026-139-3 |
02 |
1 |
0302-0404 |
|
● |
● |
| |
8 |
05.809 HUB; RR AXLE
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97026-139-3 |
02 |
1 |
0405-0506 |
|
● |
● |
| |
8 |
05.809 HUB; RR AXLE
4JH1-TC ENG(RDM)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97026-139-3 |
02 |
1 |
0507-0606 |
|
● |
● |
| |
8 |
05.809 HUB; RR AXLE
4JJ1 ENG(LFB)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97026-139-3 |
02 |
1 |
0607- |
|
● |
● |
| |
8 |
05.809 HUB; RR AXLE
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97034-406-4 |
02 |
1 |
0302-0506 |
|
● |
● |
| |
8 |
05.809 HUB; RR AXLE
4JH1-TC ENG(RDM)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97034-406-4 |
02 |
1 |
0507-0606 |
|
● |
● |
| |
8 |
05.809 HUB; RR AXLE
4JJ1 ENG(LFB)
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97034-406-4 |
02 |
1 |
0607- |
|
● |
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4JH1 ENG(RJX)
FINAL GEAR RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
M14X50 LH THREAD
|
9-42332-605-4 |
06 |
1 |
0302-0303 |
● |
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
M14X50 LH THREAD
|
9-42332-605-4 |
06 |
1 |
0304-0506 |
● |
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
M14X50 LH THREAD
|
9-42332-605-4 |
06 |
1 |
0507-0606 |
● |
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M14X50 LH THREAD
|
9-42332-605-5 |
06 |
1 |
0607- |
● |
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4JH1 ENG(RJX)
FINAL GEAR RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
M14X50 RH THREAD
|
9-42331-605-4 |
06 |
1 |
0302-0303 |
● |
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
M14X50 RH THREAD
|
9-42331-605-4 |
06 |
1 |
0304-0506 |
● |
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
M14X50 RH THREAD
|
9-42331-605-4 |
06 |
1 |
0507-0606 |
● |
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M14X50 RH THREAD
|
9-42331-605-5 |
06 |
1 |
0607- |
● |
|
|
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
0302-0404 |
|
● |
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
0405-0506 |
|
● |
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4JH1-TC ENG(RDM)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-1 |
05 |
1 |
0507-0606 |
|
● |
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4JJ1 ENG(LFB)
M18X29 LH THREAD,M20X43.5 RH THREAD
|
8-94383-437-2 |
05 |
1 |
0607- |
|
● |
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
0302-0404 |
|
● |
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
0405-0506 |
|
● |
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4JH1-TC ENG(RDM)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-1 |
05 |
1 |
0507-0606 |
|
● |
● |
| |
9 |
05.812 PIN; WHEEL,RR AXLE
4JJ1 ENG(LFB)
M18X29,M20X43.5 RH THREAD
|
8-94383-436-2 |
05 |
1 |
0607- |
|
● |
● |
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
00.050
M20
|
9-99110-520-0 |
10 |
1 |
0302-0404 |
|
● |
● |
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
00.050
M20
|
9-99110-520-0 |
10 |
1 |
0405-0506 |
|
● |
● |
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4JH1-TC ENG(RDM)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
00.050
M20
|
9-99110-520-0 |
10 |
1 |
0507-0512 |
|
● |
● |
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4JH1-TC ENG(RDM)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
05.812
M20
|
0-91110-520-0 |
10 |
1 |
0601-0606 |
|
● |
● |
| |
10 |
05.813 NUT; WHEEL PIN,RR AXLE
4JJ1 ENG(LFB)
05.812
M20
|
0-91110-520-0 |
10 |
1 |
0607- |
|
● |
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
FRT INDEPENDENT SUSPENSION(6PP)
NSK
|
9-00093-082-0 |
02 |
1 |
0302-0506 |
● |
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
NSK
|
9-00093-082-0 |
02 |
1 |
0302-0506 |
|
● |
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
FRT INDEPENDENT SUSPENSION(6PP)
NSK
|
9-00093-082-0 |
02 |
1 |
0507-0606 |
● |
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4JH1-TC ENG(RDM)
NSK
|
9-00093-082-0 |
02 |
1 |
0507-0606 |
|
● |
● |
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
NSK
|
9-00093-082-0 |
02 |
1 |
0607- |
● |
|
|
| |
15 |
05.855 BEARING; HUB OUTER,RR AXLE
4JJ1 ENG(LFB)
NSK
|
9-00093-082-0 |
02 |
1 |
0607- |
|
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
NOK
|
8-98202-911-0 |
02 |
1 |
1204-1207 |
● |
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4JJ1 ENG(LFB)
NOK
|
8-98202-911-0 |
02 |
1 |
1204-1207 |
|
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
NOK
|
8-98202-911-0 |
04 |
1 |
1208- |
● |
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4JJ1 ENG(LFB)
NOK
|
8-98202-911-0 |
04 |
1 |
1208- |
|
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
FRT INDEPENDENT SUSPENSION(6PP)
TKK
|
8-94336-315-2 |
02 |
1 |
0302-0506 |
● |
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
TKK
|
8-94336-315-2 |
02 |
1 |
0302-0506 |
|
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
FRT INDEPENDENT SUSPENSION(6PP)
TKK
|
8-94336-315-2 |
02 |
1 |
0507-0606 |
● |
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4JH1-TC ENG(RDM)
TKK
|
8-94336-315-2 |
02 |
1 |
0507-0606 |
|
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
TKK
|
8-94336-315-2 |
02 |
1 |
0607-1207 |
● |
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4JJ1 ENG(LFB)
TKK
|
8-94336-315-2 |
02 |
1 |
0607-1207 |
|
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
FRT INDEPENDENT SUSPENSION(6PP)
NOK
|
8-94367-961-1 |
02 |
1 |
0302-0506 |
● |
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
NOK
|
8-94367-961-1 |
02 |
1 |
0302-0506 |
|
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
FRT INDEPENDENT SUSPENSION(6PP)
NOK
|
8-94367-961-1 |
02 |
1 |
0507-0606 |
● |
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4JH1-TC ENG(RDM)
NOK
|
8-94367-961-1 |
02 |
1 |
0507-0606 |
|
● |
● |
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
NOK
|
8-94367-961-1 |
02 |
1 |
0607-1106 |
● |
|
|
| |
16 |
05.822 SEAL; OIL,RR HUB,OUTER
4JJ1 ENG(LFB)
NOK
|
8-94367-961-1 |
02 |
1 |
0607-1106 |
|
● |
● |
| |
20 |
05.830 NUT; BRG,RR HUB
FRT INDEPENDENT SUSPENSION(6PP)
M52
|
8-97137-092-0 |
02 |
1 |
0302-0506 |
● |
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
M52
|
8-97137-092-0 |
02 |
1 |
0302-0506 |
|
● |
● |
| |
20 |
05.830 NUT; BRG,RR HUB
FRT INDEPENDENT SUSPENSION(6PP)
M52
|
8-97137-092-0 |
02 |
1 |
0507-0606 |
● |
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
4JH1-TC ENG(RDM)
M52
|
8-97137-092-0 |
02 |
1 |
0507-0606 |
|
● |
● |
| |
20 |
05.830 NUT; BRG,RR HUB
M52
|
8-97137-092-0 |
02 |
1 |
0607- |
● |
|
|
| |
20 |
05.830 NUT; BRG,RR HUB
4JJ1 ENG(LFB)
M52
|
8-97137-092-0 |
02 |
1 |
0607- |
|
● |
● |
| |
21 |
05.830 WASHER; LK,BRG NUT
FRT INDEPENDENT SUSPENSION(6PP)
ID=52
|
9-09853-214-0 |
02 |
1 |
0302-0506 |
● |
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
ID=52
|
9-09853-214-0 |
02 |
1 |
0302-0506 |
|
● |
● |
| |
21 |
05.830 WASHER; LK,BRG NUT
FRT INDEPENDENT SUSPENSION(6PP)
ID=52
|
9-09853-214-0 |
02 |
1 |
0507-0606 |
● |
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
4JH1-TC ENG(RDM)
ID=52
|
9-09853-214-0 |
02 |
1 |
0507-0606 |
|
● |
● |
| |
21 |
05.830 WASHER; LK,BRG NUT
ID=52
|
9-09853-214-0 |
02 |
1 |
0607- |
● |
|
|
| |
21 |
05.830 WASHER; LK,BRG NUT
4JJ1 ENG(LFB)
ID=52
|
9-09853-214-0 |
02 |
1 |
0607- |
|
● |
● |
| |
24 |
05.830 BOLT; LK WASHER
FRT INDEPENDENT SUSPENSION(6PP)
00.685
M6X12 W/LK WASHER
|
0-50040-612-0 |
04 |
1 |
0302-0506 |
● |
|
|
| |
24 |
05.830 BOLT; LK WASHER
00.685
M6X12 W/LK WASHER
|
0-50040-612-0 |
04 |
1 |
0302-0506 |
|
● |
● |
| |
24 |
05.830 BOLT; LK WASHER
FRT INDEPENDENT SUSPENSION(6PP)
00.685
M6X12 W/LK WASHER
|
0-50040-612-0 |
04 |
1 |
0507-0512 |
● |
|
|
| |
24 |
05.830 BOLT; LK WASHER
4JH1-TC ENG(RDM)
00.685
M6X12 W/LK WASHER
|
0-50040-612-0 |
04 |
1 |
0507-0512 |
|
● |
● |
| |
24 |
05.830 BOLT; LK WASHER
FRT INDEPENDENT SUSPENSION(6PP)
03.342
M6X12 W/LK WASHER
|
0-50540-612-0 |
04 |
1 |
0601-0606 |
● |
|
|
| |
24 |
05.830 BOLT; LK WASHER
4JH1-TC ENG(RDM)
03.342
M6X12 W/LK WASHER
|
0-50540-612-0 |
04 |
1 |
0601-0606 |
|
● |
● |
| |
24 |
05.830 BOLT; LK WASHER
03.342
M6X12 W/LK WASHER
|
0-50540-612-0 |
04 |
1 |
0607-0611 |
● |
|
|
| |
24 |
05.830 BOLT; LK WASHER
4JJ1 ENG(LFB)
03.342
M6X12 W/LK WASHER
|
0-50540-612-0 |
04 |
1 |
0607-0611 |
|
● |
● |
| |
24 |
05.830 BOLT; LK WASHER
03.671
M6X10 FLANGE
|
0-28050-610-0 |
04 |
1 |
0612- |
● |
|
|
| |
24 |
05.830 BOLT; LK WASHER
4JJ1 ENG(LFB)
03.671
M6X10 FLANGE
|
0-28050-610-0 |
04 |
1 |
0612- |
|
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
4JH1 ENG(RJX)
FINAL GEAR RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94366-192-0 |
02 |
1 |
0302-0303 |
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94366-192-0 |
02 |
1 |
0304-0506 |
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
|
8-94366-192-0 |
02 |
1 |
0507-0606 |
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
|
8-94366-192-0 |
02 |
1 |
0607- |
● |
|
|
| |
25 |
05.420 SHAFT; AXLE,RR
|
8-97032-496-0 |
02 |
1 |
0302-0404 |
|
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
|
8-97032-496-0 |
02 |
1 |
0405-0506 |
|
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
4JH1-TC ENG(RDM)
|
8-97032-496-0 |
02 |
1 |
0507-0606 |
|
● |
● |
| |
25 |
05.420 SHAFT; AXLE,RR
4JJ1 ENG(LFB)
|
8-97032-496-0 |
02 |
1 |
0607- |
|
● |
● |
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
4JH1 ENG(RJX)
FINAL GEAR RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
M10X30 L=49
|
5-09300-066-1 |
12 |
1 |
0302-0303 |
● |
|
|
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
M10X30 L=49
|
5-09300-066-1 |
12 |
1 |
0304-0506 |
● |
|
|
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
M10X30 L=49
|
5-09300-066-1 |
12 |
1 |
0507-0606 |
● |
|
|
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49
|
5-09300-066-1 |
12 |
1 |
0607-0709 |
● |
|
|
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49
|
8-97359-803-0 |
12 |
1 |
0710- |
● |
|
|
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
M10X30 L=49
|
5-09300-066-1 |
16 |
1 |
0302-0404 |
|
● |
● |
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
M10X30 L=49
|
5-09300-066-1 |
16 |
1 |
0405-0506 |
|
● |
● |
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
4JH1-TC ENG(RDM)
M10X30 L=49
|
5-09300-066-1 |
16 |
1 |
0507-0606 |
|
● |
● |
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
4JJ1 ENG(LFB)
M10X30 L=49
|
5-09300-066-1 |
16 |
1 |
0607-0709 |
|
● |
● |
| |
31 |
05.422 STUD; AXLE SHAFT TO HUB
4JJ1 ENG(LFB)
M10X30 L=49
|
8-97359-803-0 |
16 |
1 |
0710- |
|
● |
● |
| |
34 |
05.387 NUT; AXLE SHAFT
4JH1 ENG(RJX)
FINAL GEAR RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
08.917
M10 FLANGE
|
0-91150-210-0 |
12 |
1 |
0302-0303 |
● |
|
|
| |
34 |
05.387 NUT; AXLE SHAFT
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
08.917
M10 FLANGE
|
0-91150-210-0 |
12 |
1 |
0304-0506 |
● |
|
|
| |
34 |
05.387 NUT; AXLE SHAFT
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
08.917
M10 FLANGE
|
0-91150-210-0 |
12 |
1 |
0507-0602 |
● |
|
|
| |
34 |
05.387 NUT; AXLE SHAFT
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
04.085
M10 FLANGE
|
0-91180-210-0 |
12 |
1 |
0603-0606 |
● |
|
|
| |
34 |
05.387 NUT; AXLE SHAFT
04.085
M10 FLANGE
|
0-91180-210-0 |
12 |
1 |
0607- |
● |
|
|
| |
34 |
05.387 NUT; AXLE SHAFT
08.917
M10 FLANGE
|
0-91150-210-0 |
16 |
1 |
0302-0404 |
|
● |
● |
| |
34 |
05.387 NUT; AXLE SHAFT
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
08.917
M10 FLANGE
|
0-91150-210-0 |
16 |
1 |
0405-0506 |
|
● |
● |
| |
34 |
05.387 NUT; AXLE SHAFT
4JH1-TC ENG(RDM)
08.917
M10 FLANGE
|
0-91150-210-0 |
16 |
1 |
0507-0602 |
|
● |
● |
| |
34 |
05.387 NUT; AXLE SHAFT
4JH1-TC ENG(RDM)
04.085
M10 FLANGE
|
0-91180-210-0 |
16 |
1 |
0603-0606 |
|
● |
● |
| |
34 |
05.387 NUT; AXLE SHAFT
4JJ1 ENG(LFB)
04.085
M10 FLANGE
|
0-91180-210-0 |
16 |
1 |
0607- |
|
● |
● |
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
4JH1 ENG(RJX)
FINAL GEAR RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
ID=10.5
|
9-09855-207-0 |
12 |
1 |
0302-0303 |
● |
|
|
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
ID=10.5
|
9-09855-207-0 |
12 |
1 |
0304-0506 |
● |
|
|
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
ID=10.5
|
9-09855-207-0 |
12 |
1 |
0507-0606 |
● |
|
|
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5
|
9-09855-207-0 |
12 |
1 |
0607-0709 |
● |
|
|
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5
|
8-97360-004-0 |
12 |
1 |
0710- |
● |
|
|
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
ID=10.5
|
9-09855-207-0 |
16 |
1 |
0302-0404 |
|
● |
● |
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
ID=10.5
|
9-09855-207-0 |
16 |
1 |
0405-0506 |
|
● |
● |
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
4JH1-TC ENG(RDM)
ID=10.5
|
9-09855-207-0 |
16 |
1 |
0507-0606 |
|
● |
● |
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
4JJ1 ENG(LFB)
ID=10.5
|
9-09855-207-0 |
16 |
1 |
0607-0709 |
|
● |
● |
| |
36 |
05.422 WASHER; SPECIAL,AXLE SHAFT
4JJ1 ENG(LFB)
ID=10.5
|
8-97360-004-0 |
16 |
1 |
0710- |
|
● |
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
FRT INDEPENDENT SUSPENSION(6PP)
NSK
|
9-00093-081-0 |
02 |
1 |
0302-0506 |
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
NSK
|
9-00093-081-0 |
02 |
1 |
0302-0506 |
|
● |
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
FRT INDEPENDENT SUSPENSION(6PP)
NSK
|
9-00093-081-0 |
02 |
1 |
0507-0606 |
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4JH1-TC ENG(RDM)
NSK
|
9-00093-081-0 |
02 |
1 |
0507-0606 |
|
● |
● |
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
NSK
|
9-00093-081-0 |
02 |
1 |
0607- |
● |
|
|
| |
37 |
05.855 BEARING; HUB INNER,RR AXLE
4JJ1 ENG(LFB)
NSK
|
9-00093-081-0 |
02 |
1 |
0607- |
|
● |
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
FRT INDEPENDENT SUSPENSION(6PP)
TKK
|
8-94336-314-1 |
02 |
1 |
0302-0506 |
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
TKK
|
8-94336-314-1 |
02 |
1 |
0302-0506 |
|
● |
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
FRT INDEPENDENT SUSPENSION(6PP)
TKK
|
8-94336-314-1 |
02 |
1 |
0507-0606 |
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4JH1-TC ENG(RDM)
TKK
|
8-94336-314-1 |
02 |
1 |
0507-0606 |
|
● |
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
TKK
|
8-94336-314-1 |
02 |
1 |
0607- |
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4JJ1 ENG(LFB)
TKK
|
8-94336-314-1 |
02 |
1 |
0607- |
|
● |
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
FRT INDEPENDENT SUSPENSION(6PP)
NOK
|
8-94367-959-0 |
02 |
1 |
0302-0506 |
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
NOK
|
8-94367-959-0 |
02 |
1 |
0302-0506 |
|
● |
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
FRT INDEPENDENT SUSPENSION(6PP)
NOK
|
8-94367-959-0 |
02 |
1 |
0507-0606 |
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4JH1-TC ENG(RDM)
NOK
|
8-94367-959-0 |
02 |
1 |
0507-0606 |
|
● |
● |
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
NOK
|
8-94367-959-0 |
02 |
1 |
0607- |
● |
|
|
| |
38 |
05.822 SEAL; OIL,RR HUB,INNER
4JJ1 ENG(LFB)
NOK
|
8-94367-959-0 |
02 |
1 |
0607- |
|
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4JH1 ENG(RJX)
FINAL GEAR RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97304-377-0 |
01 |
1 |
0302-0303 |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97304-377-2 |
01 |
1 |
0304-0506 |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97304-377-2 |
01 |
1 |
0507-0606 |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97191-160-2 |
01 |
1 |
0607- |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JH1 ENG(RJX)
FINAL GEAR RATIO 43/9(S2J)
4 WHEEL ANTI LOCK BRAKE<JE5>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97261-473-1 |
01 |
1 |
0302-0303 |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
4 WHEEL ANTI LOCK BRAKE<JE5>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97261-473-3 |
01 |
1 |
0304-0506 |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
4 WHEEL ANTI LOCK BRAKE<JE5>
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97261-473-3 |
01 |
1 |
0507-0606 |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97240-329-3 |
01 |
1 |
0607- |
● |
|
|
| |
49 |
05.387 CASE; RR AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97032-861-4 |
01 |
1 |
0302-0404 |
|
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97032-861-4 |
01 |
1 |
0405-0506 |
|
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4JH1-TC ENG(RDM)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97032-861-4 |
01 |
1 |
0507-0606 |
|
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4JJ1 ENG(LFB)
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97032-861-5 |
01 |
1 |
0607- |
|
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97251-368-2 |
01 |
1 |
0302-0506 |
|
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4JH1-TC ENG(RDM)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97251-368-2 |
01 |
1 |
0507-0606 |
|
● |
● |
| |
49 |
05.387 CASE; RR AXLE
4JJ1 ENG(LFB)
4 WHEEL ANTI LOCK BRAKE<JE5>
|
8-97251-368-3 |
01 |
1 |
0607- |
|
● |
● |
| |
58 |
05.508 PLUG; DRAIN,AXLE CASE
FRT INDEPENDENT SUSPENSION(6PP)
M16X12.5
|
8-97109-869-0 |
01 |
1 |
0302-0506 |
● |
|
|
| |
58 |
05.508 PLUG; DRAIN,AXLE CASE
M16X12.5
|
8-97109-869-0 |
01 |
1 |
0302-0506 |
|
● |
● |
| |
58 |
05.508 PLUG; DRAIN,AXLE CASE
FRT INDEPENDENT SUSPENSION(6PP)
M16X12.5
|
8-97109-869-0 |
01 |
1 |
0507-0606 |
● |
|
|
| |
58 |
05.508 PLUG; DRAIN,AXLE CASE
4JH1-TC ENG(RDM)
M16X12.5
|
8-97109-869-0 |
01 |
1 |
0507-0606 |
|
● |
● |
| |
58 |
05.508 PLUG; DRAIN,AXLE CASE
M16X12.5
|
8-97109-869-0 |
01 |
1 |
0607-0611 |
● |
|
|
| |
58 |
05.508 PLUG; DRAIN,AXLE CASE
4JJ1 ENG(LFB)
M16X12.5
|
8-97109-869-0 |
01 |
1 |
0607-0611 |
|
● |
● |
| |
58 |
05.508 PLUG; DRAIN,AXLE CASE
M16X12.5
|
8-97307-060-0 |
01 |
1 |
0612- |
● |
|
|
| |
58 |
05.508 PLUG; DRAIN,AXLE CASE
4JJ1 ENG(LFB)
M16X12.5
|
8-97307-060-0 |
01 |
1 |
0612- |
|
● |
● |
| |
59 |
05.400 GASKET; DRAIN PLUG
FRT INDEPENDENT SUSPENSION(6PP)
01.252
ID=16.2 OD=24
|
9-09571-416-0 |
01 |
1 |
0302-0506 |
● |
|
|
| |
59 |
05.400 GASKET; DRAIN PLUG
01.252
ID=16.2 OD=24
|
9-09571-416-0 |
01 |
1 |
0302-0506 |
|
● |
● |
| |
59 |
05.400 GASKET; DRAIN PLUG
FRT INDEPENDENT SUSPENSION(6PP)
01.252
ID=16.2 OD=24
|
9-09571-416-0 |
01 |
1 |
0507-0606 |
● |
|
|
| |
59 |
05.400 GASKET; DRAIN PLUG
4JH1-TC ENG(RDM)
01.252
ID=16.2 OD=24
|
9-09571-416-0 |
01 |
1 |
0507-0606 |
|
● |
● |
| |
59 |
05.400 GASKET; DRAIN PLUG
01.252
ID=16.2 OD=24
|
9-09571-416-0 |
01 |
1 |
0607- |
● |
|
|
| |
59 |
05.400 GASKET; DRAIN PLUG
4JJ1 ENG(LFB)
01.252
ID=16.2 OD=24
|
9-09571-416-0 |
01 |
1 |
0607- |
|
● |
● |
| |
60 |
05.387 BREATHER; RR AXLE CASE
L=30
|
8-94416-611-1 |
01 |
1 |
0302-0409 |
● |
● |
● |
| |
60 |
05.387 BREATHER; RR AXLE CASE
L=29
|
8-97383-656-0 |
01 |
1 |
0410-0606 |
● |
● |
● |
| |
60 |
05.387 BREATHER; RR AXLE CASE
L=29
|
8-98006-960-0 |
01 |
1 |
0607- |
● |
● |
● |
| |
63 |
05.400 PLUG; OIL FILLER,AXLE CASE
FRT INDEPENDENT SUSPENSION(6PP)
04.103
M20X10.5
|
9-09662-005-0 |
01 |
1 |
0302-0506 |
● |
|
|
| |
63 |
05.400 PLUG; OIL FILLER,AXLE CASE
04.103
M20X10.5
|
9-09662-005-0 |
01 |
1 |
0302-0506 |
|
● |
● |
| |
63 |
05.400 PLUG; OIL FILLER,AXLE CASE
FRT INDEPENDENT SUSPENSION(6PP)
04.103
M20X10.5
|
9-09662-005-0 |
01 |
1 |
0507-0606 |
● |
|
|
| |
63 |
05.400 PLUG; OIL FILLER,AXLE CASE
4JH1-TC ENG(RDM)
04.103
M20X10.5
|
9-09662-005-0 |
01 |
1 |
0507-0606 |
|
● |
● |
| |
63 |
05.400 PLUG; OIL FILLER,AXLE CASE
04.103
M20X10.5
|
9-09662-005-0 |
01 |
1 |
0607-0611 |
● |
|
|
| |
63 |
05.400 PLUG; OIL FILLER,AXLE CASE
4JJ1 ENG(LFB)
04.103
M20X10.5
|
9-09662-005-0 |
01 |
1 |
0607-0611 |
|
● |
● |
| |
63 |
05.400 PLUG; OIL FILLER,AXLE CASE
M20X10.5
|
8-98009-333-0 |
01 |
1 |
0612- |
● |
|
|
| |
63 |
05.400 PLUG; OIL FILLER,AXLE CASE
4JJ1 ENG(LFB)
M20X10.5
|
8-98009-333-0 |
01 |
1 |
0612- |
|
● |
● |
| |
64 |
05.400 GASKET; OIL FILLER,AXLE CASE
FRT INDEPENDENT SUSPENSION(6PP)
ID=20 OD=30
|
8-94462-734-0 |
01 |
1 |
0302-0506 |
● |
|
|
| |
64 |
05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30
|
8-94462-734-0 |
01 |
1 |
0302-0506 |
|
● |
● |
| |
64 |
05.400 GASKET; OIL FILLER,AXLE CASE
FRT INDEPENDENT SUSPENSION(6PP)
ID=20 OD=30
|
8-94462-734-0 |
01 |
1 |
0507-0606 |
● |
|
|
| |
64 |
05.400 GASKET; OIL FILLER,AXLE CASE
4JH1-TC ENG(RDM)
ID=20 OD=30
|
8-94462-734-0 |
01 |
1 |
0507-0606 |
|
● |
● |
| |
64 |
05.400 GASKET; OIL FILLER,AXLE CASE
ID=20 OD=30
|
8-94462-734-0 |
01 |
1 |
0607- |
● |
|
|
| |
64 |
05.400 GASKET; OIL FILLER,AXLE CASE
4JJ1 ENG(LFB)
ID=20 OD=30
|
8-94462-734-0 |
01 |
1 |
0607- |
|
● |
● |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
FRT INDEPENDENT SUSPENSION(6PP)
M10X40 W/LK WASHER
|
0-50061-040-0 |
11 |
1 |
0302-0506 |
● |
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER
|
0-50061-040-0 |
11 |
1 |
0302-0506 |
|
● |
● |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
FRT INDEPENDENT SUSPENSION(6PP)
M10X40 W/LK WASHER
|
0-50061-040-0 |
11 |
1 |
0507-0606 |
● |
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
4JH1-TC ENG(RDM)
M10X40 W/LK WASHER
|
0-50061-040-0 |
11 |
1 |
0507-0606 |
|
● |
● |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
M10X40 W/LK WASHER
|
0-50061-040-0 |
11 |
1 |
0607-0909 |
● |
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
4JJ1 ENG(LFB)
M10X40 W/LK WASHER
|
0-50061-040-0 |
11 |
1 |
0607-0909 |
|
● |
● |
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
06.156
M10X40 W/LK WASHER
|
0-50561-040-0 |
11 |
1 |
0910- |
● |
|
|
| |
67 |
05.387 BOLT; FINAL DRIVE SETTING
4JJ1 ENG(LFB)
06.156
M10X40 W/LK WASHER
|
0-50561-040-0 |
11 |
1 |
0910- |
|
● |
● |
| |
69 |
05.387 STUD; AXLE CASE
FRT INDEPENDENT SUSPENSION(6PP)
M10X40.5 L=52.5
|
8-97026-282-0 |
02 |
1 |
0302-0506 |
● |
|
|
| |
69 |
05.387 STUD; AXLE CASE
M10X40.5 L=52.5
|
8-97026-282-0 |
02 |
1 |
0302-0506 |
|
● |
● |
| |
69 |
05.387 STUD; AXLE CASE
FRT INDEPENDENT SUSPENSION(6PP)
M10X40.5 L=52.5
|
8-97026-282-0 |
02 |
1 |
0507-0606 |
● |
|
|
| |
69 |
05.387 STUD; AXLE CASE
4JH1-TC ENG(RDM)
M10X40.5 L=52.5
|
8-97026-282-0 |
02 |
1 |
0507-0606 |
|
● |
● |
| |
69 |
05.387 STUD; AXLE CASE
M10X40.5 L=52.5
|
8-97026-282-0 |
02 |
1 |
0607-0610 |
● |
|
|
| |
69 |
05.387 STUD; AXLE CASE
4JJ1 ENG(LFB)
M10X40.5 L=52.5
|
8-97026-282-0 |
02 |
1 |
0607-0610 |
|
● |
● |
| |
69 |
05.387 STUD; AXLE CASE
M10X40.5 L=52.5
|
8-97359-802-0 |
02 |
1 |
0611- |
● |
|
|
| |
69 |
05.387 STUD; AXLE CASE
4JJ1 ENG(LFB)
M10X40.5 L=52.5
|
8-97359-802-0 |
02 |
1 |
0611- |
|
● |
● |
| |
70 |
05.387 NUT; CARRIER
FRT INDEPENDENT SUSPENSION(6PP)
08.917
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
0302-0506 |
● |
|
|
| |
70 |
05.387 NUT; CARRIER
08.917
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
0302-0506 |
|
● |
● |
| |
70 |
05.387 NUT; CARRIER
FRT INDEPENDENT SUSPENSION(6PP)
08.917
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
0507-0602 |
● |
|
|
| |
70 |
05.387 NUT; CARRIER
4JH1-TC ENG(RDM)
08.917
M10 FLANGE
|
0-91150-210-0 |
02 |
1 |
0507-0602 |
|
● |
● |
| |
70 |
05.387 NUT; CARRIER
FRT INDEPENDENT SUSPENSION(6PP)
04.085
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0603-0606 |
● |
|
|
| |
70 |
05.387 NUT; CARRIER
4JH1-TC ENG(RDM)
04.085
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0603-0606 |
|
● |
● |
| |
70 |
05.387 NUT; CARRIER
04.085
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0607- |
● |
|
|
| |
70 |
05.387 NUT; CARRIER
4JJ1 ENG(LFB)
04.085
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
0607- |
|
● |
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
4JH1 ENG(RJX)
FINAL GEAR RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97259-178-0 |
12 |
1 |
0302-0303 |
● |
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97259-178-0 |
12 |
1 |
0304-0506 |
● |
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
|
8-97259-178-0 |
12 |
1 |
0507-0606 |
● |
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
|
8-97259-178-0 |
12 |
1 |
0607-0610 |
● |
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
|
8-98007-877-0 |
12 |
1 |
0611- |
● |
|
|
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
M12X32
|
5-09000-078-0 |
12 |
1 |
0302-0404 |
|
● |
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
M12X32
|
5-09000-078-0 |
12 |
1 |
0405-0506 |
|
● |
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
4JH1-TC ENG(RDM)
M12X32
|
5-09000-078-0 |
12 |
1 |
0507-0606 |
|
● |
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
4JJ1 ENG(LFB)
M12X32
|
5-09000-078-0 |
12 |
1 |
0607-0611 |
|
● |
● |
| |
74 |
05.002 BOLT; RR BRK ASM SETTING
4JJ1 ENG(LFB)
M12X32
|
8-97359-819-0 |
12 |
1 |
0612- |
|
● |
● |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4JH1 ENG(RJX)
FINAL GEAR RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
00.002
ID=10.2
|
9-09150-610-0 |
12 |
1 |
0302-0303 |
● |
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
00.002
ID=10.2
|
9-09150-610-0 |
12 |
1 |
0304-0506 |
● |
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
00.002
ID=10.2
|
9-09150-610-0 |
12 |
1 |
0507-0603 |
● |
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
00.002
ID=10.2
|
0-91510-610-0 |
12 |
1 |
0604-0606 |
● |
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
00.002
ID=10.2
|
0-91510-610-0 |
12 |
1 |
0607-0611 |
● |
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
02.277
ID=10.2
|
0-91510-810-0 |
12 |
1 |
0612- |
● |
|
|
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
0302-0404 |
|
● |
● |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
0405-0506 |
|
● |
● |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4JH1-TC ENG(RDM)
06.515
ID=12.2
|
9-09150-612-0 |
12 |
1 |
0507-0603 |
|
● |
● |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4JH1-TC ENG(RDM)
00.002
ID=12.2
|
0-91510-612-0 |
12 |
1 |
0604-0606 |
|
● |
● |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4JJ1 ENG(LFB)
00.002
ID=12.2
|
0-91510-612-0 |
12 |
1 |
0607-0611 |
|
● |
● |
| |
75 |
05.002 WASHER; LK,RR BRK ASM SETTING
4JJ1 ENG(LFB)
07.347
ID=12.2
|
0-91510-812-0 |
12 |
1 |
0612- |
|
● |
● |
| |
76 |
05.002 NUT; RR BRK ASM SETTING
4JH1 ENG(RJX)
FINAL GEAR RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
00.002
M10
|
9-09110-510-0 |
12 |
1 |
0302-0303 |
● |
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
00.002
M10
|
9-09110-510-0 |
12 |
1 |
0304-0506 |
● |
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
00.002
M10
|
9-09110-510-0 |
12 |
1 |
0507-0512 |
● |
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
00.833
M10
|
0-91110-510-0 |
12 |
1 |
0601-0606 |
● |
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
00.833
M10
|
0-91110-510-0 |
12 |
1 |
0607- |
● |
|
|
| |
76 |
05.002 NUT; RR BRK ASM SETTING
04.634
M12
|
9-99110-512-0 |
12 |
1 |
0302-0404 |
|
● |
● |
| |
76 |
05.002 NUT; RR BRK ASM SETTING
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
04.634
M12
|
9-99110-512-0 |
12 |
1 |
0405-0506 |
|
● |
● |
| |
76 |
05.002 NUT; RR BRK ASM SETTING
4JH1-TC ENG(RDM)
04.634
M12
|
9-99110-512-0 |
12 |
1 |
0507-0512 |
|
● |
● |
| |
76 |
05.002 NUT; RR BRK ASM SETTING
4JH1-TC ENG(RDM)
M12
|
0-91110-512-0 |
12 |
1 |
0601-0606 |
|
● |
● |
| |
76 |
05.002 NUT; RR BRK ASM SETTING
4JJ1 ENG(LFB)
M12
|
0-91110-512-0 |
12 |
1 |
0607- |
|
● |
● |
| |
96 |

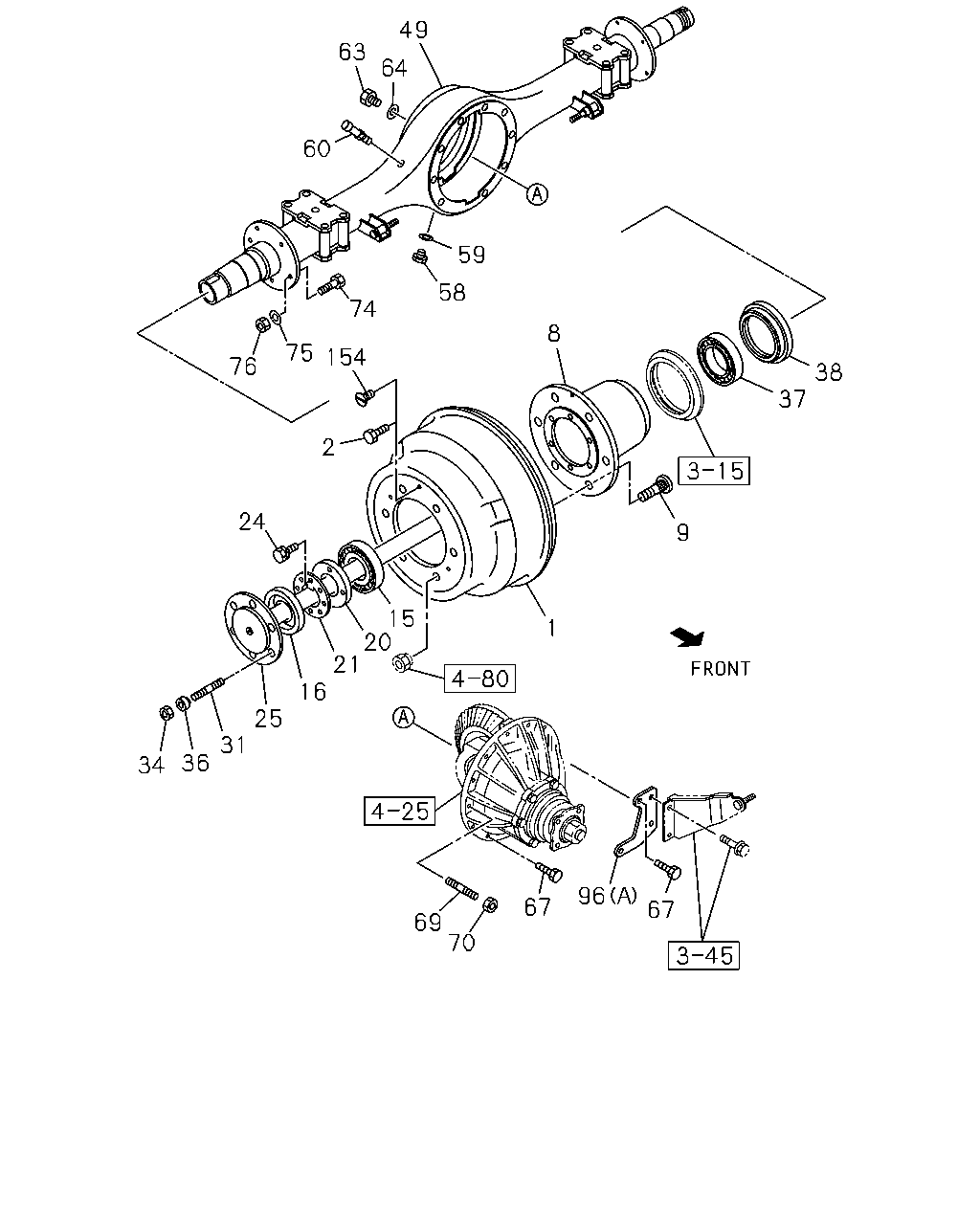

04.730 BRACKET; LSPV,AXLE CASE
4JH1 ENG(RJX)
FINAL GEAR RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
(A)
|
8-97011-997-3 |
01 |
1 |
0302-0303 |
● |
|
|
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
(A)
|
8-97011-997-3 |
01 |
1 |
0304-0506 |
● |
|
|
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
FRT INDEPENDENT SUSPENSION(6PP)
(A)
|
8-97011-997-3 |
01 |
1 |
0507-0606 |
● |
|
|
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
(A)
|
8-97011-997-3 |
01 |
1 |
0607-0610 |
● |
|
|
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
(A)
|
8-98030-956-0 |
01 |
1 |
0611- |
● |
|
|
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE

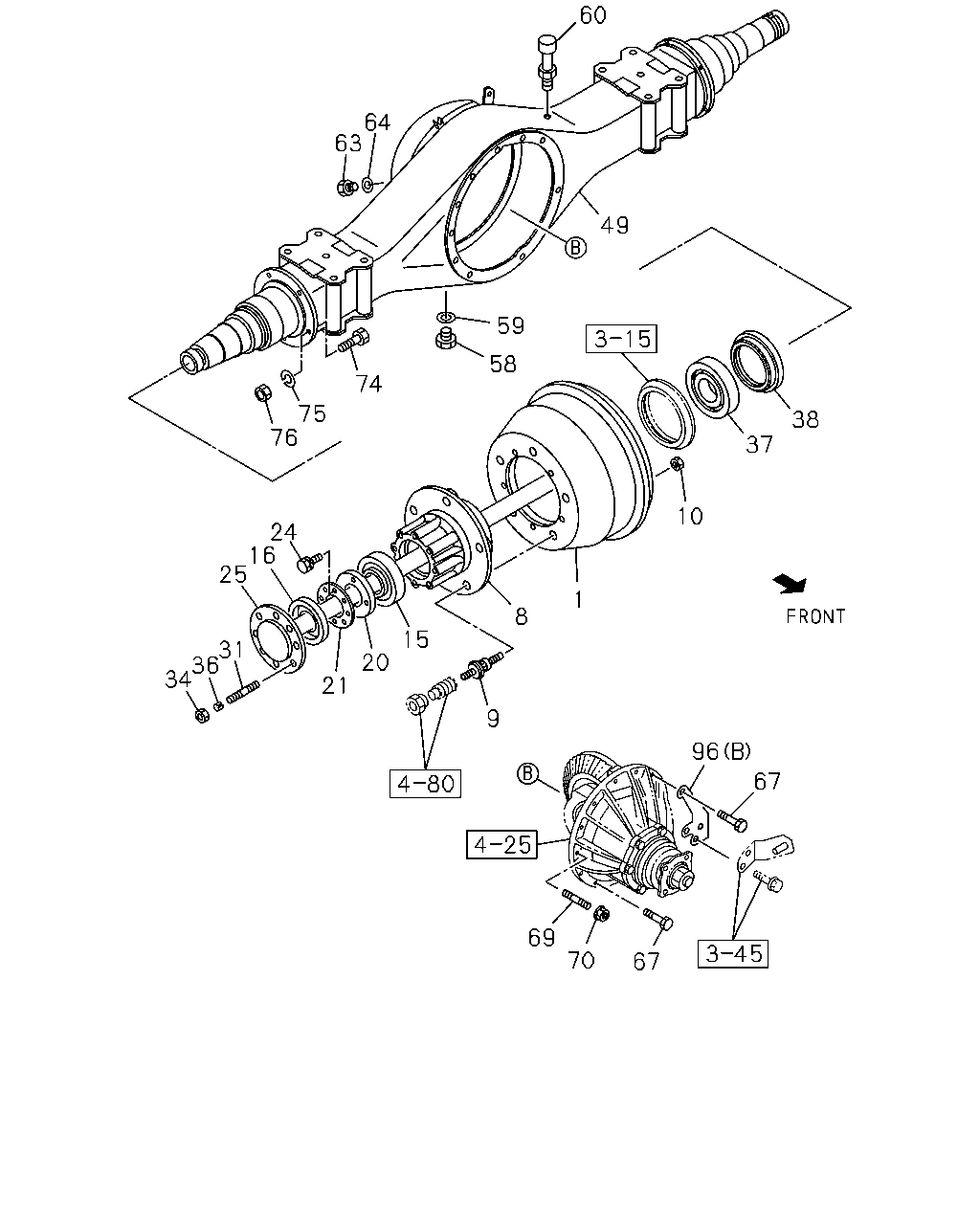

(B)
|
8-97161-213-1 |
01 |
1 |
0302-0404 |
|
● |
● |
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
4JH1 ENG(RJX)
FINAL GEAR RATIO 41/8(RU1),FINAL GEAR
RATIO 43/9(S2J)
(B)
|
8-97161-213-1 |
01 |
1 |
0405-0506 |
|
● |
● |
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
4JH1-TC ENG(RDM)
(B)
|
8-97161-213-1 |
01 |
1 |
0507-0508 |
|
● |
● |
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
4JH1-TC ENG(RDM)
(B)
|
8-98024-418-0 |
01 |
1 |
0509-0606 |
|
● |
● |
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
4JJ1 ENG(LFB)
(B)
|
8-98024-418-0 |
01 |
1 |
0607-0610 |
|
● |
● |
| |
96 |
04.730 BRACKET; LSPV,AXLE CASE
4JJ1 ENG(LFB)
(B)
|
8-98030-957-0 |
01 |
1 |
0611- |
|
● |
● |
