◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50946 - NKR(EUROPE)-RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-11 - FRONT HUB AND DRUM OR ROTOR ▶
4-11 — FRONT HUB AND DRUM OR ROTOR (#23128) — 75 parça
çizim 11126
69 71 71 69
BalonParca AdiParca NoAdetTipApplied Date A B C
69 05.811 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 		8-97321-310-2 01 1 0302-0606 ●
69 05.811 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-98018-789-0 01 1 0607- ●
69 05.811 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 		8-97321-309-2 01 1 0302-0606 ●
69 05.811 SENSOR; SPEED
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97354-617-3 01 1 0607- ●
71 05.812 BOLT; SENSOR TO KNUCKLE
4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 01.062 M8X16 FLANGE 		0-28080-816-0 02 1 0302-0512 ●
71 05.812 BOLT; SENSOR TO KNUCKLE
4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 02.343 M8X16 FLANGE 		0-28050-816-0 02 1 0601-0606 ●
71 05.812 BOLT; SENSOR TO KNUCKLE
4 WHEEL ANTI LOCK BRAKE<JE5> 02.343 M8X12 FLANGE 		0-28050-812-0 02 1 0607- ●

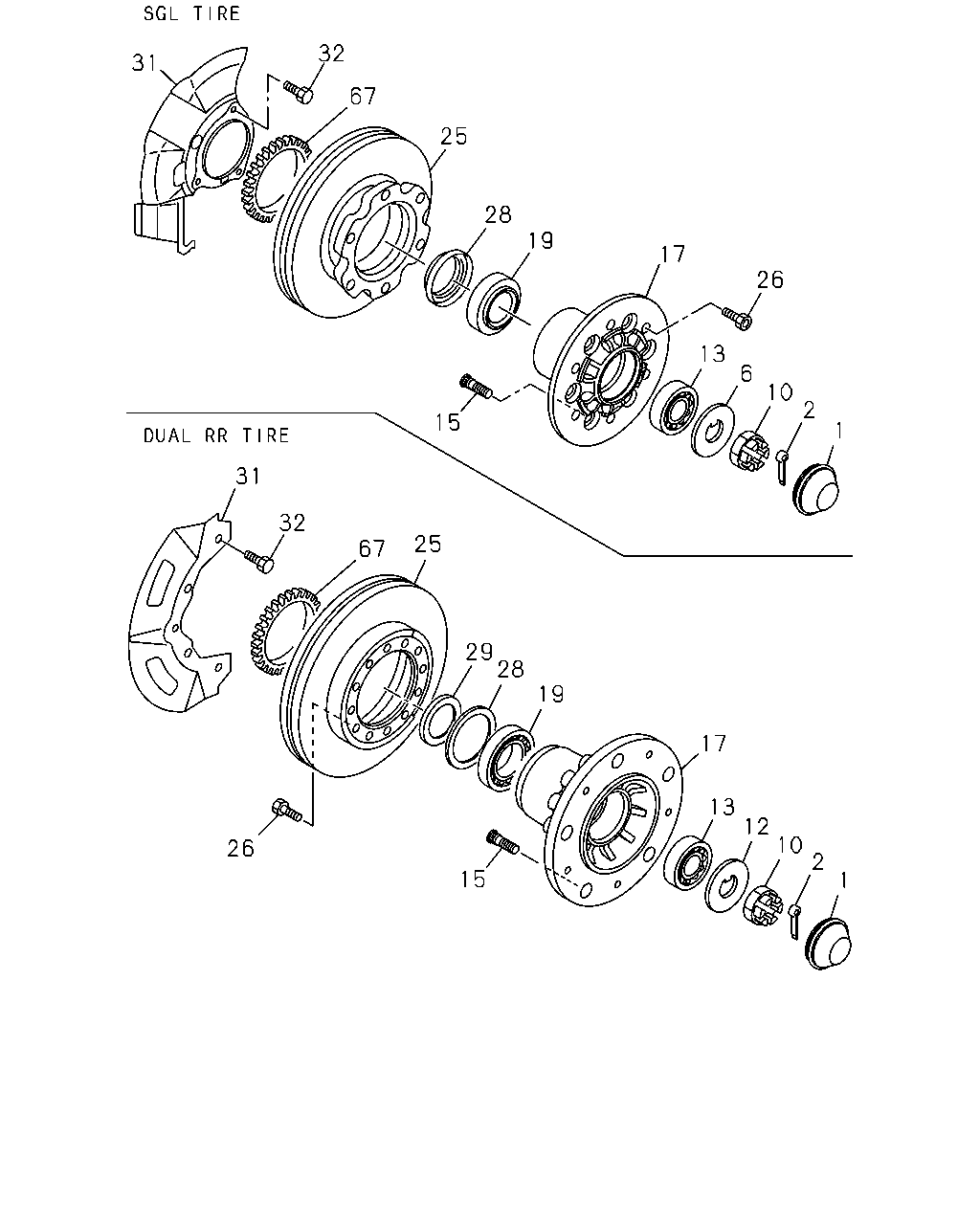

çizim 55144
32 31 67 25 28 19 17 26 13 6 10 2 15 1 31 32 25 67 29 28 19 17 13 12 10 2 26 15 1
BalonParca AdiParca NoAdetTipApplied Date A B C
1 06.330 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 0612-0612 ● ●
1 06.330 CAP; HUB,FRT AXLE 8-97360-101-0 02 1 0701- ● ● ●
1 06.330 CAP; HUB,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97012-619-0 02 1 0302-0606 ●
1 06.330 CAP; HUB,FRT AXLE 8-97012-619-0 02 1 0302-0606 ● ●
1 06.330 CAP; HUB,FRT AXLE 8-97012-619-0 02 1 0607-0611 ● ● ●
1 06.330 CAP; HUB,FRT AXLE 8-97012-619-0 02 1 0612-0612 ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
FRT INDEPENDENT SUSPENSION(6PP) OD=4.6 L=40 		9-08115-040-0 02 1 0302-0606 ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		9-08115-040-0 02 1 0302-0606 ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		9-08115-040-0 02 1 0607-0607 ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY) OD=4.6 L=40 		9-08115-040-0 02 1 0607-0607 ● ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40 		0-81125-040-0 02 1 0607- ●
2 05.812 PIN; SPLIT,HUB TO AXLE SHAFT
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY) OD=4.6 L=40 		0-81125-040-0 02 1 0607- ● ●
6 05.812 WASHER; LK,FRT HUB
FRT INDEPENDENT SUSPENSION(6PP) 06.321 		8-94247-356-1 02 1 0302-0606 ●
6 05.812 WASHER; LK,FRT HUB
06.321 		8-94247-356-1 02 1 0607- ●
10 05.812 NUT; FRT HUB BRG
FRT INDEPENDENT SUSPENSION(6PP) 06.022 		8-94247-357-1 02 1 0302-0606 ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0302-0606 ● ●
10 05.812 NUT; FRT HUB BRG
06.022 		8-94247-357-1 02 1 0607- ●
10 05.812 NUT; FRT HUB BRG
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY) 06.022 		8-94247-357-1 02 1 0607- ● ●
12 06.321 WASHER; LK,FRT HUB BRG 8-94247-356-1 02 1 0302- ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) NSK 		9-00093-172-0 02 1 0302-0606 ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0302-0606 ● ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
NSK 		9-00093-172-0 02 1 0607- ●
13 06.313 BEARING; HUB OUTER,FRT AXLE
FRT&RR 195-16C-75R DISC 16X5.5J-116.5 WH ITE(BQV),FRT&RR 195/75R16C 16X5.5J-116.5(9HY) NSK 		9-00093-172-0 02 1 0607- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) M14X39 LH THREAD 		8-97126-491-0 06 1 0302-0606 ●
15 05.812 PIN; WHEEL,FRT AXLE
M14X39 LH THREAD 		8-97126-491-1 06 1 0607- ●
15 05.812 PIN; WHEEL,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) M14X39 RH THREAD 		8-97126-490-0 06 1 0302-0606 ●
15 05.812 PIN; WHEEL,FRT AXLE
M14X39 RH THREAD 		8-97126-490-1 06 1 0607- ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 LH THREAD 		8-97017-042-0 05 1 0302-0605 ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 LH THREAD 		8-98028-533-1 05 1 0606- ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 RH THREAD 		8-97017-041-0 05 1 0302-0605 ● ●
15 05.812 PIN; WHEEL,FRT AXLE
M18X46 RH THREAD 		8-98028-532-1 05 1 0606- ● ●
17 06.307 HUB; FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97090-751-0 02 1 0302-0606 ●
17 06.307 HUB; FRT AXLE 8-97090-751-0 02 1 0607- ●
17 06.307 HUB; FRT AXLE
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97035-160-0 02 1 0302- ● ●
17 06.307 HUB; FRT AXLE
EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97017-193-0 02 1 0302- ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
06.313 NTN 		8-98008-156-1 02 1 1206- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
FRT INDEPENDENT SUSPENSION(6PP) NSK 		8-94336-289-0 02 1 0302-0606 ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		8-94336-289-0 02 1 0607- ●
19 06.311 BEARING; HUB INNER,FRT AXLE
KOYO 		8-94248-088-2 02 1 0302-1009 ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
JTEKT 		8-98171-254-0 02 1 1010- ● ●
19 06.311 BEARING; HUB INNER,FRT AXLE
NSK 		9-00093-149-0 02 1 0302-1009 ● ●
25 05.809 ROTOR; DISC BRK,FRT
FRT INDEPENDENT SUSPENSION(6PP) 		8-97031-007-1 02 1 0302-0606 ●
25 05.809 ROTOR; DISC BRK,FRT 8-97031-007-1 02 1 0607- ●
25 05.809 ROTOR; DISC BRK,FRT 8-97168-631-1 02 1 0302-0311 ● ●
25 05.809 ROTOR; DISC BRK,FRT 8-97371-876-0 02 1 0312-0612 ● ●
25 05.809 ROTOR; DISC BRK,FRT 8-97387-229-0 02 1 0701- ● ●
26 05.812 BOLT; BRK,DISC TO HUB
FRT INDEPENDENT SUSPENSION(6PP) 		8-97081-913-0 12 1 0302-0606 ●
26 05.812 BOLT; BRK,DISC TO HUB 8-97081-913-0 12 1 0607-0612 ●
26 05.812 BOLT; BRK,DISC TO HUB 8-98021-780-0 12 1 0701- ●
26 05.812 BOLT; BRK,DISC TO HUB 8-94474-923-0 24 1 0302- ● ●
28 06.326 SEAL; OIL,FRT HUB
FRT INDEPENDENT SUSPENSION(6PP) 		8-97211-082-0 02 1 0302-0606 ●
28 06.326 SEAL; OIL,FRT HUB 8-97211-082-0 02 1 0607- ●
28 06.326 SEAL; OIL,FRT HUB 8-94248-117-1 02 1 0302- ● ●
29 06.326 DISTANCE PIECE; HUB BRKT
NTN 		8-97234-513-0 02 1 0302- ● ●
31 04.665 COVER; DUST,FRT BRAKE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97332-208-0 01 1 0302-0606 ●
31 04.665 COVER; DUST,FRT BRAKE 8-97353-961-1 01 1 0607- ●
31 04.665 COVER; DUST,FRT BRAKE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97332-207-0 01 1 0302-0606 ●
31 04.665 COVER; DUST,FRT BRAKE 8-97353-960-1 01 1 0607- ●
31 04.665 COVER; DUST,FRT BRAKE 8-97332-209-1 02 1 0302-0703 ● ●
31 04.665 COVER; DUST,FRT BRAKE 8-98037-377-0 02 1 0704- ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
FRT INDEPENDENT SUSPENSION(6PP) M8X10 W/LK WASHER 		8-97025-916-0 06 1 0302-0606 ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER 		8-97025-916-0 06 1 0607-0612 ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
M8X10 W/LK WASHER 		8-98029-928-0 06 1 0701- ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
08.900 M8X12 FLANGE 		0-28080-812-0 08 1 0302-0512 ● ●
32 04.665 BOLT; DUST COVER TO KNUCKLE
02.343 M8X12 FLANGE 		0-28050-812-0 08 1 0601- ● ●
67 05.811 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) 		8-97260-457-0 02 1 0302-0606 ●
67 05.811 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97260-457-0 02 1 0607- ●
67 05.811 ROTOR; SENSOR
4 WHEEL ANTI LOCK BRAKE<JE5> 		8-97206-773-0 02 1 0302- ● ●
