Sayfa 3-60 - Isuzu EPC

3-60 — BRAKE PIPING; VACUUM (#23125) — 194 parça

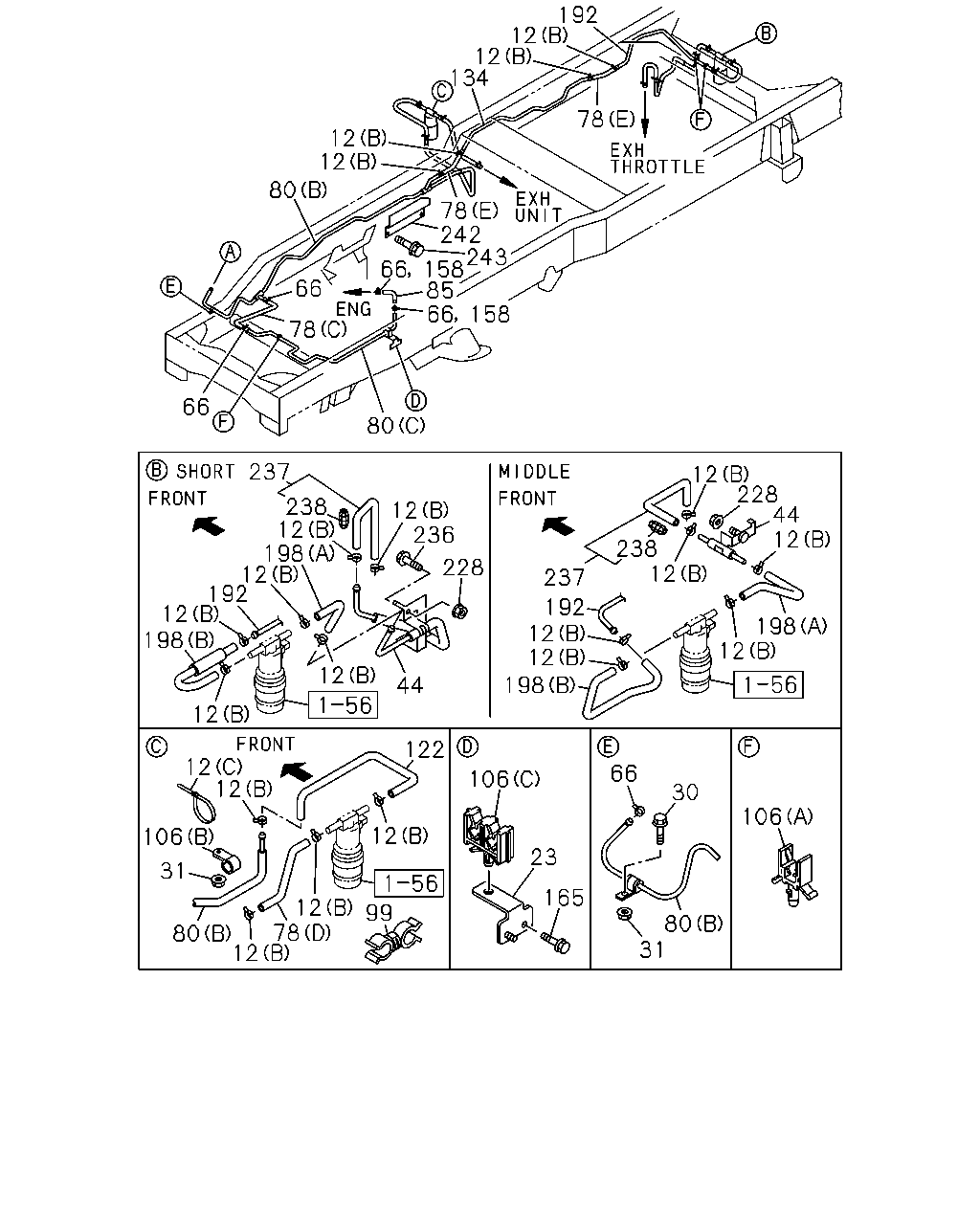

192 12 12 134 78 12 12 80 78 242 243 158 85 66 66 66 78 158 80 66 237 12 228 44 12 238 12 198 12 192 12 198 12 236 238 12 228 237 192 12 12 198 198 12 12 44 12 12 12 66 122 106 30 106 12 106 23 31 165 12 80 78 12 99 80 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE 02.559 (C) L=250	5-09707-030-1	01	1	0607-	●
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0302-	●	●	●
12	04.681 CLIP; HOSE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	0302-0506	●	●	●
12	04.681 CLIP; HOSE 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	0507-0606	●	●	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	14	1	0607-0705	●	●	●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) 04.930 (B) ID=16	8-94238-568-0	12	1	0706-0711	●	●	●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) 04.930 (B) ID=16	8-94238-568-0	14	1	0712-0911	●	●	●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) 03.162 (B) ID=16	8-98008-098-0	14	1	0912-	●	●	●
23	04.686 BRACKET; VAC PIPE	8-98000-460-1	01	1	0607-		●	●
30	04.686 BOLT; CLIP,VAC PIPE 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0302-0512	●	●	●
30	04.686 BOLT; CLIP,VAC PIPE 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0601-	●	●	●
31	04.686 NUT; CLIP,VAC PIPE 04.594 M6 FLANGE	0-91150-106-0	01	1	0302-0602		●	●
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-0606		●	●
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0607-	●	●	●
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0607-		●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1 ENG(LFB)	8-98000-455-2	01	1	0607-	●	●
44	04.930 PIPE; VAC,MAG VLV 4JJ1 ENG(LFB)	8-98019-530-1	01	1	0607-			●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	03	1	0302-0606	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	05	1	0302-0506	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	05	1	0507-0606	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	03	1	0607-0911	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	03	1	0912-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 03.630 (B) L=400 SERVICED BY L=3000	0-08258-300-0	01	1	0302-0506	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 03.630 (B) L=400 SERVICED BY L=3000	0-08258-300-0	01	1	0507-0606	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (C) L=100 SERVICED BY L=3000	0-08258-300-0	01	1	0607-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0302-0506	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0507-0606	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (D) L=330 SERVICED BY L=3000	0-08258-300-0	01	1	0607-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 03.630 (B) L=260 SERVICED BY L=3000	0-08258-300-0	01	1	0302-0506		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 03.630 (B) L=260 SERVICED BY L=3000	0-08258-300-0	01	1	0507-0606		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1 ENG(LFB) 03.630 (E) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0607-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1 ENG(LFB) 03.630 (E) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0607-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 03.630 (B) L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0302-0506			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 03.630 (B) L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0507-0606			●
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98000-969-0	01	1	0607-		●	●
80	04.930 PIPE; VAC,ENG SIDE (C)	8-98000-138-0	01	1	0607-	●
80	04.930 PIPE; VAC,ENG SIDE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97325-981-0	01	1	0302-0506	●
80	04.930 PIPE; VAC,ENG SIDE 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97325-981-0	01	1	0507-0606	●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98000-135-1	01	1	0607-	●
80	04.930 PIPE; VAC,ENG SIDE (C)	8-98000-617-3	01	1	0607-		●	●
80	04.930 PIPE; VAC,ENG SIDE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> (A)	8-97325-980-0	01	1	0302-0506		●	●
80	04.930 PIPE; VAC,ENG SIDE 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> (A)	8-97325-980-0	01	1	0507-0606		●	●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98000-359-1	01	1	0607-		●	●
80	04.930 PIPE; VAC,ENG SIDE 4JH1 ENG(RJX) EXC. EXHAUST BRAKE<NF8> (A)	8-97325-978-0	01	1	0302-0506		●	●
85	04.931 HOSE; VAC,ENG SIDE 4JH1 ENG(RJX) L=130	8-94438-246-0	01	1	0302-0506	●	●	●
85	04.931 HOSE; VAC,ENG SIDE 4JH1-TC ENG(RDM) L=130	8-94438-246-0	01	1	0507-0606	●	●	●
85	04.931 HOSE; VAC,ENG SIDE	8-98000-601-2	01	1	0607-	●
85	04.931 HOSE; VAC,ENG SIDE	8-98000-966-1	01	1	0607-		●	●
99	04.930 CLIP; VAC HOSE TO VAC HOSE 02.559 ID=16.5 & 16.5	8-94473-320-0	01	1	0609-	●	●	●
106	04.930 CLIP; PIPE (A) ID=10 H=40	8-94462-219-0	01	1	0607-	●	●	●
106	04.930 CLIP; PIPE 4JJ1 ENG(LFB) (A) ID=10 H=40	8-94462-219-0	01	1	0607-	●	●	●
106	04.930 CLIP; PIPE 4JJ1 ENG(LFB) (A) ID=10 H=40	8-94462-219-0	01	1	0607-			●
106	04.930 CLIP; PIPE 02.343 (B) ID=13 L=20	9-09525-232-0	01	1	0607-0607	●	●	●
106	04.930 CLIP; PIPE (B) ID=13 L=20	0-95235-232-0	01	1	0607-	●	●	●
106	04.930 CLIP; PIPE (C) ID=10X2 H=37.5	8-97018-546-0	01	1	0607-		●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 03.630 L=140 SERVICED BY L=3000	0-08258-300-0	02	1	0302-0506	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 03.630 L=140 SERVICED BY L=3000	0-08258-300-0	02	1	0507-0606	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98000-602-1	01	1	0607-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 03.630 L=180 SERVICED BY L=3000	0-08258-300-0	02	1	0302-0506			●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 03.630 L=180 SERVICED BY L=3000	0-08258-300-0	02	1	0507-0606			●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98000-967-0	01	1	0607-		●	●
134	04.685 PIPE; VAC,3 WAY TO HOSE	8-98031-167-1	01	1	0607-	●
134	04.685 PIPE; VAC,3 WAY TO HOSE 4JJ1 ENG(LFB)	8-98036-784-0	01	1	0607-		●	●
158	04.681 CLIP; HOSE 04.930 ID=16	8-94238-568-0	02	1	0607-0911	●	●	●
158	04.681 CLIP; HOSE 03.162 ID=16	8-98008-098-0	02	1	0912-	●	●	●
165	04.686 BOLT; BRKT 04.439 M6X16 FLANGE	0-28680-616-0	02	1	0302-0512	●	●	●
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0601-	●	●	●
165	04.686 BOLT; BRKT 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0607-		●	●
192	04.685 PIPE; VAC,HOSE TO MAG VLV	8-98000-139-2	01	1	0607-	●
192	04.685 PIPE; VAC,HOSE TO MAG VLV 4JJ1 ENG(LFB)	8-98000-325-2	01	1	0607-		●
192	04.685 PIPE; VAC,HOSE TO MAG VLV 4JJ1 ENG(LFB)	8-98019-526-1	01	1	0607-			●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1 ENG(LFB) (B)	8-97373-197-0	01	1	0607-	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1 ENG(LFB) (A)	8-97373-199-0	01	1	0607-	●	●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1 ENG(LFB) (B)	8-98036-849-0	01	1	0607-			●
198	04.931 HOSE; VAC,PIPE TO MAG VLV 4JJ1 ENG(LFB) (A)	8-98036-850-0	01	1	0607-			●
228	04.930 NUT; PIPE 4JJ1 ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	01	1	0607-	●	●	●
236	04.930 BOLT; PIPE 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0607-0705	●	●
236	04.930 BOLT; PIPE 4JJ1 ENG(LFB) 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0706-	●	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE	8-98000-603-0	01	1	0607-	●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1 ENG(LFB)	8-98000-968-0	01	1	0607-		●
237	04.931 HOSE; VAC,M/VAC TO EXH THROTTLE 4JJ1 ENG(LFB)	8-98036-851-0	01	1	0607-			●
238	04.892 ORIFICE; VACUUM HOSE	8-97377-521-0	01	1	0607-	●
238	04.892 ORIFICE; VACUUM HOSE 4JJ1 ENG(LFB)	8-97377-521-0	01	1	0607-		●	●
242	04.931 PROTECTOR; HEAT	8-98044-698-0	01	1	0607-	●
243	04.930 BOLT; PROTECTOR 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0607-	●

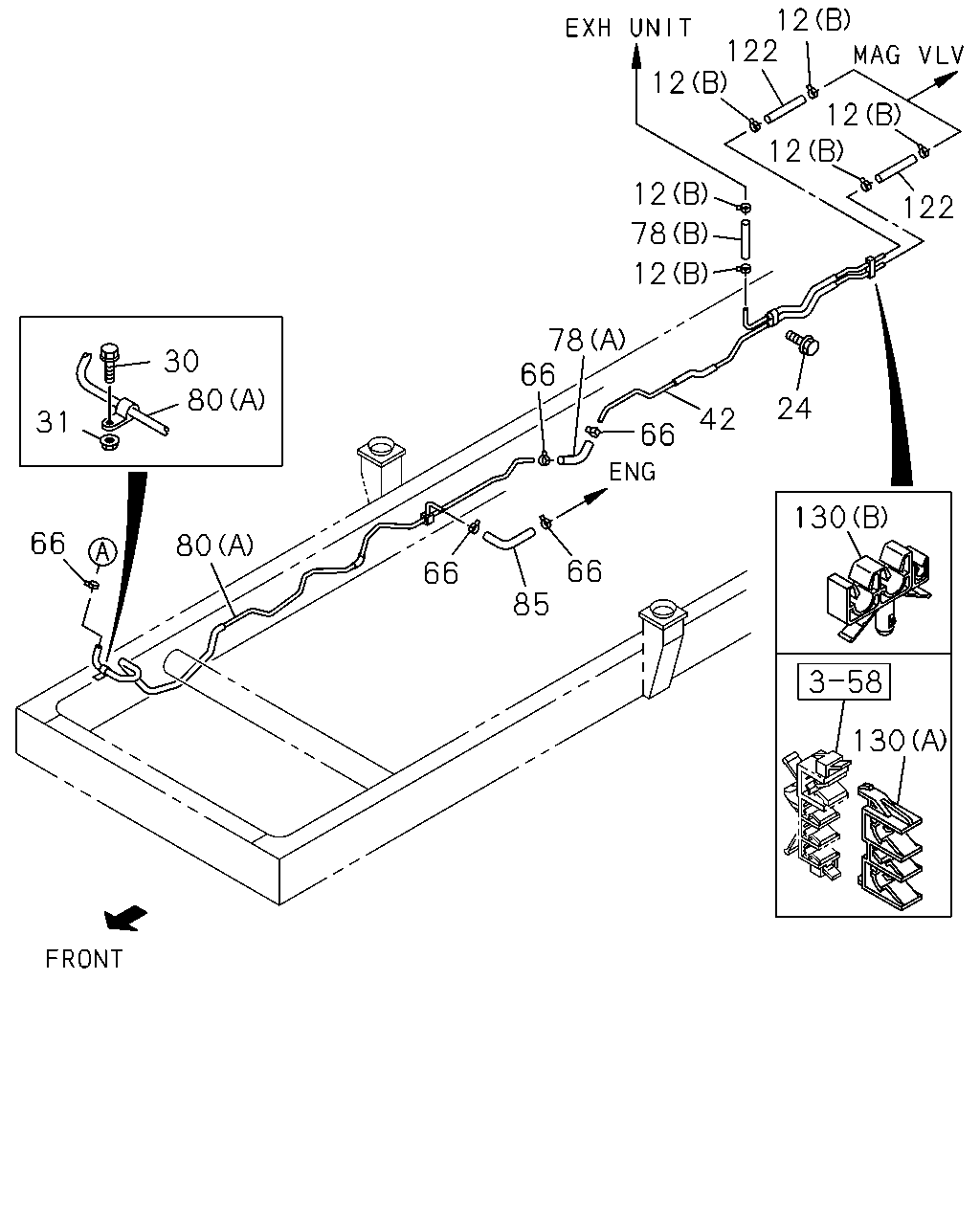

12 122 12 12 12 12 122 78 12 78 66 30 80 24 42 31 66 130 66 80 66 66 85 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE 02.559 (C) L=250	5-09707-030-1	01	1	0607-	●
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0302-	●	●	●
12	04.681 CLIP; HOSE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	0302-0506	●	●	●
12	04.681 CLIP; HOSE 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	0507-0606	●	●	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	14	1	0607-0705	●	●	●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) 04.930 (B) ID=16	8-94238-568-0	12	1	0706-0711	●	●	●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) 04.930 (B) ID=16	8-94238-568-0	14	1	0712-0911	●	●	●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) 03.162 (B) ID=16	8-98008-098-0	14	1	0912-	●	●	●
24	04.686 BOLT; BRKT 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0302-0506		●	●
24	04.686 BOLT; BRKT 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 02.559 M8X25 FLANGE	0-28680-825-0	01	1	0507-0512		●	●
24	04.686 BOLT; BRKT 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 06.216 M8X25 FLANGE	0-28650-825-0	01	1	0601-0606		●	●
30	04.686 BOLT; CLIP,VAC PIPE 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0302-0512	●	●	●
30	04.686 BOLT; CLIP,VAC PIPE 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0601-	●	●	●
31	04.686 NUT; CLIP,VAC PIPE 04.594 M6 FLANGE	0-91150-106-0	01	1	0302-0602		●	●
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-0606		●	●
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0607-	●	●	●
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0607-		●	●
42	04.685 PIPE; VAC,UNION TO MAG VLV 4JH1 ENG(RJX) EXHAUST BRAKE<NF8>	8-97325-995-1	01	1	0302-0506	●
42	04.685 PIPE; VAC,UNION TO MAG VLV 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8>	8-97325-995-1	01	1	0507-0606	●
42	04.685 PIPE; VAC,UNION TO MAG VLV 4JH1 ENG(RJX) EXHAUST BRAKE<NF8>	8-97325-999-1	01	1	0302-0506		●	●
42	04.685 PIPE; VAC,UNION TO MAG VLV 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8>	8-97325-999-1	01	1	0507-0606		●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	03	1	0302-0606	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	05	1	0302-0506	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	05	1	0507-0606	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	03	1	0607-0911	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	03	1	0912-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 03.630 (B) L=400 SERVICED BY L=3000	0-08258-300-0	01	1	0302-0506	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 03.630 (B) L=400 SERVICED BY L=3000	0-08258-300-0	01	1	0507-0606	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (C) L=100 SERVICED BY L=3000	0-08258-300-0	01	1	0607-	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0302-0506	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 03.630 (A) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0507-0606	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 03.630 (D) L=330 SERVICED BY L=3000	0-08258-300-0	01	1	0607-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 03.630 (B) L=260 SERVICED BY L=3000	0-08258-300-0	01	1	0302-0506		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 03.630 (B) L=260 SERVICED BY L=3000	0-08258-300-0	01	1	0507-0606		●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1 ENG(LFB) 03.630 (E) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0607-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JJ1 ENG(LFB) 03.630 (E) L=140 SERVICED BY L=3000	0-08258-300-0	01	1	0607-	●	●	●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 03.630 (B) L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0302-0506			●
78	04.931 HOSE; VAC,PIPE TO PIPE 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 03.630 (B) L=230 SERVICED BY L=3000	0-08258-300-0	01	1	0507-0606			●
78	04.931 HOSE; VAC,PIPE TO PIPE (C)	8-98000-969-0	01	1	0607-		●	●
80	04.930 PIPE; VAC,ENG SIDE (C)	8-98000-138-0	01	1	0607-	●
80	04.930 PIPE; VAC,ENG SIDE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97325-981-0	01	1	0302-0506	●
80	04.930 PIPE; VAC,ENG SIDE 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97325-981-0	01	1	0507-0606	●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98000-135-1	01	1	0607-	●
80	04.930 PIPE; VAC,ENG SIDE (C)	8-98000-617-3	01	1	0607-		●	●
80	04.930 PIPE; VAC,ENG SIDE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> (A)	8-97325-980-0	01	1	0302-0506		●	●
80	04.930 PIPE; VAC,ENG SIDE 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> (A)	8-97325-980-0	01	1	0507-0606		●	●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98000-359-1	01	1	0607-		●	●
80	04.930 PIPE; VAC,ENG SIDE 4JH1 ENG(RJX) EXC. EXHAUST BRAKE<NF8> (A)	8-97325-978-0	01	1	0302-0506		●	●
85	04.931 HOSE; VAC,ENG SIDE 4JH1 ENG(RJX) L=130	8-94438-246-0	01	1	0302-0506	●	●	●
85	04.931 HOSE; VAC,ENG SIDE 4JH1-TC ENG(RDM) L=130	8-94438-246-0	01	1	0507-0606	●	●	●
85	04.931 HOSE; VAC,ENG SIDE	8-98000-601-2	01	1	0607-	●
85	04.931 HOSE; VAC,ENG SIDE	8-98000-966-1	01	1	0607-		●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 03.630 L=140 SERVICED BY L=3000	0-08258-300-0	02	1	0302-0506	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 03.630 L=140 SERVICED BY L=3000	0-08258-300-0	02	1	0507-0606	●	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98000-602-1	01	1	0607-	●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 03.630 L=180 SERVICED BY L=3000	0-08258-300-0	02	1	0302-0506			●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 03.630 L=180 SERVICED BY L=3000	0-08258-300-0	02	1	0507-0606			●
122	04.931 HOSE; AIR,MAG VLV TO AIR PIPE	8-98000-967-0	01	1	0607-		●	●
130	04.930 CLIP; VAC PIPE TO FRAME 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> (B) ID=10X2 & 4.76	8-97170-259-0	02	1	0302-0506	●
130	04.930 CLIP; VAC PIPE TO FRAME 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> (B) ID=10X2 & 4.76	8-97170-259-0	02	1	0507-0606	●
130	04.930 CLIP; VAC PIPE TO FRAME 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0302-0506		●	●
130	04.930 CLIP; VAC PIPE TO FRAME 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> (A) ID=10X2 OR 12X2 & 6.35	8-97326-157-1	01	1	0507-0606		●	●

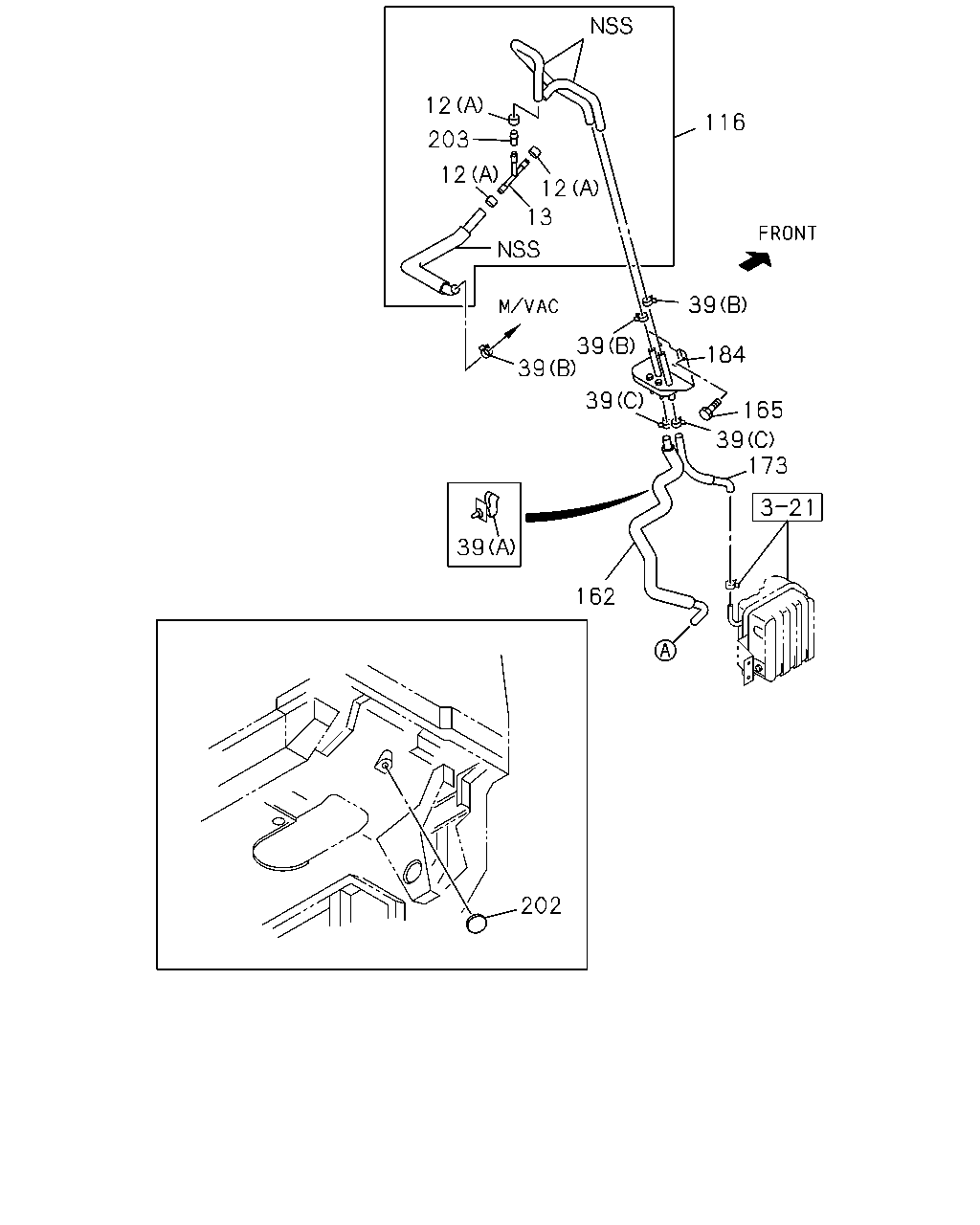

12 116 203 12 12 13 39 39 39 184 39 165 39 173 39 162 202

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	04.681 CLIP; HOSE 02.559 (C) L=250	5-09707-030-1	01	1	0607-	●
12	04.681 CLIP; HOSE 04.930 (A) ID=14.5	8-94167-480-0	03	1	0302-	●	●	●
12	04.681 CLIP; HOSE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	0302-0506	●	●	●
12	04.681 CLIP; HOSE 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> 04.930 (B) ID=16	8-94238-568-0	06	1	0507-0606	●	●	●
12	04.681 CLIP; HOSE 04.930 (B) ID=16	8-94238-568-0	14	1	0607-0705	●	●	●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) 04.930 (B) ID=16	8-94238-568-0	12	1	0706-0711	●	●	●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) 04.930 (B) ID=16	8-94238-568-0	14	1	0712-0911	●	●	●
12	04.681 CLIP; HOSE 4JJ1 ENG(LFB) 03.162 (B) ID=16	8-98008-098-0	14	1	0912-	●	●	●
13	04.681 JOINT; HOSE,VAC 04.686 3WAY	8-94441-184-0	01	1	0302-	●	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (C) ID=16	5-09707-023-2	02	1	0302-	●	●	●
39	04.681 CLIP; HOSE,VAC 04.930 (B) ID=16	8-94238-568-0	03	1	0302-	●	●	●
39	04.681 CLIP; HOSE,VAC (A) ID=25.5	8-97077-492-0	01	1	0302-	●	●	●
116	04.931 HOSE; VAC,M/VAC	8-97314-597-1	01	1	0302-	●	●	●
162	04.931 HOSE; VAC FRT INDEPENDENT SUSPENSION(6PP)	8-97102-998-2	01	1	0302-0606	●
162	04.931 HOSE; VAC	8-97102-998-2	01	1	0607-	●
162	04.931 HOSE; VAC	8-97102-369-2	01	1	0302-		●	●
165	04.686 BOLT; BRKT 04.439 M6X16 FLANGE	0-28680-616-0	02	1	0302-0512	●	●	●
165	04.686 BOLT; BRKT 02.343 M6X16 FLANGE	0-28650-616-0	02	1	0601-	●	●	●
165	04.686 BOLT; BRKT 00.685 M6X25 FLANGE	0-28650-625-0	01	1	0607-		●	●
173	04.931 HOSE; VAC,VAC TANK SIDE	8-97129-875-0	01	1	0302-	●	●	●
184	04.685 BRACKET; UNION FIX	8-97035-967-3	01	1	0302-	●	●	●
202	04.686 SEAL 16.165 OD=20 T=0.05 BLACK	5-76777-036-0	01	1	0302-	●	●	●
203	04.690 VALVE; CHECK	8-94386-540-0	01	1	0302-	●	●	●

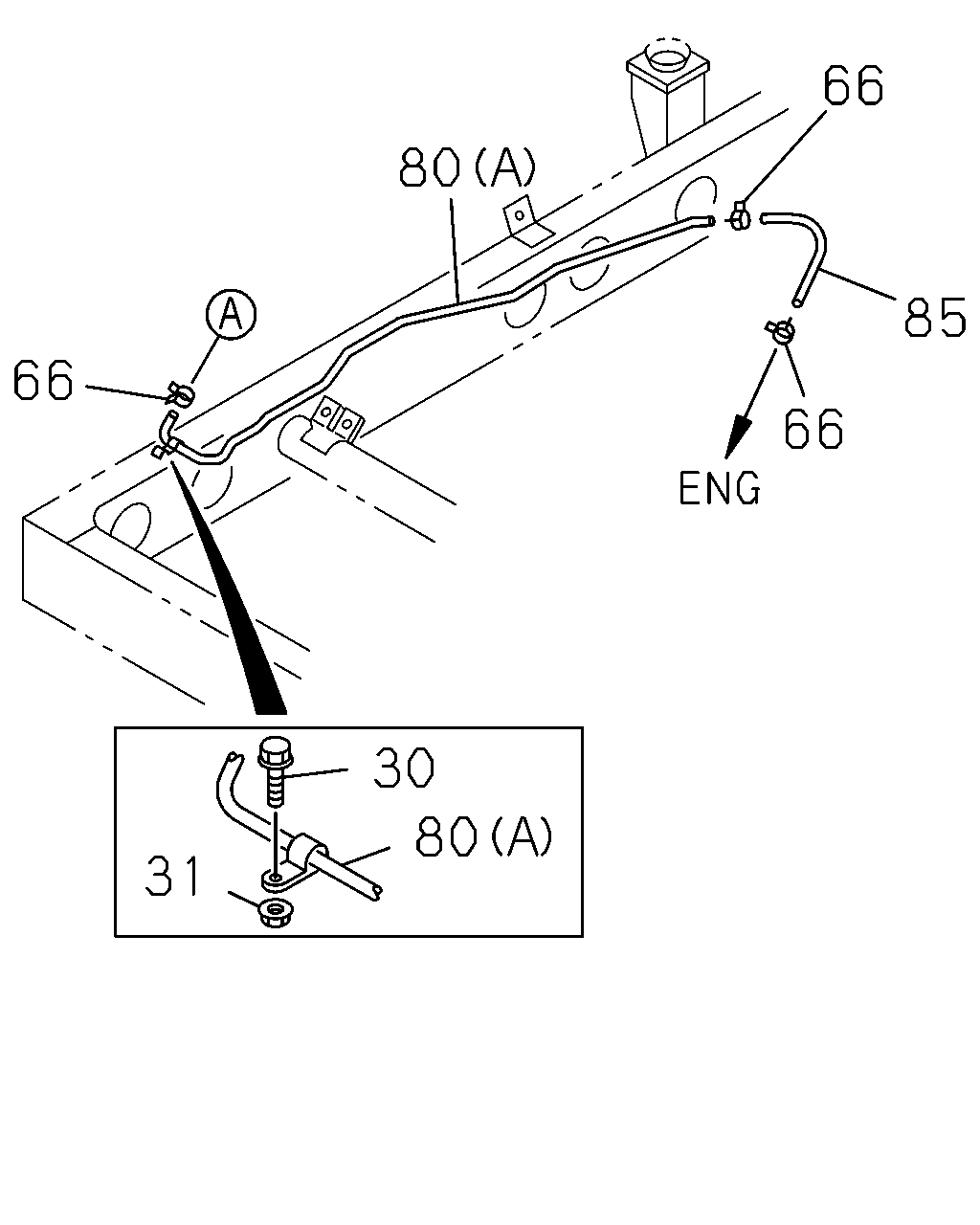

66 80 85 66 66 30 80 31

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
30	04.686 BOLT; CLIP,VAC PIPE 04.930 M6X20 FLANGE	0-28680-620-0	01	1	0302-0512	●	●	●
30	04.686 BOLT; CLIP,VAC PIPE 03.162 M6X20 FLANGE	0-28650-620-0	01	1	0601-	●	●	●
31	04.686 NUT; CLIP,VAC PIPE 04.594 M6 FLANGE	0-91150-106-0	01	1	0302-0602		●	●
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0603-0606		●	●
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0607-	●	●	●
31	04.686 NUT; CLIP,VAC PIPE 01.062 M6 FLANGE	0-91180-106-0	01	1	0607-		●	●
66	04.930 CLIP; VAC HOSE,M/VAC EXC. EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	03	1	0302-0606	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	05	1	0302-0506	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> ID=16	8-94238-568-0	05	1	0507-0606	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC ID=16	8-94238-568-0	03	1	0607-0911	●	●	●
66	04.930 CLIP; VAC HOSE,M/VAC 03.162 ID=16	8-98008-098-0	03	1	0912-	●	●	●
80	04.930 PIPE; VAC,ENG SIDE (C)	8-98000-138-0	01	1	0607-	●
80	04.930 PIPE; VAC,ENG SIDE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97325-981-0	01	1	0302-0506	●
80	04.930 PIPE; VAC,ENG SIDE 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97325-981-0	01	1	0507-0606	●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98000-135-1	01	1	0607-	●
80	04.930 PIPE; VAC,ENG SIDE (C)	8-98000-617-3	01	1	0607-		●	●
80	04.930 PIPE; VAC,ENG SIDE 4JH1 ENG(RJX) EXHAUST BRAKE<NF8> (A)	8-97325-980-0	01	1	0302-0506		●	●
80	04.930 PIPE; VAC,ENG SIDE 4JH1-TC ENG(RDM) EXHAUST BRAKE<NF8> (A)	8-97325-980-0	01	1	0507-0606		●	●
80	04.930 PIPE; VAC,ENG SIDE (B)	8-98000-359-1	01	1	0607-		●	●
80	04.930 PIPE; VAC,ENG SIDE 4JH1 ENG(RJX) EXC. EXHAUST BRAKE<NF8> (A)	8-97325-978-0	01	1	0302-0506		●	●
85	04.931 HOSE; VAC,ENG SIDE 4JH1 ENG(RJX) L=130	8-94438-246-0	01	1	0302-0506	●	●	●
85	04.931 HOSE; VAC,ENG SIDE 4JH1-TC ENG(RDM) L=130	8-94438-246-0	01	1	0507-0606	●	●	●
85	04.931 HOSE; VAC,ENG SIDE	8-98000-601-2	01	1	0607-	●
85	04.931 HOSE; VAC,ENG SIDE	8-98000-966-1	01	1	0607-		●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
