Sayfa 3-58 - Isuzu EPC

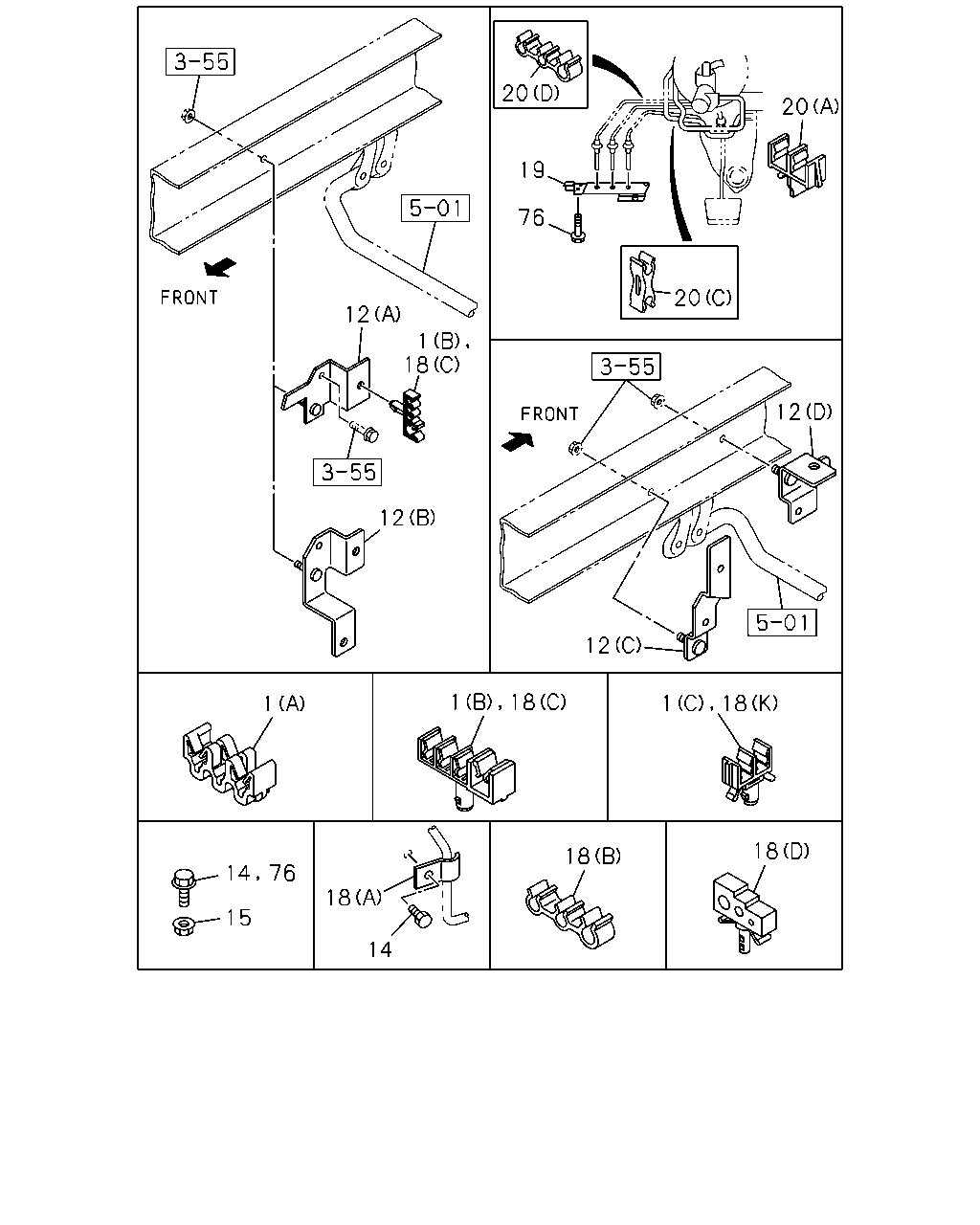

3-58 — FIXING PARTS; OIL PIPING (#23124) — 219 parça

20 20 19 76 20 12 1 18 12 12 12 1 18 1 18 1 18 18 18 15 14 14 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	04.686 CLIP; OIL PIPE TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=4.8X2	8-94316-410-0	01	1	0607-	●
1	04.686 CLIP; OIL PIPE TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=10 & 4.76X3	8-97168-819-0	01	1	0607-	●
1	04.686 CLIP; OIL PIPE TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3	8-94487-369-0	01	1	0302-0606	●	●	●
1	04.686 CLIP; OIL PIPE TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> (A) ID=4.8X3	8-94487-369-0	01	1	0607-		●	●
1	04.686 CLIP; OIL PIPE TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=10 & 4.76X3	8-97168-819-0	02	1	0302-0606	●	●	●
1	04.686 CLIP; OIL PIPE TO BODY 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=10 & 4.76X3	8-97168-819-0	02	1	0607-		●	●
12	04.686 BRACKET; OIL PIPE (C)	8-98000-461-2	01	1	0607-		●	●
12	04.686 BRACKET; OIL PIPE (D)	8-98000-462-2	01	1	0607-		●	●
12	04.686 BRACKET; OIL PIPE 4JH1 ENG(RJX) (A)	8-97349-917-0	01	1	0302-0506		●	●
12	04.686 BRACKET; OIL PIPE 4JH1-TC ENG(RDM) (A)	8-97349-917-0	01	1	0507-0606		●	●
12	04.686 BRACKET; OIL PIPE 4JJ1 ENG(LFB) (B)	8-98000-459-1	01	1	0607-		●	●
14	04.686 BOLT; CLIP,OIL PIPE FRT INDEPENDENT SUSPENSION(6PP) 04.930 M6X20 FLANGE	0-28680-620-0	02	1	0302-0512	●
14	04.686 BOLT; CLIP,OIL PIPE FRT INDEPENDENT SUSPENSION(6PP) 03.162 M6X20 FLANGE	0-28650-620-0	02	1	0601-0606	●
14	04.686 BOLT; CLIP,OIL PIPE 03.162 M6X20 FLANGE	0-28650-620-0	02	1	0607-	●
14	04.686 BOLT; CLIP,OIL PIPE 4JH1 ENG(RJX) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0302-0506		●	●
14	04.686 BOLT; CLIP,OIL PIPE 4JH1-TC ENG(RDM) 02.664 M8X20 FLANGE	0-28680-820-0	02	1	0507-0512		●	●
14	04.686 BOLT; CLIP,OIL PIPE 4JH1-TC ENG(RDM) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0601-0606		●	●
14	04.686 BOLT; CLIP,OIL PIPE 4JJ1 ENG(LFB) 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0607-		●	●
15	04.686 NUT; CLIP,OIL PIPE 4JH1 ENG(RJX) 07.633 M8 FLANGE	0-91150-108-0	02	1	0302-0506		●	●
15	04.686 NUT; CLIP,OIL PIPE 4JH1-TC ENG(RDM) 07.633 M8 FLANGE	0-91150-108-0	02	1	0507-0602		●	●
15	04.686 NUT; CLIP,OIL PIPE 4JH1-TC ENG(RDM) 01.062 M8 FLANGE	0-91180-108-0	02	1	0603-0606		●	●
15	04.686 NUT; CLIP,OIL PIPE 4JJ1 ENG(LFB) 01.062 M8 FLANGE	0-91180-108-0	02	1	0607-		●	●
18	04.686 CLIP; BRK PIPE 4JJ1 ENG(LFB) 03.162 (H) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	0607-0608		●	●
18	04.686 CLIP; BRK PIPE (L) ID=10 & 4.76X3	8-97168-820-0	03	1	0607-	●
18	04.686 CLIP; BRK PIPE (M) ID=12 & 6.35 & 4.76	8-97305-169-1	01	1	0607-	●
18	04.686 CLIP; BRK PIPE 03.162 (N) ID=16 L=20	9-09525-532-0	02	1	0607-0607	●
18	04.686 CLIP; BRK PIPE (N) ID=16 L=20	0-95235-532-0	02	1	0607-	●
18	04.686 CLIP; BRK PIPE FRT INDEPENDENT SUSPENSION(6PP) 00.785 (A) ID=7 B=14 L=16	9-09916-996-0	02	1	0302-0606	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=10 & 4.76X3	8-97168-819-0	01	1	0607-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (E) ID=10 & 4.76X3	8-97326-158-1	02	1	0302-0506	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3	8-97326-158-1	02	1	0302-0506		●	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3	8-97326-158-1	02	1	0302-0506			●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) (E) ID=10 & 4.76X3	8-97326-158-1	02	1	0507-0606	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3	8-97326-158-1	02	1	0507-0606		●	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3	8-97326-158-1	02	1	0507-0606			●
18	04.686 CLIP; BRK PIPE 4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3	8-97326-158-1	02	1	0607-		●	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3	8-97326-158-1	02	1	0607-			●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (E) ID=10 & 4.76X3	8-97326-158-1	03	1	0302-0506	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (E) ID=10 & 4.76X3	8-97326-158-1	03	1	0302-0506			●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (E) ID=10 & 4.76X3	8-97326-158-1	03	1	0507-0606	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) (E) ID=10 & 4.76X3	8-97326-158-1	03	1	0507-0606			●
18	04.686 CLIP; BRK PIPE 4JJ1 ENG(LFB) (E) ID=10 & 4.76X3	8-97326-158-1	03	1	0607-			●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 03.162 (H) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0302-0506	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 03.162 (H) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0507-0606	●
18	04.686 CLIP; BRK PIPE (P) ID=12 & 6.35 & 4.76	8-97202-954-1	01	1	0607-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) (G)	8-97074-319-1	02	1	0302-0506	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (G)	8-97074-319-1	02	1	0302-0506	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) (G)	8-97074-319-1	02	1	0507-0606	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (G)	8-97074-319-1	02	1	0507-0606	●
18	04.686 CLIP; BRK PIPE 4JJ1 ENG(LFB) (O) ID=30 & 12 & 6.35 & 4.76	8-97202-953-0	03	1	0607-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) (F) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	0302-0506	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (F) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	0507-0606	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (K) ID=4.8X2	8-94316-410-0	03	1	0607-	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=10 & 4.76X3	8-97168-819-0	02	1	0302-0506	●	●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (C) ID=10 & 4.76X3	8-97168-819-0	02	1	0302-0506	●	●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (C) ID=10 & 4.76X3	8-97168-819-0	02	1	0302-0506	●	●	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=10 & 4.76X3	8-97168-819-0	02	1	0507-0606	●	●	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) (C) ID=10 & 4.76X3	8-97168-819-0	02	1	0507-0606	●	●	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) (C) ID=10 & 4.76X3	8-97168-819-0	02	1	0507-0606	●	●	●
18	04.686 CLIP; BRK PIPE 4JJ1 ENG(LFB) (C) ID=10 & 4.76X3	8-97168-819-0	02	1	0607-	●	●	●
18	04.686 CLIP; BRK PIPE 4JJ1 ENG(LFB) (C) ID=10 & 4.76X3	8-97168-819-0	02	1	0607-		●	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=10 & 4.76X3	8-97168-819-0	02	1	0607-		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0302-0307	●	●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0308-0506	●	●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0308-0506	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0507-0606	●
18	04.686 CLIP; BRK PIPE 4JJ1 ENG(LFB) (L) ID=10 & 4.76X3	8-97168-820-0	01	1	0607-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) 03.162 (D) ID=12 & 6.35 & 4.76	8-97254-201-0	02	1	0302-0506	●	●	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) 03.162 (D) ID=12 & 6.35 & 4.76	8-97254-201-0	02	1	0507-0606	●	●	●
18	04.686 CLIP; BRK PIPE 4JJ1 ENG(LFB) (C) ID=10 & 4.76X3	8-97168-819-0	08	1	0607-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> (F) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0302-0506	●	●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (F) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0302-0506	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (F) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0507-0606	●	●	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) (F) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0507-0606	●
18	04.686 CLIP; BRK PIPE (F) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0607-		●	●
18	04.686 CLIP; BRK PIPE 4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> (F) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0607-		●	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) (B) ID=6.4 & 4.8X2	8-94146-043-0	02	1	0507-0606	●	●	●
18	04.686 CLIP; BRK PIPE 4JJ1 ENG(LFB) (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0607-		●	●
18	04.686 CLIP; BRK PIPE (F) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0302-0606		●	●
18	04.686 CLIP; BRK PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (M) ID=12 & 6.35 & 4.76	8-97305-169-1	02	1	0607-	●	●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (A) B=18 L=20	1-09700-372-0	02	1	0302-0506		●	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) (A) B=18 L=20	1-09700-372-0	02	1	0507-0606		●	●
18	04.686 CLIP; BRK PIPE 4JJ1 ENG(LFB) (A) B=18 L=20	1-09700-372-0	02	1	0607-		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (J) ID=4.8X2	8-94389-060-0	01	1	0302-0506		●	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) (J) ID=4.8X2	8-94389-060-0	01	1	0507-0606		●	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (L) ID=10 & 4.76X3	8-97168-820-0	02	1	0607-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (E) ID=10 & 4.76X3	8-97326-158-1	05	1	0302-0506		●	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) (E) ID=10 & 4.76X3	8-97326-158-1	05	1	0507-0606		●	●
18	04.686 CLIP; BRK PIPE 4JJ1 ENG(LFB) (E) ID=10 & 4.76X3	8-97326-158-1	05	1	0607-		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (I) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0302-0506		●	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) (I) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0507-0606		●	●
18	04.686 CLIP; BRK PIPE 4JJ1 ENG(LFB) 03.162 (Q) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	0607-0607		●	●
18	04.686 CLIP; BRK PIPE 4JJ1 ENG(LFB) 03.162 (Q) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0607-0608		●	●
18	04.686 CLIP; BRK PIPE 4JJ1 ENG(LFB) 03.162 (Q) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	0609-		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) 03.162 (D) ID=12 & 6.35 & 4.76	8-97254-201-0	01	1	0302-0506		●	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) 03.162 (D) ID=12 & 6.35 & 4.76	8-97254-201-0	01	1	0507-0606		●	●
18	04.686 CLIP; BRK PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (R) ID=10X2 & 4.76	8-97305-170-0	02	1	0607-	●	●	●
18	04.686 CLIP; BRK PIPE 4JJ1 ENG(LFB) (R) ID=10X2 & 4.76	8-97305-170-0	02	1	0607-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3	8-97326-158-0	01	1	0302-0302		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (E) ID=10 & 4.76X3	8-97326-158-0	01	1	0302-0302		●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (E) ID=10 & 4.76X3	8-97326-158-1	01	1	0302-0506		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3	8-97326-158-1	01	1	0302-0506		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (E) ID=10 & 4.76X3	8-97326-158-1	01	1	0302-0506		●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) (E) ID=10 & 4.76X3	8-97326-158-1	01	1	0507-0606		●	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3	8-97326-158-1	01	1	0507-0606		●	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) (E) ID=10 & 4.76X3	8-97326-158-1	01	1	0507-0606		●
18	04.686 CLIP; BRK PIPE 4JJ1 ENG(LFB) (E) ID=10 & 4.76X3	8-97326-158-1	01	1	0607-		●	●
18	04.686 CLIP; BRK PIPE 4JJ1 ENG(LFB) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3	8-97326-158-1	01	1	0607-		●	●
18	04.686 CLIP; BRK PIPE 4JJ1 ENG(LFB) (E) ID=10 & 4.76X3	8-97326-158-1	01	1	0607-		●
19	04.686 BRACKET; OIL PIPE	8-97042-258-4	01	1	0302-0606	●	●	●
19	04.686 BRACKET; OIL PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97042-258-4	01	1	0607-	●	●	●
19	04.686 BRACKET; OIL PIPE TRANSMISSION CONTROL-SMOOTHER(8GF)	8-97042-259-4	01	1	0607-	●	●	●
20	04.686 CLIP; BRK PIPE (E) ID=6.35 & 4.76X2	8-94107-732-1	01	1	0302-	●	●	●
20	04.686 CLIP; BRK PIPE (A) ID=4.8X2	8-94113-470-0	01	1	0302-0606	●	●	●
20	04.686 CLIP; BRK PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=4.8X2	8-94113-470-0	01	1	0607-	●	●	●
20	04.686 CLIP; BRK PIPE (D) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0302-0606	●	●	●
20	04.686 CLIP; BRK PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0607-	●	●	●
20	04.686 CLIP; BRK PIPE 04.868 (C) ID=4.6X2	8-94241-454-0	01	1	0302-0606	●	●	●
20	04.686 CLIP; BRK PIPE 04.868 (C) ID=4.6X2	8-94241-454-0	01	1	0607-	●	●	●
20	04.686 CLIP; BRK PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) 04.868 (C) ID=4.6X2	8-94241-454-0	01	1	0607-	●	●	●
20	04.686 CLIP; BRK PIPE (B) ID=6.35 & 4.76X2	8-94250-923-2	01	1	0302-	●	●	●
76	04.686 BOLT; BRKT,OIL PIPE 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0302-0512	●	●	●
76	04.686 BOLT; BRKT,OIL PIPE 06.216 M8X25 FLANGE	0-28650-825-0	02	1	0601-	●	●	●

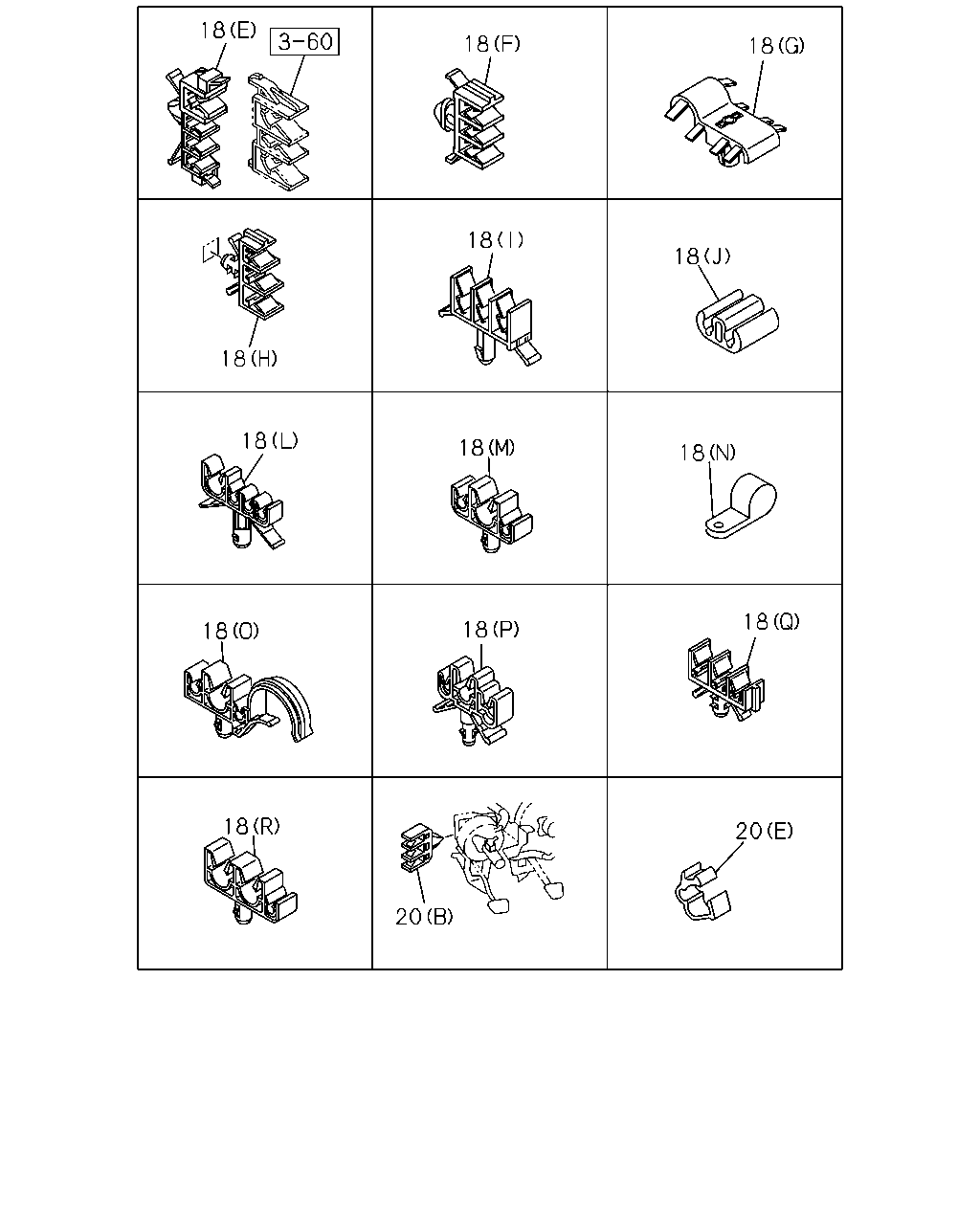

18 18 18 18 18 18 18 18 18 18 18 18 18 20 20

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
18	04.686 CLIP; BRK PIPE 4JJ1 ENG(LFB) 03.162 (H) ID=10 & 6.4 & 4.8	8-97064-484-1	02	1	0607-0608		●	●
18	04.686 CLIP; BRK PIPE (L) ID=10 & 4.76X3	8-97168-820-0	03	1	0607-	●
18	04.686 CLIP; BRK PIPE (M) ID=12 & 6.35 & 4.76	8-97305-169-1	01	1	0607-	●
18	04.686 CLIP; BRK PIPE 03.162 (N) ID=16 L=20	9-09525-532-0	02	1	0607-0607	●
18	04.686 CLIP; BRK PIPE (N) ID=16 L=20	0-95235-532-0	02	1	0607-	●
18	04.686 CLIP; BRK PIPE FRT INDEPENDENT SUSPENSION(6PP) 00.785 (A) ID=7 B=14 L=16	9-09916-996-0	02	1	0302-0606	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=10 & 4.76X3	8-97168-819-0	01	1	0607-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (E) ID=10 & 4.76X3	8-97326-158-1	02	1	0302-0506	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3	8-97326-158-1	02	1	0302-0506		●	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3	8-97326-158-1	02	1	0302-0506			●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) (E) ID=10 & 4.76X3	8-97326-158-1	02	1	0507-0606	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3	8-97326-158-1	02	1	0507-0606		●	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3	8-97326-158-1	02	1	0507-0606			●
18	04.686 CLIP; BRK PIPE 4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3	8-97326-158-1	02	1	0607-		●	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3	8-97326-158-1	02	1	0607-			●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (E) ID=10 & 4.76X3	8-97326-158-1	03	1	0302-0506	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (E) ID=10 & 4.76X3	8-97326-158-1	03	1	0302-0506			●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (E) ID=10 & 4.76X3	8-97326-158-1	03	1	0507-0606	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) (E) ID=10 & 4.76X3	8-97326-158-1	03	1	0507-0606			●
18	04.686 CLIP; BRK PIPE 4JJ1 ENG(LFB) (E) ID=10 & 4.76X3	8-97326-158-1	03	1	0607-			●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 03.162 (H) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0302-0506	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) 03.162 (H) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0507-0606	●
18	04.686 CLIP; BRK PIPE (P) ID=12 & 6.35 & 4.76	8-97202-954-1	01	1	0607-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) (G)	8-97074-319-1	02	1	0302-0506	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (G)	8-97074-319-1	02	1	0302-0506	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) (G)	8-97074-319-1	02	1	0507-0606	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) (G)	8-97074-319-1	02	1	0507-0606	●
18	04.686 CLIP; BRK PIPE 4JJ1 ENG(LFB) (O) ID=30 & 12 & 6.35 & 4.76	8-97202-953-0	03	1	0607-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> FRT INDEPENDENT SUSPENSION(6PP) (F) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	0302-0506	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (F) ID=6.5 & 4.8X2 H=35.5	8-94405-139-0	01	1	0507-0606	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (K) ID=4.8X2	8-94316-410-0	03	1	0607-	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=10 & 4.76X3	8-97168-819-0	02	1	0302-0506	●	●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (C) ID=10 & 4.76X3	8-97168-819-0	02	1	0302-0506	●	●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (C) ID=10 & 4.76X3	8-97168-819-0	02	1	0302-0506	●	●	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=10 & 4.76X3	8-97168-819-0	02	1	0507-0606	●	●	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) (C) ID=10 & 4.76X3	8-97168-819-0	02	1	0507-0606	●	●	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) (C) ID=10 & 4.76X3	8-97168-819-0	02	1	0507-0606	●	●	●
18	04.686 CLIP; BRK PIPE 4JJ1 ENG(LFB) (C) ID=10 & 4.76X3	8-97168-819-0	02	1	0607-	●	●	●
18	04.686 CLIP; BRK PIPE 4JJ1 ENG(LFB) (C) ID=10 & 4.76X3	8-97168-819-0	02	1	0607-		●	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (C) ID=10 & 4.76X3	8-97168-819-0	02	1	0607-		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0302-0307	●	●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0308-0506	●	●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0308-0506	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) FRT INDEPENDENT SUSPENSION(6PP) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0507-0606	●
18	04.686 CLIP; BRK PIPE 4JJ1 ENG(LFB) (L) ID=10 & 4.76X3	8-97168-820-0	01	1	0607-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) 03.162 (D) ID=12 & 6.35 & 4.76	8-97254-201-0	02	1	0302-0506	●	●	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) 03.162 (D) ID=12 & 6.35 & 4.76	8-97254-201-0	02	1	0507-0606	●	●	●
18	04.686 CLIP; BRK PIPE 4JJ1 ENG(LFB) (C) ID=10 & 4.76X3	8-97168-819-0	08	1	0607-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) 4 WHEEL ANTI LOCK BRAKE<JE5> (F) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0302-0506	●	●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (F) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0302-0506	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) 4 WHEEL ANTI LOCK BRAKE<JE5> (F) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0507-0606	●	●	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) (F) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0507-0606	●
18	04.686 CLIP; BRK PIPE (F) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0607-		●	●
18	04.686 CLIP; BRK PIPE 4JJ1 ENG(LFB) 4 WHEEL ANTI LOCK BRAKE<JE5> (F) ID=6.5 & 4.8X2 H=29	8-94249-689-2	01	1	0607-		●	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) (B) ID=6.4 & 4.8X2	8-94146-043-0	02	1	0507-0606	●	●	●
18	04.686 CLIP; BRK PIPE 4JJ1 ENG(LFB) (B) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0607-		●	●
18	04.686 CLIP; BRK PIPE (F) ID=6.5 & 4.8X2 H=29	8-94249-689-2	02	1	0302-0606		●	●
18	04.686 CLIP; BRK PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (M) ID=12 & 6.35 & 4.76	8-97305-169-1	02	1	0607-	●	●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (A) B=18 L=20	1-09700-372-0	02	1	0302-0506		●	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) (A) B=18 L=20	1-09700-372-0	02	1	0507-0606		●	●
18	04.686 CLIP; BRK PIPE 4JJ1 ENG(LFB) (A) B=18 L=20	1-09700-372-0	02	1	0607-		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (J) ID=4.8X2	8-94389-060-0	01	1	0302-0506		●	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) (J) ID=4.8X2	8-94389-060-0	01	1	0507-0606		●	●
18	04.686 CLIP; BRK PIPE 4 WHEEL ANTI LOCK BRAKE<JE5> (L) ID=10 & 4.76X3	8-97168-820-0	02	1	0607-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (E) ID=10 & 4.76X3	8-97326-158-1	05	1	0302-0506		●	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) (E) ID=10 & 4.76X3	8-97326-158-1	05	1	0507-0606		●	●
18	04.686 CLIP; BRK PIPE 4JJ1 ENG(LFB) (E) ID=10 & 4.76X3	8-97326-158-1	05	1	0607-		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (I) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0302-0506		●	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) (I) ID=6.5 & 4.8X2	8-94131-710-2	01	1	0507-0606		●	●
18	04.686 CLIP; BRK PIPE 4JJ1 ENG(LFB) 03.162 (Q) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	0607-0607		●	●
18	04.686 CLIP; BRK PIPE 4JJ1 ENG(LFB) 03.162 (Q) ID=10 & 6.4 & 4.8	8-97064-484-1	01	1	0607-0608		●	●
18	04.686 CLIP; BRK PIPE 4JJ1 ENG(LFB) 03.162 (Q) ID=10 & 6.4 & 4.8	8-97064-484-1	03	1	0609-		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) 03.162 (D) ID=12 & 6.35 & 4.76	8-97254-201-0	01	1	0302-0506		●	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) 03.162 (D) ID=12 & 6.35 & 4.76	8-97254-201-0	01	1	0507-0606		●	●
18	04.686 CLIP; BRK PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) (R) ID=10X2 & 4.76	8-97305-170-0	02	1	0607-	●	●	●
18	04.686 CLIP; BRK PIPE 4JJ1 ENG(LFB) (R) ID=10X2 & 4.76	8-97305-170-0	02	1	0607-	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3	8-97326-158-0	01	1	0302-0302		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (E) ID=10 & 4.76X3	8-97326-158-0	01	1	0302-0302		●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (E) ID=10 & 4.76X3	8-97326-158-1	01	1	0302-0506		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3	8-97326-158-1	01	1	0302-0506		●	●
18	04.686 CLIP; BRK PIPE 4JH1 ENG(RJX) (E) ID=10 & 4.76X3	8-97326-158-1	01	1	0302-0506		●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) (E) ID=10 & 4.76X3	8-97326-158-1	01	1	0507-0606		●	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3	8-97326-158-1	01	1	0507-0606		●	●
18	04.686 CLIP; BRK PIPE 4JH1-TC ENG(RDM) (E) ID=10 & 4.76X3	8-97326-158-1	01	1	0507-0606		●
18	04.686 CLIP; BRK PIPE 4JJ1 ENG(LFB) (E) ID=10 & 4.76X3	8-97326-158-1	01	1	0607-		●	●
18	04.686 CLIP; BRK PIPE 4JJ1 ENG(LFB) EXC. 4 WHEEL ANTI LOCK BRAKE<JE5> (E) ID=10 & 4.76X3	8-97326-158-1	01	1	0607-		●	●
18	04.686 CLIP; BRK PIPE 4JJ1 ENG(LFB) (E) ID=10 & 4.76X3	8-97326-158-1	01	1	0607-		●
20	04.686 CLIP; BRK PIPE (E) ID=6.35 & 4.76X2	8-94107-732-1	01	1	0302-	●	●	●
20	04.686 CLIP; BRK PIPE (A) ID=4.8X2	8-94113-470-0	01	1	0302-0606	●	●	●
20	04.686 CLIP; BRK PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (A) ID=4.8X2	8-94113-470-0	01	1	0607-	●	●	●
20	04.686 CLIP; BRK PIPE (D) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0302-0606	●	●	●
20	04.686 CLIP; BRK PIPE EXC. TRANSMISSION CONTROL-SMOOTHER(8GF) (D) ID=6.4 & 4.8X2	8-94146-043-0	01	1	0607-	●	●	●
20	04.686 CLIP; BRK PIPE 04.868 (C) ID=4.6X2	8-94241-454-0	01	1	0302-0606	●	●	●
20	04.686 CLIP; BRK PIPE 04.868 (C) ID=4.6X2	8-94241-454-0	01	1	0607-	●	●	●
20	04.686 CLIP; BRK PIPE TRANSMISSION CONTROL-SMOOTHER(8GF) 04.868 (C) ID=4.6X2	8-94241-454-0	01	1	0607-	●	●	●
20	04.686 CLIP; BRK PIPE (B) ID=6.35 & 4.76X2	8-94250-923-2	01	1	0302-	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
