◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51101 - NHR EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-65 - CONTROL LEVER; HEATER AND AIR CON ▶

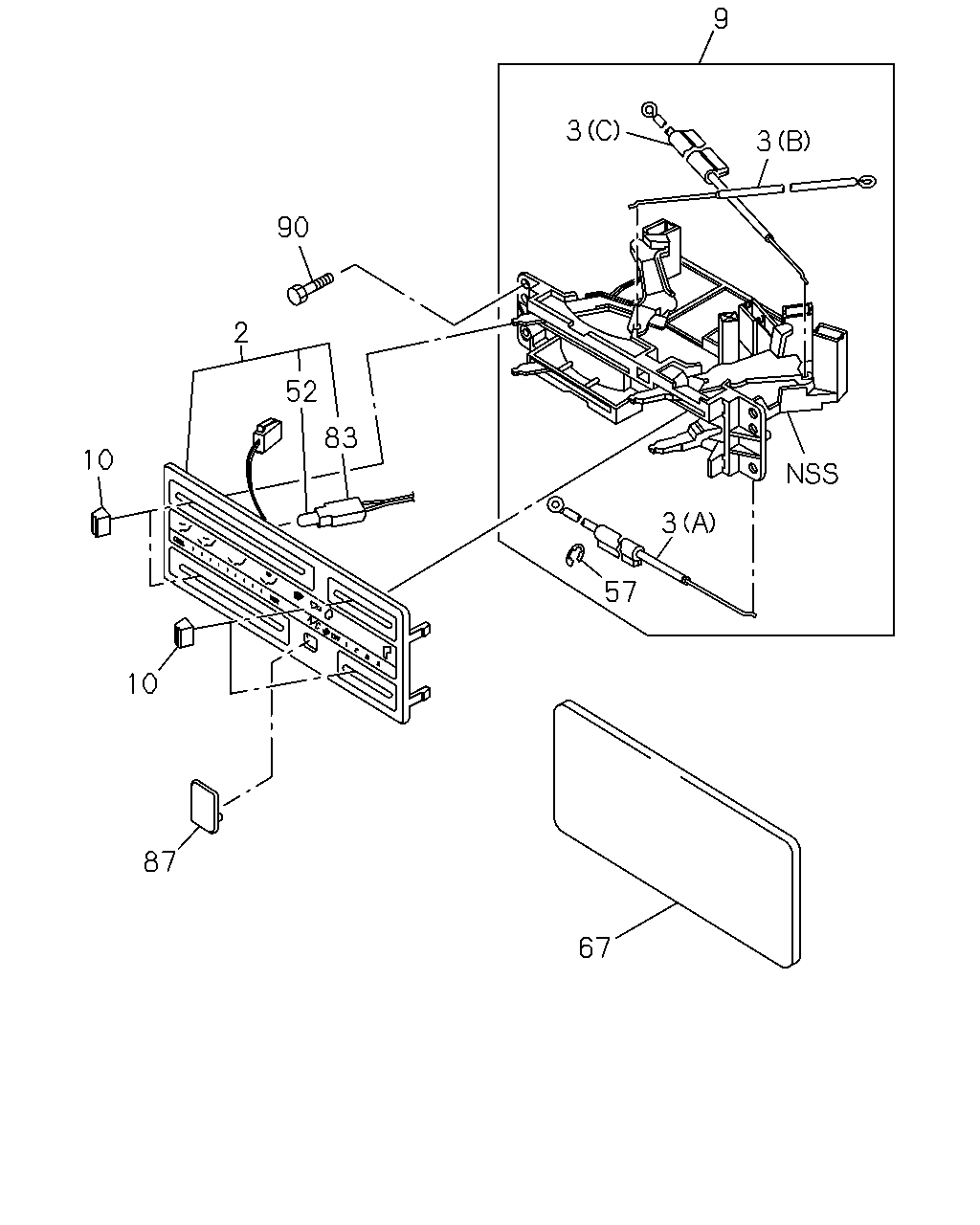

8-65 — CONTROL LEVER; HEATER AND AIR CON (#23110) — 14 parça
çizim 55595
9 3 3 90 2 52 83 10 3 57 10 87 67
BalonParca AdiParca NoAdetTipApplied Date
2 08.852 PANEL ASM; CONT,ILLUMINATION 8-97048-331-2 01 1 0609-
3 09.787 CABLE; HTR CONT LVR
(B) MODE 		8-97085-618-1 01 1 0609-
3 09.787 CABLE; HTR CONT LVR
(C) FRESH 		8-97087-578-0 01 1 0609-
3 09.787 CABLE; HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60) (A) MIX 		8-97085-617-2 01 1 0609-
9 08.852 LEVER ASM; HTR & A/C CONT
AIR CONDITIONER MANUAL CONT(C60) 		8-97048-456-4 01 1 0609-
9 08.852 LEVER ASM; HTR & A/C CONT
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97069-832-0 01 1 0609-
10 08.852 KNOB; CONT LEVER
AIR CONDITIONER MANUAL CONT(C60) 		8-97114-430-0 04 1 0609-
10 08.852 KNOB; CONT LEVER
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97114-430-0 03 1 0609-
52 08.991 BULB; PANEL ILLUMINATION
28V 65MA 		8-97182-225-0 01 1 0609-
57 09.787 RING; SNAP,HTR CONT LVR
AIR CONDITIONER MANUAL CONT(C60) 		8-97262-535-0 01 1 0609-
67 08.849 CAP; BEZEL,CONT LEVER
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97071-228-0 01 1 0609-
83 08.849 HARNESS; CONT PANEL 8-97308-566-0 01 1 0609-
87 08.849 CAP; A/C SWITCH
EXC. AIR CONDITIONER MANUAL CONT(C60) 		8-97065-448-2 01 1 0609-
90 08.849 BOLT; CONT PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 03 1 0609-
