0-38B — AIR COMPRESSOR PIPING; ENGINE SIDE (#2311) — 90 parça

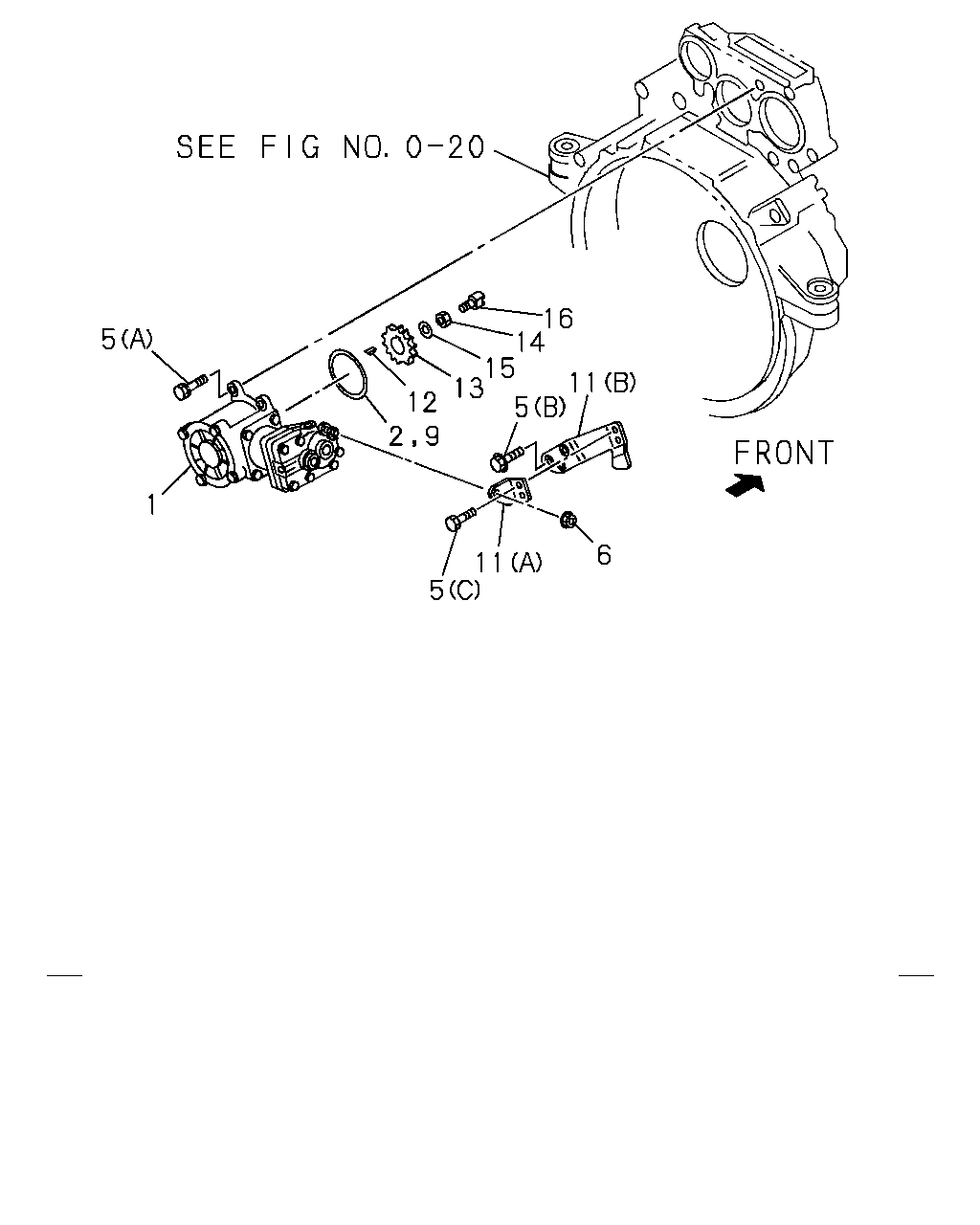

5 1 5 11 6 11 5 9 2 12 13 15 14 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-212-6	01	1	9002-	●	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	9002-		●	●
5	BOLT; AIR CMPR FIX (C) M10X20 W/LK&PL WASHER	0-50141-020-0	03	1	9002-9306			●
5	BOLT; AIR CMPR FIX (C) M10X20 FLANGE	0-28081-020-0	02	1	9307-	●
5	BOLT; AIR CMPR FIX (A) M10X18	8-94399-729-1	03	1	9002-9104		●	●
5	BOLT; AIR CMPR FIX (A) M12X40	9-01991-240-0	04	1	9002-9005		●	●
5	BOLT; AIR CMPR FIX (A) M12X40 W/LK&PL WASHER	0-50151-240-0	04	1	9006-	●	●	●
5	BOLT; AIR CMPR FIX (B) M10X18 FLANGE	0-28181-018-0	03	1	9105-	●	●	●
5	BOLT; AIR CMPR FIX (C) M10X20 FLANGE	0-28081-020-0	02	1	9002-9306		●
5	BOLT; AIR CMPR FIX (C) M10X20 W/LK&PL WASHER	0-50141-020-0	02	1	9307-		●
6	NUT; AIR CMPR M10 FLANGE	0-91150-210-0	02	1	9002-	●	●	●
9	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	1-09623-423-0	01	1	9307-	●
11	BRACKET; AIR CMPR (A)	1-19187-018-0	01	1	9002-	●	●	●
11	BRACKET; AIR CMPR (B)	1-19187-023-1	01	1	9002-	●	●	●
12	KEY; AIR CMPR GEAR	9-08055-516-0	01	1	9002-	●	●	●
13	GEAR; AIR CMPR DRIVE Z=26	1-12524-045-0	01	1	9002-9306			●
13	GEAR; AIR CMPR DRIVE Z=26	1-12524-044-0	01	1	9002-	●	●
14	NUT; GEAR M20	9-99111-520-0	01	1	9002-	●	●	●
15	WASHER; GEAR ID=21	9-09164-520-0	01	1	9002-	●	●	●
16	ADAPTER	1-12539-010-0	01	1	9002-	●	●	●

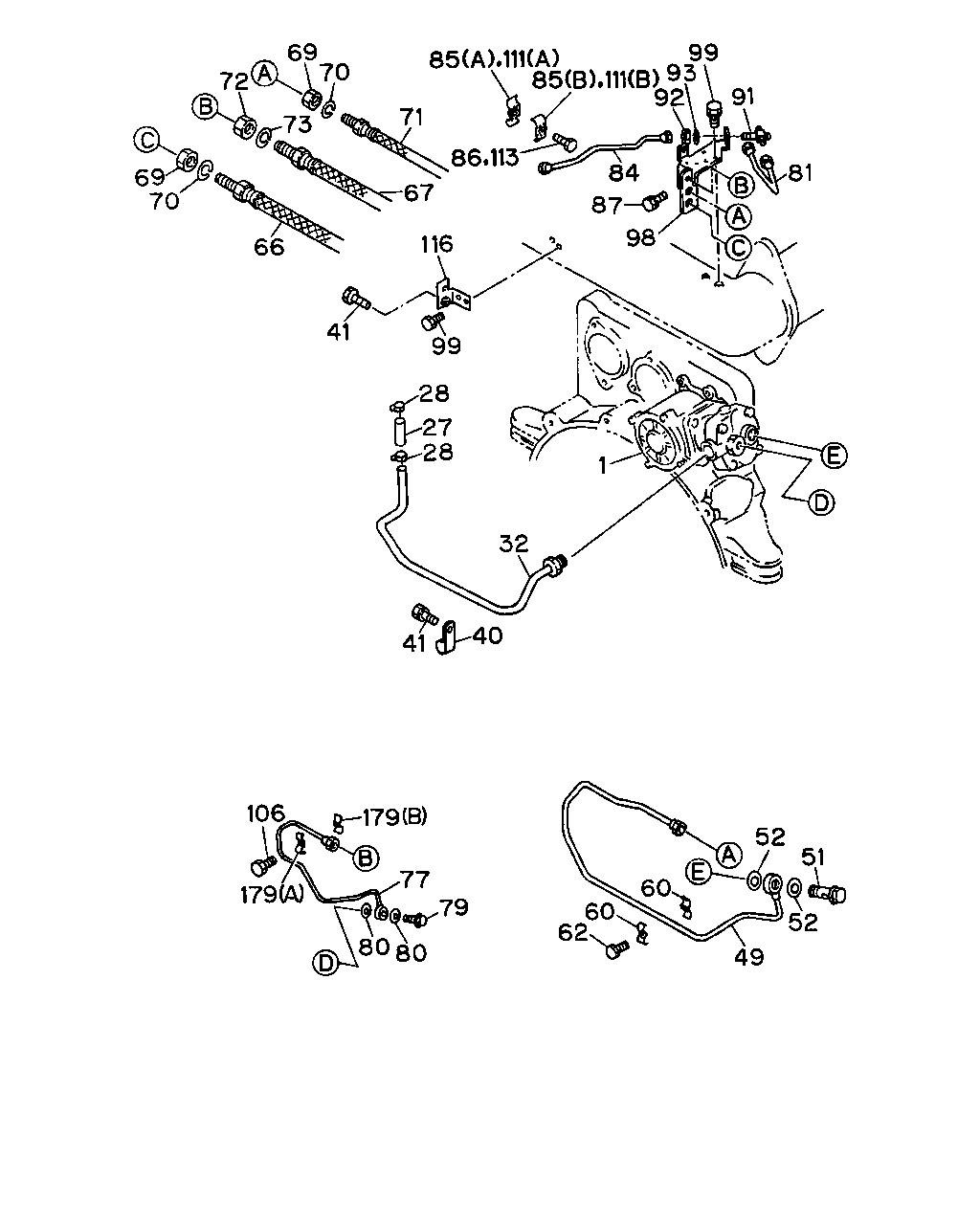

69 72 70 73 69 70 71 66 67 86 113 85 111 111 85 93 99 92 84 87 91 81 98 116 41 99 1 28 28 27 32 40 41 106 179 179 77 80 80 79 62 60 60 51 52 52 49

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-212-6	01	1	9002-	●	●	●
27	HOSE; AIR CMPR,SUCTION L=55	1-09360-784-0	01	1	9002-9306			●
27	HOSE; AIR CMPR,SUCTION	1-09360-858-0	01	1	9002-9011		●
27	HOSE; AIR CMPR,SUCTION	1-09360-896-0	01	1	9012-	●	●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	02	1	9002-	●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9002-9306			●
32	PIPE; AIR,AIR CMPR	1-19192-287-0	01	1	9002-9306			●
32	PIPE; AIR,AIR CMPR	1-19192-461-0	01	1	9002-9011		●
32	PIPE; AIR,AIR CMPR	1-19192-551-1	01	1	9012-	●	●
40	CLIP; AIR PIPE ID=21 L=28	1-09700-673-1	01	1	9002-9306			●
41	BOLT; CLIP M6X12	0-28020-612-0	01	1	9002-9005		●	●
41	BOLT; CLIP M6X12 FLANGE	0-28080-612-0	01	1	9006-	●	●	●
49	PIPE; AIR,CHARGE	1-19192-284-1	01	1	9002-9212		●	●
49	PIPE; AIR,CHARGE	1-19192-759-0	01	1	9301-	●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	9002-	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9002-	●	●	●
60	CLIP; AIR PIPE WO/NUT	1-09700-985-0	02	1	9002-		●
60	CLIP; AIR PIPE ID=12 & 21 L=30 W/NUT	1-09700-986-0	02	1	9002-		●
60	CLIP; AIR PIPE WO/NUT	1-09709-001-1	02	1	9307-	●
60	CLIP; AIR PIPE W/NUT	1-09709-002-1	02	1	9307-	●
62	BOLT; CLIP M6X25 FLANGE	0-28080-625-0	02	1	9307-	●
62	BOLT; CLIP M6X30	0-28020-630-0	02	1	9002-9005		●	●
62	BOLT; CLIP M6X30 FLANGE	0-28080-630-0	02	1	9006-		●	●
66	HOSE; FLEX,POWER STRG L=385	0-09538-385-0	01	1	9002-9306			●
66	HOSE; FLEX,POWER STRG L=410	0-09538-410-0	01	1	9307-	●
66	HOSE; FLEX,POWER STRG L=360	0-09538-360-0	01	1	9002-		●
67	HOSE; FLEX,AIR CHARGE L=450	0-07806-450-1	01	1	9002-9306			●
67	HOSE; FLEX,AIR CHARGE L=480	0-07806-480-1	01	1	9002-	●	●
69	NUT; FLEX HOSE M12	9-09840-280-0	01	1	9002-9306			●
69	NUT; FLEX HOSE M20	9-99111-420-0	02	1	9002-	●	●
70	WASHER; LK ID=12.2	9-09150-512-0	01	1	9002-9306			●
70	WASHER; LK ID=20.2	9-09150-520-0	02	1	9002-	●	●	●
71	HOSE; FLEX,AIR GOV L=320	0-07120-320-0	01	1	9002-	●	●	●
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	9002-	●	●	●
73	WASHER; LK,GOV HOSE ID=12.2	9-09150-512-0	01	1	9002-	●	●	●
77	PIPE; AIR,GOV	1-19192-285-0	01	1	9002-	●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9002-	●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9002-	●	●	●
81	PIPE; AIR,INT SHUTTER	1-19192-059-0	01	1	9002-	●	●	●
84	PIPE; AIR	1-19192-442-0	01	1	9002-	●	●	●
85	CLIP; PIPE (A) ID=8 & 12	9-09917-471-0	01	1	9002-9401	●	●
85	CLIP; PIPE (A) WO/NUT	1-09700-547-0	01	1	9402-	●	●
85	CLIP; PIPE (B) W/NUT	9-09917-472-0	01	1	9002-9401	●	●
85	CLIP; PIPE (B) W/NUT	1-09700-550-0	01	1	9402-	●	●
86	BOLT; CLIP M6X25	0-28020-625-0	01	1	9002-9005		●	●
86	BOLT; CLIP M6X25 FLANGE	0-28080-625-0	01	1	9006-	●	●	●
87	BOLT; BRKT FIX M8X14	0-28020-814-0	02	1	9002-9005		●	●
87	BOLT; BRKT FIX M8X14 FLANGE	0-28080-814-0	02	1	9006-9306	●	●	●
87	BOLT; BRKT FIX M8X14 FLANGE	0-28080-814-0	02	1	9307-9411	●	●
87	BOLT; BRKT FIX M8X16 FLANGE	0-28080-816-0	02	1	9412-	●	●
91	UNION; 4 WAY	9-09229-106-1	01	1	9002-	●	●	●
92	NUT; UNION M12	9-09840-280-0	01	1	9002-	●	●	●
93	WASHER; LK ID=12.2	9-09150-512-0	01	1	9002-	●	●	●
98	BRACKET; AIR & OIL PIPE	1-22518-121-0	01	1	9002-	●	●	●
99	BOLT; BRKT AIR PIPE M8X14	0-28020-814-0	04	1	9002-9005		●	●
99	BOLT; BRKT AIR PIPE M8X14 FLANGE	0-28080-814-0	04	1	9006-9306	●	●	●
99	BOLT; BRKT AIR PIPE M8X14 FLANGE	0-28080-814-0	04	1	9307-9411	●	●
99	BOLT; BRKT AIR PIPE M8X16 FLANGE	0-28080-816-0	04	1	9412-	●	●
106	BOLT; CLIP M6X25	0-28020-625-0	01	1	9002-9005		●	●
106	BOLT; CLIP M6X25 FLANGE	0-28080-625-0	01	1	9006-		●	●
111	CLIP; AIR PIPE (A) ID=8 & 12	9-09917-471-0	01	1	9307-9401	●
111	CLIP; AIR PIPE (A) WO/NUT	1-09700-547-0	01	1	9402-	●
111	CLIP; AIR PIPE (B) W/NUT	9-09917-472-0	01	1	9307-9401	●
111	CLIP; AIR PIPE (B) W/NUT	1-09700-550-0	01	1	9402-	●
113	BOLT; CLIP,AIR PIPE M6X25 FLANGE	0-28080-625-0	01	1	9307-	●
116	BRACKET; AIR PIPE	1-22196-283-0	01	1	9307-	●
179	CLIP; PIPE (A) ID=8 & 12	9-09917-471-0	01	1	9002-9401		●	●
179	CLIP; PIPE (A) WO/NUT	1-09700-547-0	01	1	9402-		●
179	CLIP; PIPE (B) W/NUT	9-09917-472-0	01	1	9002-9401		●	●
179	CLIP; PIPE (B) W/NUT	1-09700-550-0	01	1	9402-		●
