Isuzu WW
▶
TRUCKS
▶
NHR
▶
51101 - NHR EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-45 - HEATER PIPING
▶

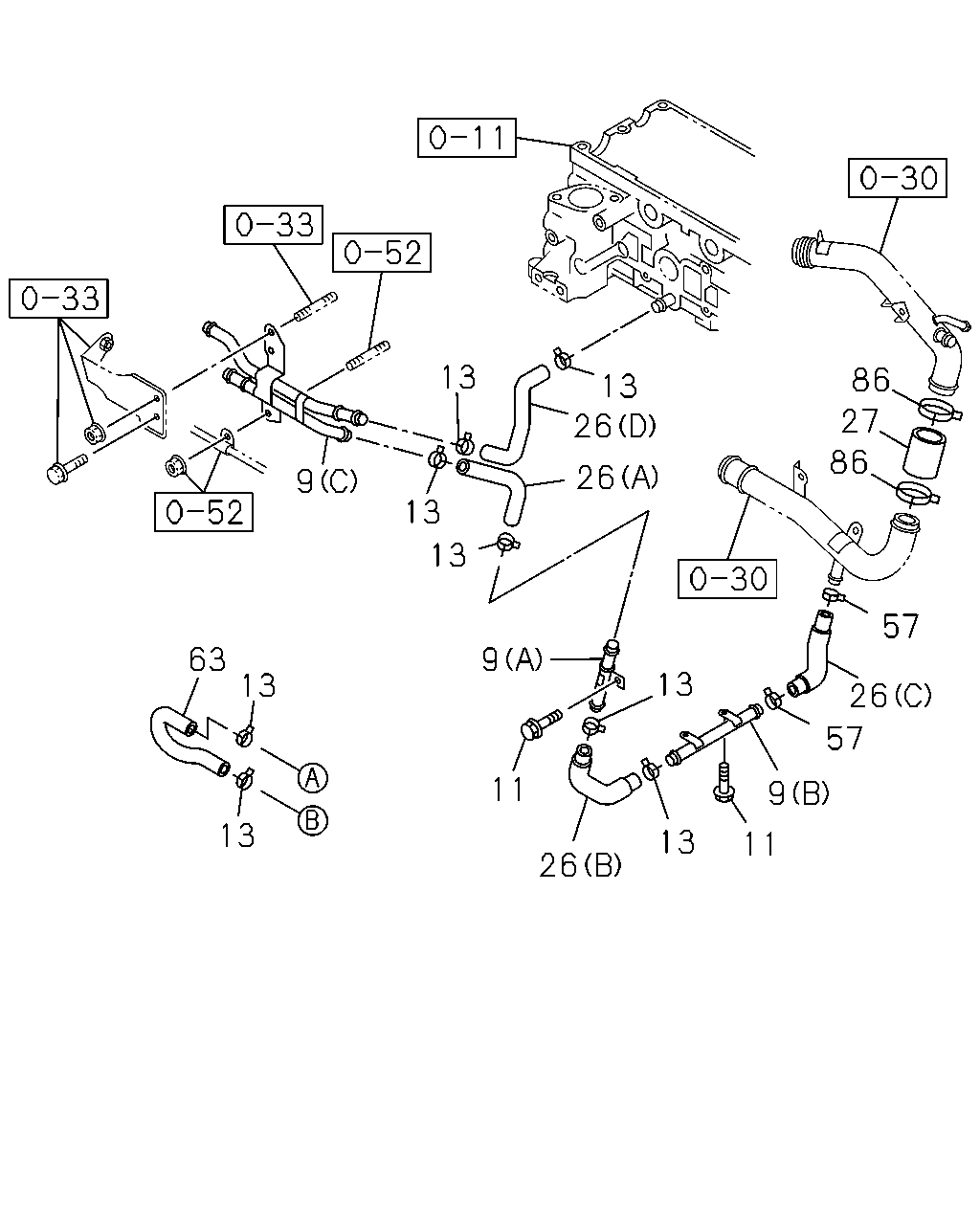

8-45 — HEATER PIPING
(#23108) — 15 parça
13
86
13
26
27
86
26
9
13
13
57
63
9
13
13
26
57
11
9
13
13
11
26
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
9
08.846 PIPE; HTR
(A)
8-97381-481-3
01
1
0609-
9
08.846 PIPE; HTR
(B)
8-97383-035-1
01
1
0609-
9
08.846 PIPE; HTR
(C)
8-98028-829-1
01
1
0609-
11
08.845 BOLT; HTR PIPE
02.343 M8X16 FLANGE
0-28050-816-0
03
1
0609-
13
08.846 CLIP; HTR HOSE
01.166 ID=20.8
8-94125-862-1
02
1
0609-
13
08.846 CLIP; HTR HOSE
01.166 ID=20.8
8-94125-862-1
06
1
0609-
26
08.846 HOSE; HTR
(A)
0-03516-240-0
01
1
0609-0910
26
08.846 HOSE; HTR
(A)
8-98143-868-0
01
1
0911-
26
08.846 HOSE; HTR
(B)
8-98000-099-1
01
1
0609-
26
08.846 HOSE; HTR
(C)
8-98000-101-2
01
1
0609-
26
08.846 HOSE; HTR
(D)
8-97383-048-1
01
1
0609-
27
08.846 HOSE; WATER,HTR UNIT TO WATER PI
8-98009-701-0
01
1
0609-
57
08.846 CLIP; HOSE
01.166 ID=20.8
8-94125-862-1
02
1
0609-
63
08.846 HOSE; WATER
8-98015-119-3
01
1
0609-
86
08.846 CLIP; HTR HOSE
01.166 ID=40.5
8-97313-472-0
02
1
0609-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
