Isuzu WW
▶
TRUCKS
▶
NHR
▶
51101 - NHR EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-28 - CHASSIS ELECTRICAL
▶
8-28 — CHASSIS ELECTRICAL
(#23106) — 21 parça
◀
[828A] NO.4 (4 parça)
[828A] NO.1 (9 parça)
[828A] NO.2 (5 parça)
[828A] NO.3 (3 parça)
▶

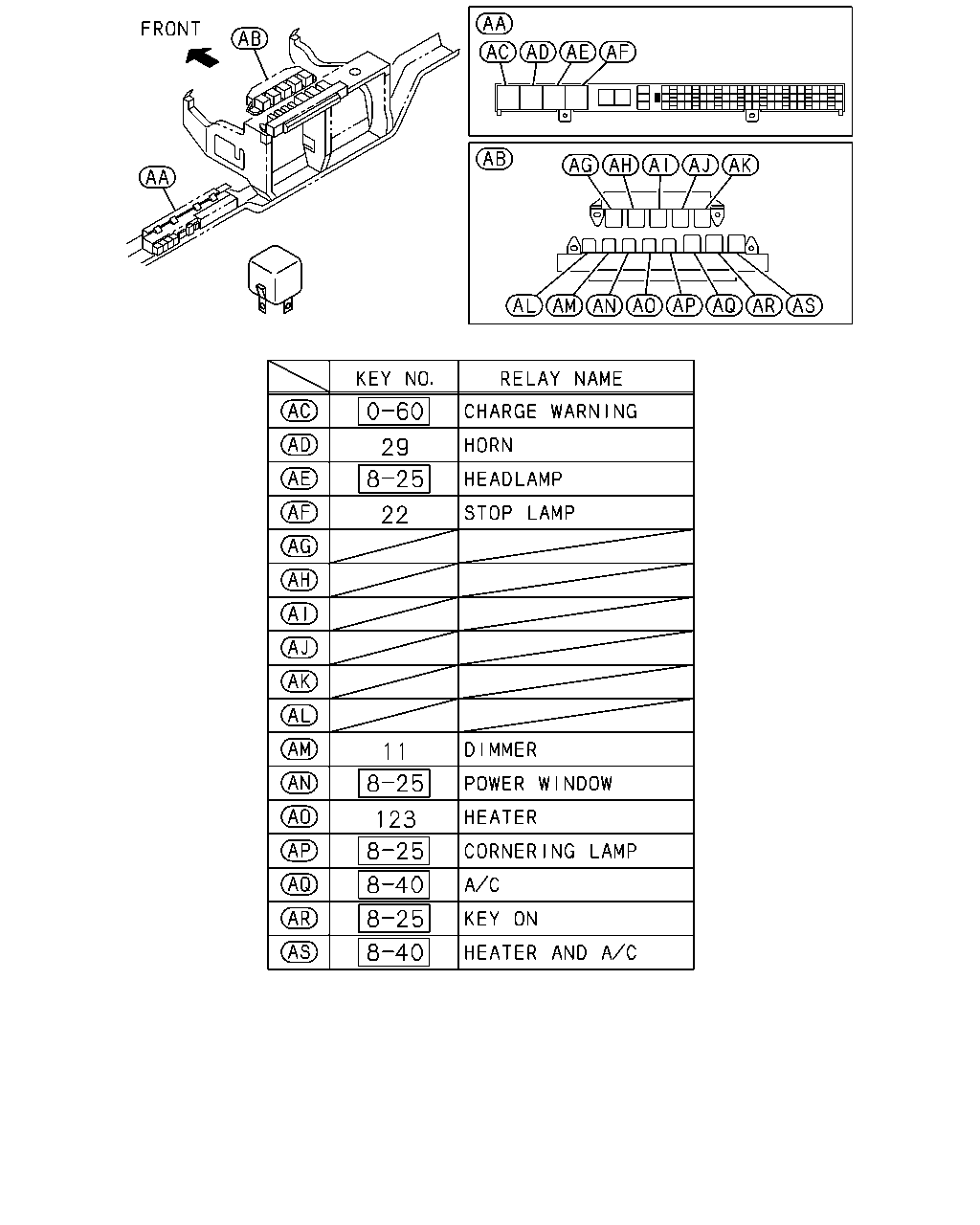

29
22
11
123
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
11
02.485 RELAY; DIMMER
08.852 24V 10A MATSUSHITA
8-97173-035-1
01
1
0609-
22
02.679 RELAY; STOP LAMP
08.852 24V 10A MATSUSHITA
8-97173-035-1
01
1
0609-
29
02.815 RELAY; HORN
08.852 24V 10A MATSUSHITA
8-97173-035-1
01
1
0609-
123
02.270 RELAY; HTR
08.852 24V 10A MATSUSHITA
8-97173-035-1
01
1
0609-

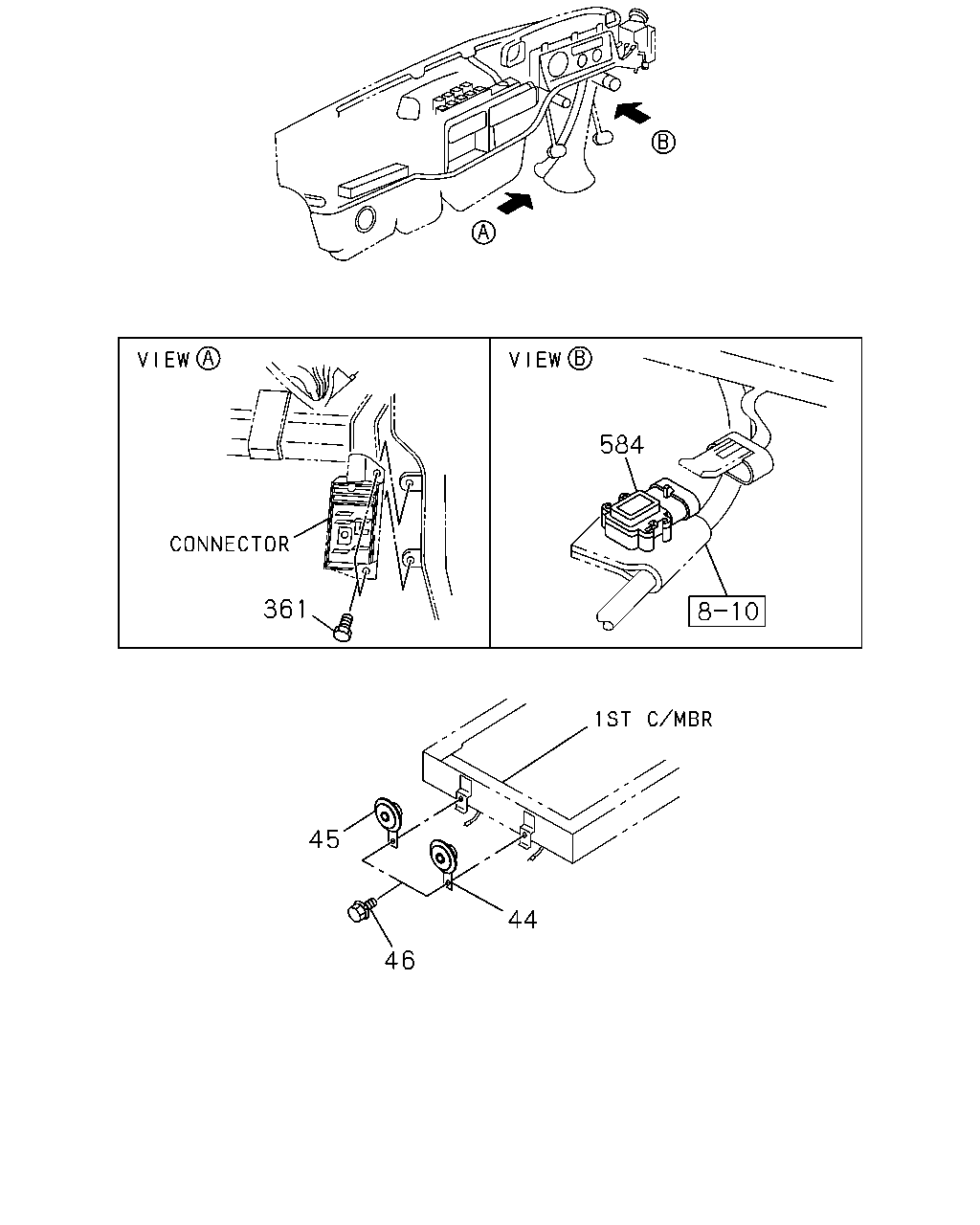

584
361
45
44
46
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
44
02.810 HORN; HIGH NOTE
DUAL TONE HORN(U05)
8-97211-741-1
01
1
0609-
45
02.810 HORN; LOW NOTE
8-97211-740-1
01
1
0609-
46
02.812 BOLT; HORN TO BODY
DUAL TONE HORN(U05) 02.559 M8X20 W/LK&PL WASHER
8-97086-825-0
02
1
0609-1004
46
02.812 BOLT; HORN TO BODY
DUAL TONE HORN(U05) 02.343 M8X18.5 W/PL WASHER
8-98141-255-0
02
1
1005-
46
02.812 BOLT; HORN TO BODY
EXC. DUAL TONE HORN(U05) 02.559 M8X20 W/LK&PL WASHER
8-97086-825-0
01
1
0609-1004
46
02.812 BOLT; HORN TO BODY
EXC. DUAL TONE HORN(U05) 02.343 M8X18.5 W/PL WASHER
8-98141-255-0
01
1
1005-
361
02.559 BOLT; CONNECTOR
08.225 M6X19.5 W/LK&PL WASHER
8-94279-201-0
01
1
0609-
584
02.440 SENSOR; PRESSURE
02.510
8-09350-899-1
01
1
0609-0811
584
02.440 SENSOR; PRESSURE
8-28180-175-0
01
1
0812-

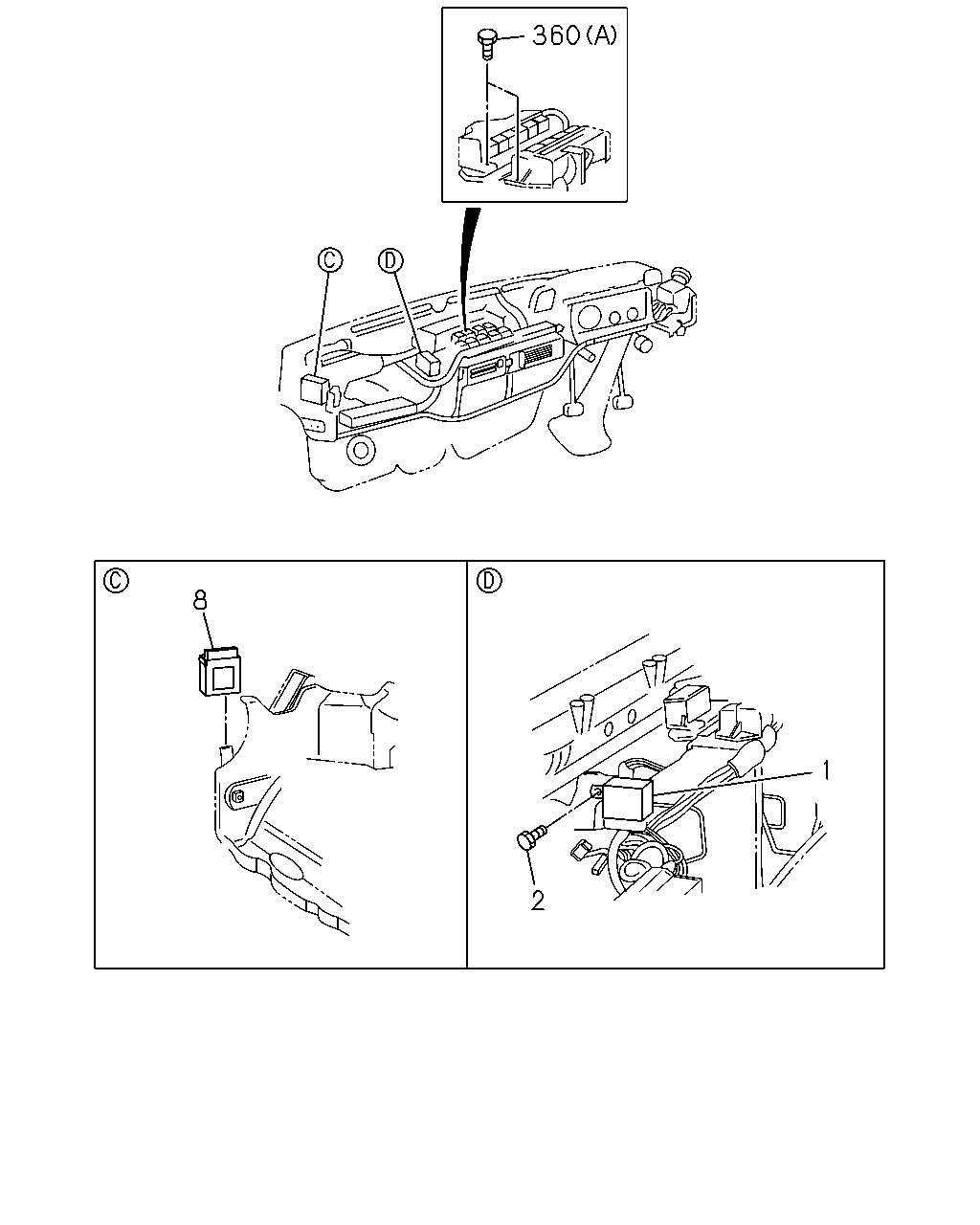

360
8
1
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
02.575 UNIT; FLASHER
8-97360-084-1
01
1
0609-
2
02.892 BOLT; FLASHER UNIT
10.230 M6X16 W/LK&PL WASHER
8-94139-963-0
01
1
0609-
8
16.067 RELAY; WIPER
INTERMITTENT WIPER<C13>
8-97363-983-0
01
1
0609-
360
02.483 BOLT; RELAY BOX
06.216 (B) M8X25 FLANGE
0-28650-825-0
03
1
0609-
360
02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER
8-94139-963-0
02
1
0609-

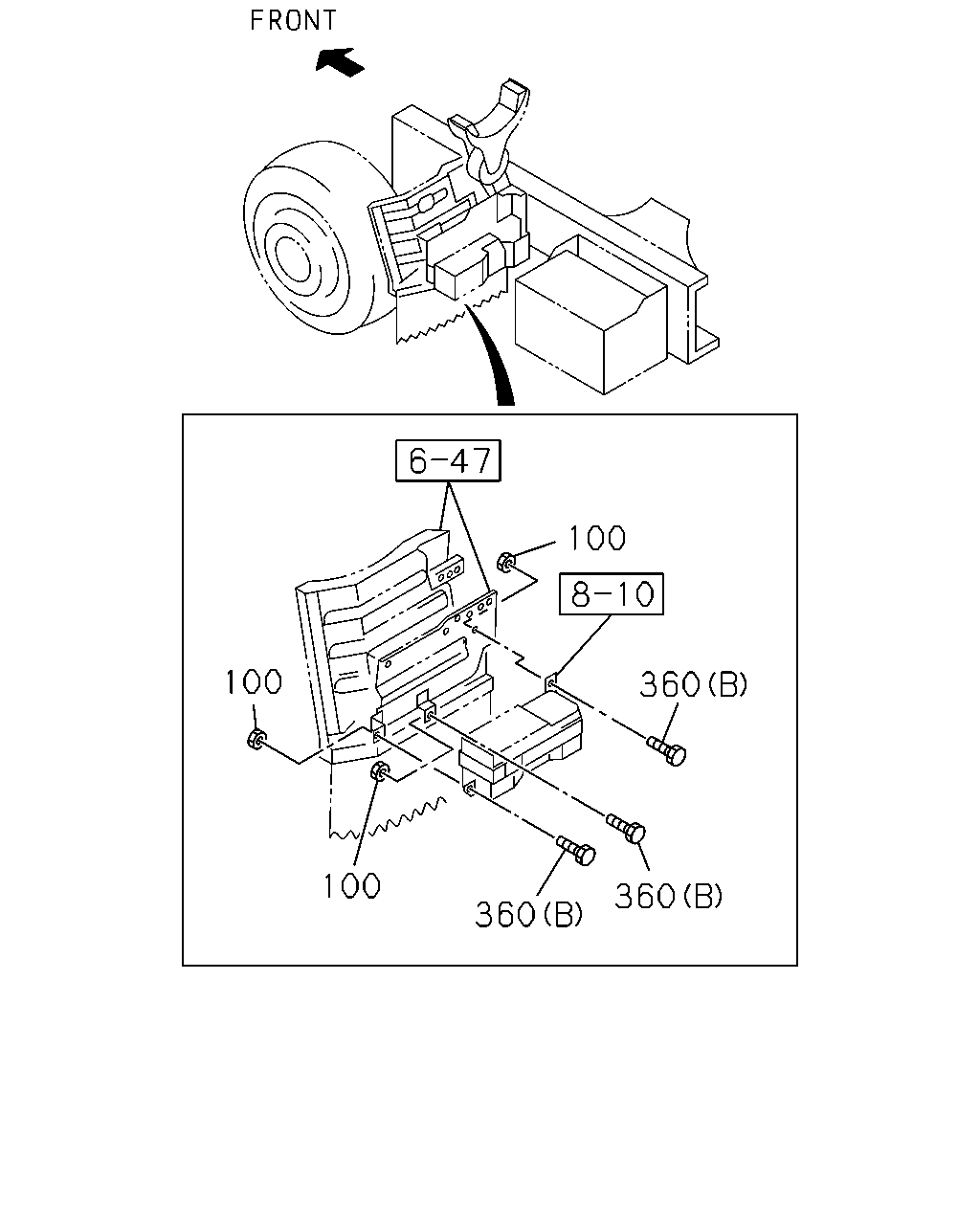

100
100
360
100
360
360
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
100
09.277 NUT; RELAY BOX COVER
01.062 M8 FLANGE
0-91180-108-0
03
1
0609-
360
02.483 BOLT; RELAY BOX
06.216 (B) M8X25 FLANGE
0-28650-825-0
03
1
0609-
360
02.483 BOLT; RELAY BOX
10.230 (A) M6X16 W/LK&PL WASHER
8-94139-963-0
02
1
0609-
