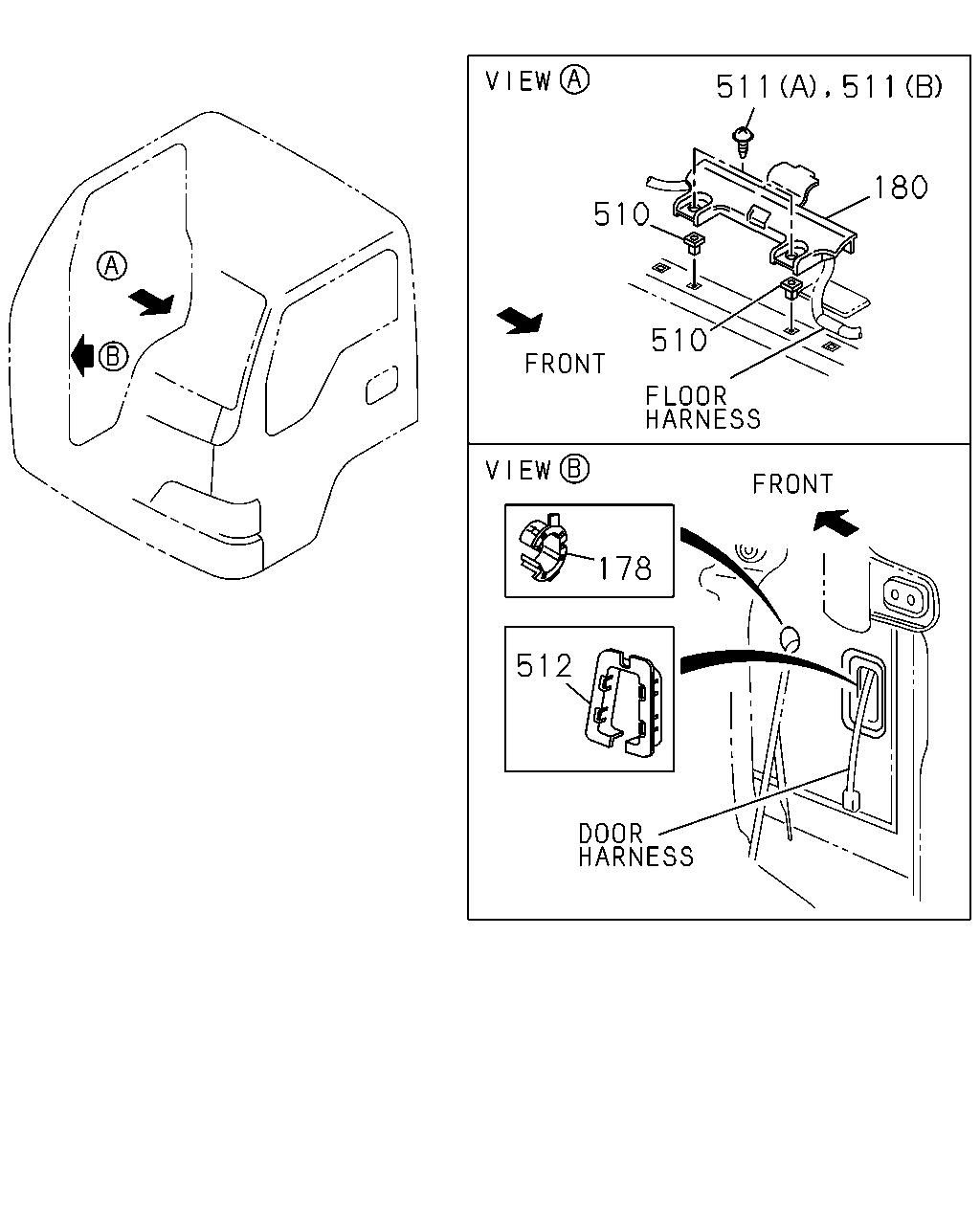

8-15 — FIXING PARTS; WIRING HARNESS (#23102) — 132 parça

16 264 16 48 22 16 22 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (B) L=155	8-97173-307-0	04	1	1011-
16	02.559 CLIP; HARNESS (C) L=135	1-09987-143-1	02	1	0609-
16	02.559 CLIP; HARNESS 16.065 (D) 1 SET=5 PIECE	1-09987-214-0	02	1	0609-
16	02.559 CLIP; HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	08	1	0609-
16	02.559 CLIP; HARNESS 02.343 (F) ID=16	8-94413-325-0	02	1	0609-
16	02.559 CLIP; HARNESS 01.166 (G) ID=22 & 22	8-94464-837-0	01	1	0609-
16	02.559 CLIP; HARNESS (H) ID=15-32	8-97174-404-0	02	1	0609-
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (I) L=140	5-09707-031-1	01	1	0609-
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	04	1	0609-1009
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (B) L=155	8-97173-307-0	04	1	0609-1009
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	05	1	1010-1010
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (B) L=155	8-97173-307-0	05	1	1010-1010
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	06	1	1011-
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=100	8-94327-067-1	04	1	0609-
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (A) L=100	8-94327-067-1	04	1	0609-
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	10	1	0609-1009
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	11	1	1010-1010
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	05	1	1011-
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	05	1	1011-
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> (B) L=155	8-97173-307-0	05	1	1011-
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0609-
22	02.559 CLIP; ENG HARNESS 03.425 (B) ID=6 & 8.3	8-94167-742-0	01	1	0609-
22	02.559 CLIP; ENG HARNESS 03.162 (C) ID=13.2 & 14.5	8-94475-649-0	01	1	0609-
22	02.559 CLIP; ENG HARNESS 04.104 (D) ID=12 & 6.8	8-97125-842-0	01	1	0609-
48	02.559 CLIP; FRAME HARNESS 03.162 (A) L=140	5-09707-031-1	02	1	0609-
48	02.559 CLIP; FRAME HARNESS (D) ID=9	8-97063-874-0	01	1	0609-
48	02.559 CLIP; FRAME HARNESS (B) ID=40 L=90	1-09701-290-0	06	1	0609-
48	02.559 CLIP; FRAME HARNESS (E) ID=30 W/STUD	8-97078-642-2	01	1	0609-
48	02.559 CLIP; FRAME HARNESS 02.525 (C) T=4.5 & 9	5-09709-023-0	02	1	0609-
264	02.559 CLIP; HARNESS,HEADLAMP 02.694 ID=6 & 10-13	8-97069-515-0	01	1	0609-

511 180 510 510 178 512 511

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
178	02.559 GROMMET; HARNESS ID=47	8-94279-735-0	01	1	0609-
180	02.559 COVER; HARNESS	8-97856-130-4	02	1	0609-
510	02.559 GROMMET; SCREW 04.931 H=15	8-94463-268-1	04	1	0609-
511	02.559 SCREW; HARNESS COVER 16.800 (A) M5X14 TAPPING W/PL WASHER	0-74160-514-0	04	1	0609-0702
511	02.559 SCREW; HARNESS COVER 04.681 (B) M5X12 TAPPING	0-72180-512-0	04	1	0703-
512	02.559 PROTECTOR; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	0609-
512	02.559 PROTECTOR; HARNESS POWER WINDOW FRT DOOR<A32>	8-97072-950-0	02	1	0609-
512	02.559 PROTECTOR; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2)	8-97072-950-0	02	1	0609-

16 205 16 22 48 162 488 14 142 16 16 48 16 48 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	02.559 CLIP; BAND,HARNESS 03.430 L=200	8-94464-835-0	01	1	0609-
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (B) L=155	8-97173-307-0	04	1	1011-
16	02.559 CLIP; HARNESS (C) L=135	1-09987-143-1	02	1	0609-
16	02.559 CLIP; HARNESS 16.065 (D) 1 SET=5 PIECE	1-09987-214-0	02	1	0609-
16	02.559 CLIP; HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	08	1	0609-
16	02.559 CLIP; HARNESS 02.343 (F) ID=16	8-94413-325-0	02	1	0609-
16	02.559 CLIP; HARNESS 01.166 (G) ID=22 & 22	8-94464-837-0	01	1	0609-
16	02.559 CLIP; HARNESS (H) ID=15-32	8-97174-404-0	02	1	0609-
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (I) L=140	5-09707-031-1	01	1	0609-
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	04	1	0609-1009
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (B) L=155	8-97173-307-0	04	1	0609-1009
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	05	1	1010-1010
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (B) L=155	8-97173-307-0	05	1	1010-1010
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	06	1	1011-
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=100	8-94327-067-1	04	1	0609-
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (A) L=100	8-94327-067-1	04	1	0609-
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	10	1	0609-1009
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	11	1	1010-1010
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	05	1	1011-
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	05	1	1011-
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> (B) L=155	8-97173-307-0	05	1	1011-
22	02.559 CLIP; ENG HARNESS 03.162 (A) L=140	5-09707-031-1	01	1	0609-
22	02.559 CLIP; ENG HARNESS 03.425 (B) ID=6 & 8.3	8-94167-742-0	01	1	0609-
22	02.559 CLIP; ENG HARNESS 03.162 (C) ID=13.2 & 14.5	8-94475-649-0	01	1	0609-
22	02.559 CLIP; ENG HARNESS 04.104 (D) ID=12 & 6.8	8-97125-842-0	01	1	0609-
48	02.559 CLIP; FRAME HARNESS 03.162 (A) L=140	5-09707-031-1	02	1	0609-
48	02.559 CLIP; FRAME HARNESS (D) ID=9	8-97063-874-0	01	1	0609-
48	02.559 CLIP; FRAME HARNESS (B) ID=40 L=90	1-09701-290-0	06	1	0609-
48	02.559 CLIP; FRAME HARNESS (E) ID=30 W/STUD	8-97078-642-2	01	1	0609-
48	02.559 CLIP; FRAME HARNESS 02.525 (C) T=4.5 & 9	5-09709-023-0	02	1	0609-
142	02.559 CLIP; HARNESS,ENG L=170.3	1-09987-182-0	01	1	0609-
162	02.559 CLIP; SW HARNESS 03.162 L=140	5-09707-031-1	01	1	0609-
205	02.559 CLIP; BACK LAMP HARNESS L=135	1-09987-143-1	01	1	0609-
488	02.559 CLIP; CABLE,TRAILER L=250	5-09707-030-1	01	1	0609-

16 116 7 21 31 53 31 412 53 53 510 504 514 514

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	02.559 BRACKET; CONNECTOR	8-98037-564-1	01	1	0609-
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (B) L=155	8-97173-307-0	04	1	1011-
16	02.559 CLIP; HARNESS (C) L=135	1-09987-143-1	02	1	0609-
16	02.559 CLIP; HARNESS 16.065 (D) 1 SET=5 PIECE	1-09987-214-0	02	1	0609-
16	02.559 CLIP; HARNESS 01.240 (E) ID=14 L=47	5-09700-319-0	08	1	0609-
16	02.559 CLIP; HARNESS 02.343 (F) ID=16	8-94413-325-0	02	1	0609-
16	02.559 CLIP; HARNESS 01.166 (G) ID=22 & 22	8-94464-837-0	01	1	0609-
16	02.559 CLIP; HARNESS (H) ID=15-32	8-97174-404-0	02	1	0609-
16	02.559 CLIP; HARNESS EXC. AIR CONDITIONER MANUAL CONT(C60) 03.162 (I) L=140	5-09707-031-1	01	1	0609-
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	04	1	0609-1009
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (B) L=155	8-97173-307-0	04	1	0609-1009
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	05	1	1010-1010
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (B) L=155	8-97173-307-0	05	1	1010-1010
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	06	1	1011-
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (A) L=100	8-94327-067-1	04	1	0609-
16	02.559 CLIP; HARNESS ANTENNA<U73> EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32>,RADIO AM W/AMPLIFIER(RS2) (A) L=100	8-94327-067-1	04	1	0609-
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	10	1	0609-1009
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	11	1	1010-1010
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	05	1	1011-
16	02.559 CLIP; HARNESS AUTO DOOR LOCK<AU4> EXC. POWER WINDOW FRT DOOR<A32> (B) L=155	8-97173-307-0	05	1	1011-
16	02.559 CLIP; HARNESS POWER WINDOW FRT DOOR<A32> EXC. AUTO DOOR LOCK<AU4> (B) L=155	8-97173-307-0	05	1	1011-
21	02.483 BRACKET; ENG HARNESS	8-98019-634-0	01	1	0609-
31	02.559 BRACKET; HARNESS CLIP,PIPE (A)	8-97362-859-0	02	1	0609-
31	02.559 BRACKET; HARNESS CLIP,PIPE (B)	8-98019-633-0	01	1	0609-
53	02.483 BRACKET; HARNESS (A)	8-97357-140-0	01	1	0609-
53	02.483 BRACKET; HARNESS (B)	8-98026-091-0	01	1	0609-
53	02.483 BRACKET; HARNESS (C)	8-98028-248-0	01	1	0609-
116	02.559 CLIP; ROOF HARNESS CAB-LOW ROOF<6XQ> 16.065 1 SET=5 PIECE	1-09987-214-0	01	1	0609-
412	02.559 BRACKET; HARNESS,TRANS	8-97324-451-1	01	1	0609-
504	02.559 PROTECTOR; HARNESS 04.785 L=200	8-97096-423-0	01	1	0609-
510	02.559 GROMMET; SCREW 04.931 H=15	8-94463-268-1	04	1	0609-
514	02.559 FINISHER; HARNESS 16.550 (A) L=120 SERVICED BY L=2040	1-71997-513-1	02	1	0609-
514	02.559 FINISHER; HARNESS 16.550 (A) L=175 SERVICED BY L=2040	1-71997-513-1	01	1	0609-
514	02.559 FINISHER; HARNESS (B) L=290 SERVICED BY L=500	1-79937-746-0	01	1	0609-

139 38 516 139 8 313 38 466 377 386 377 386 159 159 511 511 139 219 294 515 219 294 469 515 294

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	02.559 BOLT; BRKT,CONNECTOR 08.225 M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0609-
38	02.559 BOLT; CLIP,HARNESS 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	0609-
38	02.559 BOLT; CLIP,HARNESS 06.216 (B) M8X25 FLANGE	0-28650-825-0	01	1	0609-
139	02.559 BOLT; BRKT 02.343 (A) M8X16 FLANGE	0-28050-816-0	03	1	0609-
139	02.559 BOLT; BRKT 03.162 (B) M6X20 FLANGE	0-28650-620-0	01	1	0609-
139	02.559 BOLT; BRKT (C)	8-97028-451-3	01	1	0609-
159	02.559 BOLT; GRAND ENG ELEC 02.343 (A) M8X25 W/LK&PL WASHER	8-97087-203-0	01	1	0609-1004
159	02.559 BOLT; GRAND ENG ELEC 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1005-
219	02.559 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0609-
219	02.559 NUT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0609-
294	02.559 NUT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0609-
294	02.559 NUT 01.062 (B) M8 FLANGE	0-91180-108-0	02	1	0609-
294	02.559 NUT 03.162 (C) M10 FLANGE	0-91180-110-0	01	1	0609-
313	02.559 BOLT; BRKT 01.531 M8X20 FLANGE	0-28650-820-0	02	1	0609-
377	02.559 BOLT; CAB EARTH (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0609-1004
377	02.559 BOLT; CAB EARTH 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-
386	02.559 BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER	8-97086-825-0	01	1	0609-1004
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X18.5 W/PL WASHER	8-98141-255-0	01	1	1005-
466	02.483 BOLT; HEAT PROTECTOR 01.060 M8X35 FLANGE	0-28650-835-0	01	1	0609-
469	02.559 NUT; PROTECTOR 01.062 M8 FLANGE	0-91180-108-0	01	1	0609-
511	02.559 SCREW; HARNESS COVER 16.800 (A) M5X14 TAPPING W/PL WASHER	0-74160-514-0	04	1	0609-0702
511	02.559 SCREW; HARNESS COVER 04.681 (B) M5X12 TAPPING	0-72180-512-0	04	1	0703-
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	01	1	0609-
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE	0-91180-106-0	02	1	0609-
515	02.559 NUT; BRKT 01.062 (B) M8 FLANGE	0-91180-108-0	01	1	0609-
516	02.559 BOLT; HARNESS 02.343 M8X12 FLANGE	0-28050-812-0	01	1	0609-
