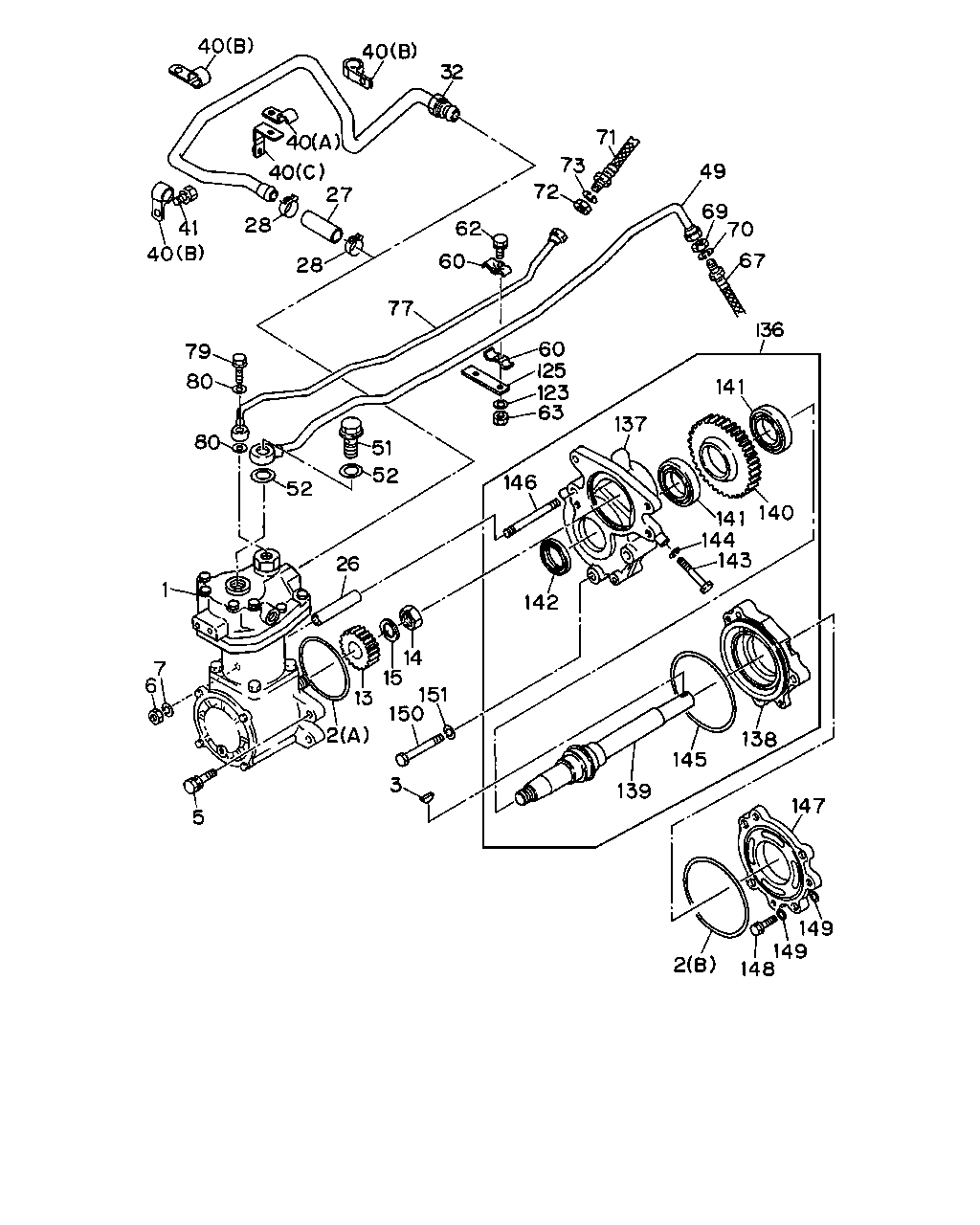

0-38A — AIR COMPRESSOR PIPING; ENGINE SIDE (#2310) — 73 parça

2 148 149 149 147 138 145 139 3 150 151 13 2 5 6 7 1 26 14 15 142 146 143 144 141 140 137 141 136 67 70 69 49 71 73 72 62 60 77 60 125 123 63 51 52 52 80 80 79 40 41 28 28 27 40 40 40 40 32

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	COMPRESSOR ASM; AIR SEE FIG-NO 0-39 FOR COMPONENT.	1-19100-218-6	01	1	9002-	●	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=105.6	1-09623-247-0	01	1	9002-	●	●	●
2	GASKET; AIR CMPR ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=124.6	1-09623-468-0	02	1	9002-	●	●	●
3	KEY; COUPLING,INJ PUMP	9-08055-622-0	01	1	9002-		●	●
3	KEY; COUPLING,INJ PUMP	9-08055-516-0	01	1	9002-9306	●
5	BOLT; AIR CMPR FIX M12X45	9-01991-245-0	03	1	9002-9005	●	●	●
5	BOLT; AIR CMPR FIX M12X45	0-50151-245-0	03	1	9006-	●	●	●
6	NUT; AIR CMPR M12	9-99110-512-0	01	1	9002-	●	●	●
7	WASHER; LK,AIR CMPR ID=12.2	9-09150-512-0	01	1	9002-	●	●	●
13	GEAR; AIR CMPR DRIVE	1-19372-007-0	01	1	9002-	●	●	●
14	NUT; GEAR M20	9-99111-520-0	01	1	9002-	●	●	●
15	WASHER; GEAR ID=21	9-09164-520-0	01	1	9002-	●	●	●
26	COLLAR; DIST,AIR CMPR	1-19189-003-1	01	1	9002-	●	●	●
27	HOSE; AIR CMPR,SUCTION ID=17.0	1-09360-128-2	01	1	9002-9205		●
27	HOSE; AIR CMPR,SUCTION ID=17.0	1-09360-916-0	01	1	9206-9306		●
27	HOSE; AIR CMPR,SUCTION ID=18.0	9-09919-309-0	01	1	9002-9306	●
27	HOSE; AIR CMPR,SUCTION ID=20.5	1-09360-826-0	01	1	9002-			●
28	CLIP; HOSE,AIR CMPR ID=28.5	1-09707-150-0	02	1	9002-		●	●
28	CLIP; HOSE,AIR CMPR ID=26	1-09707-091-0	02	1	9002-9306	●
32	PIPE; AIR,AIR CMPR	1-19192-332-0	01	1	9002-		●	●
32	PIPE; AIR,AIR CMPR	1-19192-300-0	01	1	9002-9306	●
40	CLIP; AIR PIPE (A)	1-09701-048-0	03	1	9002-		●	●
40	CLIP; AIR PIPE (B)	1-09701-049-0	01	1	9002-		●	●
40	CLIP; AIR PIPE (C)	1-19199-160-1	02	1	9002-		●	●
40	CLIP; AIR PIPE (B)	9-09525-856-0	01	1	9002-9306	●
41	BOLT; CLIP M8X16 W/LK WASHER	9-01900-816-0	03	1	9002-9204		●	●
41	BOLT; CLIP M8X16 W/LK WASHER	0-50040-816-0	03	1	9205-		●	●
49	PIPE; AIR,CHARGE	1-19192-296-0	01	1	9002-9212	●	●	●
49	PIPE; AIR,CHARGE	1-19192-725-0	01	1	9301-	●	●	●
51	BOLT; EYE,AIR PIPE TO CMPR M24X39	1-09675-175-1	01	1	9002-	●	●	●
52	GASKET; EYE BOLT,AIR PIPE ALSO INCLUDED IN GASKET SET(ENGINE). ID=24.5 OD=32	9-09571-424-0	02	1	9002-	●	●	●
60	CLIP; AIR PIPE WO/NUT	1-09700-547-0	06	1	9002-	●	●	●
62	BOLT; CLIP M6X25	9-01910-625-0	03	1	9002-9005		●
62	BOLT; CLIP M6X25 W/LK WASHER	0-50040-625-0	03	1	9006-9306		●
62	BOLT; CLIP M6X30	9-01910-630-0	01	1	9002-9005	●		●
62	BOLT; CLIP M6X30 W/LK WASHER	0-50040-630-0	01	1	9006-	●		●
62	BOLT; CLIP M6X25	9-01910-625-0	02	1	9002-9005			●
62	BOLT; CLIP M6X25 W/LK WASHER	0-50040-625-0	02	1	9006-			●
63	NUT; CLIP	9-09110-506-0	01	1	9002-9306		●
63	NUT; CLIP	9-09110-406-0	03	1	9002-	●		●
67	HOSE; FLEX,AIR CHARGE L=560	0-07806-560-1	01	1	9002-9101	●	●	●
67	HOSE; FLEX,AIR CHARGE L=560	0-07806-560-1	01	1	9102-9202	●	●
67	HOSE; FLEX,AIR CHARGE L=560	0-07806-560-1	01	1	9203-	●	●	●
69	NUT; FLEX HOSE M20	9-99111-420-0	01	1	9002-	●	●	●
70	WASHER; LK ID=20.2	9-09150-520-0	01	1	9002-	●	●	●
71	HOSE; FLEX,AIR GOV L=450	0-07120-450-0	01	1	9002-	●	●	●
72	NUT; GOV HOSE M12	9-09840-280-0	01	1	9002-	●	●	●
73	WASHER; LK,GOV HOSE ID=12.2	9-09150-512-0	01	1	9002-	●	●	●
77	PIPE; AIR,GOV	1-19192-298-0	01	1	9002-	●	●	●
79	BOLT; EYE,AIR PIPE TO CMPR M14X27 FLANGE	1-09675-086-0	01	1	9002-	●	●	●
80	GASKET; AIR PIPE TO CMPR ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2	1-09630-085-0	02	1	9002-	●	●	●
123	WASHER; LK,CLIP ID=6.1	9-09150-506-0	01	1	9002-	●	●	●
125	CLIP; AIR PIPE	1-19199-074-0	01	1	9002-9306		●
136	BOX ASM; GEAR,AIR CMPR	1-19371-021-0	01	1	9002-		●	●
136	BOX ASM; GEAR,AIR CMPR	1-19371-020-0	01	1	9002-9306	●
137	BODY; GEAR BOX	1-19371-010-0	01	1	9002-	●	●	●
138	BODY; GEAR BOX	1-19371-011-0	01	1	9002-	●	●	●
139	SHAFT; GEAR BOX	1-19373-004-1	01	1	9002-		●	●
139	SHAFT; GEAR BOX	1-19373-001-2	01	1	9002-9306	●
140	GEAR; GEAR BOX	1-19372-008-0	01	1	9002-	●	●	●
141	BEARING; BALL,GEAR BOX	9-00090-071-0	02	1	9002-	●	●	●
142	SEAL; OIL,GEAR BOX	1-09625-347-0	01	1	9002-	●	●	●
143	BOLT; BODY M8X60	9-01055-860-0	02	1	9002-9005	●	●	●
143	BOLT; BODY M8X60	0-10805-860-0	02	1	9006-	●	●	●
144	WASHER; LK,BODY ID=8.2	9-09150-508-0	02	1	9002-	●	●	●
145	GASKET; BODY	1-09623-472-0	01	1	9002-	●	●	●
146	STUD; AIR CMPR	1-09302-097-1	01	1	9002-	●	●	●
147	SPACER; GEAR BOX	1-19371-009-0	01	1	9002-	●	●	●
148	BOLT; SPACER	8-94257-289-0	04	1	9002-	●	●	●
149	GASKET; SPACER ID=11	1-09623-469-0	08	1	9002-	●	●	●
150	BOLT; GEAR BOX M12X85	9-01666-285-0	03	1	9002-	●	●	●
150	BOLT; GEAR BOX M12X35	9-02361-235-0	02	1	9002-	●	●	●
151	WASHER; PL,GEAR BOX ID=12.2	1-09503-008-0	05	1	9002-	●	●	●
