5-10 — CAB MOUNTING; FRAME SIDE (#231) — 117 parça

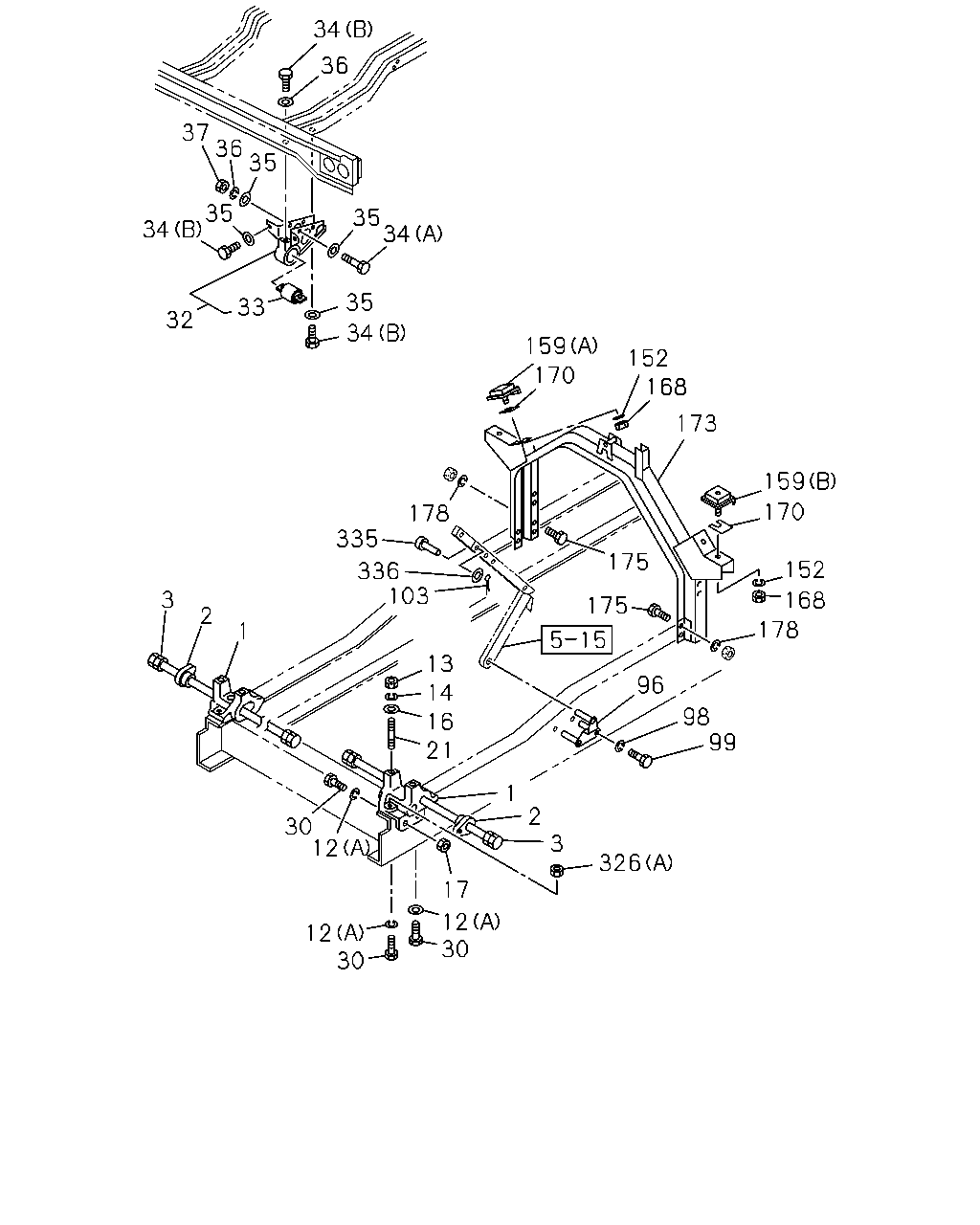

34 36 37 36 35 35 34 35 34 35 33 32 34 159 152 168 170 17 159 170 178 335 175 152 336 103 3 168 175 2 178 1 13 96 14 98 99 16 21 1 2 3 30 12 326 17 12 30 12 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK>	1-53453-162-2	01	1	9212-
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK>	1-53453-161-2	01	1	9212-
1	BRACKET; CAB MTG EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-53453-117-3	01	1	9212-
1	BRACKET; CAB MTG EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-53453-116-3	01	1	9212-
2	BUSHING; TORSION BAR	1-53459-783-0	02	1	9212-
3	TORSION BAR	1-09585-119-0	01	1	9212-
3	TORSION BAR	1-09585-118-0	01	1	9212-
12	WASHER; LK,BRKT (A) ID=15	9-09651-069-0	10	1	9212-
12	WASHER; LK,BRKT CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=24 OD=105	1-53459-929-0	04	1	9212-9506
12	WASHER; LK,BRKT CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=23	1-53458-693-0	04	1	9507-
13	NUT; BUSHING TO STUD EXC. CAB SUSPENSION SEMI FLOATING<SDK> M12	9-99110-512-0	04	1	9212-
14	WASHER; LK,STUD EXC. CAB SUSPENSION SEMI FLOATING<SDK> ID=12.2	9-09150-612-0	04	1	9212-
16	WASHER; PL,STUD EXC. CAB SUSPENSION SEMI FLOATING<SDK> ID=12.5	1-09503-171-0	04	1	9212-
17	NUT; BRKT,CAB TILT M14	9-99110-514-0	02	1	9212-
21	STUD; BRKT,CAB TILT EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-09302-101-0	04	1	9212-
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK> M14X45	1-09000-573-0	08	1	9212-
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK> M16X115	5-51361-002-1	02	1	9212-
30	BOLT; CAB FRT FOOT EXC. CAB SUSPENSION SEMI FLOATING<SDK> M14X40	9-92061-440-0	06	1	9212-
30	BOLT; CAB FRT FOOT EXC. CAB SUSPENSION SEMI FLOATING<SDK> M14X60	9-92061-460-0	02	1	9212-
32	BRACKET; CAB FRT MTG,CAB SIDE CAB SUSPENSION SEMI FLOATING<SDK>	1-62580-208-4	01	1	9212-
32	BRACKET; CAB FRT MTG,CAB SIDE CAB SUSPENSION SEMI FLOATING<SDK>	1-62580-207-4	01	1	9212-
32	BRACKET; CAB FRT MTG,CAB SIDE EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-62580-185-5	01	1	9212-
32	BRACKET; CAB FRT MTG,CAB SIDE EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-62580-184-5	01	1	9212-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK>	1-53459-836-0	02	1	9212-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-53459-635-3	02	1	9212-
34	BOLT; CAB MTG BRKT,CAB SIDE (B) M10X30	1-09980-546-0	08	1	9212-
34	BOLT; CAB MTG BRKT,CAB SIDE (A) M10X100	1-09980-547-0	04	1	9212-
35	WASHER; PL,CAB MTG BRKT ID=10.5 T=2.0	1-09985-183-0	02	1	9212-
35	WASHER; PL,CAB MTG BRKT ID=10.5 T=2.6	1-09985-184-0	14	1	9212-
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	9212-
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	9212-
96	BRACKET; CAB STAY	1-62500-586-0	01	1	9212-
98	WASHER; LK,BRKT ID=10.2	9-09150-610-0	02	1	9212-9307
99	BOLT; BRKT M10X25	9-02061-025-0	02	1	9212-9307
99	BOLT; BRKT M10X30	0-28091-030-0	02	1	9308-
103	PIN; SPLIT,CAB STAY	1-09746-021-0	01	1	9212-
152	WASHER; LK,CUSHION RUBBER ID=12.2	9-09150-512-0	04	1	9212-9503
159	RUBBER; CUSHION,CAB MTG (A)	1-53459-619-3	02	1	9212-
159	RUBBER; CUSHION,CAB MTG (B)	1-53459-620-3	02	1	9212-
168	NUT; CUSHION RUBBER,BODY MTG M12	9-99110-512-0	04	1	9212-9503
168	NUT; CUSHION RUBBER,BODY MTG M12 FLANGE	0-91150-112-0	04	1	9504-
170	SHIM; CUSHION RUBBER T=1.6	1-53459-621-0	AR	1	9212-
175	BOLT; MEMBER TO FRAME M12X35	9-92061-235-0	08	1	9212-
178	WASHER; LK,MEMBER ID=12.2	9-09150-612-0	08	1	9212-
326	NUT; GUIDE NUT (A) M12	9-99110-512-0	02	1	9303-
326	NUT; GUIDE NUT CAB SUSPENSION SEMI FLOATING<SDK> (B) M12	1-53459-803-0	02	1	9212-
326	NUT; GUIDE NUT CAB SUSPENSION SEMI FLOATING<SDK> (A) M12	9-99110-412-0	02	1	9212-9302
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	9212-
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	9212-

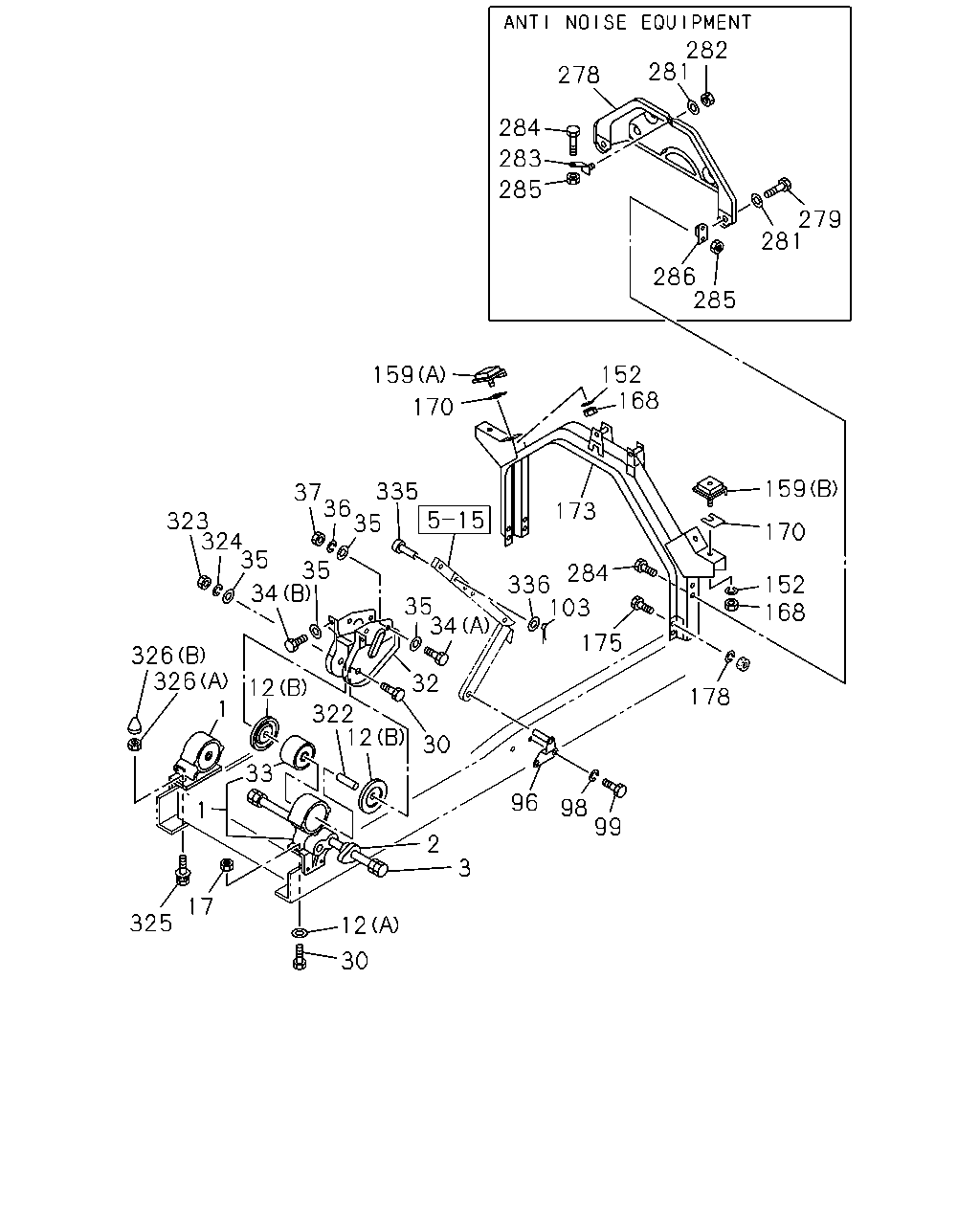

282 281 278 284 283 285 279 281 286 285 152 168 159 170 159 335 37 36 35 173 323 324 35 170 35 34 284 35 34 336 103 152 168 175 326 326 12 322 12 1 32 178 30 33 1 96 98 99 2 3 17 325 12 30

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK>	1-53453-162-2	01	1	9212-
1	BRACKET; CAB MTG CAB SUSPENSION SEMI FLOATING<SDK>	1-53453-161-2	01	1	9212-
1	BRACKET; CAB MTG EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-53453-117-3	01	1	9212-
1	BRACKET; CAB MTG EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-53453-116-3	01	1	9212-
2	BUSHING; TORSION BAR	1-53459-783-0	02	1	9212-
3	TORSION BAR	1-09585-119-0	01	1	9212-
3	TORSION BAR	1-09585-118-0	01	1	9212-
12	WASHER; LK,BRKT (A) ID=15	9-09651-069-0	10	1	9212-
12	WASHER; LK,BRKT CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=24 OD=105	1-53459-929-0	04	1	9212-9506
12	WASHER; LK,BRKT CAB SUSPENSION SEMI FLOATING<SDK> (B) ID=23	1-53458-693-0	04	1	9507-
17	NUT; BRKT,CAB TILT M14	9-99110-514-0	02	1	9212-
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK> M14X45	1-09000-573-0	08	1	9212-
30	BOLT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK> M16X115	5-51361-002-1	02	1	9212-
30	BOLT; CAB FRT FOOT EXC. CAB SUSPENSION SEMI FLOATING<SDK> M14X40	9-92061-440-0	06	1	9212-
30	BOLT; CAB FRT FOOT EXC. CAB SUSPENSION SEMI FLOATING<SDK> M14X60	9-92061-460-0	02	1	9212-
32	BRACKET; CAB FRT MTG,CAB SIDE CAB SUSPENSION SEMI FLOATING<SDK>	1-62580-208-4	01	1	9212-
32	BRACKET; CAB FRT MTG,CAB SIDE CAB SUSPENSION SEMI FLOATING<SDK>	1-62580-207-4	01	1	9212-
32	BRACKET; CAB FRT MTG,CAB SIDE EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-62580-185-5	01	1	9212-
32	BRACKET; CAB FRT MTG,CAB SIDE EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-62580-184-5	01	1	9212-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT CAB SUSPENSION SEMI FLOATING<SDK>	1-53459-836-0	02	1	9212-
33	BUSHING; RUBBER,CAB MTG BRKT,FRT EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-53459-635-3	02	1	9212-
34	BOLT; CAB MTG BRKT,CAB SIDE (B) M10X30	1-09980-546-0	08	1	9212-
34	BOLT; CAB MTG BRKT,CAB SIDE (A) M10X100	1-09980-547-0	04	1	9212-
35	WASHER; PL,CAB MTG BRKT ID=10.5 T=2.0	1-09985-183-0	02	1	9212-
35	WASHER; PL,CAB MTG BRKT ID=10.5 T=2.6	1-09985-184-0	14	1	9212-
36	WASHER; LK,CAB MTG BRKT ID=10	1-09985-185-0	04	1	9212-
37	NUT; CAB MTG BRKT,CAB SIDE M10	1-09984-142-0	04	1	9212-
96	BRACKET; CAB STAY	1-62500-586-0	01	1	9212-
98	WASHER; LK,BRKT ID=10.2	9-09150-610-0	02	1	9212-9307
99	BOLT; BRKT M10X25	9-02061-025-0	02	1	9212-9307
99	BOLT; BRKT M10X30	0-28091-030-0	02	1	9308-
103	PIN; SPLIT,CAB STAY	1-09746-021-0	01	1	9212-
152	WASHER; LK,CUSHION RUBBER ID=12.2	9-09150-512-0	04	1	9212-9503
159	RUBBER; CUSHION,CAB MTG (A)	1-53459-619-3	02	1	9212-
159	RUBBER; CUSHION,CAB MTG (B)	1-53459-620-3	02	1	9212-
168	NUT; CUSHION RUBBER,BODY MTG M12	9-99110-512-0	04	1	9212-9503
168	NUT; CUSHION RUBBER,BODY MTG M12 FLANGE	0-91150-112-0	04	1	9504-
170	SHIM; CUSHION RUBBER T=1.6	1-53459-621-0	AR	1	9212-
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>	1-53454-454-6	01	1	9212-
173	MEMBER; CAB MTG RR CAB SUSPENSION SEMI FLOATING<SDK> EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-53454-454-6	01	1	9212-
173	MEMBER; CAB MTG RR BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2>,CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-457-6	01	1	9212-
173	MEMBER; CAB MTG RR EXC. CAB SUSPENSION SEMI FLOATING<SDK>,BRAKE SYSTEMHEAVY DUTY VAR2(WG3)	1-53454-457-6	01	1	9212-
173	MEMBER; CAB MTG RR HEAVY DUTY PACKAGE TRUCK<RD2> CAB SUSPENSION SEMI FLOATING<SDK> BRAKE SYSTEM HEAVY DUTY VAR2(WG3)	1-53454-537-2	01	1	9212-
173	MEMBER; CAB MTG RR HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. CAB SUSPENSION SEMI FLOATING<SDK>	1-53454-540-2	01	1	9212-
175	BOLT; MEMBER TO FRAME M12X35	9-92061-235-0	08	1	9212-
178	WASHER; LK,MEMBER ID=12.2	9-09150-612-0	08	1	9212-
278	COVER ANTI NOISE EQUIPMENT VAR2<TAK>	1-53191-890-2	01	1	9212-
279	BOLT ANTI NOISE EQUIPMENT VAR2<TAK> M8X25 FLANGE	0-28280-825-0	02	1	9212-
281	WASHER; PL,BACK COVER ANTI NOISE EQUIPMENT VAR2<TAK> ID=8.4 OD=26	9-09164-808-0	03	1	9212-
282	NUT; BACK COVER ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE	5-09440-005-0	01	1	9212-9312
282	NUT; BACK COVER ANTI NOISE EQUIPMENT VAR2<TAK> M8 FLANGE	0-91150-108-0	01	1	9401-
283	BRACKET; UPR ANTI NOISE EQUIPMENT VAR2<TAK>	1-53459-630-2	01	1	9212-
284	BOLT; BRKT UPR ANTI NOISE EQUIPMENT VAR2<TAK> M8X20 FLANGE	0-28080-820-0	06	1	9212-
285	NUT; BRKT UPR ANTI NOISE EQUIPMENT VAR2<TAK> M8	9-09110-408-0	06	1	9212-
286	BRACKET; LOW ANTI NOISE EQUIPMENT VAR2<TAK>	1-53459-632-3	01	1	9212-
286	BRACKET; LOW ANTI NOISE EQUIPMENT VAR2<TAK>	1-53459-631-3	01	1	9212-
322	COLLAR; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK>	1-53459-941-0	02	1	9212-
323	NUT; CAB FRT FOOT CAB SUSPENSION SEMI FLOATING<SDK> M16	9-99110-516-0	02	1	9212-
324	WASHER; LK CAB SUSPENSION SEMI FLOATING<SDK> ID=16.2	9-09150-816-0	02	1	9212-
325	BOLT; GUIDE NUT CAB SUSPENSION SEMI FLOATING<SDK> M12X30 W/LK&PL WASHER	0-50141-230-0	02	1	9212-9302
325	BOLT; GUIDE NUT BRAKE SYSTEM HEAVY DUTY VAR2(WG3) EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M12X30 W/LK&PL WASHER	0-50141-230-0	02	1	9303-
325	BOLT; GUIDE NUT EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12X30 W/LK&PL WASHER	0-50141-230-0	02	1	9303-
325	BOLT; GUIDE NUT HEAVY DUTY PACKAGE TRUCK<RD2> BRAKE SYSTEM HEAVY DUTY VAR2(WG3) M12X35 W/LK&PL WASHER	0-50141-235-0	02	1	9303-
326	NUT; GUIDE NUT (A) M12	9-99110-512-0	02	1	9303-
326	NUT; GUIDE NUT CAB SUSPENSION SEMI FLOATING<SDK> (B) M12	1-53459-803-0	02	1	9212-
326	NUT; GUIDE NUT CAB SUSPENSION SEMI FLOATING<SDK> (A) M12	9-99110-412-0	02	1	9212-9302
335	PIN; ADJ,STAY LOCK OD=10 L=48	1-09744-107-0	01	1	9212-
336	WASHER; PL,STAY LOCK ID=10.5 T=2.0	1-09985-183-0	01	1	9212-
