Isuzu WW
▶
TRUCKS
▶
NHR
▶
51101 - NHR EURO4
▶
8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio
▶
8-01 - LAMP; FRONT AND FRONT SIDE
▶

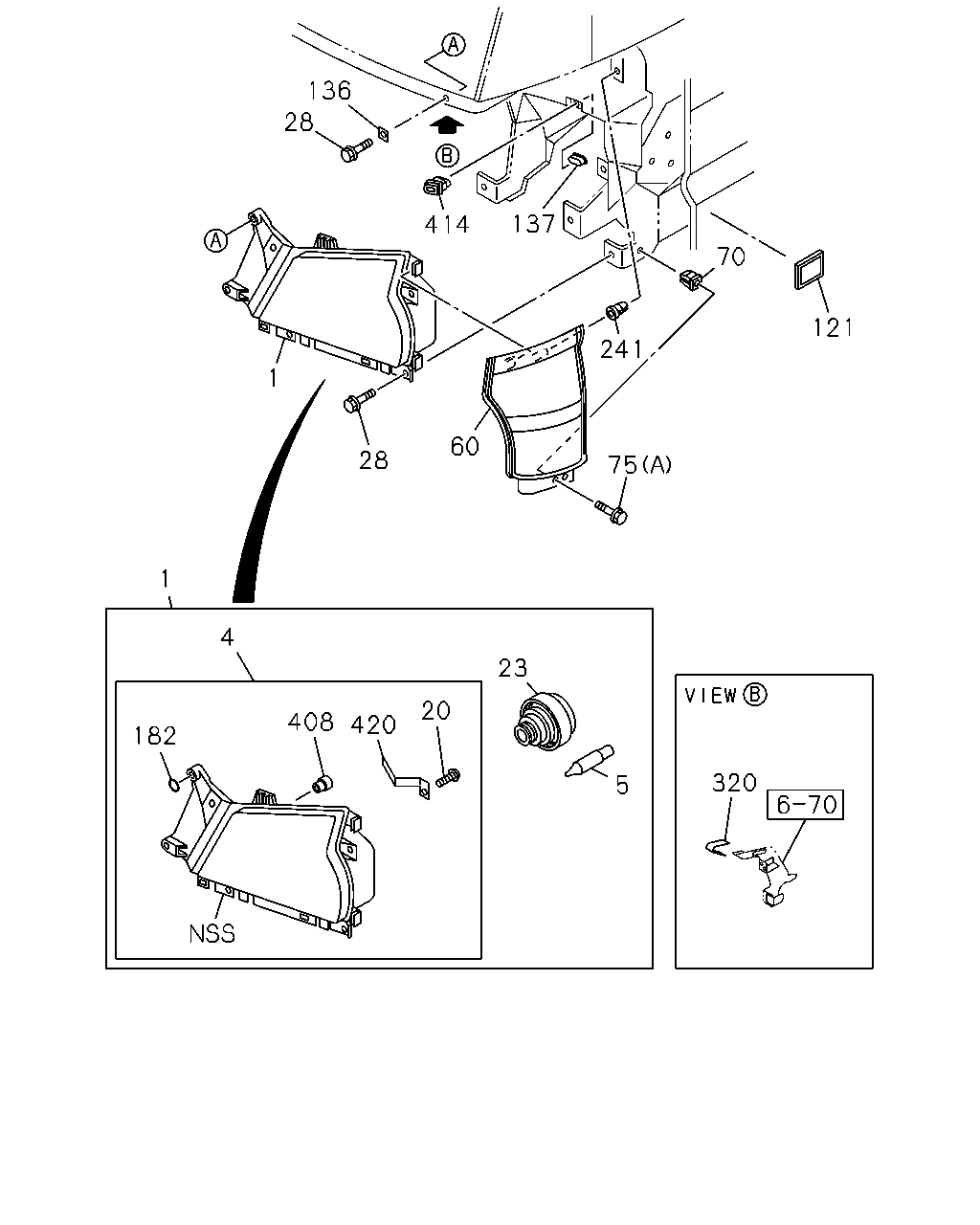

8-01 — LAMP; FRONT AND FRONT SIDE
(#23099) — 36 parça
◀
[801A] NO.1 (22 parça)
[801A] NO.2 (14 parça)
▶
136
28
137
414
70
121
241
1
60
28
75
1
4
23
20
408
420
182
320
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
02.725 LAMP ASM; HEAD
24V 75/70W
8-97372-529-5
01
1
0609-
1
02.725 LAMP ASM; HEAD
24V 75/70W
8-97372-528-5
01
1
0609-
4
02.727 HEADLAMP UNIT
8-98009-819-0
01
1
0609-
4
02.727 HEADLAMP UNIT
8-98009-818-0
01
1
0609-
5
02.727 BULB; HEADLAMP
24V 75/70W
1-82194-063-0
02
1
0609-
20
02.736 SCREW; HEADLAMP
8-97378-871-0
02
1
0609-
23
02.727 COVER; BULB,HEADLAMP
8-97232-491-0
02
1
0609-
28
02.762 BOLT; HEADLAMP
M6X20 W/LK&PL WASHER
8-98031-842-0
08
1
0609-
60
02.585 LAMP ASM; FRT COMB
8-98010-892-0
01
1
0609-
60
02.585 LAMP ASM; FRT COMB
8-98010-891-0
01
1
0609-
70
02.587 GROMMET; SCREW,FRT COMB LAMP
16.445
1-09983-081-0
02
1
0609-
75
02.587 SCREW; FRT COMB LAMP
(A) M6X16 TAPPING
8-97374-995-0
02
1
0609-
75
02.587 SCREW; FRT COMB LAMP
(B) M4X12
8-97378-944-0
14
1
0609-
121
02.575 REFLECTOR; REFLEX
8-98013-990-1
02
1
0609-
136
02.726 SEAL; HEADLAMP
03.602 25X25
8-94272-533-0
02
1
0609-
137
02.726 GROMMET; HEADLAMP
8-97581-666-0
02
1
0609-
182
02.722 GASKET; HEADLAMP
8-97378-869-0
02
1
0609-
241
02.726 GROMMET; FRT LAMP
8-97380-030-0
02
1
0609-
320
02.726 SEALER; HEADLAMP BRKT
8-97850-499-1
01
1
0609-
408
02.727 CAP; BREATHER,HEADLAMP
8-97378-874-0
02
1
0609-
414
02.736 PIN; HEADLAMP,RIM
8-97581-667-0
02
1
0609-
420
02.737 SPRING; BULB,HEADLAMP
8-97378-875-0
02
1
0609-
60
93
75
75
315
67
419
76
68
68
75
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date

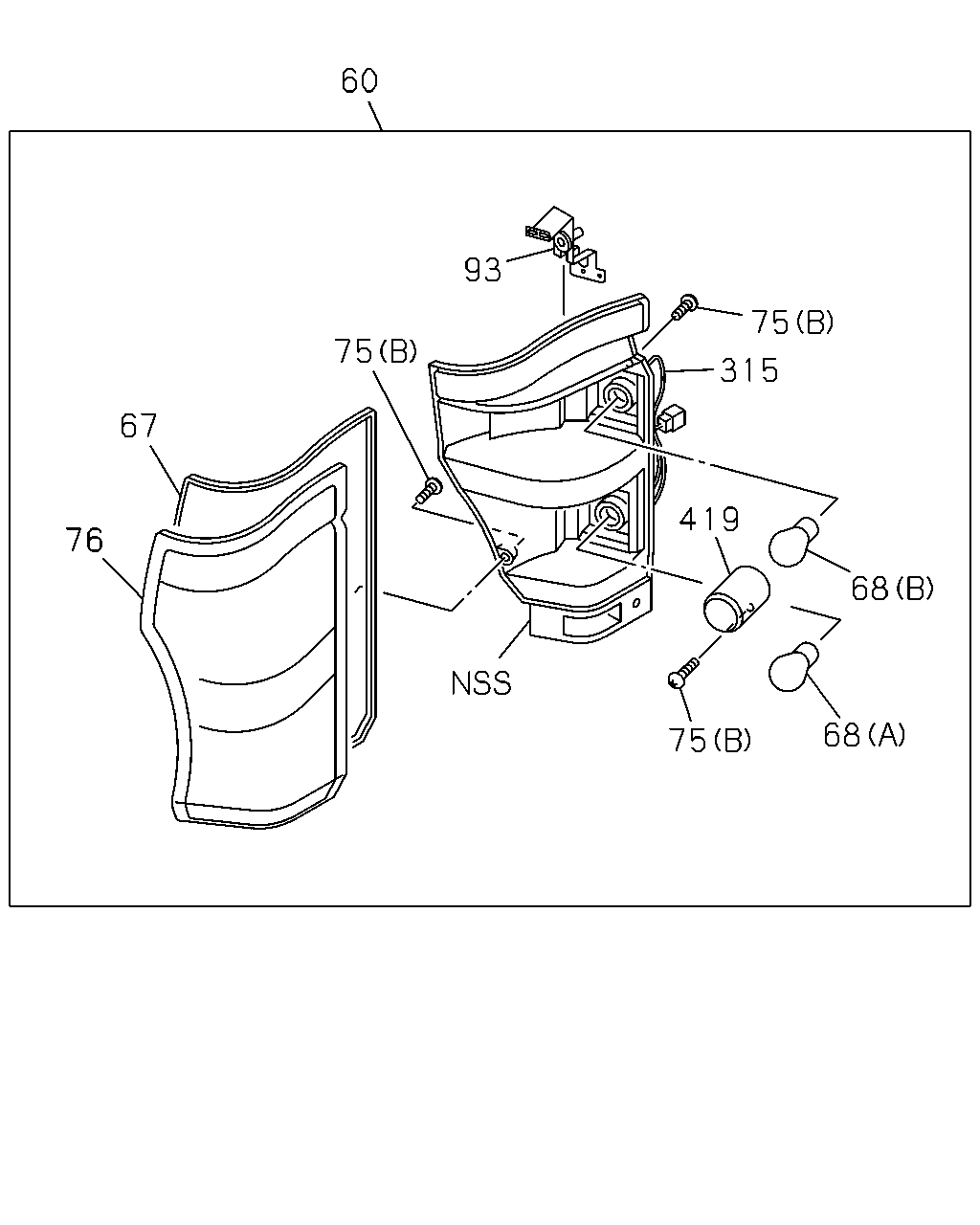

60
02.585 LAMP ASM; FRT COMB
8-98010-892-0
01
1
0609-
60
02.585 LAMP ASM; FRT COMB
8-98010-891-0
01
1
0609-
67
02.590 GASKET; FRT COMB LAMP
8-97378-948-0
02
1
0609-
68
08.991 BULB; FRT COMB LAMP
(A) 24V 21/5W
8-94125-957-0
02
1
0609-
68
08.991 BULB; FRT COMB LAMP
(B) 24V 21W AMBER
8-97323-806-0
02
1
0609-
75
02.587 SCREW; FRT COMB LAMP
(A) M6X16 TAPPING
8-97374-995-0
02
1
0609-
75
02.587 SCREW; FRT COMB LAMP
(B) M4X12
8-97378-944-0
14
1
0609-
76
02.589 LENS; FRT COMB LAMP
8-97378-966-0
01
1
0609-
76
02.589 LENS; FRT COMB LAMP
8-97378-965-0
01
1
0609-
93
02.892 BRACKET; SIDE COMB LAMP
8-97378-945-0
01
1
0609-
93
02.892 BRACKET; SIDE COMB LAMP
8-97378-943-0
01
1
0609-
315
02.596 HARNESS; FRT COMB LAMP
8-98010-916-0
02
1
0609-
419
02.589 LENS; INNER,FRT COMB LAMP
8-97378-947-0
01
1
0609-
419
02.589 LENS; INNER,FRT COMB LAMP
8-97378-946-0
01
1
0609-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
