Isuzu WW
▶
TRUCKS
▶
NHR
▶
51101 - NHR EURO4
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-60 - SEAT BELT
▶

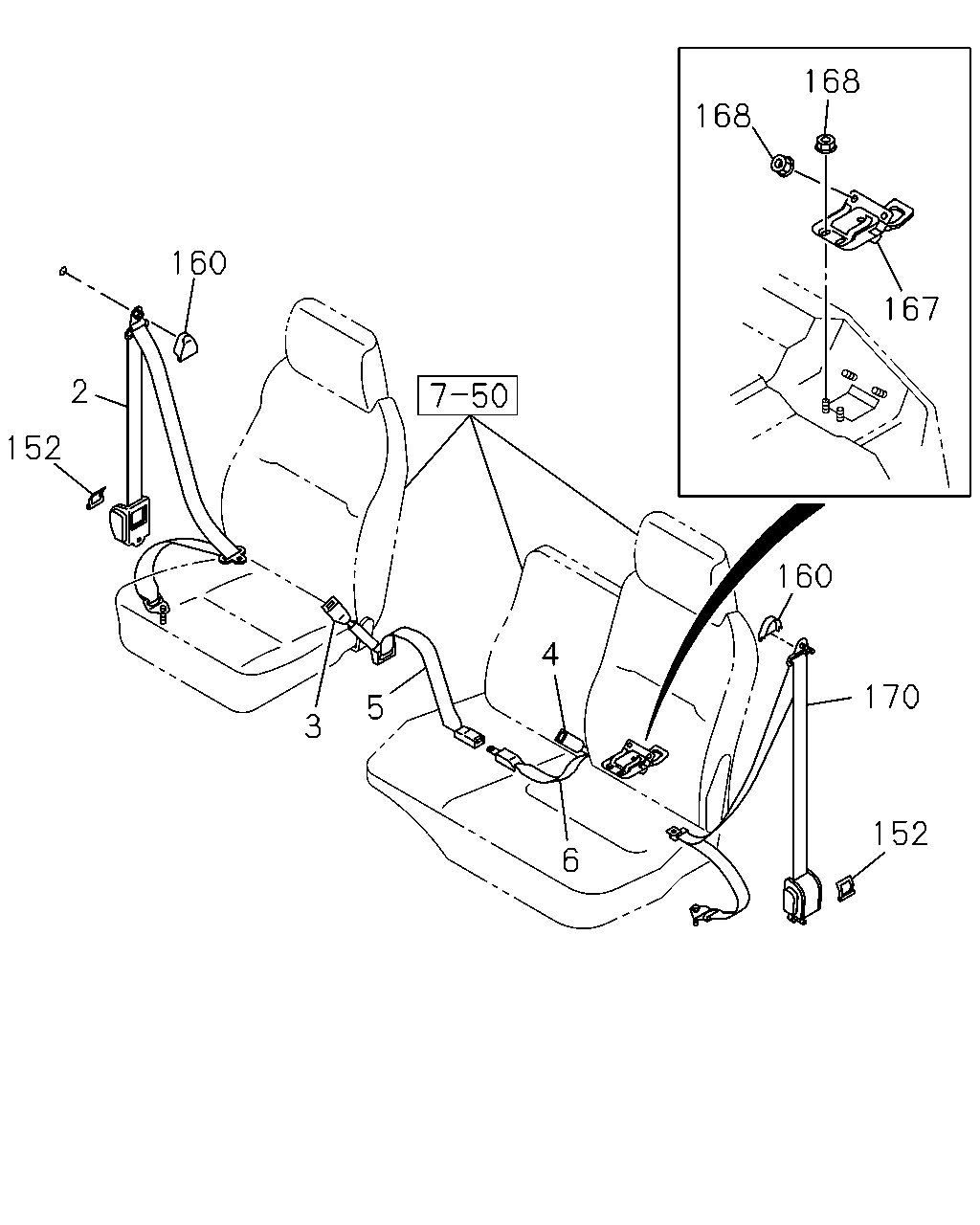

7-60 — SEAT BELT
(#23098) — 18 parça
◀
[760A] NO.2 (5 parça)
[760A] NO.1 (13 parça)
▶
177
161
166
165
166
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
161
16.714 REINFORCEMENT; SEAT BELT ANCHOR
8-97850-462-3
01
1
0609-
165
16.714 HOOK; SEAT BELT ANCHOR
8-97869-415-0
01
1
0609-
166
16.714 BOLT; SEAT BELT ANCHOR
06.216 M8X25 FLANGE
0-28650-825-0
04
1
0609-
177
16.714 NUT
07.833 M8 W/LK WASHER
8-94327-073-0
01
1
0609-0805
177
16.714 NUT
03.417 M8 W/LK WASHER
8-97581-234-0
01
1
0806-
168
168
160
167
2
152
160
4
170
5
3
152
6
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
16.714 BELT; SEAT,TONGUE SIDE
GRAY
8-97397-380-2
01
1
0609-
3
16.714 BELT; SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY
8-97400-350-0
01
1
0609-
3
16.714 BELT; SEAT,BUCKLE SIDE
EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY
8-97400-349-0
01
1
0609-
4
16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY
8-97396-952-0
01
1
0609-
4
16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
EXC. SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY
8-97400-354-0
01
1
0609-
5
16.714 BELT; CENTER SEAT,BUCKLE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY
8-97404-304-0
01
1
0609-
6
16.714 BELT; CENTER SEAT,TONGUE SIDE
SEAT BELT FRT SEAT CTR 2 POINT<A38> GRAY
8-97400-451-1
01
1
0609-
152
16.714 PROTECTOR
8-97287-563-0
02
1
0609-
160
16.714 COVER; THROUGH ANCHOR
GRAY
8-97396-954-0
02
1
0609-
167
16.714 PLATE; ANCHOR
8-97869-412-2
01
1
0609-
168
16.714 NUT; ANCHOR PLATE
00.854 M8 FLANGE
5-09440-005-0
04
1
0609-0712
168
16.714 NUT; ANCHOR PLATE
01.062 M8 FLANGE
0-91180-108-0
04
1
0801-
170
16.714 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY
8-97397-380-2
01
1
0609-
