◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51101 - NHR EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-41 - UNDER COVER; INSTRUMENT ▶
7-41 — UNDER COVER; INSTRUMENT (#23094) — 7 parça

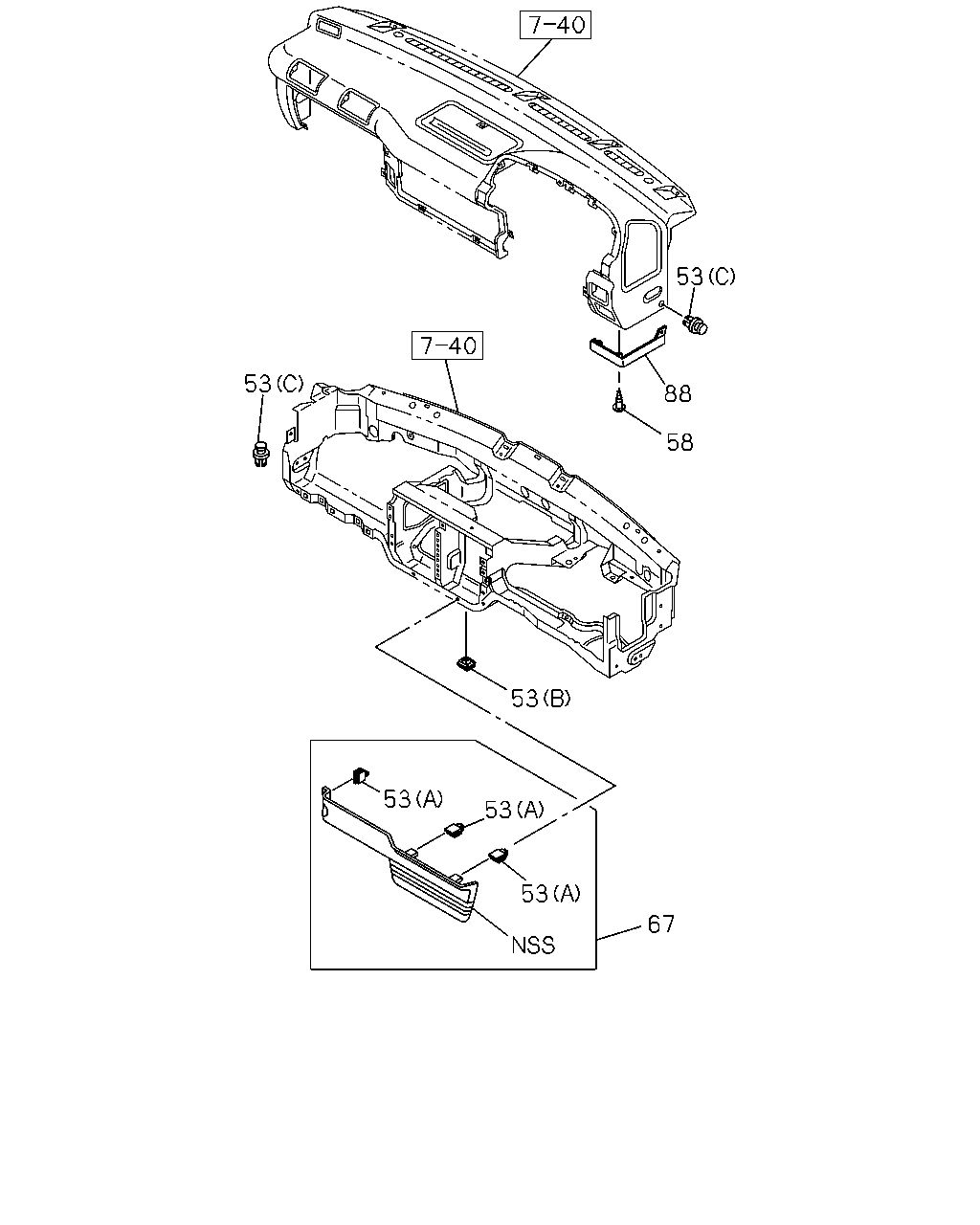

çizim 56905
53 53 88 58 53 53 53 53 67
BalonParca AdiParca NoAdetTipApplied Date
53 16.085 CLIP; UNDER COVER
06.521 (C) DARK GRAY 		8-97582-246-0 01 1 0609-
53 16.085 CLIP; UNDER COVER
16.100 (A) 		8-97853-169-0 03 1 0609-
53 16.085 CLIP; UNDER COVER
(B) 		8-97853-249-5 03 1 0609-
58 09.264 SCREW; UNDER COVER
16.067 M5X14 		8-94279-325-0 02 1 0609-0612
58 09.264 SCREW; UNDER COVER
09.655 M5X14 TAPPING W/TORQUES 		8-98061-856-0 02 1 0701-
67 16.081 COVER; UNDER,INST PNL 8-97856-660-4 01 1 0609-
88 16.081 COVER; UNDER,INST PNL SIDE
DARK GRAY 		8-97582-201-2 01 1 0609-
