7-40 — INSTRUMENT PANEL AND BOX (#23093) — 62 parça

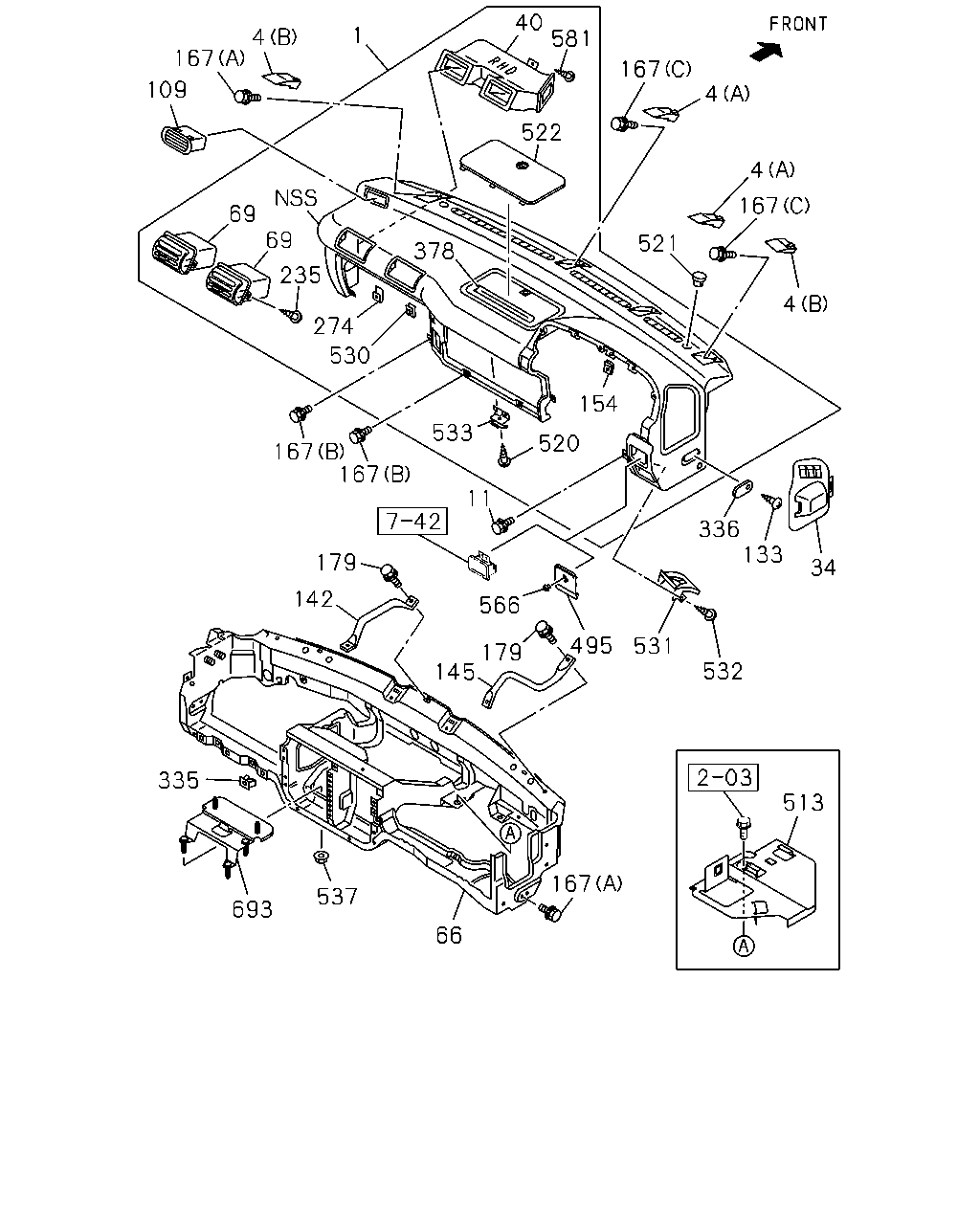

çizim 13912
40 581 1 4 167 167 109 4 522 4 167 69 69 521 378 235 4 274 530 154 533 520 167 167 11 336 133 179 34 142 566 495 531 179 145 532 335 513 167 537 693 66
BalonParca AdiParca NoAdetTipApplied Date
1 16.080 PANEL; INST
DARK GRAY 		8-97582-211-1 01 1 0609-
4 16.080 COVER; INST PNL
(A) DARK GRAY 		8-97582-215-3 02 1 0609-
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97582-217-3 01 1 0609-
4 16.080 COVER; INST PNL
(B) DARK GRAY 		8-97582-216-3 01 1 0609-
11 16.090 BOLT; INST PNL
M8X23 FLANGE 		8-97264-766-0 04 1 0609-
34 16.085 LID; OIL TANK
DARK GRAY 		8-97582-207-7 01 1 0609-
40 09.264 DUCT; VENT,SIDE CLUSTER BEZEL
09.262 		8-97262-688-0 01 1 0609-
66 16.085 REINFORCEMENT; INST PANEL 8-98013-756-1 01 1 0609-
69 09.264 GRILLE; SIDE,AIR OUTLET
DARK GRAY 		8-97582-612-0 02 1 0609-
109 16.081 GRILLE; INST PNL SIDE,UPR
DARK GRAY 		8-97582-222-0 01 1 0609-
133 16.081 SCREW; COVER,INST PNL
M5X20 TAPPING W/PL WASHER 		0-74160-520-0 02 1 0609-0612
133 16.081 SCREW; COVER,INST PNL
09.647 M5X20 TAPPING 		0-72180-520-0 02 1 0701-
142 16.085 STAY; INST PANEL 8-97853-637-2 01 1 0609-
145 16.085 STAY; INST PANEL SIDE 8-97853-638-3 01 1 0609-
154 16.085 NUT
M6 SPIRE NUT 		8-97210-973-1 04 1 0609-
167 16.085 BOLT; REINF TO INST
08.225 (B) M6X19.5 W/LK&PL WASHER 		8-94279-201-0 06 1 0609-
167 16.085 BOLT; REINF TO INST
06.500 (C) M6X25 		8-94279-204-0 02 1 0609-
167 16.085 BOLT; REINF TO INST
(A) M6X24 FLANGE 		8-94279-231-1 02 1 0609-
179 16.085 BOLT; STAY,INST PANEL
M6X12 W/LK&PL WASHER 		0-50640-612-0 02 1 0609-
235 16.081 SCREW; GRILLE
16.067 M5X14 		8-94279-325-0 04 1 0609-
274 16.100 NUT; GLOVE BOX
16.081 M5 SPIRE NUT 		8-94279-051-0 02 1 0609-
335 16.115 GROMMET; GLOVE BOX LK
01.269 D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 0609-
336 16.081 COVER; INST PANEL SIDE
DARK GRAY 		8-97582-218-4 02 1 0609-
378 09.743 SEAL; INST PANEL 8-97209-399-0 01 1 0609-
495 09.743 BEZEL; SW
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97582-214-4 01 1 0609-
513 16.120 BRACKET; RELAY 8-97410-713-2 01 1 0609-
520 16.085 SCREW; CLIP,SPRING
16.067 M5X14 		8-94279-325-0 02 1 0609-
521 16.081 COVER; SUN SENSOR
DARK GRAY 		8-97582-334-2 01 1 0609-
522 16.085 LID; RELAY BOX
DARK GRAY 		8-97582-494-6 01 1 0609-
530 16.100 CLIP; GLOVE BOX 8-97856-135-0 01 1 0609-
531 16.100 CASE; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 		8-97853-130-0 01 1 0609-
532 16.100 SCREW; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 16.067 M5X14 		8-94279-325-0 02 1 0609-0612
532 16.100 SCREW; ASH TRAY
ASH TRAY DRIVER SIDE<7KU> 09.655 M5X14 TAPPING W/TORQUES 		8-98061-856-0 02 1 0701-
533 16.100 CLIP; SPRING,CTR CLUSTER 8-97853-170-5 02 1 0609-
537 16.085 NUT; BRKT
01.062 M6 FLANGE 		0-91180-106-0 03 1 0609-
566 16.085 PLUG; HOLE
EXC. ASH TRAY DRIVER SIDE<7KU> DARK GRAY 		8-97582-247-0 01 1 0609-
581 09.744 SCREW
16.067 M5X14 		8-94279-325-0 02 1 0609-
693 16.080 BRACKET; DRM 8-98017-994-0 01 1 0609-

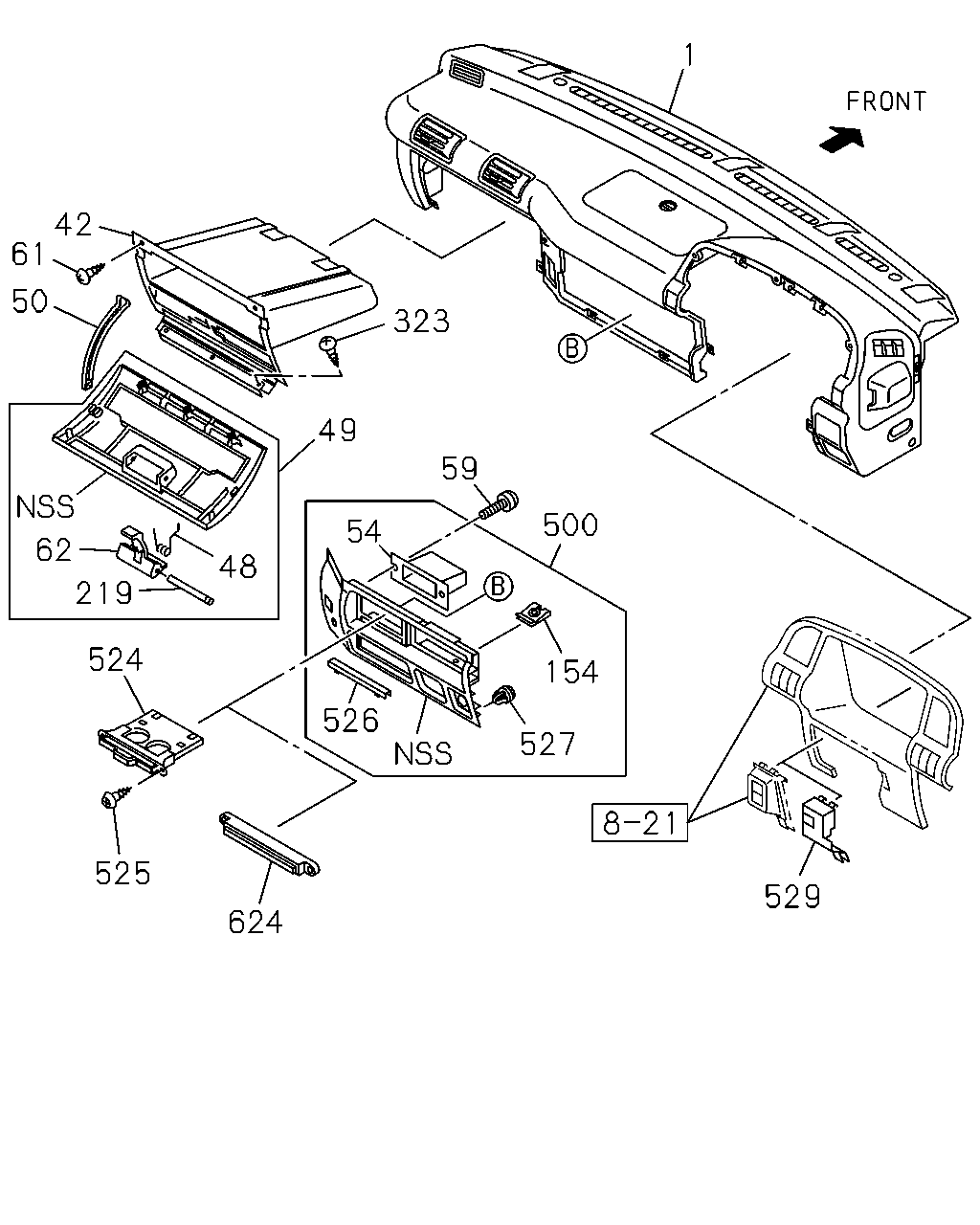

çizim 57794
1 42 61 50 323 49 59 54 62 48 219 524 154 526 527 525 529 624 500
BalonParca AdiParca NoAdetTipApplied Date
1 16.080 PANEL; INST
DARK GRAY 		8-97582-211-1 01 1 0609-
42 16.100 BOX; GLOVE,INST PNL 8-97853-150-5 01 1 0609-
48 16.110 SPRING; GLOVE BOX LID 8-97853-750-1 01 1 0609-
49 16.110 LID; GLOVE BOX
DARK GRAY 		8-97582-199-5 01 1 0609-
50 16.110 STOPPER; LID,GLOVE BOX,INST CLUS 8-97853-152-0 02 1 0609-
54 16.100 POCKET; CENTER CLUSTER
DARK GRAY 		8-97582-491-2 01 1 0609-
59 16.100 SCREW; CLUSTER POCKET
16.067 M5X14 		8-94279-325-0 02 1 0609-
61 16.100 SCREW; GLOVE BOX
03.885 M5X16 TAPPING W/PL WASHER 		0-74360-516-0 04 1 0609-0612
61 16.100 SCREW; GLOVE BOX
16.090 M5X16 TAPPING 		0-72180-516-0 04 1 0701-1101
61 16.100 SCREW; GLOVE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1102-
62 16.110 KNOB; GLOVE BOX LID
DARK GRAY 		8-97582-487-1 01 1 0609-
154 16.085 NUT
M6 SPIRE NUT 		8-97210-973-1 04 1 0609-
219 09.744 SHAFT; GLOVE BOX LID 5-72547-059-1 01 1 0609-
323 16.110 SCREW; GLOVE BOX LK
16.067 M5X14 		8-94279-325-0 03 1 0609-0612
323 16.110 SCREW; GLOVE BOX LK
09.655 M5X14 TAPPING W/TORQUES 		8-98061-856-0 03 1 0701-
500 16.081 CLUSTER; INST CENTER
DARK GRAY 		8-97582-208-5 01 1 0609-
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-97853-172-8 01 1 0609-
525 16.100 SCREW; CUP STAND
16.067 M5X14 		8-94279-325-0 02 1 0609-0612
525 16.100 SCREW; CUP STAND
16.090 M5X16 TAPPING 		0-72180-516-0 02 1 0701-1101
525 16.100 SCREW; CUP STAND
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1102-
526 16.100 GUIDE; POCKET,INST CLUSTER
DARK GRAY 		8-97582-490-1 01 1 0609-
527 16.100 CLIP; INST CLUSTER 8-97853-169-0 04 1 0609-
529 16.100 POCKET; COIN
BLACK 		8-97867-074-5 01 1 0609-
624 16.085 COVER; CUP STAND
EXC. CUP HOLDER<7KZ> 		1-72438-139-1 01 1 0609-
