◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10653 - EXZ ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-37 - TURBOCHARGER ▶
0-37 — TURBOCHARGER (#2309) — 35 parça

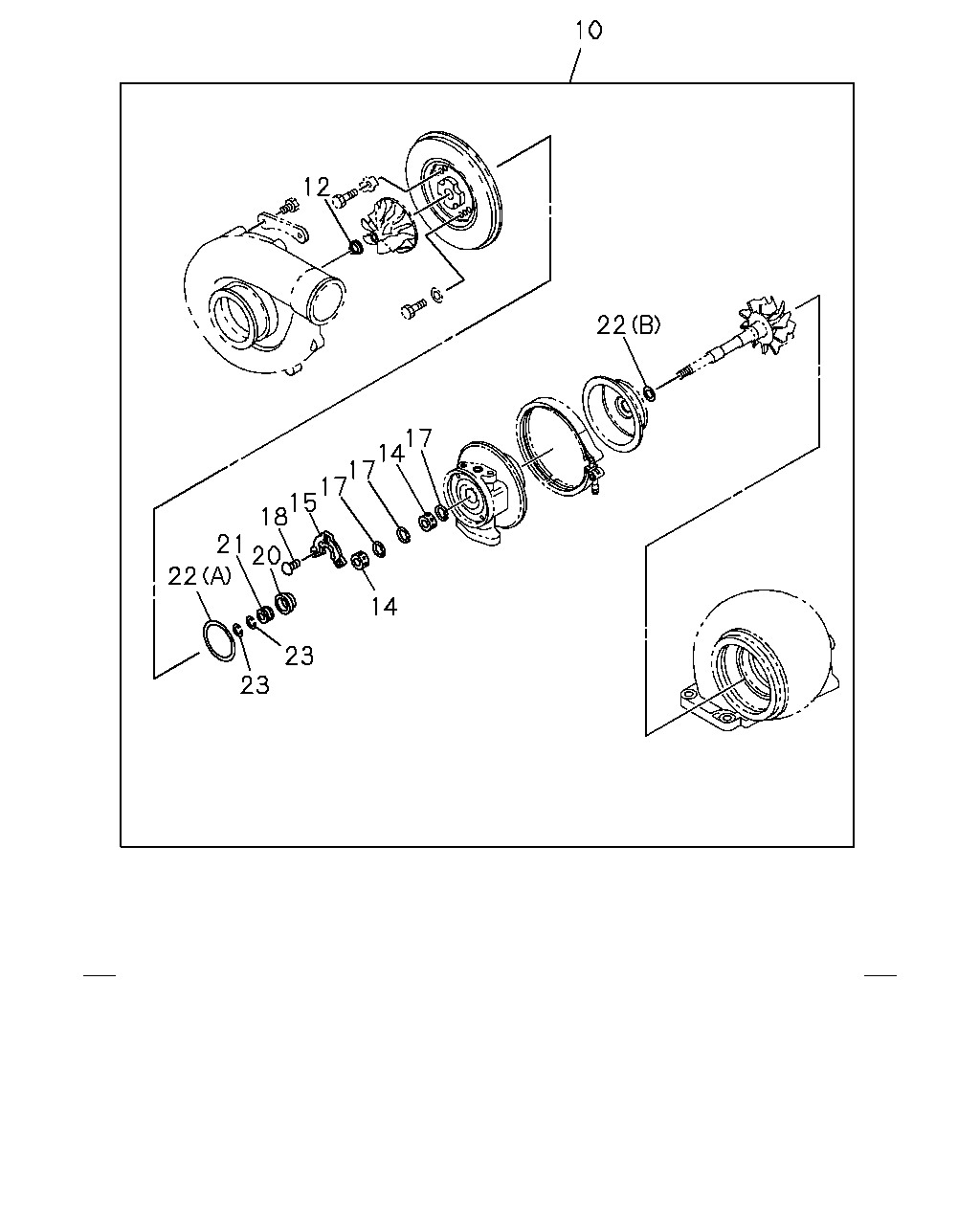

çizim 28806
12 22 10 17 14 17 17 15 18 20 21 22 23 23 14
BalonParca AdiParca NoAdetTipApplied Date
10 REPAIR KIT; TURBOCHARGER
ASM PART: A = 1-14400-170-0, B = 1-14400-180-0 		1-85571-010-0 01 1 -
12 NUT; LK,TURBINE SHAFT TO IMPELLER,TC
ASM PART: A = 1-14400-170-0, B = 1-14400-180-0 		1-14459-022-0 01 1 -
14 BEARING; JOURNAL,TURBOCHARGER
ASM PART: A = 1-14400-170-0, B = 1-14400-180-0 		1-14453-046-0 02 1 -
15 BEARING; THRUST,TURBOCHARGER
ASM PART: A = 1-14400-170-0, B = 1-14400-180-0 		1-14453-047-0 01 1 -
17 RING; JOURNAL BRG,TURBOCHARGER
ASM PART: A = 1-14400-170-0, B = 1-14400-180-0 		1-14453-045-0 03 1 -
18 SCREW; THRUST BRG,TURBOCHARGER
ASM PART: A = 1-14400-170-0, B = 1-14400-180-0 		1-14459-031-0 03 1 -
20 BUSHING; THRUST,TURBOCHARGER
ASM PART: A = 1-14400-170-0, B = 1-14400-180-0 		1-14459-027-0 01 1 -
21 THROWER; OIL,TURBOCHARGER
ASM PART: A = 1-14400-170-0, B = 1-14400-180-0 		1-14459-028-0 01 1 -
22 RING; SEAL,TURBINE SIDE,TURBOCHARGER
(A) ASM PART: A = 1-14400-170-0, B = 1-14400-180-0 		1-14419-088-0 01 1 -
22 RING; SEAL,TURBINE SIDE,TURBOCHARGER
(B) ASM PART: A = 1-14400-170-0, B = 1-14400-180-0 		1-14429-062-0 01 1 -
23 RING; SEAL,BLOWER SIDE,TURBOCHARGER
ASM PART: A = 1-14400-170-0, B = 1-14400-180-0 		1-14419-089-0 02 1 -

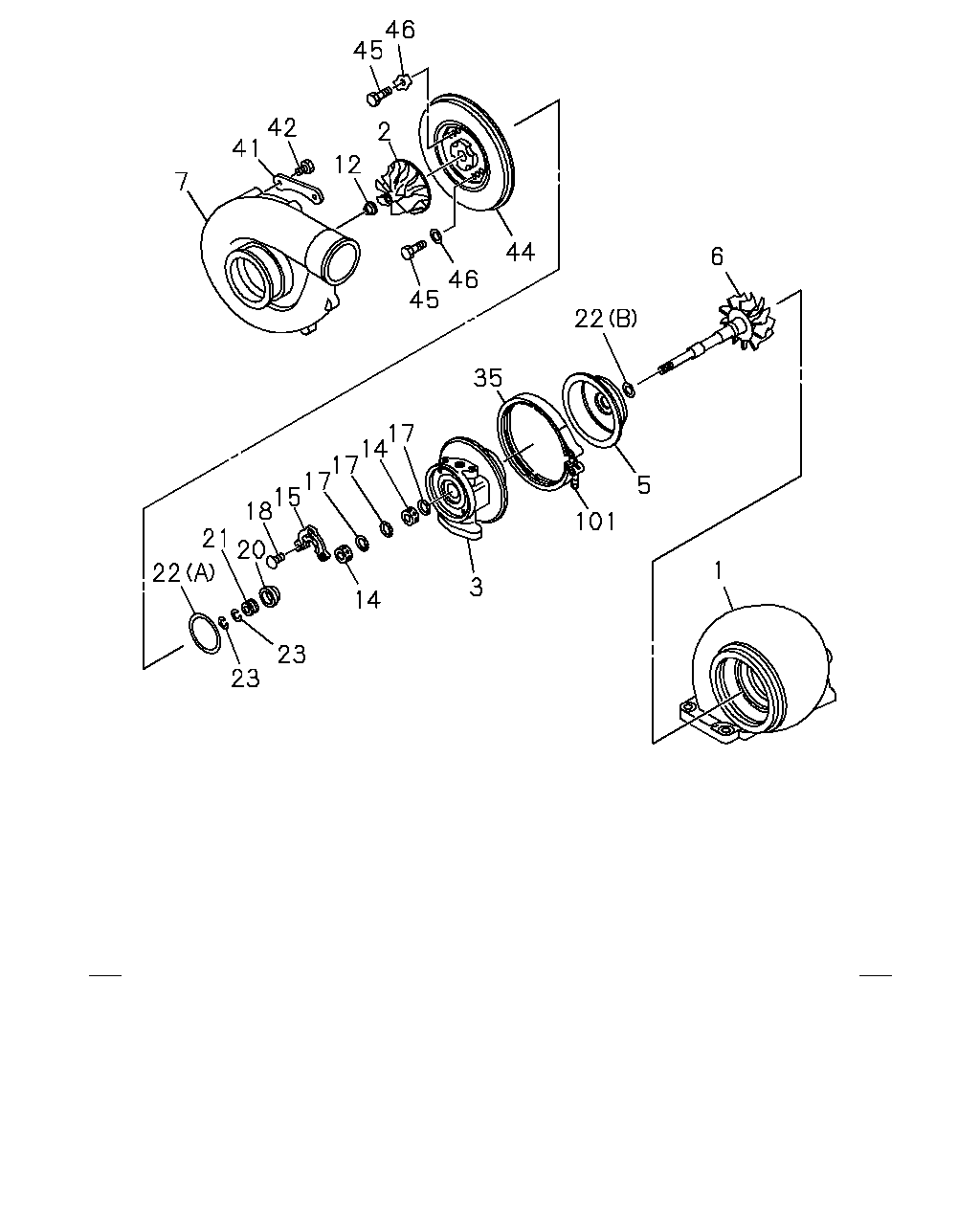

çizim 95114
1 23 23 14 3 101 5 22 21 20 18 15 17 17 14 17 35 22 6 44 46 45 12 2 45 46 42 41 7
BalonParca AdiParca NoAdetTipApplied Date
1 HOUSING; TURBINE,TURBOCHARGER
ASM PART: A = 1-14400-170-0 		1-14414-035-0 01 1 -
1 HOUSING; TURBINE,TURBOCHARGER
ASM PART: B = 1-14400-180-0 		1-14414-036-0 01 1 -
2 IMPELLER; TURBOCHARGER
ASM PART: A = 1-14400-170-0, B = 1-14400-180-0 		1-14451-025-0 01 1 -
3 HOUSING; BRG,TURBOCHARGER
ASM PART: A = 1-14400-170-0, B = 1-14400-180-0 		1-14414-034-0 01 1 -
5 PROTECTOR; HEAT,TURBOCHARGER
ASM PART: A = 1-14400-170-0, B = 1-14400-180-0 		1-14429-061-0 01 1 -
6 SHAFT; TURBINE,TURBOCHARGER
ASM PART: A = 1-14400-170-0, B = 1-14400-180-0 		1-14450-020-0 01 1 -
7 HOUSING; BLOWER,TURBOCHARGER
ASM PART: A = 1-14400-170-0, B = 1-14400-180-0 		1-14411-020-0 01 1 -
12 NUT; LK,TURBINE SHAFT TO IMPELLER,TC
ASM PART: A = 1-14400-170-0, B = 1-14400-180-0 		1-14459-022-0 01 1 -
14 BEARING; JOURNAL,TURBOCHARGER
ASM PART: A = 1-14400-170-0, B = 1-14400-180-0 		1-14453-046-0 02 1 -
15 BEARING; THRUST,TURBOCHARGER
ASM PART: A = 1-14400-170-0, B = 1-14400-180-0 		1-14453-047-0 01 1 -
17 RING; JOURNAL BRG,TURBOCHARGER
ASM PART: A = 1-14400-170-0, B = 1-14400-180-0 		1-14453-045-0 03 1 -
18 SCREW; THRUST BRG,TURBOCHARGER
ASM PART: A = 1-14400-170-0, B = 1-14400-180-0 		1-14459-031-0 03 1 -
20 BUSHING; THRUST,TURBOCHARGER
ASM PART: A = 1-14400-170-0, B = 1-14400-180-0 		1-14459-027-0 01 1 -
21 THROWER; OIL,TURBOCHARGER
ASM PART: A = 1-14400-170-0, B = 1-14400-180-0 		1-14459-028-0 01 1 -
22 RING; SEAL,TURBINE SIDE,TURBOCHARGER
(A) ASM PART: A = 1-14400-170-0, B = 1-14400-180-0 		1-14419-088-0 01 1 -
22 RING; SEAL,TURBINE SIDE,TURBOCHARGER
(B) ASM PART: A = 1-14400-170-0, B = 1-14400-180-0 		1-14429-062-0 01 1 -
23 RING; SEAL,BLOWER SIDE,TURBOCHARGER
ASM PART: A = 1-14400-170-0, B = 1-14400-180-0 		1-14419-089-0 02 1 -
35 CLAMP; TURBINE HSG,TURBOCHARGER
ASM PART: A = 1-14400-170-0, B = 1-14400-180-0 		1-14419-091-0 01 1 -
41 PLATE; LK,BLOWER HSG,TURBOCHARGER
ASM PART: A = 1-14400-170-0, B = 1-14400-180-0 		1-14419-090-0 04 1 -
42 BOLT; LK PLATE,BLOWER HSG,TURBOCHARGER
ASM PART: A = 1-14400-170-0, B = 1-14400-180-0 		1-14459-024-0 08 1 -
44 PLATE; SEAL,TURBOCHARGER
ASM PART: A = 1-14400-170-0, B = 1-14400-180-0 		1-14459-029-0 01 1 -
45 SCREW; SEAL PLATE,TURBOCHARGER
ASM PART: A = 1-14400-170-0, B = 1-14400-180-0 		1-14459-030-0 04 1 -
46 WASHER; SEAL PLATE,TURBOCHARGER
ASM PART: A = 1-14400-170-0, B = 1-14400-180-0 		1-14459-023-0 04 1 -
101 NUT; LK PLATE,TURBINE HSG,TURBOCHARGER
ASM PART: A = 1-14400-170-0, B = 1-14400-180-0 		1-14459-025-0 01 1 -
