Isuzu WW
▶
TRUCKS
▶
NHR
▶
51101 - NHR EURO4
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-75 - MAT AND CARPET
▶

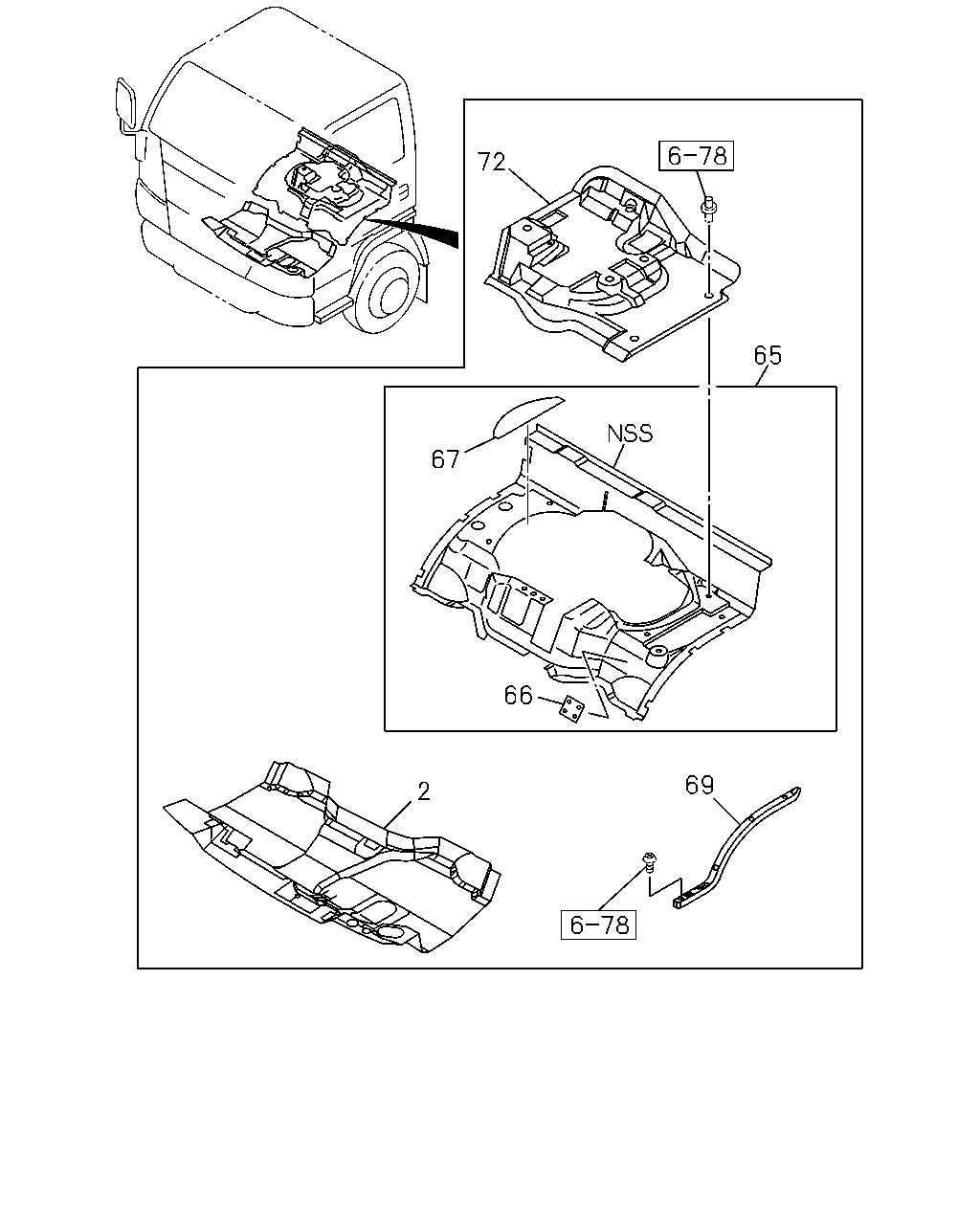

6-75 — MAT AND CARPET
(#23082) — 10 parça
72
65
67
66
69
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
16.800 MAT; FLOOR
AIR CONDITIONER MANUAL CONT(C60) GRAY
8-97582-920-4
01
1
0609-
2
16.800 MAT; FLOOR
EXC. AIR CONDITIONER MANUAL CONT(C60) GRAY
8-97582-919-4
01
1
0609-
65
16.802 MAT ASM; SILENCER,CAB FLOOR
8-97407-849-0
01
1
0609-
66
16.549 HOOK; COVER
GRAY
8-97583-948-0
02
1
0609-
67
16.549 LID; COVER
GRAY
8-97583-947-0
01
1
0609-
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97582-229-1
01
1
0609-0702
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97409-479-0
01
1
0703-
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97582-228-1
01
1
0609-0702
69
16.800 COVER; TRIM,FLOOR MAT,DOOR SIDE
GRAY
8-97409-478-0
01
1
0703-
72
16.800 MAT; SILENCER,ENG COVER
GRAY
8-98041-107-0
01
1
0609-
