Isuzu WW
▶
TRUCKS
▶
NHR
▶
51101 - NHR EURO4
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-43 - SIDE TRIM
▶

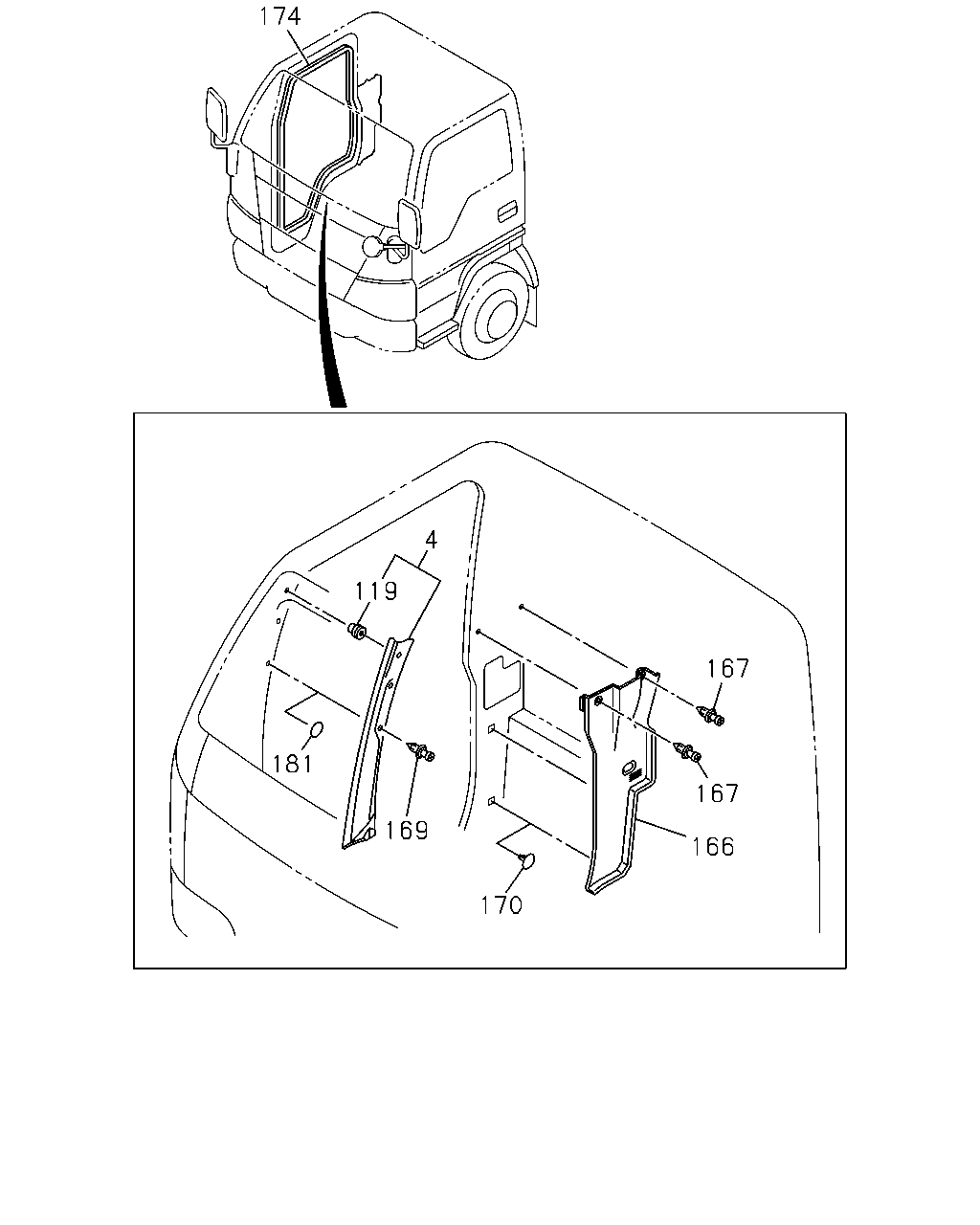

6-43 — SIDE TRIM
(#23076) — 18 parça
174
119
167
181
167
169
166
170
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
16.165 COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> GRAY
8-97582-198-3
01
1
0609-
4
16.165 COVER; TRIM,FRT SIDE
TRAY ROOF HEAD<7EJ> GRAY
8-97582-197-3
01
1
0609-
119
16.165 CLIP; FRT PILLAR
TRAY ROOF HEAD<7EJ> 16.742
1-73318-278-0
04
1
0609-
166
16.578 TRIM; RR PILLAR
GRAY
8-97582-260-5
01
1
0609-
166
16.578 TRIM; RR PILLAR
GRAY
8-97582-262-3
01
1
0609-
167
16.578 CLIP; TRIM,RR PILLAR
GRAY
8-97582-265-0
04
1
0609-0610
167
16.578 CLIP; TRIM,RR PILLAR
GRAY
8-97406-439-0
04
1
0611-
169
16.578 CLIP; TRIM COVER,FRT PILLAR
TRAY ROOF HEAD<7EJ> D8.5X16 PUSH RIVET
8-97582-245-0
02
1
0609-
170
16.578 CLIP; HOLE
EXC. TRAY ROOF HEAD<7EJ> 03.602
8-94244-922-0
02
1
0609-
174
16.507 FINISHER; BODY SIDE
CAB-LOW ROOF<6XQ> L=2857 GRAY
8-97582-254-5
01
1
0609-0610
174
16.507 FINISHER; BODY SIDE
CAB-LOW ROOF<6XQ> L=2857 DARK GRAY
8-97406-424-5
01
1
0611-
174
16.507 FINISHER; BODY SIDE
CAB-LOW ROOF<6XQ> L=2857 GRAY
8-97582-253-5
01
1
0609-0610
174
16.507 FINISHER; BODY SIDE
CAB-LOW ROOF<6XQ> L=2857 DARK GRAY
8-97406-423-5
01
1
0611-
174
16.507 FINISHER; BODY SIDE
EXC. CAB-LOW ROOF<6XQ> L=2982 GRAY
8-97582-256-5
01
1
0609-
174
16.507 FINISHER; BODY SIDE
EXC. CAB-LOW ROOF<6XQ> L=2982 GRAY
8-97582-255-5
01
1
0609-
181
16.165 SEAL; FRT PILLAR
BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> 16.570 OD=20 T=0.05 WHITE
8-97856-832-2
02
1
0609-0610
181
16.165 SEAL; FRT PILLAR
BODY COLOR ARC WHITE(729) EXC. TRAY ROOF HEAD<7EJ> 16.570 OD=20 T=0.05 WHITE
8-98059-421-0
02
1
0611-
181
16.165 SEAL; FRT PILLAR
BODY COLOR MARINE BLUE(890) EXC. TRAY ROOF HEAD<7EJ> OD=20 T=0.05 BLACK
5-76777-036-0
02
1
0609-
