6-32 — FRONT DOOR LOCK AND HANDLE (#23074) — 48 parça

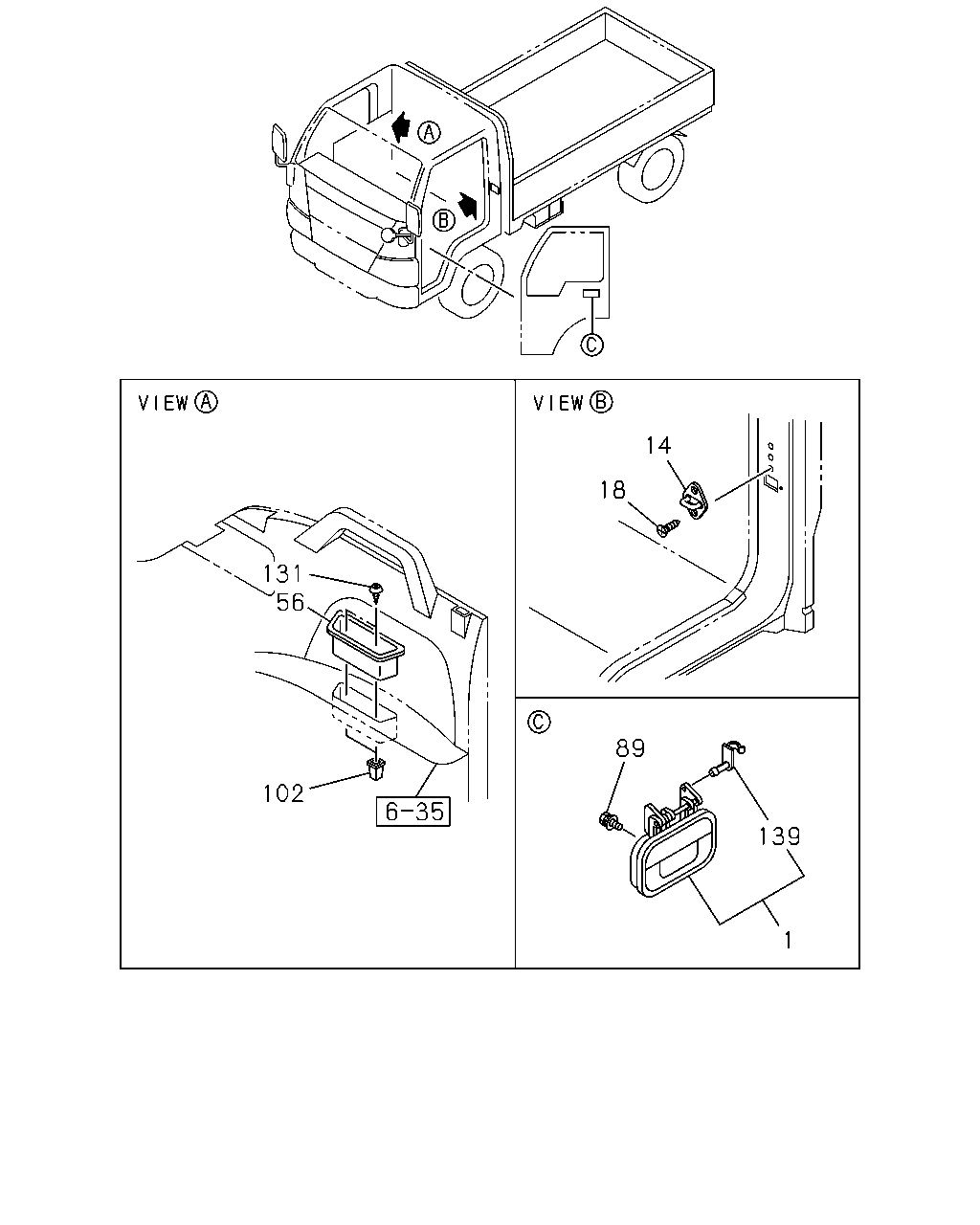

14 18 131 56 89 102 139 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	16.350 HANDLE; OUTSIDE,FRT DOOR	8-97867-722-1	01	1	0609-
1	16.350 HANDLE; OUTSIDE,FRT DOOR	8-97867-721-1	01	1	0609-
14	16.335 STRIKER; FRT DOOR	8-97221-702-1	02	1	0609-
18	16.335 SCREW; DOOR STRIKER M8X23 W/LK WASHER	8-97221-701-0	04	1	0609-0612
18	16.335 SCREW; DOOR STRIKER M8X20 CK-HEAD	8-98004-343-2	04	1	0701-
56	16.157 ESCUTCHEON; LOCK KNOB GRAY	8-97582-307-3	02	1	0609-0610
56	16.157 ESCUTCHEON; LOCK KNOB GRAY	8-97406-318-3	02	1	0611-
89	16.350 BOLT; DOOR OUTSIDE HANDLE M6X12 W/LK&PL WASHER	8-94279-200-0	04	1	0609-0612
89	16.350 BOLT; DOOR OUTSIDE HANDLE M6X8 W/TORQUES	8-98064-276-1	04	1	0701-
102	16.345 GROMMET; SCREW,ESCUTCHEON,DOOR P 01.269 D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0609-
131	16.345 SCREW; ESCUTCHEON,DOOR PULL M5X12 TAPPING W/PL WASHER	0-74160-512-0	06	1	0609-0612
131	16.345 SCREW; ESCUTCHEON,DOOR PULL M5X12 HEX SOCKET	0-72380-512-0	06	1	0701-
139	16.350 HOLDER; ROD,DOOR HANDLE	8-97852-652-1	01	1	0609-
139	16.350 HOLDER; ROD,DOOR HANDLE	8-97852-651-1	01	1	0609-

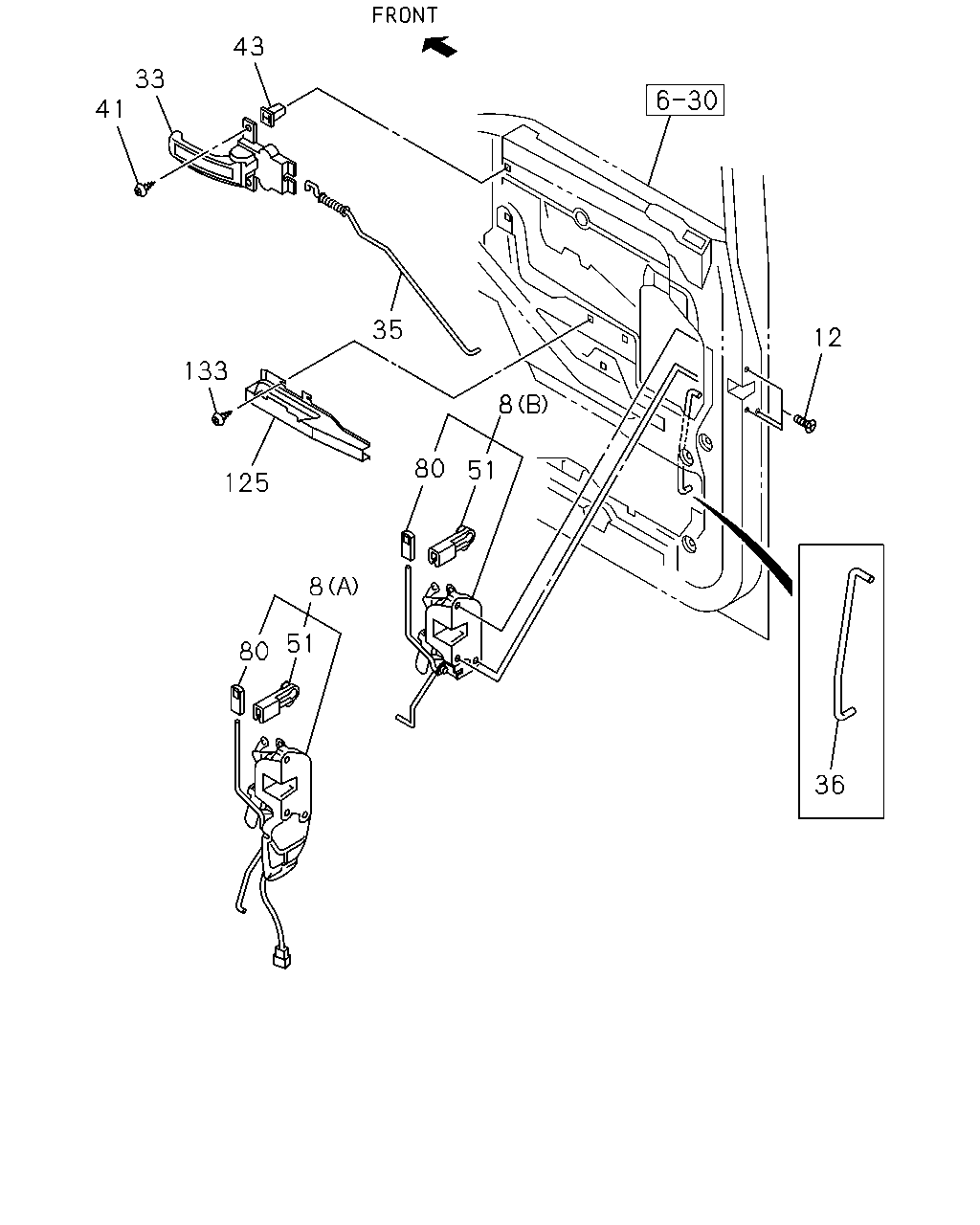

43 33 41 35 12 133 8 80 51 125 8 51 80 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	16.330 LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> (A) GRAY	8-97582-300-2	01	1	0609-0610
8	16.330 LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> (A) GRAY	8-97406-312-2	01	1	0611-1009
8	16.330 LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> (A) GRAY	8-97421-007-0	01	1	1010-
8	16.330 LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> (A) GRAY	8-97582-299-2	01	1	0609-0610
8	16.330 LOCK; DOOR,FRT DOOR AUTO DOOR LOCK<AU4> (A) GRAY	8-97406-311-2	01	1	0611-
8	16.330 LOCK; DOOR,FRT DOOR EXC. AUTO DOOR LOCK<AU4> (B) GRAY	8-97582-298-2	01	1	0609-0610
8	16.330 LOCK; DOOR,FRT DOOR EXC. AUTO DOOR LOCK<AU4> (B) GRAY	8-97406-310-2	01	1	0611-
8	16.330 LOCK; DOOR,FRT DOOR EXC. AUTO DOOR LOCK<AU4> (B) GRAY	8-97582-297-2	01	1	0609-0610
8	16.330 LOCK; DOOR,FRT DOOR EXC. AUTO DOOR LOCK<AU4> (B) GRAY	8-97406-309-2	01	1	0611-
12	16.330 SCREW; DOOR LK M6X16	1-09981-447-1	06	1	0609-0612
12	16.330 SCREW; DOOR LK M6X14.5	8-98004-342-0	06	1	0701-
33	16.345 LEVER ASM; INSIDE,FRT DOOR GRAY	8-97582-305-1	01	1	0609-0611
33	16.345 LEVER ASM; INSIDE,FRT DOOR GRAY	8-97409-389-0	01	1	0612-
33	16.345 LEVER ASM; INSIDE,FRT DOOR GRAY	8-97582-304-1	01	1	0609-0611
33	16.345 LEVER ASM; INSIDE,FRT DOOR GRAY	8-97409-388-0	01	1	0612-
35	16.341 LINK; DOOR LOCK,INSIDE	8-97890-887-2	01	1	0609-
35	16.341 LINK; DOOR LOCK,INSIDE	8-97890-886-2	01	1	0609-
36	16.332 LINK; DOOR LOCK,OUTSIDE	8-97890-885-0	01	1	0609-
36	16.332 LINK; DOOR LOCK,OUTSIDE	8-97890-884-0	01	1	0609-
41	16.345 SCREW; INSIDE HANDLE 03.885 M5X16 TAPPING W/PL WASHER	0-74360-516-0	04	1	0609-0612
41	16.345 SCREW; INSIDE HANDLE 16.570 M5X16 HEX SOCKET	0-72380-516-0	04	1	0701-
43	16.345 GROMMET; SCREW,INSIDE LEVER,DOOR 01.269 D=8.6X7.7 L=7.5	8-94279-078-0	04	1	0609-
51	16.335 SNAP; FRT DOOR LOCK CONT ROD	8-97859-069-0	01	1	0609-
51	16.335 SNAP; FRT DOOR LOCK CONT ROD 16.345	8-97852-643-0	01	1	0609-
80	16.157 KNOB; DOOR LOCK AUTO DOOR LOCK<AU4> GRAY	8-97582-706-0	01	1	0609-0610
80	16.157 KNOB; DOOR LOCK AUTO DOOR LOCK<AU4> GRAY	8-97582-706-0	01	1	0609-0610
80	16.157 KNOB; DOOR LOCK AUTO DOOR LOCK<AU4> GRAY	8-97406-876-0	01	1	0611-
80	16.157 KNOB; DOOR LOCK AUTO DOOR LOCK<AU4> GRAY	8-97406-876-0	01	1	0611-
80	16.157 KNOB; DOOR LOCK EXC. AUTO DOOR LOCK<AU4> GRAY	8-97582-706-0	02	1	0609-0610
80	16.157 KNOB; DOOR LOCK EXC. AUTO DOOR LOCK<AU4> GRAY	8-97406-876-0	02	1	0611-
125	16.341 BRACKET; DOOR PULL	8-97869-460-1	01	1	0609-
125	16.341 BRACKET; DOOR PULL	8-97869-459-1	01	1	0609-
133	16.345 SCREW; DOOR PULL STAY 03.885 M5X16 TAPPING W/PL WASHER	0-74360-516-0	06	1	0609-0612
133	16.345 SCREW; DOOR PULL STAY 16.570 M5X16 HEX SOCKET	0-72380-516-0	06	1	0701-
