◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51101 - NHR EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-20 - SIDE PANEL AND STEP ▶
6-20 — SIDE PANEL AND STEP (#23071) — 92 parça

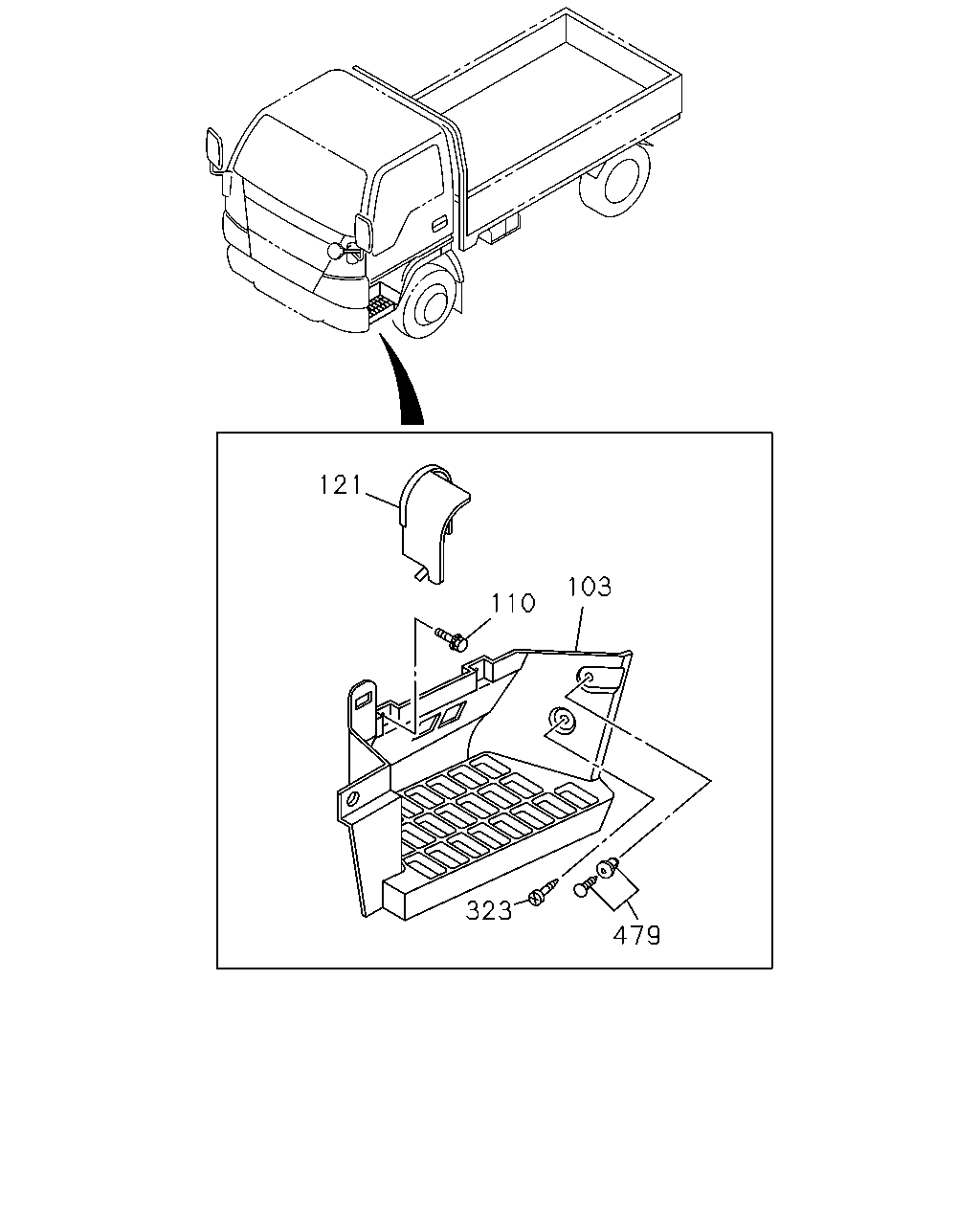

çizim 14226
121 103 110 323 479
BalonParca AdiParca NoAdetTipApplied Date
103 08.228 PLATE; STEP 8-97997-854-0 01 1 0609-
103 08.228 PLATE; STEP 8-97997-853-0 01 1 0609-
110 08.309 BOLT; 1ST STEP PLATE
04.634 M8X24.5 W/LK&PL WASHER 		8-94279-208-0 06 1 0609-0908
110 08.309 BOLT; 1ST STEP PLATE
08.225 M8X24.5 W/LK&PL WASHER 		8-98059-720-0 06 1 0909-
121 08.228 COVER; STEP PLATE 8-97997-856-0 01 1 0609-
121 08.228 COVER; STEP PLATE 8-97997-855-0 01 1 0609-
323 08.155 SCREW; SET
M8X14 		8-94279-386-1 04 1 0609-
479 08.131 RIVET; STEP PLATE
08.155 OD=8 		1-09983-125-0 02 1 0609-

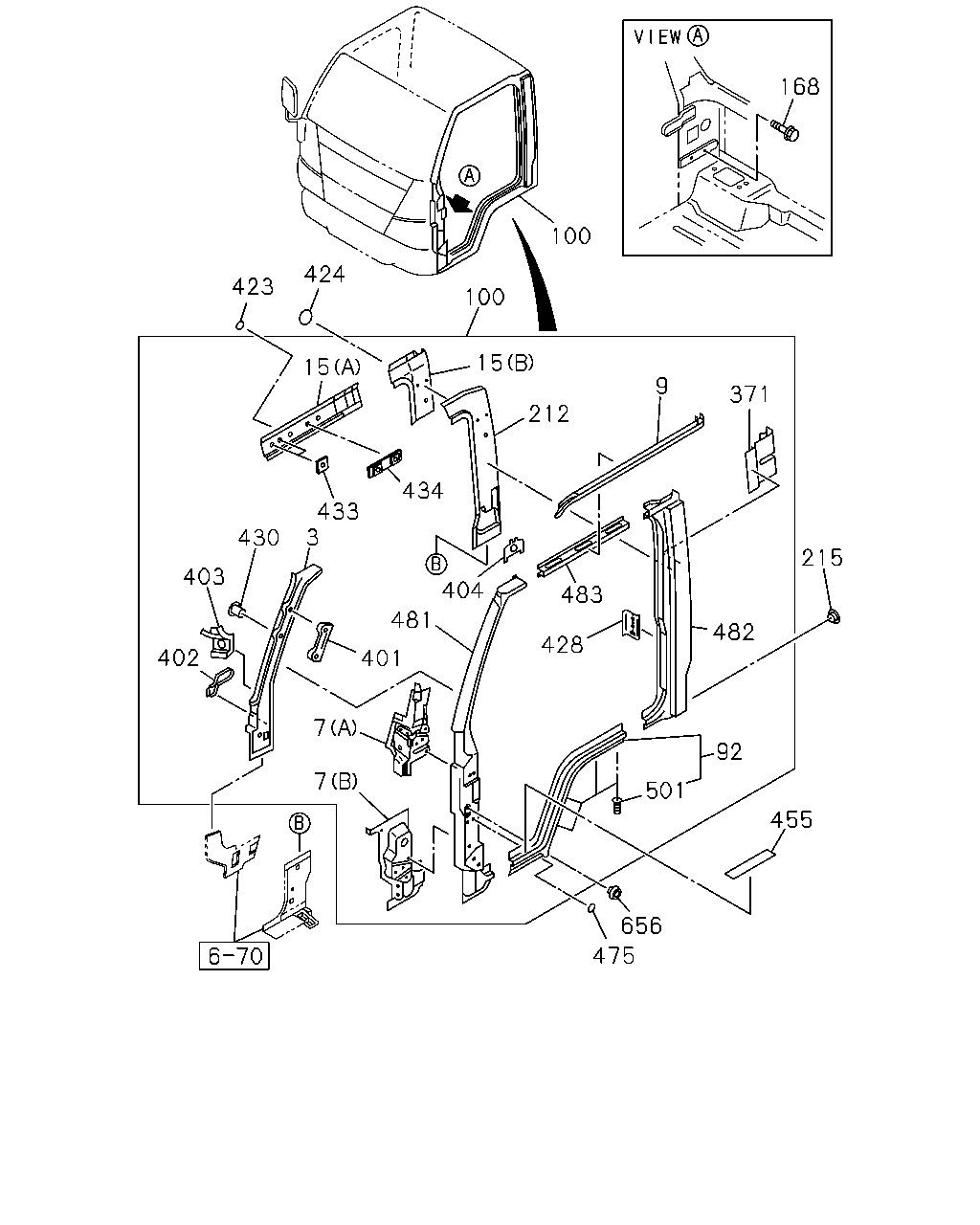

çizim 57742
168 100 424 423 100 15 15 9 371 212 434 433 3 430 215 404 403 483 481 482 428 402 401 7 92 7 501 455 656 475
BalonParca AdiParca NoAdetTipApplied Date
3 16.592 PANEL; CLOSING,FRT PILLAR
CAB-LOW ROOF<6XQ> 		8-97410-758-1 01 1 0609-
3 16.592 PANEL; CLOSING,FRT PILLAR
CAB-LOW ROOF<6XQ> 		8-97851-021-7 01 1 0609-
3 16.592 PANEL; CLOSING,FRT PILLAR
EXC. CAB-LOW ROOF<6XQ> 		8-97851-024-8 01 1 0609-
3 16.592 PANEL; CLOSING,FRT PILLAR
EXC. CAB-LOW ROOF<6XQ> 		8-97851-023-8 01 1 0609-
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-072-4 01 1 0609-
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-074-5 01 1 0609-
7 16.570 REINFORCEMENT; HINGE
(A) UPPER 		8-97851-071-4 01 1 0609-
7 16.570 REINFORCEMENT; HINGE
(B) LOWER 		8-97851-073-5 01 1 0609-
9 16.592 MOLDING; DRIP,CAB SIDE
CAB-LOW ROOF<6XQ> 		8-97851-018-8 01 1 0609-
9 16.592 MOLDING; DRIP,CAB SIDE
CAB-LOW ROOF<6XQ> 		8-97851-017-8 01 1 0609-
9 16.592 MOLDING; DRIP,CAB SIDE
EXC. CAB-LOW ROOF<6XQ> 		8-97851-020-9 01 1 0609-1106
9 16.592 MOLDING; DRIP,CAB SIDE
EXC. CAB-LOW ROOF<6XQ> 		8-98177-624-0 01 1 1107-
9 16.592 MOLDING; DRIP,CAB SIDE
EXC. CAB-LOW ROOF<6XQ> 		8-97851-019-9 01 1 0609-1106
9 16.592 MOLDING; DRIP,CAB SIDE
EXC. CAB-LOW ROOF<6XQ> 		8-98177-623-0 01 1 1107-
15 16.592 PANEL; CANT RAIL SIDE
CAB-LOW ROOF<6XQ> (A) 		8-97851-325-4 01 1 0609-
15 16.592 PANEL; CANT RAIL SIDE
CAB-LOW ROOF<6XQ> (B) 		8-97851-327-4 01 1 0609-
15 16.592 PANEL; CANT RAIL SIDE
CAB-LOW ROOF<6XQ> (A) 		8-97851-324-4 01 1 0609-
15 16.592 PANEL; CANT RAIL SIDE
CAB-LOW ROOF<6XQ> (B) 		8-97851-326-5 01 1 0609-
15 16.592 PANEL; CANT RAIL SIDE
EXC. CAB-LOW ROOF<6XQ> (A) 		8-97851-335-5 01 1 0609-
15 16.592 PANEL; CANT RAIL SIDE
EXC. CAB-LOW ROOF<6XQ> (B) 		8-97851-337-6 01 1 0609-
15 16.592 PANEL; CANT RAIL SIDE
EXC. CAB-LOW ROOF<6XQ> (A) 		8-97851-334-5 01 1 0609-
15 16.592 PANEL; CANT RAIL SIDE
EXC. CAB-LOW ROOF<6XQ> (B) 		8-97851-336-6 01 1 0609-
92 16.570 PANEL; SIDE SILL,CAB 8-97851-531-0 01 1 0609-
92 16.570 PANEL; SIDE SILL,CAB 8-97851-530-0 01 1 0609-
100 16.570 PANEL ASM; BODY SIDE
CAB-LOW ROOF<6XQ> 		8-97890-283-1 01 1 0609-
100 16.570 PANEL ASM; BODY SIDE
CAB-LOW ROOF<6XQ> 		8-98038-351-0 01 1 0609-
100 16.570 PANEL ASM; BODY SIDE
EXC. CAB-LOW ROOF<6XQ> 		8-97890-284-1 01 1 0609-
100 16.570 PANEL ASM; BODY SIDE
EXC. CAB-LOW ROOF<6XQ> 		8-97890-401-1 01 1 0609-
168 16.570 BOLT; BODY SIDE PANEL
10.230 M6X16 W/LK&PL WASHER 		8-94139-963-0 04 1 0609-
212 16.588 CLOSING; PILLAR
CAB-LOW ROOF<6XQ> 		8-98029-642-1 01 1 0609-
212 16.588 CLOSING; PILLAR
CAB-LOW ROOF<6XQ> 		8-98029-641-1 01 1 0609-
212 16.588 CLOSING; PILLAR
EXC. CAB-LOW ROOF<6XQ> 		8-97890-453-4 01 1 0609-
212 16.588 CLOSING; PILLAR
EXC. CAB-LOW ROOF<6XQ> 		8-97890-452-4 01 1 0609-
215 16.674 GROMMET; RR PILLAR
15.222 OD=35 		8-94122-971-0 01 1 0609-
371 16.570 PATCH; SEAT BELT 8-97851-049-1 01 1 0609-
371 16.570 PATCH; SEAT BELT 8-97851-048-1 01 1 0609-
401 16.592 PATCH; CLOSING,FRT PILLAR
CAB-LOW ROOF<6XQ> 		8-97851-301-1 01 1 0609-
401 16.592 PATCH; CLOSING,FRT PILLAR
CAB-LOW ROOF<6XQ> 		8-97851-301-1 01 1 0609-
401 16.592 PATCH; CLOSING,FRT PILLAR
EXC. CAB-LOW ROOF<6XQ> 		8-97851-301-1 02 1 0609-
402 16.085 BRACKET; SUPPORT 8-97851-086-1 01 1 0609-
402 16.085 BRACKET; SUPPORT 8-97851-085-1 01 1 0609-
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-070-0 01 1 0609-
403 16.570 BRACKET; REINFORCEMENT,FRT PANEL 8-97851-069-0 01 1 0609-
404 16.570 BRACKET
CAB-LOW ROOF<6XQ> 		8-97890-317-1 01 1 0609-
404 16.570 BRACKET
CAB-LOW ROOF<6XQ> 		8-97890-317-1 01 1 0609-
404 16.570 BRACKET
EXC. CAB-LOW ROOF<6XQ> 		8-97890-317-1 02 1 0609-
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0609-0610
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) CAB-LOW ROOF<6XQ> OD=20 T=0.05 WHITE 		8-97856-832-2 02 1 0609-0610
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. ASSIST GRIP PASSENGER<EG5> OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0611-
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) CAB-LOW ROOF<6XQ> OD=20 T=0.05 WHITE 		8-98059-421-0 02 1 0611-
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. CAB-LOW ROOF<6XQ> OD=20 T=0.05 WHITE 		8-97856-832-2 06 1 0609-0610
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR ARC WHITE(729) EXC. CAB-LOW ROOF<6XQ> OD=20 T=0.05 WHITE 		8-98059-421-0 06 1 0611-
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR MARINE BLUE(890) CAB-LOW ROOF<6XQ> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0609-
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR MARINE BLUE(890) EXC. ASSIST GRIP PASSENGER<EG5> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0609-
423 16.570 SEAL; CANTRAIL SIDE
BODY COLOR MARINE BLUE(890) EXC. CAB-LOW ROOF<6XQ> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 06 1 0609-
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-97856-832-2 04 1 0609-0610
424 16.570 SEAL; CLOSING
BODY COLOR ARC WHITE(729) OD=20 T=0.05 WHITE 		8-98059-421-0 04 1 0611-
424 16.570 SEAL; CLOSING
BODY COLOR MARINE BLUE(890) 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 0609-
428 06.642 REINFORCEMENT; DOOR STRIKER
16.588 		8-97851-446-1 01 1 0609-
428 06.642 REINFORCEMENT; DOOR STRIKER
16.588 		8-97851-445-1 01 1 0609-
430 16.570 NUT; PANEL
M6 POP NUT 		8-94279-537-0 01 1 0609-0805
430 16.570 NUT; PANEL
09.786 M6 POP NUT 		8-98013-752-0 01 1 0806-
430 16.570 NUT; PANEL
M8 POP NUT 		8-94279-538-0 02 1 0609-0805
430 16.570 NUT; PANEL
16.549 M8 POP NUT 		8-98021-404-0 02 1 0806-
433 16.585 NUT; HEADER SHELF
EXC. CAB-LOW ROOF<6XQ> 16.545 M6 		9-09114-086-0 04 1 0609-
434 16.592 PATCH; ASSIST GRIP 8-94267-191-1 01 1 0609-
455 08.228 PROTECTOR; STEP 8-98027-816-0 02 1 0609-
475 16.570 GROMMET; CTR PILLAR
CAB-LOW ROOF<6XQ> 16.165 OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0609-
481 16.570 PANEL; SIDE FRT PILLAR
CAB-LOW ROOF<6XQ> 		8-97851-512-5 01 1 0609-
481 16.570 PANEL; SIDE FRT PILLAR
CAB-LOW ROOF<6XQ> 		8-97859-059-3 01 1 0609-
481 16.570 PANEL; SIDE FRT PILLAR
EXC. CAB-LOW ROOF<6XQ> 		8-97851-520-5 01 1 0609-
481 16.570 PANEL; SIDE FRT PILLAR
EXC. CAB-LOW ROOF<6XQ> 		8-97859-060-3 01 1 0609-
482 16.570 PANEL; SIDE RR PILLAR
CAB-LOW ROOF<6XQ> 		8-97851-514-4 01 1 0609-
482 16.570 PANEL; SIDE RR PILLAR
CAB-LOW ROOF<6XQ> 		8-97851-513-4 01 1 0609-
482 16.570 PANEL; SIDE RR PILLAR
EXC. CAB-LOW ROOF<6XQ> 		8-97851-522-4 01 1 0609-
482 16.570 PANEL; SIDE RR PILLAR
EXC. CAB-LOW ROOF<6XQ> 		8-97851-521-4 01 1 0609-
483 16.570 PANEL; SIDE CANTRAIL
CAB-LOW ROOF<6XQ> 		8-97851-516-2 01 1 0609-
483 16.570 PANEL; SIDE CANTRAIL
CAB-LOW ROOF<6XQ> 		8-97851-515-2 01 1 0609-
483 16.570 PANEL; SIDE CANTRAIL
EXC. CAB-LOW ROOF<6XQ> 		8-97851-525-2 01 1 0609-
483 16.570 PANEL; SIDE CANTRAIL
EXC. CAB-LOW ROOF<6XQ> 		8-97851-524-2 01 1 0609-
501 16.570 PIN; STUD
CAB-LOW ROOF<6XQ> M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0609-
501 16.570 PIN; STUD
CAB-LOW ROOF<6XQ> M8X15 SPECIAL STUD 		8-94279-167-0 04 1 0609-
501 16.570 PIN; STUD
EXC. CAB-LOW ROOF<6XQ> M8X15 SPECIAL STUD 		8-94279-167-0 08 1 0609-
656 16.547 GROMMET; SIDE PANEL
CAB-LOW ROOF<6XQ> OD=15.0 		8-94279-040-0 02 1 0609-
