◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 10653 - EXZ ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-35B - ENGINE CONTROL VALVE AND LEVER ▶
0-35B — ENGINE CONTROL VALVE AND LEVER (#2307) — 108 parça

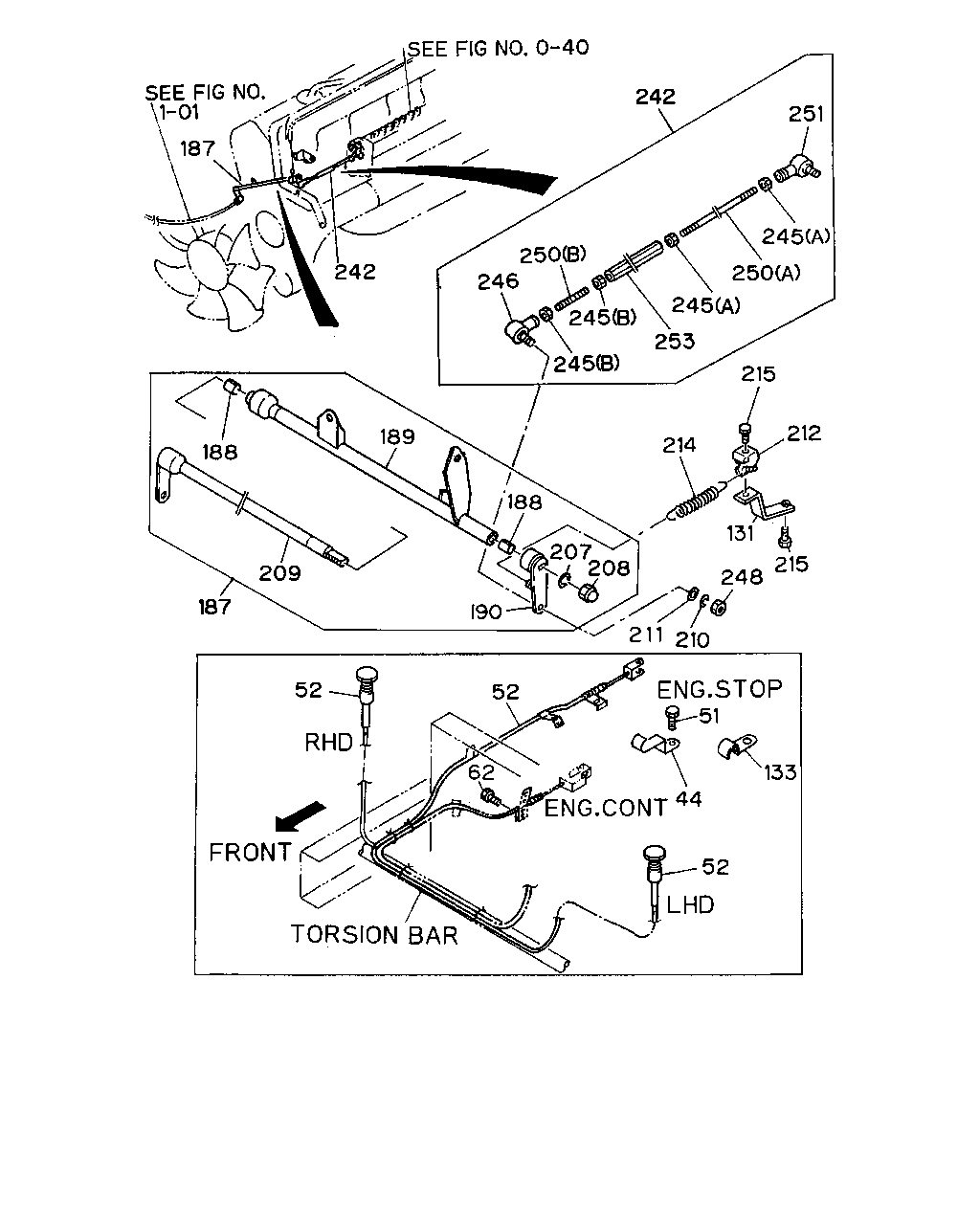

çizim 29432
187 242 246 250 242 251 245 250 245 253 245 245 215 212 214 131 215 248 210 211 208 207 188 190 189 188 209 187 52 62 52 51 133 52 44
BalonParca AdiParca NoAdetTipApplied Date A B C
44 CLIP; CABLE
ID=11 		1-09700-474-0 01 1 9002- ● ●
51 BOLT; CLIP,FUEL CUT CABLE
M8X20 W/LK&PL WASHER 		9-01960-820-0 01 1 9006-9204 ● ● ●
51 BOLT; CLIP,FUEL CUT CABLE
M8X20 W/LK&PL WASHER 		0-50140-820-0 01 1 9205- ● ● ●
51 BOLT; CLIP,FUEL CUT CABLE
M6X12 		0-50000-612-0 01 1 9002-9204 ● ●
51 BOLT; CLIP,FUEL CUT CABLE
M6X12 		0-50080-612-0 01 1 9205-9306 ● ●
51 BOLT; CLIP,FUEL CUT CABLE
EXC. AUTO ENG SHUTOFF<KB6> M6X12 		0-50080-612-0 01 1 9307- ● ●
52 CABLE; FUEL CUT 1-23210-755-4 01 1 9002- ●
52 CABLE; FUEL CUT
EXZ&LHD(EX*6**) 		1-23210-755-4 01 1 9002- ●
52 CABLE; FUEL CUT
EXZ&RHD(EX*5**) EXC. AUTO ENG SHUTOFF<KB6> L=2230 		1-23210-737-4 01 1 9002- ●
52 CABLE; FUEL CUT
L=2230 		1-23210-737-4 01 1 9002- ●
62 BOLT; CABLE END
M6X16 W/LK WASHER 		9-01910-616-0 02 1 9002-9005 ● ● ●
62 BOLT; CABLE END
M6X16 W/LK WASHER 		0-50040-616-0 02 1 9006-9302 ● ● ●
62 BOLT; CABLE END
M6X16 FLANGE 		0-28080-616-0 02 1 9303-9306 ● ● ●
131 BRACKET 1-15419-272-0 01 1 9002- ● ●
133 CLIP; FUEL PIPE
ID=9.7 L=20 		1-09700-878-1 01 1 9002- ● ●
187 CONTROL ASM; ENG 1-23300-285-2 01 1 9002- ● ● ●
188 BUSHING; CONT SHAFT 1-09330-053-0 02 1 9002- ● ● ●
189 BRACKET; ENG CONT 1-23335-297-0 01 1 9002-9509 ● ● ●
189 BRACKET; ENG CONT 1-23335-297-0 01 1 9510- ● ●
190 LEVER; ENG CONT 1-23311-254-1 01 1 9002- ● ● ●
207 WASHER; LK,CONT LEVER
ID=8.2 		9-09150-508-0 01 1 9002- ● ● ●
208 NUT; LEVER 1-09984-015-0 01 1 9002- ● ● ●
209 SHAFT; ENG CONT 1-23331-093-0 01 1 9002- ● ● ●
210 WASHER; LK,JOINT BALL
ID=5.1 		9-09150-505-0 01 1 9002- ● ● ●
211 WASHER; PL,JOINT BALL
ID=5.3 OD=16 		9-09164-705-0 01 1 9002- ● ● ●
212 BRACKET; SPR EYE 1-23335-058-0 01 1 9002- ● ● ●
214 SPRING; ENG CONT RETURN 1-09583-207-0 01 1 9002-9405 ● ● ●
214 SPRING; ENG CONT RETURN 1-09583-315-0 01 1 9406- ● ●
215 BOLT; BRKT SPR EYE
M10X20 W/LK WASHER 		0-50051-020-0 01 1 9002-9006 ● ●
215 BOLT; BRKT SPR EYE
M10X18 		8-94399-729-1 01 1 9007-9104 ● ●
215 BOLT; BRKT SPR EYE
M10X18 FLANGE 		0-28181-018-0 01 1 9105- ● ● ●
215 BOLT; BRKT SPR EYE
M6X25 		9-01910-625-0 01 1 9002-9005 ● ●
215 BOLT; BRKT SPR EYE
M6X25 W/LK WASHER 		0-50040-625-0 01 1 9006- ● ●
242 LINK ASM 1-23314-160-3 01 1 9002-9306 ●
242 LINK ASM
L=143 		1-23314-176-0 01 1 9307- ●
242 LINK ASM 1-23314-159-3 01 1 9002- ●
245 NUT; LINK
(B) M5 LH THREAD 		9-09840-277-0 02 1 9002- ● ● ●
245 NUT; LINK
(A) M5 		9-99110-405-0 02 1 9002- ●
246 JOINT; BALL,ENG CONT LINK
RH THREAD 		1-09760-095-0 01 1 9002-9006 ●
246 JOINT; BALL,ENG CONT LINK
LH THREAD 		1-09760-096-0 01 1 9002-9006 ●
246 JOINT; BALL,ENG CONT LINK 1-09760-102-0 01 1 9007- ● ●
246 JOINT; BALL,ENG CONT LINK 1-09760-104-0 01 1 9307- ●
248 NUT; JOINT BALL
M5 		9-99110-405-0 01 1 9002-9306 ●
248 NUT; JOINT BALL
M5 		9-99110-405-0 03 1 9002- ●
248 NUT; JOINT BALL
M5 		9-99110-405-0 01 1 9307- ●
250 ROD; ROD TO JOINT
(A) 		9-08400-520-0 01 1 9002-9306 ●
250 ROD; ROD TO JOINT
(A) M5X50 		1-09765-198-0 01 1 9307- ●
250 ROD; ROD TO JOINT
(B) M5X50 LH THREAD 		1-09765-197-0 01 1 9002- ● ● ●
250 ROD; ROD TO JOINT
(A) M5X120 		9-08400-512-0 01 1 9002- ●
251 JOINT; BALL,RIGHT SCREW,ENG CONT LINK
LH THREAD 		1-09760-096-0 01 1 9002-9006 ●
251 JOINT; BALL,RIGHT SCREW,ENG CONT LINK
RH THREAD 		1-09760-095-0 01 1 9002-9006 ●
251 JOINT; BALL,RIGHT SCREW,ENG CONT LINK 1-09760-101-0 01 1 9007- ● ●
251 JOINT; BALL,RIGHT SCREW,ENG CONT LINK 1-09760-103-0 01 1 9307- ●
253 JOINT; ROD TO ROD 9-23319-194-0 01 1 9002- ● ● ●

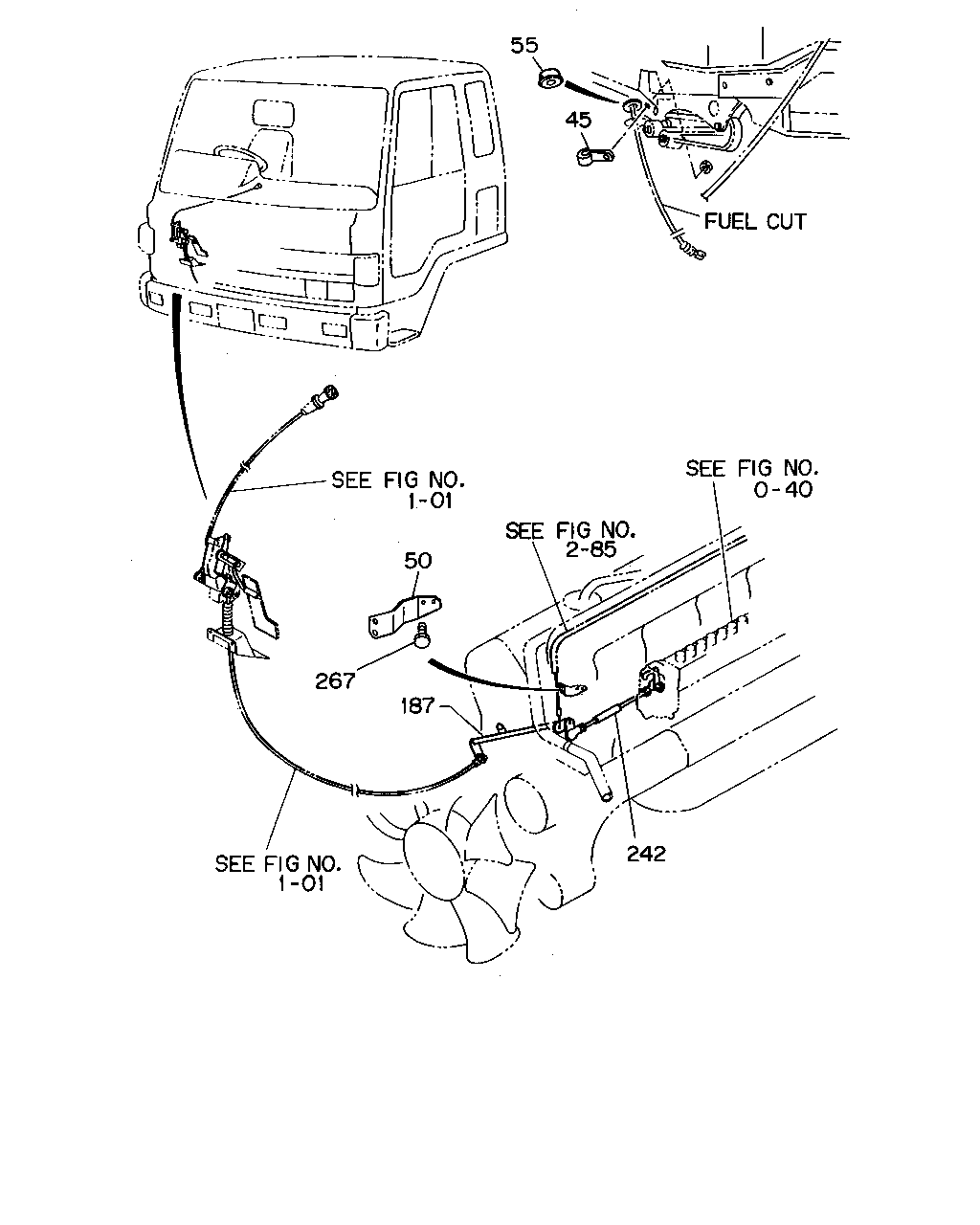

çizim 29777
267 187 242 50 55 45
BalonParca AdiParca NoAdetTipApplied Date A B C
45 CLIP; FUEL CUT CABLE
ID=9 L=40 		9-09524-875-0 01 1 9006- ● ● ●
50 BRACKET; ENG CONT CABLE 1-23335-379-0 01 1 9002- ● ● ●
55 GROMMET; FUEL CUT CABLE
AUTO ENG SHUTOFF<KB6> OD=35 		1-09983-066-1 01 1 9307- ●
187 CONTROL ASM; ENG 1-23300-285-2 01 1 9002- ● ● ●
242 LINK ASM 1-23314-160-3 01 1 9002-9306 ●
242 LINK ASM
L=143 		1-23314-176-0 01 1 9307- ●
242 LINK ASM 1-23314-159-3 01 1 9002- ●
267 BOLT; ENG CONT
M10X18 		8-94399-729-1 02 1 9002-9104 ● ●
267 BOLT; ENG CONT
M10X18 FLANGE 		0-28181-018-0 02 1 9105- ● ● ●

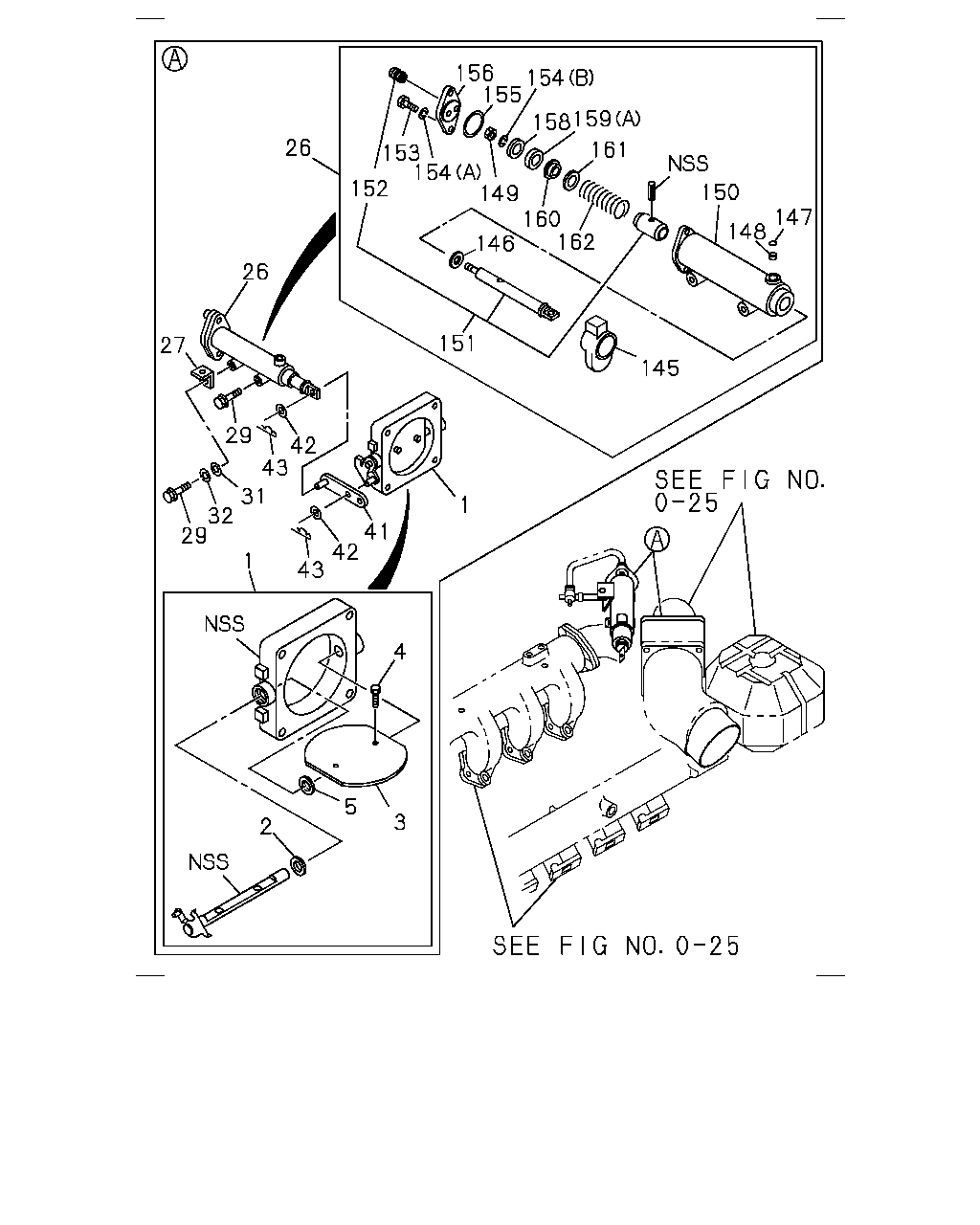

çizim 29873
3 5 2 4 43 1 29 32 31 43 42 29 42 41 1 27 26 26 152 153 154 149 160 162 146 151 145 148 147 150 161 158 159 154 155 156
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHUTTER ASM; INT 1-14310-206-2 01 1 9002-9504 ● ● ●
1 SHUTTER ASM; INT
'95/4/24- 		1-14310-219-0 01 1 9504- ● ●
2 COVER; DUST,SHAFT 9-14319-316-0 01 1 9002-9509 ● ● ●
2 COVER; DUST,SHAFT 9-14319-316-0 01 1 9510- ● ●
3 VALVE; INT SHUTTER 1-14312-037-0 01 1 9002-9306 ● ● ●
4 SCREW; VLV FIX 9-92050-514-0 02 1 9002-9509 ● ● ●
4 SCREW; VLV FIX 9-92050-514-0 02 1 9510- ● ●
5 WASHER; THRUST,INT SHUTTER
ID=12.5 		9-09160-512-0 01 1 9002-9509 ● ● ●
5 WASHER; THRUST,INT SHUTTER
ID=12.5 		9-09160-512-0 01 1 9510- ● ●
26 CYLINDER ASM; CONT 1-22190-527-1 01 1 9002-9509 ● ● ●
26 CYLINDER ASM; CONT 1-22190-527-1 01 1 9510- ● ●
27 BRACKET; WIRE CLIP 1-83129-156-0 01 1 9002-9206 ●
27 BRACKET; WIRE CLIP 1-83129-275-0 01 1 9207-9306 ●
27 BRACKET; WIRE CLIP 1-83129-087-0 01 1 9002- ● ●
29 BOLT; CONT CYL
M10X55 FLANGE 		8-94399-863-1 02 1 9002- ● ● ●
31 WASHER; PL,CONT CYL
ID=10.5 OD=18 		9-09160-510-0 01 1 9002-9306 ●
32 WASHER; LK,CONT CYL
ID=10.5 OD=18 		9-09160-510-0 01 1 9002- ●
41 LINK; INT SHUTTER 1-14319-004-2 01 1 9002- ● ● ●
42 WASHER; LK,ROD LOCK
ID=6.4 		9-09160-506-0 02 1 9002- ● ● ●
43 PIN; SNAP ROD LK
L=21.2 		1-09747-003-0 02 1 9002- ● ● ●
145 COVER; BREATHER 1-22199-008-0 01 1 9002- ● ● ●
146 SEAL; DUST,CONT 1-22189-016-0 01 1 9002-9509 ● ● ●
146 SEAL; DUST,CONT 1-22189-016-0 01 1 9510- ● ●
147 RING; RET 9-88510-331-0 01 1 9002- ● ● ●
148 FILTER; CONT CYL 9-88510-330-0 01 1 9002- ● ● ●
149 NUT; LOCK,CONT SHAFT
M8 		9-09110-408-0 01 1 9002-9306 ● ● ●
149 NUT; LOCK,CONT SHAFT 9-83315-085-0 01 1 9307- ● ●
150 CYLINDER; CONT 9-88510-329-0 01 1 9002-9306 ● ● ●
151 SHAFT; CONT CYL 1-22199-082-0 01 1 9002-9306 ● ● ●
151 SHAFT; CONT CYL 1-22196-256-0 01 1 9307- ● ●
152 CONNECTOR
PT1/4 & M12 ELBOW 		1-09650-117-1 01 1 9002-9306 ● ● ●
153 BOLT; CONT CYL 9-88510-267-0 02 1 9002-9306 ● ●
153 BOLT; CONT CYL 1-33739-326-0 02 1 9307- ● ●
154 WASHER; LK,CYL
(A),(B) ID=8.2 		9-09150-508-0 03 1 9002-9306 ● ● ●
154 WASHER; LK,CYL
(B) ID=8.2 		9-09150-508-0 01 1 9307- ● ● ●
155 GASKET; CONT CYL 9-88510-372-0 01 1 9002- ● ● ●
156 COVER; CONT CYL 1-22199-036-0 01 1 9002-9306 ● ● ●
156 COVER; CONT CYL 1-22189-162-1 01 1 9307- ● ●
158 RETAINER; GASKET,CYL 9-88510-324-0 01 1 9002- ● ● ●
159 GASKET; CONT CYL
(A) 		9-88510-373-0 01 1 9002-9509 ● ● ●
159 GASKET; CONT CYL
(A) 		9-88510-373-0 01 1 9510- ● ●
160 PLATE 1-22199-020-0 01 1 9002-9509 ● ● ●
160 PLATE 1-22199-020-0 01 1 9510- ● ●
161 RING; WEAR 1-22199-002-0 01 1 9002- ● ● ●
162 SPRING; CONT CYL 1-22199-018-0 01 1 9002- ● ● ●
