◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NHR ▶ 51101 - NHR EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#23069) — 36 parça

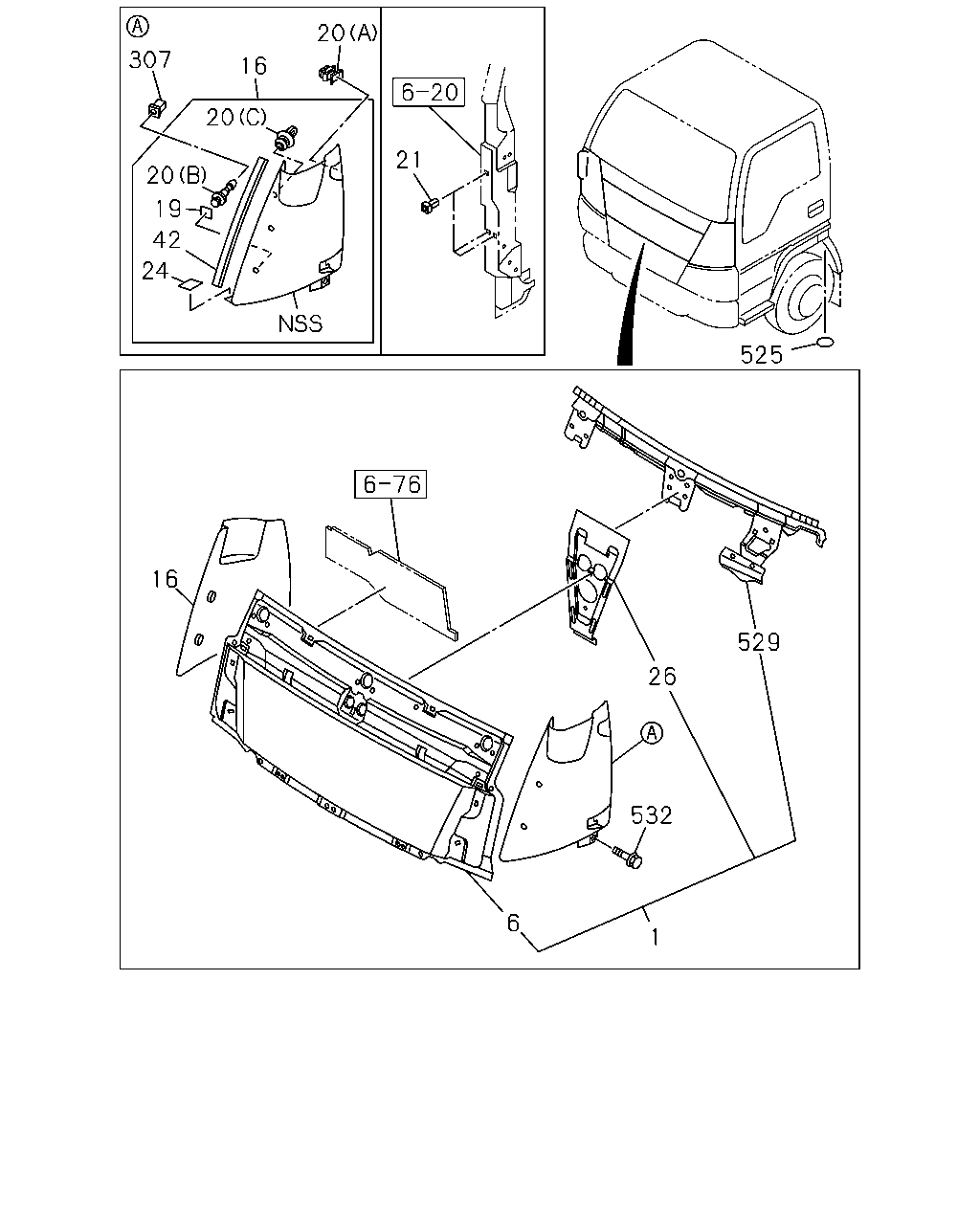

çizim 55806
20 307 16 20 21 20 19 42 24 525 16 529 26 532 6 1
BalonParca AdiParca NoAdetTipApplied Date
1 16.550 PANEL ASM; FRT 8-97581-815-0 01 1 0609-
6 16.570 PANEL; FRONT 8-97581-637-3 01 1 0609-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97582-455-5 01 1 0609-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97582-471-5 01 1 0609-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97582-459-5 01 1 0609-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97582-475-5 01 1 0609-
19 16.588 SEAL; FRT SIDE PANEL
08.131 		8-97581-676-0 04 1 0609-1008
20 16.588 CLIP; FRT PANEL SIDE
16.570 (B) D4.2X13 		1-09983-161-0 04 1 0609-
20 16.588 CLIP; FRT PANEL SIDE
(A) 		8-97581-632-1 04 1 0609-
20 16.588 CLIP; FRT PANEL SIDE
(C) H=11.6 		8-98013-823-0 02 1 0609-
21 16.588 GROMMET; SCREW,FRT SIDE PANEL
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 0609-
24 08.131 SEAL; FRT PANEL LWR 8-97583-672-0 02 1 0609-0807
26 16.592 PANEL; REINF,FRT PANEL CENTER,IN 8-97851-038-1 01 1 0609-
42 01.303 FINISHER; FRT PANEL,SIDE 8-97581-613-3 01 1 0609-0807
42 01.303 FINISHER; FRT PANEL,SIDE 8-97581-614-3 01 1 0609-0807
307 16.125 GROMMET; FRT PANEL 8-97583-397-0 04 1 0609-
525 08.131 SEAL; FENDER
MANUAL TILT CAB<RWZ> 16.165 OD=25 BLACK 		1-76798-019-0 03 1 0609-
529 16.578 REINFORCEMENT; PANEL 8-97851-044-3 01 1 0609-
532 08.143 BOLT; FRT PANEL
02.334 M6X16 W/PL WASHER 		8-97803-781-0 02 1 0609-
çizim 57760
20 307 16 20 21 20 19 24 525 16 529 26 532 6 1
BalonParca AdiParca NoAdetTipApplied Date
1 16.550 PANEL ASM; FRT 8-97581-815-0 01 1 0609-
6 16.570 PANEL; FRONT 8-97581-637-3 01 1 0609-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97582-455-5 01 1 0609-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE 		8-97582-471-5 01 1 0609-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97582-459-5 01 1 0609-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97582-475-5 01 1 0609-
19 16.588 SEAL; FRT SIDE PANEL
08.131 		8-97581-676-0 04 1 0609-1008
20 16.588 CLIP; FRT PANEL SIDE
16.570 (B) D4.2X13 		1-09983-161-0 04 1 0609-
20 16.588 CLIP; FRT PANEL SIDE
(A) 		8-97581-632-1 04 1 0609-
20 16.588 CLIP; FRT PANEL SIDE
(C) H=11.6 		8-98013-823-0 02 1 0609-
21 16.588 GROMMET; SCREW,FRT SIDE PANEL
16.802 D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 06 1 0609-
24 08.131 SEAL; FRT PANEL LWR 8-97583-672-0 02 1 0609-0807
26 16.592 PANEL; REINF,FRT PANEL CENTER,IN 8-97851-038-1 01 1 0609-
307 16.125 GROMMET; FRT PANEL 8-97583-397-0 04 1 0609-
525 08.131 SEAL; FENDER
MANUAL TILT CAB<RWZ> 16.165 OD=25 BLACK 		1-76798-019-0 03 1 0609-
529 16.578 REINFORCEMENT; PANEL 8-97851-044-3 01 1 0609-
532 08.143 BOLT; FRT PANEL
02.334 M6X16 W/PL WASHER 		8-97803-781-0 02 1 0609-
