Isuzu WW
▶
TRUCKS
▶
NHR
▶
51101 - NHR EURO4
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-01 - FRONT BUMPER
▶

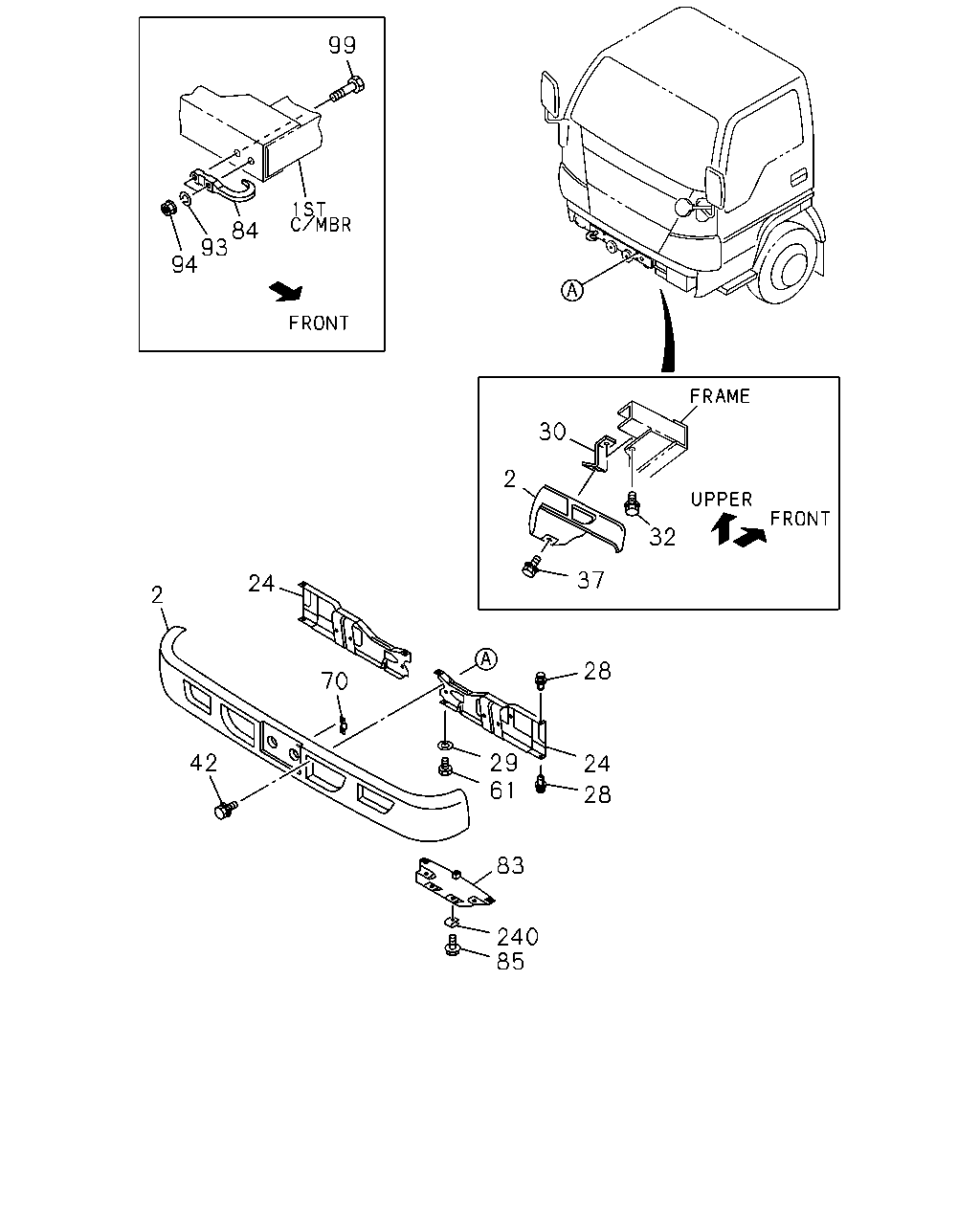

6-01 — FRONT BUMPER
(#23066) — 21 parça
99
84
93
94
30
2
32
37
24
2
28
70
29
61
42
24
28
83
240
85
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) BLUE
8-97407-139-0
01
1
0609-0610
2
07.831 BUMPER; FRT,CENTER
BODY COLOR MARINE BLUE(890) PRIMER
8-97581-871-0
01
1
0611-
2
07.831 BUMPER; FRT,CENTER
BODY COLOR ARC WHITE(729) WHITE
8-97582-423-0
01
1
0609-
24
07.869 BAR; FRT BUMPER
8-97035-752-6
01
1
0609-
24
07.869 BAR; FRT BUMPER
8-97035-751-6
01
1
0609-
28
07.833 FASTENER; BACK BAR
12.934 D=5.8 SCREW & GROMMET NYLON
8-94242-150-0
04
1
0609-
29
07.833 WASHER; FRT BUMPER
ID=8.5
8-94167-476-0
06
1
0609-
30
07.869 BRACKET; FRT BUMPER
01.263
8-97093-639-3
02
1
0609-
32
07.874 BOLT; BRKT,BUMPER
06.216 M8X25 FLANGE
0-28650-825-0
02
1
0609-
37
01.263 BOLT; BRKT TO BUMPER LWR
16.320 M8X22 W/LK&PL WASHER
8-94279-148-1
02
1
0609-
42
07.874 BOLT; BUMPER
M10X35 W/LK&PL WASHER
8-97101-865-0
04
1
0609-
61
07.832 BOLT; BACK BAR
04.785 M8X18 W/LK WASHER
0-50040-818-0
06
1
0609-0909
61
07.832 BOLT; BACK BAR
09.171 M8X18 W/LK WASHER
0-50540-818-0
06
1
0910-
70
07.800 BRACKET; LICENSE PLATE,FRT
8-94151-164-1
02
1
0609-
83
07.833 GUIDE; AIR,FRT BUMPER
8-97076-832-2
01
1
0609-
84
07.068 HOOK
8-94249-270-2
01
1
0609-
85
07.874 BOLT; AIR GUIDE,FRT BUMPER
M6X22 W/PL WASHER
8-97012-072-0
03
1
0609-
93
07.068 WASHER; LK,HOOK
06.174 ID=14.2
0-91510-814-0
02
1
0609-
94
07.068 NUT; HOOK
07.833 M14
0-91110-514-0
02
1
0609-
99
07.039 BOLT; HOOK
M14X50
0-10856-450-0
02
1
0609-
240
07.833 NUT; AIR GUIDE,FRT BUMPER
16.085 M6 SPIRE NUT
8-97210-973-1
03
1
0609-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
