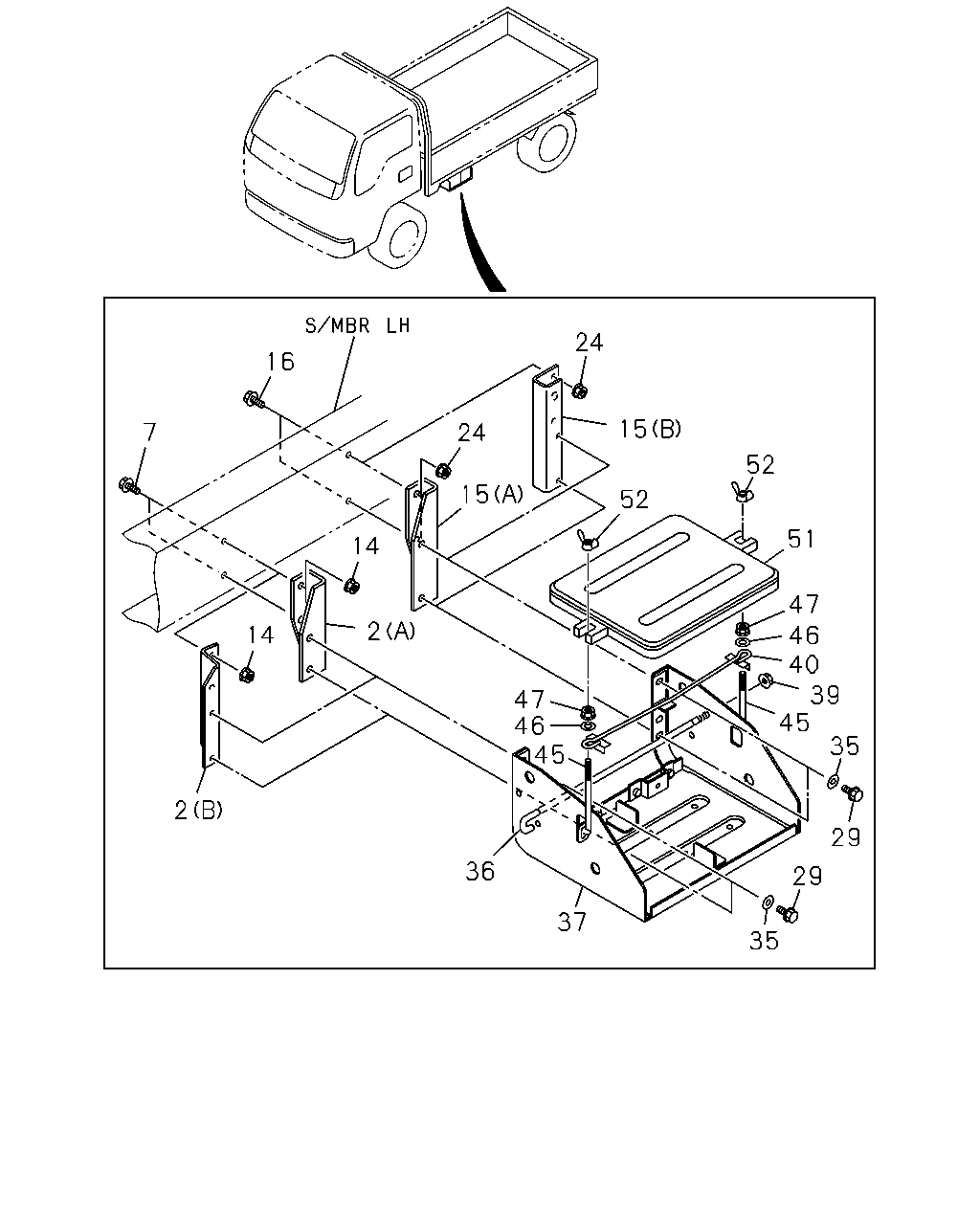

5-20 — BATTERY CARRIER
(#23064) — 22 parça
24
16
24
15
7
52
15
52
51
14
47
2
14
46
40
39
45
47
46
45
35
2
29
36
29
37
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
02.333 BRACKET; BATTERY
(A)
8-97107-605-0
01
1
0609-0609
2
02.333 BRACKET; BATTERY
(B)
8-98061-557-0
01
1
0610-
7
02.333 BOLT; BRKT TO FRAME
09.171 M10X25 FLANGE
0-28051-025-0
02
1
0609-
14
02.333 NUT; BRKT TO FRAME
04.085 M10 FLANGE
0-91180-210-0
02
1
0609-0610
14
02.333 NUT; BRKT TO FRAME
04.085 M10 FLANGE
0-91180-210-0
01
1
0611-
15
02.333 BRACKET; BATTERY
(A)
8-97107-606-0
01
1
0609-0609
15
02.333 BRACKET; BATTERY
(B)
8-98061-558-0
01
1
0610-
16
02.334 BOLT; BRKT TO FRAME
09.171 M10X25 FLANGE
0-28051-025-0
02
1
0609-
24
02.334 NUT; BRKT TO FRAME
04.085 M10 FLANGE
0-91180-210-0
02
1
0609-0609
29
02.334 BOLT; BRKT TO FRAME
04.439 M10X30 W/LK WASHER
0-50541-030-0
04
1
0609-
35
02.334 WASHER; PL,BATTERY CARRIER
04.046 ID=10.5 OD=22
0-91610-610-0
04
1
0609-
36
02.334 STOPPER; BATTERY
BATTERY 65D23R<7DQ>
8-94145-894-0
01
1
0609-
37
02.333 BRACKET; BATTERY
BATTERY 65D23R<7DQ>
8-97356-174-0
01
1
0609-0610
37
02.333 BRACKET; BATTERY
BATTERY 65D23R<7DQ>
8-97384-068-2
01
1
0611-0612
37
02.333 BRACKET; BATTERY
BATTERY 65D23R<7DQ>
8-97384-067-2
01
1
0701-
39
02.334 NUT; STOPPER,BATTERY
BATTERY 65D23R<7DQ> 01.062 M6 FLANGE
0-91180-106-0
01
1
0609-
40
02.335 CLAMP; BATTERY
BATTERY 65D23R<7DQ>
5-53615-004-1
01
1
0609-
45
02.334 ROD; TENSION,BATTERY
9-53616-615-0
02
1
0609-
46
02.334 WASHER; PL,BATTERY TO CARRIER
BATTERY 65D23R<7DQ> 02.277 ID=8.4 OD=22
0-91614-708-0
02
1
0609-
47
02.334 NUT; BRKT
BATTERY 65D23R<7DQ> 01.062 M8 FLANGE
0-91180-108-0
02
1
0609-
51
02.335 COVER; BATTERY
BATTERY 65D23R<7DQ>
8-97120-747-0
01
1
0609-
52
02.335 NUT; WING,COVER FIX
BATTERY 65D23R<7DQ> M8 WING NUT
0-91118-408-0
02
1
0609-
