Isuzu WW
▶
TRUCKS
▶
NHR
▶
51101 - NHR EURO4
▶
5 - Frame, Cab Mounting
▶
5-10 - CAB MOUNTING; FRAME SIDE
▶
5-10 — CAB MOUNTING; FRAME SIDE
(#23062) — 24 parça
◀
[510A] CAB MTG BRKT REAR (13 parça)

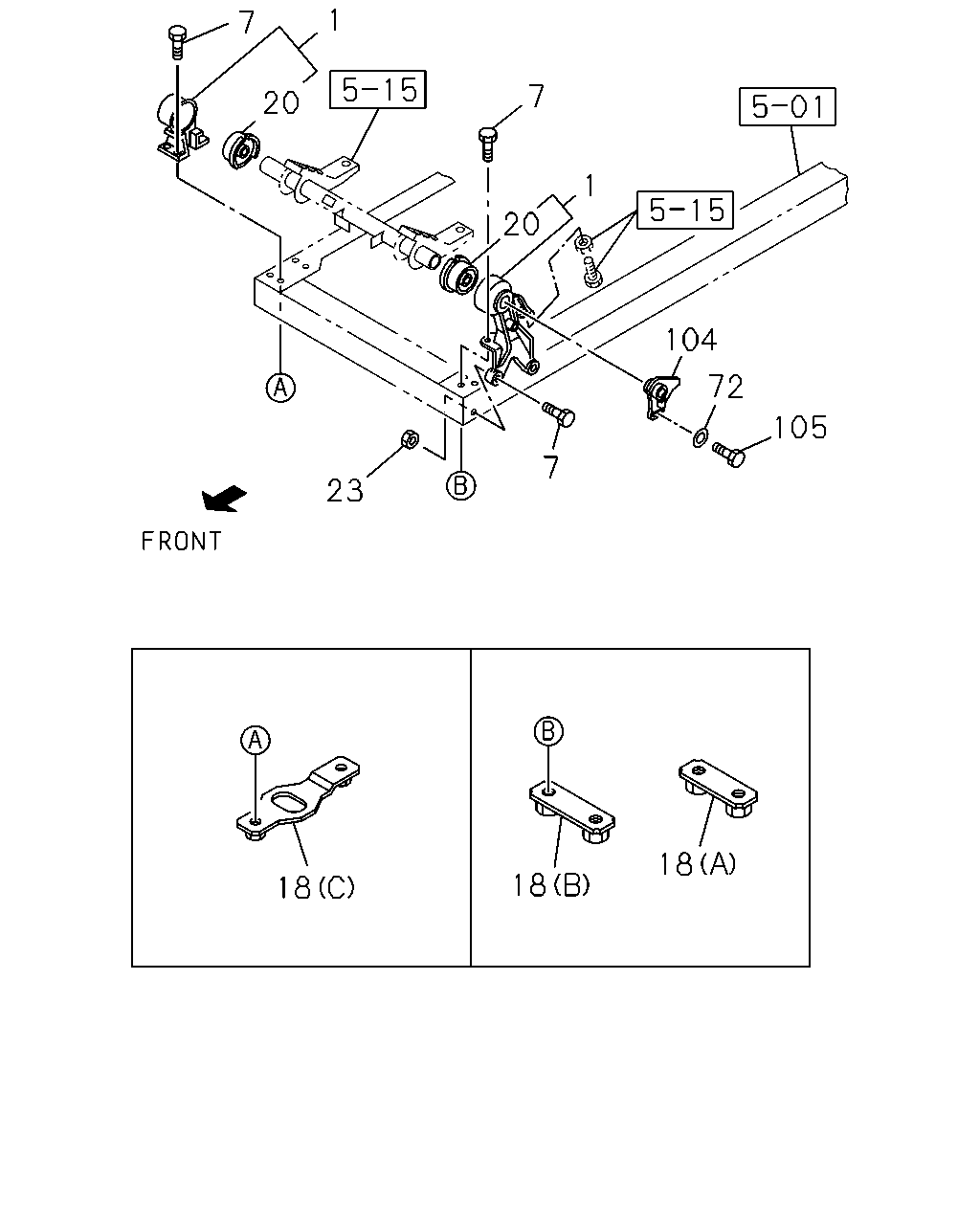

[510A] CAB MTG BRKT FRONT (11 parça)
▶
159
199
300
168
149
151
156
199
199
192
191
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
149
09.023 RUBBER; MTG,CAB,UPR RR
MANUAL TILT CAB<RWZ>
8-97095-149-3
02
1
0609-0804
149
09.023 RUBBER; MTG,CAB,UPR RR
MANUAL TILT CAB<RWZ>
8-98021-561-1
02
1
0805-
151
09.011 WASHER; CAB MTG,RR UPR
ID=16.4 OD=62
8-97034-382-0
02
1
0609-0611
151
09.011 WASHER; CAB MTG,RR UPR
ID=17 OD=62
8-97359-042-1
02
1
0612-
156
07.529 NUT; CAB MTG RR
00.785 M16
0-91111-516-0
02
1
0609-
159
09.023 RUBBER; CUSHION,CAB MTG
MANUAL TILT CAB<RWZ>
8-97113-340-0
04
1
0609-
168
09.011 NUT; CUSHION RUBBER,BODY MTG
MANUAL TILT CAB<RWZ> 01.062 M8 FLANGE
0-91180-108-0
04
1
0609-
191
09.003 BOLT; BRKT FIX
M12X35 FLANGE
0-28651-235-0
08
1
0609-
192
09.003 NUT; BRKT FIX
02.042 M12 FLANGE
0-91180-112-0
08
1
0609-
199
09.003 BRACKET; CAB RR MTG
(B)
8-97356-576-2
01
1
0609-
199
09.003 BRACKET; CAB RR MTG
MANUAL TILT CAB<RWZ> (A)
8-98032-338-0
02
1
0609-
199
09.003 BRACKET; CAB RR MTG
MANUAL TILT CAB<RWZ> (B)
8-98018-949-1
01
1
0609-
300
09.003 BOLT; MTG RUBBER
02.343 M10X20 FLANGE
0-28651-020-0
08
1
0609-
1
7
7
20
1
20
104
72
105
7
23
18
18
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
09.003 BRACKET; CAB MTG
MANUAL TILT CAB<RWZ>
8-97388-367-1
01
1
0609-
1
09.003 BRACKET; CAB MTG
MANUAL TILT CAB<RWZ>
8-97388-366-1
01
1
0609-
7
09.003 BOLT; BRKT,CAB TILT
M12X40 FLANGE
0-28651-240-0
08
1
0609-
18
09.003 PLATE; MTG BRKT FIX
MANUAL TILT CAB<RWZ> (B)
8-97034-139-2
01
1
0609-
18
09.003 PLATE; MTG BRKT FIX
MANUAL TILT CAB<RWZ> (A)
8-97034-140-2
01
1
0609-
18
09.003 PLATE; MTG BRKT FIX
MANUAL TILT CAB<RWZ> (C)
8-97388-371-0
01
1
0609-
20
09.003 RUBBER; MTG,CAB BRKT
MANUAL TILT CAB<RWZ>
8-97096-893-1
02
1
0609-
23
09.003 NUT; MTG BRKT
MANUAL TILT CAB<RWZ> 02.042 M12 FLANGE
0-91180-112-0
02
1
0609-
72
09.003 WASHER; PL,BRKT TO FRAME
MANUAL TILT CAB<RWZ> ID=15 OD=36
0-91614-714-0
01
1
0609-
104
09.003 BRACKET; CAB FRAME,CAB FRT MTG
MANUAL TILT CAB<RWZ>
8-97164-690-3
01
1
0609-
105
09.023 BOLT; BRKT TO CAB FRAME
MANUAL TILT CAB<RWZ> 02.277 M14X35 FLANGE
0-28651-435-0
01
1
0609-
