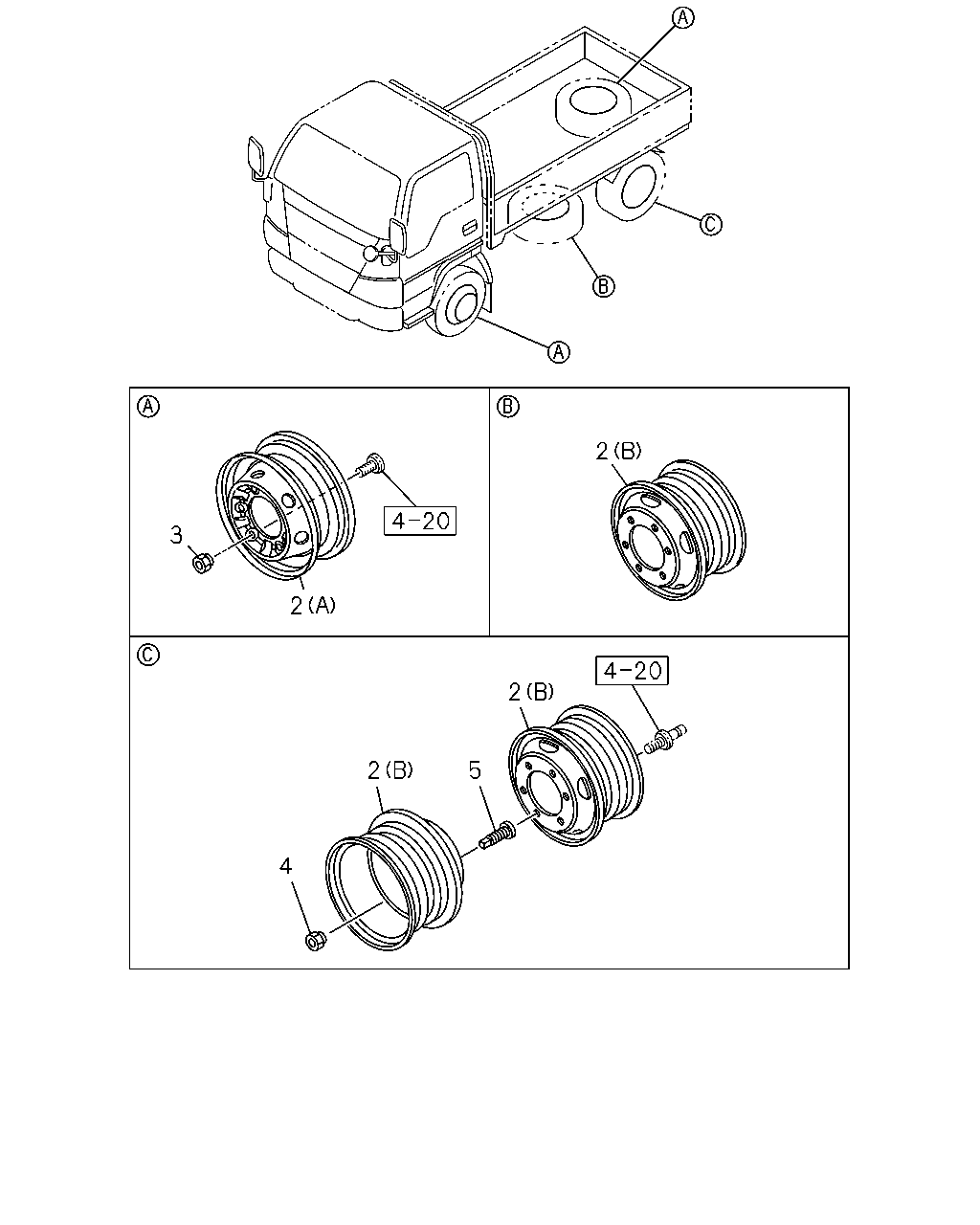

4-80 — ROAD WHEEL (#23060) — 20 parça

2 3 2 2 2 5 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	05.803 WHEEL; DISC FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX13- 98(BYZ),FRT 6-15-8 5.5KX15-30 RR 5.5-13-8 4JX13-98(9ZX) (B) 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-2	01	1	0609-0609
2	05.803 WHEEL; DISC (B) 4.5JX14 OFFSET=100 PLATINUM SILVER	8-97145-128-0	01	1	0610-
2	05.803 WHEEL; DISC FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX13- 98(BYZ),FRT 6-15-8 5.5KX15-30 RR 5.5-13-8 4JX13-98(9ZX) (B) 13X4J OFFSET=98 BLACK 6-HOLE	8-94116-197-2	04	1	0609-0609
2	05.803 WHEEL; DISC (B) 4.5JX14 OFFSET=100 PLATINUM SILVER	8-97145-128-0	04	1	0610-
2	05.803 WHEEL; DISC FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX13- 98(BYZ),FRT 6-15-8 5.5KX15-30 RR 5.5-13-8 4JX13-98(9ZX) (A) 4.5KX15 OFFSET=30 BLACK 6-HOLE	8-94128-559-0	01	1	0609-0609
2	05.803 WHEEL; DISC (A) 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	01	1	0610-
2	05.803 WHEEL; DISC FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX13- 98(BYZ),FRT 6-15-8 5.5KX15-30 RR 5.5-13-8 4JX13-98(9ZX) (A) 4.5KX15 OFFSET=30 BLACK 6-HOLE	8-94128-559-0	02	1	0609-0609
2	05.803 WHEEL; DISC (A) 16X5.5J OFFSET=116.5 PLATINUM SILVER	8-97233-664-0	02	1	0610-
3	05.813 NUT; WHEEL,FRT AXLE M14 LH THREAD	5-42334-002-0	06	1	0609-0610
3	05.813 NUT; WHEEL,FRT AXLE M14 LH THREAD	8-98007-906-0	06	1	0611-
3	05.813 NUT; WHEEL,FRT AXLE M14 RH THREAD	5-42333-008-0	06	1	0609-0610
3	05.813 NUT; WHEEL,FRT AXLE M14 RH THREAD	8-98007-905-0	06	1	0611-
4	05.813 NUT; WHEEL,RR AXLE M25 LH THREAD	9-42334-009-0	06	1	0609-0610
4	05.813 NUT; WHEEL,RR AXLE M25 LH THREAD	8-98007-831-0	06	1	0611-
4	05.813 NUT; WHEEL,RR AXLE M25 RH THREAD	9-42333-015-0	06	1	0609-0610
4	05.813 NUT; WHEEL,RR AXLE M25 RH THREAD	8-98007-830-0	06	1	0611-
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M25,INNER M16 LH THREAD	5-42336-001-1	06	1	0609-0610
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M25,INNER M16 LH THREAD	8-98007-829-0	06	1	0611-
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M25,INNER M16 RH THREAD	5-42335-001-1	06	1	0609-0610
5	05.813 NUT; WHEEL,INNER,RR AXLE OUTER M25,INNER M16 RH THREAD	8-98007-828-0	06	1	0611-
