0-35A — ENGINE CONTROL VALVE AND LEVER (#2306) — 85 parça

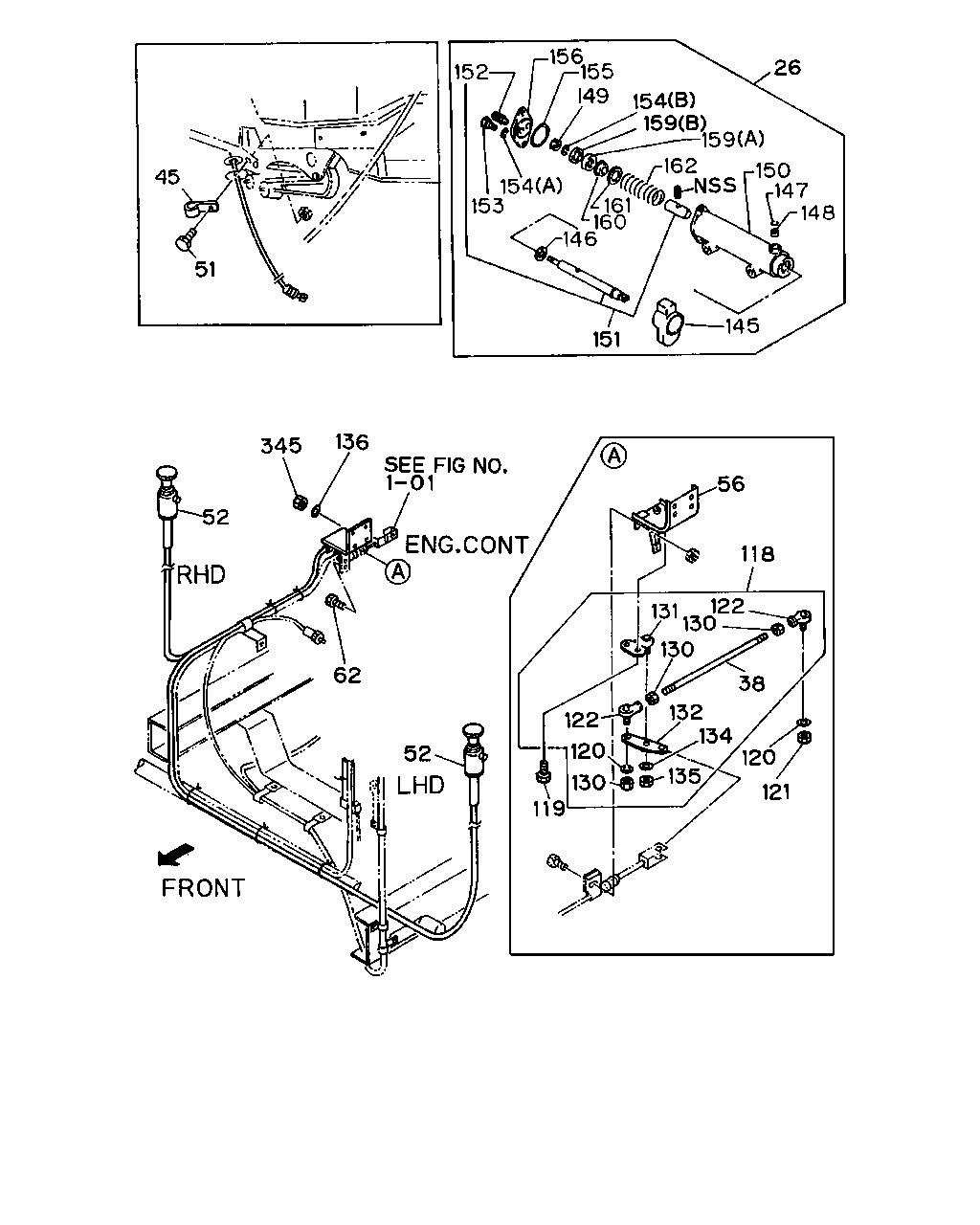

45 51 152 156 155 149 154 159 159 150 147 148 145 151 153 154 146 160 161 162 26 56 118 122 130 131 130 38 132 134 120 121 135 130 120 122 52 62 136 345 52 119

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
26	CYLINDER ASM; CONT	1-22190-520-1	01	1	9002-	●	●
26	CYLINDER ASM; CONT	1-22190-302-1	01	1	9002-9306			●
38	ROD; LINK SHAFT TO LEVER	9-08400-532-0	01	1	9002-	●	●	●
45	CLIP; FUEL CUT CABLE ID=9 L=40	9-09524-875-0	01	1	9006-	●	●	●
51	BOLT; CLIP,FUEL CUT CABLE M8X20 W/LK&PL WASHER	9-01960-820-0	01	1	9006-9204	●	●	●
51	BOLT; CLIP,FUEL CUT CABLE M8X20 W/LK&PL WASHER	0-50140-820-0	01	1	9205-	●	●	●
51	BOLT; CLIP,FUEL CUT CABLE M6X12	0-50000-612-0	01	1	9002-9204	●	●
51	BOLT; CLIP,FUEL CUT CABLE M6X12	0-50080-612-0	01	1	9205-9306	●	●
51	BOLT; CLIP,FUEL CUT CABLE EXC. AUTO ENG SHUTOFF<KB6> M6X12	0-50080-612-0	01	1	9307-		●
52	CABLE; FUEL CUT L=2120	1-23210-739-4	01	1	9002-9306	●	●
52	CABLE; FUEL CUT EXZ&RHD(EX5*) L=2120	1-23210-739-4	01	1	9002-9306			●
52	CABLE; FUEL CUT L=2070	1-79997-363-0	01	1	9307-		●
52	CABLE; FUEL CUT EXZ&LHD(EX6*) L=3320	1-23210-754-3	01	1	9002-9306			●
56	BRACKET; FUEL CUT LINK	1-23335-261-1	01	1	9002-	●	●	●
62	BOLT; CABLE END M6X16 W/LK WASHER	9-01910-616-0	02	1	9002-9005	●	●	●
62	BOLT; CABLE END M6X16 W/LK WASHER	0-50040-616-0	02	1	9006-9302	●	●	●
62	BOLT; CABLE END M6X16 FLANGE	0-28080-616-0	02	1	9303-9306	●	●	●
118	ROD ASM; LINK FUEL CUT	1-23310-465-0	01	1	9002-	●	●	●
119	BOLT; LINK ROD M8X18 W/LK WASHER	9-01910-818-0	02	1	9002-9005	●	●	●
119	BOLT; LINK ROD M8X18 W/LK WASHER	0-50040-818-0	02	1	9006-	●	●	●
120	WASHER; LK,BALL JOINT ID=5.1	9-09150-505-0	02	1	9002-	●	●	●
121	NUT; BALL JOINT M5	9-99110-405-0	01	1	9002-	●	●	●
122	BALL ASM; JOINT RH THREAD	1-09760-002-0	02	1	9002-	●	●	●
130	NUT; BALL JOINT M5	9-99110-405-0	03	1	9002-	●	●	●
131	BRACKET	1-23335-226-0	01	1	9002-	●	●	●
132	LEVER; W/BUSHING	1-23311-267-0	01	1	9002-	●	●	●
134	WASHER; LK,LEVER ID=10.5 OD=22	9-09164-610-0	01	1	9002-	●	●	●
135	NUT; LEVER M10	9-09110-410-0	01	1	9002-	●	●	●
136	WASHER; LK,BRKT ID=10.2	9-09150-510-0	04	1	9002-	●	●	●
145	COVER; BREATHER	1-22199-009-0	01	1	9002-	●	●	●
146	SEAL; DUST,CONT	1-22189-016-0	01	1	9002-9509	●	●	●
146	SEAL; DUST,CONT	1-22189-016-0	01	1	9510-		●
147	RING; RET	9-88510-331-0	01	1	9002-	●	●	●
148	FILTER; CONT CYL	9-88510-330-0	01	1	9002-	●	●	●
149	NUT; LOCK,CONT SHAFT M8	9-09110-408-0	01	1	9002-9306	●	●	●
149	NUT; LOCK,CONT SHAFT	9-83315-085-0	01	1	9002-9306	●	●	●
149	NUT; LOCK,CONT SHAFT	9-83315-085-0	01	1	9307-		●
150	CYLINDER; CONT	9-88510-329-0	01	1	9002-9306	●	●	●
151	SHAFT; CONT CYL	1-22199-083-0	01	1	9002-	●	●	●
152	CONNECTOR PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9002-9306	●	●	●
152	CONNECTOR PT1/4 & M12 ELBOW	1-09650-117-1	01	1	9307-	●	●
153	BOLT; CONT CYL M8X16	9-02050-816-0	02	1	9002-	●	●
153	BOLT; CONT CYL	9-88510-267-0	02	1	9002-9306			●
154	WASHER; LK,CYL (A),(B) ID=8.2	9-09150-508-0	03	1	9002-9306	●	●	●
154	WASHER; LK,CYL (A),(B) ID=8.2	9-09150-508-0	03	1	9307-	●	●
155	GASKET; CONT CYL	9-88510-372-0	01	1	9002-	●	●	●
156	COVER; CONT CYL	9-88510-375-0	01	1	9002-	●	●	●
159	GASKET; CONT CYL (B)	9-88510-324-0	01	1	9002-	●	●	●
159	GASKET; CONT CYL (A)	9-88510-373-0	01	1	9002-9509	●	●	●
159	GASKET; CONT CYL (A)	9-88510-373-0	01	1	9510-		●
160	PLATE	1-22199-001-0	01	1	9002-	●	●	●
161	RING; WEAR	1-22199-002-0	01	1	9002-	●	●	●
162	SPRING; CONT CYL	9-88510-374-0	01	1	9002-	●	●	●
345	NUT; BRKT M10	9-09110-410-0	04	1	9002-	●	●	●

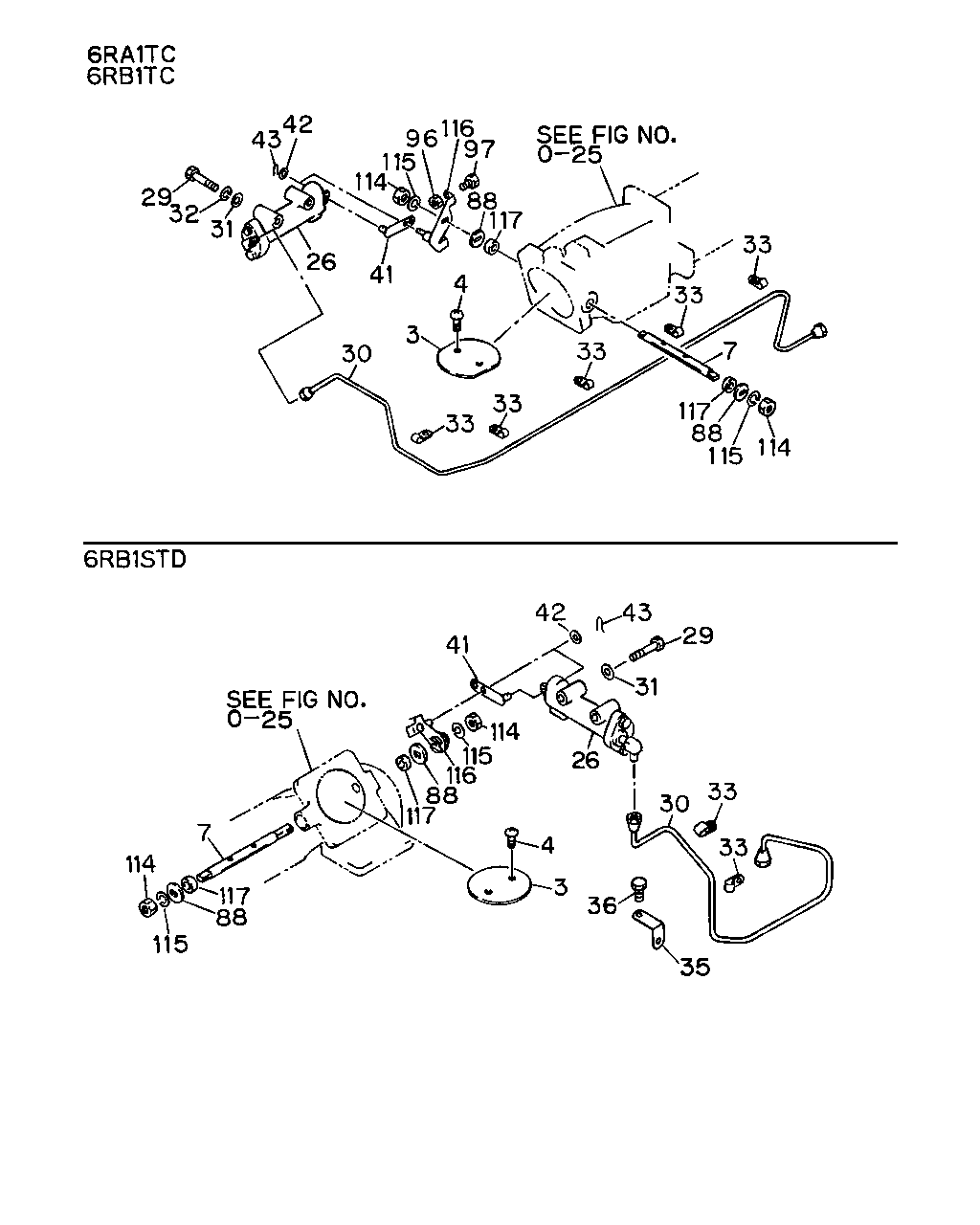

115 88 117 114 7 117 88 116 115 114 41 42 43 29 31 26 4 3 36 35 30 33 33 114 115 88 117 7 33 33 33 33 33 30 3 4 41 26 31 32 29 43 42 114 115 96 116 97 88 117

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
3	VALVE; INT SHUTTER	1-14312-033-0	01	1	9002-	●	●
3	VALVE; INT SHUTTER	1-14312-012-0	01	1	9002-9306			●
4	SCREW; VLV FIX	1-09102-002-0	02	1	9002-	●	●	●
7	SHAFT ASM; INT SHUTTER OD=12	1-14313-045-1	01	1	9002-	●	●
7	SHAFT ASM; INT SHUTTER	9-14313-129-0	01	1	9002-9306			●
26	CYLINDER ASM; CONT	1-22190-520-1	01	1	9002-	●	●
26	CYLINDER ASM; CONT	1-22190-302-1	01	1	9002-9306			●
29	BOLT; CONT CYL M10X55	9-01056-055-0	02	1	9002-9004	●	●	●
29	BOLT; CONT CYL M10X55	0-10806-055-0	02	1	9005-	●	●	●
30	PIPE ASM; AIR CONT CYL	1-19192-001-1	01	1	9002-9306	●	●
30	PIPE ASM; AIR CONT CYL	1-19192-001-1	01	1	9307-		●
30	PIPE ASM; AIR CONT CYL	1-19192-126-0	01	1	9002-9306			●
31	WASHER; PL,CONT CYL ID=10.5 OD=18	9-09160-510-0	02	1	9002-	●	●	●
32	WASHER; LK,CONT CYL ID=10.2	9-09150-510-0	02	1	9002-		●
33	CLIP; AIR PIPE	1-09700-955-0	06	1	9002-	●	●
33	CLIP; AIR PIPE	1-09700-955-0	02	1	9002-9306			●
35	BRACKET; AIR PIPE CLIP	1-13719-027-0	01	1	9002-9306			●
36	BOLT; CLIP M10X20 W/LK WASHER	0-50041-020-0	01	1	9002-9306			●
41	LINK; INT SHUTTER	1-14319-004-2	01	1	9002-	●	●	●
42	WASHER; LK,ROD LOCK ID=10.5 OD=18	9-09160-510-0	02	1	9002-	●	●	●
43	PIN; SNAP ROD LK L=21.2	1-09747-003-0	02	1	9002-	●	●	●
88	WASHER; SHAFT	9-09855-383-0	02	1	9002-	●	●	●
96	NUT; ADJ SCREW M5	9-99110-405-0	02	1	9002-	●	●
97	SCREW; ADJ	9-14319-229-0	02	1	9002-	●	●
114	NUT M12	9-09111-412-0	02	1	9002-9206	●	●
114	NUT M12	9-99111-412-0	02	1	9002-9206			●
114	NUT M12	9-99111-412-0	02	1	9207-	●	●	●
115	WASHER; LK ID=12.2	9-09150-512-0	02	1	9002-	●	●	●
116	LEVER	1-14314-121-0	01	1	9002-	●	●
116	LEVER	1-22196-129-1	01	1	9002-9306			●
117	COVER; VLV	9-14319-316-0	02	1	9002-	●	●	●
