Isuzu WW
▶
TRUCKS
▶
NHR
▶
51101 - NHR EURO4
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-60 - REAR SUSPENSION
▶

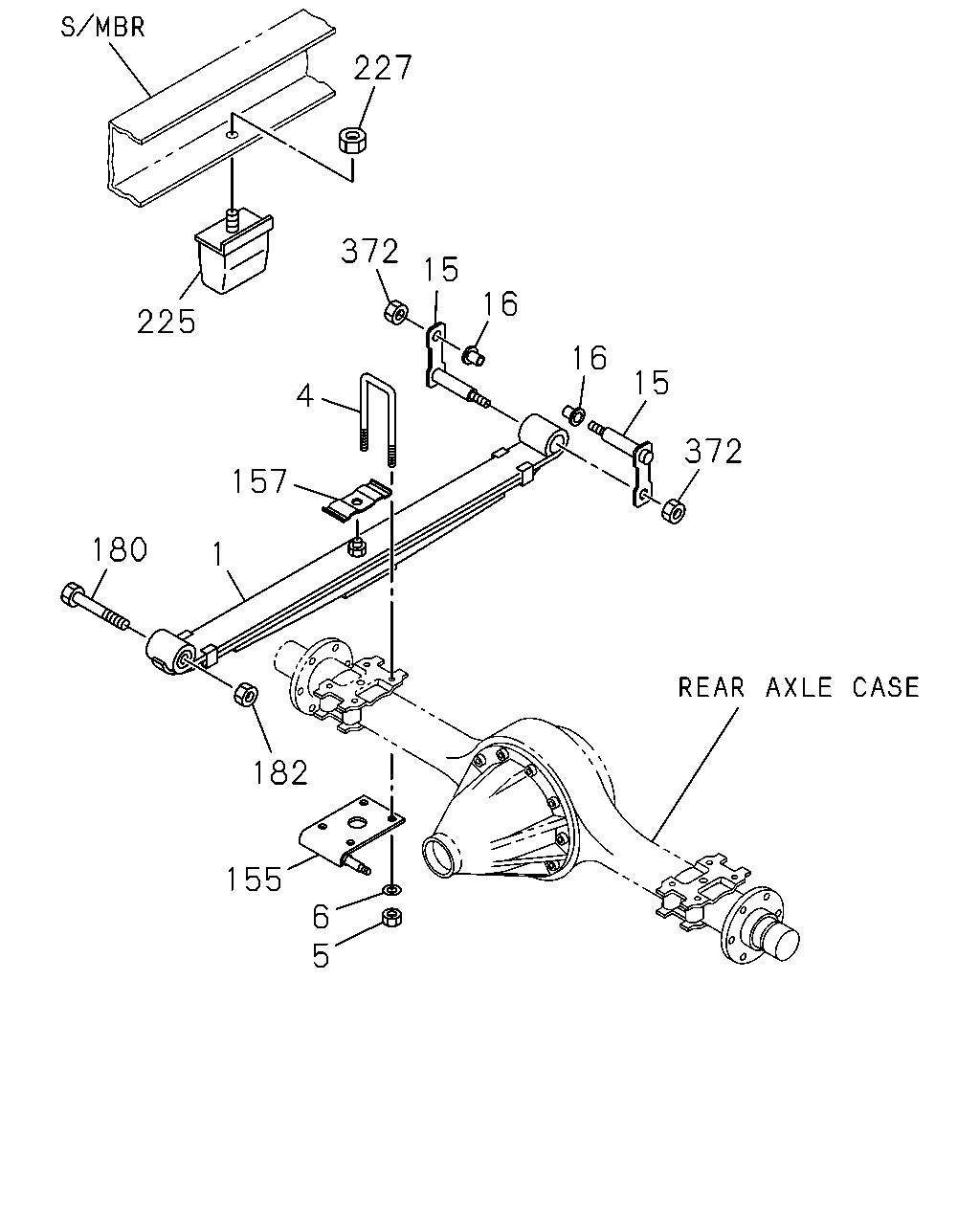

4-60 — REAR SUSPENSION
(#23057) — 20 parça
227
372
15
16
225
16
15
4
372
157
180
1
182
155
6
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
07.503 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 3-LEAF
8-97260-098-0
02
1
0609-
4
07.516 U-BOLT; RR SPR
L=205
8-94127-917-3
04
1
0609-
5
07.529 NUT; U-BOLT,RR SPR
07.516 M16
8-94107-767-0
08
1
0609-0611
5
07.529 NUT; U-BOLT,RR SPR
07.417 M16
8-97360-121-0
08
1
0612-
6
07.516 WASHER; PL,U-BOLT
ID=16.4
8-94137-482-1
08
1
0609-0610
6
07.516 WASHER; PL,U-BOLT
ID=16.4
8-97360-118-0
08
1
0611-
15
07.523 SHACKLE; RR SPR
8-94113-322-3
04
1
0609-
16
07.524 BUSHING; SHACKLE,RR SPR
8-94113-323-2
08
1
0609-
155
07.380 BRACKET; S/ABS
8-94128-361-4
01
1
0609-
155
07.380 BRACKET; S/ABS
8-94128-360-4
01
1
0609-
157
07.518 CLAMP; UPR,RR SPR
L=130 T=6
8-94165-555-1
02
1
0609-
180
07.529 PIN; RR SPR
M16X122 FLANGE
8-97076-850-2
02
1
0609-0610
180
07.529 PIN; RR SPR
07.427 M16X122 FLANGE
8-97360-110-0
02
1
0611-
182
07.529 NUT; PIN,RR SPR
M16 FLANGE
8-97147-389-0
02
1
0609-0610
182
07.529 NUT; PIN,RR SPR
07.427 M16 FLANGE
8-97360-125-0
02
1
0611-
225
07.535 RUBBER; CUSHION,RR SPR
8-94258-734-2
02
1
0609-1103
225
07.535 RUBBER; CUSHION,RR SPR
8-98187-341-0
02
1
1104-
227
07.535 NUT; CUSHION RUBBER
02.042 M12 FLANGE
0-91180-112-0
02
1
0609-
372
07.529 NUT; SHACKLE
M16 FLANGE
8-97147-389-0
04
1
0609-0610
372
07.529 NUT; SHACKLE
07.427 M16 FLANGE
8-97360-125-0
04
1
0611-
