1 |

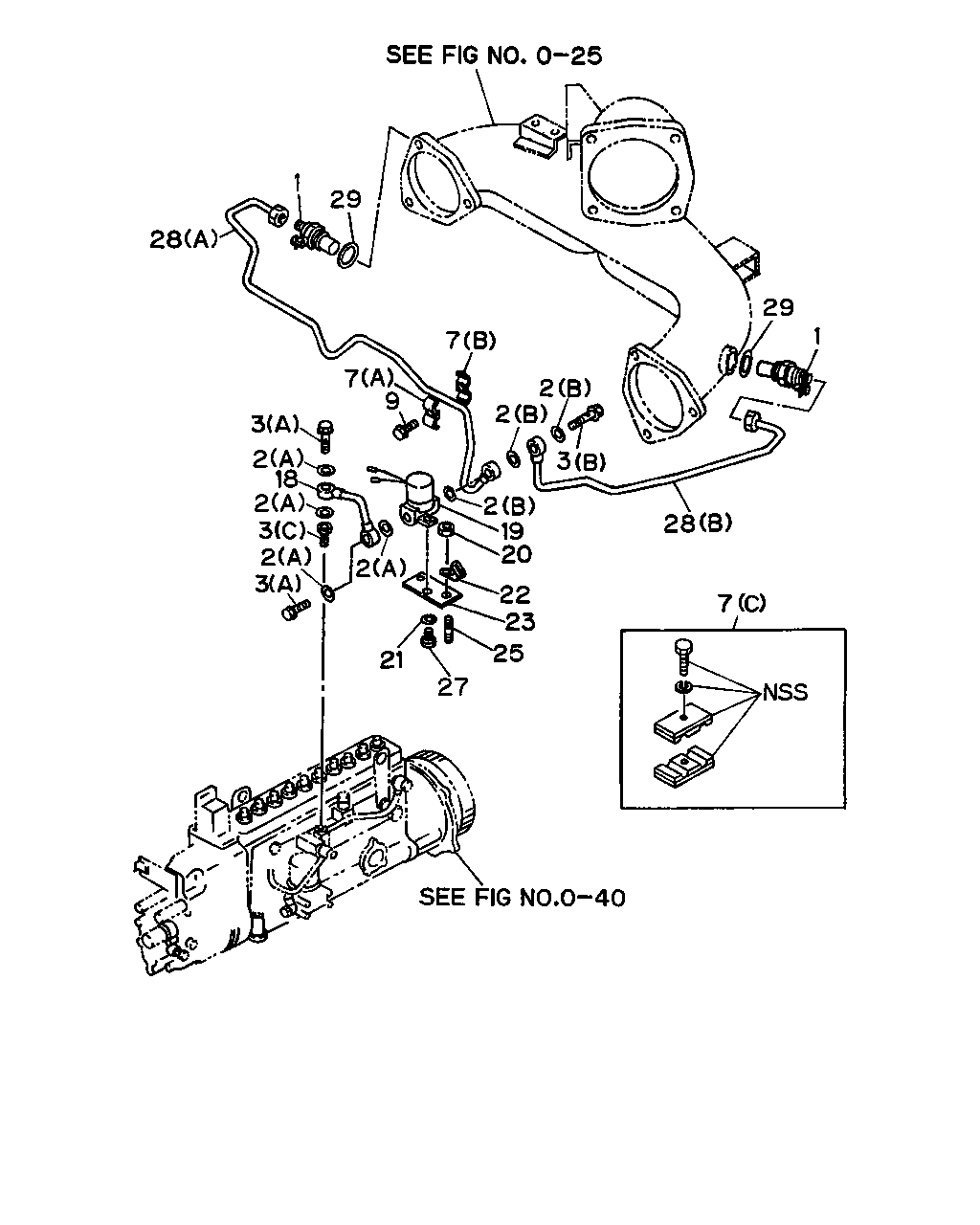

HEATER; INT
INTAKE HEATER<SL2>
|
1-81430-027-3 |
02 |
1 |
9002-9102 |
● |
● |
| |
1 |
HEATER; INT
INTAKE HEATER<SL2>
|
1-81430-027-3 |
02 |
1 |
9103-9306 |
|
● |
| |
1 |
HEATER; INT
INTAKE HEATER<SL2>
|
1-81430-022-0 |
02 |
1 |
9103- |
● |
|
| |
2 |
GASKET; FUEL PIPE FILTER TO VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
INTAKE HEATER<SL2>
(B)
ID=8.2 OD=13.2
|
1-09630-082-0 |
03 |
1 |
9002-9306 |
● |
● |
| |
2 |
GASKET; FUEL PIPE FILTER TO VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
INTAKE HEATER<SL2>
(A)
ID=10.2 OD=15.2
|
1-09630-083-0 |
04 |
1 |
9002-9306 |
● |
● |
| |
2 |
GASKET; FUEL PIPE FILTER TO VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
INTAKE HEATER<SL2>
(B)
ID=8.2 OD=13.2
|
1-09630-082-0 |
03 |
1 |
9307-9410 |
● |
|
| |
2 |
GASKET; FUEL PIPE FILTER TO VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
INTAKE HEATER<SL2>
(B)
ID=8.2 OD=13.2
|
1-09630-082-0 |
03 |
1 |
9411- |
● |
|
| |
2 |
GASKET; FUEL PIPE FILTER TO VLV
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
INTAKE HEATER<SL2>
(A)
ID=10.2 OD=15.2
|
1-09630-083-0 |
04 |
1 |
9307- |
● |
|
| |
3 |
BOLT; EYE FUEL PIPE
INTAKE HEATER<SL2>
(B)
M8X24 FLANGE
|
1-09675-038-1 |
01 |
1 |
9002-9306 |
● |
● |
| |
3 |
BOLT; EYE FUEL PIPE
INTAKE HEATER<SL2>
(A)
M10X18 FLANGE
|
1-09675-076-0 |
02 |
1 |
9002-9306 |
● |
● |
| |
3 |
BOLT; EYE FUEL PIPE
INTAKE HEATER<SL2>
(C)
M14X27 M10-HOLE ON HEAD
|
1-09675-087-0 |
01 |
1 |
9002- |
● |
● |
| |
3 |
BOLT; EYE FUEL PIPE
INTAKE HEATER<SL2>
(B)
M8X24 FLANGE
|
1-09675-038-1 |
01 |
1 |
9307- |
● |
|
| |
3 |
BOLT; EYE FUEL PIPE
INTAKE HEATER<SL2>
(A)
M10X18 FLANGE
|
1-09675-076-0 |
02 |
1 |
9307- |
● |
|
| |
7 |
CLIP; FUEL PIPE
INTAKE HEATER<SL2>
(A)
ID=10 & 6 L=20
|
1-09700-404-0 |
02 |
1 |
9002- |
● |
● |
| |
7 |
CLIP; FUEL PIPE
INTAKE HEATER<SL2>
(B)
ID=10 & 6 L=20 W/NUT
|
1-09700-405-0 |
02 |
1 |
9002- |
● |
● |
| |
7 |
CLIP; FUEL PIPE
INTAKE HEATER<SL2>
(C)
|
9-15419-612-0 |
01 |
1 |
9307- |
● |
● |
| |
9 |
BOLT; CLIP
INTAKE HEATER<SL2>
M6X22
|
0-28020-622-0 |
02 |
1 |
9002-9005 |
● |
● |
| |
9 |
BOLT; CLIP
INTAKE HEATER<SL2>
M6X22 FLANGE
|
0-28080-622-0 |
02 |
1 |
9006- |
● |
● |
| |
18 |
PIPE ASM; FUEL PUMP TO VLV
INTAKE HEATER<SL2>
|
1-15414-230-0 |
01 |
1 |
9002-9306 |
|
● |
| |
18 |
PIPE ASM; FUEL PUMP TO VLV
INTAKE HEATER<SL2>
|
1-15414-229-0 |
01 |
1 |
9002- |
● |
|
| |
19 |
VALVE; MAG INT HTR
INTAKE HEATER<SL2>
|
1-82563-344-1 |
01 |
1 |
9002-9306 |
● |
● |
| |
19 |
VALVE; MAG INT HTR
INTAKE HEATER<SL2>
|
1-82563-344-1 |
01 |
1 |
9307- |
● |
|
| |
20 |
NUT; BRKT
M10 FLANGE
|
0-91150-110-0 |
01 |
1 |
9002-9503 |
|
● |
| |
20 |
NUT; BRKT
INTAKE HEATER<SL2>
M10 FLANGE
|
0-91150-110-0 |
01 |
1 |
9002-9503 |
● |
|
| |
20 |
NUT; BRKT
INTAKE HEATER<SL2>
M10 FLANGE
|
0-91150-110-0 |
01 |
1 |
9504- |
● |
|
| |
21 |
WASHER; LK,VLV
INTAKE HEATER<SL2>
ID=5.1
|
9-09150-505-0 |
02 |
1 |
9002-9306 |
● |
● |
| |
21 |
WASHER; LK,VLV
INTAKE HEATER<SL2>
ID=5.1
|
9-09150-505-0 |
02 |
1 |
9307-9503 |
● |
|
| |
21 |
WASHER; LK,VLV
INTAKE HEATER<SL2>
ID=5.1
|
9-09150-505-0 |
02 |
1 |
9504- |
● |
|
| |
22 |
CLIP; HARNESS
INTAKE HEATER<SL2>
|
8-94213-457-0 |
01 |
1 |
9002- |
● |
● |
| |
23 |
BRACKET; MAG VLV INT HTR
INTAKE HEATER<SL2>
|
1-82569-036-0 |
01 |
1 |
9002- |
● |
● |
| |
25 |
STUD; BRKT
INTAKE HEATER<SL2>
M10X16 L=31
|
9-04411-016-0 |
01 |
1 |
9002- |
● |
● |
| |
27 |
BOLT; VLV
INTAKE HEATER<SL2>
|
9-92050-512-0 |
02 |
1 |
9002-9005 |
● |
● |
| |
27 |
BOLT; VLV
INTAKE HEATER<SL2>
M5X12
|
0-20800-512-0 |
02 |
1 |
9006- |
● |
● |
| |
28 |
PIPE ASM; FUEL VLV TO INT HTR
INTAKE HEATER<SL2>
(A)
|
1-15414-824-0 |
01 |
1 |
9002- |
● |
● |
| |
28 |
PIPE ASM; FUEL VLV TO INT HTR
INTAKE HEATER<SL2>
(B)
|
1-15414-825-0 |
01 |
1 |
9002- |
● |
● |
| |
29 |
GASKET; INT HTR
ALSO INCLUDED IN GASKET SET(ENGINE).
INTAKE HEATER<SL2>
ID=22.5
|
9-09571-422-0 |
02 |
1 |
9002- |
● |
● |
