Isuzu WW
▶
TRUCKS
▶
NHR
▶
51101 - NHR EURO4
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-11 - FRONT HUB AND DRUM OR ROTOR
▶

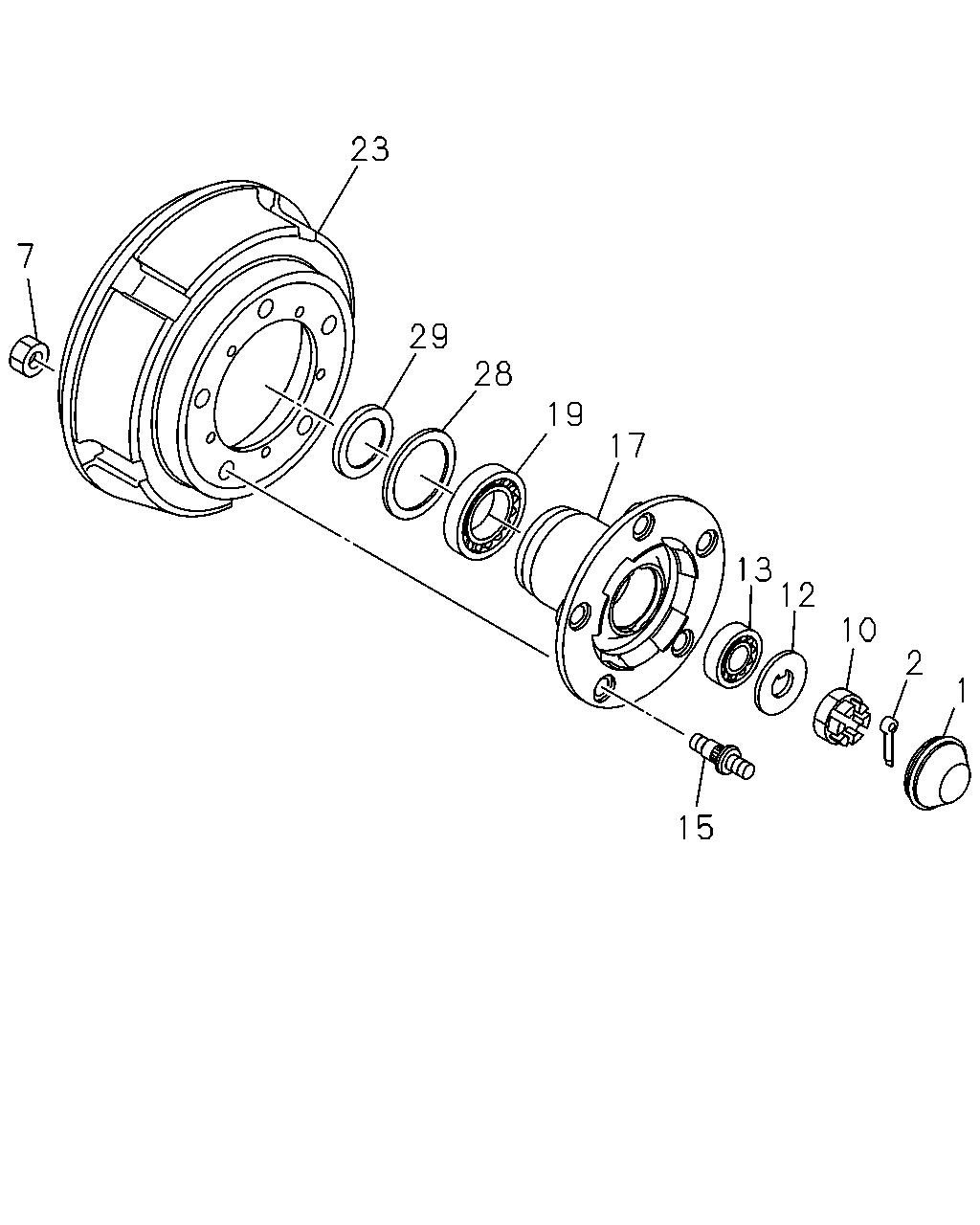

4-11 — FRONT HUB AND DRUM OR ROTOR
(#23044) — 28 parça
23
7
29
28
19
17
13
12
10
2
1
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
06.330 CAP; HUB,FRT AXLE
8-97012-620-0
02
1
0609-0609
1
06.330 CAP; HUB,FRT AXLE
8-97012-619-0
02
1
0610-0611
1
06.330 CAP; HUB,FRT AXLE
8-97360-101-0
02
1
0612-
2
05.812 PIN; SPLIT,HUB TO AXLE SHAFT
OD=4.6 L=40
0-81125-040-0
02
1
0609-
7
05.812 NUT; FRT HUB
M20
0-91110-520-0
10
1
0610-
10
05.812 NUT; FRT HUB BRG
06.022
8-94247-357-1
02
1
0609-
12
06.321 WASHER; LK,FRT HUB BRG
8-94247-356-1
02
1
0609-
13
06.313 BEARING; HUB OUTER,FRT AXLE
KOYO
8-97219-066-0
02
1
0609-0609
13
06.313 BEARING; HUB OUTER,FRT AXLE
NSK
9-00093-172-0
02
1
0610-
13
06.313 BEARING; HUB OUTER,FRT AXLE
06.311 NSK
9-00032-206-0
02
1
0609-0609
15
05.812 PIN; WHEEL,FRT AXLE
M14X40 LH THREAD
8-97126-487-0
06
1
0609-0609
15
05.812 PIN; WHEEL,FRT AXLE
M18X29 LH THREAD,M20X43.5 RH THREAD
8-94383-437-2
05
1
0610-
15
05.812 PIN; WHEEL,FRT AXLE
M14X40 RH THREAD
8-97126-486-0
06
1
0609-0609
15
05.812 PIN; WHEEL,FRT AXLE
M18X29,M20X43.5 RH THREAD
8-94383-436-2
05
1
0610-
16
05.812 SCREW; DRUM TO HUB
M6X16 CK-HEAD
9-03090-616-0
02
1
0609-0609
17
06.307 HUB; FRT AXLE
8-97034-769-0
02
1
0609-0609
17
06.307 HUB; FRT AXLE
8-94365-459-0
02
1
0610-
19
06.311 BEARING; HUB INNER,FRT AXLE
NSK
8-94248-077-0
02
1
0609-0609
19
06.311 BEARING; HUB INNER,FRT AXLE
KOYO
8-94248-088-2
02
1
0610-1009
19
06.311 BEARING; HUB INNER,FRT AXLE
JTEKT
8-98171-254-0
02
1
1010-
19
06.311 BEARING; HUB INNER,FRT AXLE
KOYO
8-97219-065-0
02
1
0609-0609
19
06.311 BEARING; HUB INNER,FRT AXLE
NSK
9-00093-149-0
02
1
0610-1009
23
05.809 DRUM; BRK,FRT
8-97034-798-2
02
1
0609-0609
23
05.809 DRUM; BRK,FRT
8-97094-434-2
02
1
0610-
28
06.326 SEAL; OIL,FRT HUB
8-94248-116-1
02
1
0609-0609
28
06.326 SEAL; OIL,FRT HUB
8-94248-117-1
02
1
0610-
29
06.326 DISTANCE PIECE; HUB BRKT
NTN
8-97234-512-0
02
1
0609-0609
29
06.326 DISTANCE PIECE; HUB BRKT
NTN
8-97234-513-0
02
1
0610-
