3-52 — BRAKE PIPING; OIL,FRONT (#23038) — 27 parça

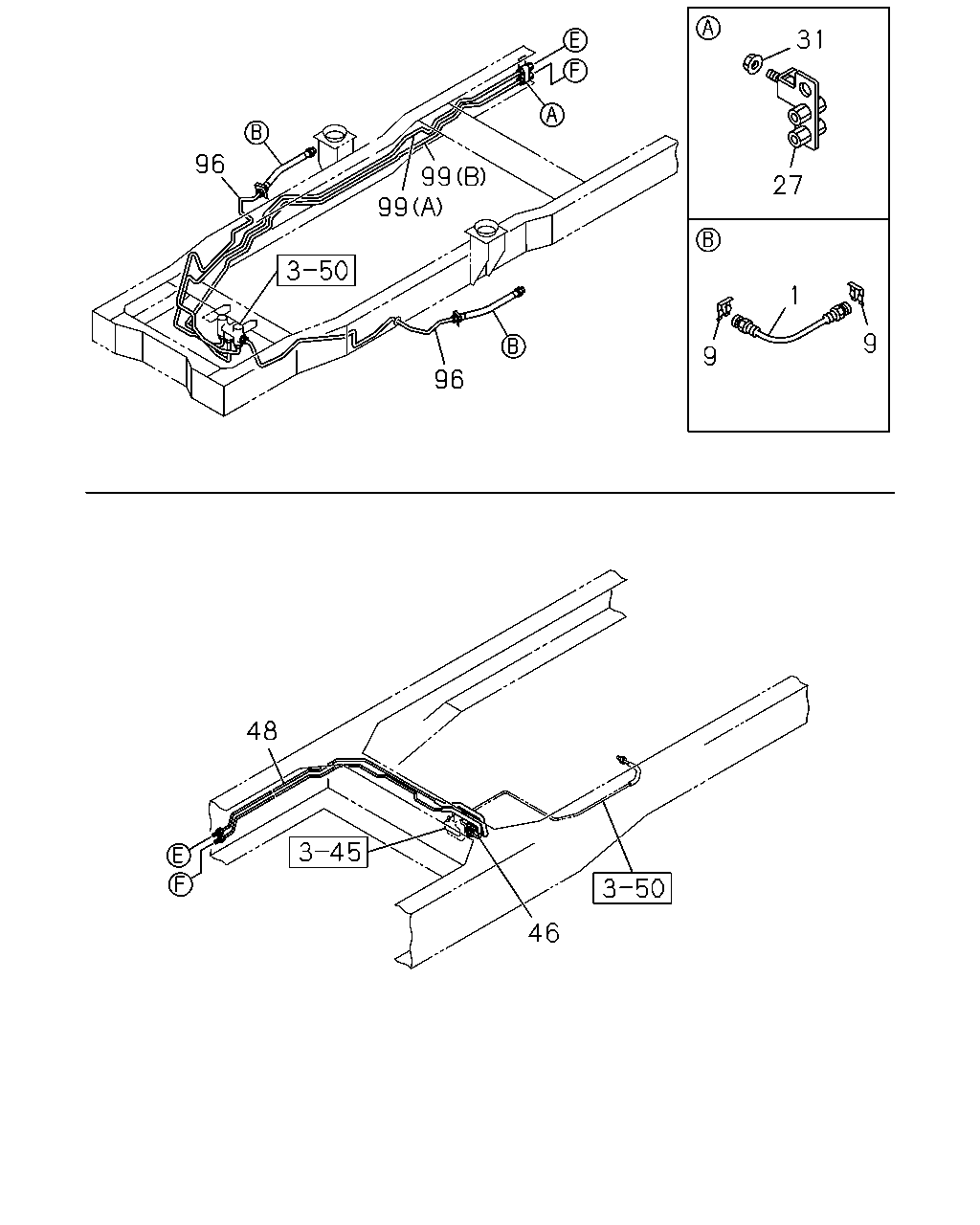

çizim 58150
31 99 99 96 27 1 9 9 96 48 46
BalonParca AdiParca NoAdetTipApplied Date
1 04.680 HOSE; FLEX,FRT BRK
FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX13- 98(BYZ),FRT 6-15-8 5.5KX15-30 RR 5.5-13-8 4JX13-98(9ZX) 		8-97035-063-0 02 1 0609-0609
1 04.680 HOSE; FLEX,FRT BRK 8-97035-063-1 02 1 0610-
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0609-0609
9 04.686 CLIP; FLEX HOSE,FRT BRK
FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX13- 98(BYZ),FRT 6-15-8 5.5KX15-30 RR 5.5-13-8 4JX13-98(9ZX) 04.681 		8-94137-662-0 02 1 0609-0609
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0610-0610
9 04.686 CLIP; FLEX HOSE,FRT BRK
04.681 		8-94137-662-0 02 1 0610-0610
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611-
9 04.686 CLIP; FLEX HOSE,FRT BRK 8-97360-054-0 02 1 0611-
27 04.686 UNION; BRK PIPE 8-97259-943-1 01 1 0609-
31 04.686 NUT; UNION CLIP
01.062 M6 FLANGE 		0-91180-106-0 01 1 0609-
46 04.685 PIPE; BRK,JOINT TO VLV 8-97325-937-1 01 1 0609-
48 04.685 PIPE; BRK,BYPASS VLV TO CONN 8-97325-943-1 01 1 0609-
96 04.686 PIPE ASM; 6 WAY 8-98057-735-0 01 1 0609-0609
96 04.686 PIPE ASM; 6 WAY 8-97325-919-1 01 1 0610-
96 04.686 PIPE ASM; 6 WAY 8-98057-736-0 01 1 0609-0609
96 04.686 PIPE ASM; 6 WAY 8-98024-950-2 01 1 0610-
99 04.686 PIPE ASM; 4/5/6 WAY
(A) 		8-98025-365-0 01 1 0609-
99 04.686 PIPE ASM; 4/5/6 WAY
(B) 		8-98035-303-0 01 1 0609-

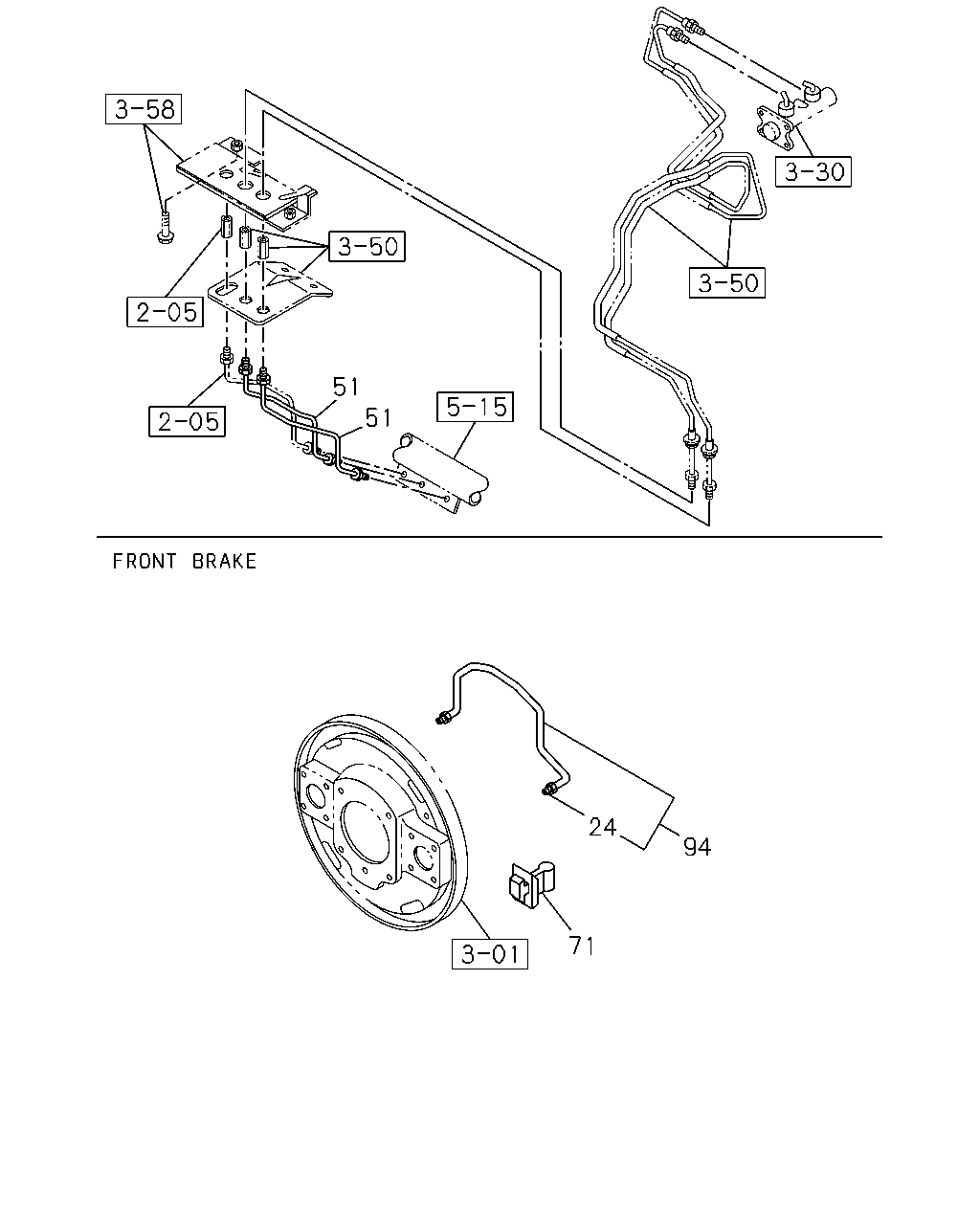

çizim 58254
51 51 24 94 71
BalonParca AdiParca NoAdetTipApplied Date
24 04.686 NUT; UNION,OIL PIPE
FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX13- 98(BYZ),FRT 6-15-8 5.5KX15-30 RR 5.5-13-8 4JX13-98(9ZX) 		0-92107-605-0 02 1 0609-0609
24 04.686 NUT; UNION,OIL PIPE 0-92107-605-0 02 1 0610-
51 04.685 PIPE; BRK 8-97035-978-0 02 1 0609-
71 04.686 GROMMET; OIL PIPE
FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX13- 98(BYZ),FRT 6-15-8 5.5KX15-30 RR 5.5-13-8 4JX13-98(9ZX) 05.002 		9-09956-640-0 02 1 0609-0609
71 04.686 GROMMET; OIL PIPE
05.002 		9-09756-034-0 02 1 0610-
94 04.685 PIPE; BRK,W/C TO W/C
FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX13- 98(BYZ),FRT 6-15-8 5.5KX15-30 RR 5.5-13-8 4JX13-98(9ZX) 		8-97081-151-0 01 1 0609-0609
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-222-0 01 1 0610-
94 04.685 PIPE; BRK,W/C TO W/C
FRT 6R-15-8 4.5KX15-30 RR 155R-13-8 4JX13- 98(BYZ),FRT 6-15-8 5.5KX15-30 RR 5.5-13-8 4JX13-98(9ZX) 		8-97081-184-0 01 1 0609-0609
94 04.685 PIPE; BRK,W/C TO W/C 8-97019-223-0 01 1 0610-
