Isuzu WW
▶
TRUCKS
▶
NHR
▶
51101 - NHR EURO4
▶
3 - Brakes, Brake System
▶
3-50 - BRAKE PIPING; OIL,MASTER CYLINDER
▶

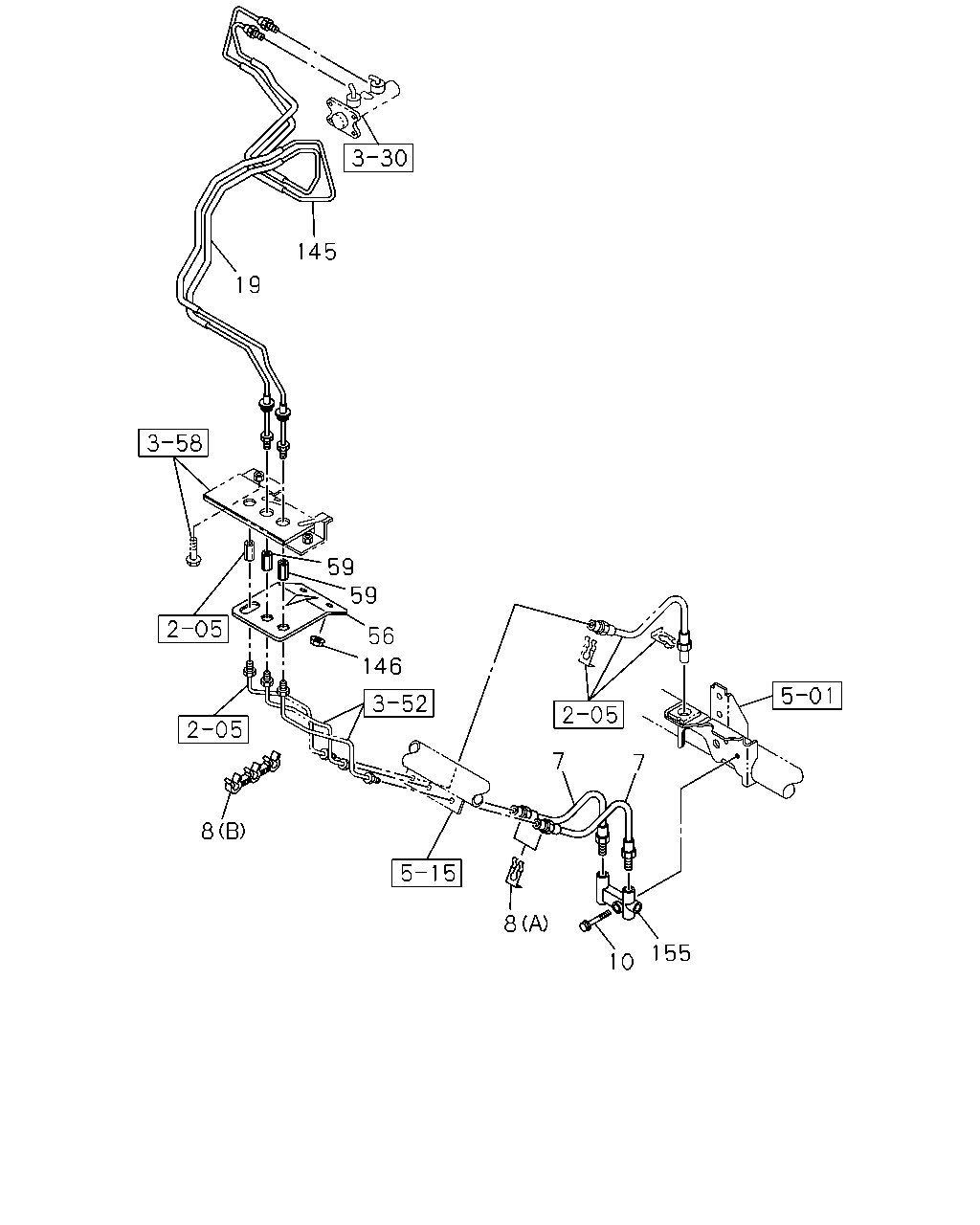

3-50 — BRAKE PIPING; OIL,MASTER CYLINDER
(#23037) — 14 parça
◀
[350A] NO.2 (1 parça)
[350A] NO.1 (13 parça)
▶
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
35
04.685 PIPE; BRK,VLV TO RR AXLE
8-97325-946-0
01
1
0609-
145
19
59
59
56
146
7
7
8
8
155
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
7
04.680 HOSE; FLEX,PIPE TO 5 WAY JOINT
8-97171-031-0
02
1
0609-
8
04.681 CLIP; FLEX HOSE,CABLE SIDE
00.785 (A)
8-94167-006-0
02
1
0609-0610
8
04.681 CLIP; FLEX HOSE,CABLE SIDE
(A)
8-97365-304-0
02
1
0611-
8
04.681 CLIP; FLEX HOSE,CABLE SIDE
04.686 (B)
8-97076-471-0
01
1
0609-
10
04.686 BOLT; JOINT
00.685 M6X40 FLANGE
0-28650-640-0
01
1
0609-
19
04.685 PIPE; BRK,M/CYL TO UNION
8-97035-977-0
01
1
0609-0609
19
04.685 PIPE; BRK,M/CYL TO UNION
8-97314-590-0
01
1
0610-
56
04.686 BRACKET; UNION,BRK
8-97078-564-1
01
1
0609-
59
04.686 UNION; BRK PIPE
M10 STRAIGHT
0-92107-005-0
02
1
0609-
145
04.685 PIPE; BRK,METERING VLV TO UNION
8-97035-976-0
01
1
0609-0609
145
04.685 PIPE; BRK,METERING VLV TO UNION
8-97314-583-0
01
1
0610-
146
04.685 NUT; BRKT
01.062 M8 FLANGE
0-91180-108-0
02
1
0609-
155
04.686 JOINT; 6WAY
8-97120-033-2
01
1
0609-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
